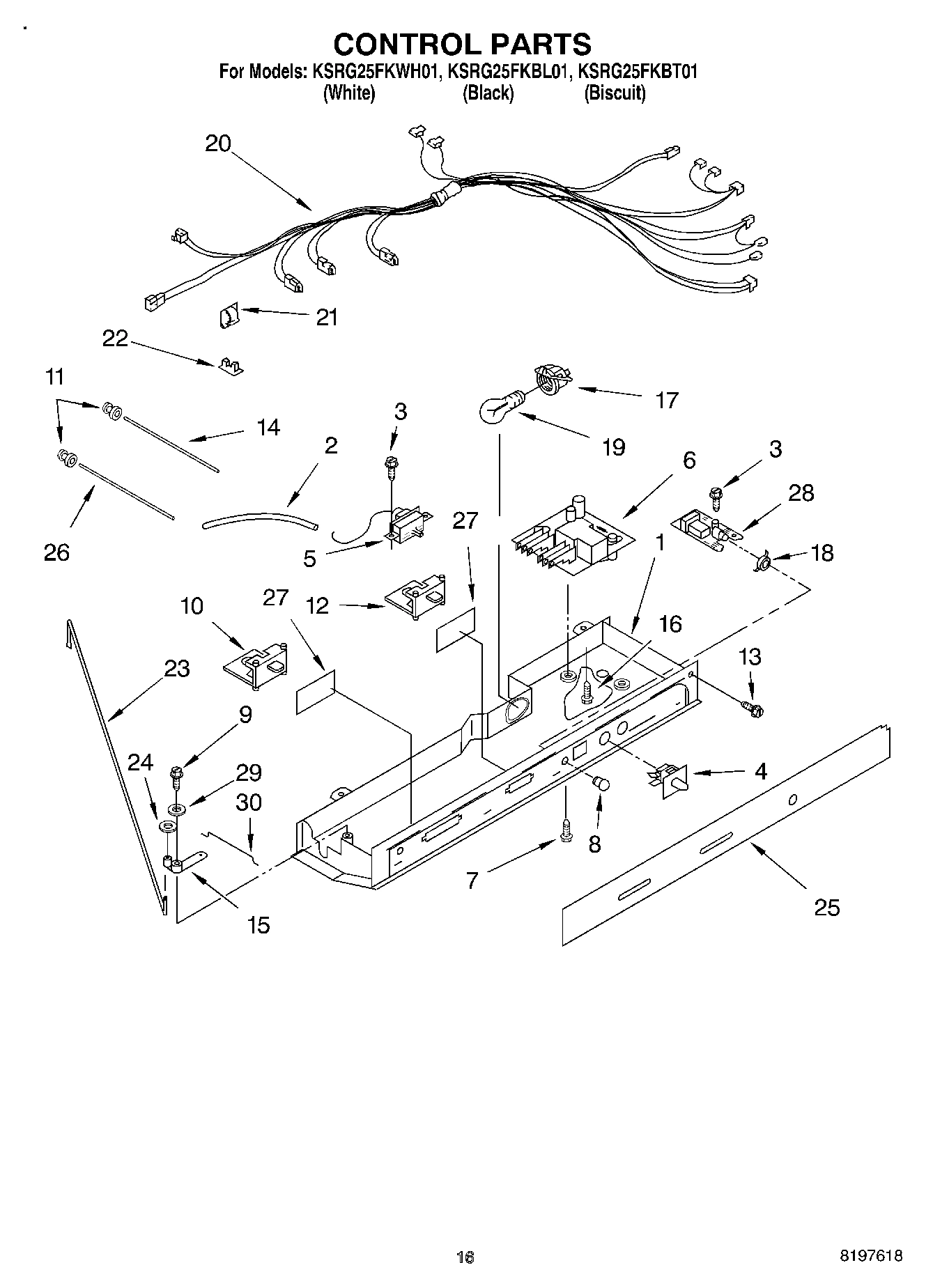

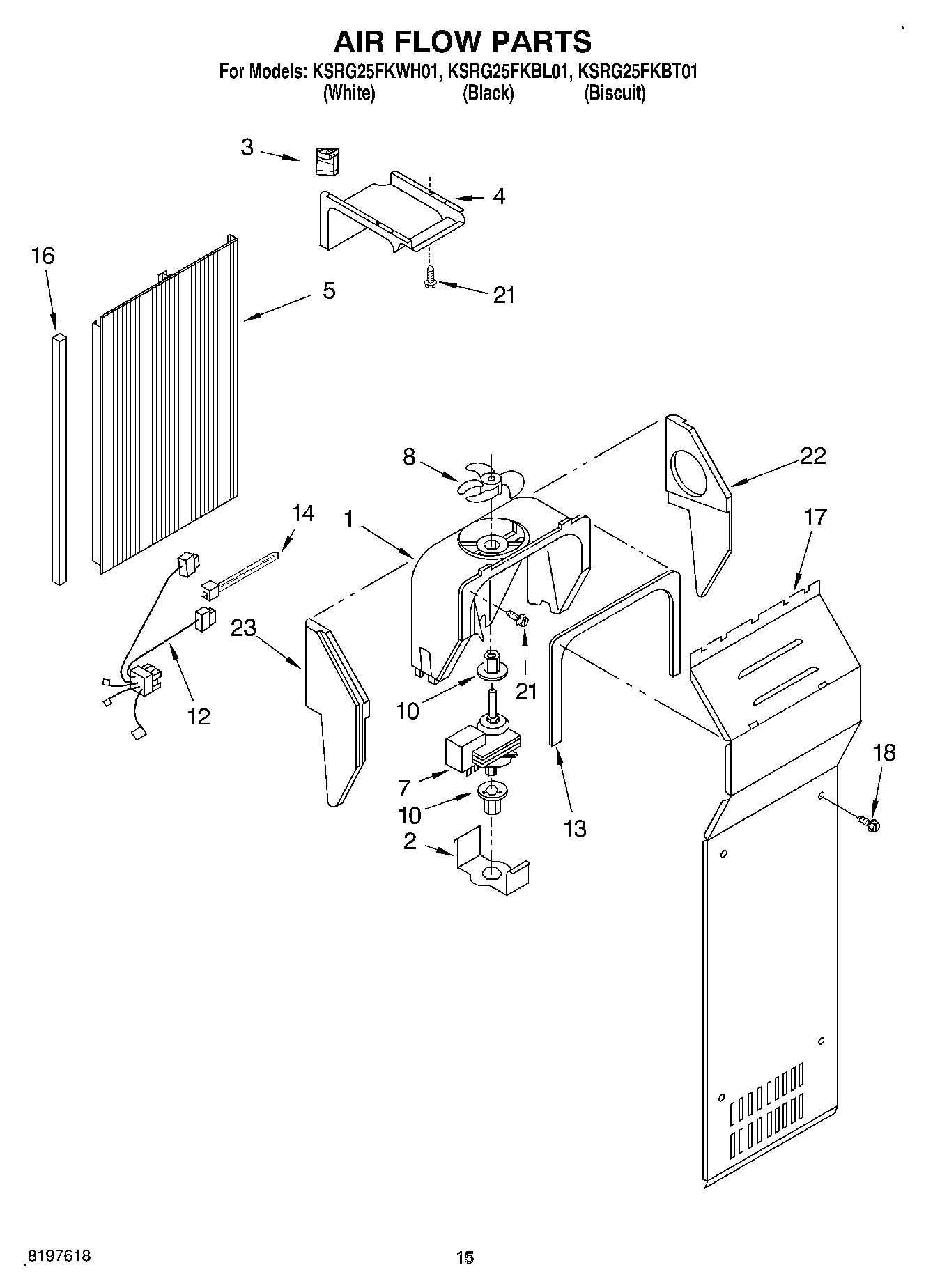

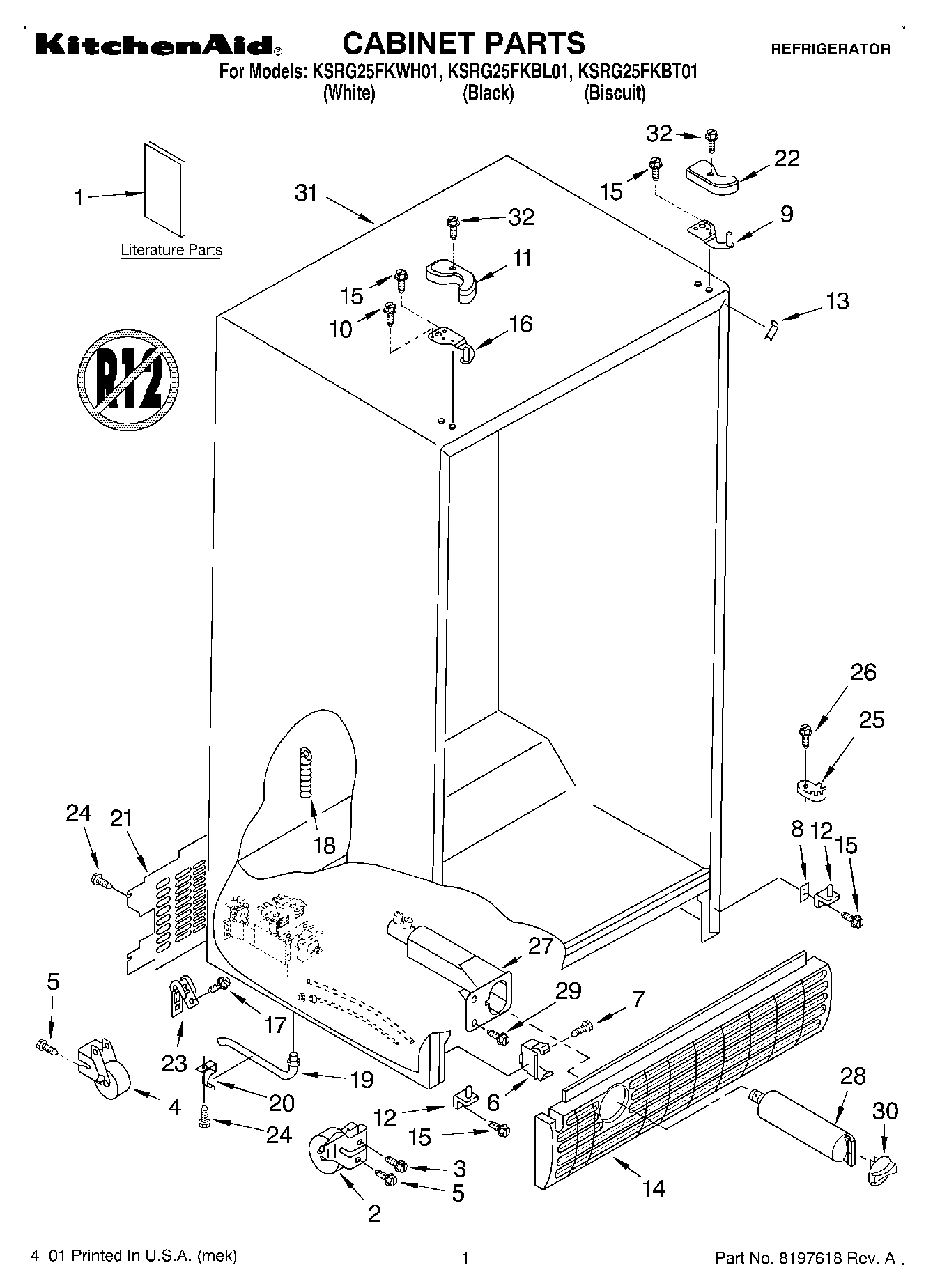

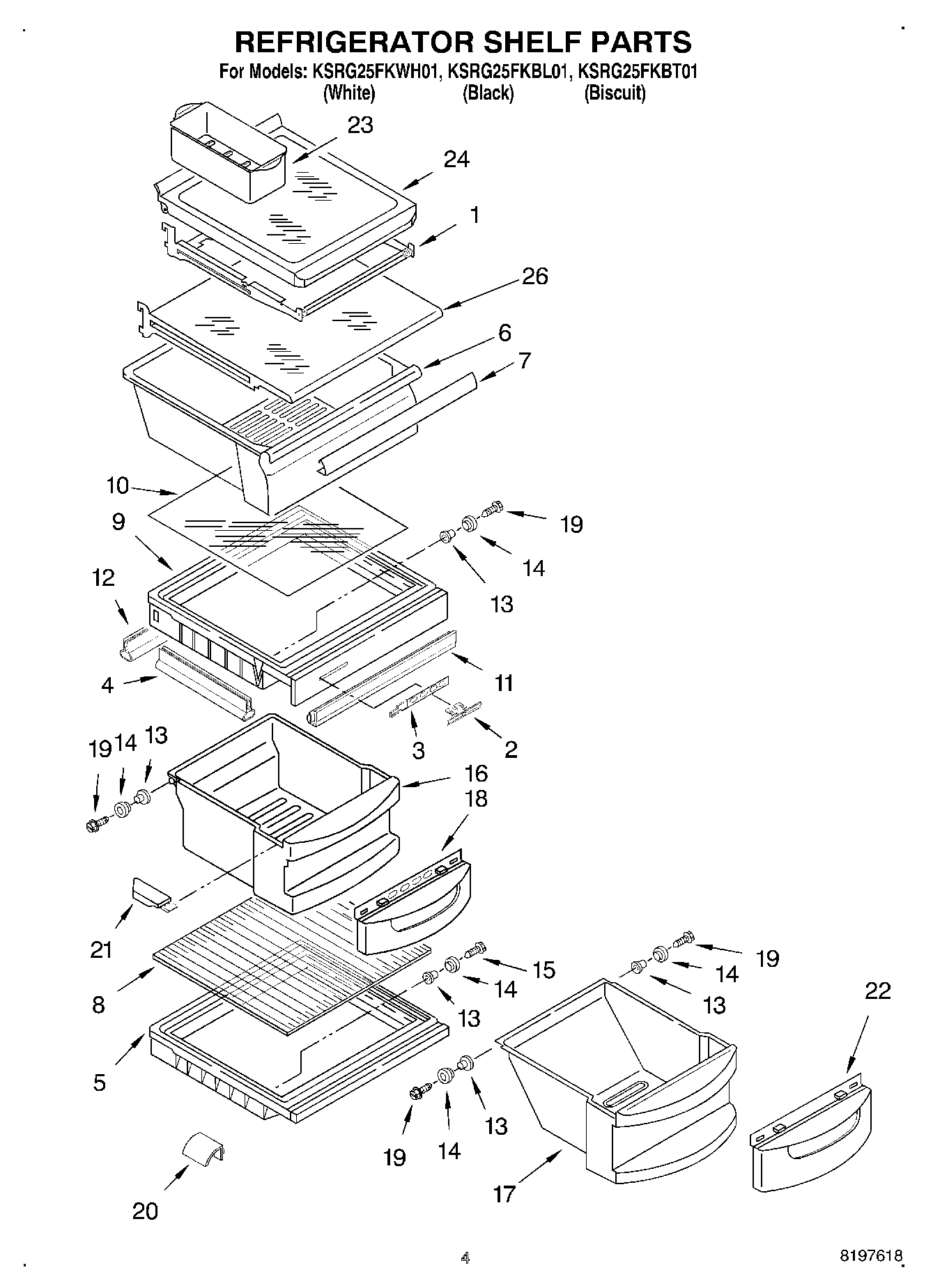

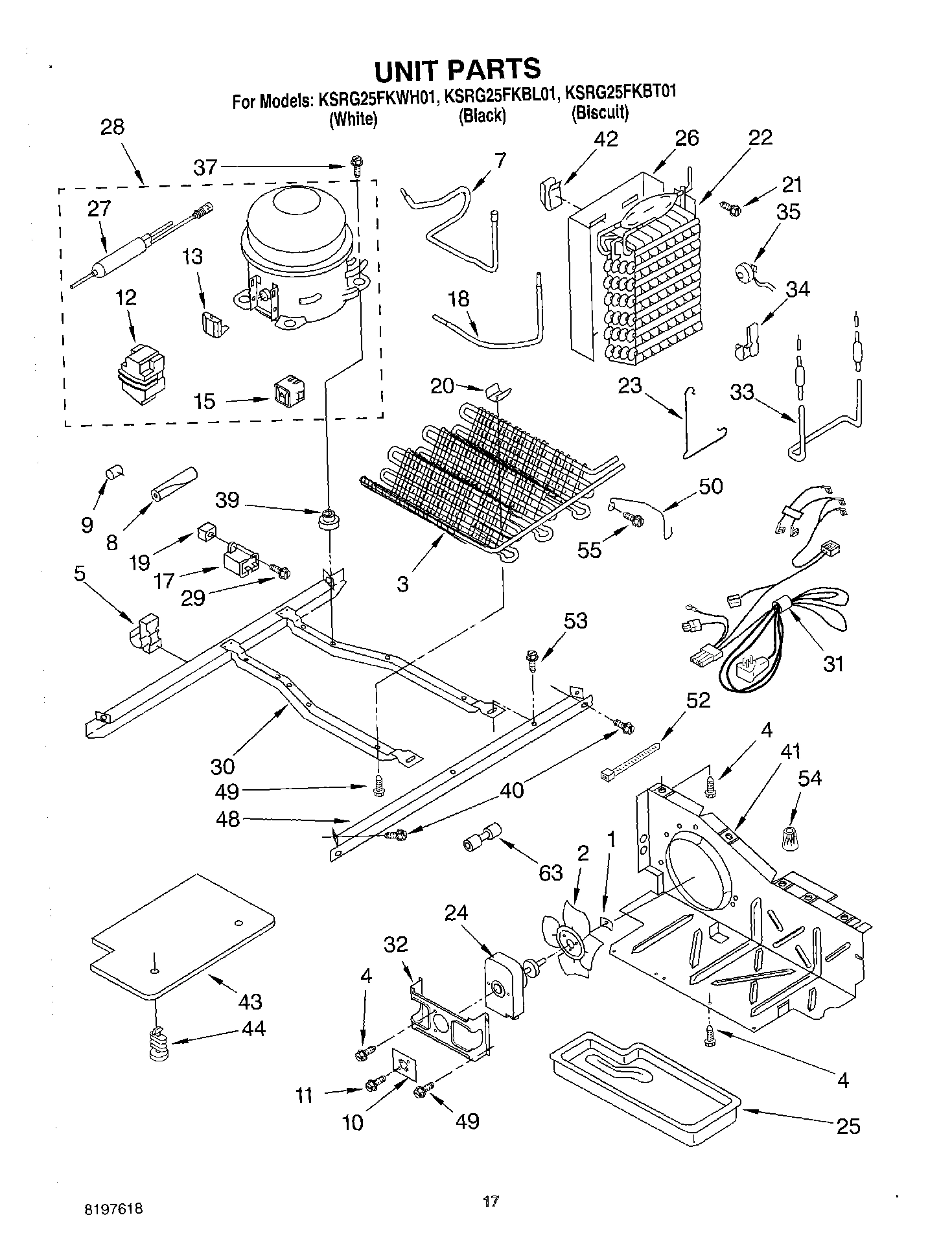

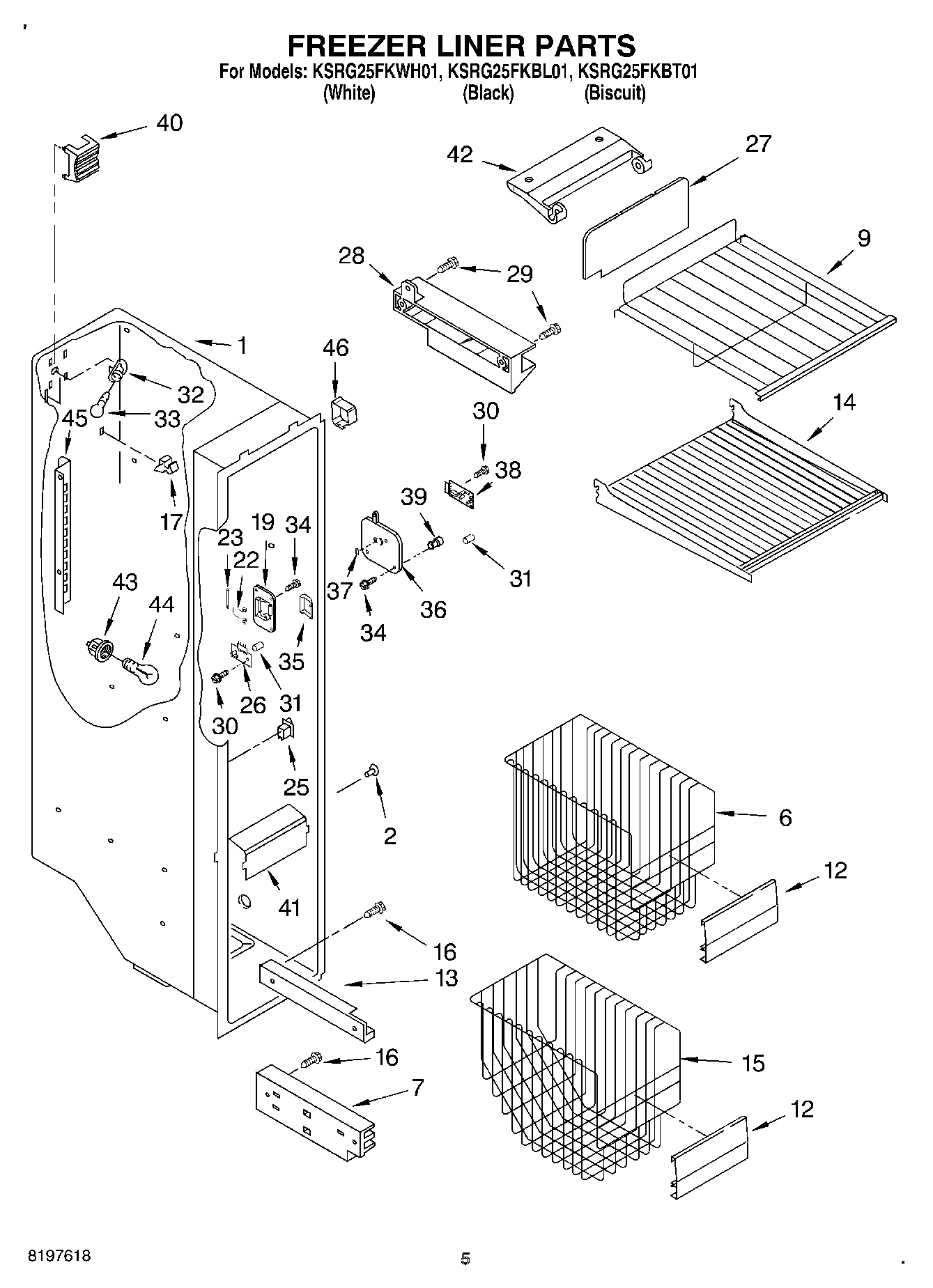

Model Whirlpool KSRG25FKBT01 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $183.99

1

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $15.57

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

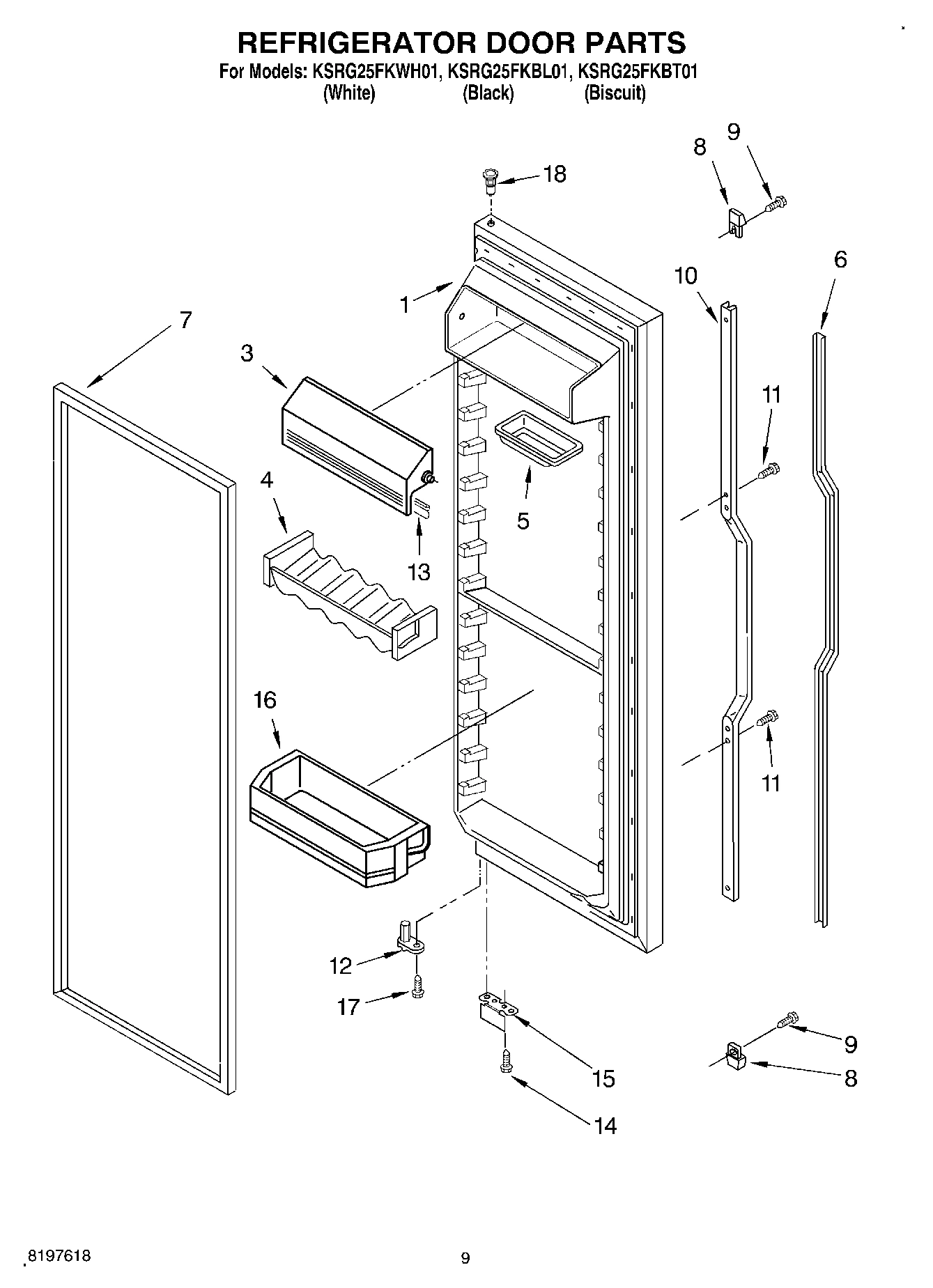

Refrigerator Door (Includes No.7) (Black) WPL 2207327B Contact Us For Availability

1

Refrigerator Door (Includes No.7) (Biscuit) WPL 2207327T Contact Us For Availability

1

Refrigerator Door (Includes No.7) (White) WPL 2207327W Contact Us For Availability

1

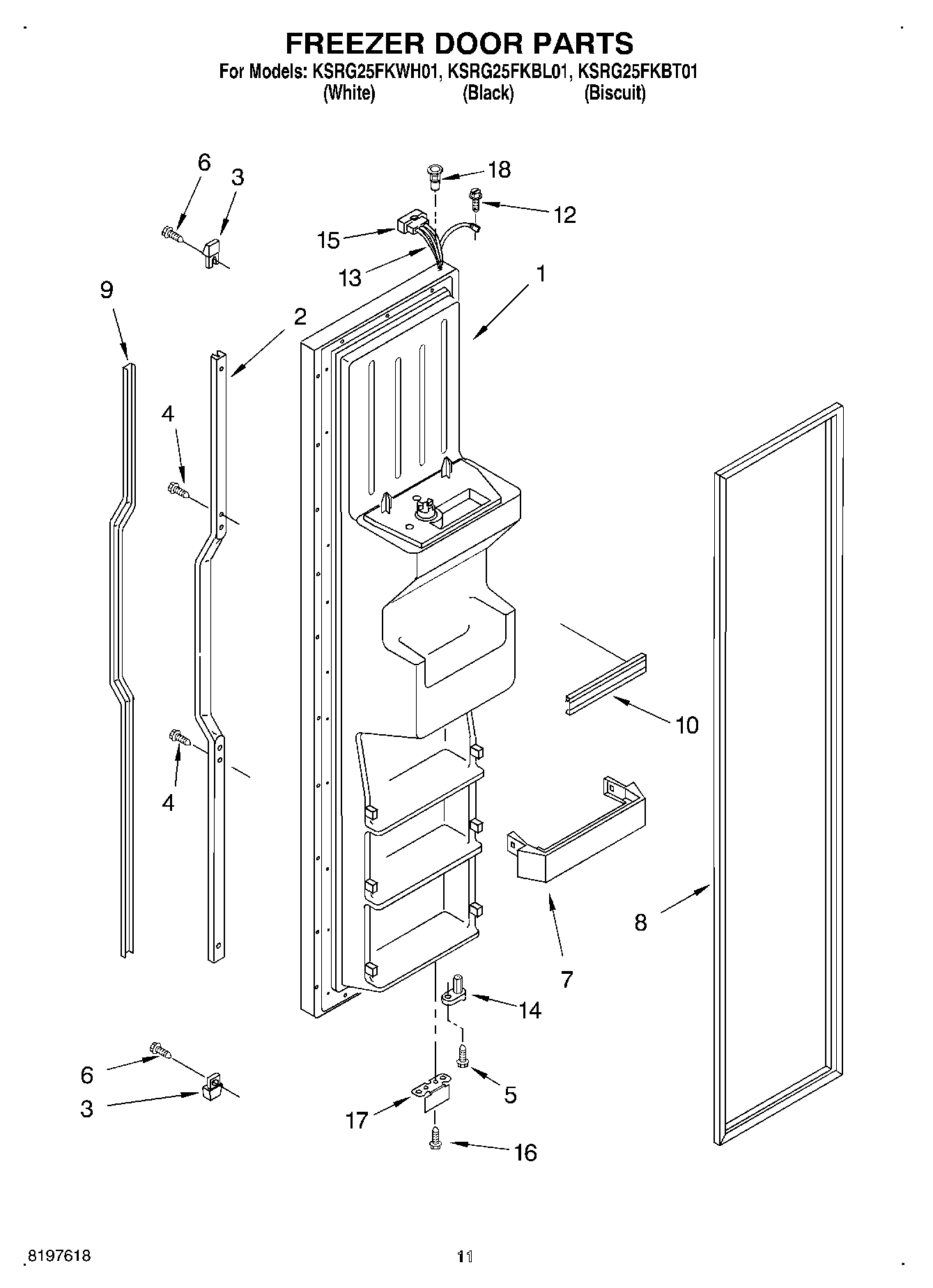

Freezer Door (Includes No.8 And Dispenser Fro WPL 2216569B Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2216569T Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2216569W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

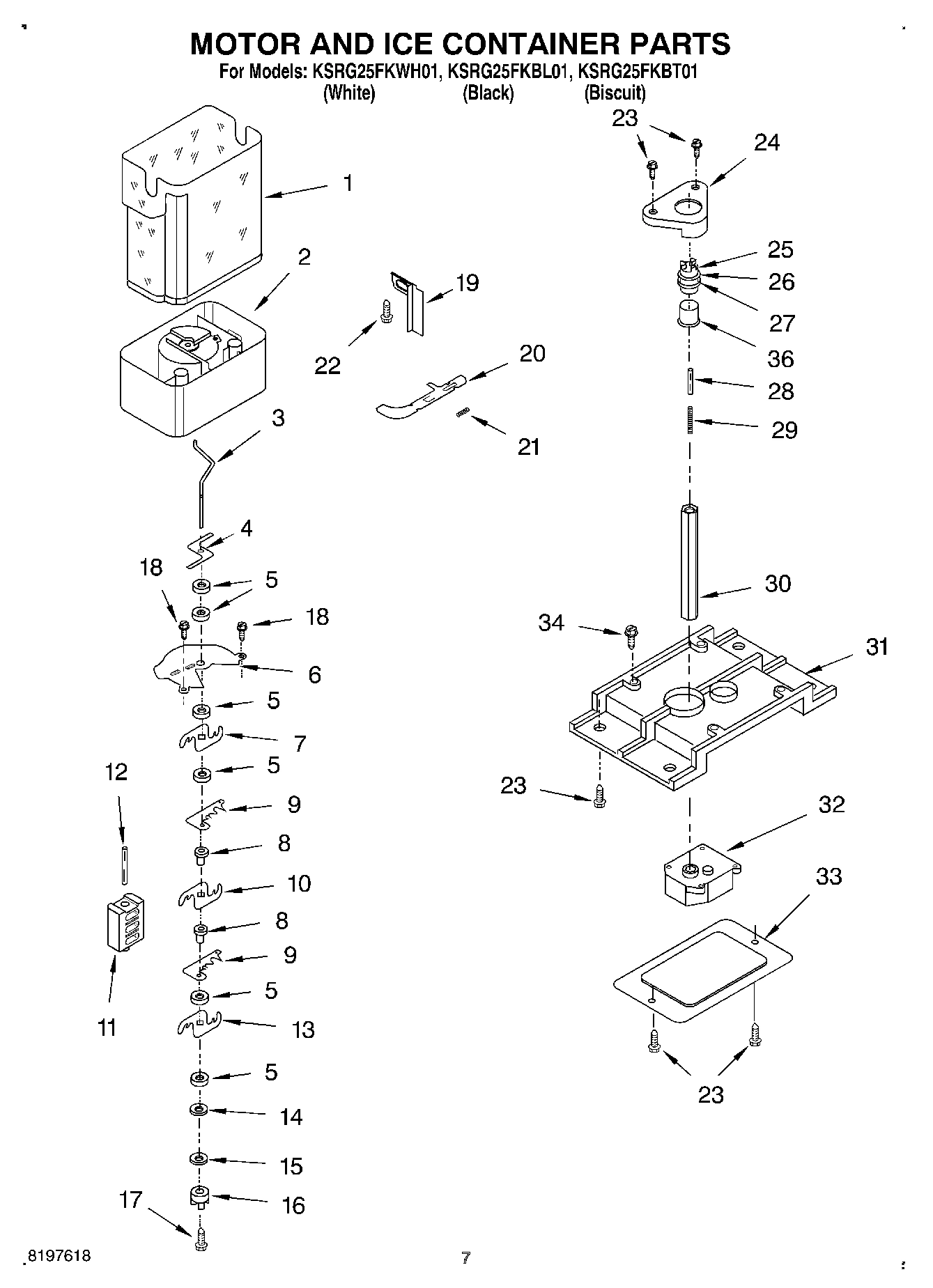

Crusher Bin WPL 2212367 Contact Us For Availability

2

Retainer, Insert (Black) WPL 2194777B Contact Us For Availability

2

Retainer, Insert (Biscuit) WPL 2194777T Contact Us For Availability

2

Retainer, Insert (White) WPL 2194777W Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2198574 Whirlpool Refrigerator Ice Auger Backorder WPL WP2198574 $110.79

3

WP2313637 Whirlpool Cutting Grid Assembly In Stock WPL WP2313637 $235.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Condenser Assembly WPL 2204484 Contact Us For Availability

3

End Cap (2) (Black) WPL 2194778B Contact Us For Availability

3

End Cap (2) (Biscuit) WPL 2194778T Contact Us For Availability

3

End Cap (2) (White) WPL 2194778W Contact Us For Availability

3

Air Scoop WPL 2198595 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Beverage Holder WPL 2193409 Contact Us For Availability

4

Blade, Stirring WPL 2198603 Contact Us For Availability

4

Air Duct, Upper WPL 2212377 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2161491 Whirlpool Crisper Drawer Cover In Stock WPL WP2161491 $142.48

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Clip, Wire & Tube WPL 2208280 Contact Us For Availability

5

Tray, Butter WPL 2165792 Contact Us For Availability

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

6

Cover, Crusher WPL 2198591 Contact Us For Availability

7

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

7

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $254.76

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.77

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

7

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

7

Shelf Bin (4) WPL 2171070 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $234.99

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $228.51

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

8

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener In Stock WPL WP2158826 $0.91

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $44.34

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $54.67

9

Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability

9

Insert, Handle (White) WPL 2173825 Contact Us For Availability

9

Insert, Handle (Black) WPL 2173829 Contact Us For Availability

9

Insert, Handle (Biscuit) WPL 2186863T Contact Us For Availability

9

Blade, Fixed WPL 2198601 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $64.64

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

Bracket, Insert WPL 2206006 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

8281160 Whirlpool Screw Backorder WPL 8281160 $5.46

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $83.53

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $57.30

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.99

Eyelet, Roller WPL 2174478 Contact Us For Availability

Wire Harness WPL 2206178 Contact Us For Availability

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Gasket WPL 2159124 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Light Bar (RC) WPL 2179920 Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $7.10

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Basket, Sloped WPL 2181764 Contact Us For Availability

Start Device, Combination (Start Relay and Ov WPL 2212194 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP2179227 Whirlpool Refrigerator Crisper Pan In Stock WPL WP2179227 $132.84

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.79

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Shelf Bin (4) WPL 2171063 Contact Us For Availability

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

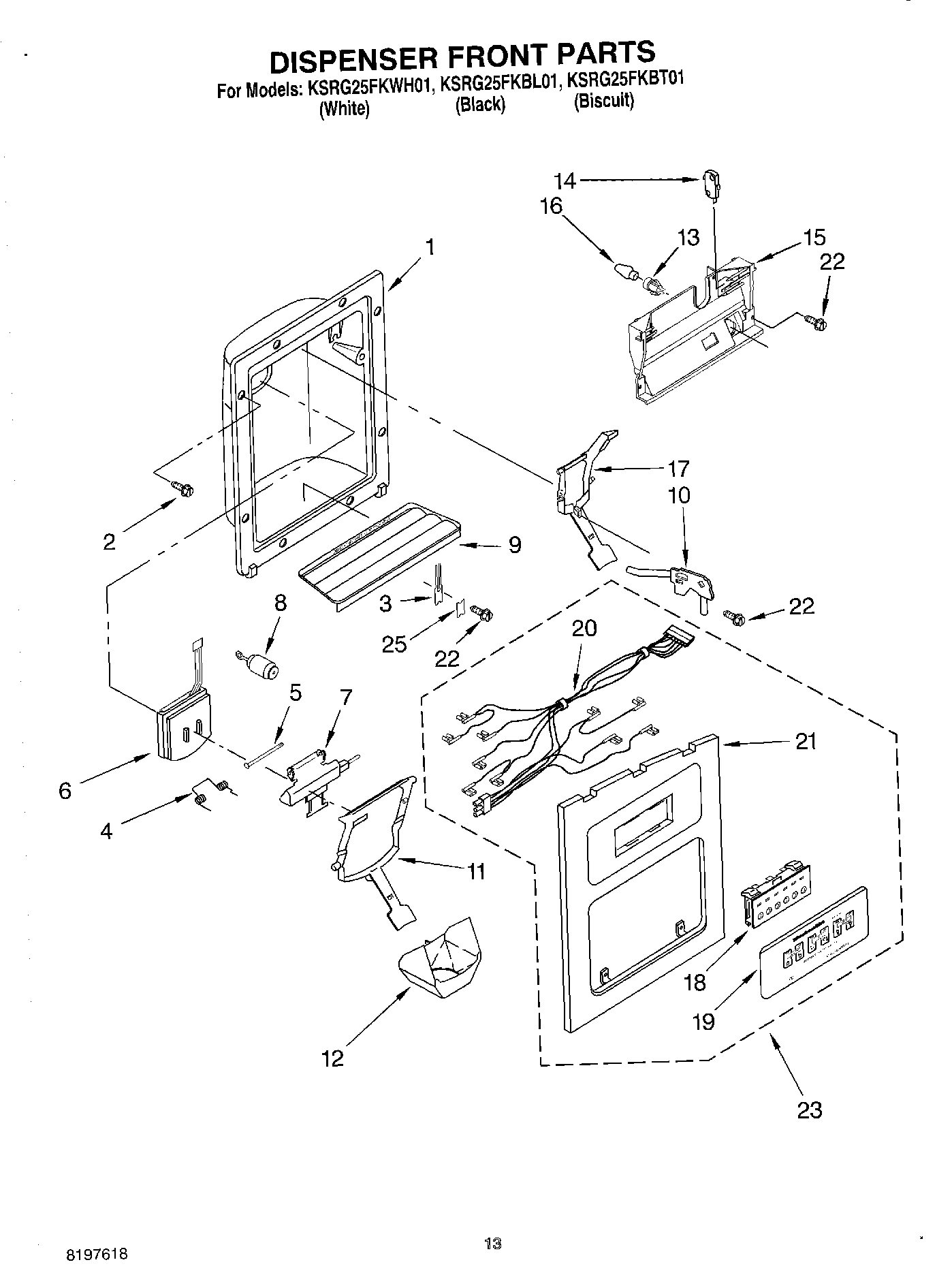

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

Cover, Evaporator WPL 2206314 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Window, Crisper WPL 2174076 Contact Us For Availability

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $16.99

Screw Grommet WPL 509812 Contact Us For Availability

20

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.26

20

Latch, Bin WPL 2212371 Contact Us For Availability

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $6.84

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

23

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

23

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

23

Clamp WPL 2161324 Contact Us For Availability

24

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $89.49

24

Holder WPL 2212369 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.67

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $263.39

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

Heat Shield WPL 2149294 Contact Us For Availability

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

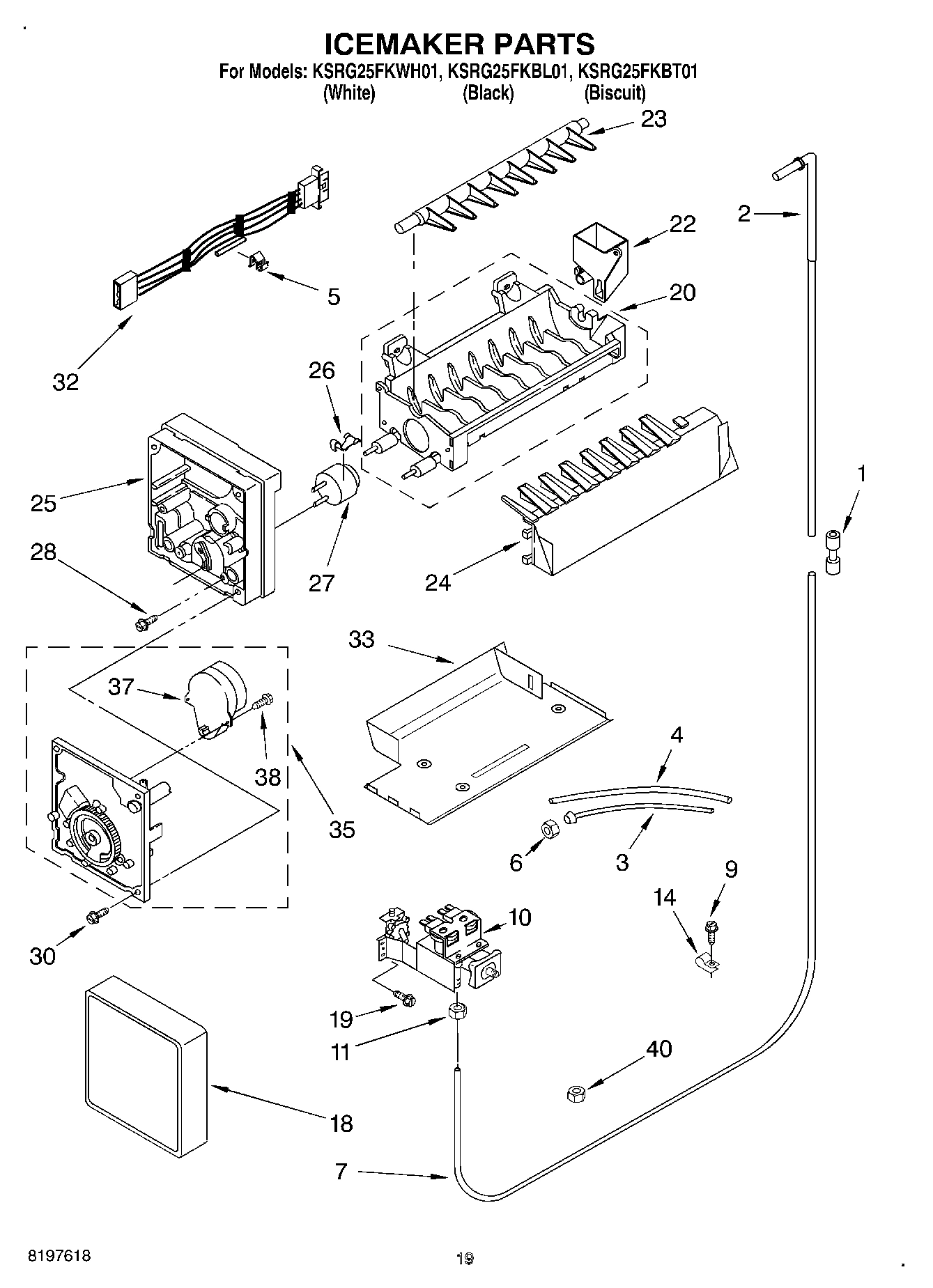

WP2255720 Whirlpool Refrigerator Ice Maker Do Backorder WPL WP2255720 $53.45

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $487.99

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

Pin WPL 2198666 Contact Us For Availability

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.63

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $184.77

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

31

Tube, P.C. Board WPL 2198665 Contact Us For Availability

31

Unit, Harness WPL 2216411 Contact Us For Availability

31

Bracket, Motor WPL 2198655 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Dispenser, Motor WPL 2198594 Contact Us For Availability

33

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $70.78

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.79

33

Cover WPL 2198626 Contact Us For Availability

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

34

Clip WPL 2161330 Contact Us For Availability

34

Screw WPL 8281162 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

36

Cover, Receiver WPL 2198588 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

37

Screw WPL 489473 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

W11661108 Whirlpool Grommet Backorder WPL W11661108 $9.12

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Light Shield WPL 2198589 Contact Us For Availability

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

41

Light Lens WPL 2211506 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

WPW10119935 Whirlpool Refrigerator Socket In Stock WPL WPW10119935 $66.40

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

44

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

45

Ladder (Left Side) WPL 2198609 Contact Us For Availability

45

Ladder (Right Side) WPL 2198610 Contact Us For Availability

46

Shield, Wiring WPL 2198639 Contact Us For Availability

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

50

Guard, Fan WPL 2186495 Contact Us For Availability

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

54

Wire Connector WPL 227991 Contact Us For Availability

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
