Model Whirlpool KSRB25FHBL01 – Common Parts & Diagrams

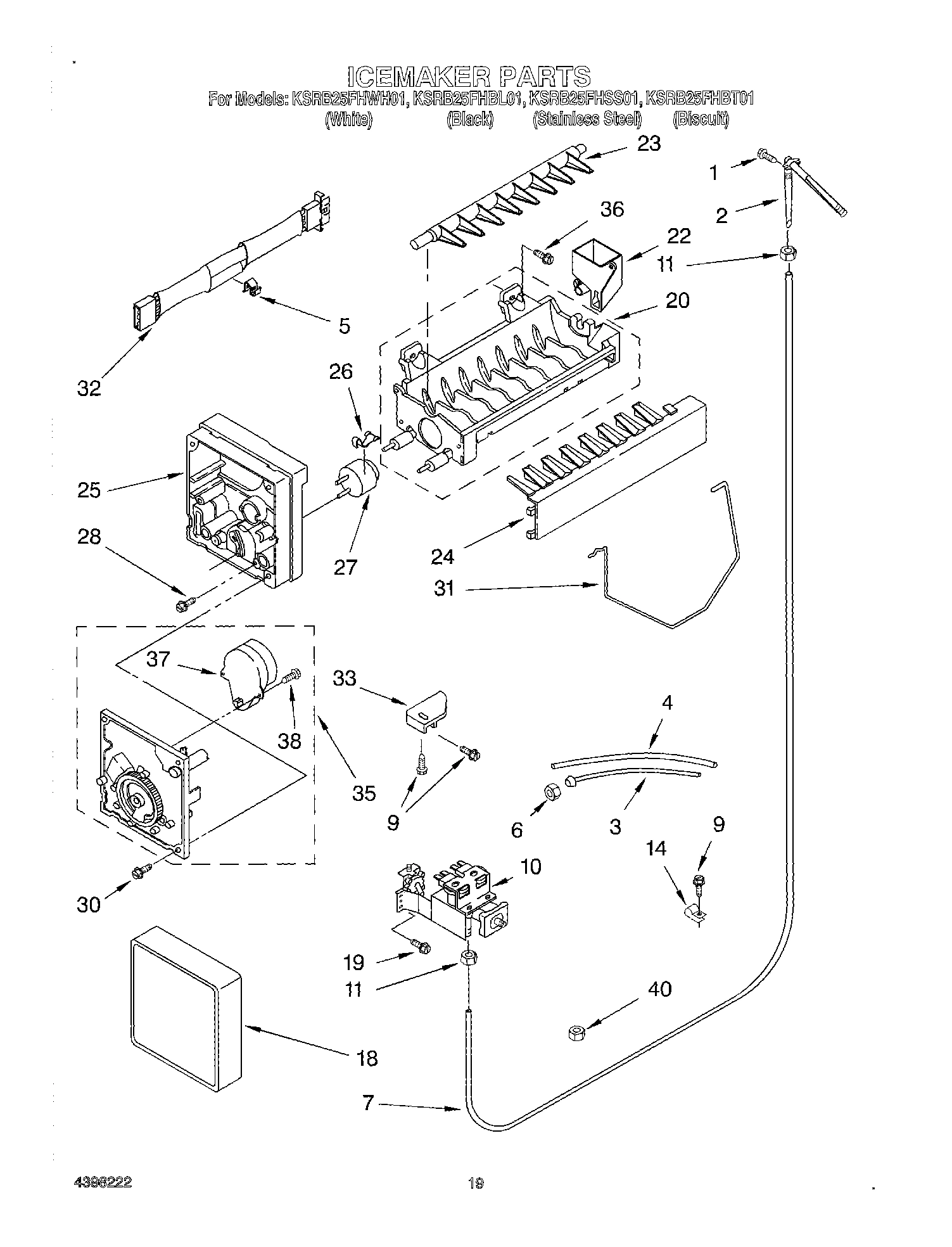

Common parts from model Whirlpool KSRB25FHBL01
 1

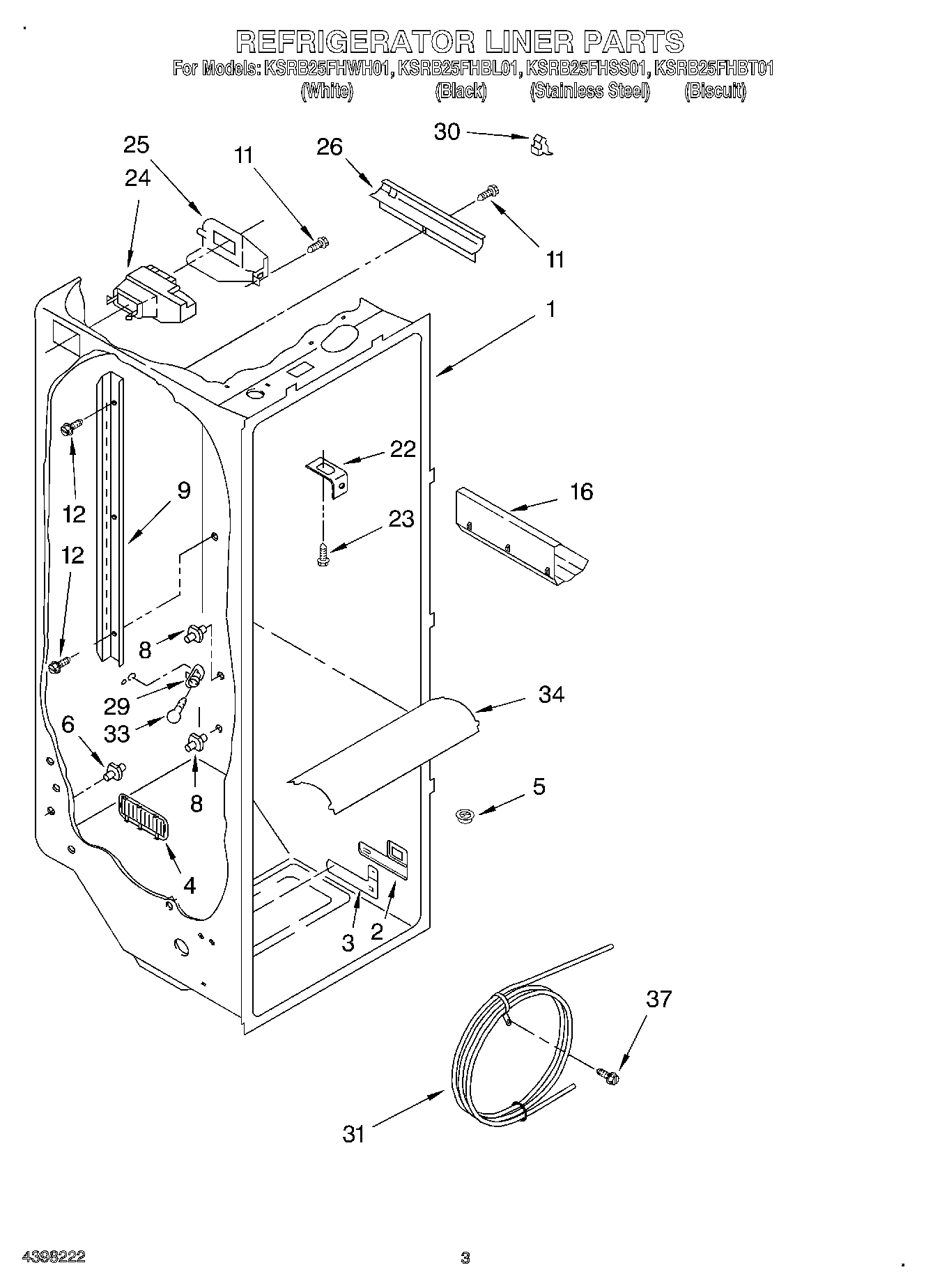

Liner (Not A Serviceable Part) WPL  ARI94541A8 Contact Us For Availability
  1


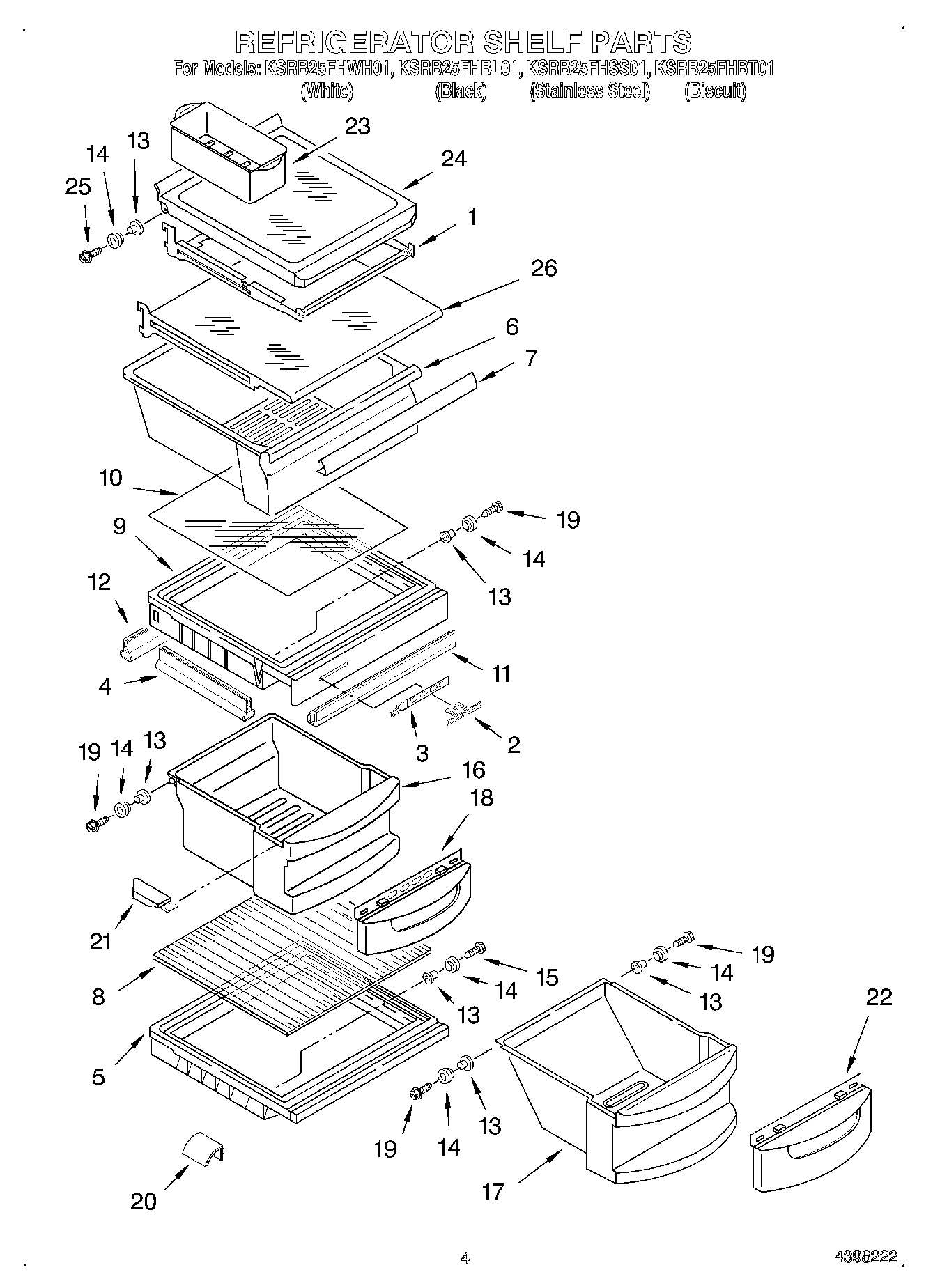

Shelf Assembly, Cantilever (3) WPL  2195978 Contact Us For Availability
  1


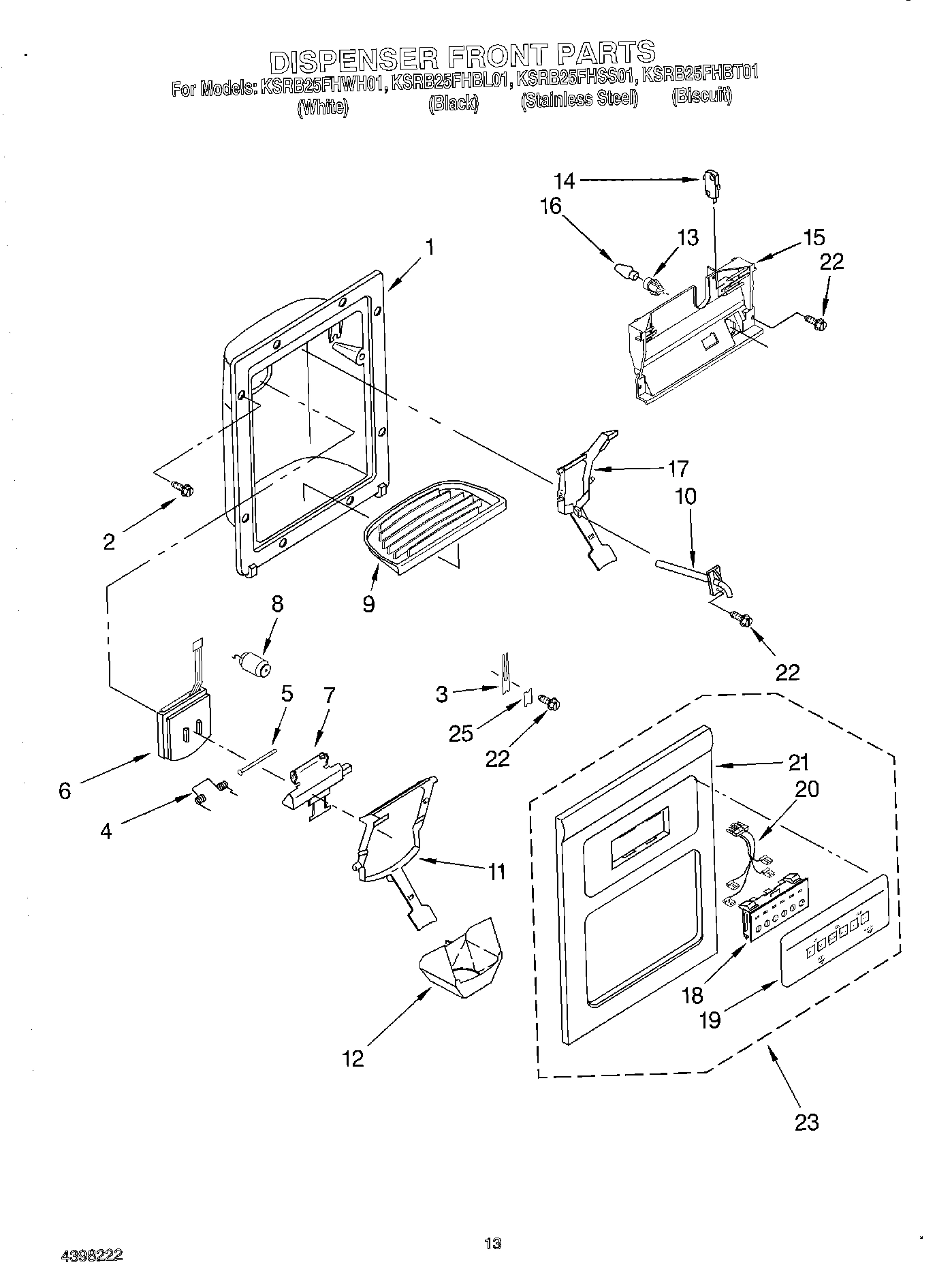

Housing, Dispenser (Not a Serviceable Part) WPL  ARI94543A4 Contact Us For Availability
  1


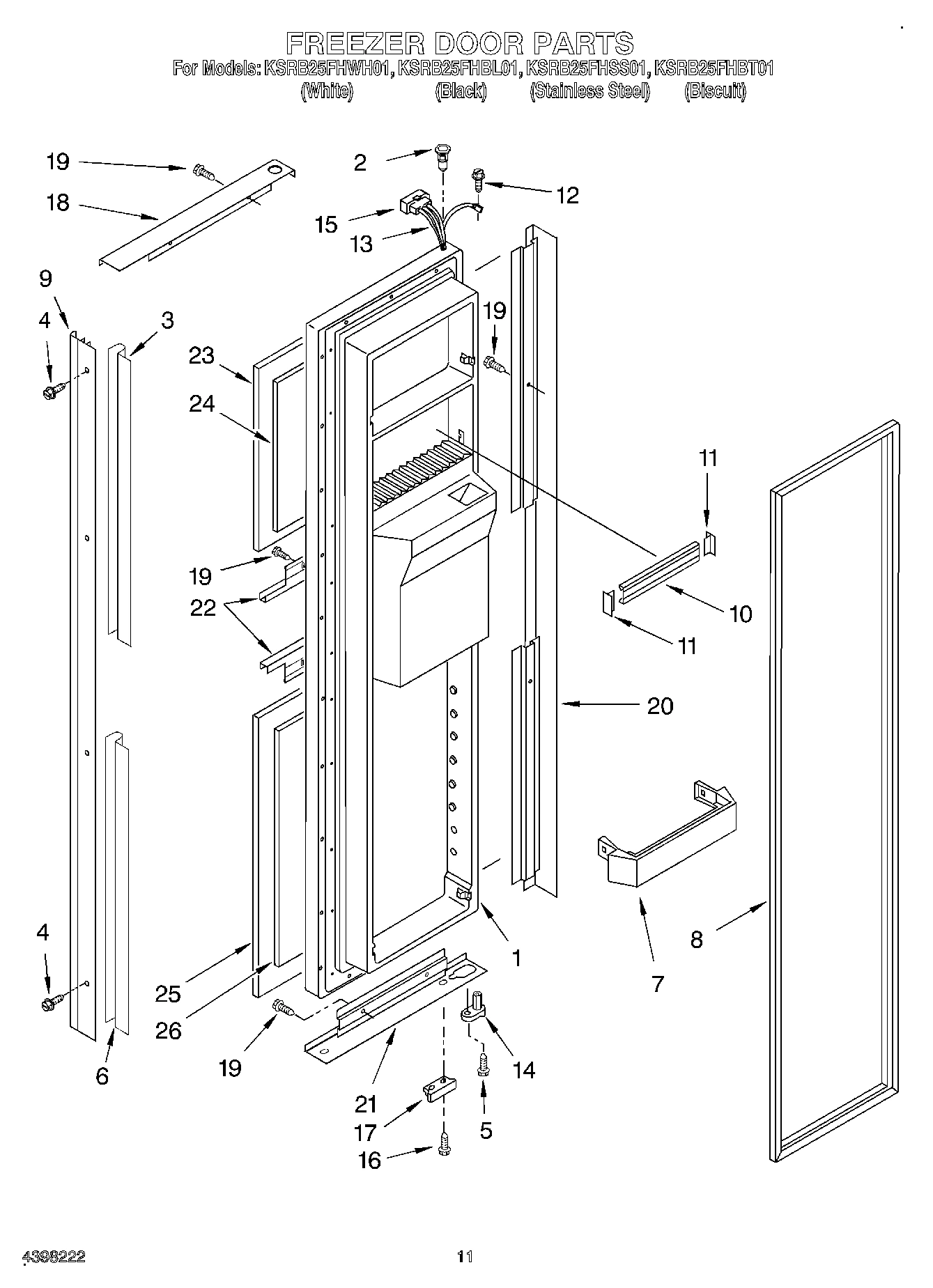

Freezer Door (Includes No.8 And Dispenser Fro WPL  2203347B Contact Us For Availability
  1


Freezer Door (Includes No.8 And Dispenser Fro WPL  2203347S Contact Us For Availability
  1


Freezer Door (Includes No.8 And Dispenser Fro WPL  2203347T Contact Us For Availability
  1


Freezer Door (Includes No.8 And Dispenser Fro WPL  2203347W Contact Us For Availability
  2


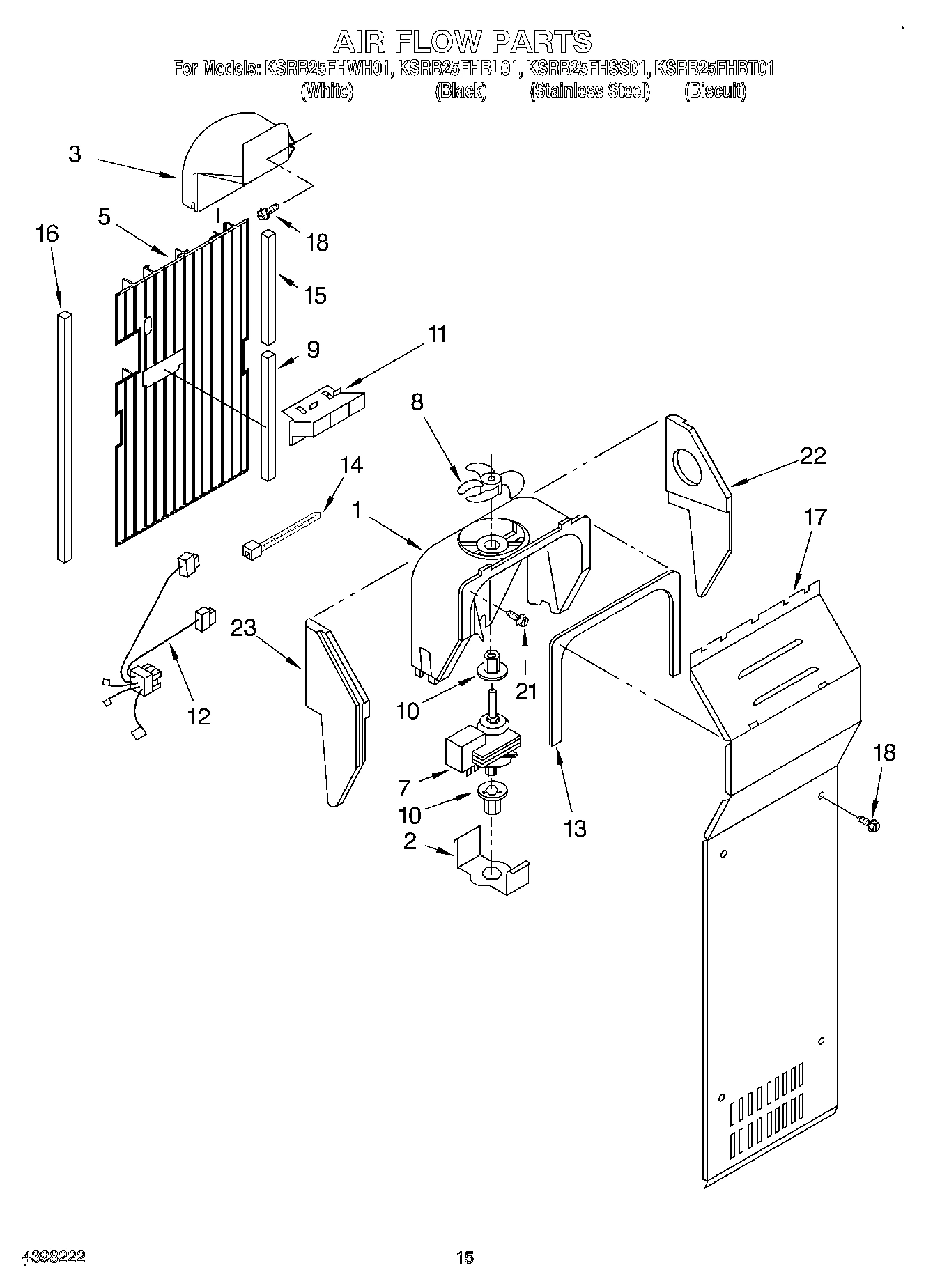

Blade, Fan WPL  2190685 Contact Us For Availability
  2


RETAINER, FAN MOTOR WPL  2155590 Contact Us For Availability
  2


Button, Humidity WPL  2174253 Contact Us For Availability
  3


SLIDE MEAT PAN CONTROL WPL  2182757 Contact Us For Availability
  3


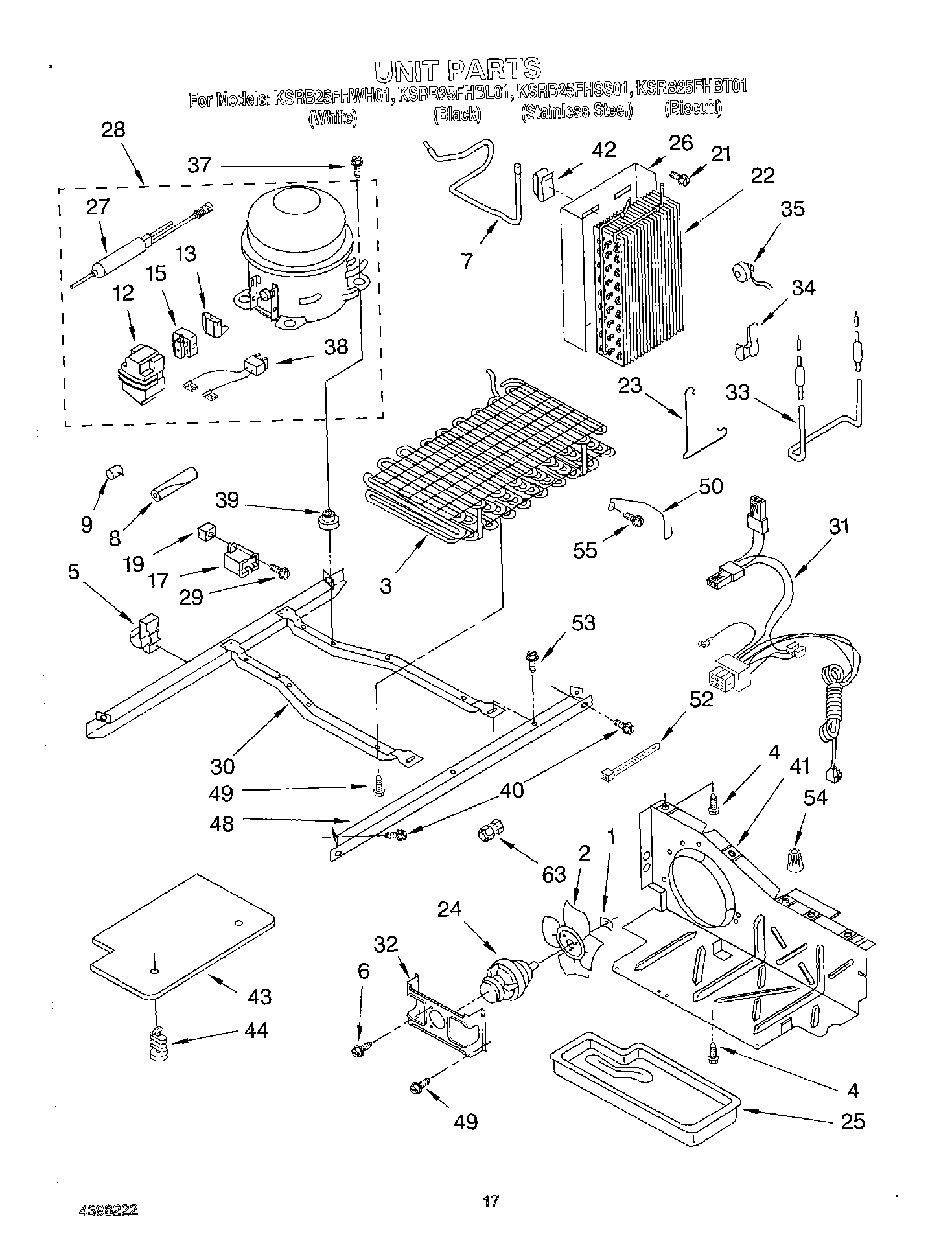

Condenser Assembly WPL  2204242B Contact Us For Availability
  3


Edging, Top (Black) WPL  2204372B Contact Us For Availability
  3


Edging, Top (Biscuit) WPL  2204372T Contact Us For Availability
  3


Edging, Top (White) WPL  2204372W Contact Us For Availability
  3


Air Scoop WPL  2161231 Contact Us For Availability
  4


Louver WPL  2182147 Contact Us For Availability
  4


Gasket, Side (2) WPL  2174273 Contact Us For Availability
  5


Clip, Wire & Tube WPL  2208280 Contact Us For Availability
  5


Air Duct Freezer WPL  2203593 Contact Us For Availability
  6


Door, Ice WPL  2180205 Contact Us For Availability
  6


Edging, Bottom (Black) WPL  2204375B Contact Us For Availability
  6


Edging, Bottom (Biscuit) WPL  2204375T Contact Us For Availability
  6


Edging, Bottom (White) WPL  2204375W Contact Us For Availability
  7

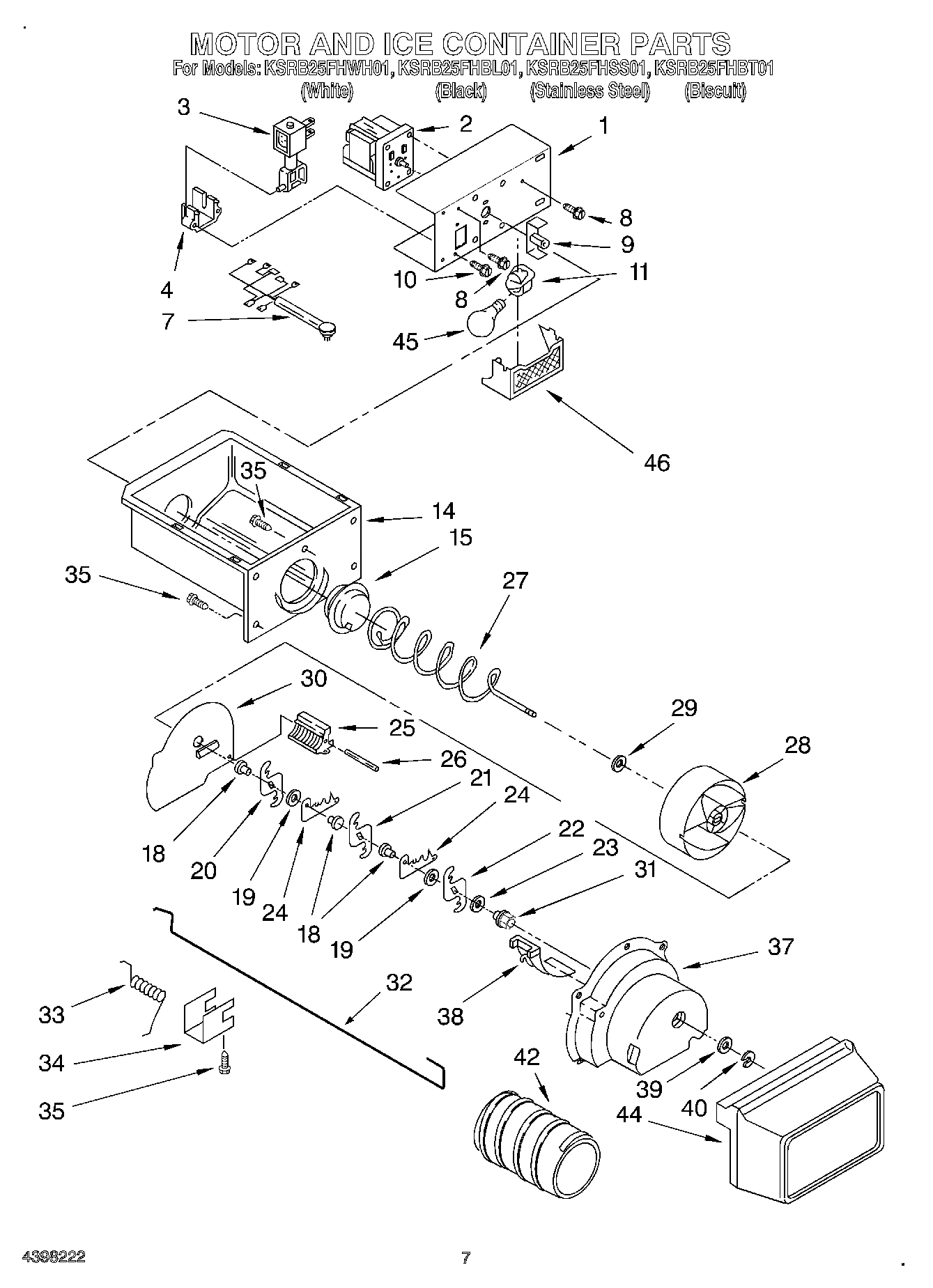

Door Mechanism Assembly WPL  2180208 Contact Us For Availability
  7


Shelf Bin (4) WPL  2171070 Contact Us For Availability
  8


Glass, Cover WPL  2189526 Contact Us For Availability
  8


Delay Mechanism WPL  2180223 Contact Us For Availability
  9


Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL  2174250 Contact Us For Availability
  9


Grommet (2) WPL  2176134 Contact Us For Availability
  9


Grille, Overflow (White) WPL  2180323 Contact Us For Availability
  9


Screw (Black) WPL  3400899 Contact Us For Availability
  9


Ladder, Shelf (2) WPL  2181796 Contact Us For Availability
  9


Grille, Overflow (Biscuit) WPL  2186860 Contact Us For Availability
  9


Handle (Black) WPL  2203813B Contact Us For Availability
  9


Handle (Biscuit) WPL  2203813T Contact Us For Availability
  9


Handle (White) WPL  2203813W Contact Us For Availability
  9


Handle (Stainless Steel) WPL  2203819S Contact Us For Availability
  10


Glass, Cover WPL  2174148 Contact Us For Availability
  11


Lever, Ice Dispenser (White (White Shadow Pad WPL  2180259 Contact Us For Availability
  11


Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL  2180261 Contact Us For Availability
  11


Lever, Ice Dispenser (Biscuit (Almond Shadow  WPL  2186850 Contact Us For Availability
  12


Gasket, (Rear) WPL  2174274 Contact Us For Availability
  12


Harness, Fan Evaporator, And Heater, Bi-Metal WPL  2186800 Contact Us For Availability
  13


Eyelet, Roller WPL  2174478 Contact Us For Availability
  13


Filler, Wrapper (White) WPL  2196094 Contact Us For Availability
  13


Wire Harness WPL  2180229 Contact Us For Availability
  14


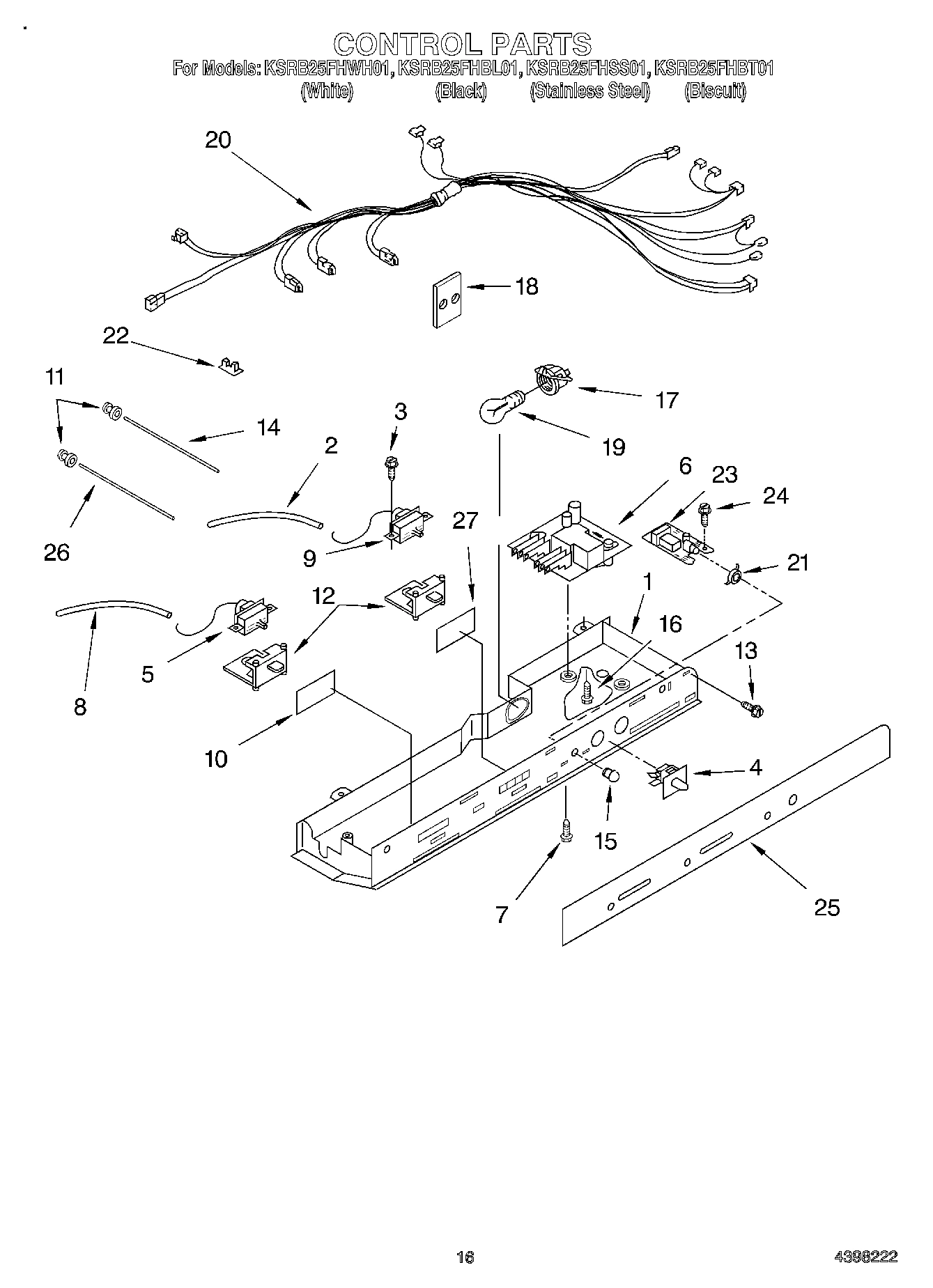

Light Bar (RC) WPL  2179920 Contact Us For Availability
  14


Grille (Biscuit) WPL  2198468T Contact Us For Availability
  14


Roller WPL  2188212 Contact Us For Availability
  15


Bracket, Door Stop (Black) WPL  2195950 Contact Us For Availability
  15


COVER, LIGHT LENS WPL  2200096 Contact Us For Availability
  15


Relay (Production) (Service, see  Overload) WPL  2183454 Contact Us For Availability
  17


Capacitor (Production) WPL  2169137 Contact Us For Availability
  17


Meat Pan (Includes 13, 14, 19, & 22) WPL  2179231 Contact Us For Availability
  17


Bracket, Door Stop (Chrome) WPL  2195952 Contact Us For Availability
  17


Cover, Evaporator WPL  2203841 Contact Us For Availability
  18


Window, Crisper WPL  2174076 Contact Us For Availability
  18


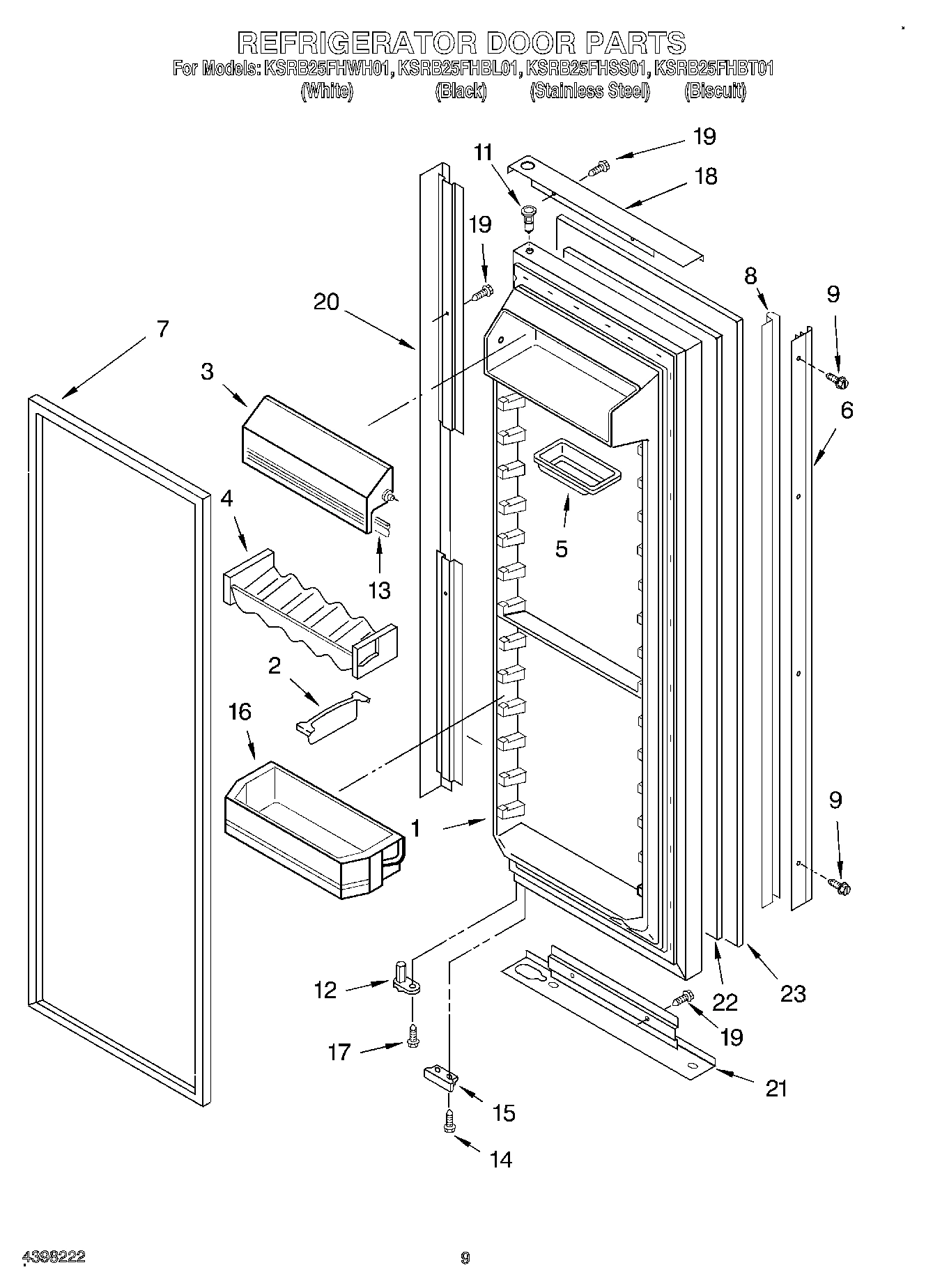

Trim, Door (Top) (Black) WPL  2203372B Contact Us For Availability
  18


Trim, Door (Top) (Biscuit) WPL  2203372T Contact Us For Availability
  18


Trim, Door (Top) (White) WPL  2203372W Contact Us For Availability
  18


Trim, Door (Top) (Stainless Steel) WPL  2203373S Contact Us For Availability
  19


Screw Grommet WPL  509812 Contact Us For Availability
  19


Overlay, Front Cover (Black) WPL  2186718B Contact Us For Availability
  19


Overlay, Front Cover (Biscuit) WPL  2186718T Contact Us For Availability
  19


Overlay, Front Cover (White) WPL  2186718W Contact Us For Availability
  20


Trim, Door (Hinge Side) (Black) WPL  2186688B Contact Us For Availability
  20


Trim, Door (Hinge Side) (Biscuit) WPL  2186688T Contact Us For Availability
  20


Trim, Door (Hinge Side) (White) WPL  2186688W Contact Us For Availability
  20


Trim, Door (Hinge Side) (Stainless Steel) WPL  2186765S Contact Us For Availability
  21


Cap, Crisper Pan (Left Side) WPL  2174258 Contact Us For Availability
  21


Cap, Crisper Pan (Right Side) WPL  2174259 Contact Us For Availability
  21


Front Cover, Housing (Not Available, Order No WPL  ARI94544A9 Contact Us For Availability
  21


Trim, Door (Bottom) (Black) WPL  2203366B Contact Us For Availability
  21


Trim, Do WPL  2203366T Contact Us For Availability
  21


WPL  2203366W WPL  2203366W Contact Us For Availability
  21


WPL  2203367S WPL  2203367S Contact Us For Availability
  22


Hinge Cover (Black) WPL  2155938 Contact Us For Availability
  22


Window, Meat Pan WPL  2174362 Contact Us For Availability
  22


WPL  2186702B WPL  2186702B Contact Us For Availability
  22


WPL  2186702T WPL  2186702T Contact Us For Availability
  22


WPL  2186702W WPL  2186702W Contact Us For Availability
  22


WPL  2186778S WPL  2186778S Contact Us For Availability
  23


Clamp WPL  2161324 Contact Us For Availability
  23


Front Cover Assembly (Includes Items 18, 19,  WPL  2186714B Contact Us For Availability
  23


Front Cover Assembly (Includes Items 18, 19,  WPL  2186714T Contact Us For Availability
  23


Front Cover Assembly (Includes Items 18, 19,  WPL  2186714W Contact Us For Availability
  23


WPL  2203284B WPL  2203284B Contact Us For Availability
  23


WPL  2203284T WPL  2203284T Contact Us For Availability
  23


WPL  2203284W WPL  2203284W Contact Us For Availability
  23


WPL  2203290S WPL  2203290S Contact Us For Availability
  24


Shelf & Roller Assembly WPL  2174021 Contact Us For Availability
  24


WPL  2208277 WPL  2208277 Contact Us For Availability
  25


Tray, Evaporator WPL  1110674 Contact Us For Availability
  25


Screw WPL  489439 Contact Us For Availability
  25


WPL  2203286B WPL  2203286B Contact Us For Availability
  25


WPL  2203286T WPL  2203286T Contact Us For Availability
  25


WPL  2203286W WPL  2203286W Contact Us For Availability
  25


WPL  2203292S WPL  2203292S Contact Us For Availability
  26


Heat Shield WPL  2149294 Contact Us For Availability
  26


Shelf, Snack Bin WPL  2208298 Contact Us For Availability
  26


WPL  2208278 WPL  2208278 Contact Us For Availability
  31


Unit, Harness WPL  2209623 Contact Us For Availability
  34


Light Lens WPL  2203266 Contact Us For Availability
  34


Clip WPL  2161330 Contact Us For Availability
  37


Screw WPL  489387 Contact Us For Availability
  37


Screw WPL  488280 Contact Us For Availability
  40


Nut, Compression WPL  1129179 Contact Us For Availability
  42


Clip, Heat Shield WPL  2155547 Contact Us For Availability
  43


Unit Cover, Bottom WPL  2182058 Contact Us For Availability
  49


Screw WPL  488624 Contact Us For Availability
  50


Guard, Fan WPL  2186495 Contact Us For Availability
  54


Wire Connector WPL  227991 Contact Us For Availability
  63


VALVE, ACCESS (5/8``) WPL  978029 Contact Us For Availability
  63


VALVE, ACCESS (1/2``) WPL  978028 Contact Us For Availability
  100


WPL  876029 WPL  876029 Contact Us For Availability
  100


TAPE, VINYL (3/4 X 108``) WPL  479502 Contact Us For Availability
  100


WPL  799344 WPL  799344 Contact Us For Availability
  100


Torx Key WPL  1117510 Contact Us For Availability
  100


PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL  4392900 Contact Us For Availability
  100


CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL  542639 Contact Us For Availability
  100


WPL  799340 WPL  799340 Contact Us For Availability
  100


WPL  799833 WPL  799833 Contact Us For Availability
  100


WPL  978883 WPL  978883 Contact Us For Availability
 × ![]()
