Model Whirlpool KSRB22QDBL00 REFRIGERATOR – Common Parts & Diagrams

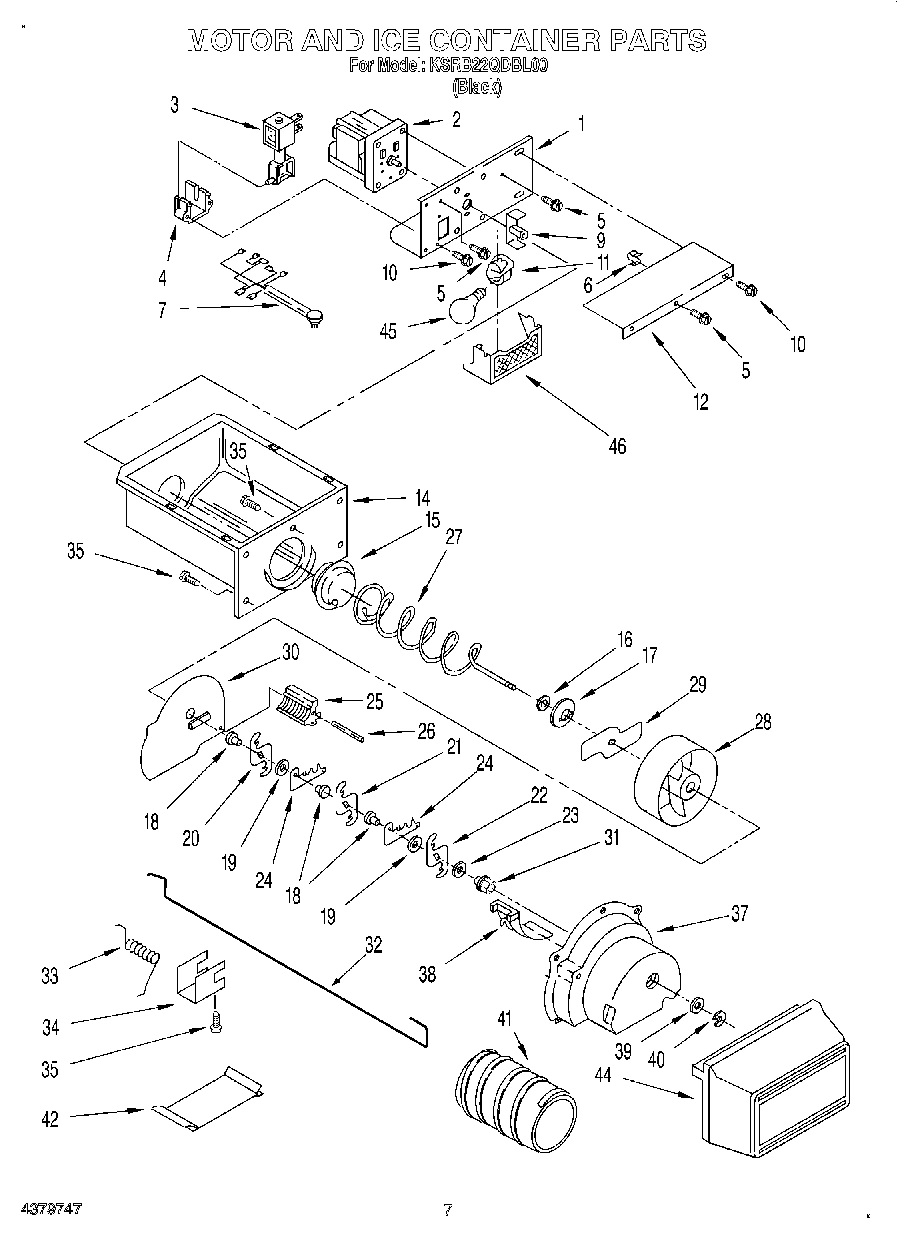

05 - MOTOR AND ICE CONTAINER

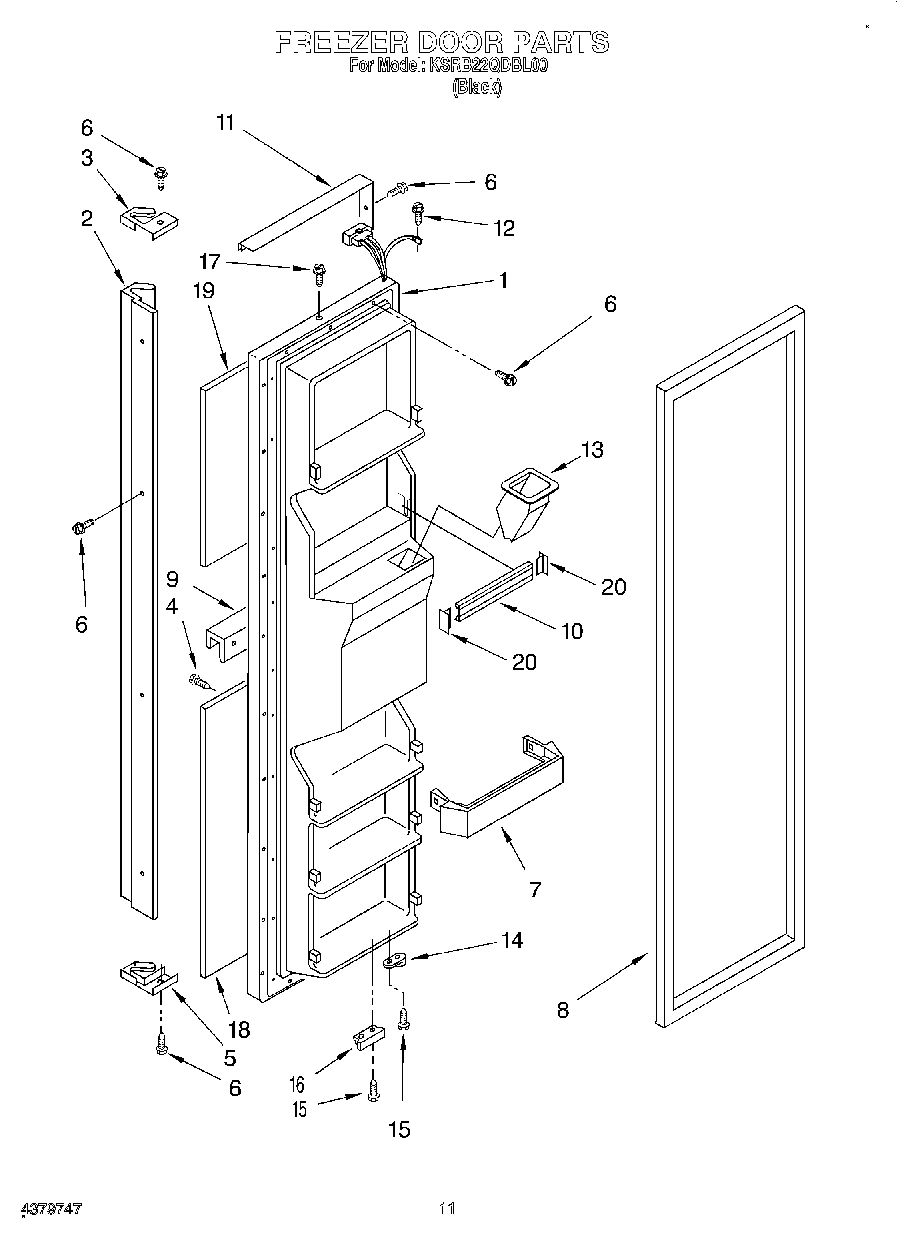

07 - FREEZER DOOR

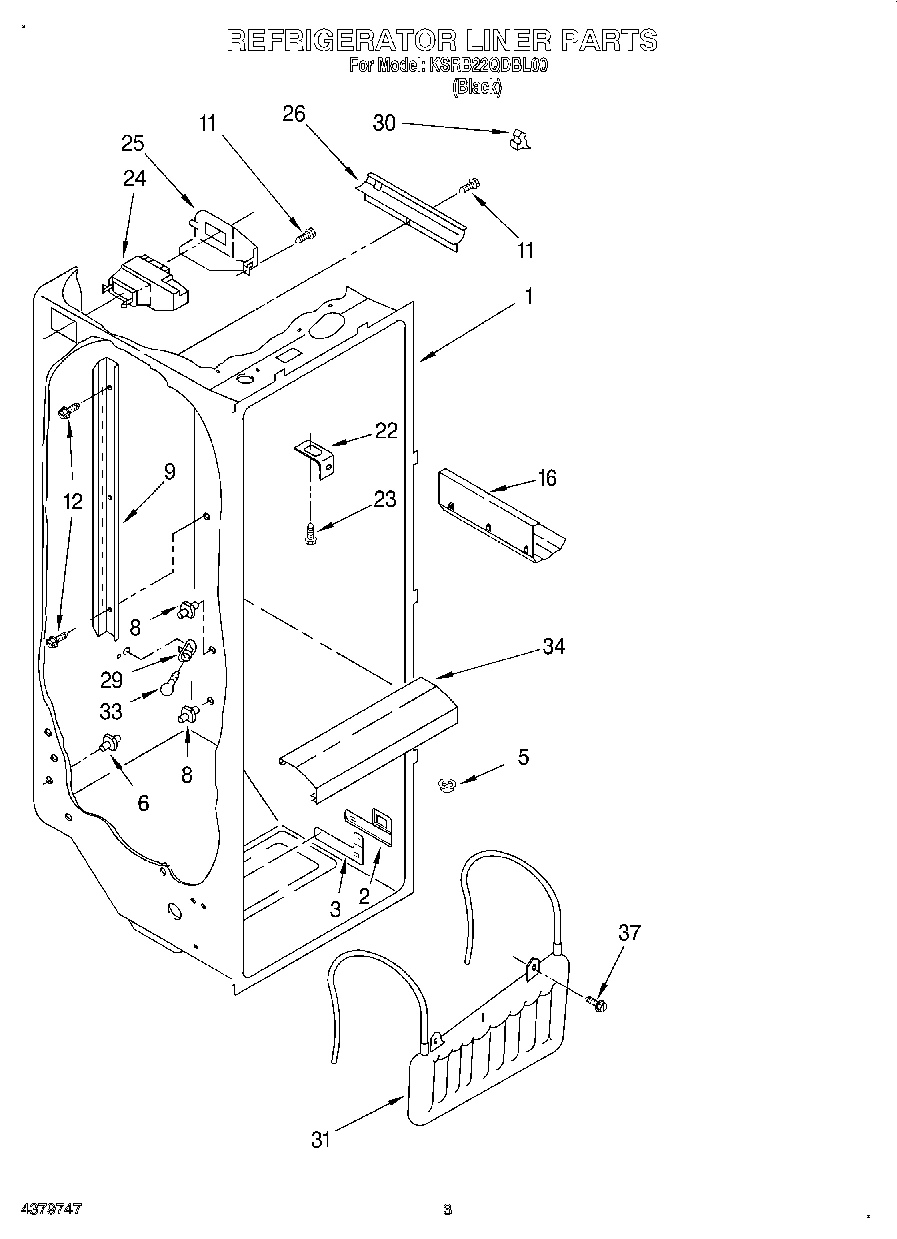

02 - REFRIGERATOR LINER

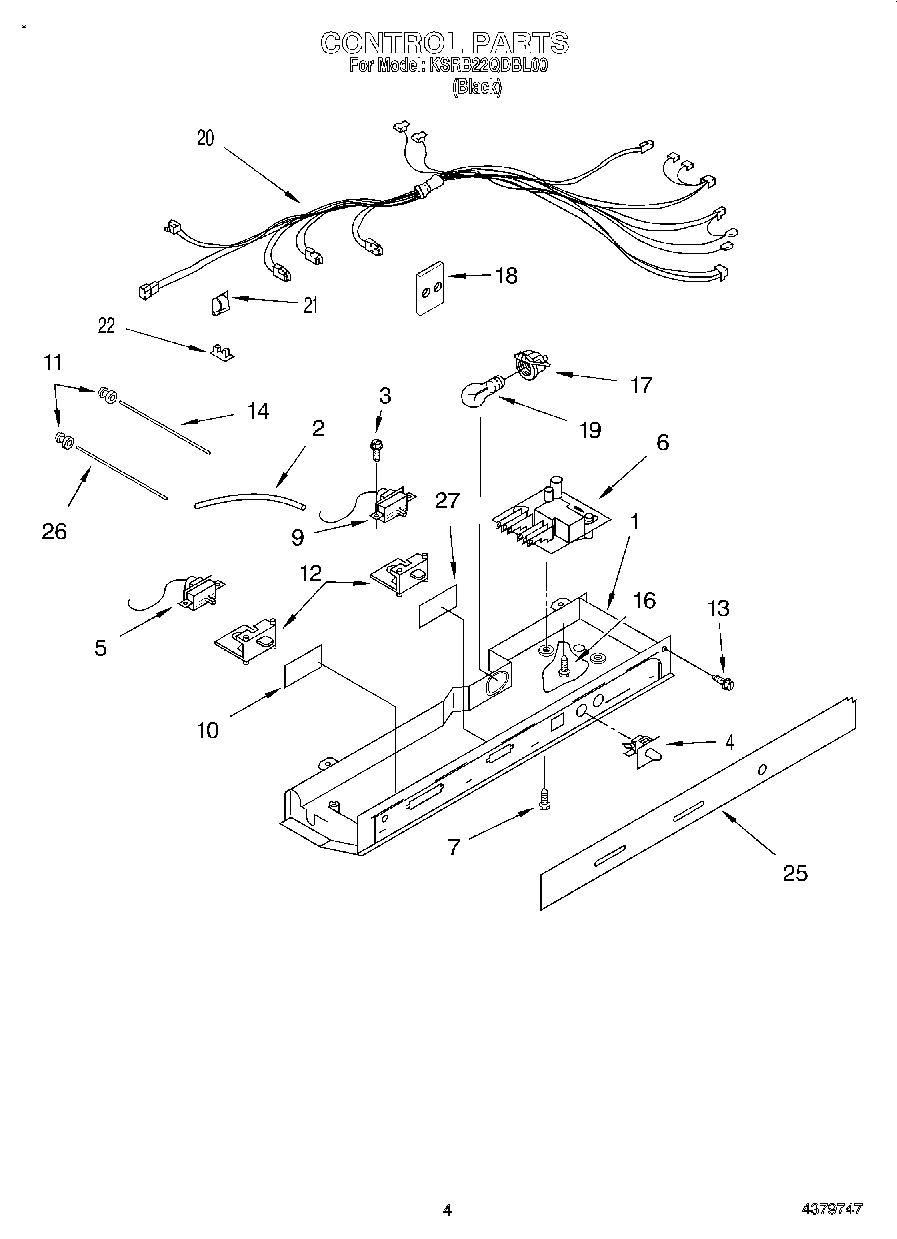

03 - CONTROL

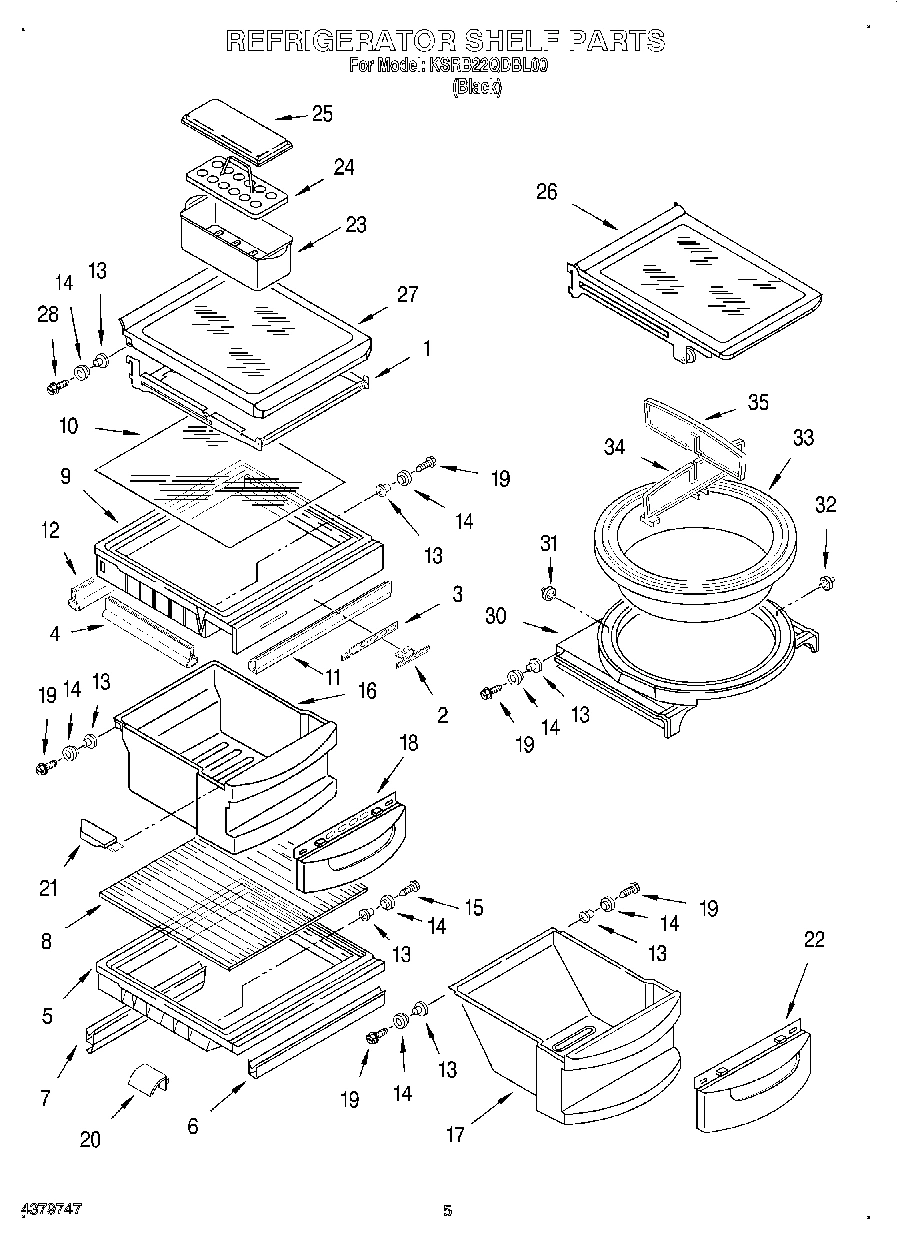

04 - REFRIGERATOR SHELF

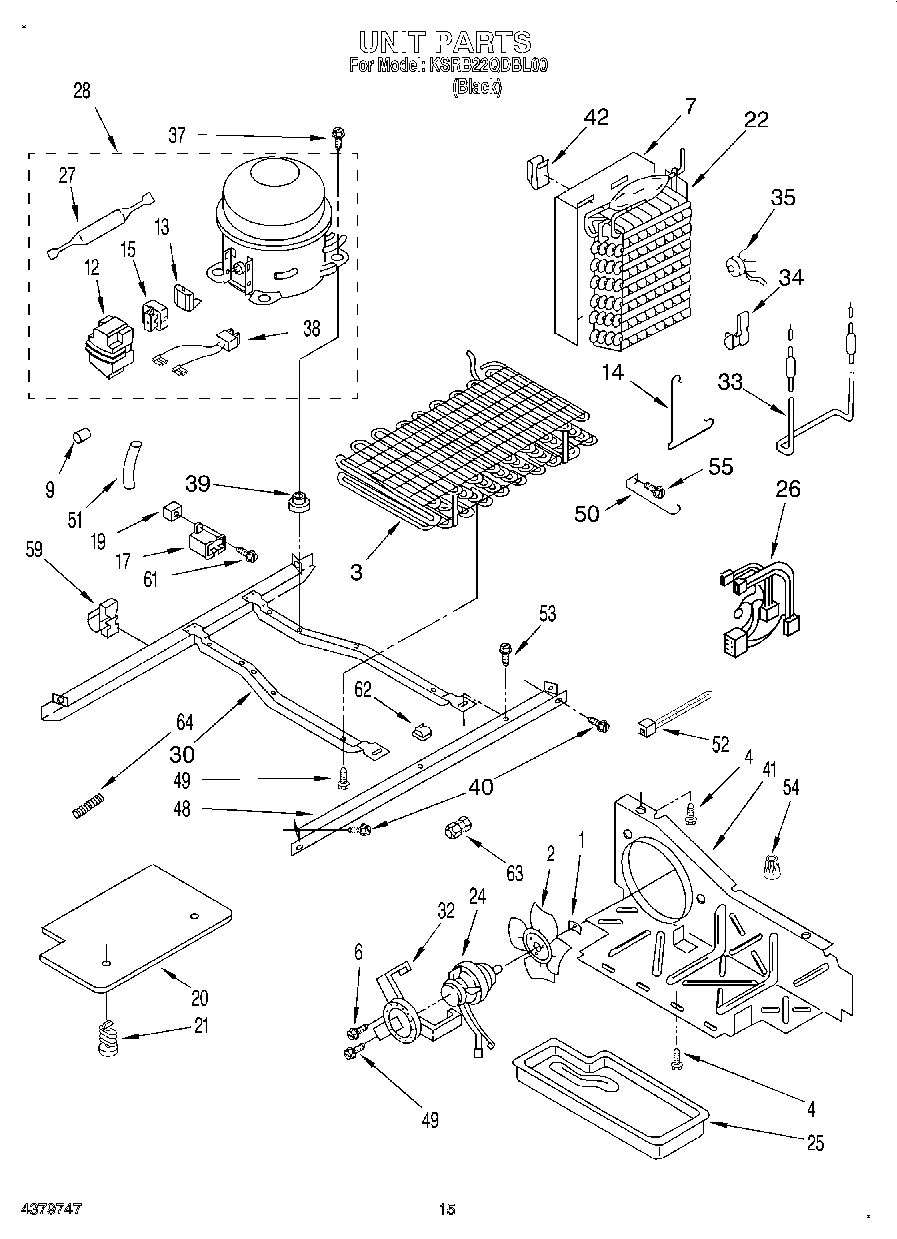

09 - UNIT
11 - AIRFLOW

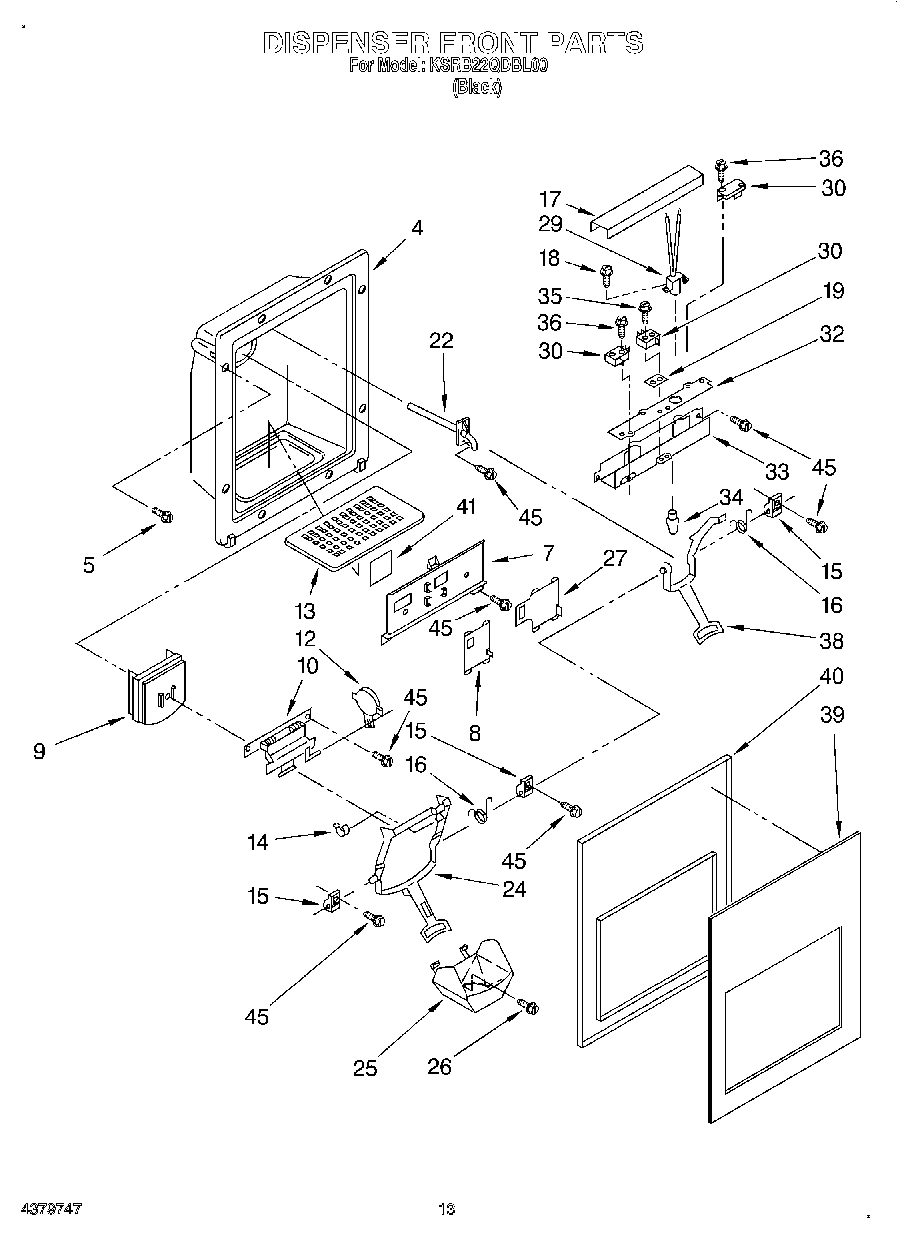

08 - DISPENSER FRONT

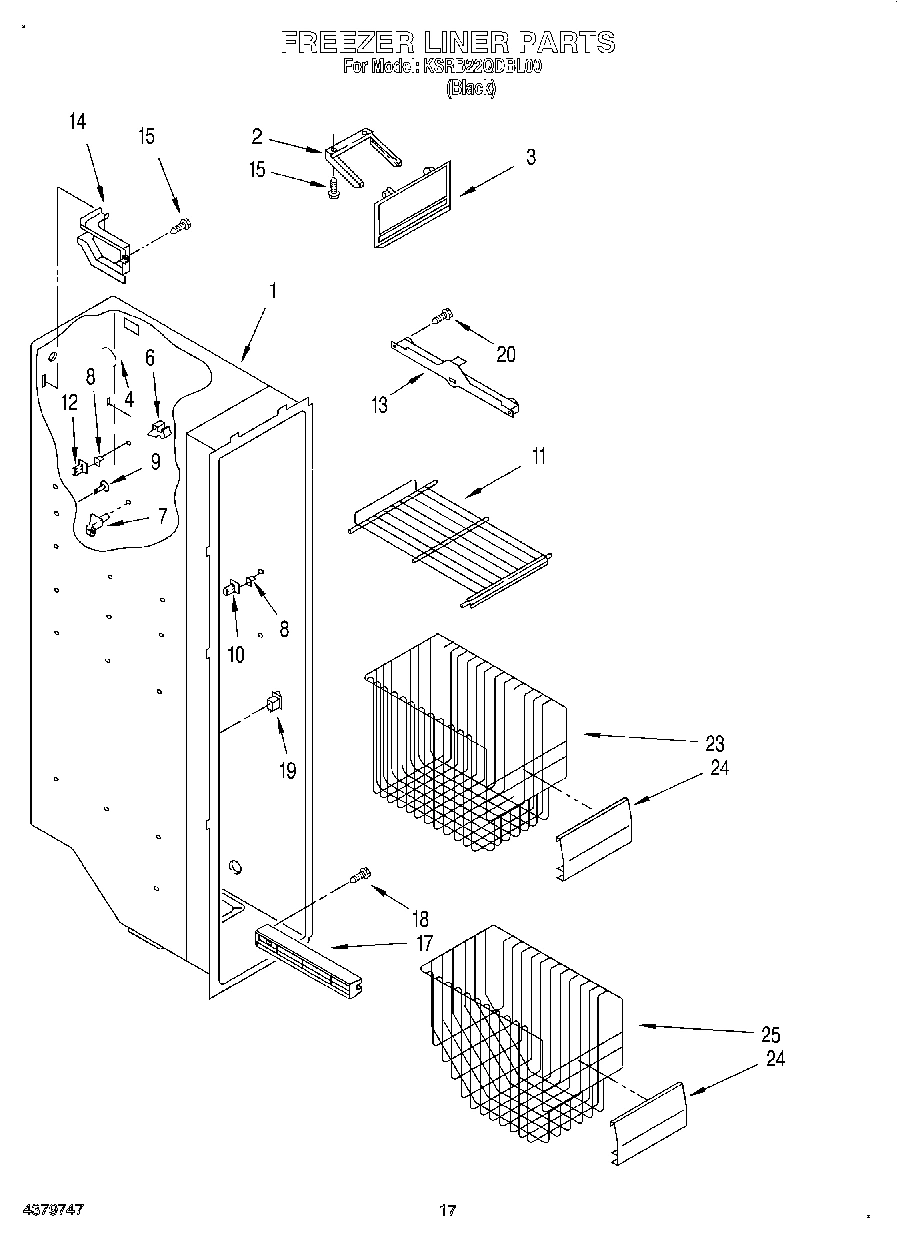

10 - FREEZER LINER

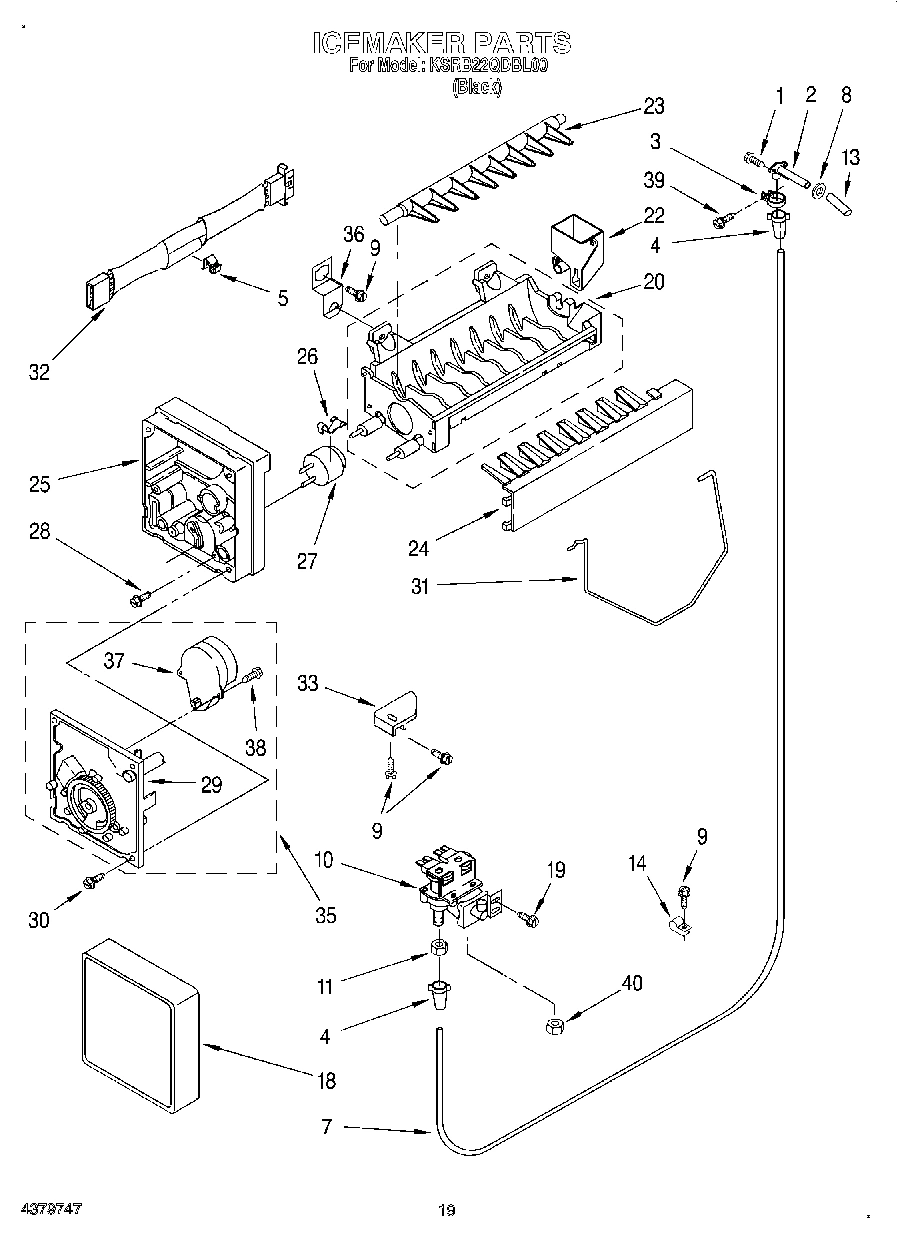

12 - ICEMAKER, LIT/OPTIONAL

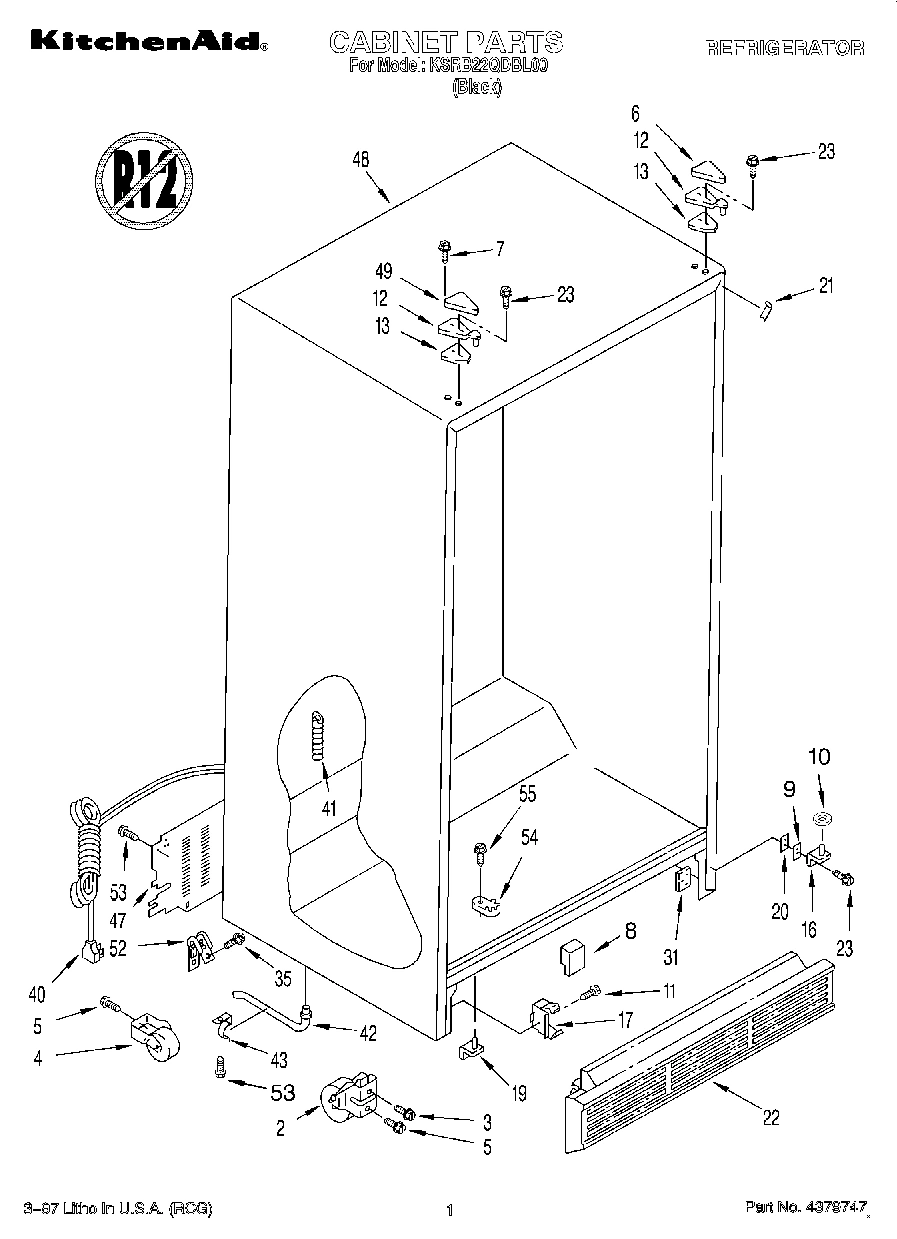

01 - CABINET

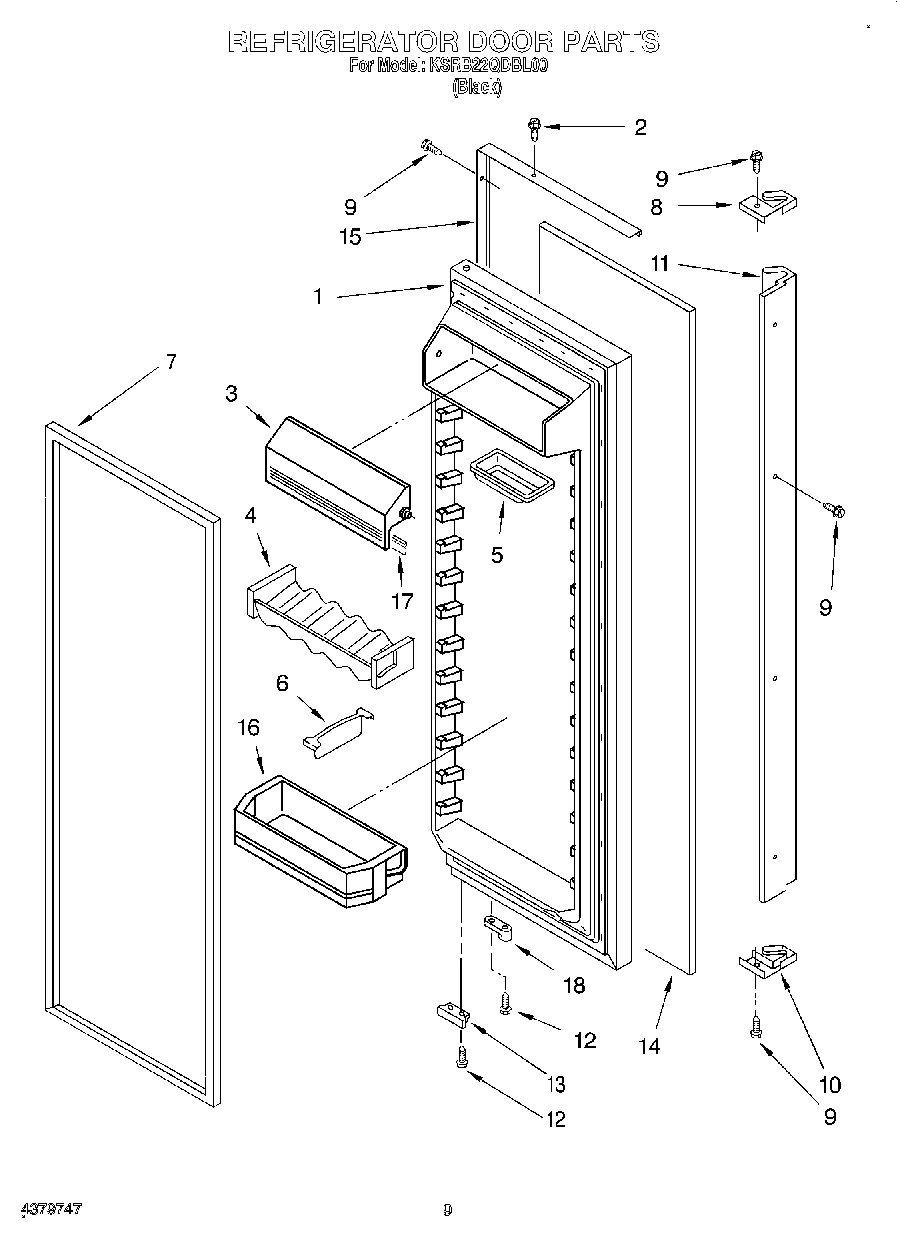

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool KSRB22QDBL00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2161476 WPL LIT2161476 Contact Us For Availability
WPL LIT2176839 WPL LIT2176839 Contact Us For Availability
WPL LIT2180061 WPL LIT2180061 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI94451A1 Contact Us For Availability
1
Refrigerator Door (Includes No.7) WPL 2180037 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Screw WPL 489376 Contact Us For Availability
3
Condenser Assembly WPL 2164513 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
3
Door, Compartment WPL 2171078 Contact Us For Availability
4
Housing, Dispenser (Not a Serviceable Part) WPL ARI94449A8 Contact Us For Availability
4
Holder, Beverage WPL 1125981 Contact Us For Availability
5
Butter, Tray WPL 1125936 Contact Us For Availability
6
Hinge Cover WPL 2155938 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Load Lock WPL 2171283 Contact Us For Availability
7
Heat Shield And Drain Pan WPL 2149293 Contact Us For Availability
7
Frame, Slides WPL 2152716 Contact Us For Availability
7
Screw WPL 489284 Contact Us For Availability
8
Slide, Cube/Crush Switch WPL 2152719 Contact Us For Availability
8
Support, Stud (2) WPL 946355 Contact Us For Availability
8
Insert, Air Baffle WPL 2176796 Contact Us For Availability
8
End Cap, Top WPL 1125918 Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (4) WPL 2176134 Contact Us For Availability
9
Shim WPL 836196 Contact Us For Availability
9
Screw (2) WPL 489112 Contact Us For Availability
10
Door Mechanism Assembly WPL 2157650 Contact Us For Availability
10
Stud, Front WPL 946356 Contact Us For Availability
10
Washer WPL 489328 Contact Us For Availability
10
End Cap, Bottom WPL 1125917 Contact Us For Availability
11
Handle WPL 1125919 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Stud, Rear WPL 1106982 Contact Us For Availability
13
Tube, Water Inlet WPL 2171943 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Grille, Overflow WPL 2152678 Contact Us For Availability
13
Shim, Hinge Top WPL 1123518 Contact Us For Availability
13
Bracket, Door Stop WPL 2155334 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Clip, Bearing (2) WPL 987917 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Black Glass WPL 1126018 Contact Us For Availability
15
Relay (See Overload) WPL ARI94450A9 Contact Us For Availability
15
Bearing, Lever (3) WPL 983697 Contact Us For Availability
15
Trim, Door WPL 1117899 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Hinge Bottom (R.H.) WPL 2155321 Contact Us For Availability
16
Shelf Bin (4) WPL 2171063 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Shield, Wiring WPL 2147165 Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 2171777 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 2171778 Contact Us For Availability
17
Gasket WPL 2159124 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Spacer WPL 625834 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Hinge Bottom (L.H.) WPL 2155323 Contact Us For Availability
20
Unit Cover, Bottom WPL 2160505 Contact Us For Availability
20
Spacer, Hinge WPL 1129868 Contact Us For Availability
21
Cap, Crisper Pan (Left Side) WPL 2174258 Contact Us For Availability
21
Cap, Crisper Pan (Right Side) WPL 2174259 Contact Us For Availability
21
Filler, Wrapper WPL 1127272 Contact Us For Availability
22
Grille WPL 2155476 Contact Us For Availability
22
Window, Meat Pan WPL 2174362 Contact Us For Availability
23
Basket, Upper WPL 2171698 Contact Us For Availability
24
Lever Assembly, Ice Dispenser WPL 2177143 Contact Us For Availability
24
Front, Basket WPL 2171768 Contact Us For Availability
25
Cover WPL 2164374 Contact Us For Availability
25
Tray, Evaporator WPL 2154114 Contact Us For Availability
25
Guide, Ice WPL 1119035 Contact Us For Availability
25
Basket, Lower WPL 2171699 Contact Us For Availability
26
Frame And Roller Asm. (Cantilever) WPL 2174387 Contact Us For Availability
26
Harness, Intermediate WPL 2149199 Contact Us For Availability
26
Screw WPL 488892 Contact Us For Availability
27
Shelf & Roller Assembly WPL 2174021 Contact Us For Availability
27
Slide, Light Switch WPL 2152724 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Screw WPL 489439 Contact Us For Availability
29
Lamp Holder WPL 2147131 Contact Us For Availability
30
Carriage WPL 2168792 Contact Us For Availability
31
Roller, Front (2) WPL 2179486 Contact Us For Availability
31
Tap Plate (2) WPL 2147310 Contact Us For Availability
32
Roller, Rear (2) WPL 2179487 Contact Us For Availability
32
Bracket, Fan Motor WPL 548695 Contact Us For Availability
32
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
33
Round Pan WPL 2168793 Contact Us For Availability
33
Bracket, Control WPL 2147163 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Divider, 1/2 WPL 2174363 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
35
Divider, 1/4 WPL 2174364 Contact Us For Availability
35
Screw (2) WPL 488361 Contact Us For Availability
36
Screw, WPL 489155 Contact Us For Availability
36
Clip, Support WPL 2155021 Contact Us For Availability
38
Lever Assembly, Water Dispenser WPL 2177148 Contact Us For Availability
39
Insert, Cover WPL 2174337 Contact Us For Availability
40
Cover, Housing (Includes Item 39) WPL 2179385 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
40
Cord, Service WPL 937360 Contact Us For Availability
41
Heat Shield, Frame WPL 2147172 Contact Us For Availability
42
Clip, Heat WPL 2155547 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
48
Unit Mounting Rail WPL 2149717 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI94447A9 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
49
Hinge Cover WPL 2171947 Contact Us For Availability
52
Wire Tie WPL 851095 Contact Us For Availability
54
Wire Connector WPL 850145 Contact Us For Availability
59
Clip, Wire & Tube WPL 2155658 Contact Us For Availability
62
Clip, Tube (3) WPL 934011 Contact Us For Availability
64
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
64
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
64
Tube, Spring WPL 983659 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
