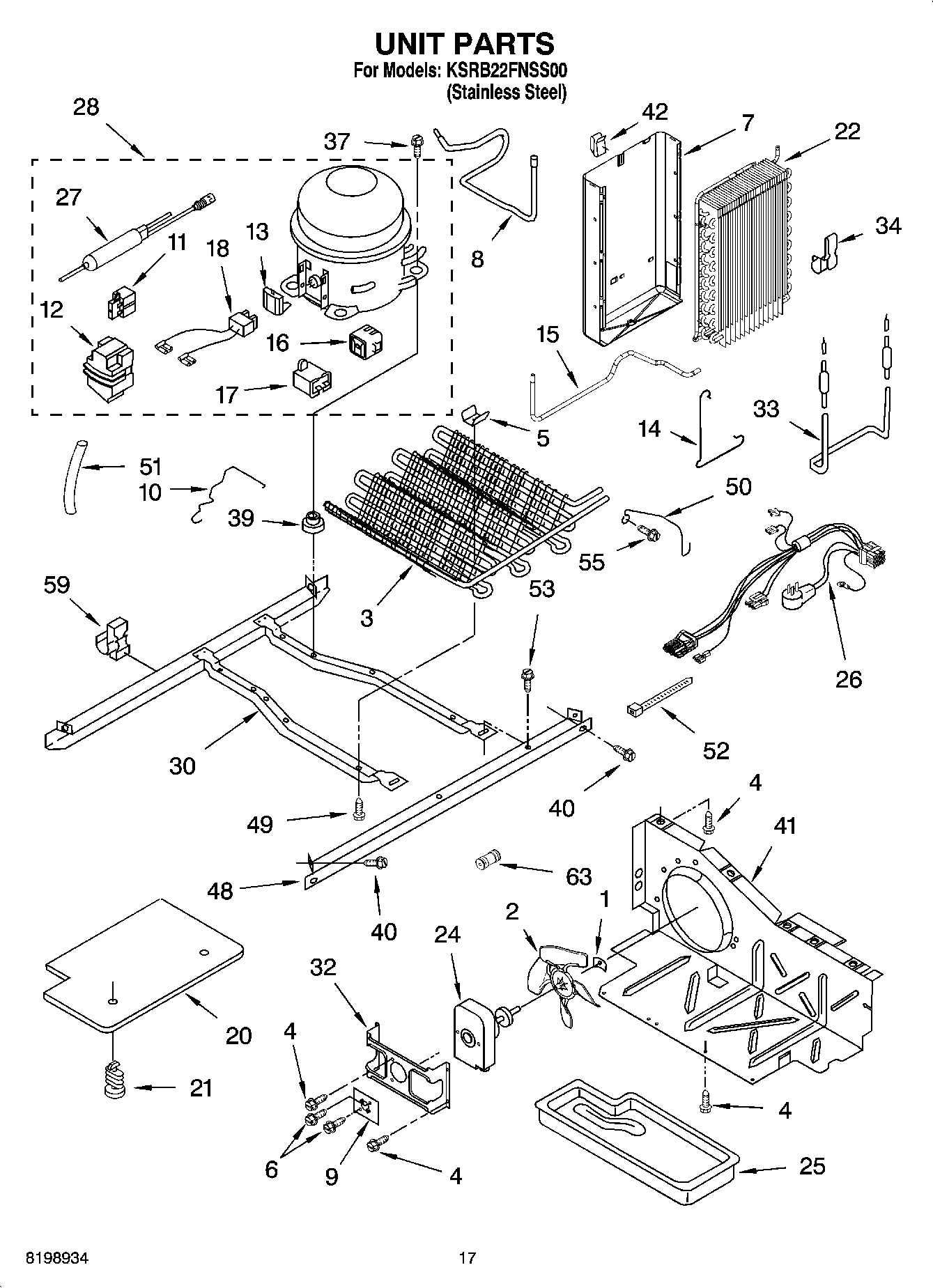

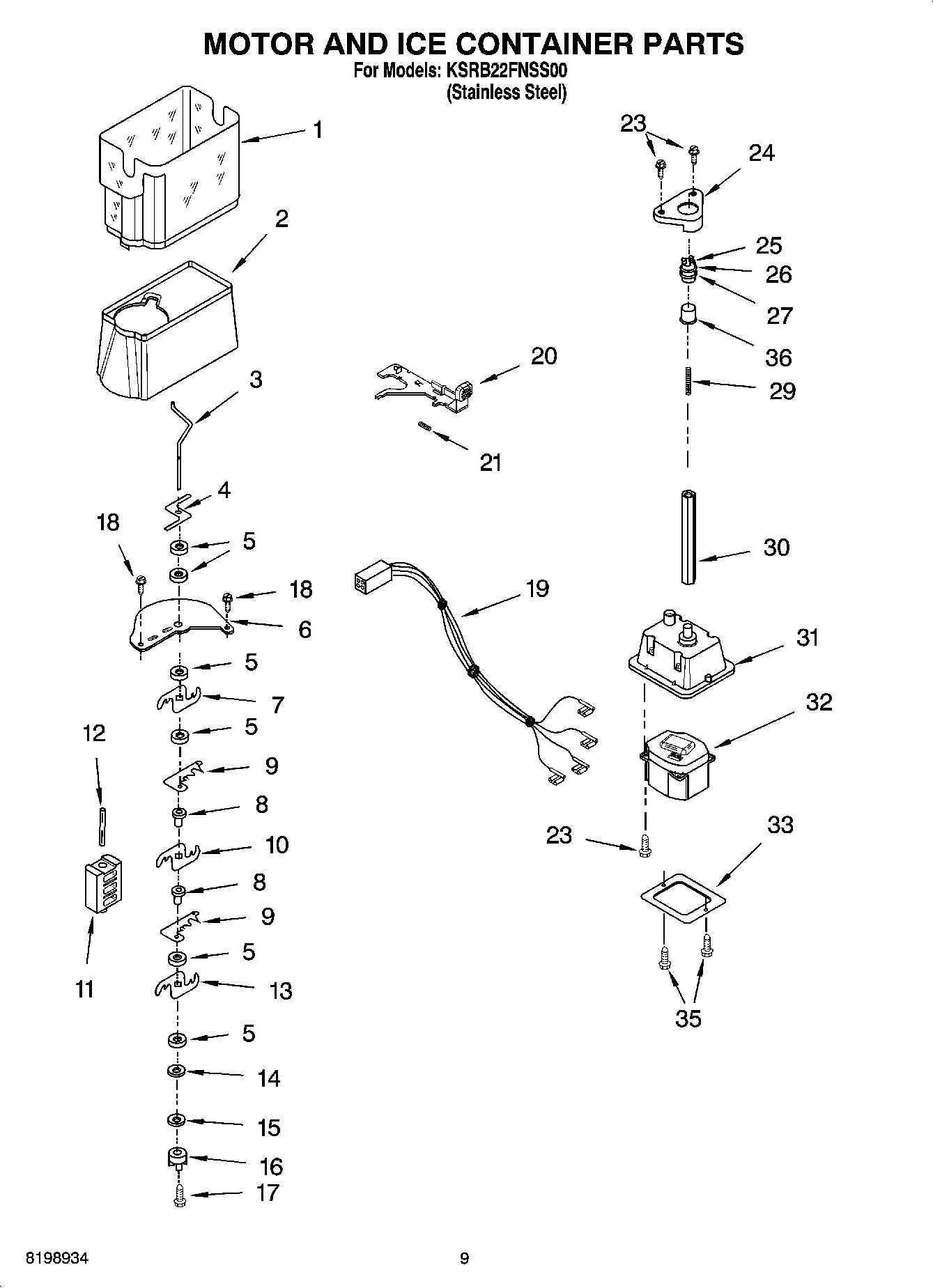

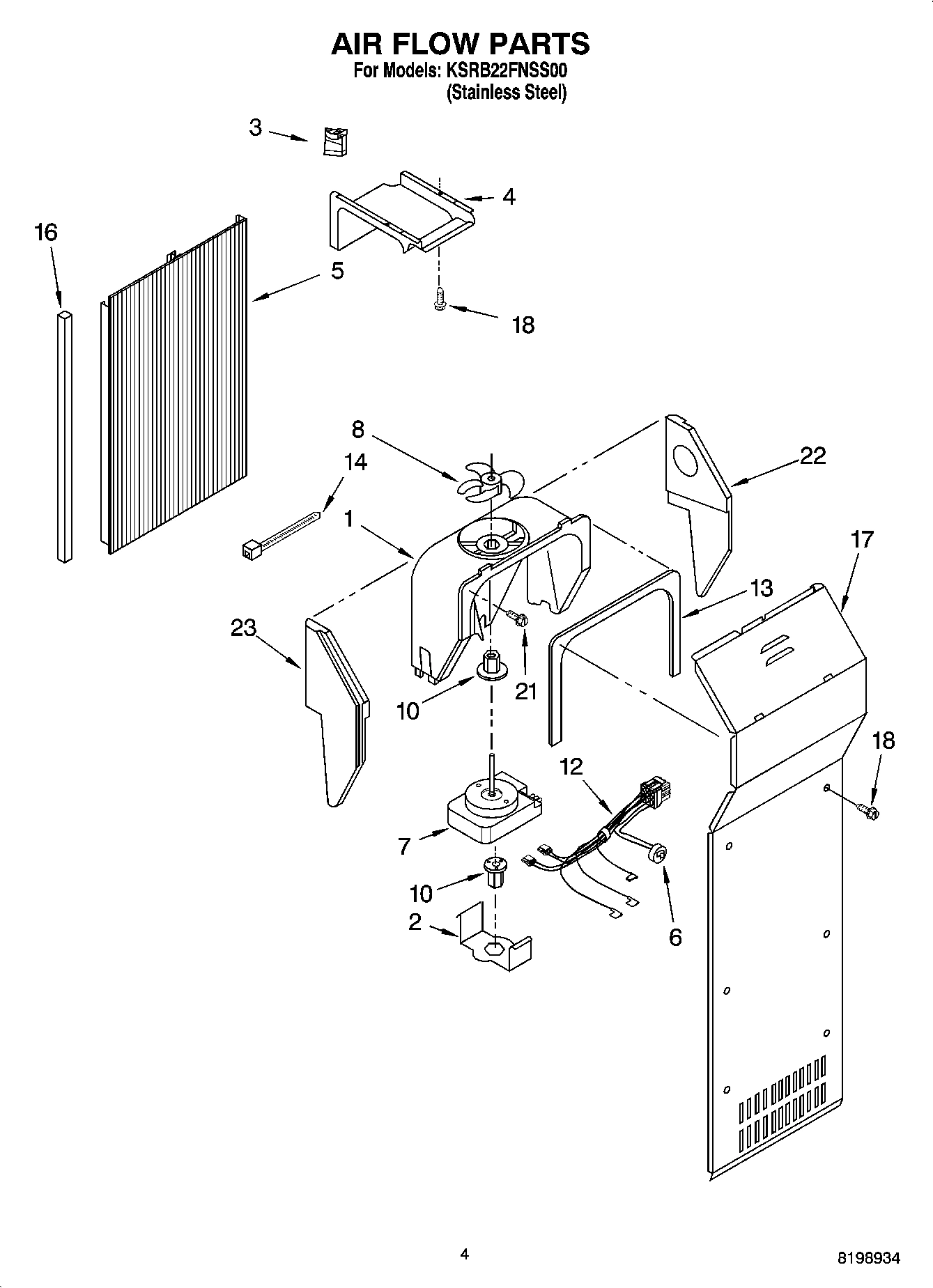

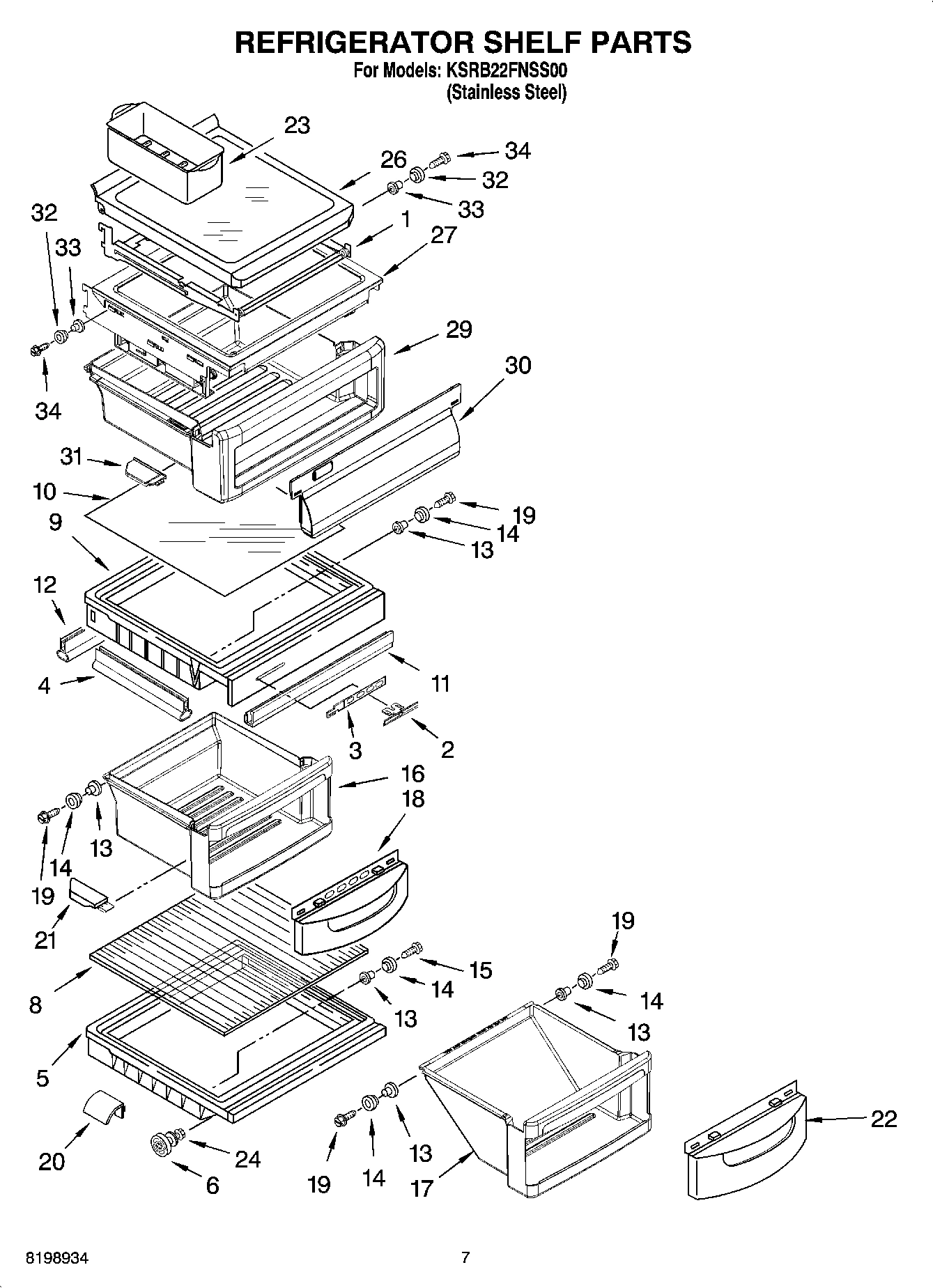

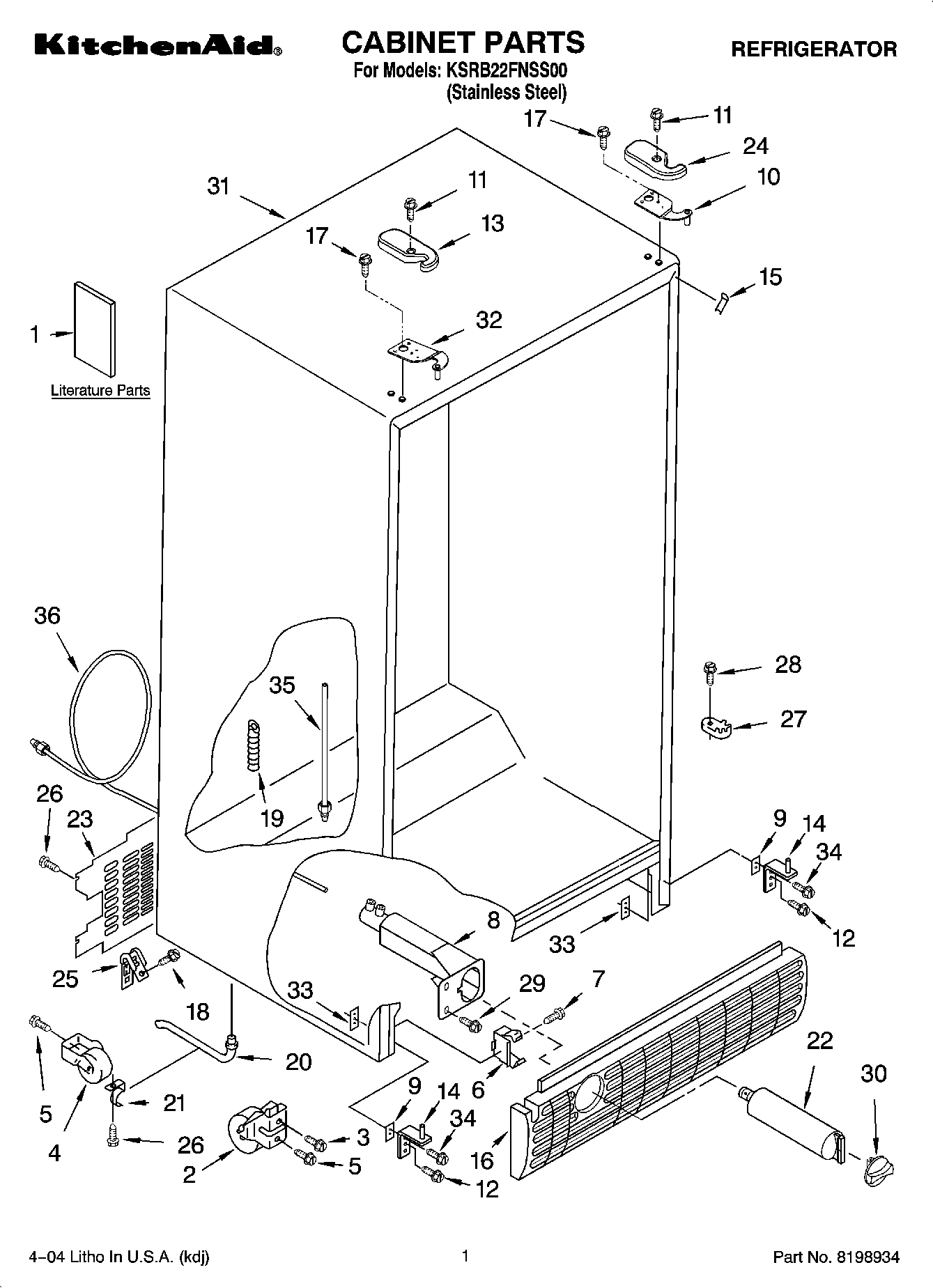

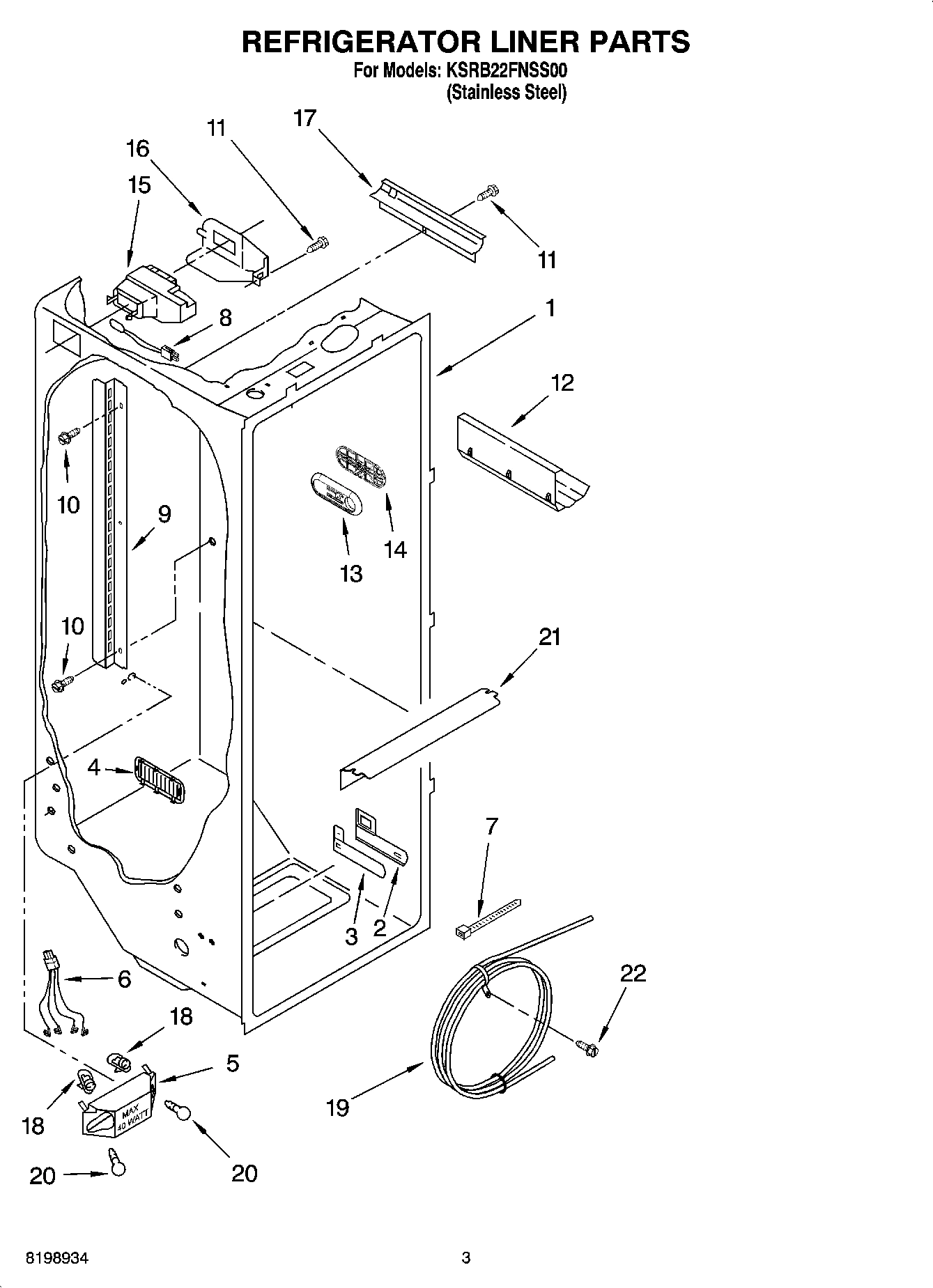

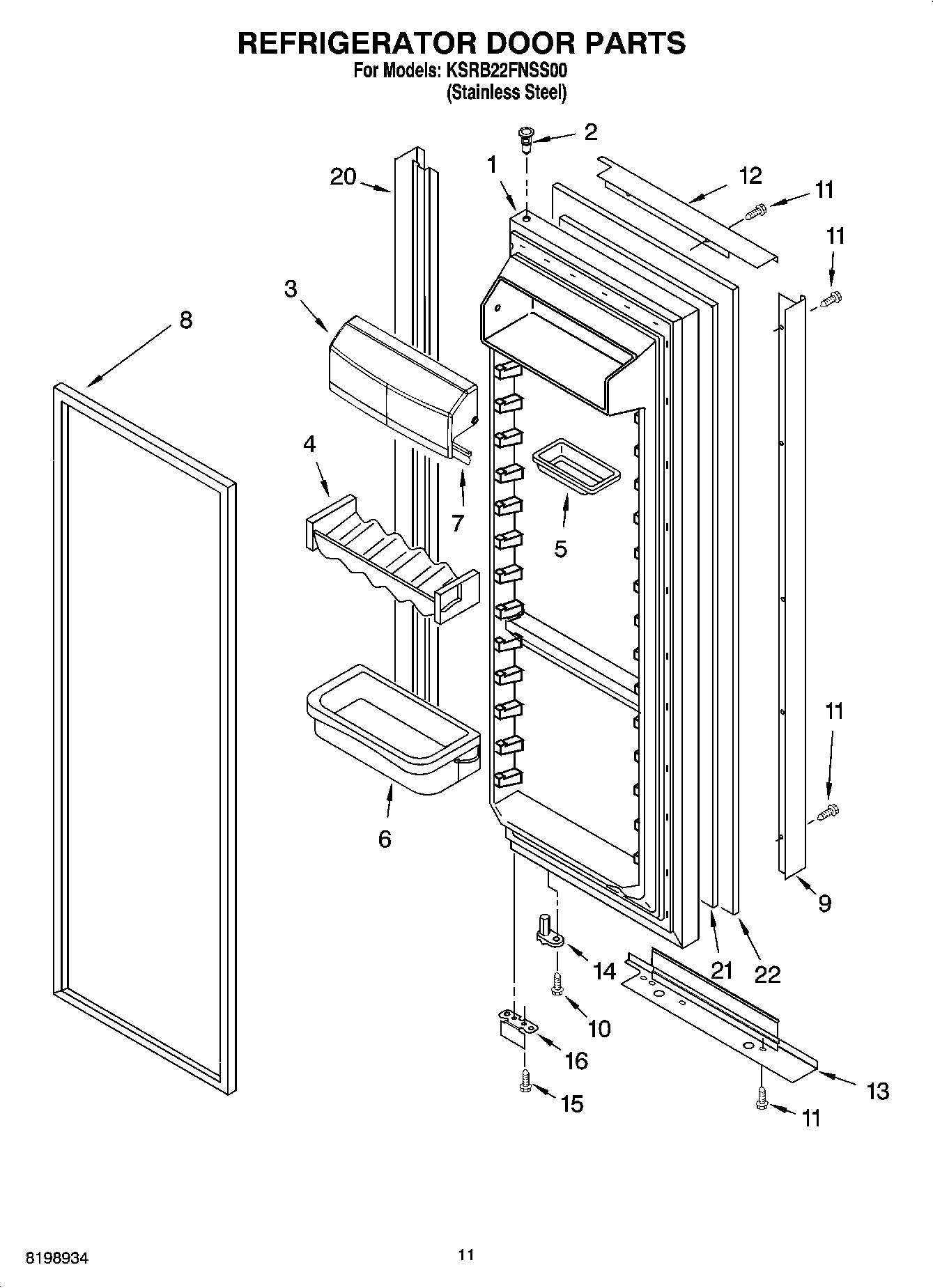

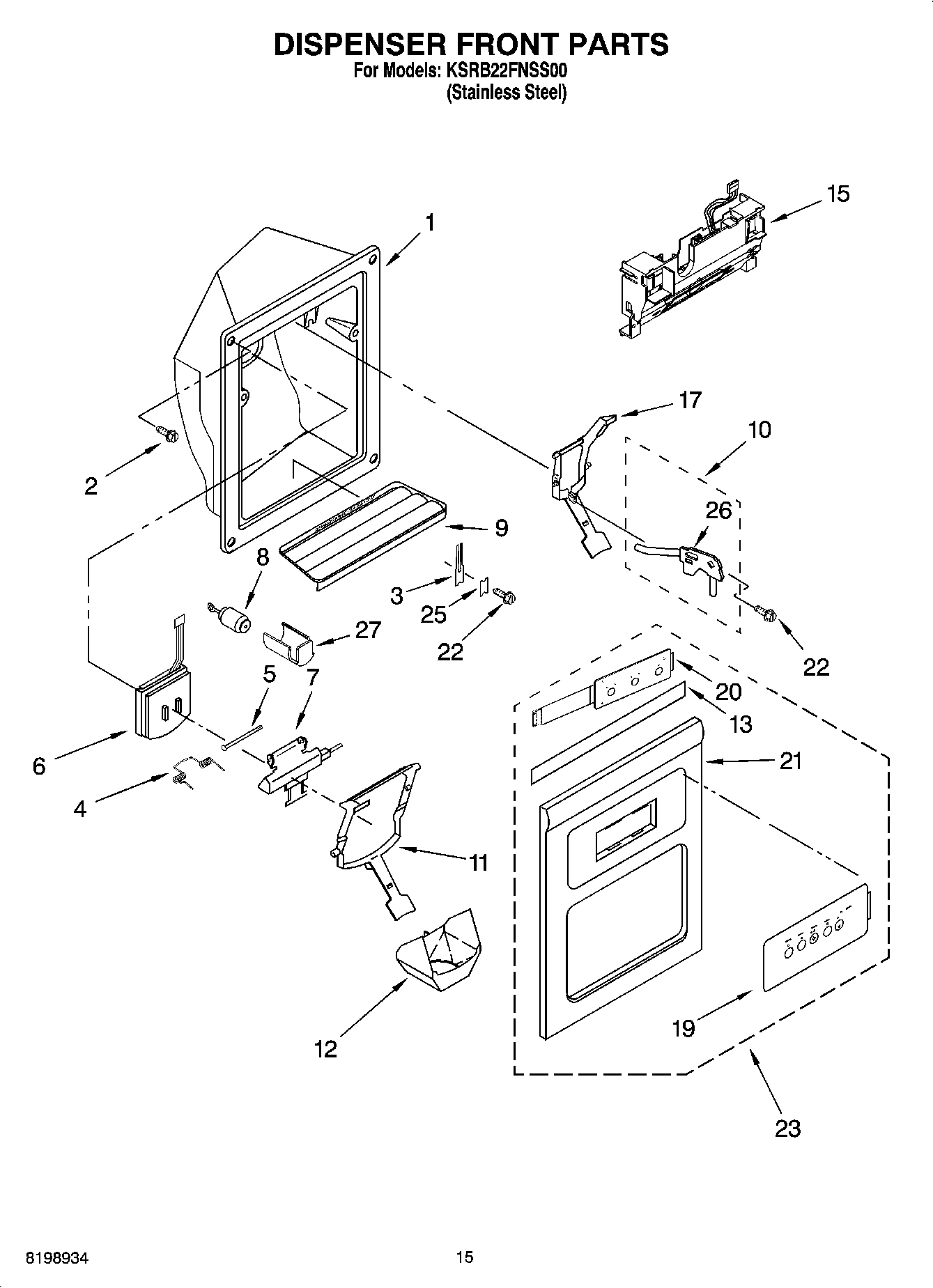

Model Whirlpool KSRB22FNSS00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

W11254898 Whirlpool Refrigerator Scroll Fan Backorder WPL W11254898 $212.50

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Modular Icemaker Service Sheet WPL 2220407 Contact Us For Availability

1

Service & Wiring Sheet WPL 2301270 Contact Us For Availability

1

Energy Label WPL 2305629 Contact Us For Availability

1

Use & Care Guide WPL 2305802 Contact Us For Availability

1

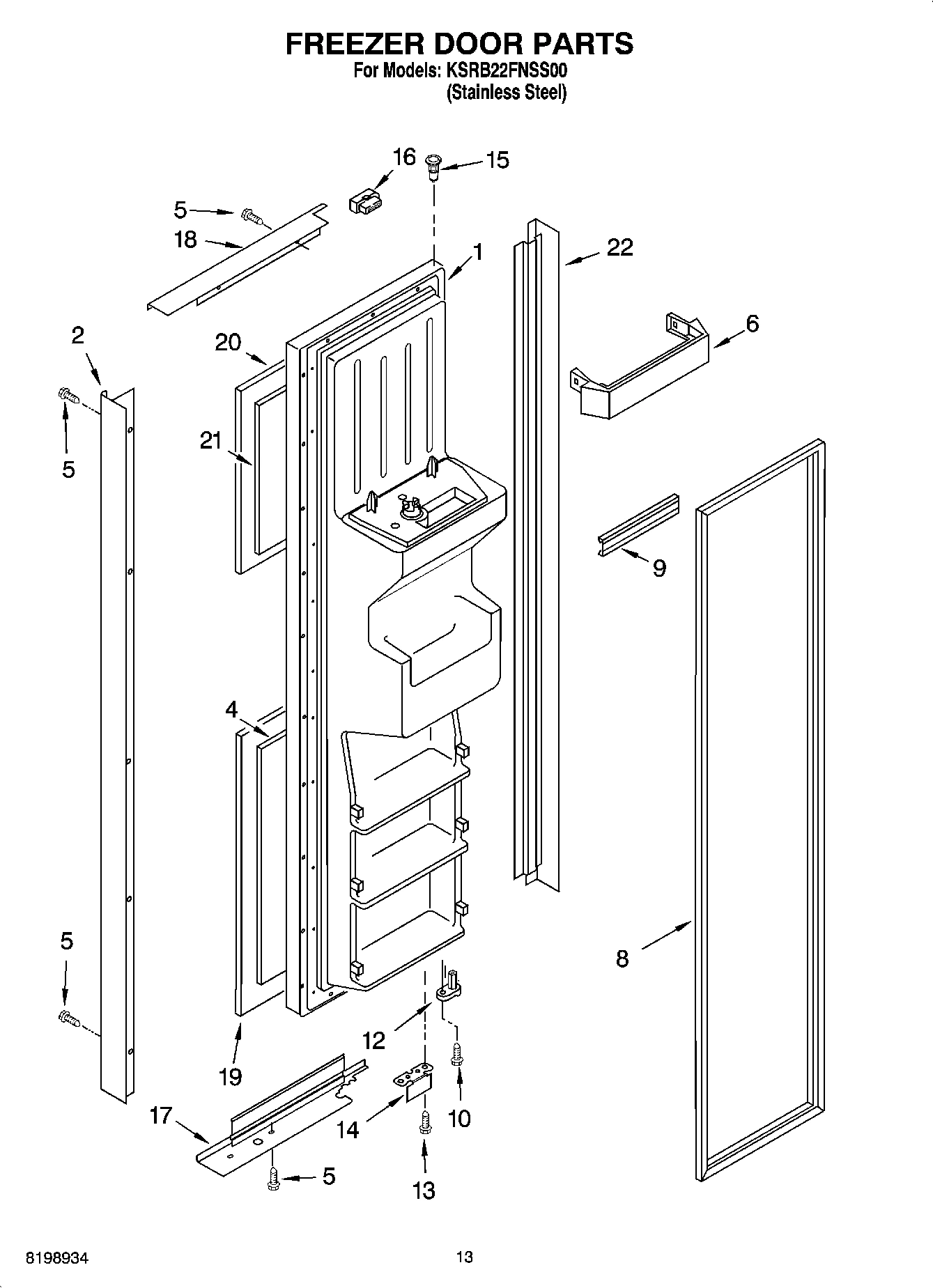

Freezer Door (Includes Item 8 And Dispenser F WPL 2301420B Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI94356A6 Contact Us For Availability

1

Refrigerator Door (Includes Item 8) (Black) WPL 2219842B Contact Us For Availability

2

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

2

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

2

HANDLE WPL 2206842S Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

Slide Meat Pan Control WPL 2301339 Contact Us For Availability

3

Air Scoop WPL 2198595 Contact Us For Availability

3

Door, Compartment WPL 2301486 Contact Us For Availability

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Louver WPL 2257741 Contact Us For Availability

4

Air Duct, Upper WPL 2212377 Contact Us For Availability

4

Board, Filler Lower WPL 2219802 Contact Us For Availability

4

Beverage Holder WPL 2193409 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP2223357 Whirlpool Refrigerator Cover In Stock WPL WP2223357 $242.61

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Bracket, Dual Crisper Lights WPL 2256035 Contact Us For Availability

5

Air Duct Freezer WPL 2212313 Contact Us For Availability

5

Dish, Butter WPL 2165792 Contact Us For Availability

6

2311637 Whirlpool Refrigerator Wire Harness Backorder WPL 2311637 $100.16

6

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $23.99

6

Trivet, Shelf (4) WPL 2171071 Contact Us For Availability

6

Shelf Bin WPL 2205821 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.77

7

Door Mechanism Assembly WPL 2206423 Contact Us For Availability

7

Gasket WPL 2159124 Contact Us For Availability

8

2159080 Whirlpool Refrigerator Door Gasket In Stock WPL 2159080 $219.73

8

2159081 Whirlpool Refrigerator Door Gasket Backorder WPL 2159081 $242.52

8

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $56.81

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

8

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $23.99

8

Glass, Cover WPL 2255144 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2206671B Whirlpool Refrigerator Grille In Stock WPL WP2206671B $53.99

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Shim WPL 2209697 Contact Us For Availability

9

Shelf Ladder WPL 2206270 Contact Us For Availability

9

HANDLE WPL 2206846S Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $94.45

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2180261 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $14.29

W10856122 Whirlpool Refrigerator Screw Backorder WPL W10856122 $4.82

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

Harness, Fan Evaporator (Includes 6) WPL 2187825 Contact Us For Availability

Trim, Door Top (Stainless Steel) WPL 2220432S Contact Us For Availability

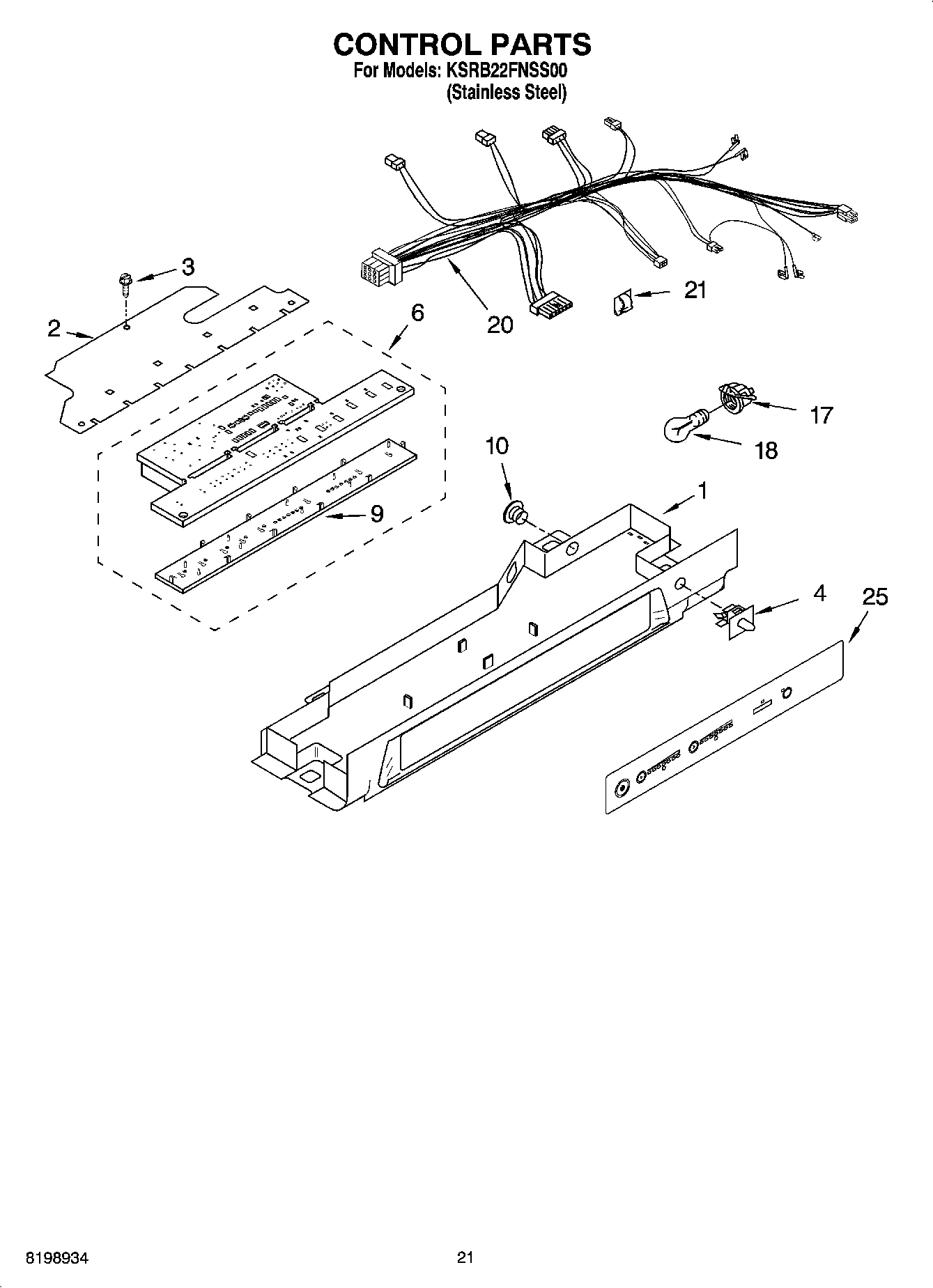

2301234 Whirlpool Refrigerator Control Backorder WPL 2301234 $58.43

2305571 Whirlpool Gasket Assembly Backorder WPL 2305571 $17.07

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $99.46

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

Shelf Track (Right Side) WPL 2301289 Contact Us For Availability

Shelf Track (Left Side) WPL 2301290 Contact Us For Availability

Eyelet, Roller WPL 2174478 Contact Us For Availability

Trim, Door Bottom (Stainless Steel) WPL 2220437S Contact Us For Availability

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $53.71

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Slide, Door Control WPL 2301235 Contact Us For Availability

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $165.76

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $221.99

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

Bracket, Control WPL 2252162 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

W10802713 Whirlpool Refrigerator Grille Backorder WPL W10802713 $80.78

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP2212240 Whirlpool Refrigerator Cover Backorder WPL WP2212240 $93.96

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.79

Crisper Pan (Includes 13, 14 18, 19 & 21) WPL 2301481 Contact Us For Availability

Bracket, Door Stop (Black) WPL 2206630B Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

Meat Pan (Includes 13, 14, 19 & 22) WPL 2301482 Contact Us For Availability

Cover, Evaporator WPL 2212314 Contact Us For Availability

Trim, Door Bottom (Stainless Steel) WPL 2220436S Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Window, Crisper WPL 2174076 Contact Us For Availability

Trim, Door Top (Stainless Steel) WPL 2220434S Contact Us For Availability

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $123.79

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Panel, Door Lower (Stainless Steel) WPL 2206891S Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI94357A2 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Panel, Door Upper (Stainless Steel) WPL 2206890S Contact Us For Availability

LED Display (Not Available Order 23) WPL ARI94358A3 Contact Us For Availability

Trim, Hinge Side (Stainless Steel) WPL 2220431S Contact Us For Availability

2223285 Whirlpool Refrigerator Cap Backorder WPL 2223285 $14.02

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

Cap, Crisper Pan (Right Side) WPL 2223286 Contact Us For Availability

Light Lens WPL 2209769 Contact Us For Availability

Board, Filler Upper WPL 2219801 Contact Us For Availability

Front Cover, Housing (Not Available Order 23 WPL ARI94359A5 Contact Us For Availability

Board, Filler WPL 2219804 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $61.83

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $250.47

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Screw WPL 488280 Contact Us For Availability

Trim, Hinge Side (Stainless Steel) WPL 2220429S Contact Us For Availability

Panel, Door (Stainless Steel) WPL 2206892S Contact Us For Availability

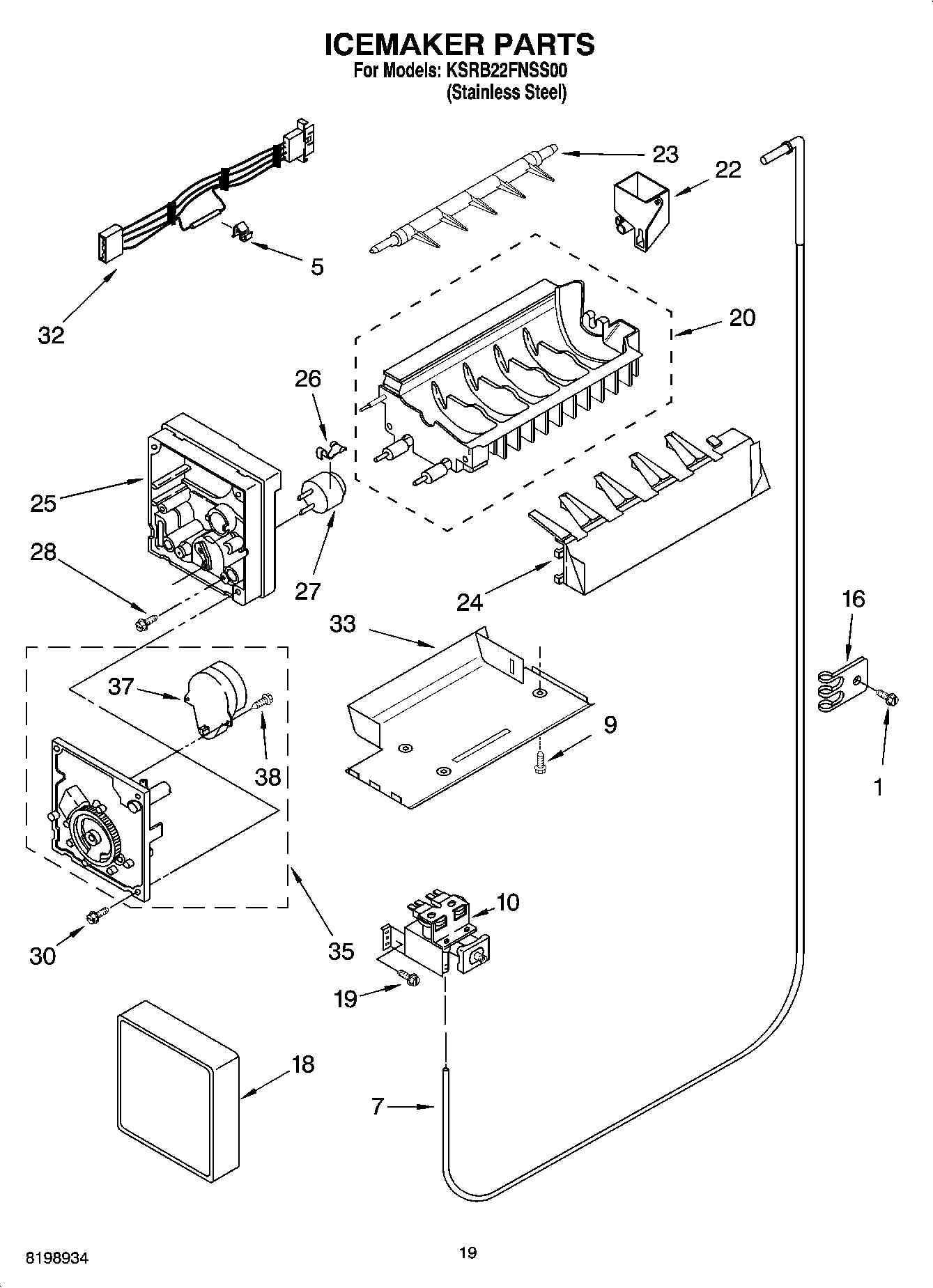

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $9.15

WP2188756 Whirlpool Refrigerator Unit Cover Backorder WPL WP2188756 $89.30

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Front Cover Assembly (Includes Items 13, 19, WPL 2301328B Contact Us For Availability

24

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

24

Holder WPL 2212369 Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

Overlay, Control Box WPL 2255617 Contact Us For Availability

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

26

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

26

NLA:SCREW Backorder WPL WPW10141645 $4.82

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

Sleeve, Delay Mechanism WPL 2252127 Contact Us For Availability

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

28

Slide, Ice Maker WPL 2212321 Contact Us For Availability

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

29

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

30

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

30

Window, Snack Pan WPL 2301006 Contact Us For Availability

31

Cabinet (Not A Serviceable Part) WPL ARI94353A4 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

32

WP2252130 Whirlpool Refrigerator Motor In Stock WPL WP2252130 $177.51

33

WP2304249 Whirlpool Refrigerator Plate Backorder WPL WP2304249 $8.69

33

Bracket, Icemaker Mounting WPL 2212317 Contact Us For Availability

34

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

35

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $71.99

36

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $42.98

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
