Model Whirlpool KSCS27QFWH01 – Common Parts & Diagrams
03 - CONTROL
04 - REFRIGERATOR SHELF

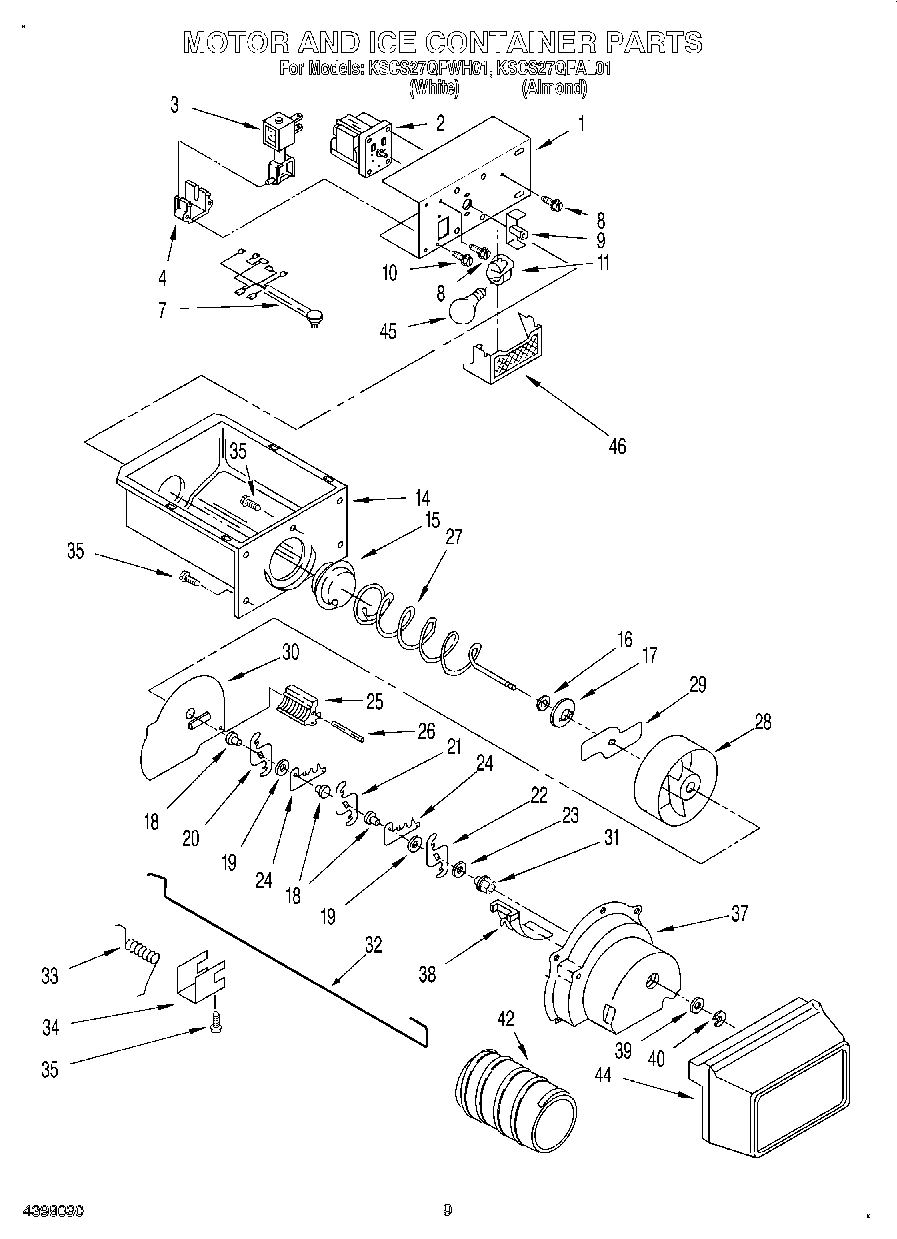

06 - MOTOR AND ICE CONTAINER
05 - FREEZER LINER
12 - AIR FLOW, LIT/OPTIONAL
08 - FREEZER DOOR

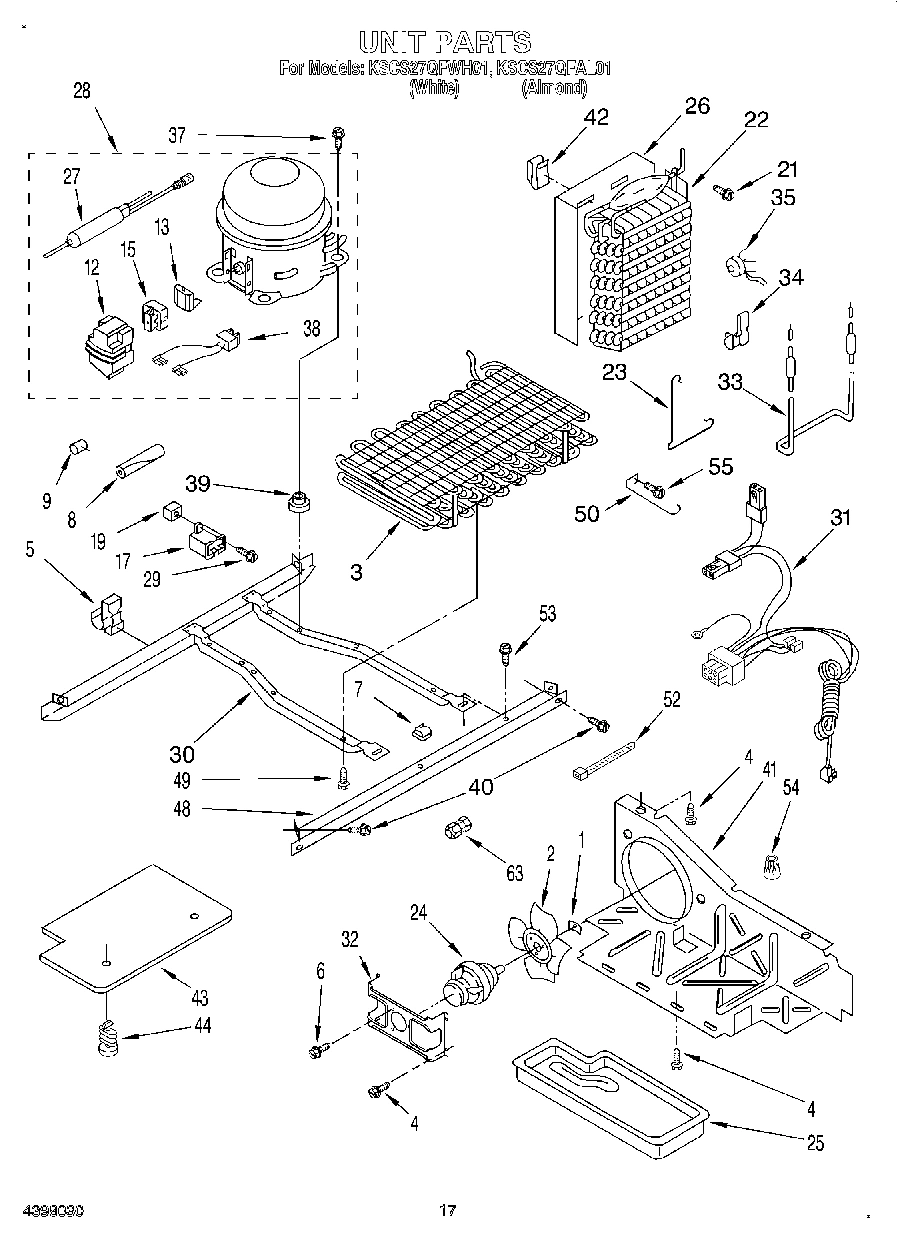

10 - UNIT
01 - CABINET

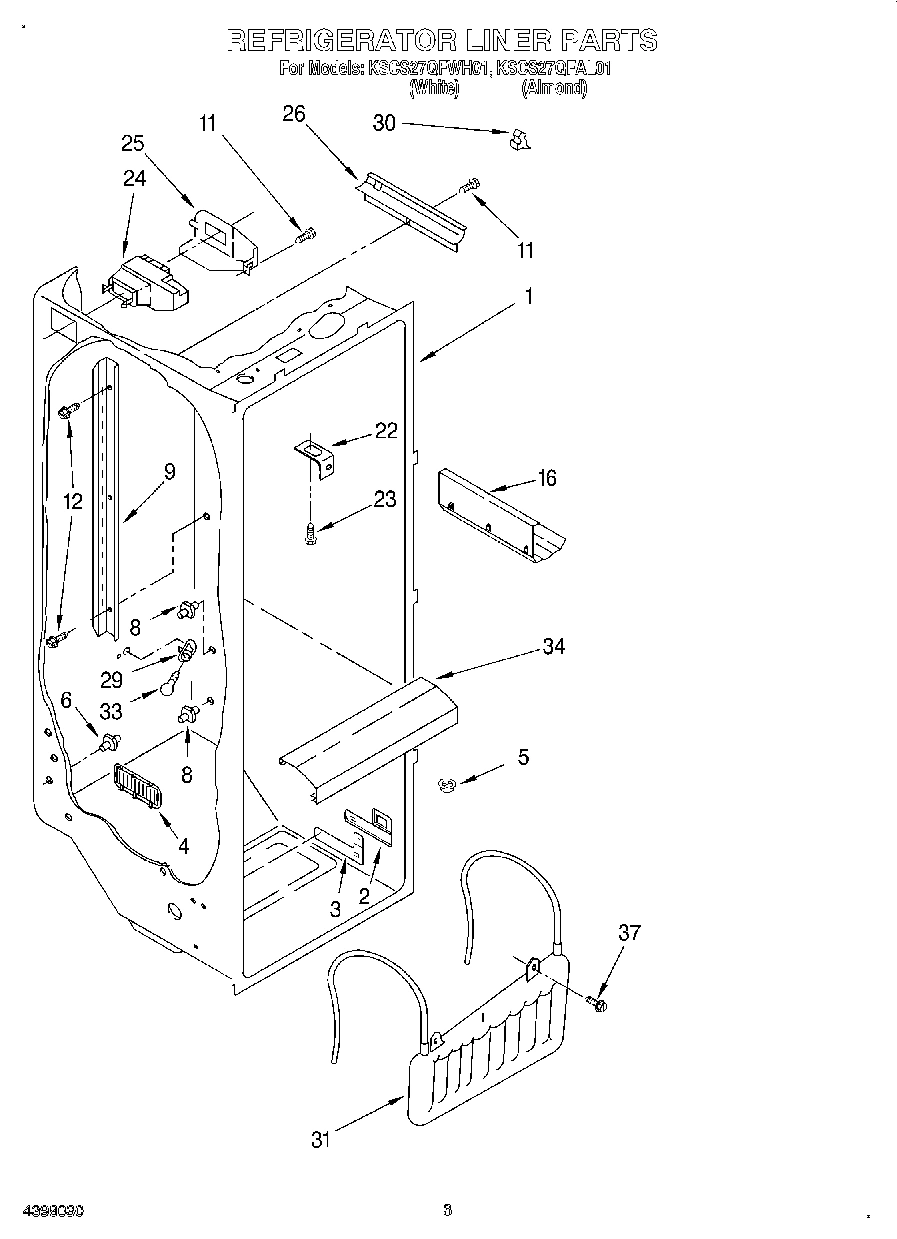

02 - REFRIGERATOR LINER

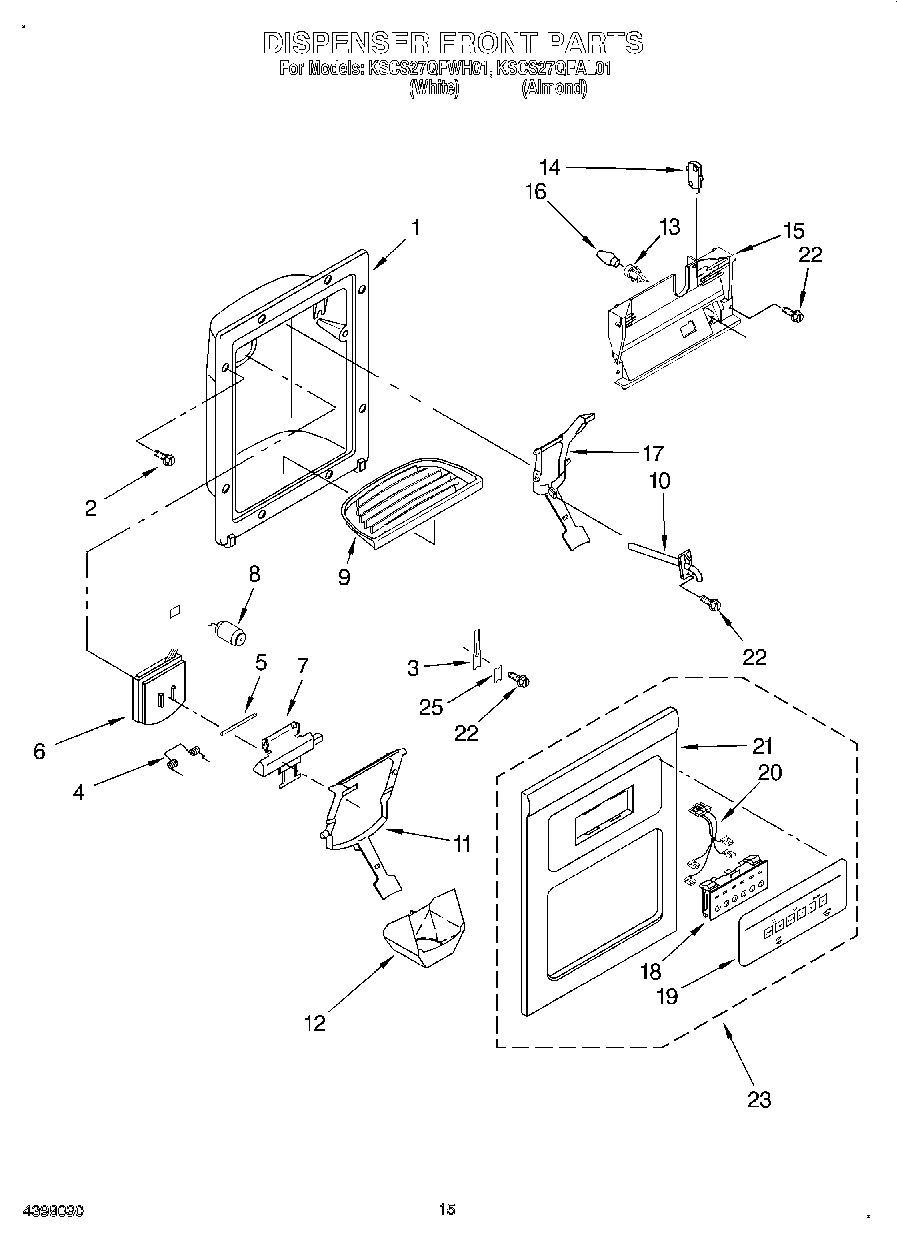

09 - DISPENSER FRONT

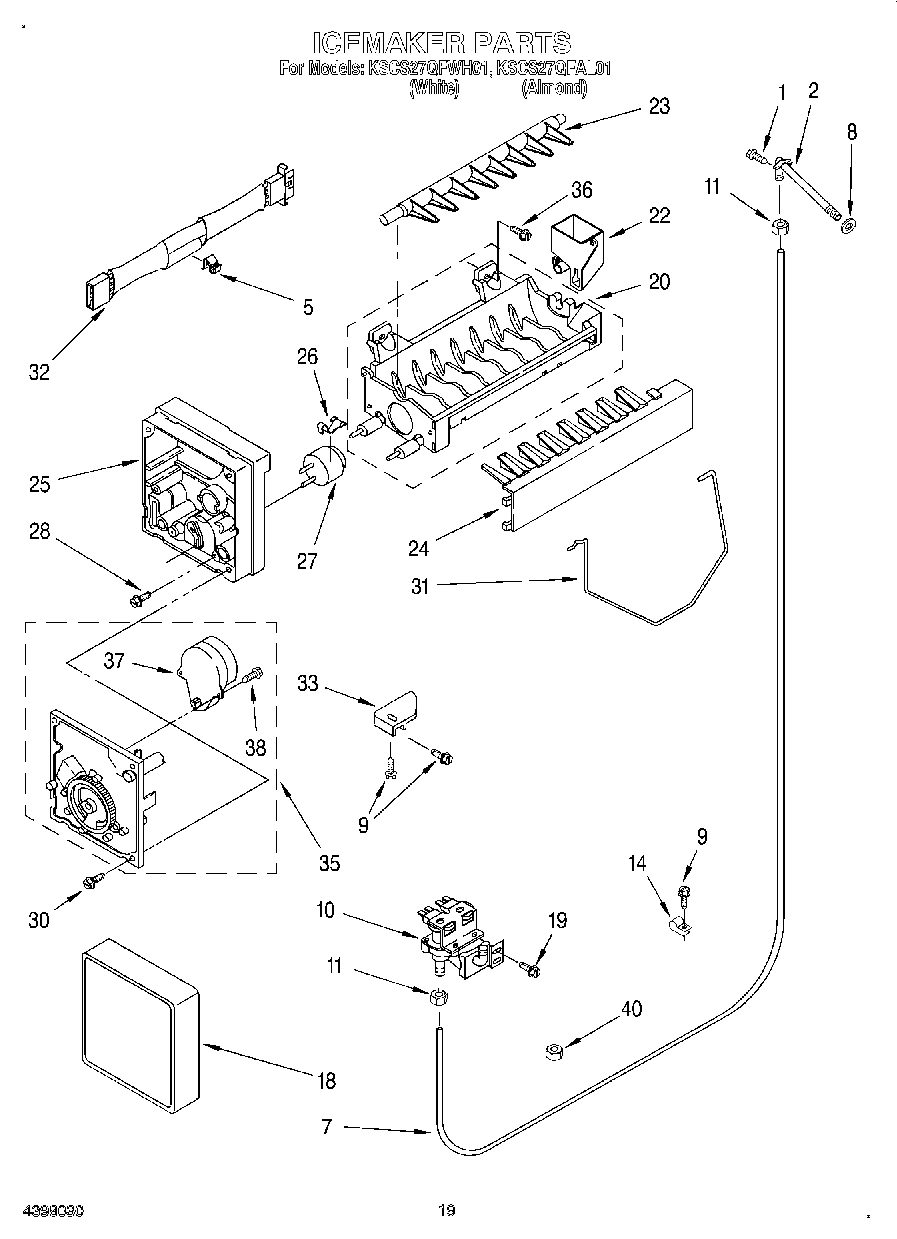

11 - ICE MAKER

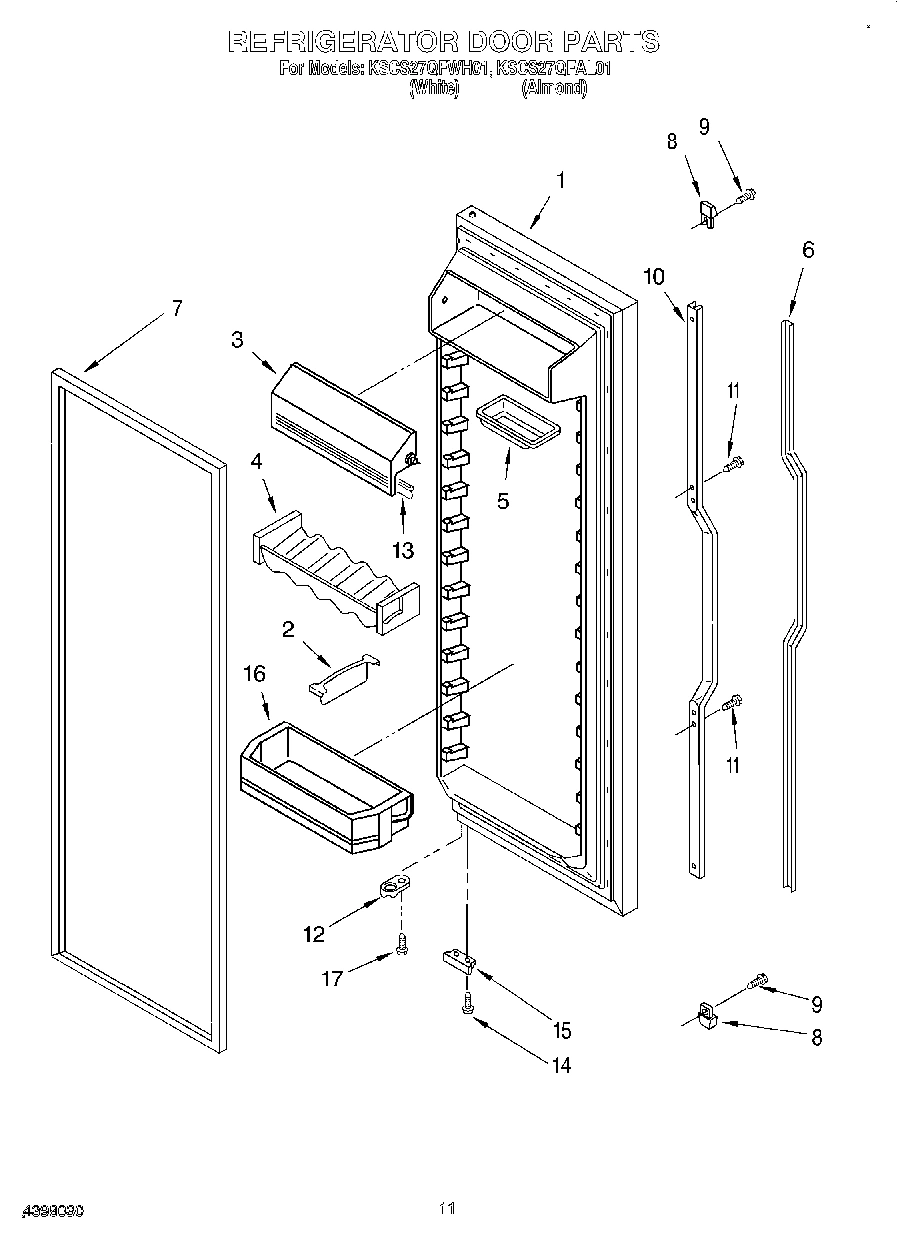

07 - REFRIGERATOR DOOR
Common parts from model Whirlpool KSCS27QFWH01
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI92044A3 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI92045A1 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI92047A9 Contact Us For Availability
1
Refrigerator Door (Includes No.7) (Almond) WPL 2194236N Contact Us For Availability
1
Refrigerator Door (Includes No.7) (White) WPL 2194236W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Load, Lock (1) WPL 2195497 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Louver WPL 2182147 Contact Us For Availability
4
Beverage Holder WPL 2193409 Contact Us For Availability
5
Tray, Butter WPL 2165792 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
6
Insert, Handle (White) WPL 2173825 Contact Us For Availability
6
Insert, Handle (Almond) WPL 2173828 Contact Us For Availability
7
Clip, Tube (3) WPL 934011 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
8
End Cap, Handle (Almond) WPL 2194778N Contact Us For Availability
8
End Cap, Handle (White) WPL 2194778W Contact Us For Availability
9
Cover, Crisper (Includes 2, 3, 4, 11, 12, 13, WPL 2174250 Contact Us For Availability
9
Grommet (2) WPL 2176134 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180323 Contact Us For Availability
9
Shim, Hinge Top WPL 2196048 Contact Us For Availability
9
Ladder, Shelf (2) WPL 2181796 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180324 Contact Us For Availability
10
Screw WPL 489284 Contact Us For Availability
10
Retainer, Insert (Almomd) WPL 2194777N Contact Us For Availability
10
Retainer, Insert (White) WPL 2194777W Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180259 Contact Us For Availability
11
Hinge Cover (White) WPL 1129262 Contact Us For Availability
11
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
11
Lever, Ice Dispenser (Almond (Almond Shadow P WPL 2180260 Contact Us For Availability
13
Eyelet, Roller WPL 2174478 Contact Us For Availability
13
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
13
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
13
Gasket WPL 2159124 Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Grille (White) WPL 2155486 Contact Us For Availability
14
Grille (Almond) WPL 2155487 Contact Us For Availability
15
Relay WPL 2183454 Contact Us For Availability
15
Bracket, Door Stop WPL 2155331 Contact Us For Availability
16
Shelf Bin (4) WPL 2171062 Contact Us For Availability
17
Capacitor WPL 2169137 Contact Us For Availability
17
Lever, Water Dispenser (Almond (Almond Shadow WPL 2180269 Contact Us For Availability
18
Window, Crisper WPL 2174076 Contact Us For Availability
19
Screw Grommet WPL 509812 Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2180368 Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2180369 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI92048A4 Contact Us For Availability
22
Evaporator WPL 2164519 Contact Us For Availability
23
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
23
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
23
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180396 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180397 Contact Us For Availability
25
Tray, Evaporator WPL 1110674 Contact Us For Availability
26
Heat Shield WPL 2149294 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
31
Unit, Harness WPL 2194749 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
34
Clip WPL 2161330 Contact Us For Availability
37
Screw (2) WPL 488280 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
42
Clip, Heat Shield WPL 2155547 Contact Us For Availability
43
Unit Cover, Bottom WPL 2182058 Contact Us For Availability
49
Screw WPL 488624 Contact Us For Availability
54
Wire Connector WPL 227991 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
63
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
