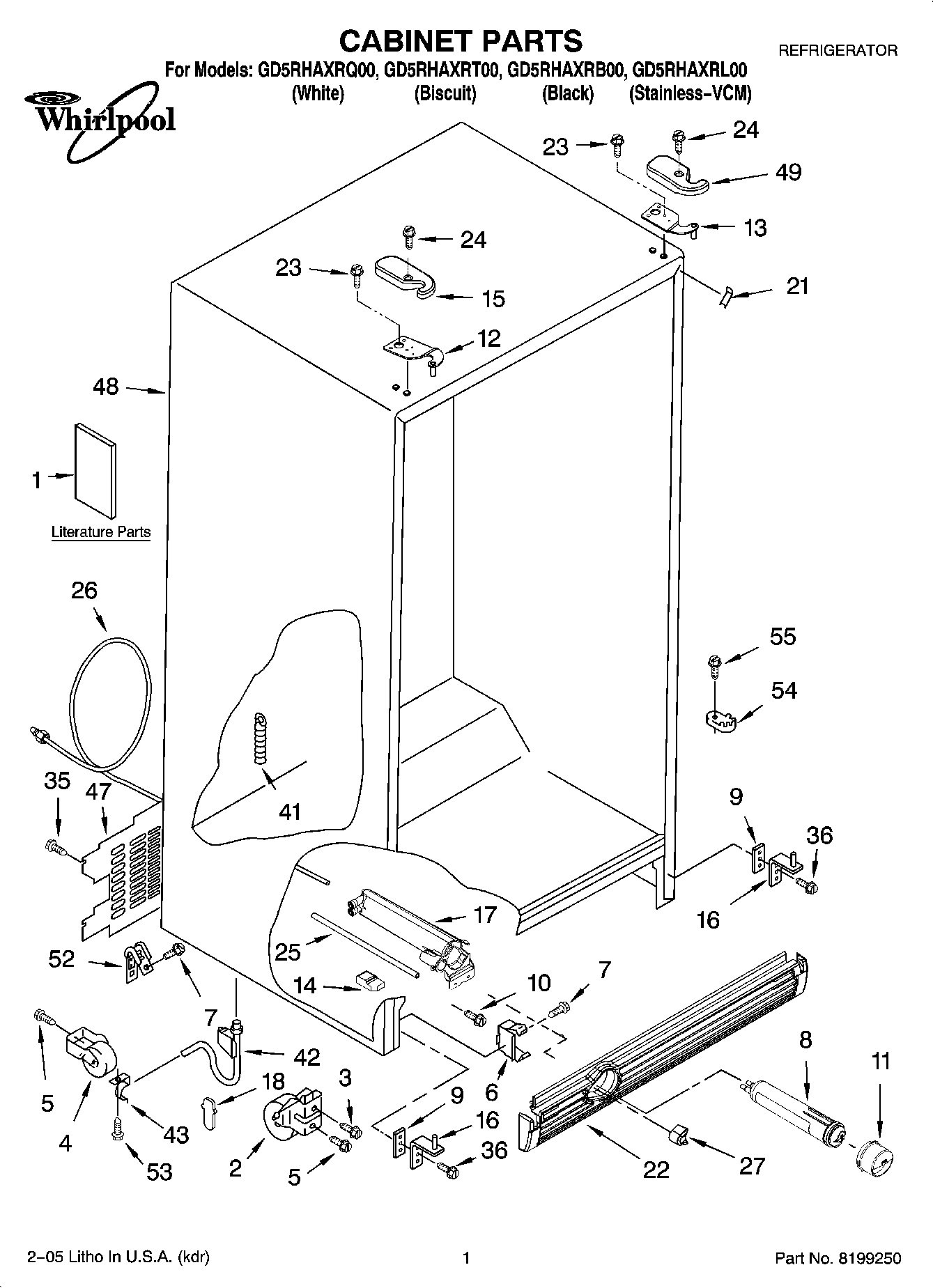

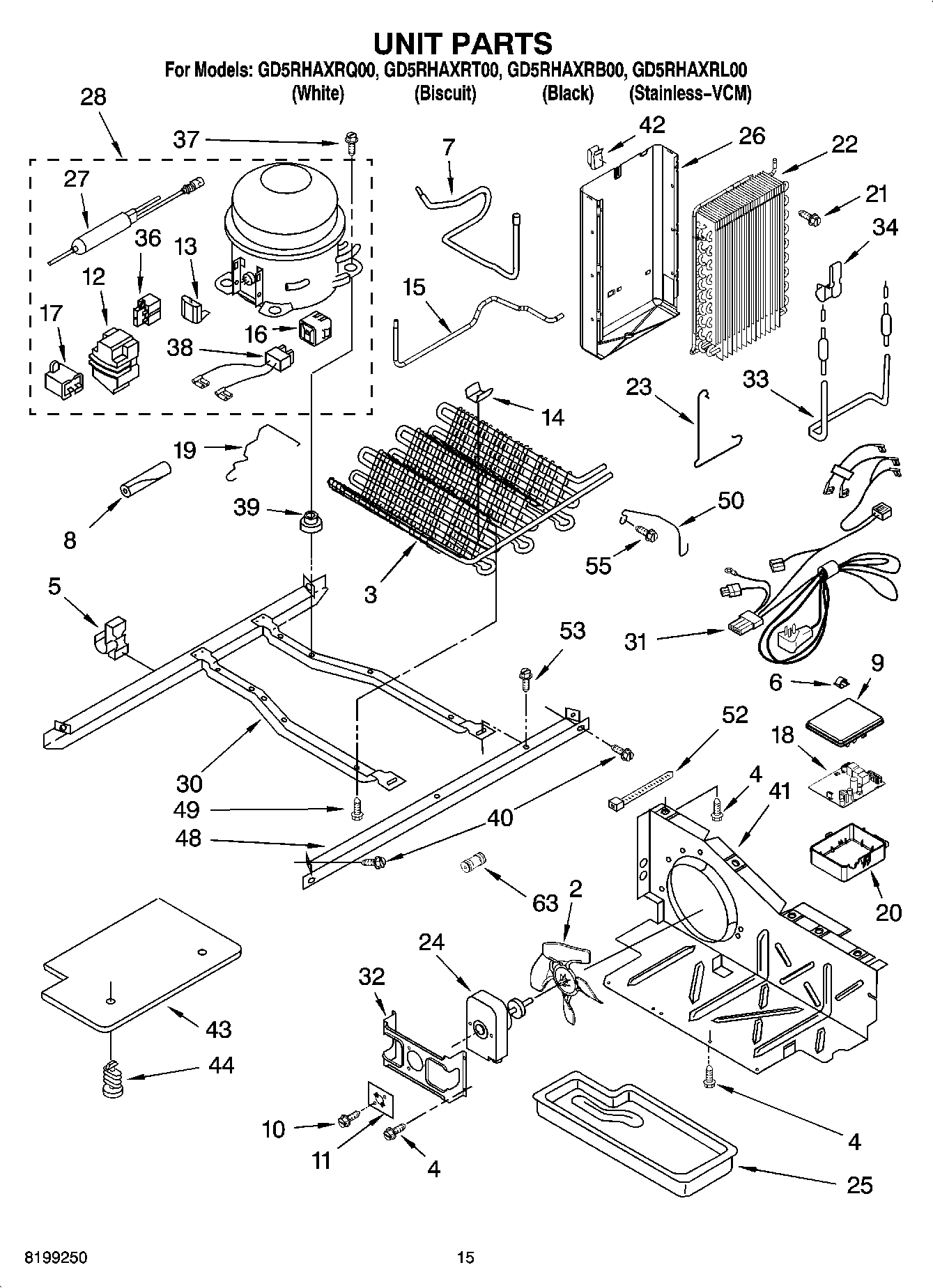

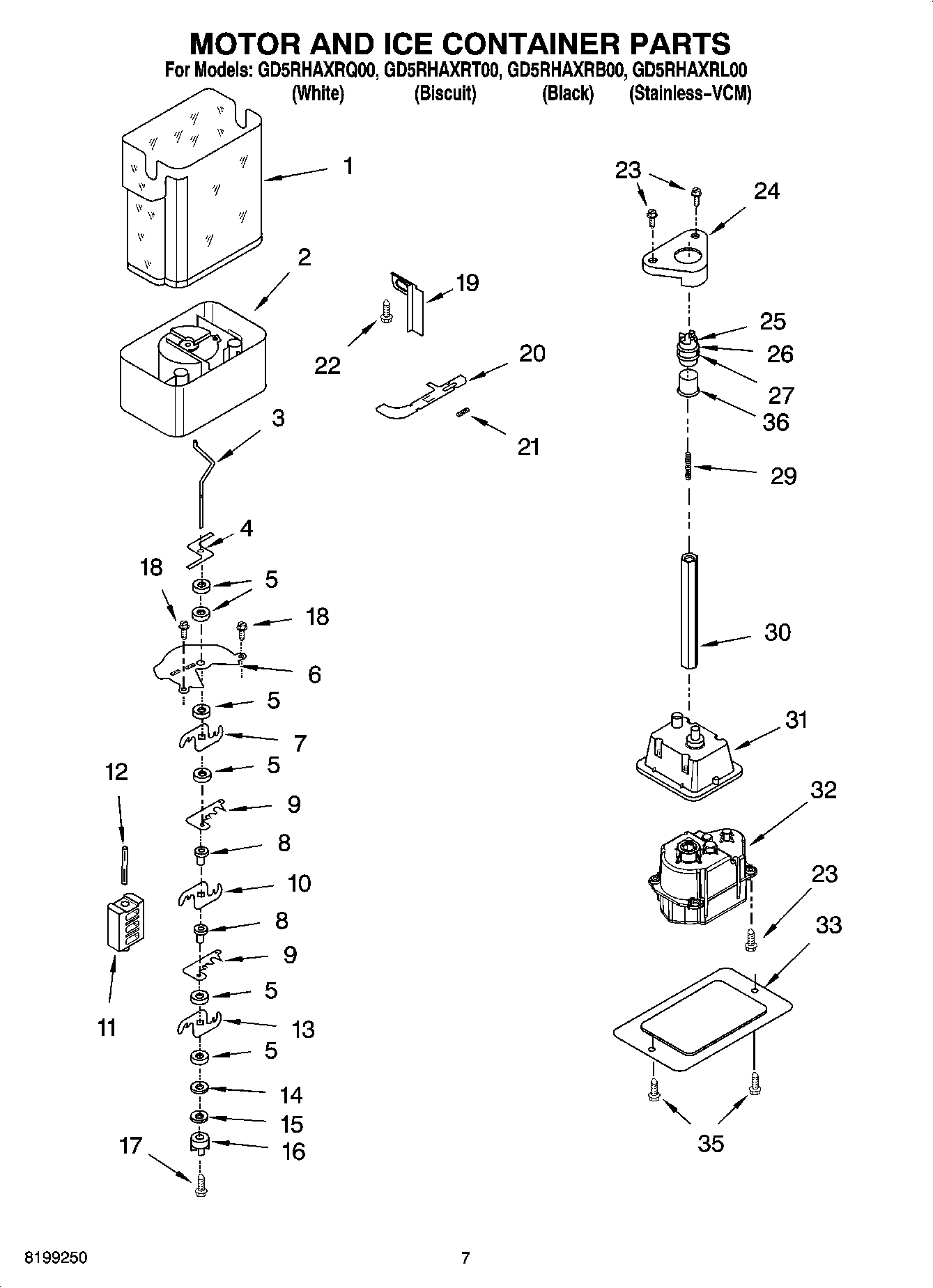

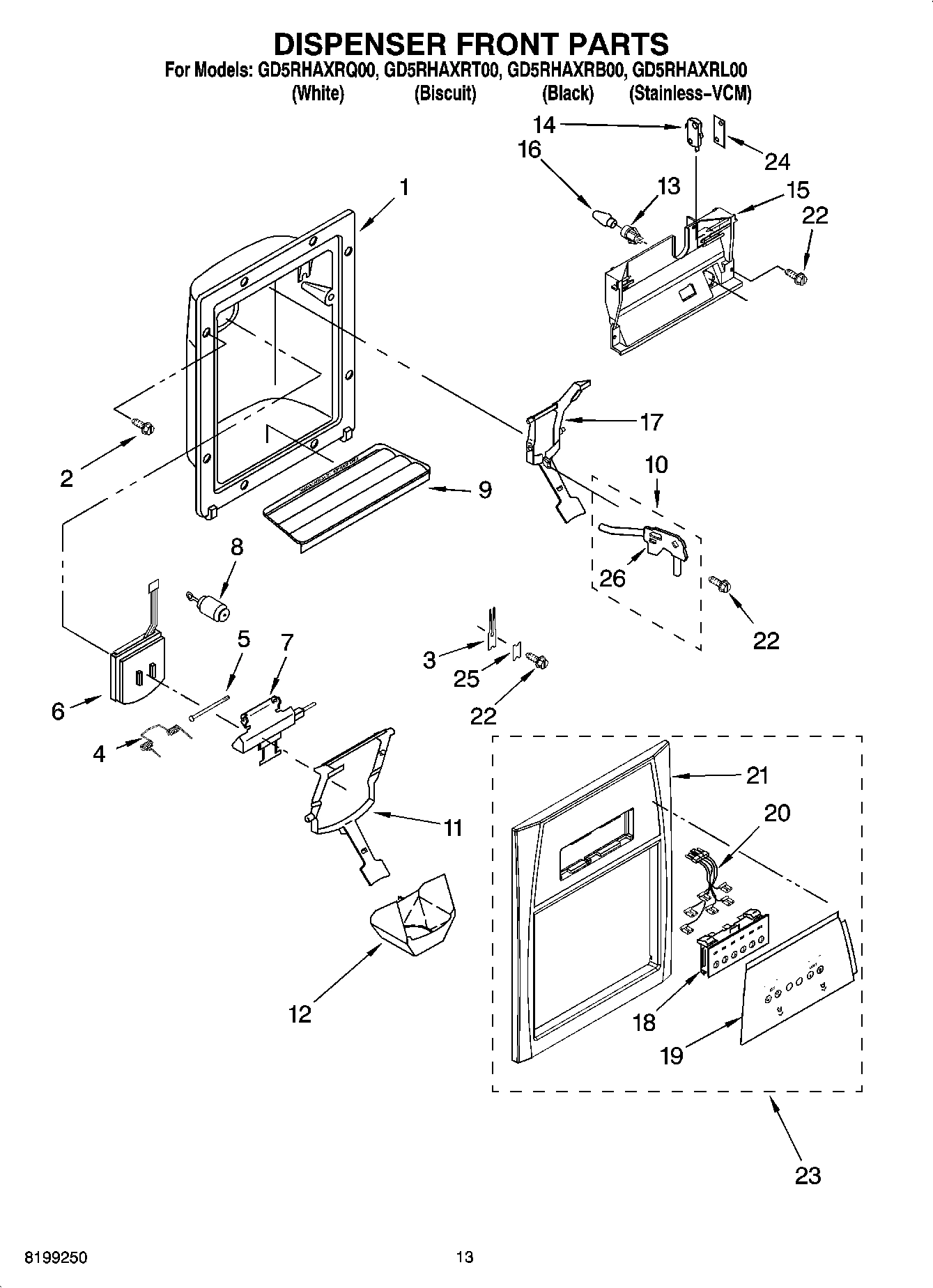

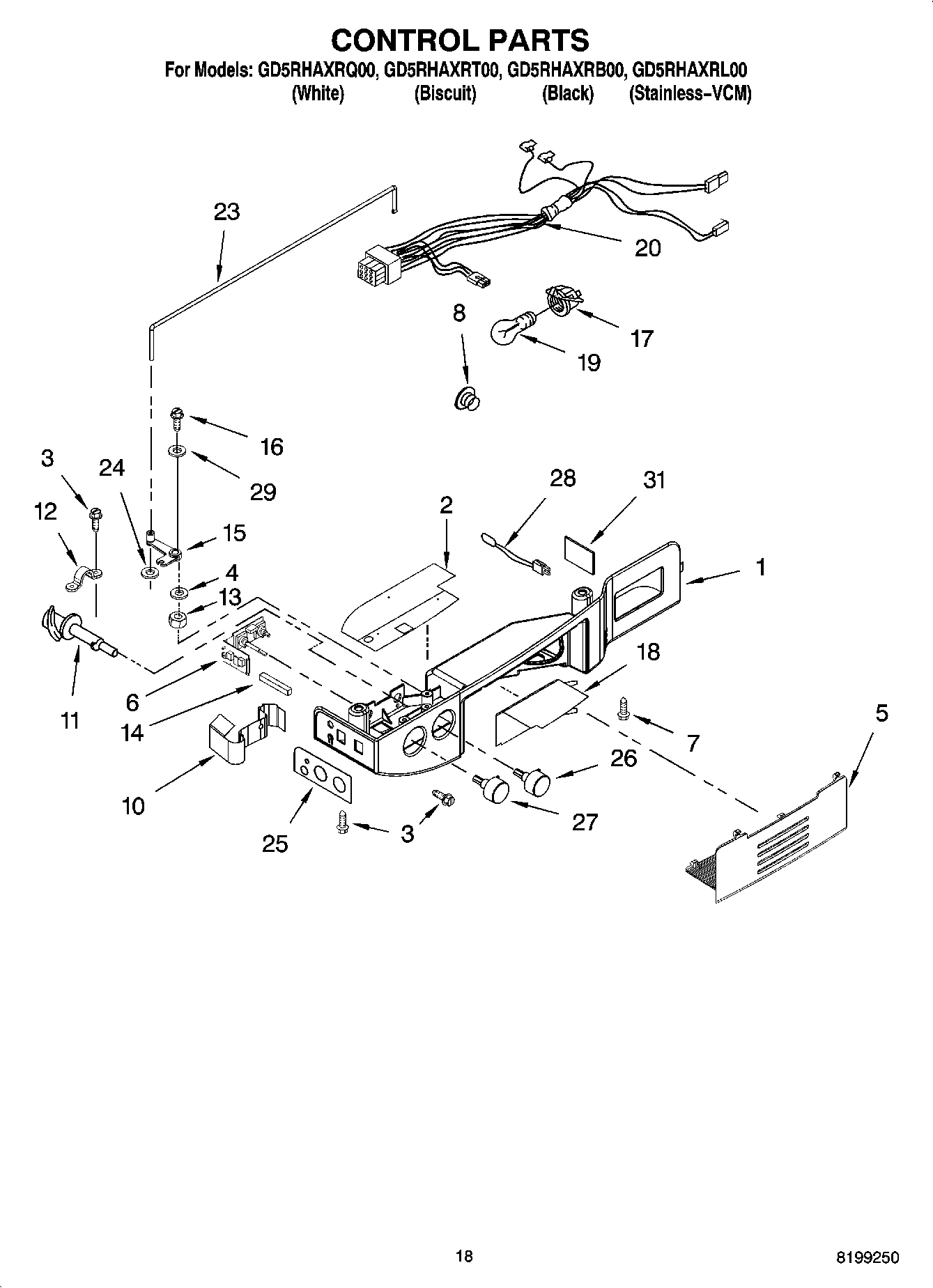

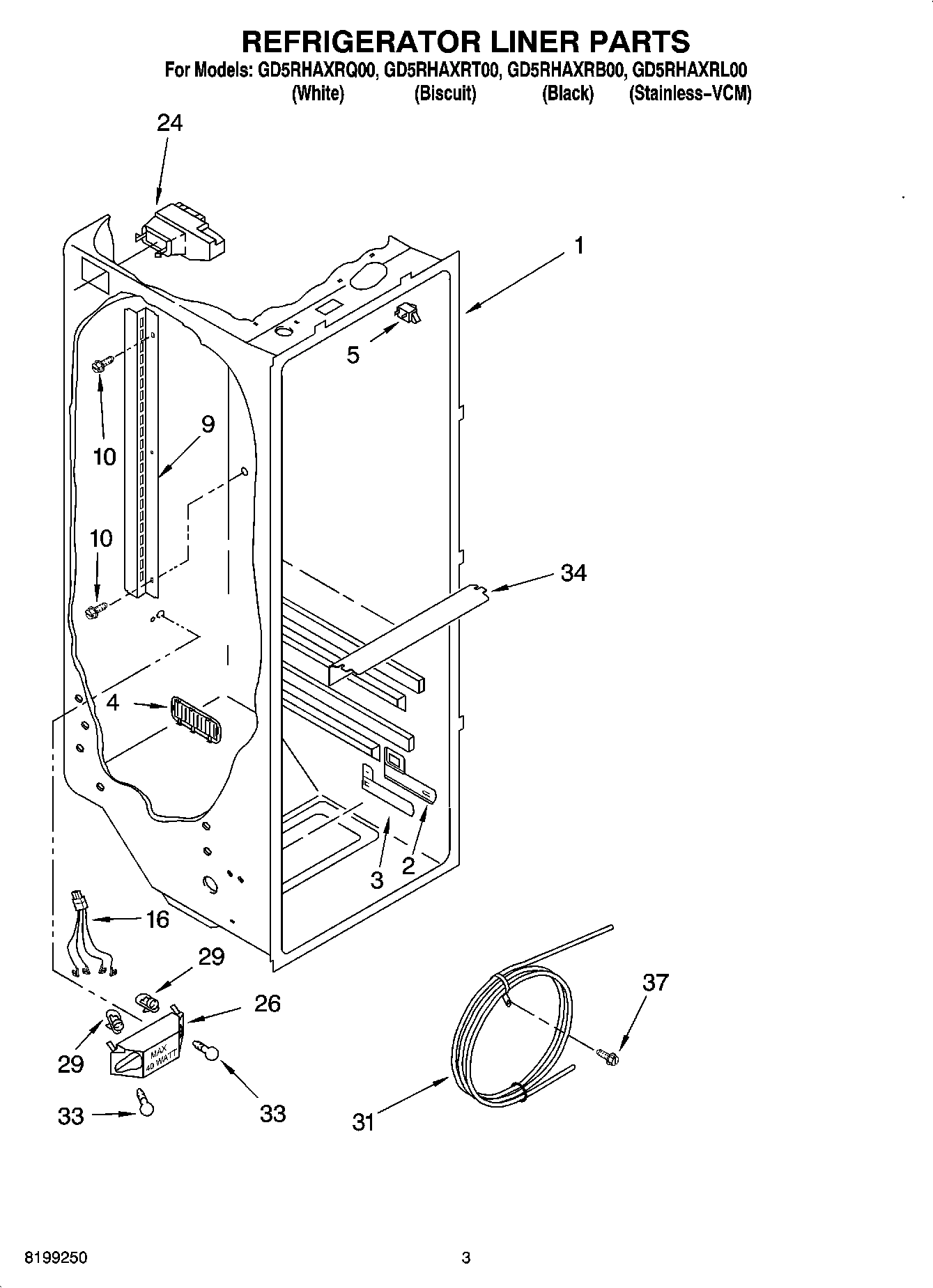

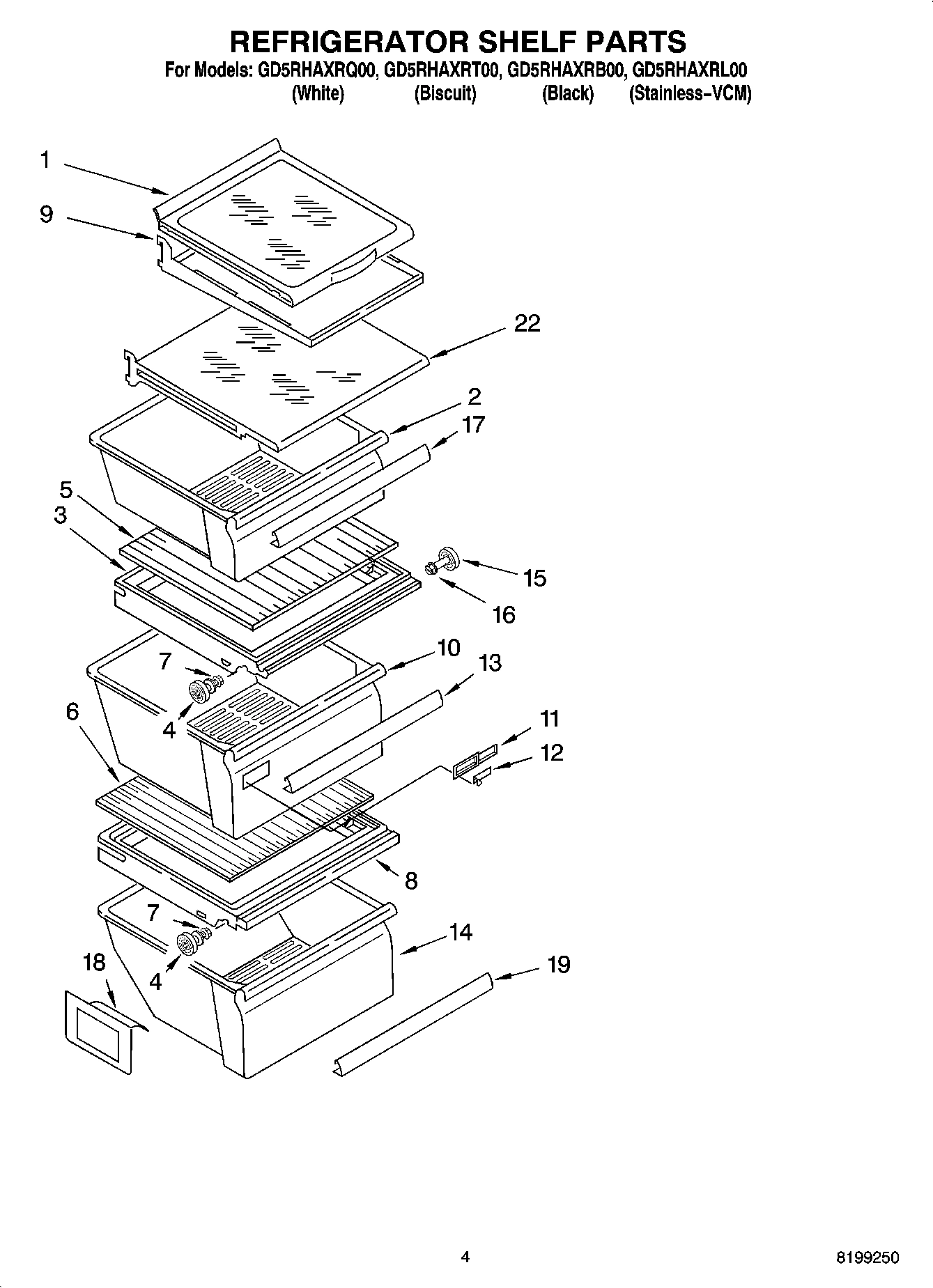

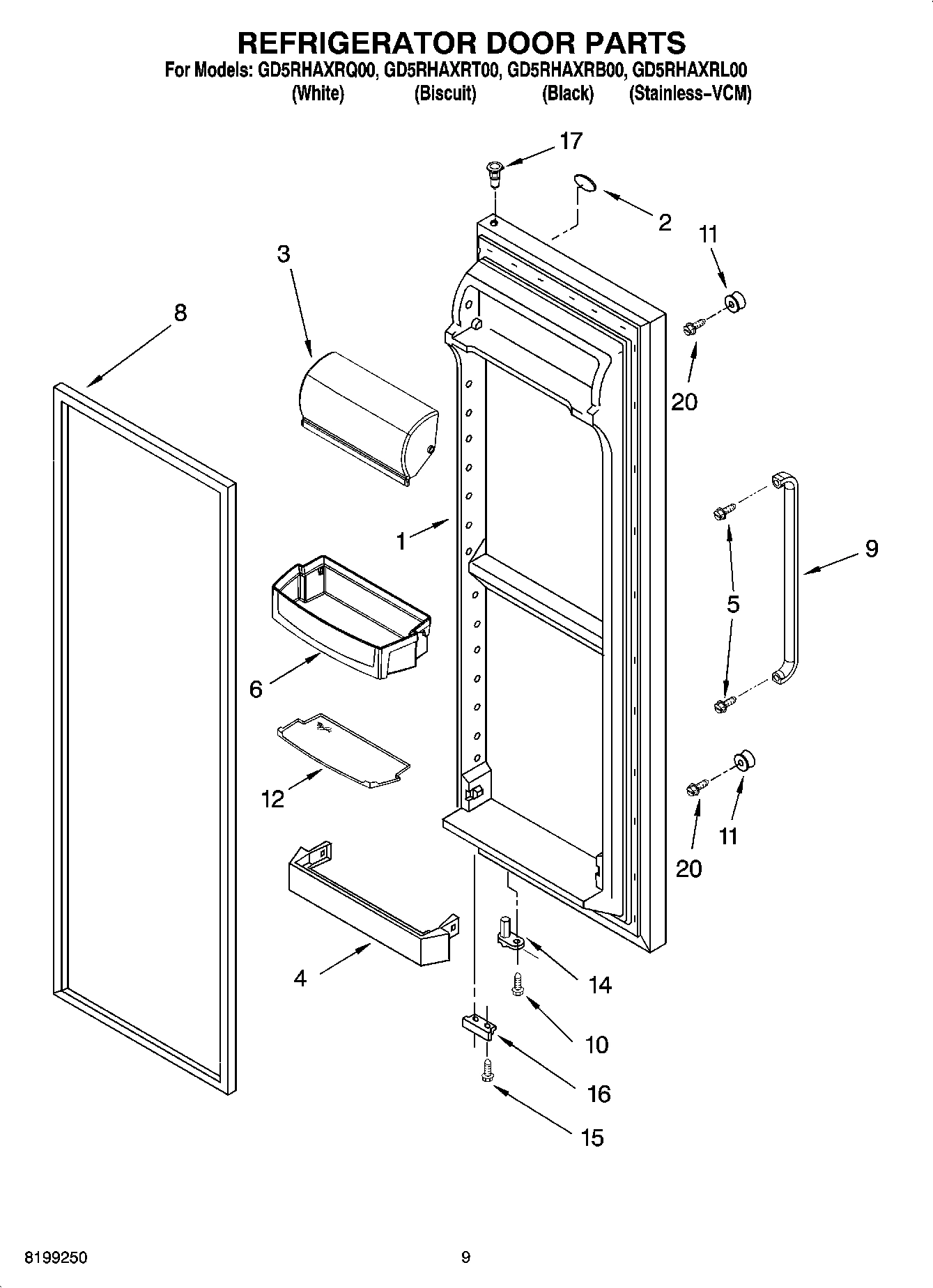

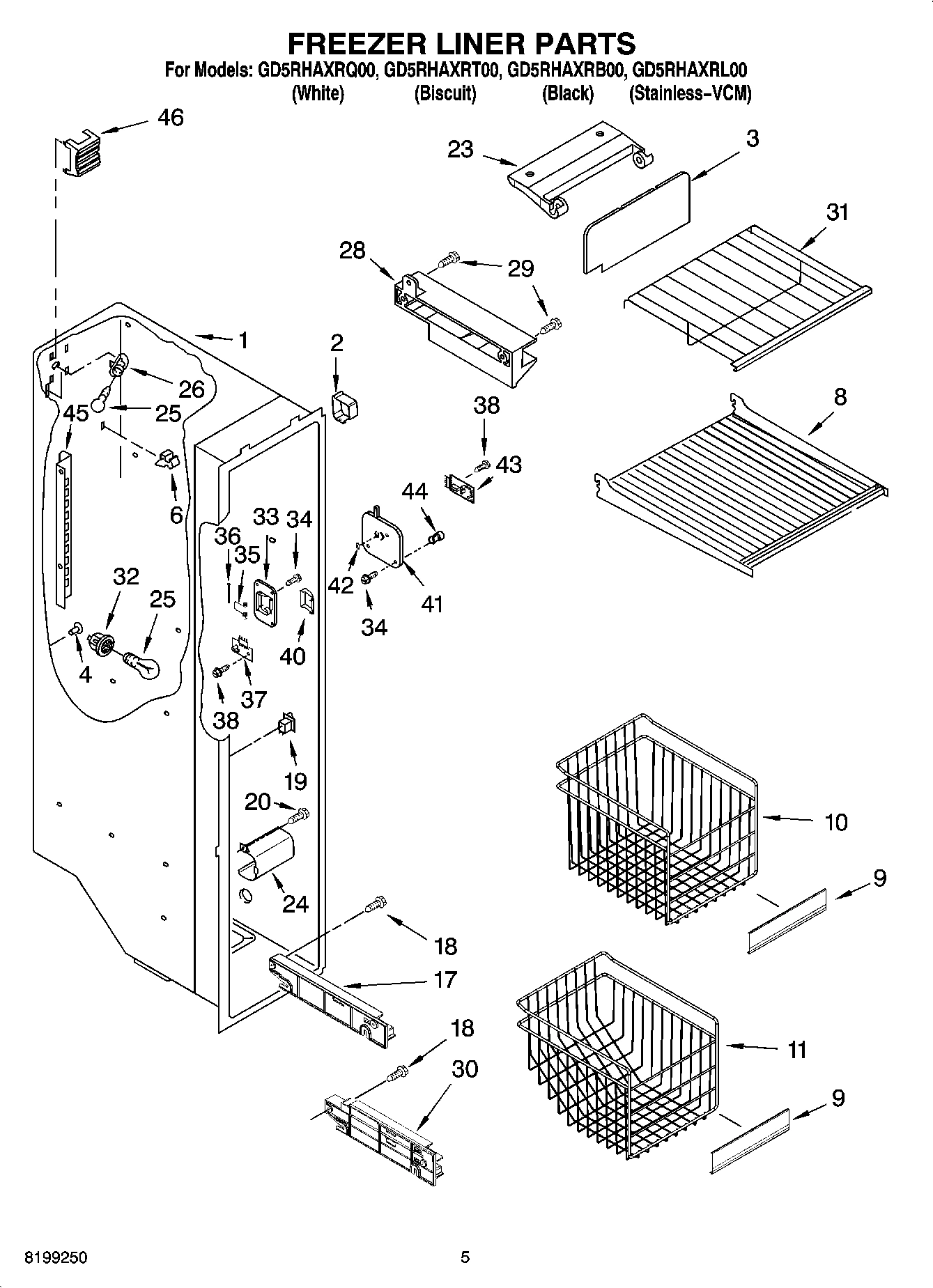

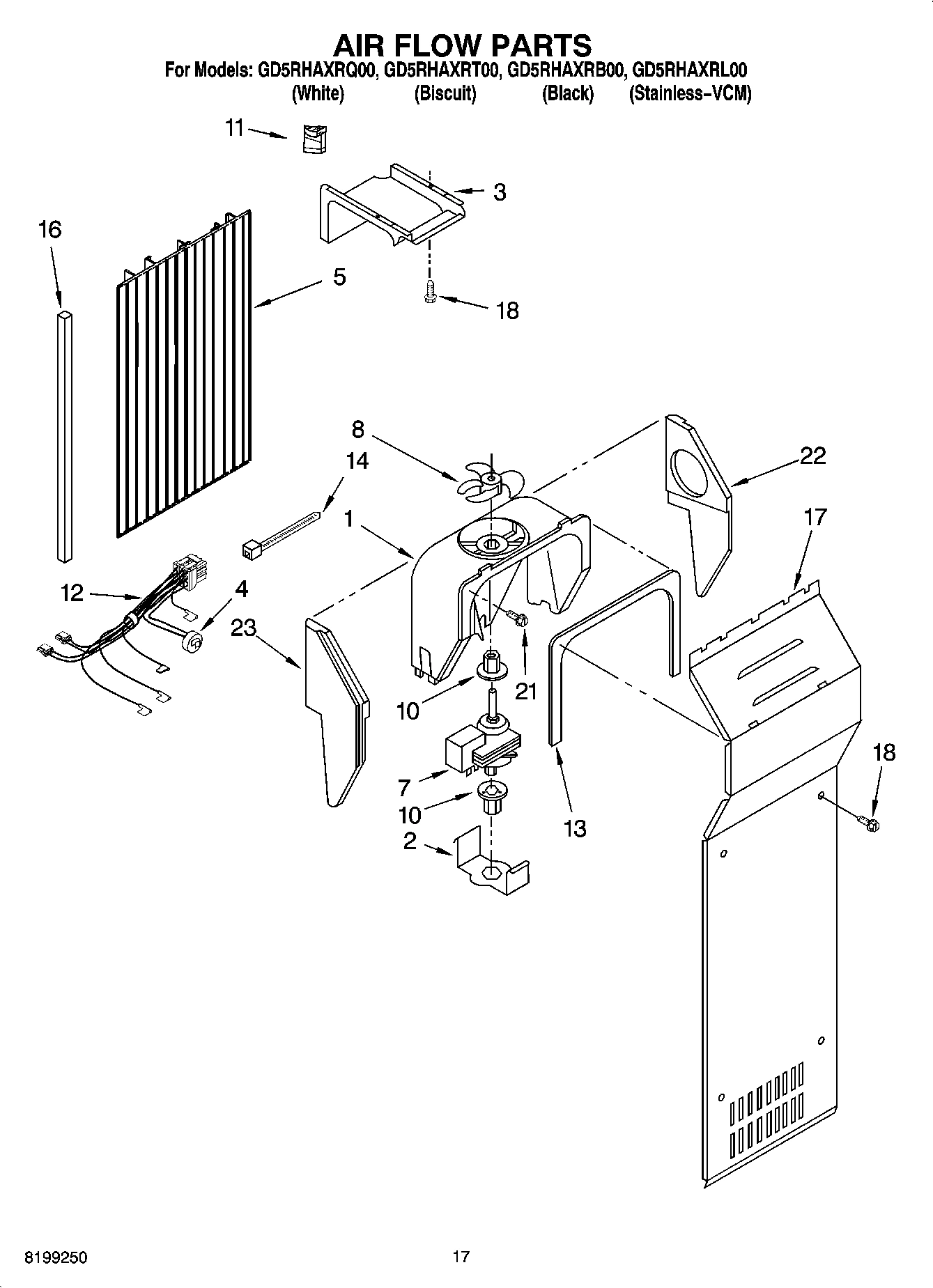

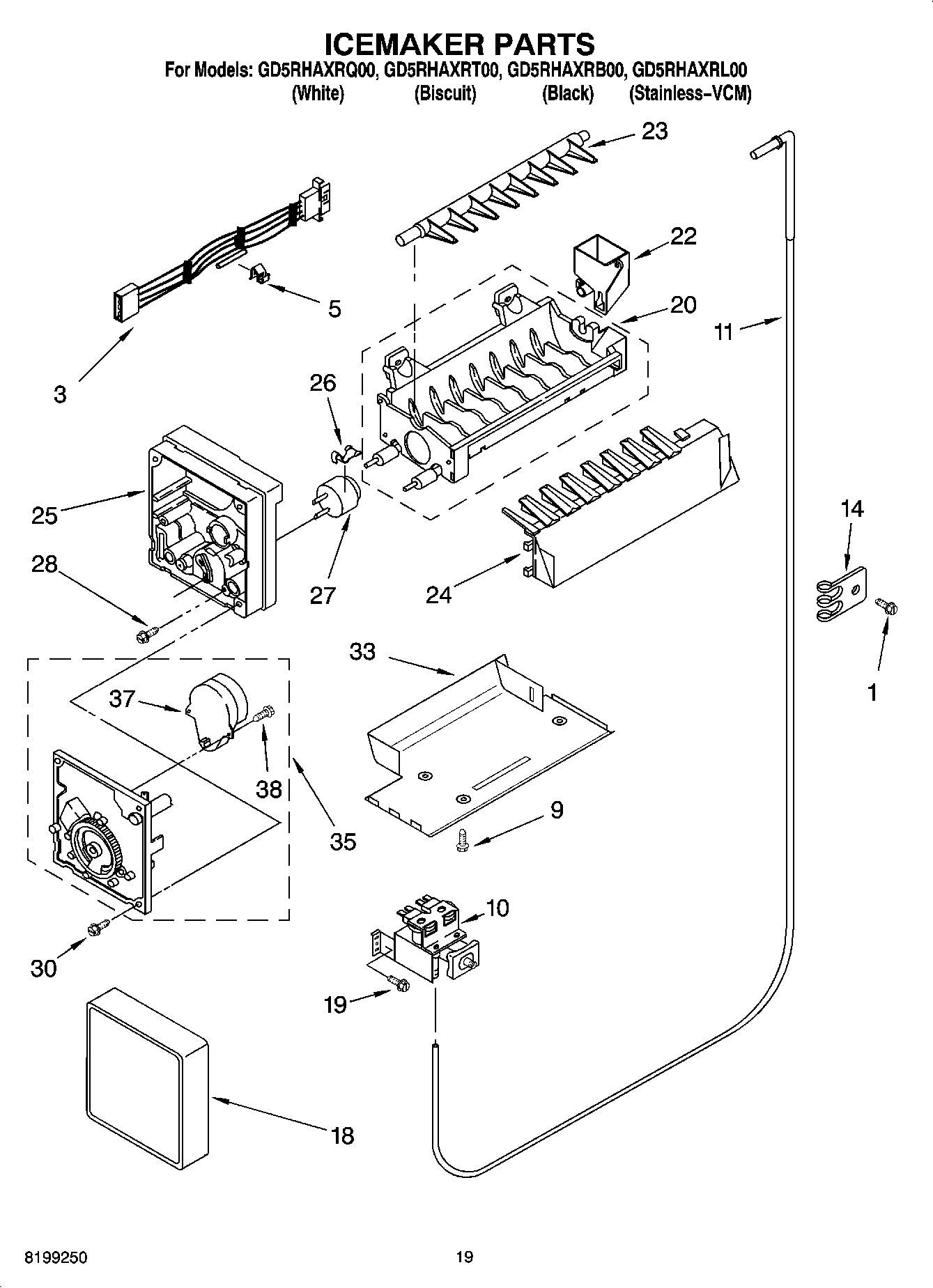

Model Whirlpool GD5RHAXRT00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $71.16

1

WP2198573 Whirlpool Refrigerator Ice Bin Backorder WPL WP2198573 $183.99

1

Housing, Dispenser (Not Serviced) WPL ARI63724A4 Contact Us For Availability

1

Control Box WPL 2255222 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $13.99

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Nameplate WPL 2220214 Contact Us For Availability

2

Shield WPL 2261773 Contact Us For Availability

3

2324712 Whirlpool Refrigerator Condenser Backorder WPL 2324712 $208.07

3

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

4

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Blade, Stirring WPL 2257021 Contact Us For Availability

4

Washer WPL 3400972 Contact Us For Availability

5

W10169512 Whirlpool Clip Backorder WPL W10169512 $52.57

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

5

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $17.77

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Lens, Light WPL 2255225 Contact Us For Availability

6

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

6

Cover, Crusher WPL 2255460 Contact Us For Availability

6

Electronic Control WPL 2303804 Contact Us For Availability

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

7

NLA:SCREW Backorder WPL WPW10141645 $4.82

7

TUBE, SUCTION WPL 2205765 Contact Us For Availability

7

Thimble, Top (For White, Biscuit, and Black M WPL 2301049 Contact Us For Availability

7

Door Mechanism Assembly WPL 2304355 Contact Us For Availability

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

8

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $65.79

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $13.22

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $24.99

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $44.34

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $54.67

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Cover, Control Box WPL 2255624 Contact Us For Availability

8201537 Whirlpool Water Tubing Assembly In Stock WPL 8201537 $94.45

8281160 Whirlpool Screw Backorder WPL 8281160 $5.46

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

Shield, Electrical (Internal) WPL 2305538 Contact Us For Availability

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $90.20

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2255431B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255431B $66.51

WP2255431W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255431W $66.84

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $130.70

WPW10170540 Whirlpool Screw In Stock WPL WPW10170540 $6.75

Lever, Ice Dispenser (Biscuit) WPL 2255431T Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Insert, Bracket WPL 2216997 Contact Us For Availability

Cam Assembly WPL 2255226 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $64.83

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

Bearing Body WPL 2255413 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

WP2154697 Whirlpool Refrigerator Overload Backorder WPL WP2154697 $88.59

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

Nut, Hex WPL 3400971 Contact Us For Availability

W10683556 Whirlpool Refrigerator Clip Backorder WPL W10683556 $12.26

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Foam, Shield WPL 2188928 Contact Us For Availability

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

2261599 Whirlpool Refrigerator Tube Backorder WPL 2261599 $165.76

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Pivot Arm WPL 2255227 Contact Us For Availability

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $8.05

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $12.79

WP2319792 Whirlpool Refrigerator Start Device In Stock WPL WP2319792 $72.89

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP2255432B Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432B $65.65

WP2255432T Whirlpool Refrigerator Dispenser A Backorder WPL WP2255432T $65.92

WP2255432W Whirlpool Refrigerator Dispenser A In Stock WPL WP2255432W $65.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $34.99

Slide, Basket (Right Side) WPL 2301289 Contact Us For Availability

Slide, Basket (Left Side) WPL 2301290 Contact Us For Availability

Thimble-Top (For White, Biscuit & Black Model WPL 2308050 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

Switch Assembly (Not Available, Order 23) WPL ARI63725A6 Contact Us For Availability

Control, Electronic WPL 2304078 Contact Us For Availability

Shield, Heat WPL 2255666 Contact Us For Availability

19

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

19

Overlay, Front Cover (Not Available, Order 23 WPL ARI63726A9 Contact Us For Availability

19

Clip, Retaining WPL 2255199 Contact Us For Availability

2187406 Whirlpool Refrigerator Wire Harness Backorder WPL 2187406 $79.95

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

Box, Control WPL 2255623 Contact Us For Availability

Control Box Harness WPL 2187965 Contact Us For Availability

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

21

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

21

Front Cover, Housing (Not Available, Order 23 WPL ARI63727A1 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $6.84

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $287.76

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

W10849998 Whirlpool Glass Shelf Backorder WPL W10849998 $170.35

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Front Cover Assembly (Includes Items 18, 19, WPL 2301467T Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2301467W Contact Us For Availability

Connecting Rod WPL 2255228 Contact Us For Availability

W10124096 Whirlpool Refrigerator Condenser Fa In Stock WPL W10124096 $89.49

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastner, Push-On WPL 489285 Contact Us For Availability

Holder WPL 2212369 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $14.99

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $74.67

Overlay, Control Box WPL 2261334 Contact Us For Availability

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

Heat Shield WPL 2304289 Contact Us For Availability

Knob, RC WPL 2255232 Contact Us For Availability

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $37.99

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $14.75

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Knob, FC WPL 2255992 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10309994 Whirlpool Refrigerator Compressor In Stock WPL W10309994 $487.99

WP2188819 Whirlpool Thermistor In Stock WPL WP2188819 $23.99

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

30

2304904 Whirlpool Frame Assembly Backorder WPL 2304904 $184.77

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $69.83

31

Unit, Harness WPL 2187748 Contact Us For Availability

31

Air Seal, Thermistor WPL 2261265 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

33

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $70.78

33

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $45.79

34

W11623163 Whirlpool Refrigerator Clip Backorder WPL W11623163 $7.27

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

35

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

35

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

36

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $20.81

36

Relay (Service Only) WPL 2183454 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

39

876811 Whirlpool Grommet Backorder WPL 876811 $4.82

39

WP4387558 Whirlpool Refrigerator Compressor G Backorder WPL WP4387558 $4.82

40

489340 Whirlpool Refrigerator Screw Backorder WPL 489340 $6.83

40

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

41

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $63.81

42

Clip, Heat Shield WPL 2155547 Contact Us For Availability

43

Unit Cover, Bottom WPL 2206281 Contact Us For Availability

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

44

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

48

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $54.42

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

49

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

49

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

50

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $58.57

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $32.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

WPL ARI63728A6 WPL ARI63728A6 Contact Us For Availability

WPL ARI63729A8 WPL ARI63729A8 Contact Us For Availability

WPL ARI63730A6 WPL ARI63730A6 Contact Us For Availability

100

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $162.99
