Model Whirlpool GD27DFXFW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

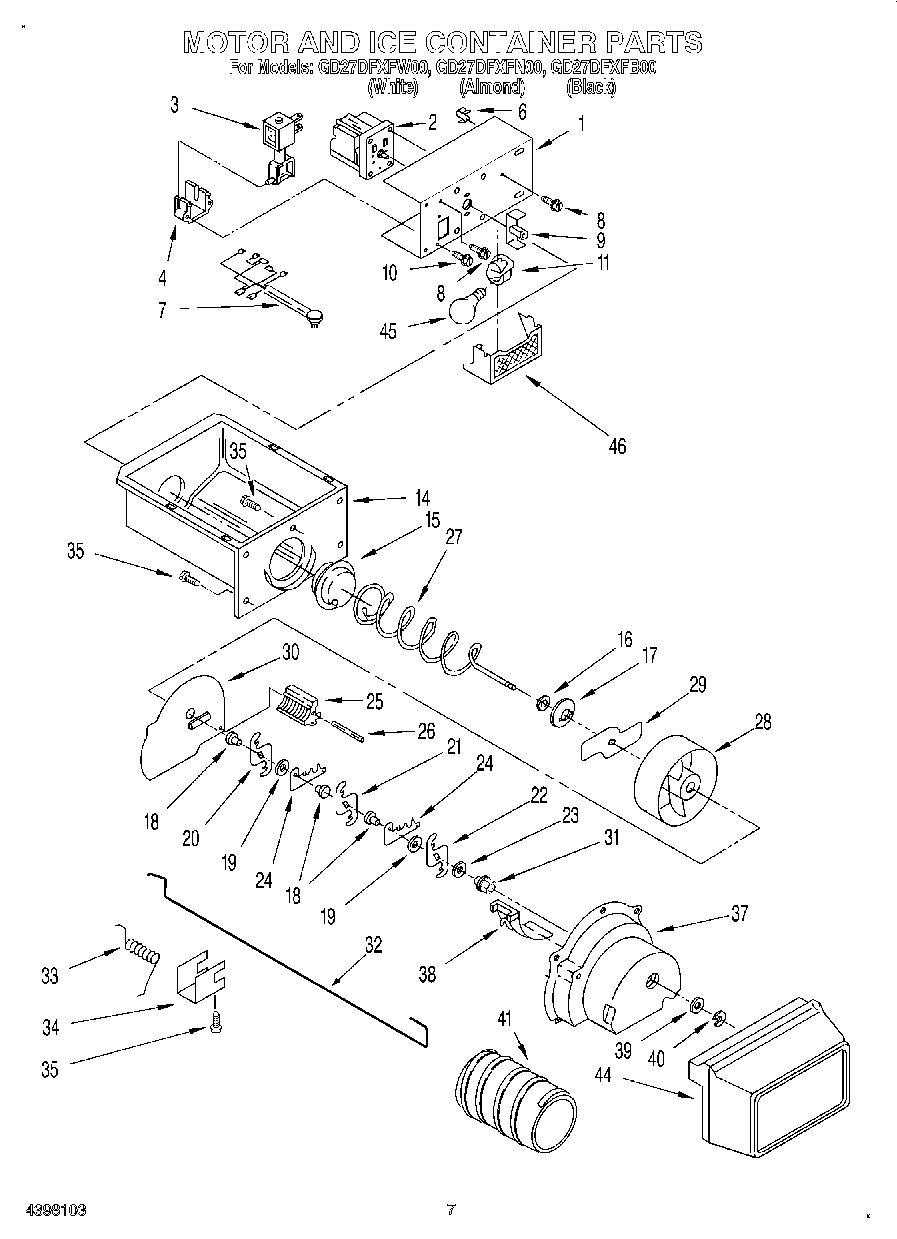

05 - MOTOR AND ICE CONTAINER

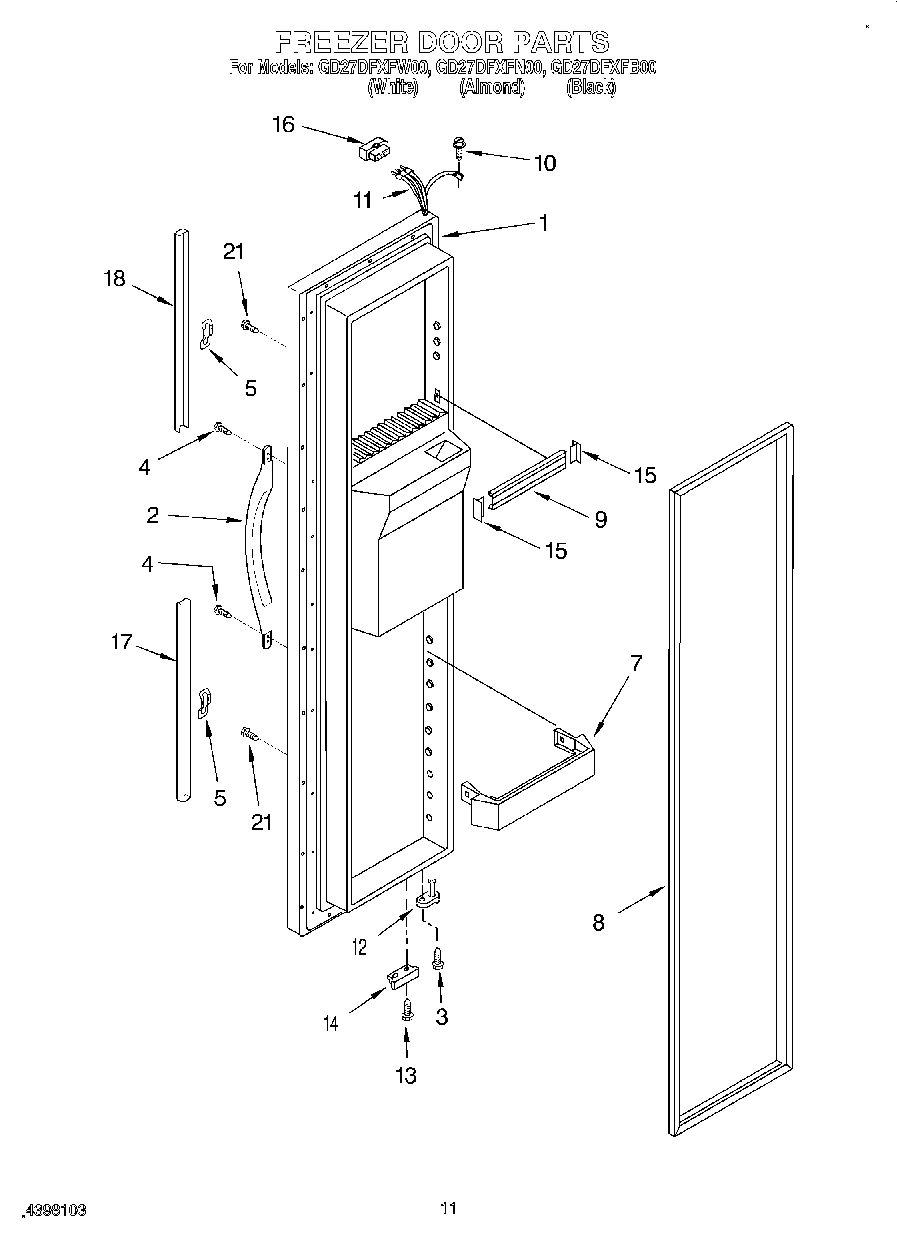

07 - FREEZER DOOR

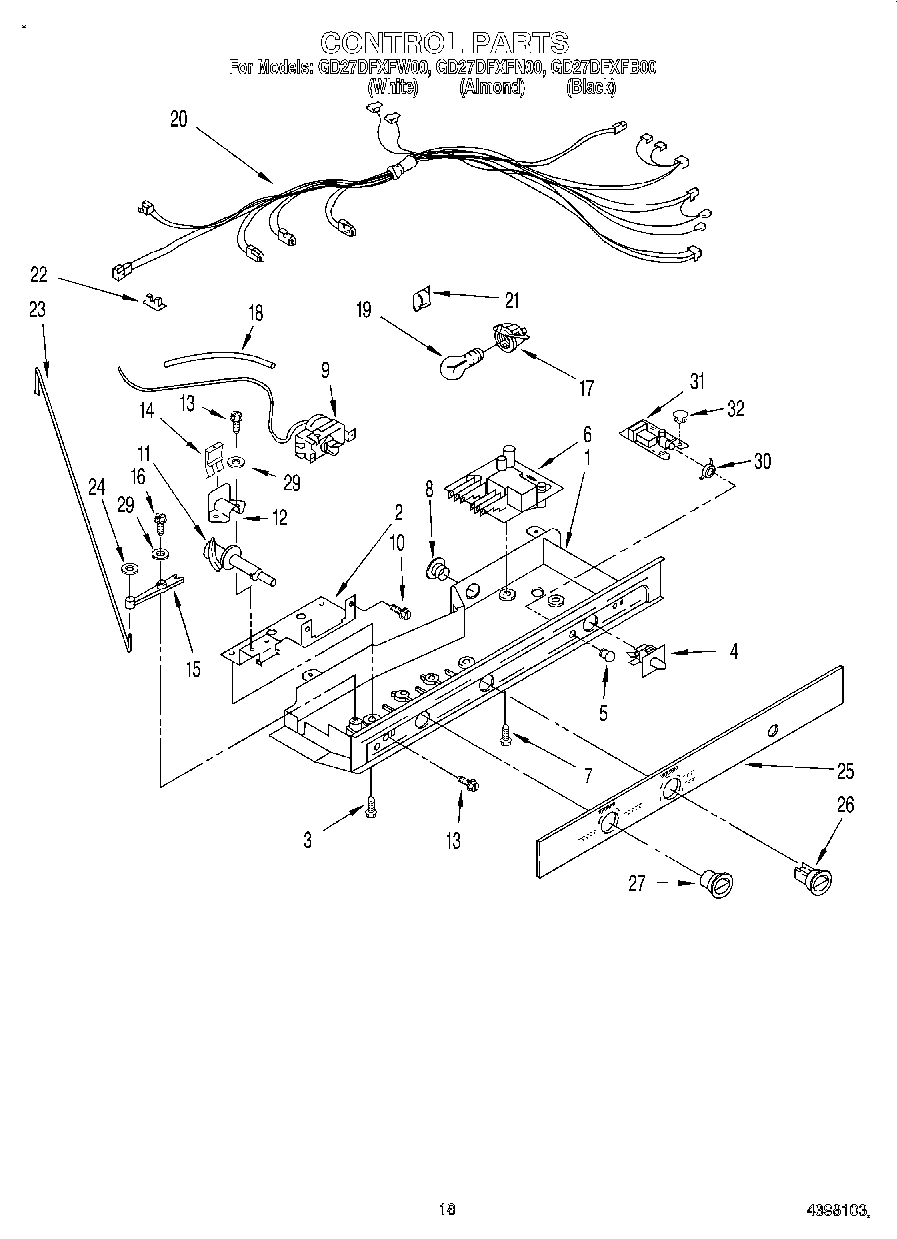

11 - CONTROL

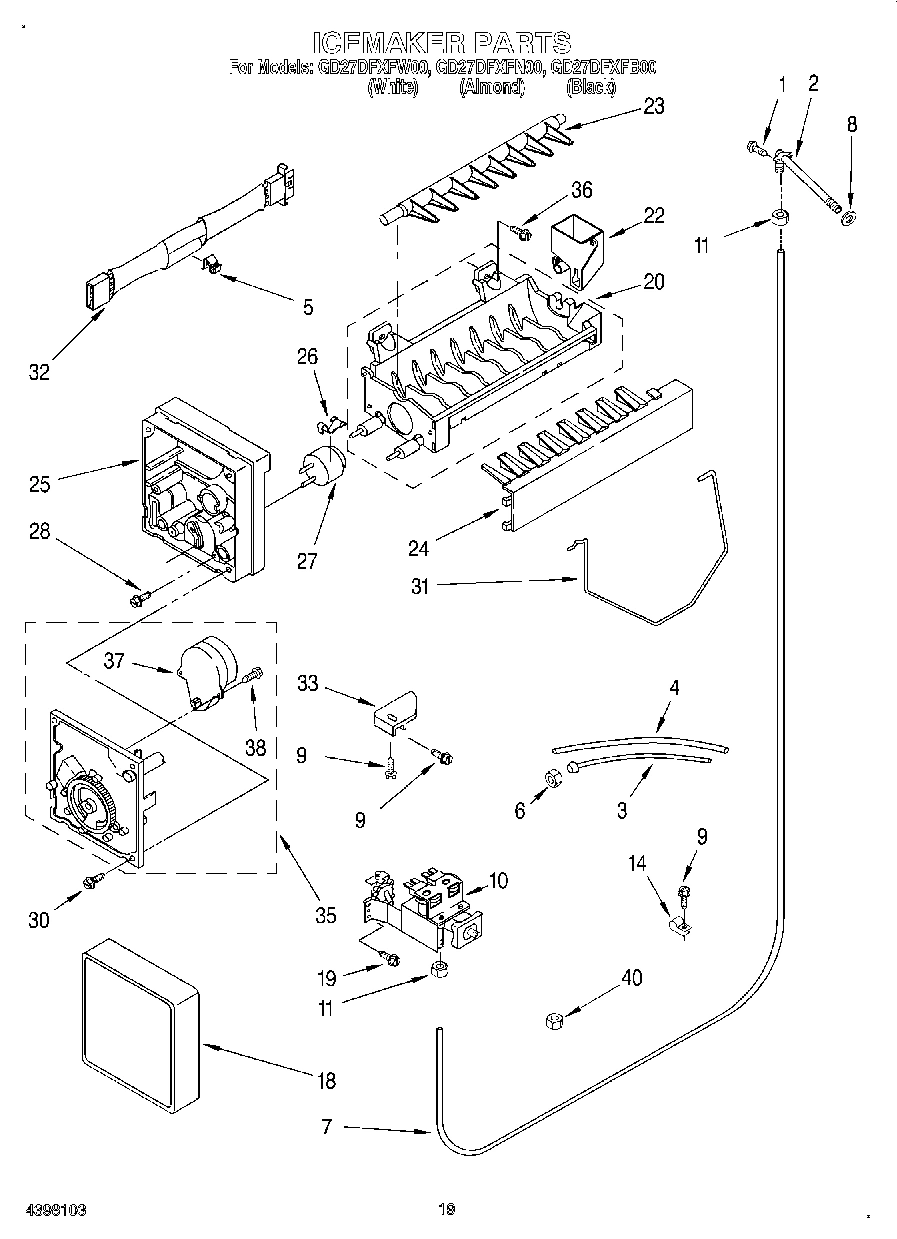

12 - ICEMAKER

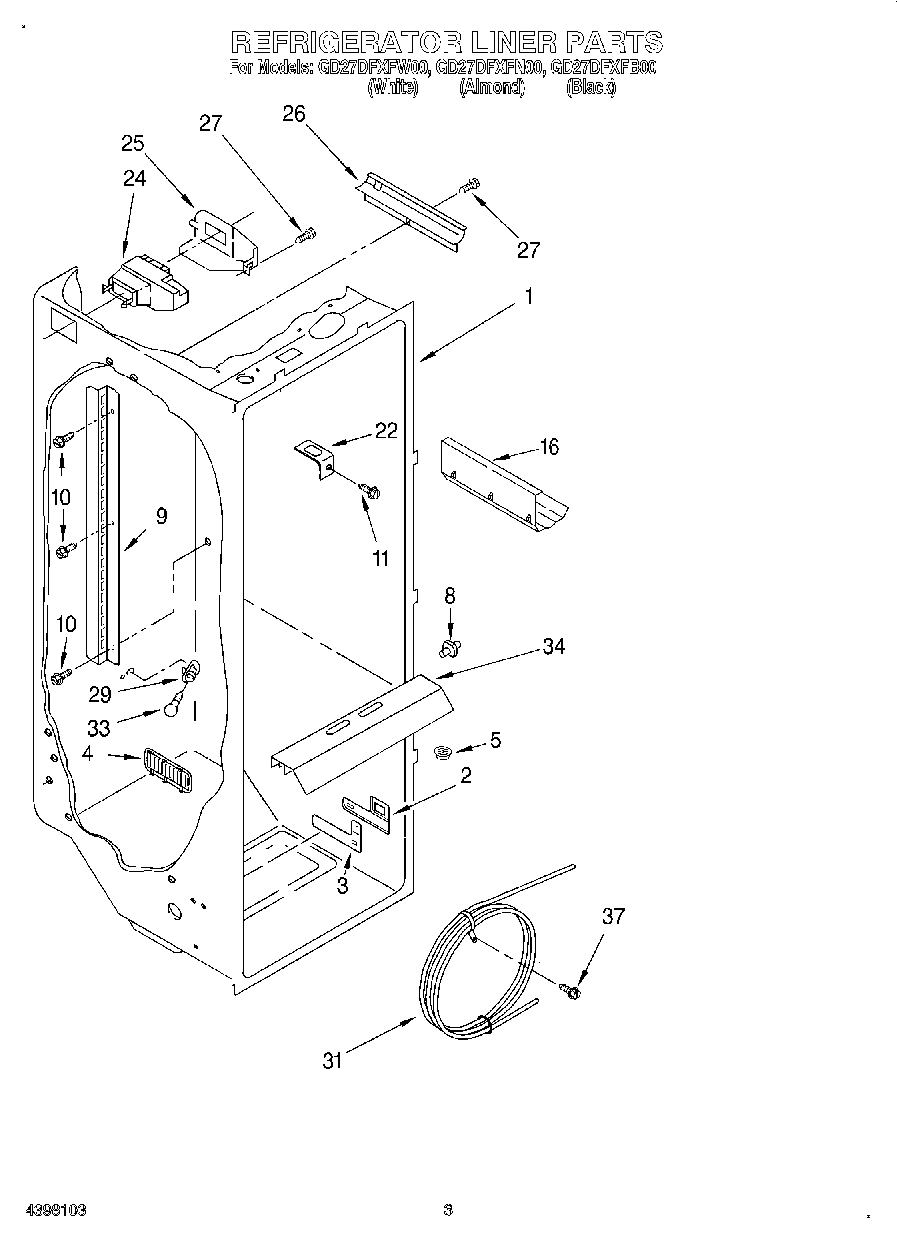

02 - REFRIGERATOR LINER

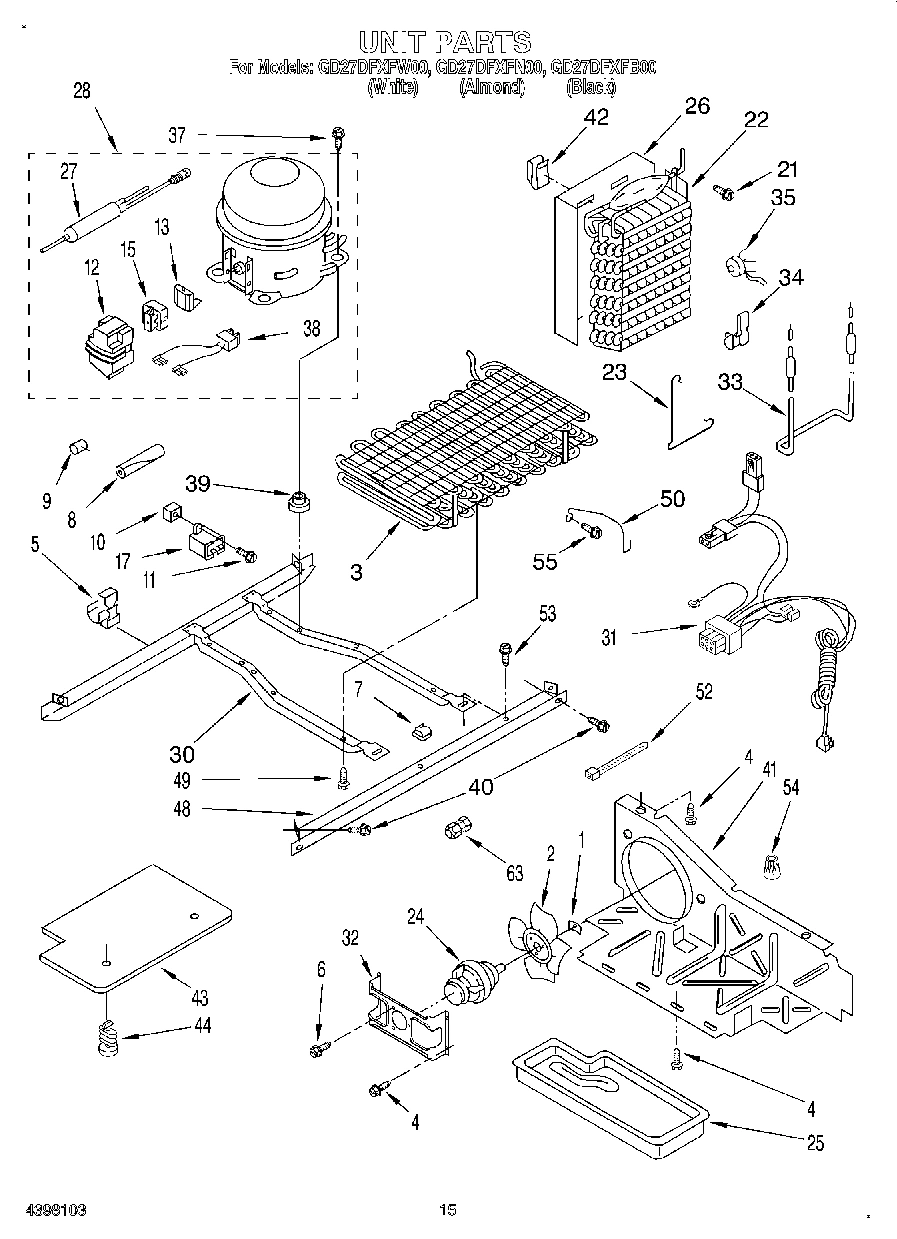

09 - UNIT

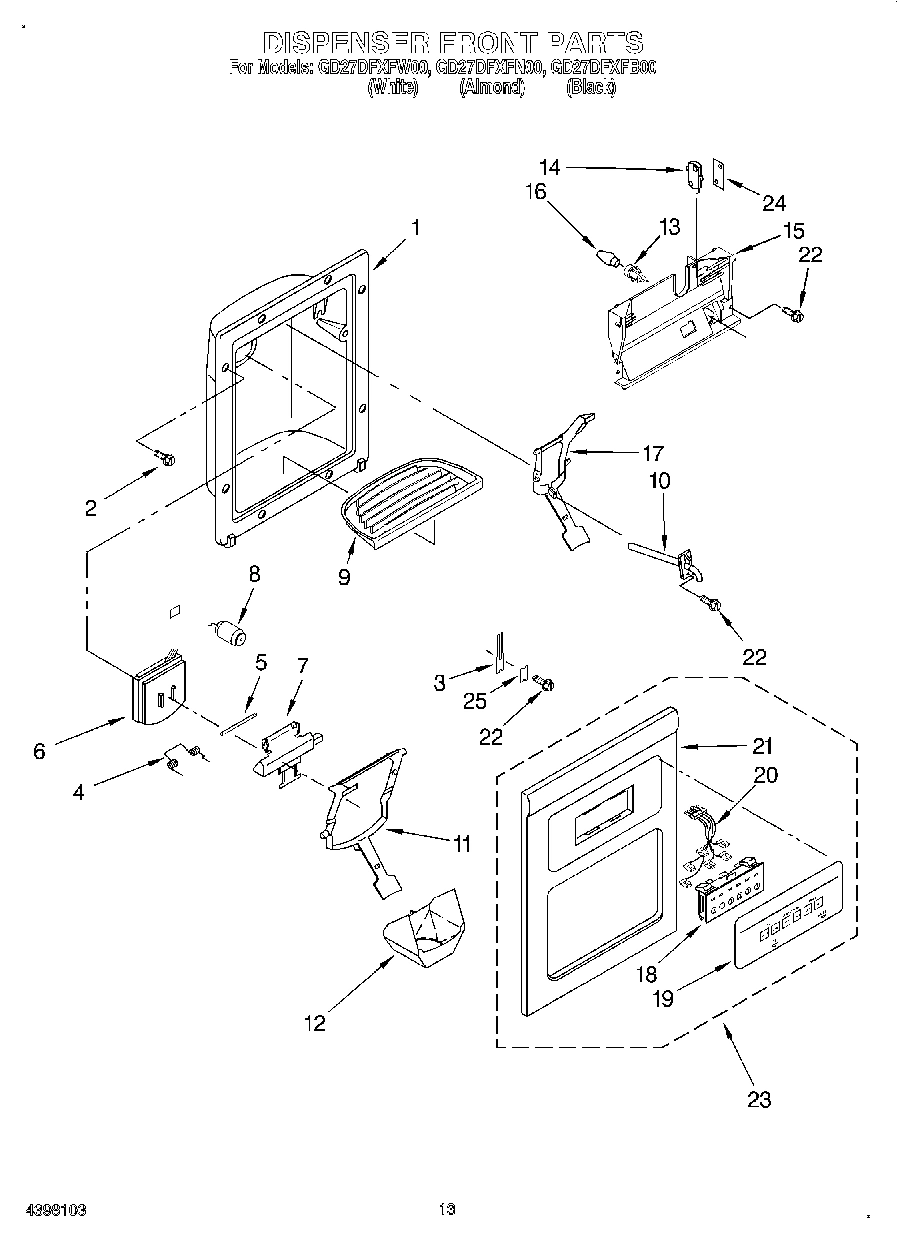

08 - DISPENSER FRONT

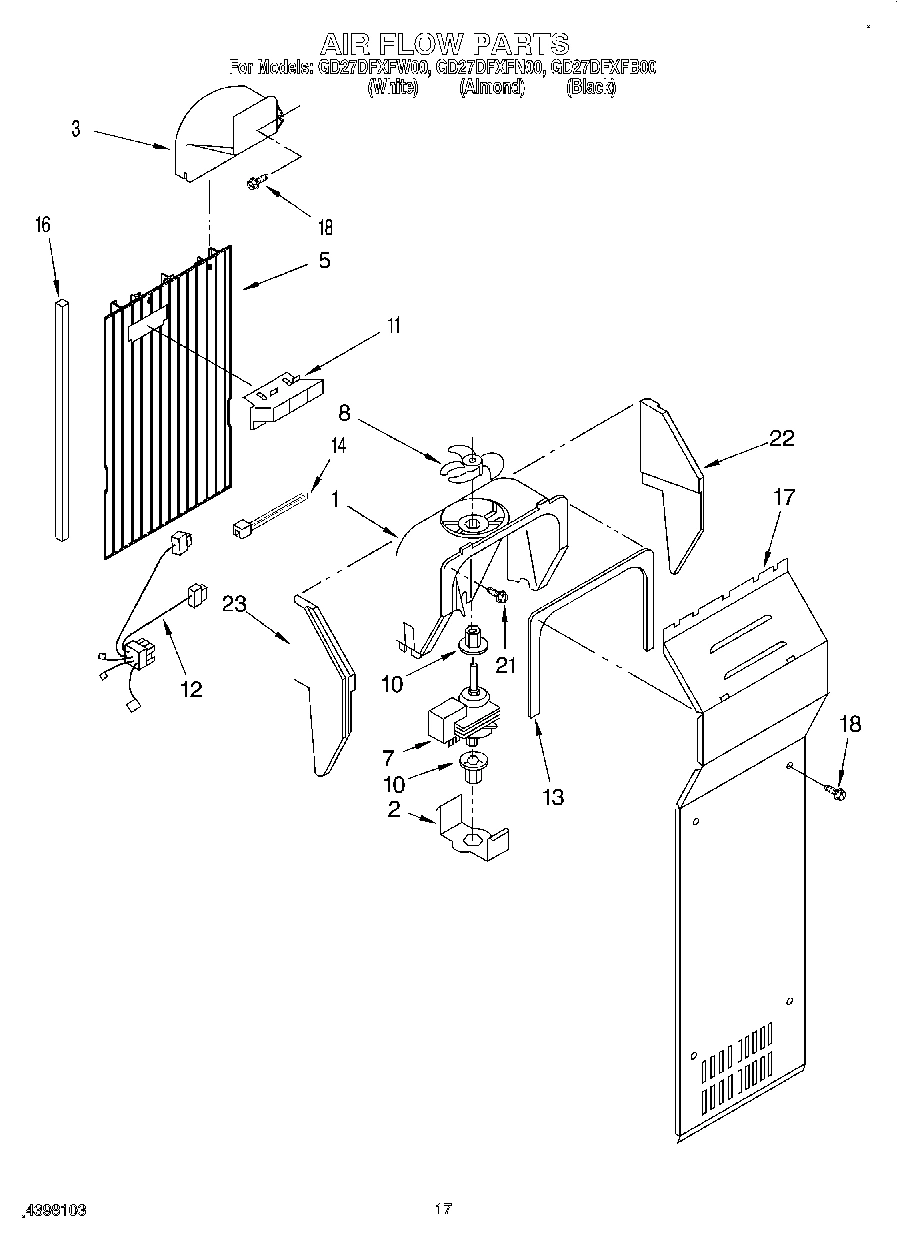

10 - AIR FLOW

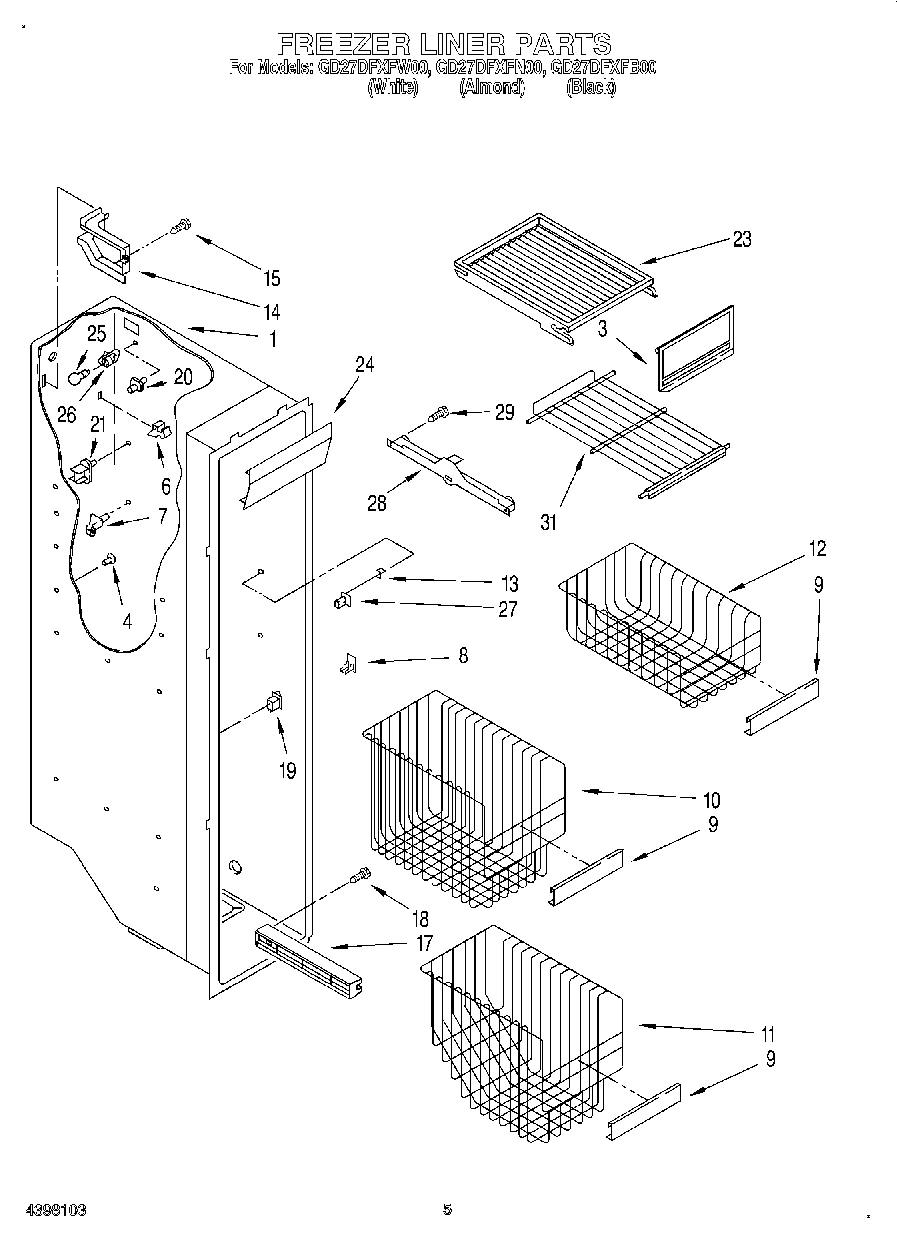

04 - FREEZER LINER

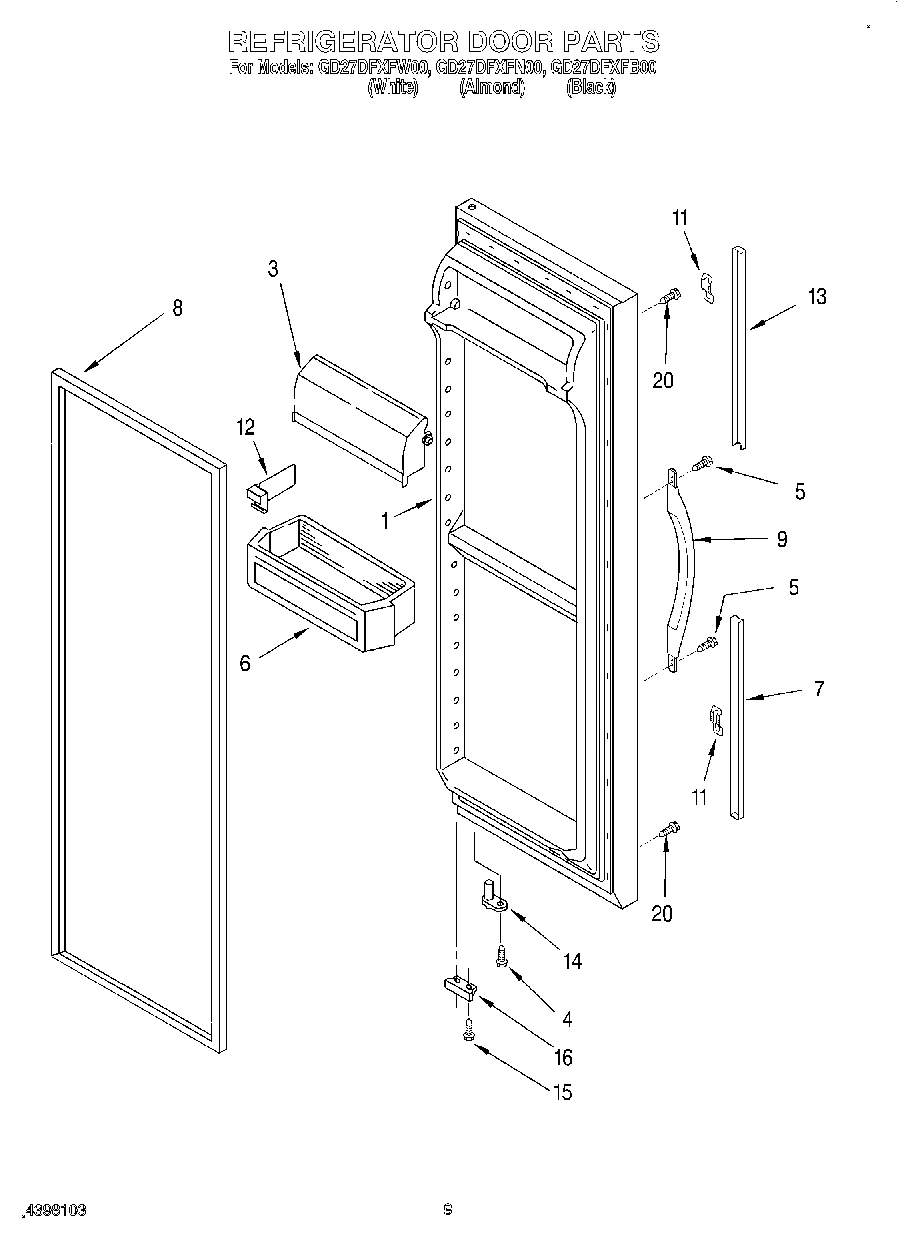

06 - REFRIGERATOR DOOR

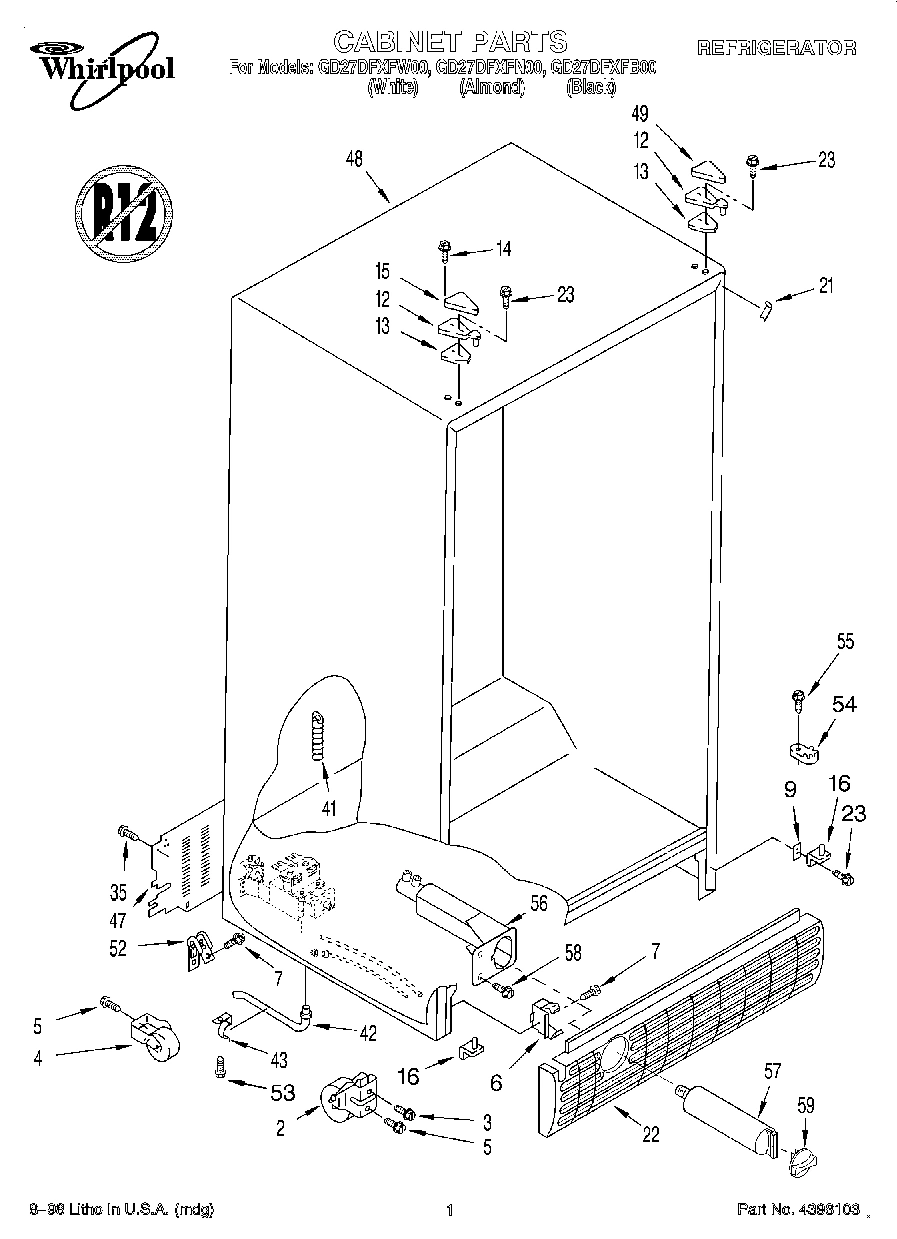

01 - CABINET

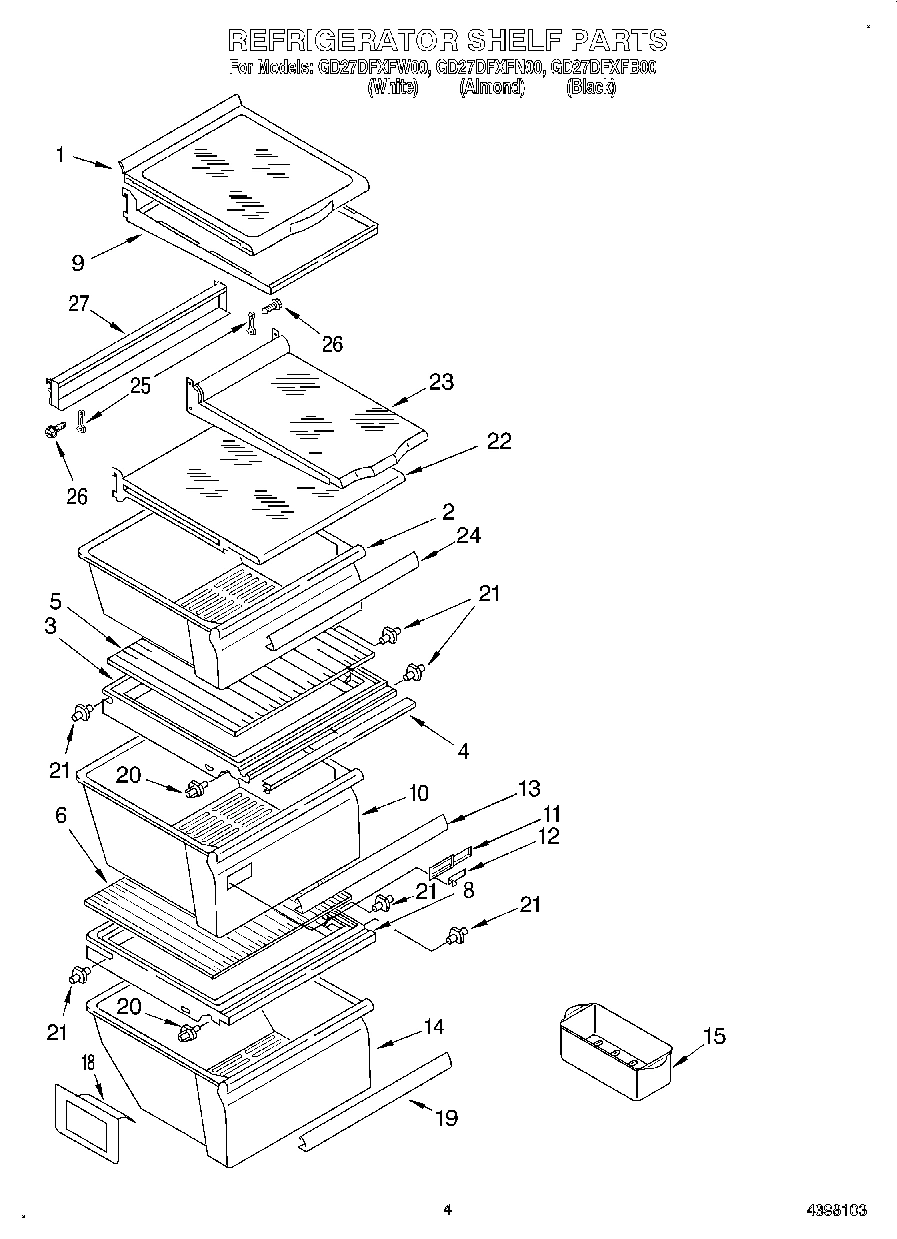

03 - REFRIGERATOR SHELF
Common parts from model Whirlpool GD27DFXFW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI62104A5 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194514B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194514N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194514W Contact Us For Availability
2
Handle, Center (Black) WPL 2186649B Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Handle, Center (White) WPL 2186649W Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2196114 Contact Us For Availability
5
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
5
Air Duct Freezer WPL 2196122 Contact Us For Availability
6
Shelf Bin (4) WPL 2179608 Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability
9
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
9
Trim, Basket WPL 2195905 Contact Us For Availability
9
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
9
Frame, Shelf (2) WPL 2195975 Contact Us For Availability
10
Basket, Tall WPL 2181765 Contact Us For Availability
11
Lever, Ice Dispenser (White (White Shadow Pad WPL 2180256 Contact Us For Availability
11
Lever, Ice Dispenser (Almond (Almond Shadow P WPL 2180257 Contact Us For Availability
11
Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2180258 Contact Us For Availability
11
Basket, Slope WPL 2181764 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Basket WPL 2181763 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
13
Stud, Support WPL 946355 Contact Us For Availability
13
Extension, Top (Black) WPL 2194973B Contact Us For Availability
13
Extension, Top (Almond) WPL 2194973N Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Meat Pan WPL 2194907 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Hinge Cover (Black) WPL 2151694 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2155329 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2155331 Contact Us For Availability
17
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
17
Lever, Water Dispenser (Almond (Almond Shadow WPL 2180266 Contact Us For Availability
17
Cover, Evaporator WPL 2196144 Contact Us For Availability
17
Slide, Basket (Left Side (3)) WPL 2181759 Contact Us For Availability
17
Slide, Basket (Right Side (3)) WPL 2181760 Contact Us For Availability
19
Overlay, Front Cover (Black) WPL 2186555B Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2186555N Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2186555W Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI62106A7 Contact Us For Availability
21
Stud, Shelf (4) WPL 1115386 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability
21
Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability
22
Grille (Almond) WPL 2198468N Contact Us For Availability
22
Shelf, Snack Bin WPL 2194734 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186552B Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186552N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2186552W Contact Us For Availability
23
Shelf, Top Compartment WPL 2194297 Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2194741 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Stud, Rear R.S. WPL 1106982 Contact Us For Availability
27
Stud, Front R.S. WPL 946356 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI62102A9 Contact Us For Availability
49
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
59
Cap, Water Filter (Almond) WPL 2186494N Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
WPL 799344 WPL 799344 Contact Us For Availability
× ![]()
