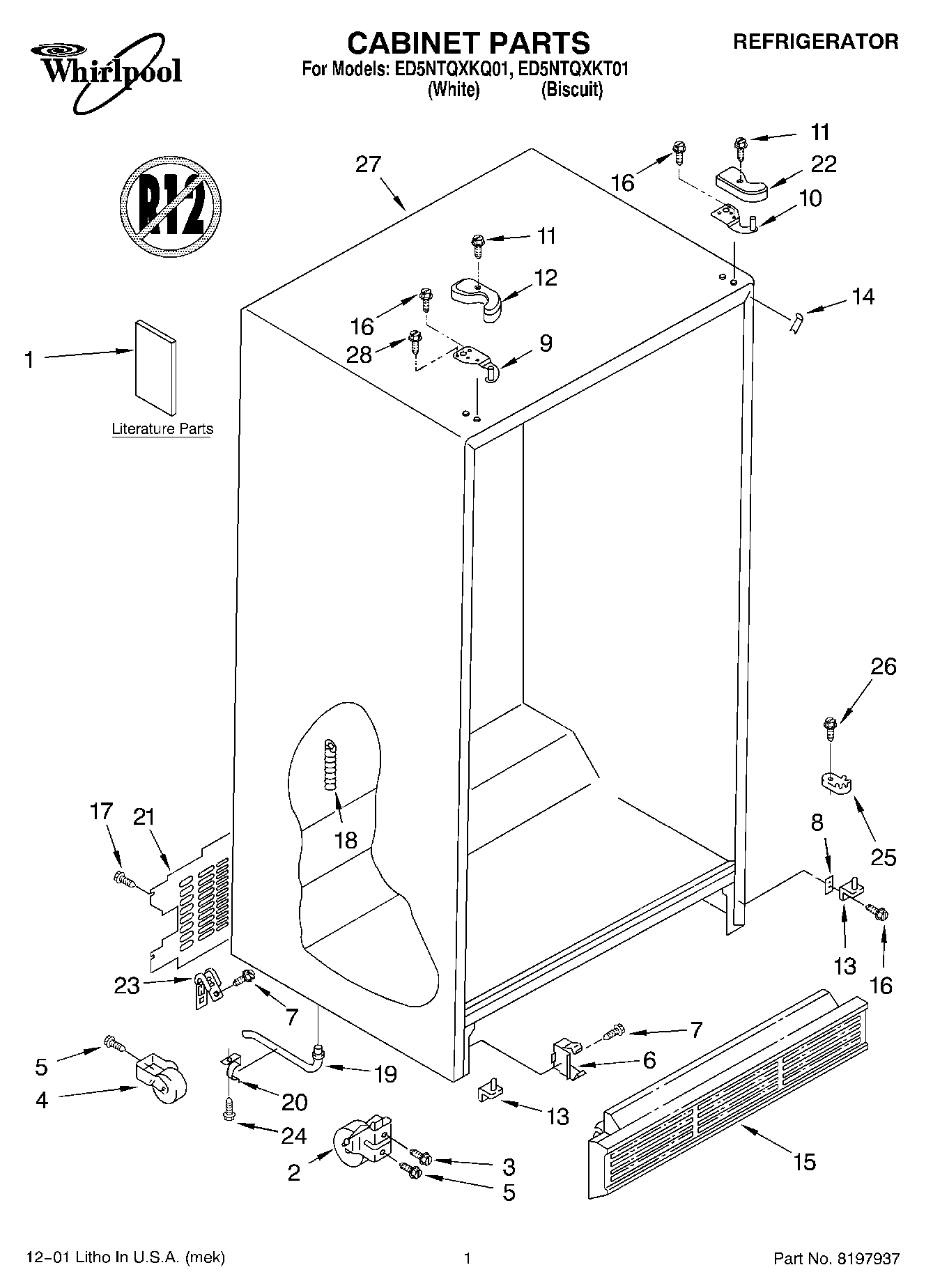

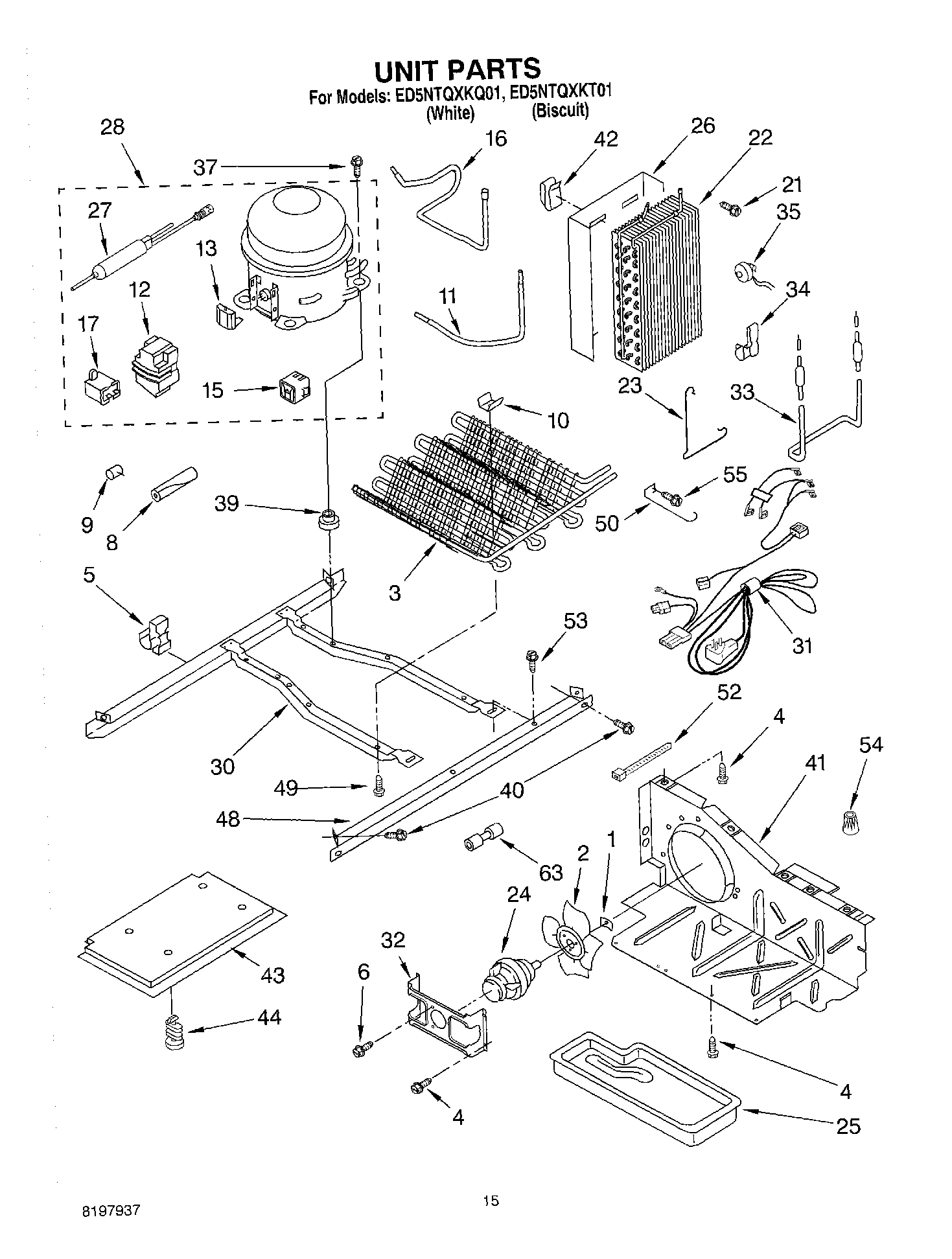

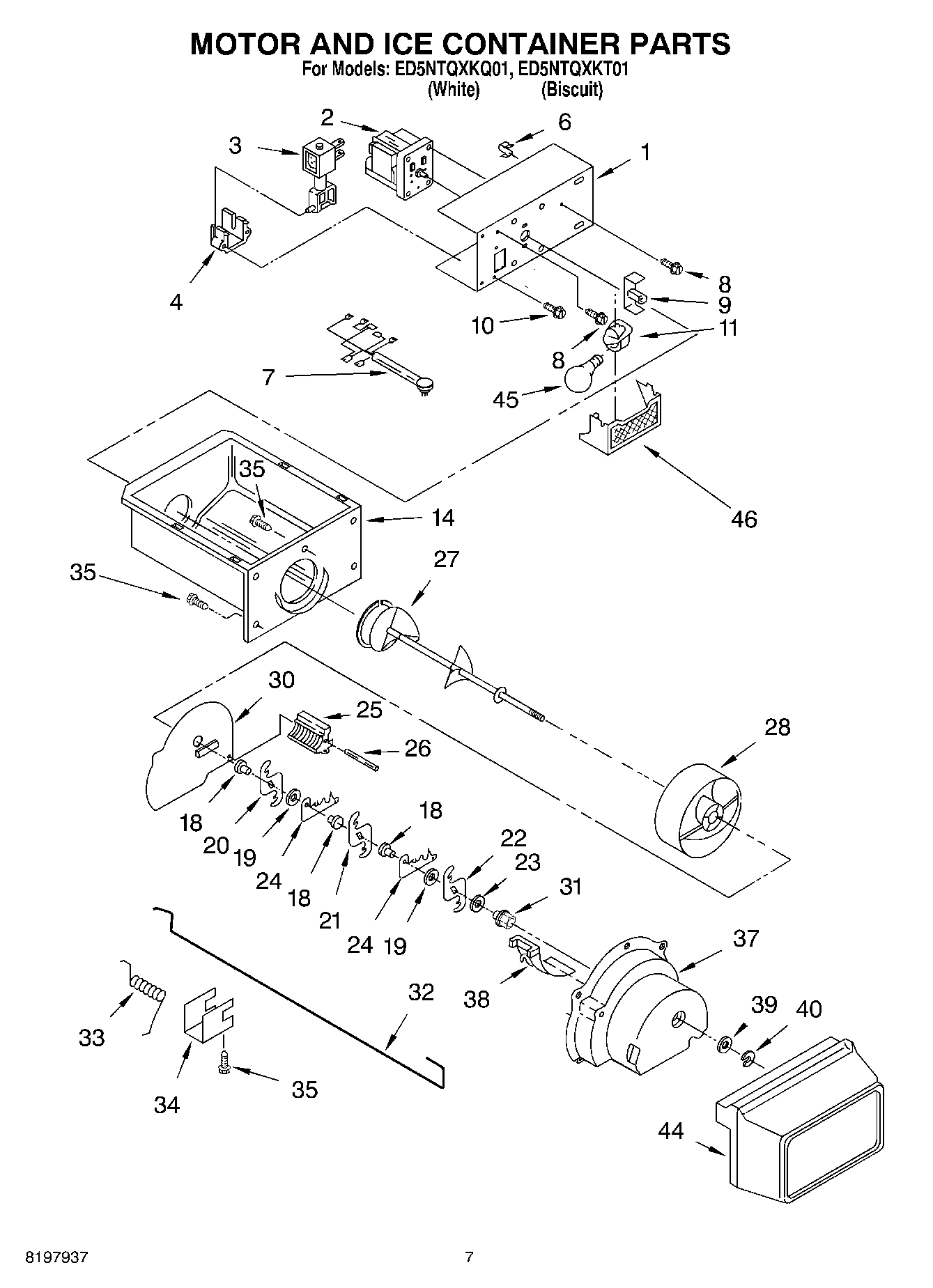

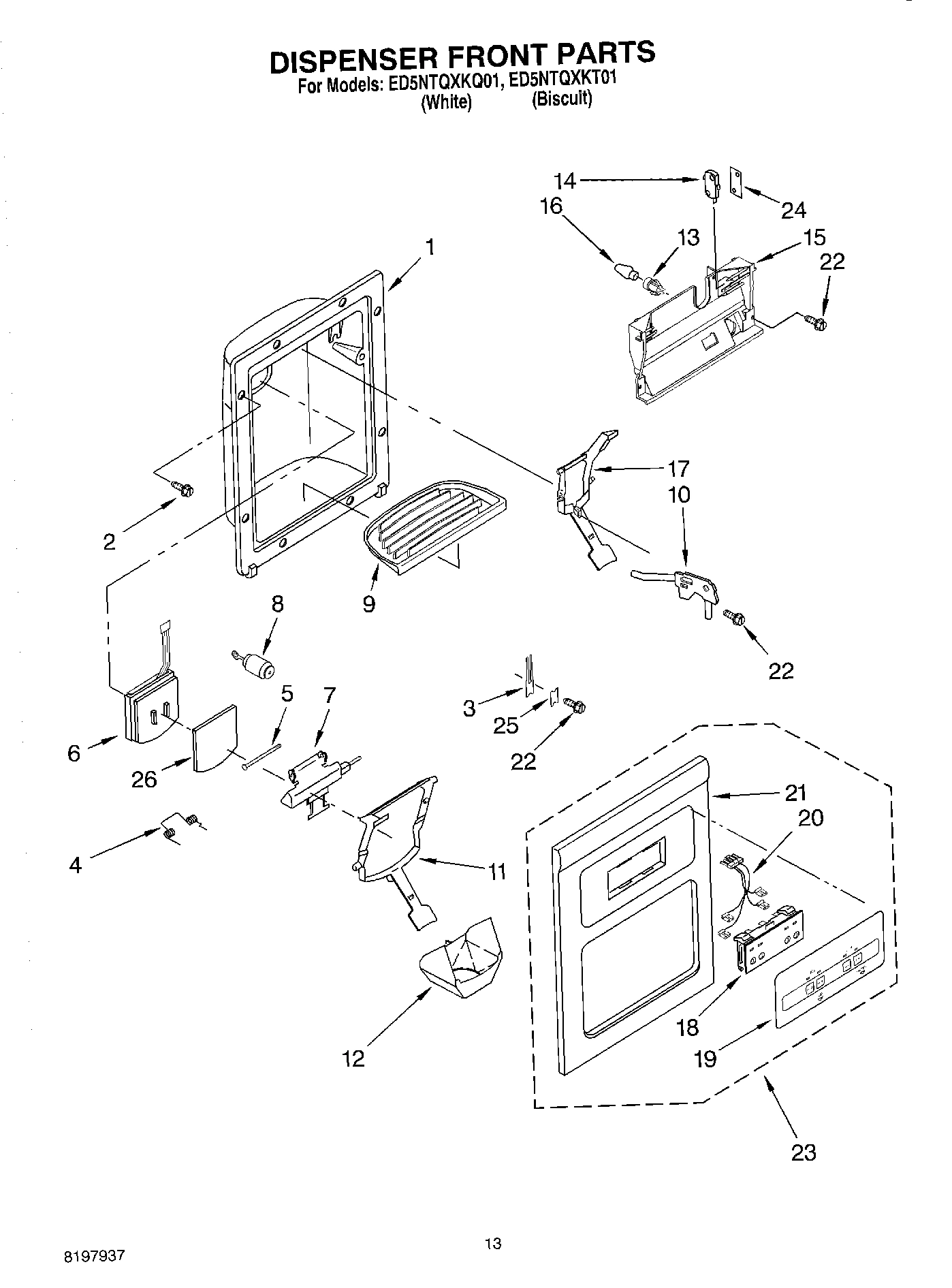

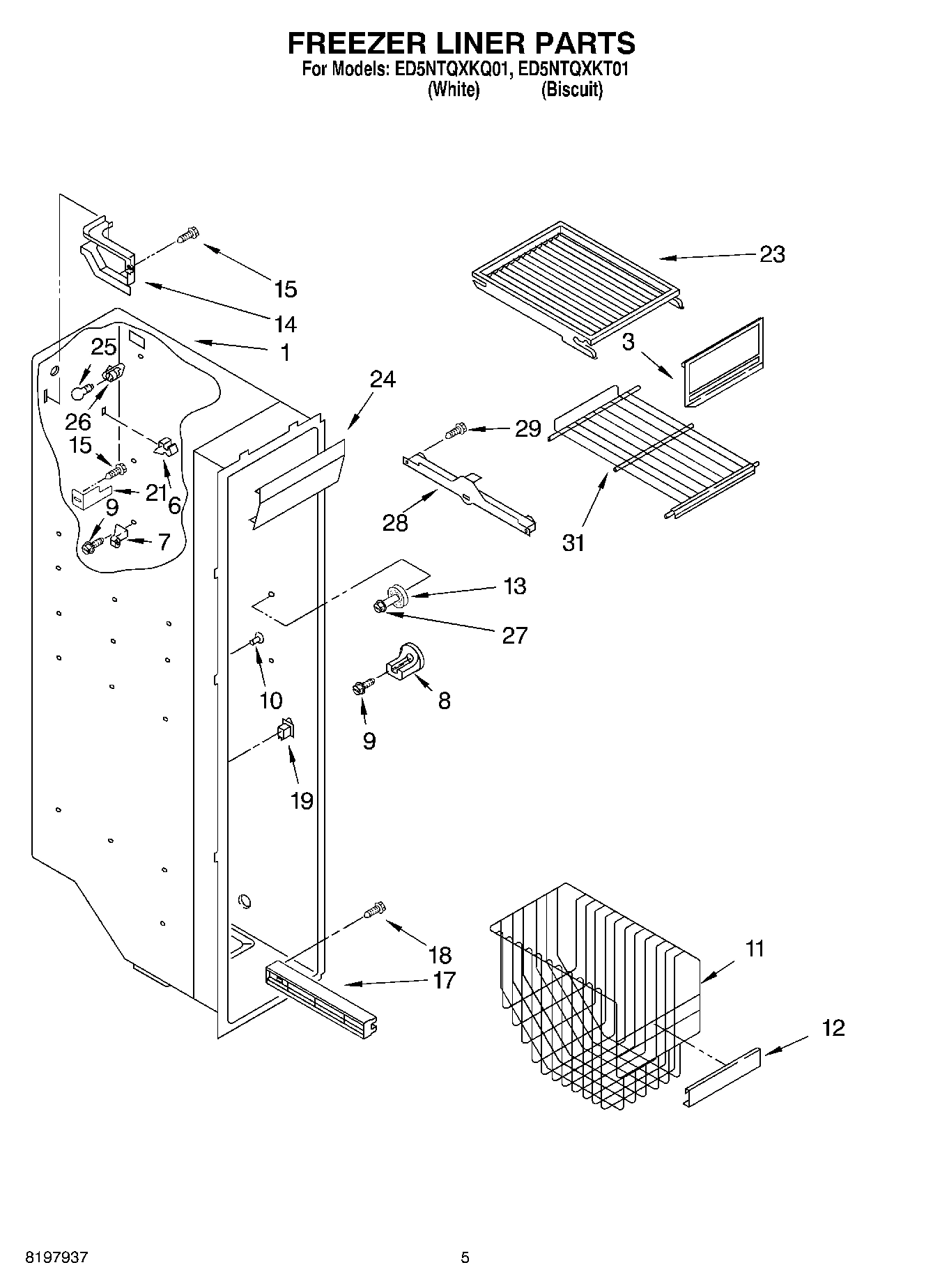

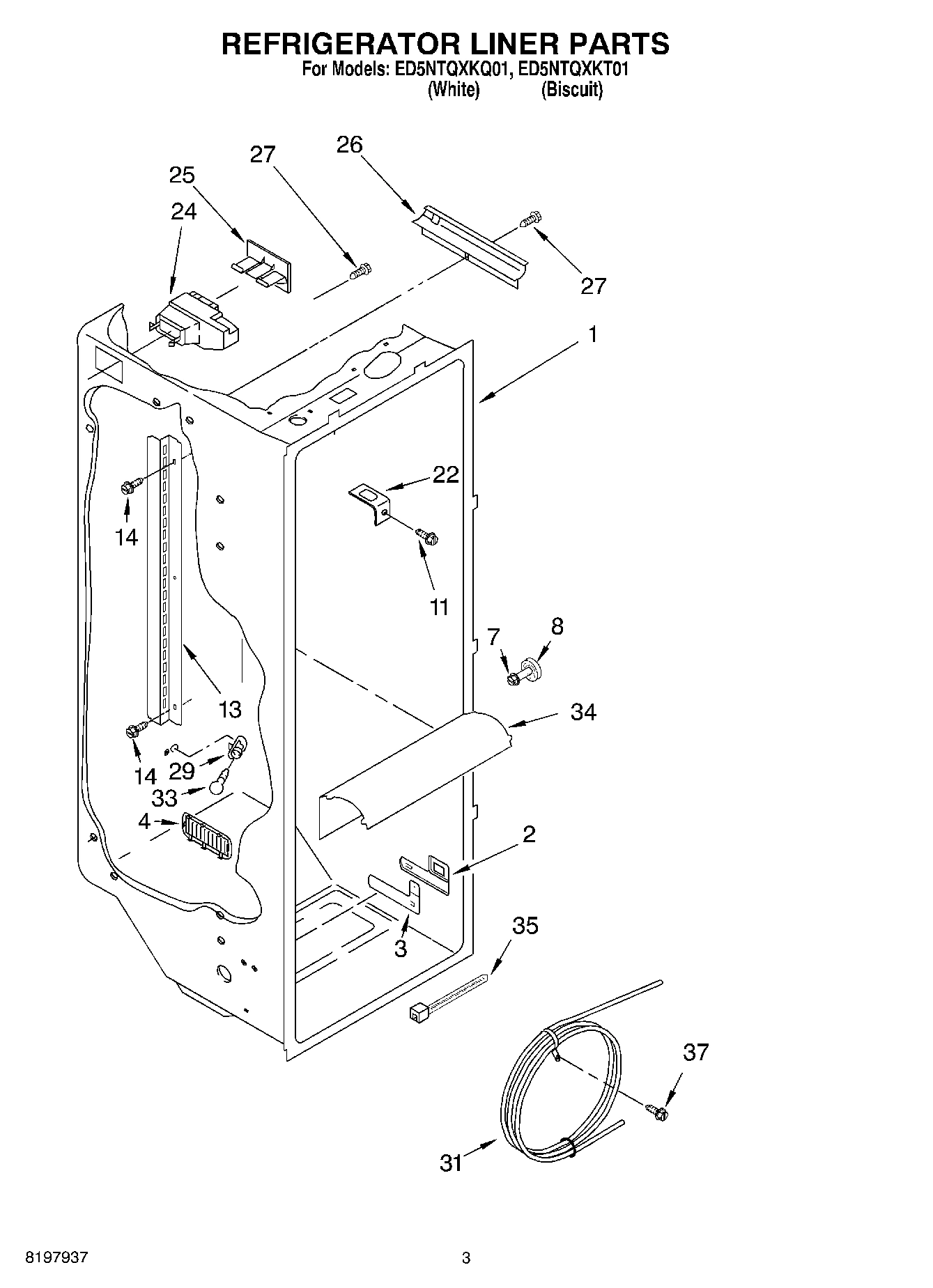

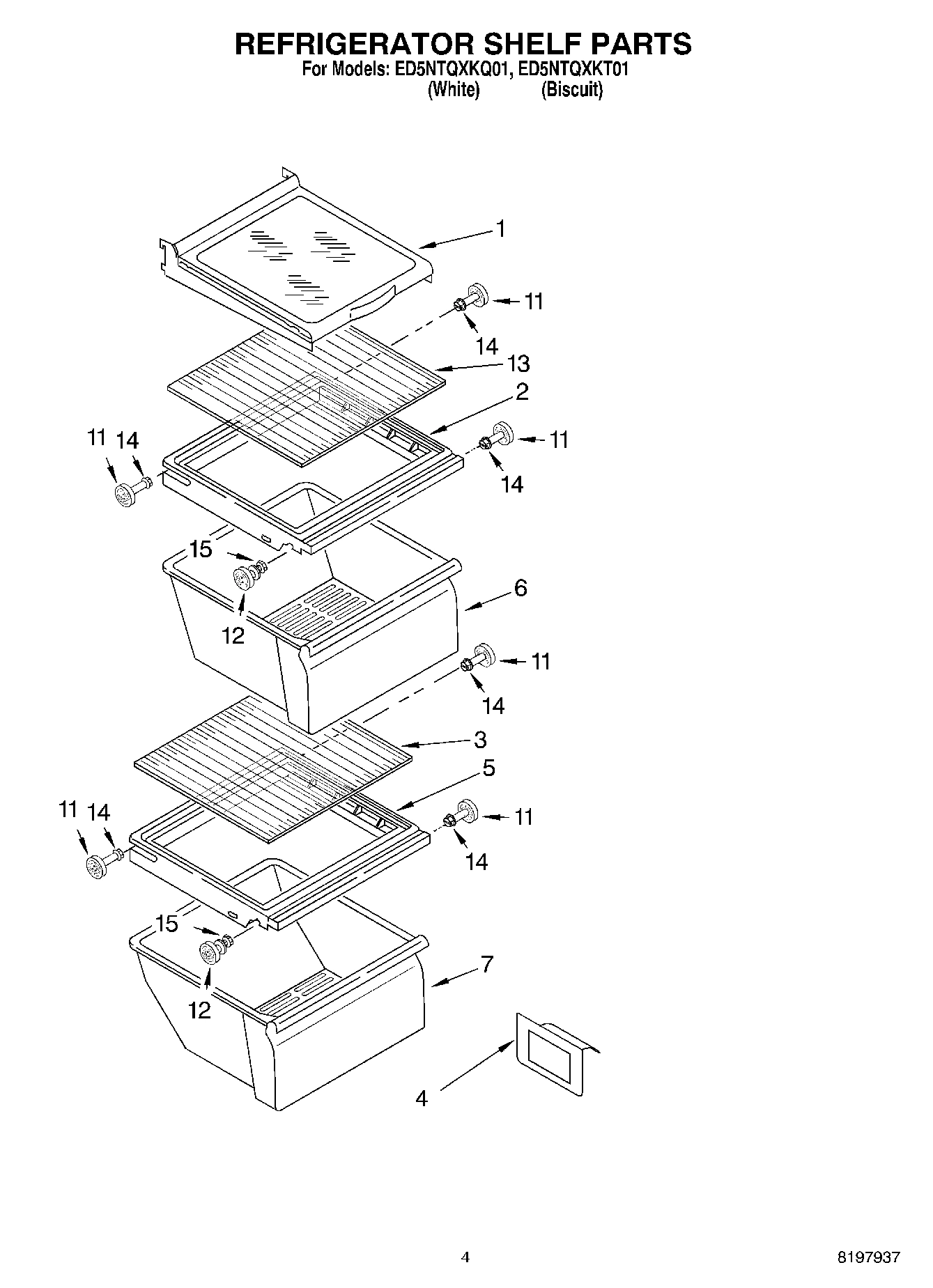

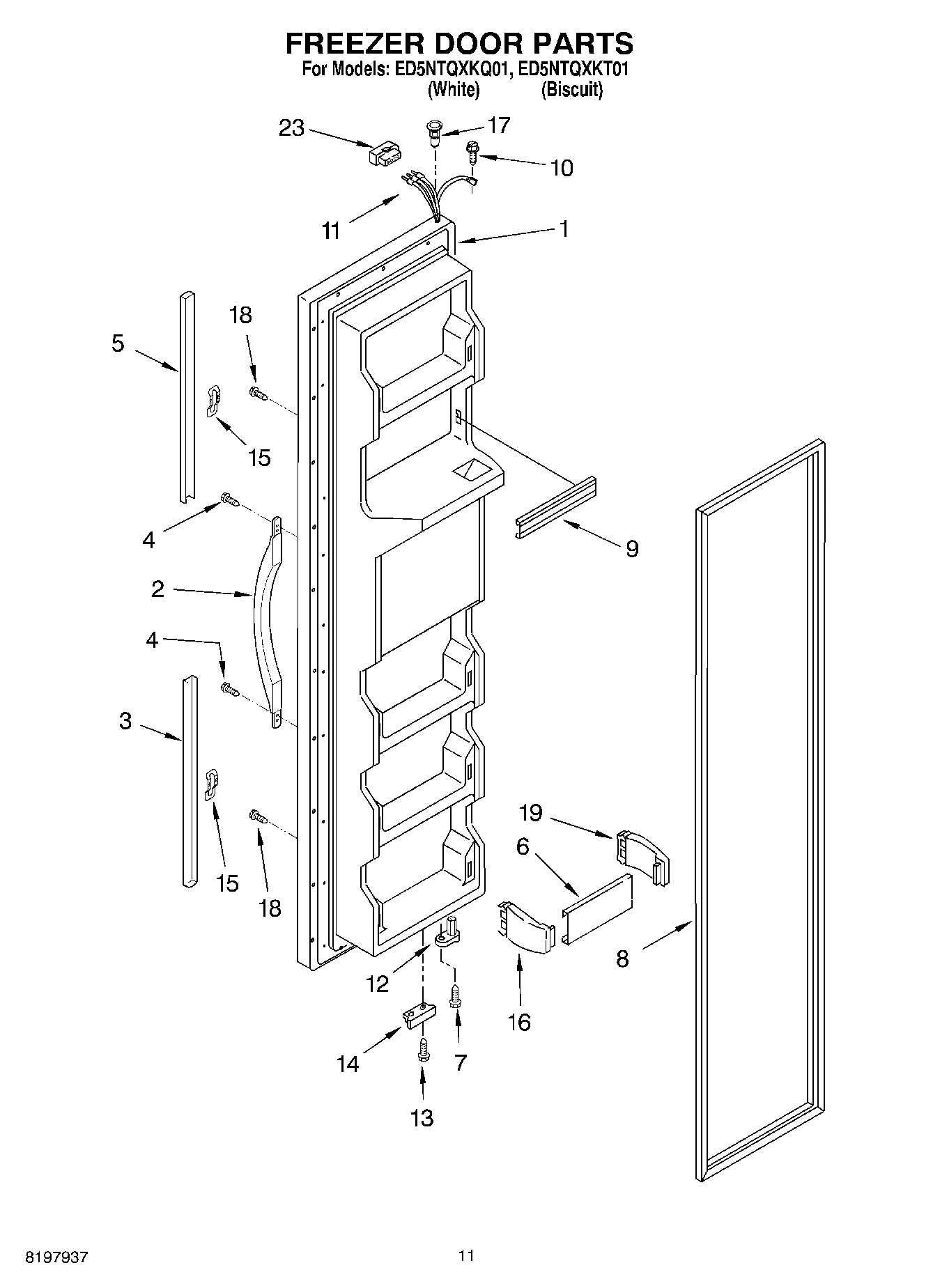

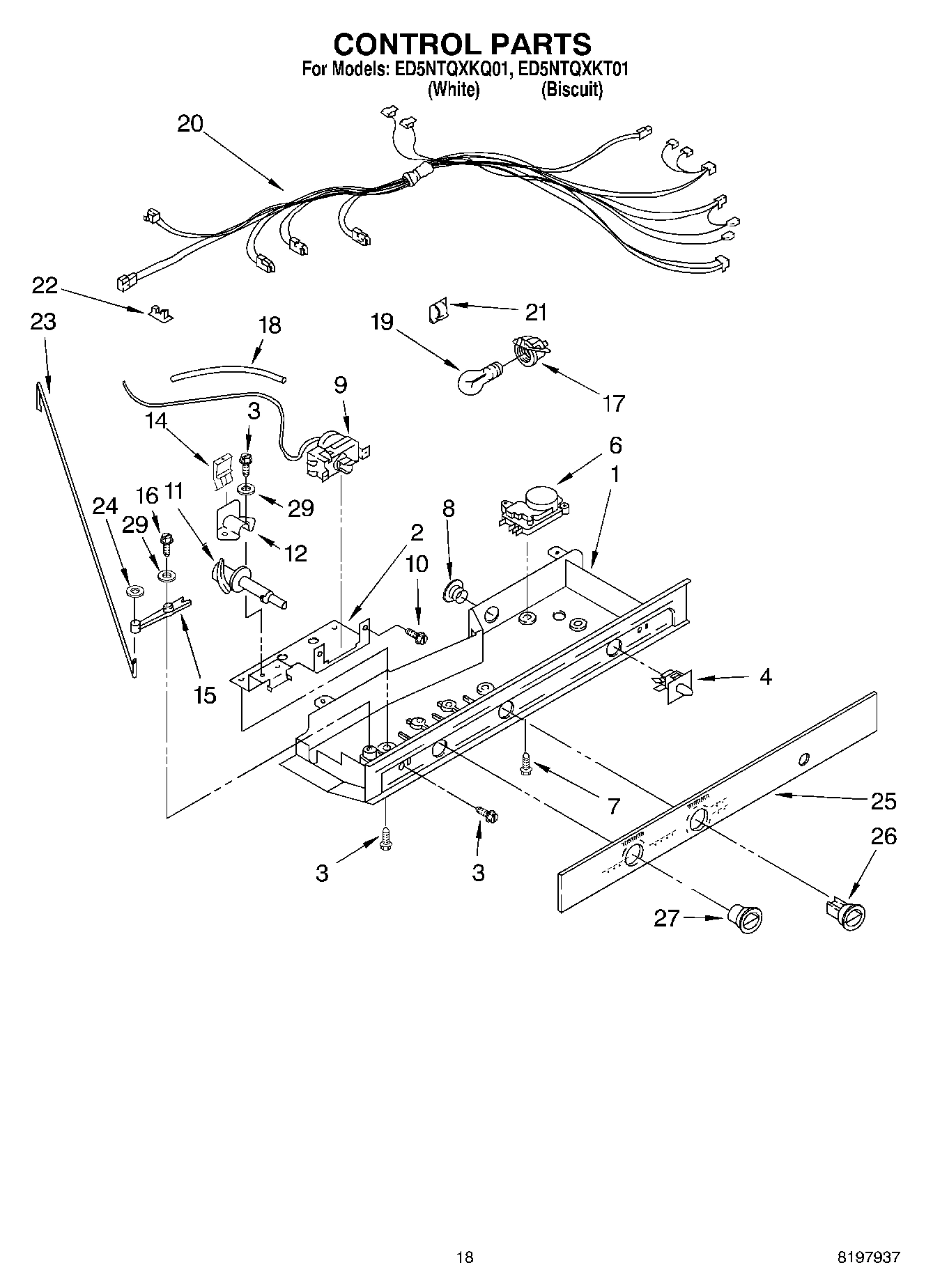

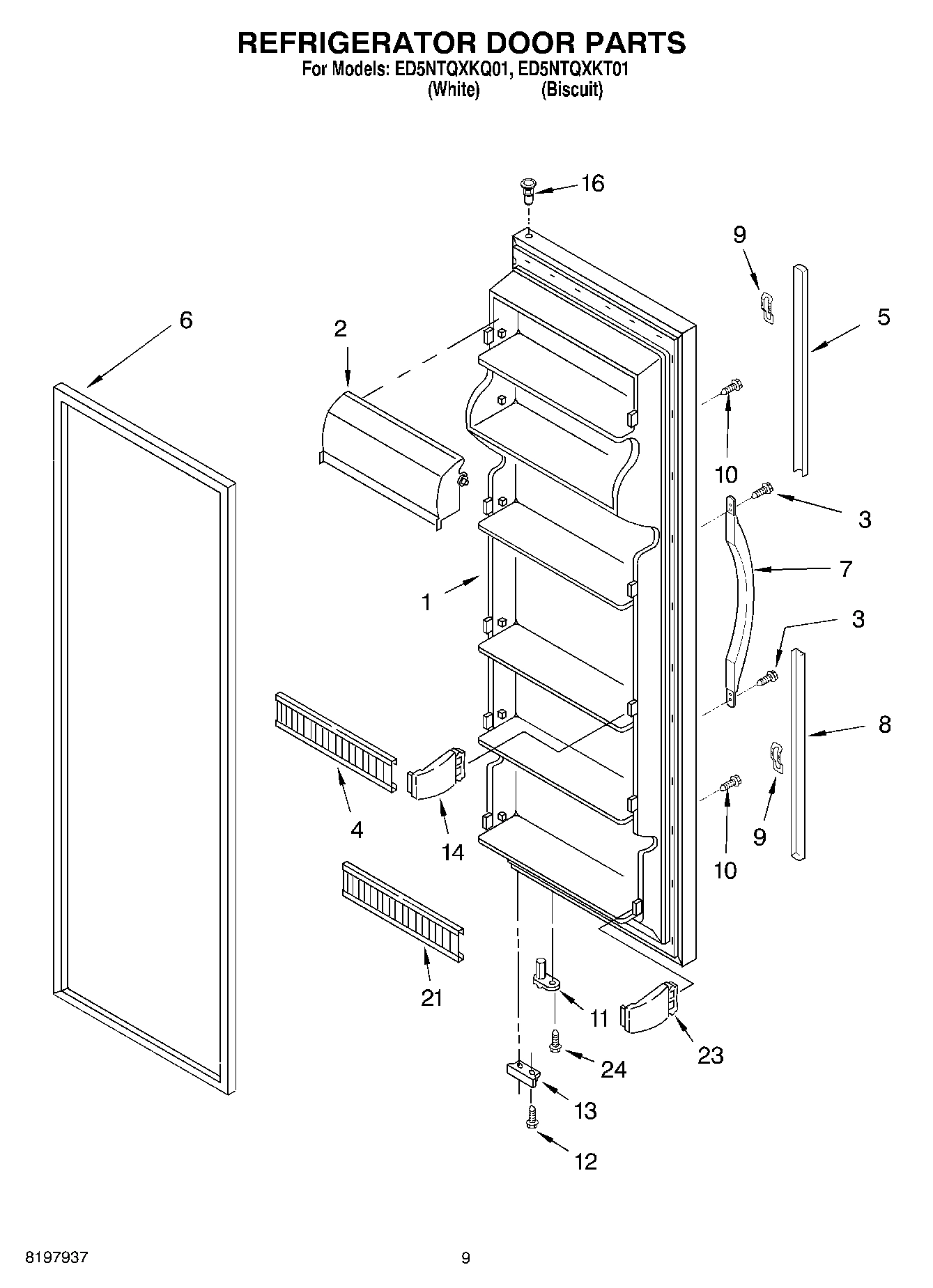

Model Whirlpool ED5NTQXKQ01 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Liner (Not A Serviceable Part) WPL ARI37061A7 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL 2216550T Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2216550W Contact Us For Availability

1

Literature Parts (Service & Wiring Sheet) WPL LIT2216342 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT2219948 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2220018 Contact Us For Availability

1

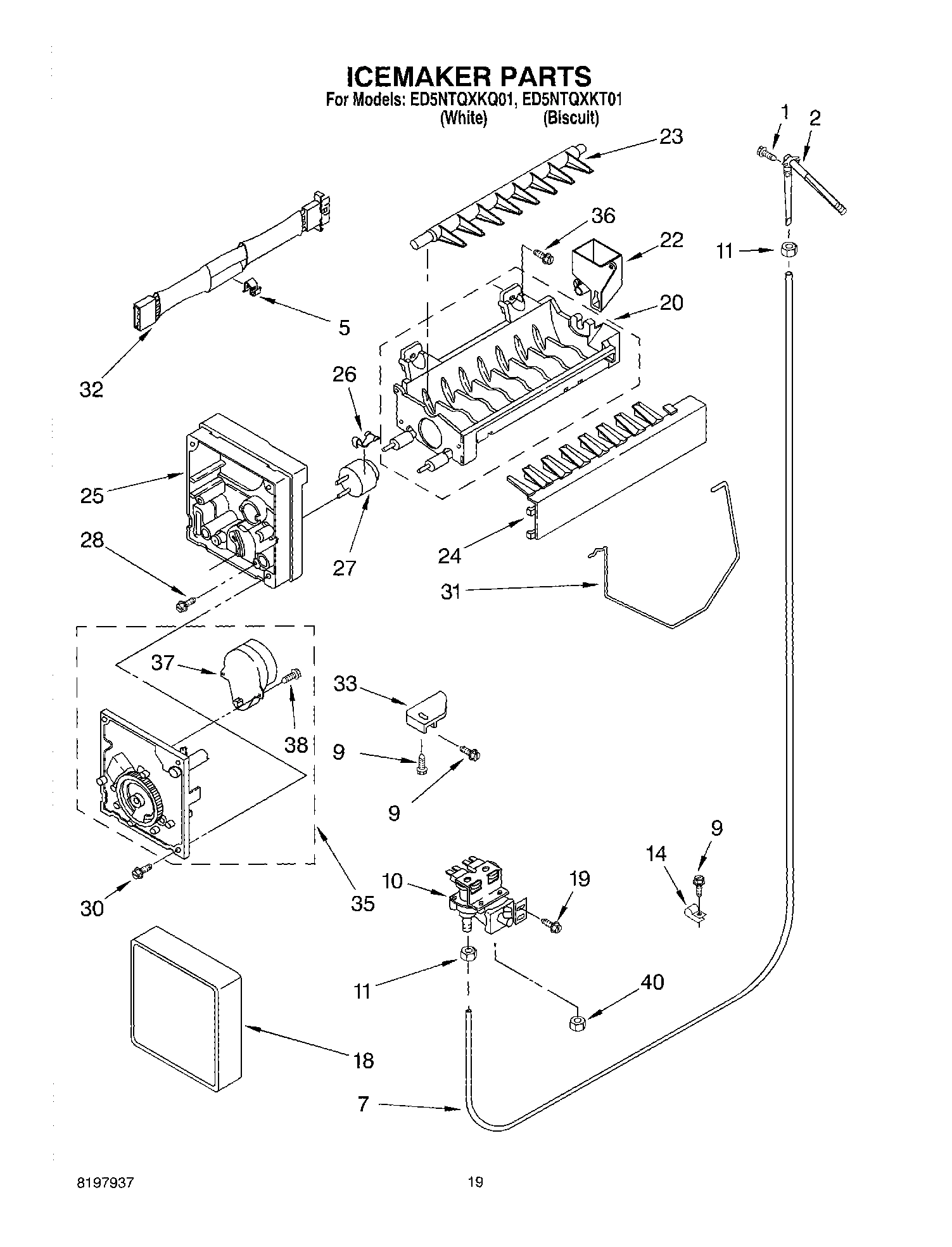

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $55.83

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Trim, Door (4) WPL 2182190 Contact Us For Availability

5

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.34

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Extension, Top (Biscuit) WPL 2194973T Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

7

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $21.08

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

Stud, Rear WPL 2196207 Contact Us For Availability

8

Extension, Bottom (Biscuit) WPL 2194969T Contact Us For Availability

9

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $6.10

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.66

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $44.34

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $54.67

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

Grommet WPL 2176134 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

Basket, Sloped WPL 2181764 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Trim, Basket WPL 2195905 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $53.71

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.99

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $8.71

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $23.94

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Wiring Cover WPL 2155572 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

W10283947 Whirlpool Grille Assembly Backorder WPL W10283947 $84.13

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

WPW10283946 Whirlpool Refrigerator Grille Backorder WPL WPW10283946 $96.17

Pivot Arm WPL 1110559 Contact Us For Availability

16

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

16

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability

Slide, Basket (Left Side) WPL 2181759 Contact Us For Availability

Slide, Basket (Right Side) WPL 2181760 Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

19

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

20

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $57.37

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $106.57

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Trim, Door (1) WPL 2195934 Contact Us For Availability

Bracket, Fill Tube WPL 2209674 Contact Us For Availability

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $57.37

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Hinge Cover (Biscuit) WPL 2203408T Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $8.91

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $9.99

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Front Cover Assembly (Includes Items 18, 19, WPL 2207271W Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

Shelf, Top Compartment WPL 2171714 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.86

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

NLA:SCREW Backorder WPL WPW10141645 $4.82

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $18.73

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

Shield, Ice Door WPL 987121 Contact Us For Availability

W10422851 Whirlpool Ice Maker Bucket Auger Backorder WPL W10422851 $125.84

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

Knob, Air Control WPL 2197871 Contact Us For Availability

Cabinet (Not A Serviceable Part) WPL ARI37059A5 Contact Us For Availability

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $60.55

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $8.89

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $58.88

31

Shelf (2) WPL 2174268 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

37

WPW10185018 Whirlpool Refrigerator Housing In Stock WPL WPW10185018 $88.88

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

44

Front Cover, Ice Container WPL 2204321 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
