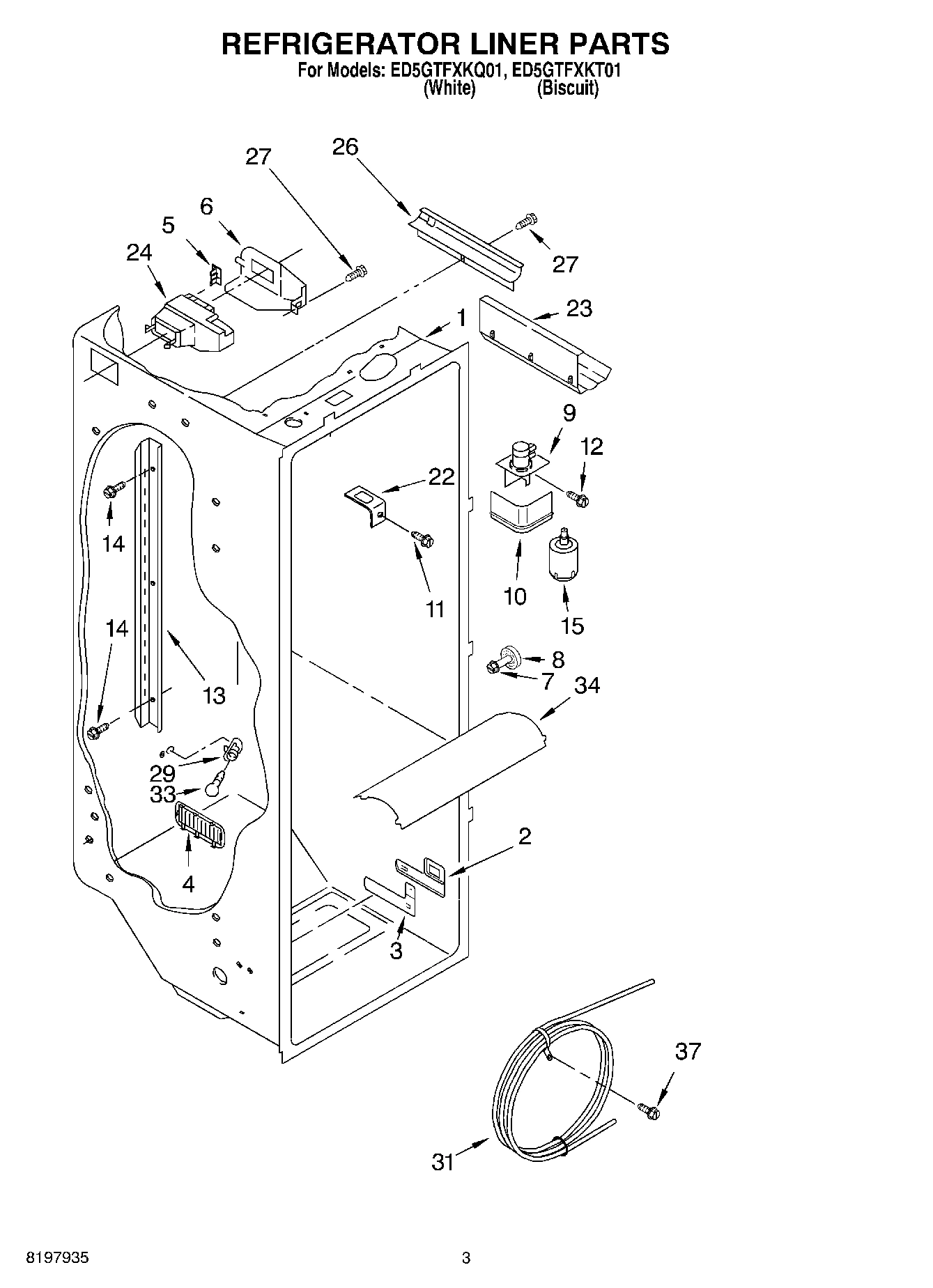

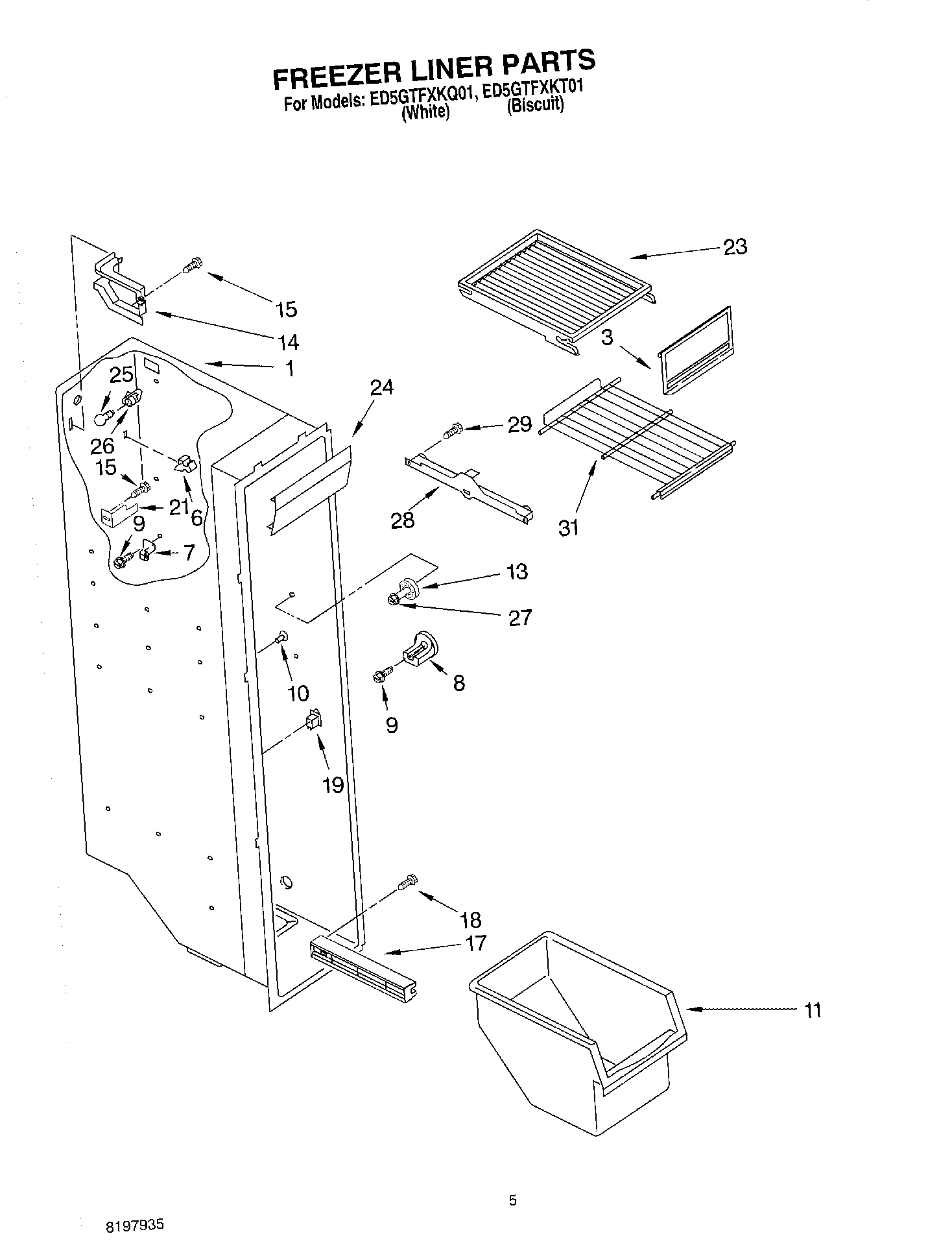

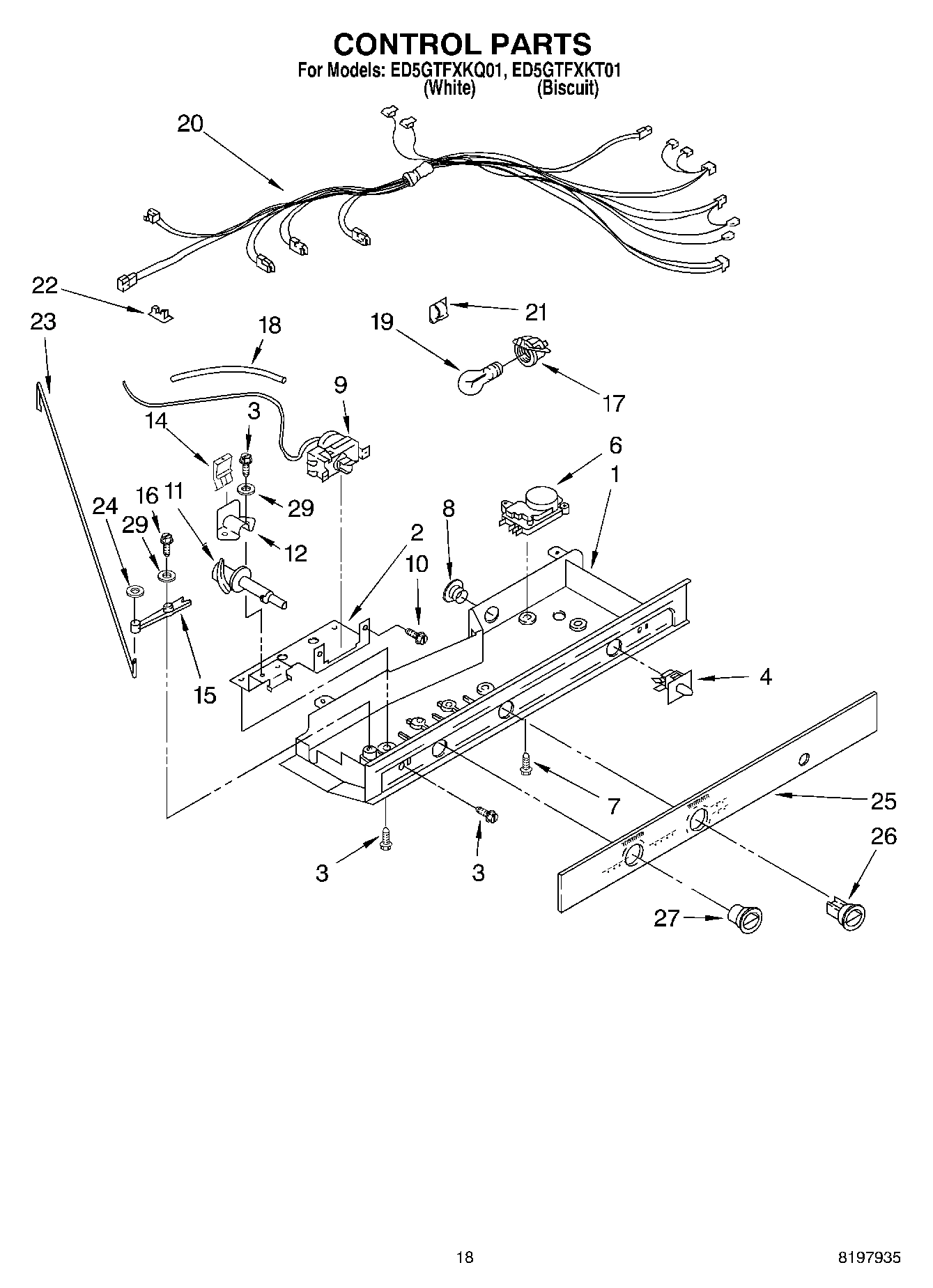

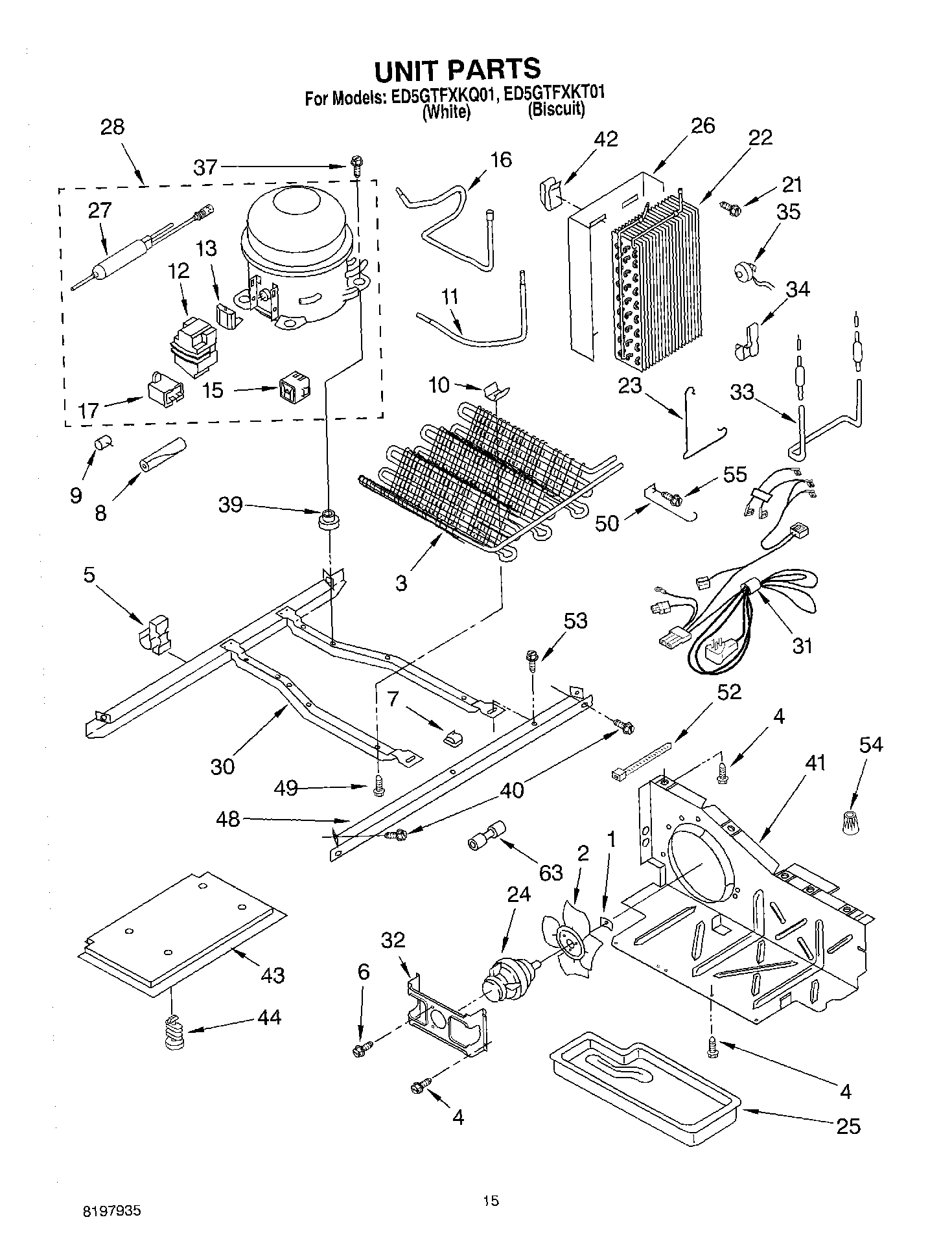

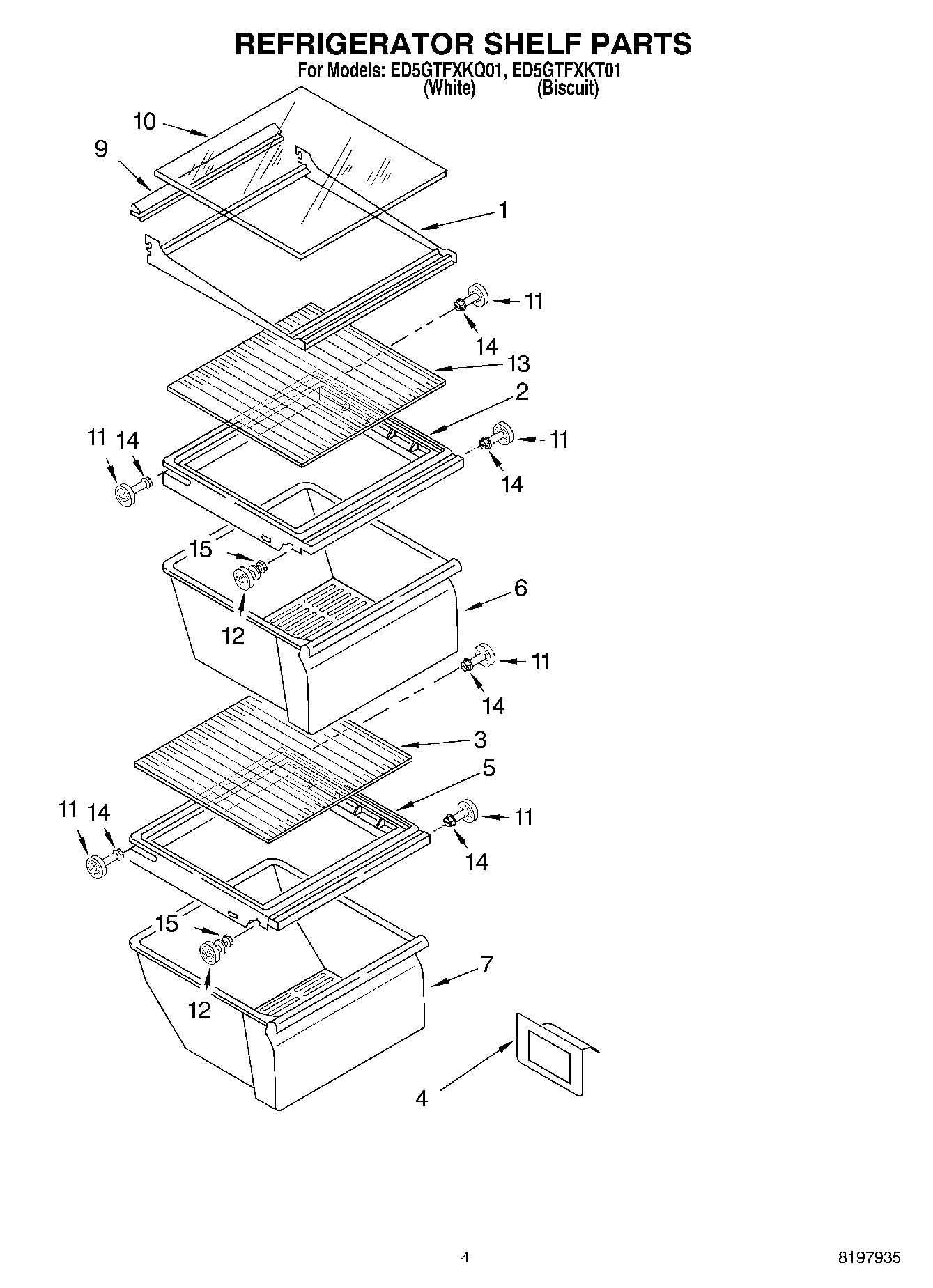

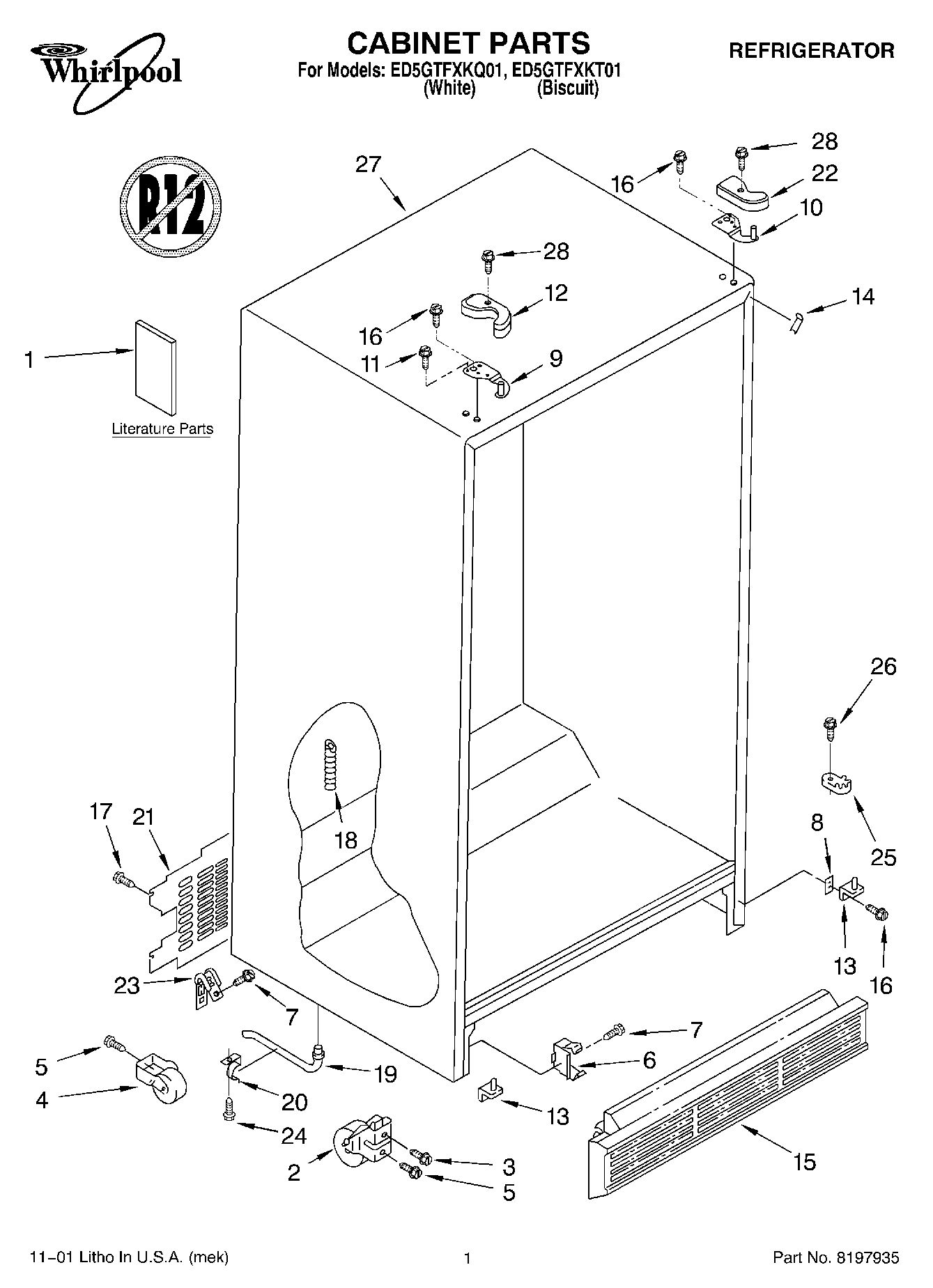

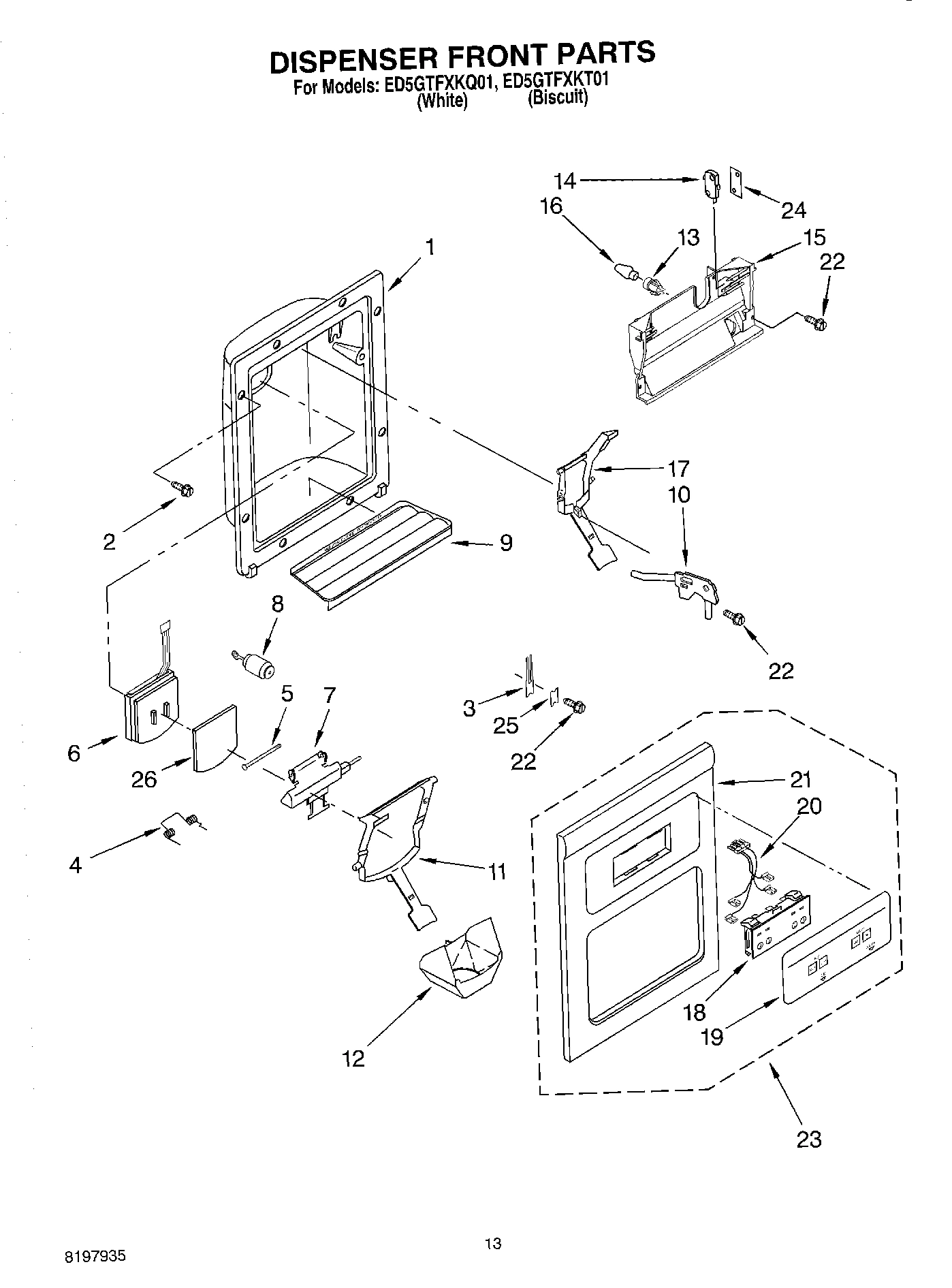

Model Whirlpool ED5GTFXKT01 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.19

1

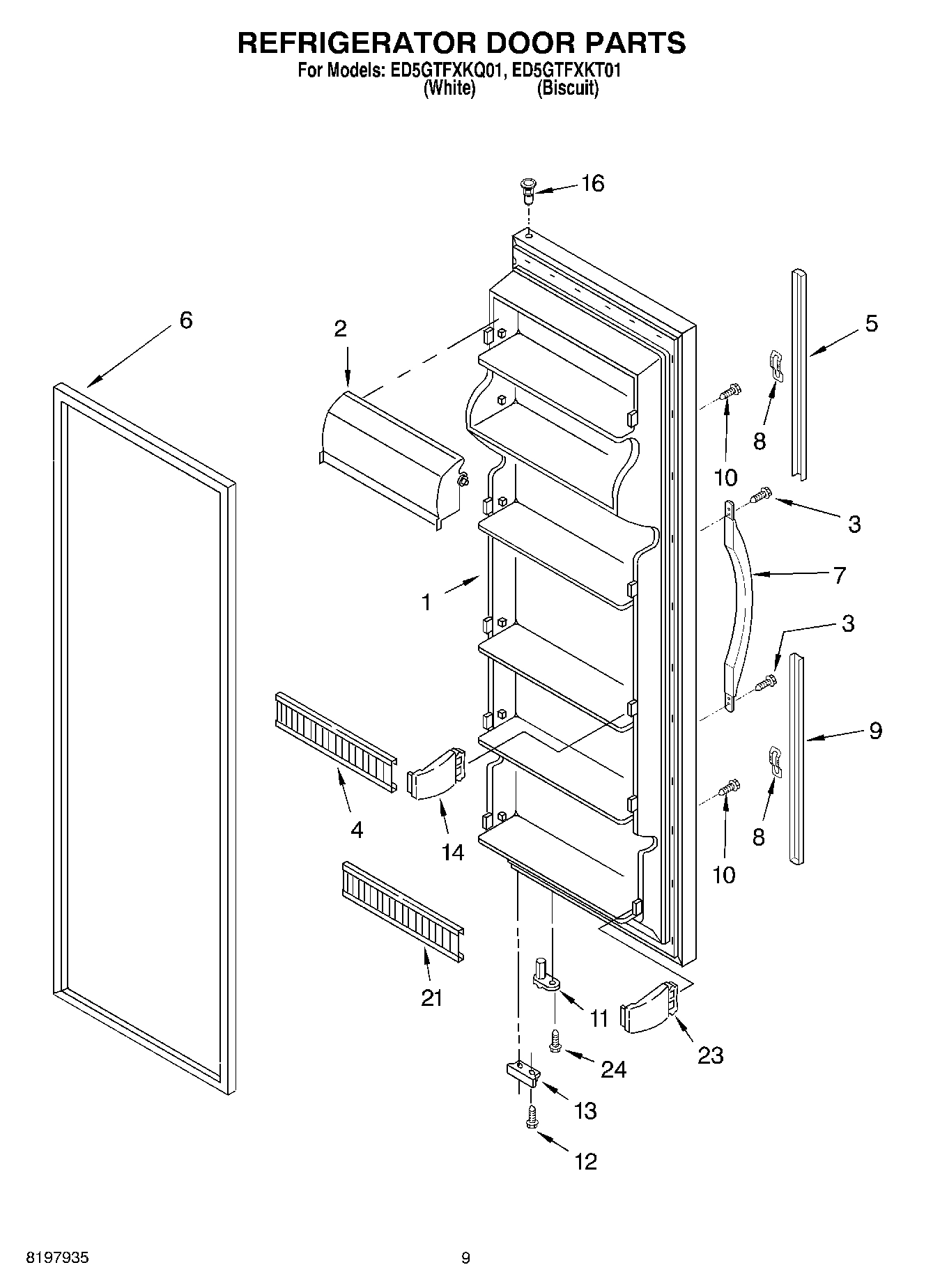

Refrigerator Door (Includes Item 6) (Biscuit) WPL 2216550T Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2216550W Contact Us For Availability

1

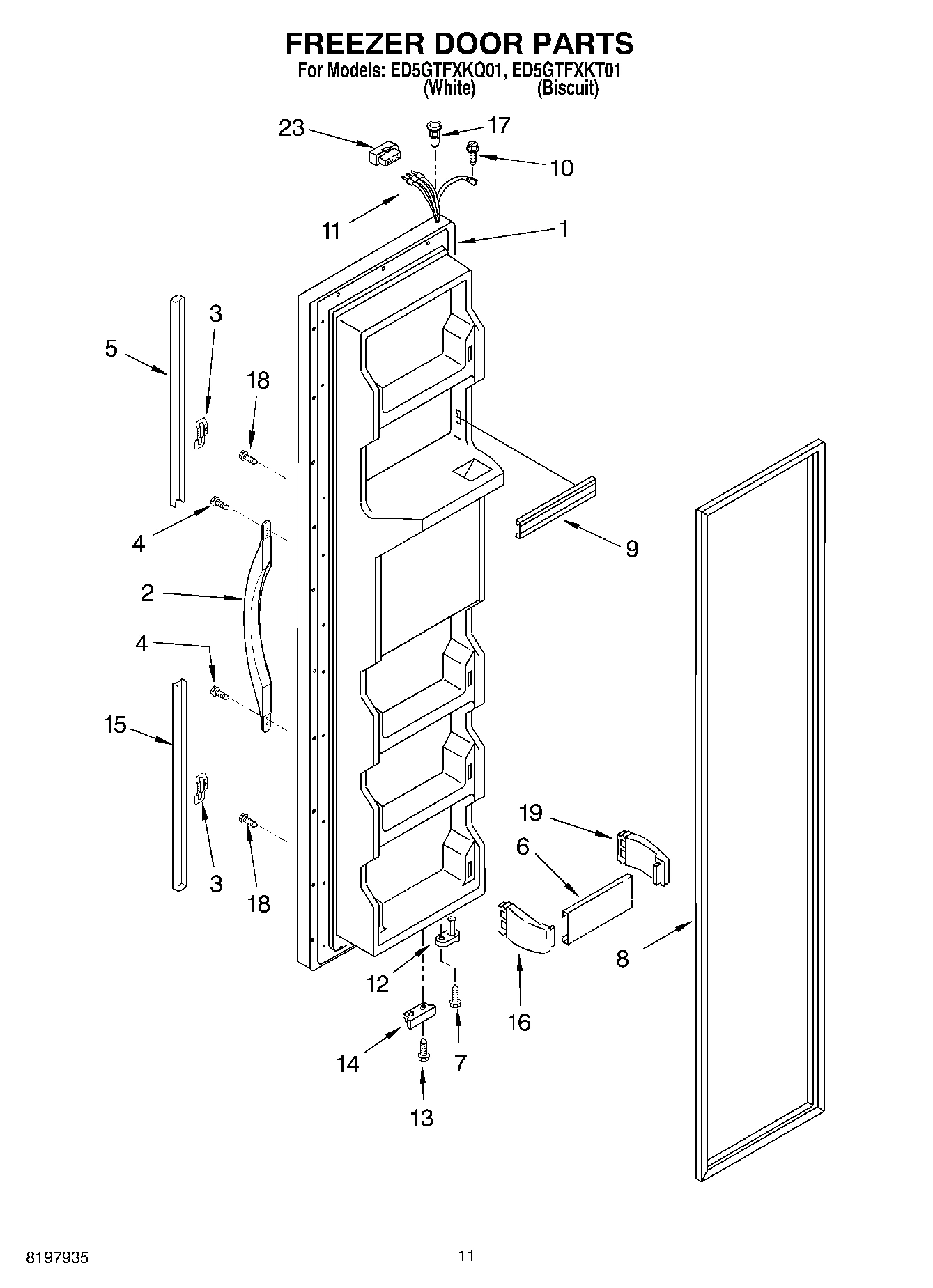

Freezer Door (Includes Item 8 And Dispenser F WPL 2216370T Contact Us For Availability

1

Freezer Door (Includes Item 8 And Dispenser F WPL 2216370W Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2216932 Contact Us For Availability

1

LITERATURE PARTS (Service & Wiring Sheet) WPL LIT2216962 Contact Us For Availability

1

LITERATURE PARTS (Energy Guide) WPL LIT2219949 Contact Us For Availability

1

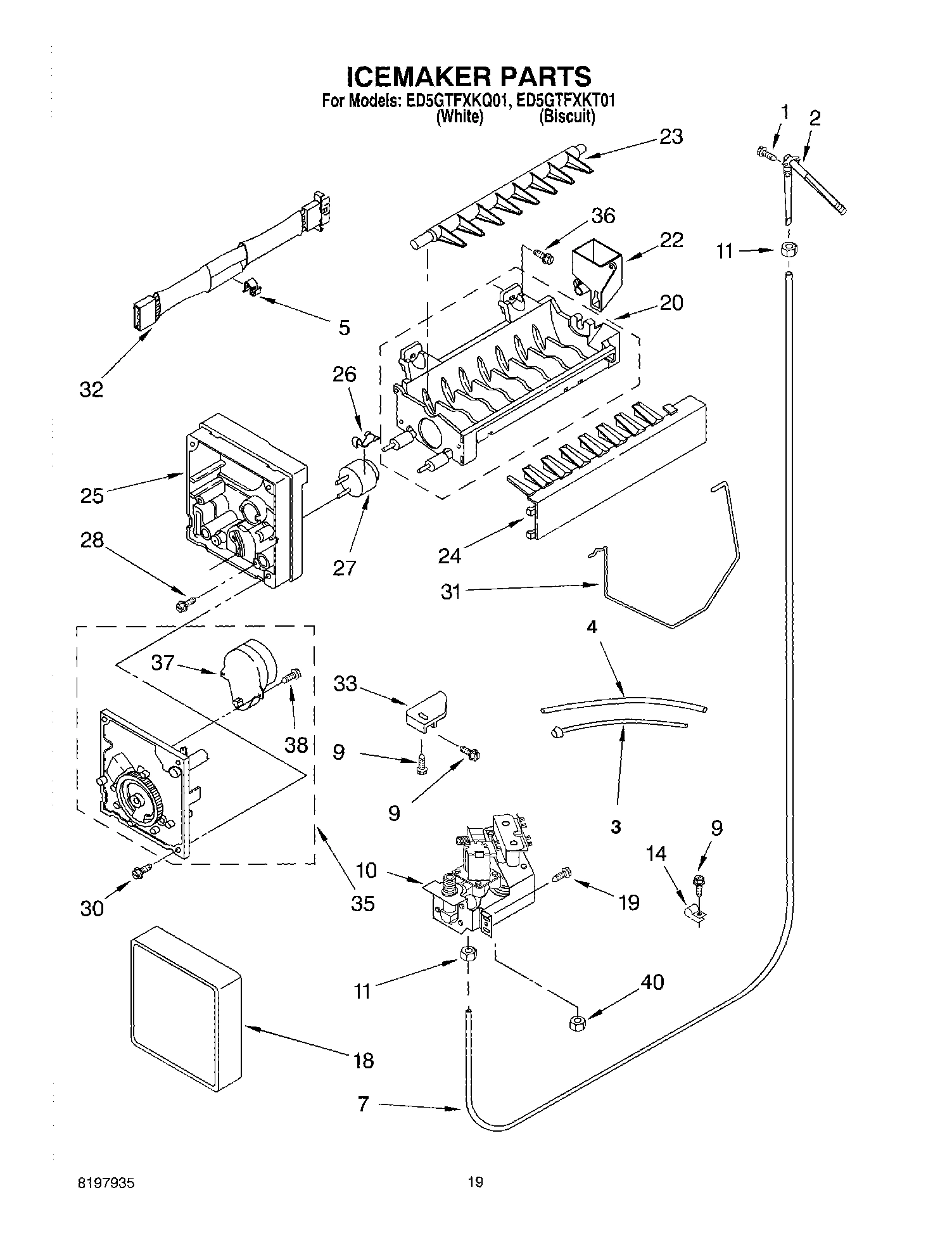

Modular Icemaker Service Sheet WPL LIT628370 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $61.68

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $3.22

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.63

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $58.04

2

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $3.22

2

Fan, Blade WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $55.66

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.35

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $99.61

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $53.39

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $6.17

3

Air Scoop WPL 2161231 Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $55.60

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.36

4

WP2256010 Whirlpool Door Shelf Trim Backorder WPL WP2256010 $41.83

4

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.59

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $18.54

5

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $5.64

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.68

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $5.91

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

5

Extension, Top (Biscuit) WPL 2194973T Contact Us For Availability

6

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $39.78

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $166.31

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.51

6

Trim, Door (4) WPL 2195927 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.32

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $200.15

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

8

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $20.88

8

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.19

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

8

Stud, Rear WPL 2196207 Contact Us For Availability

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.21

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $36.39

9

WP2206670T Whirlpool Refrigerator Grille Backorder WPL WP2206670T $56.52

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $45.20

9

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.40

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.51

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $38.78

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $5.84

Valve, Solenoid WPL 2206123 Contact Us For Availability

Grommet WPL 2176134 Contact Us For Availability

Glass (3) WPL 2177986 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $35.85

2311641 Whirlpool Refrigerator Wire Harness Backorder WPL 2311641 $151.17

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.15

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.31

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $85.27

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $6.33

Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability

Tube, Condenser to Heat Loop WPL 2211760 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.35

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $21.55

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $10.90

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $59.99

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.52

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.73

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $5.76

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $34.32

8201707 Whirlpool Door Hinge Backorder WPL 8201707 $34.10

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $126.87

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.51

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $5.56

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.67

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.85

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.27

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $17.66

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.59

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Biscuit) WPL 2196150 Contact Us For Availability

W10283947 Whirlpool Grille Assembly Backorder WPL W10283947 $56.48

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $3.22

WPW10283946 Whirlpool Refrigerator Grille Backorder WPL WPW10283946 $95.25

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Extension, Bottom (Biscuit) WPL 2194969T Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $32.28

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.19

WP2195917K Whirlpool Refrigerator Endcap Backorder WPL WP2195917K $8.69

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $252.65

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.30

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $98.86

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.19

Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability

Cover, Evaporator WPL 2203841 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.90

W11566763 Whirlpool Fitting In Stock WPL W11566763 $22.78

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $5.11

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $10.43

19

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $13.86

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $6.23

19

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $8.26

20

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $7.21

21

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $82.11

21

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $3.22

21

Trim, Door (1) WPL 2195934 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $17.42

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.92

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $19.04

Hinge Cover (RC) (Biscuit) WPL 2203408T Contact Us For Availability

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $10.80

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $16.76

WP2195915 Whirlpool Door Shelf Support In Stock WPL WP2195915 $7.65

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $5.88

Clamp WPL 2161324 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2207271W Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $32.35

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.59

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $16.76

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $6.17

25

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.15

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $17.30

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $12.20

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $42.24

Shield, Ice Door WPL 987121 Contact Us For Availability

27

Knob, Air Control WPL 2197871 Contact Us For Availability

27

Cabinet (Not A Serviceable Part) WPL ARI34837A2 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $31.62

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $55.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $61.51

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $5.85

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $16.84

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.19

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $60.29

31

Shelf (2) WPL 2174268 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $16.69

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $6.17

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.67

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.97

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $5.07

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $7.10

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $5.76

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $14.93

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $6.52

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.35

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $36.47

49

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $14.93

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $5.76

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $12.28

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.68

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.51

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.92

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $52.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
