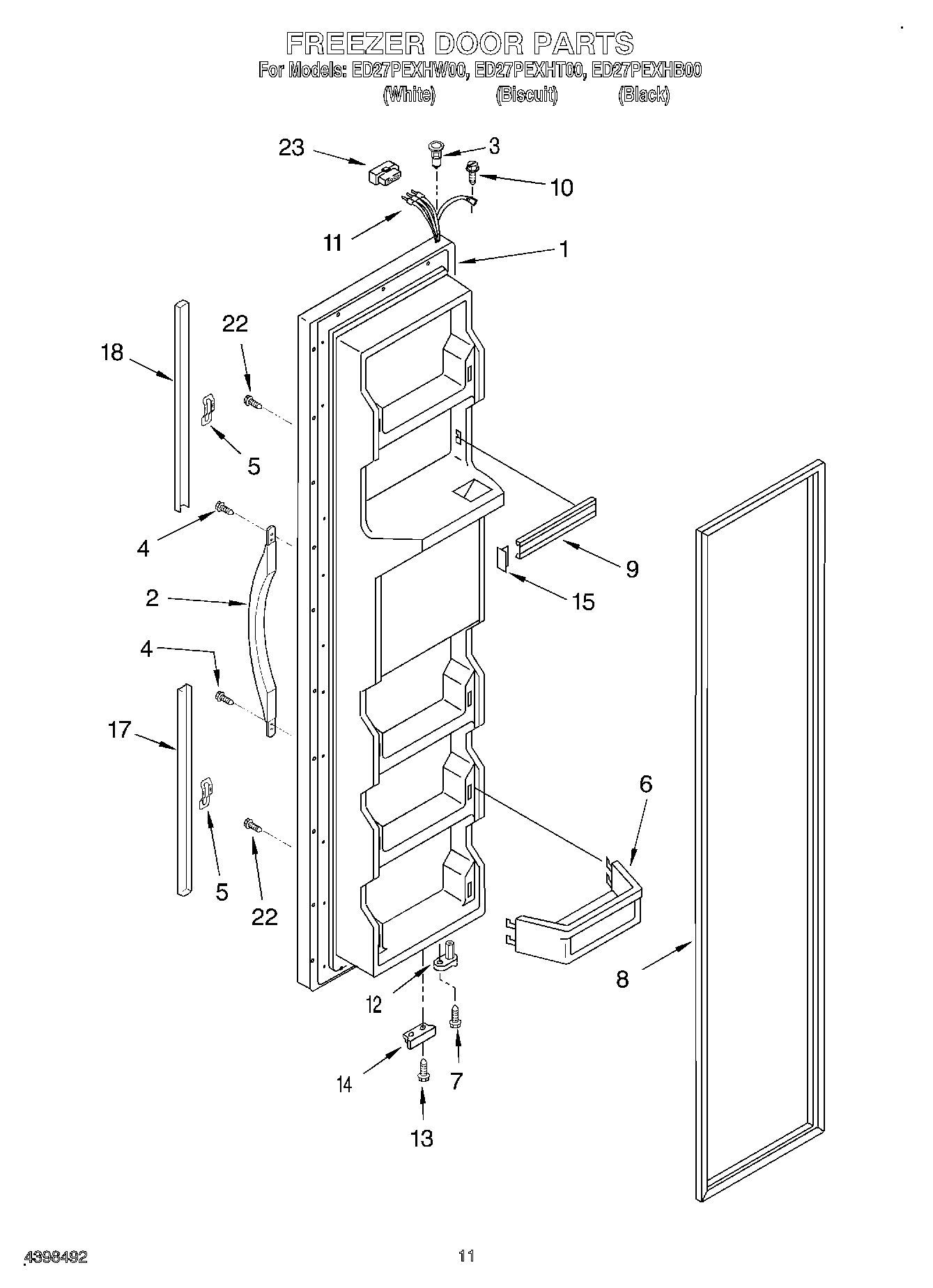

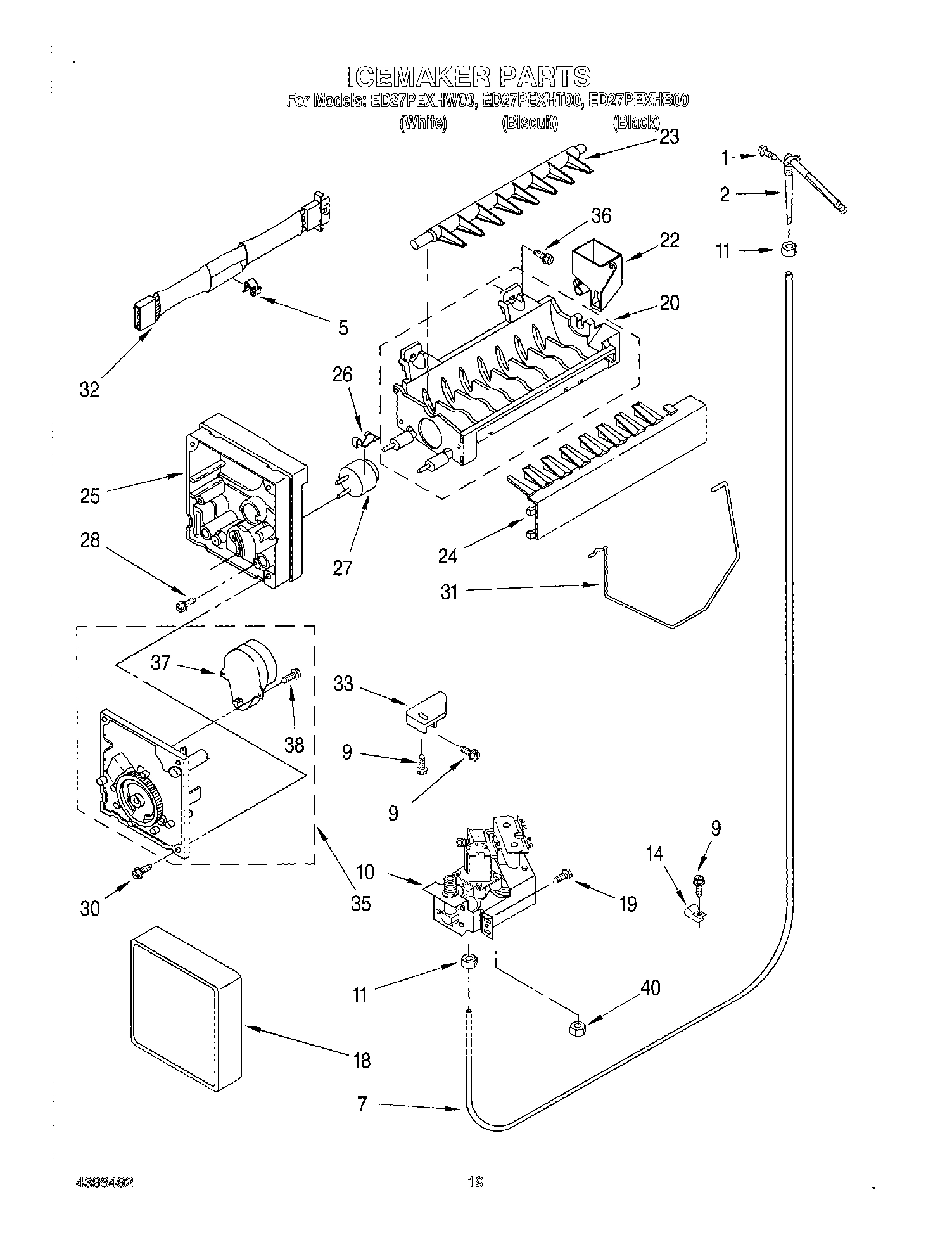

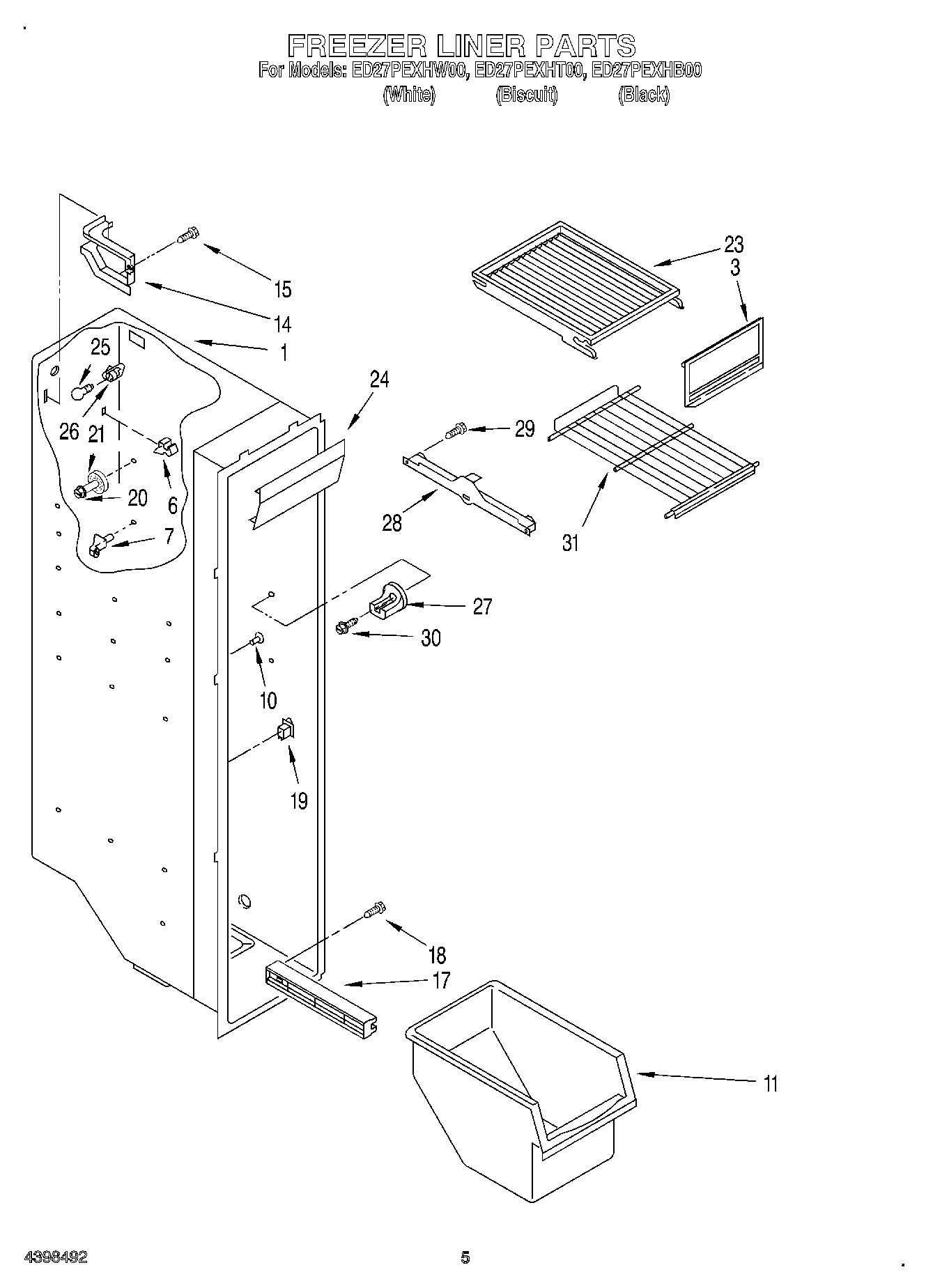

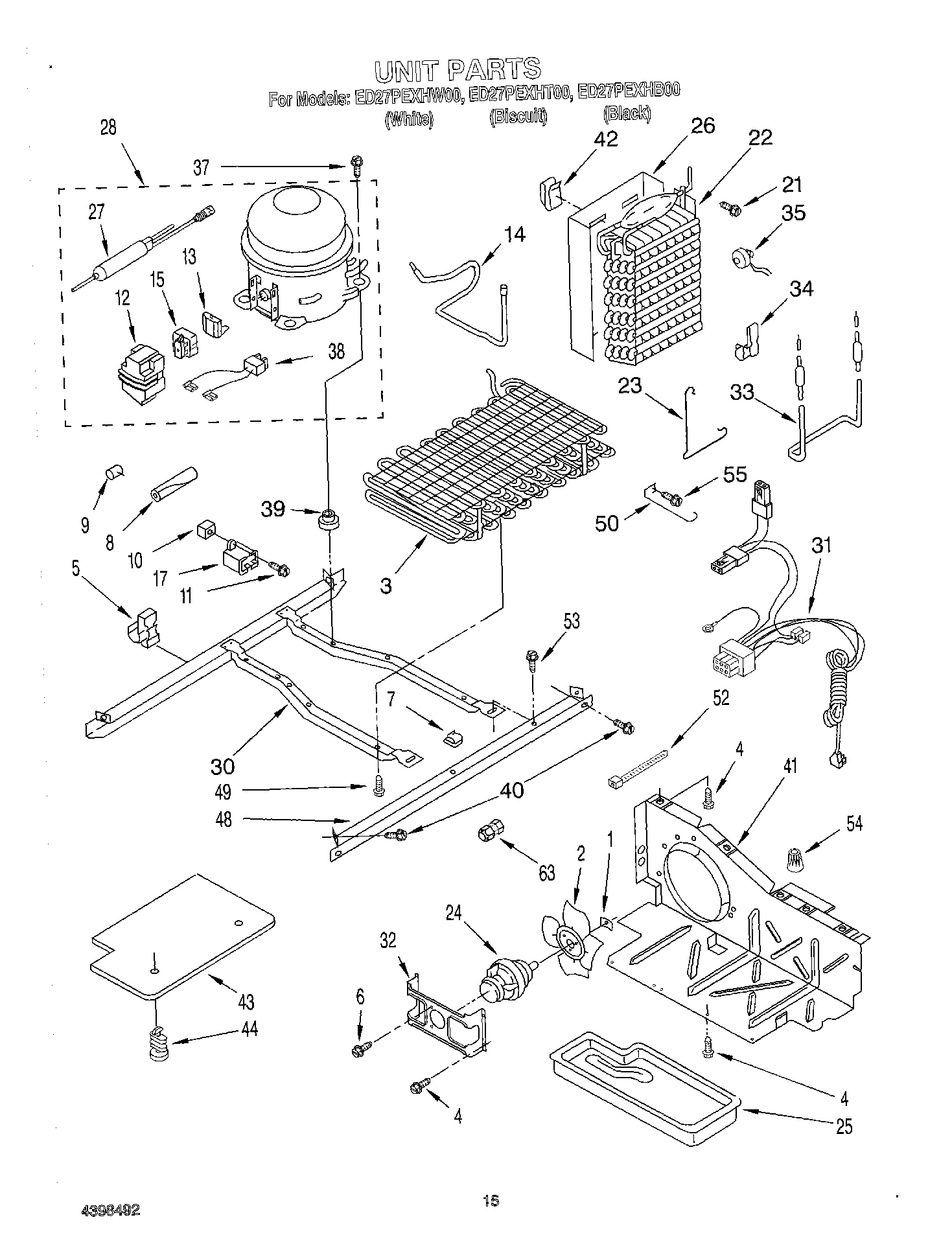

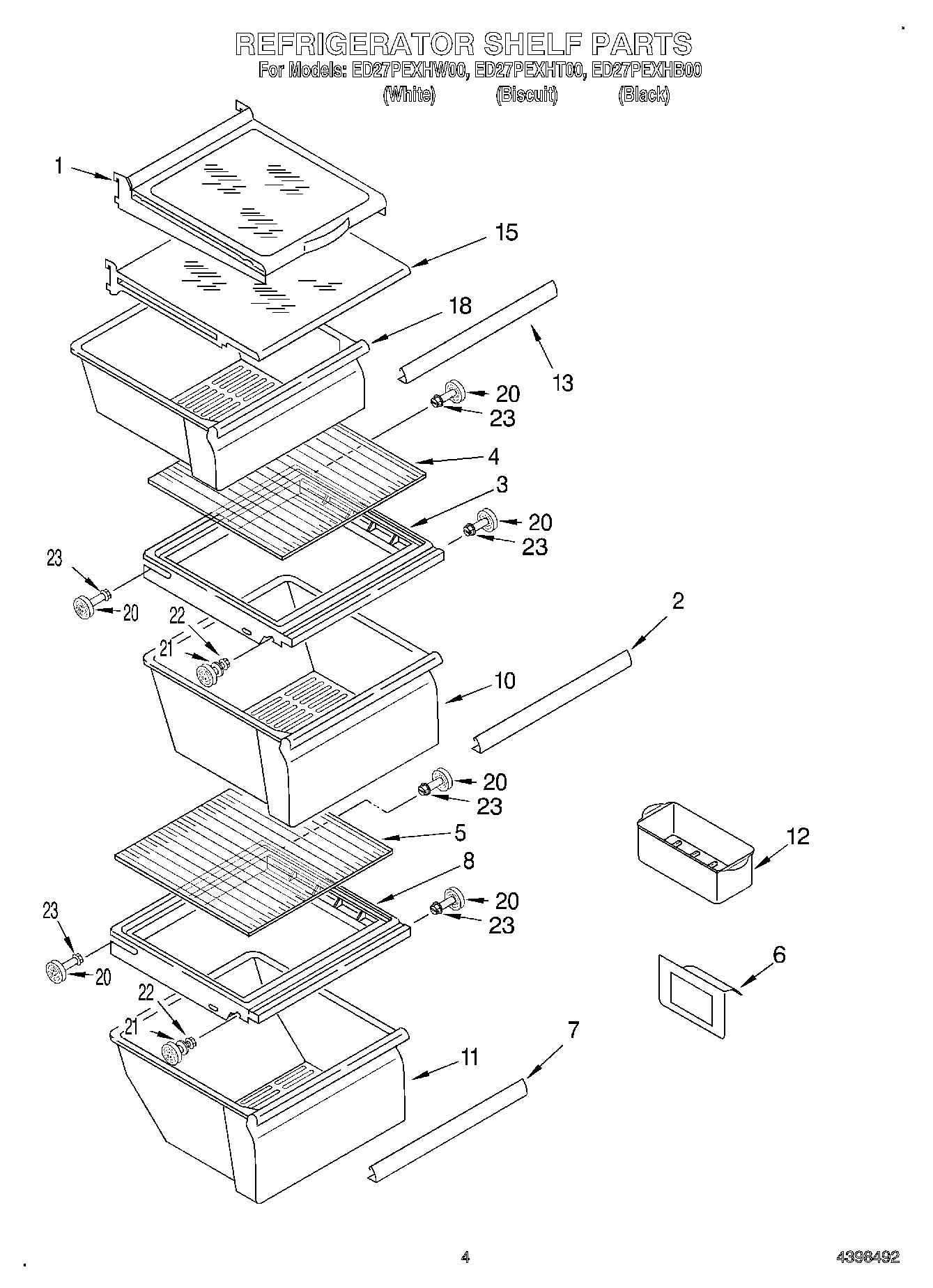

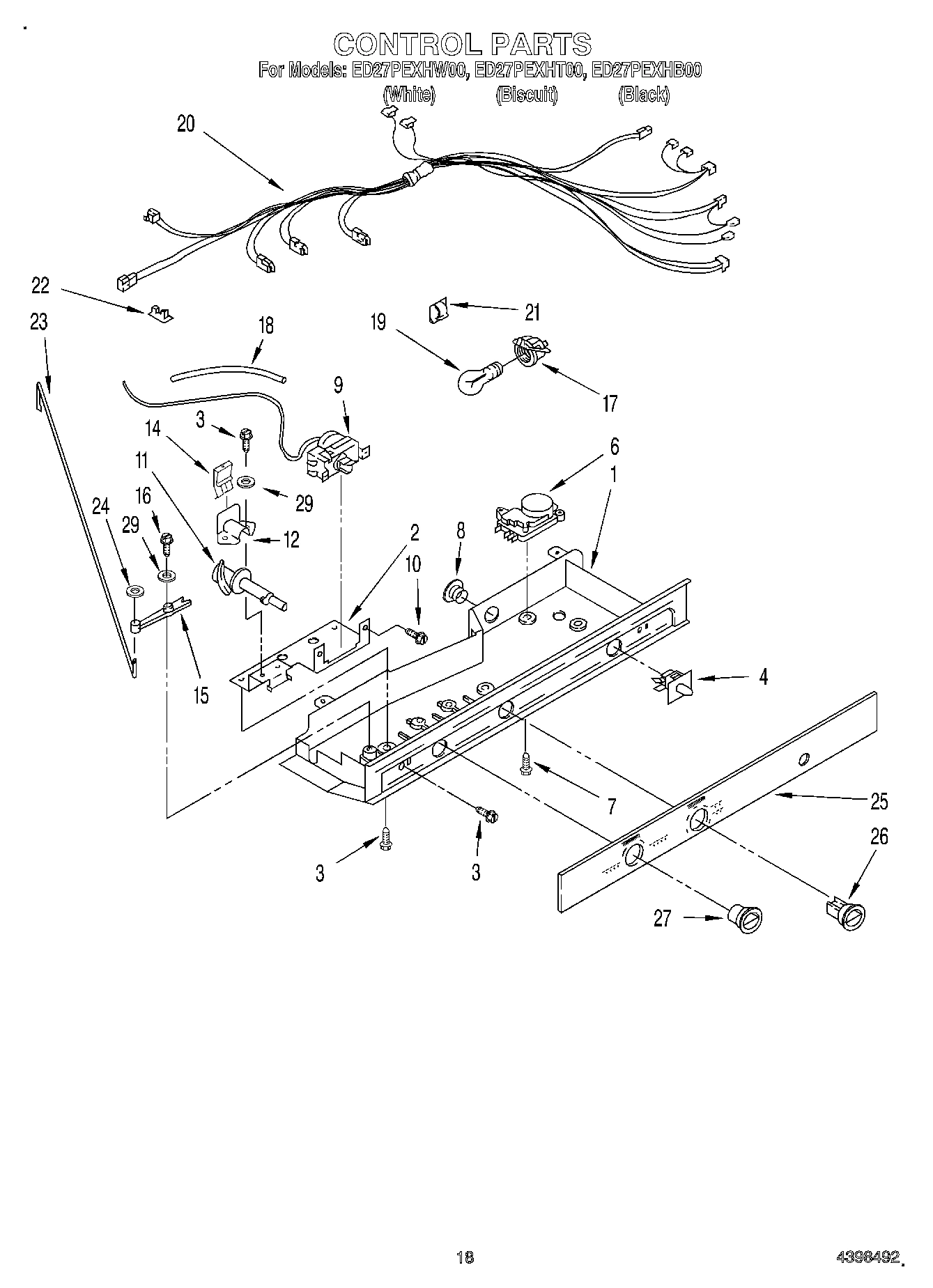

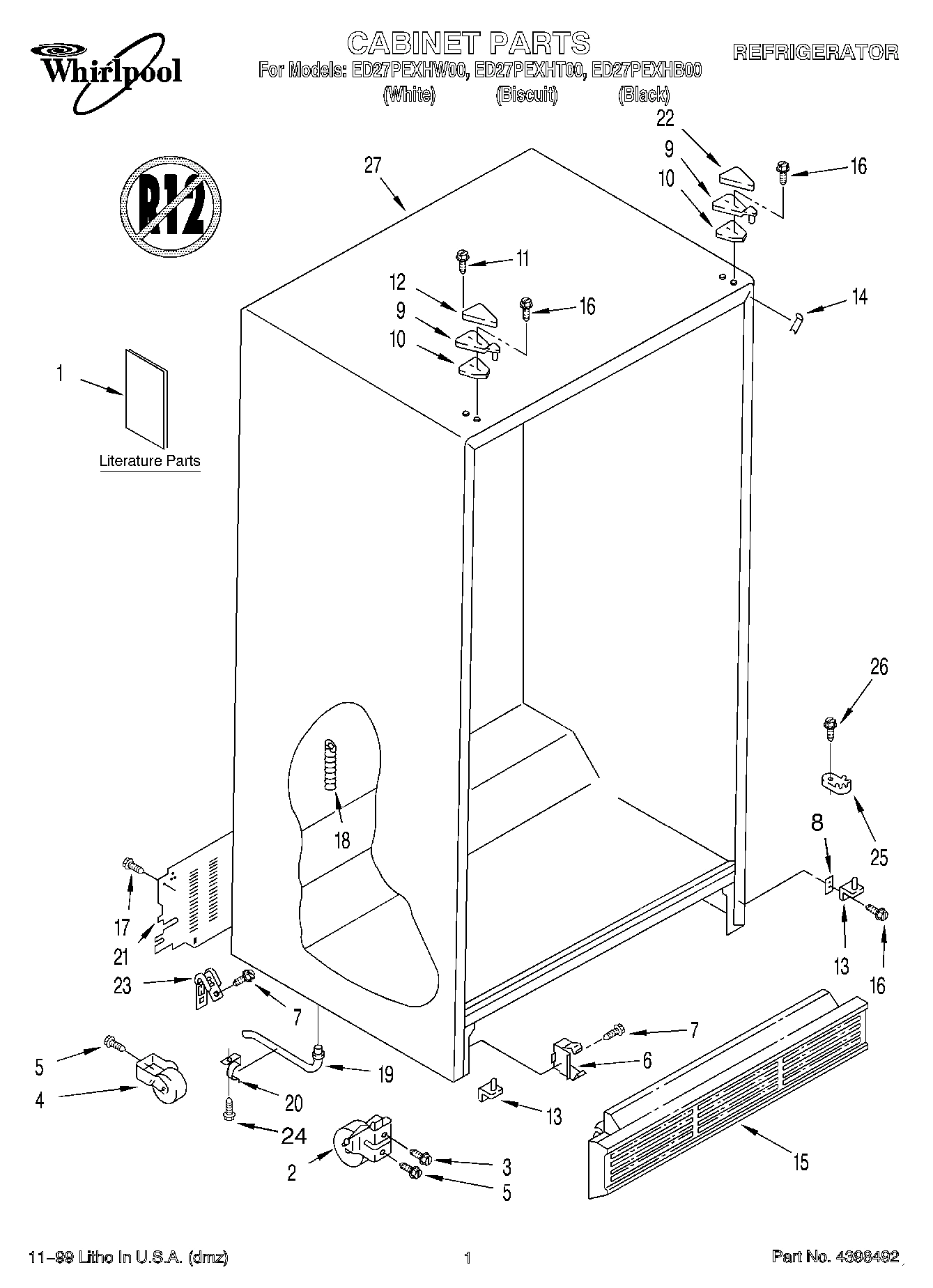

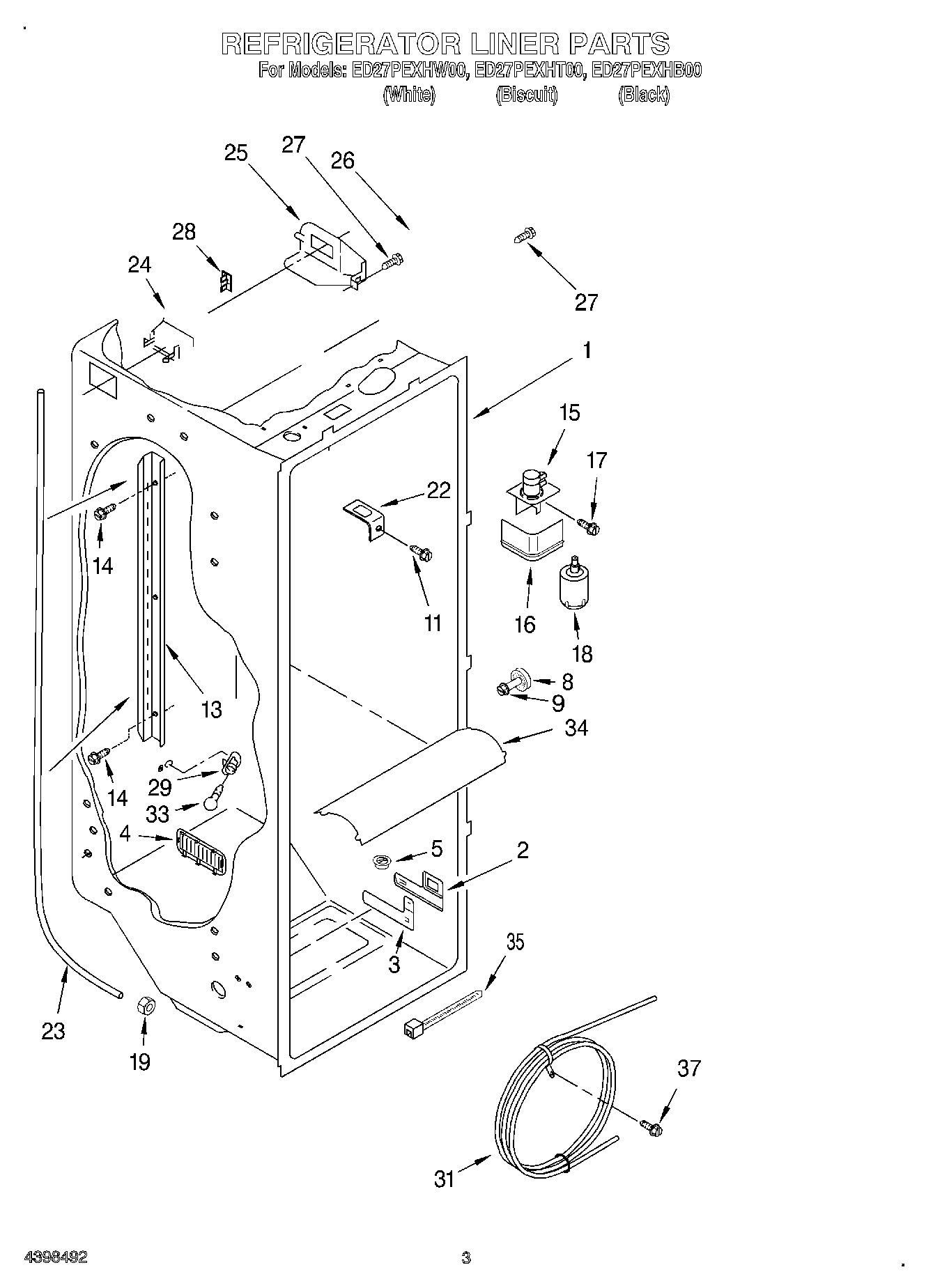

Model Whirlpool ED27PEXHB00 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.19

1

Shelf, Cantilever (2) WPL 2194281 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI28435A1 Contact Us For Availability

1

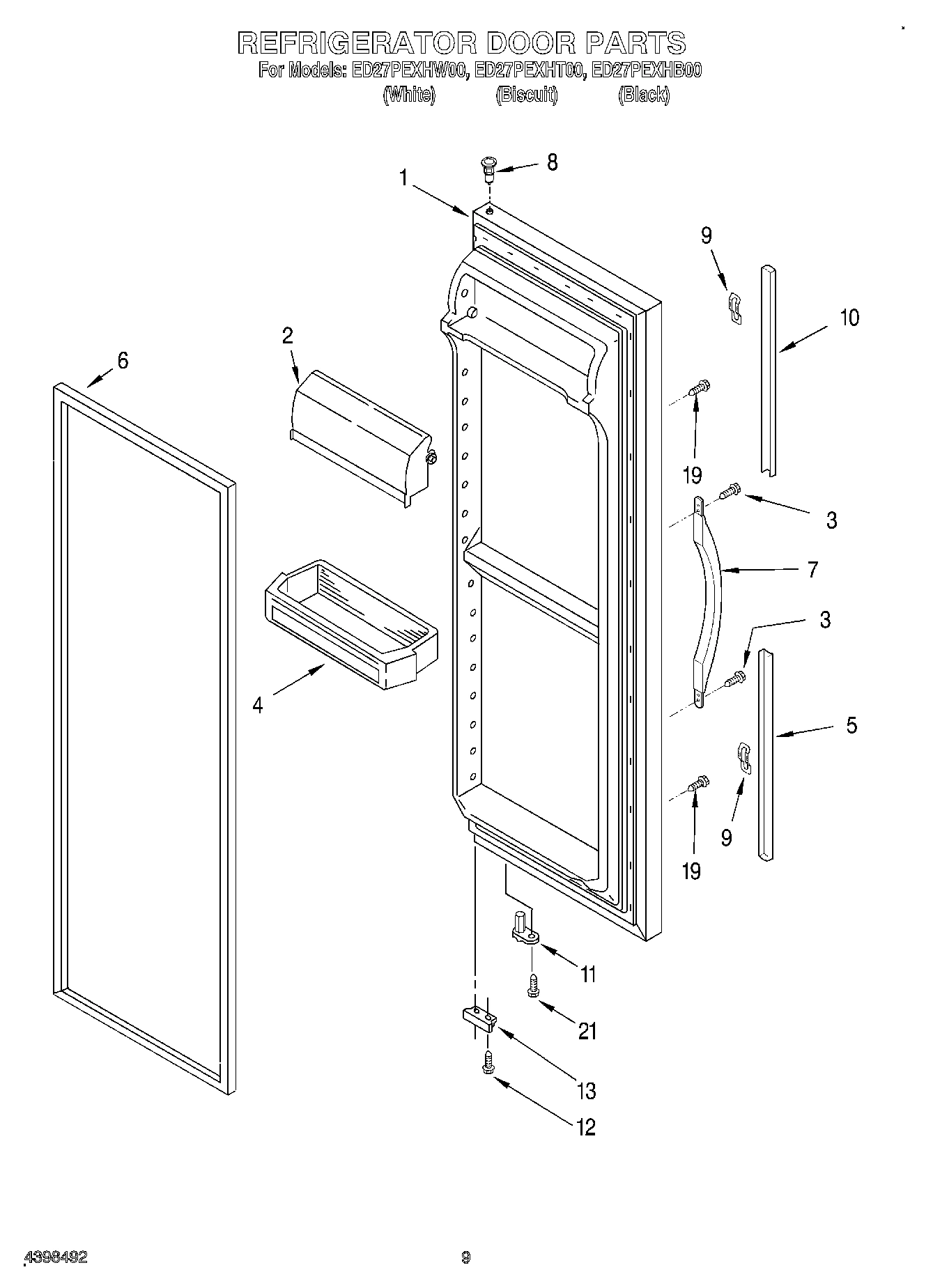

Refrigerator Door (Includes Item 6) (Black) WPL 2194514B Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Biscuit) WPL 2194514T Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 2194514W Contact Us For Availability

1

Housing, Dispenser (Not a Serviceable Part) WPL ARI28436A8 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $61.68

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $3.22

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $201.83

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.63

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $58.04

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $3.22

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Trim, Pan WPL 2194905 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $55.66

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $99.61

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $53.39

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $6.17

4

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $126.87

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.36

4

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.59

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $37.24

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $18.54

4

Shelf Bin (4) WPL 2187196 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $16.76

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.68

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $5.91

5

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

5

Extension, Bottom (Biscuit) WPL 2194969T Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $166.31

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $146.01

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $55.60

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $7.18

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.51

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.82

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.78

7

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.41

7

WP2186649B Whirlpool Refrigerator Handle Backorder WPL WP2186649B $124.77

7

Handle, Center (White) WPL 2186649W Contact Us For Availability

7

Handle, Center (Biscuit) WPL 2186649T Contact Us For Availability

7

Door Mechanism Assembly WPL 2180208 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $200.15

8

2159082 Whirlpool Freezer Door Gasket Black In Stock WPL 2159082 $166.20

8

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $129.51

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $35.14

8

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.19

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.46

8

Delay Mechanism WPL 2180223 Contact Us For Availability

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.19

9

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $40.95

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.21

9

Grille, Overflow (White) WPL 2183787W Contact Us For Availability

9

Grille, Overflow (Black) WPL 2183787B Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2183787T Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.51

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $110.13

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $5.64

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $96.74

Grommet WPL 2176134 Contact Us For Availability

Extension, Top (Black) WPL 2194973B Contact Us For Availability

Extension, Top (Biscuit) WPL 2194973T Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $35.85

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.15

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.31

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $85.27

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $52.03

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $6.33

Lever, Ice Dispenser (Biscuit) WPL 2195089T Contact Us For Availability

Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.35

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $7.10

WP1129262 Whirlpool Refrigerator Cover Backorder WPL WP1129262 $16.16

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.52

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.85

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $34.32

WP2179243 Whirlpool Refrigerator Pan Trim In Stock WPL WP2179243 $35.59

WP2183456 Whirlpool Refrigerator Overload Backorder WPL WP2183456 $90.91

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.67

Bracket, Door Stop WPL 2155331 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.27

WP2205765 Whirlpool Refrigerator Tube Backorder WPL WP2205765 $252.65

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Cover, Wiring WPL 2155572 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $15.29

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.02

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $8.09

Pivot Arm WPL 1110559 Contact Us For Availability

Shelf, Snack Bin WPL 2209601 Contact Us For Availability

16

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.59

16

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.30

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $83.70

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $98.86

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $5.76

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.19

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $41.92

Lever, Water Dispenser (Biscuit) WPL 2195090T Contact Us For Availability

Slide, Basket (Left Side) WPL 2181759 Contact Us For Availability

Slide, Basket (Right Side) WPL 2181760 Contact Us For Availability

Lever, Water Dispenser (Black) WPL 2195089B Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.77

W11233072 Whirlpool Screw In Stock WPL W11233072 $10.90

W11497323 Whirlpool Snack Pan In Stock WPL W11497323 $115.77

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $5.11

WP2180279 Whirlpool Refrigerator Switch Backorder WPL WP2180279 $168.21

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.32

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $13.86

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $6.23

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $10.43

Overlay, Front Cover (Black) WPL 2205861B Contact Us For Availability

Overlay, Front Cover (Biscuit) WPL 2205861T Contact Us For Availability

Overlay, Front Cover (White) WPL 2205861W Contact Us For Availability

20

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.75

20

Wire Assembly WPL 2196198 Contact Us For Availability

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $10.90

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $5.56

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.59

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $3.22

Front Cover, Housing (Not Available, Order No WPL ARI28437A8 Contact Us For Availability

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $3.22

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $3.22

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $19.04

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $16.76

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $5.88

Clamp WPL 2161324 Contact Us For Availability

Shelf, Top Compartment WPL 2171714 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2205863B Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2205863T Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2205863W Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $32.35

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $39.78

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $16.76

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $10.08

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $6.17

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $17.30

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $12.20

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $37.17

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $42.24

27

Knob, Air Control WPL 2197871 Contact Us For Availability

27

Stud WPL 2196207 Contact Us For Availability

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $31.62

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $55.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $61.51

Cover, Air Diffuser WPL 2204409 Contact Us For Availability

29

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $14.93

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $4.77

30

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $8.04

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $16.84

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.19

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $60.29

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $98.02

Shelf (2) WPL 2174268 Contact Us For Availability

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $16.69

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $6.17

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.67

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.97

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $5.07

34

Light Lens WPL 2203266 Contact Us For Availability

35

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.59

37

Screw (2) WPL 488280 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $7.10

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $5.76

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $3.22

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $14.93

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $6.52

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.35

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $36.47

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $5.76

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $12.28

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.43

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $33.30

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $40.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $42.85

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $31.24

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350942 Whirlpool Spray Paint Backorder WPL 350942 $50.73

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.68

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $52.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.37

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.19

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $47.27

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $70.54

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.40

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
