Model Whirlpool ED25TQXEW00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
02 - REFRIGERATOR LINER
09 - UNIT

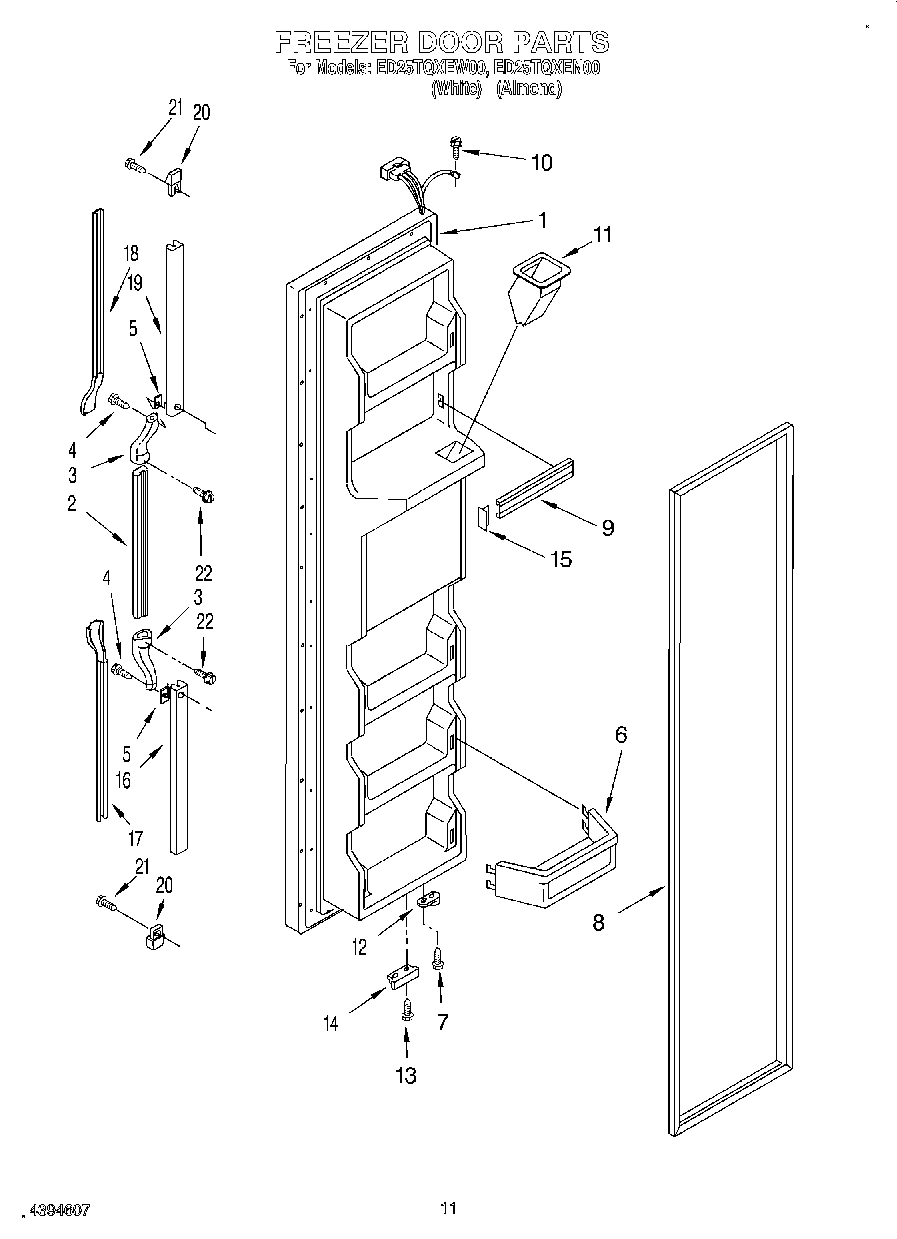

07 - FREEZER DOOR

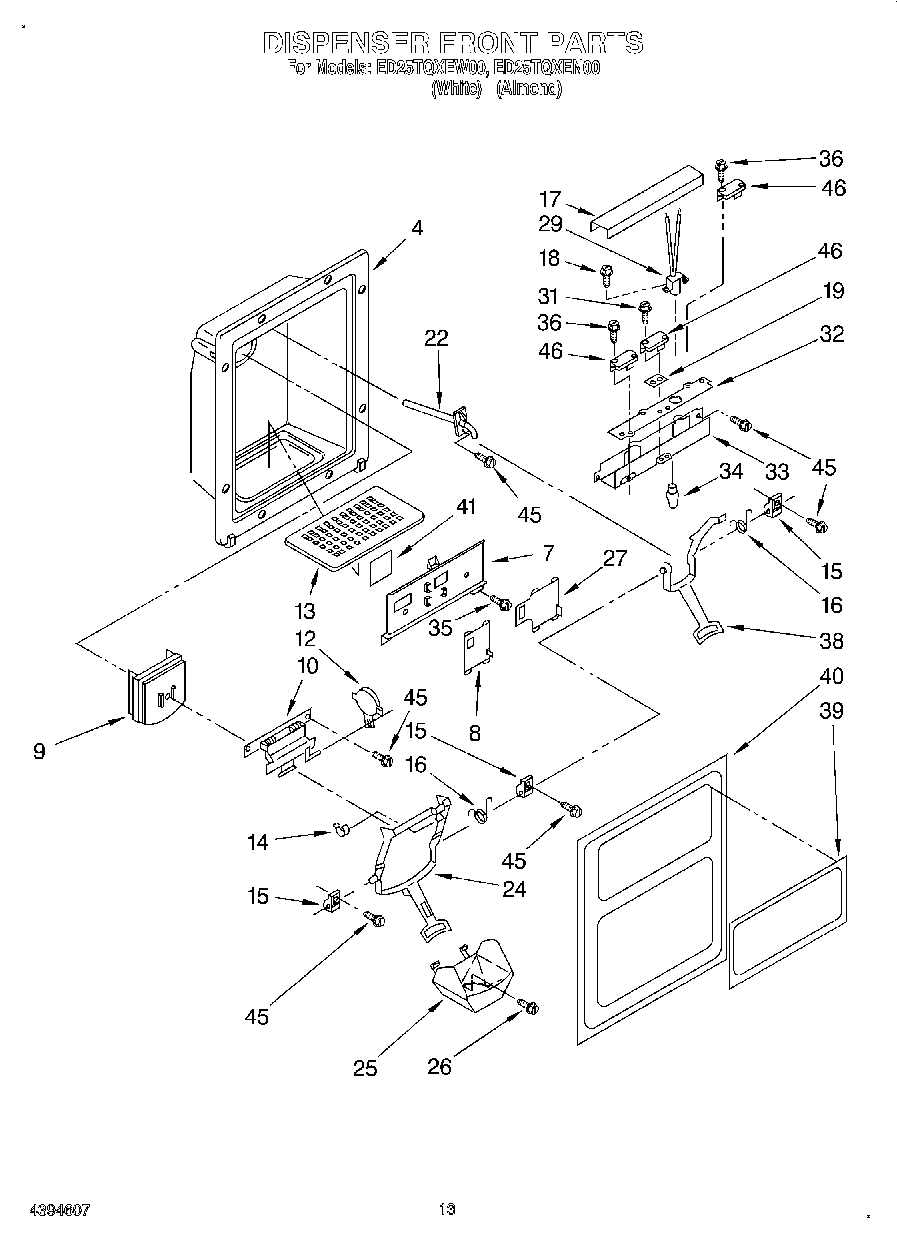

08 - DISPENSER FRONT

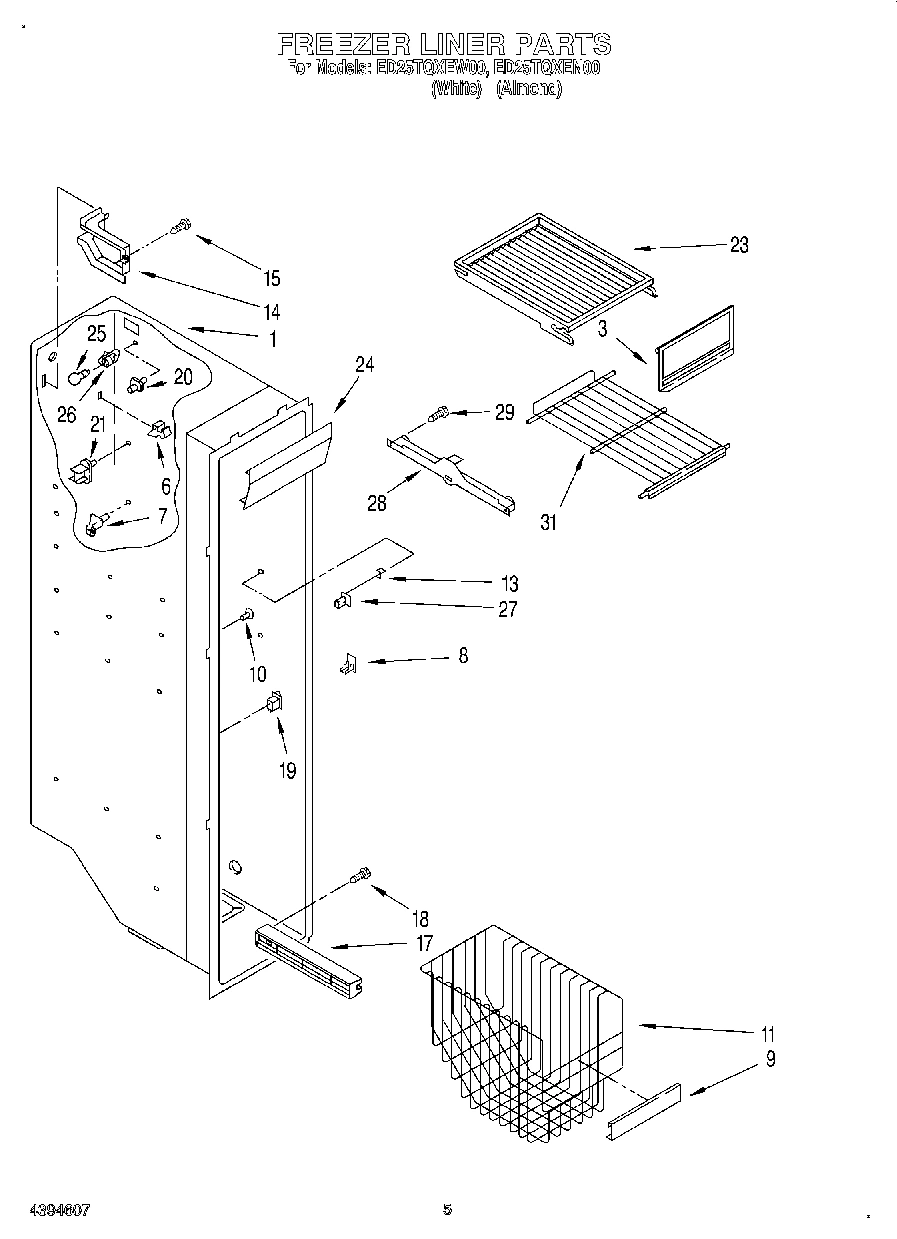

04 - FREEZER LINER

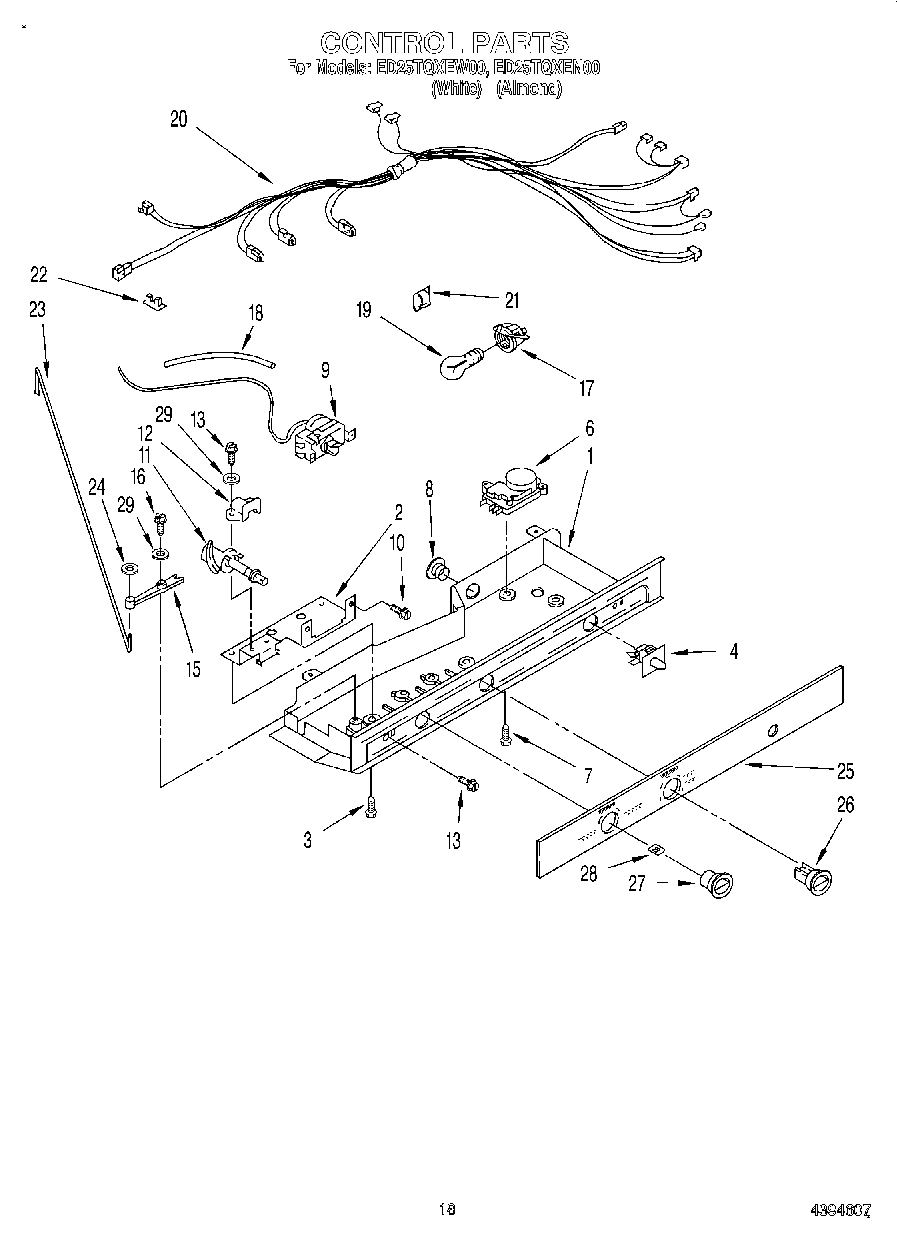

11 - CONTROL

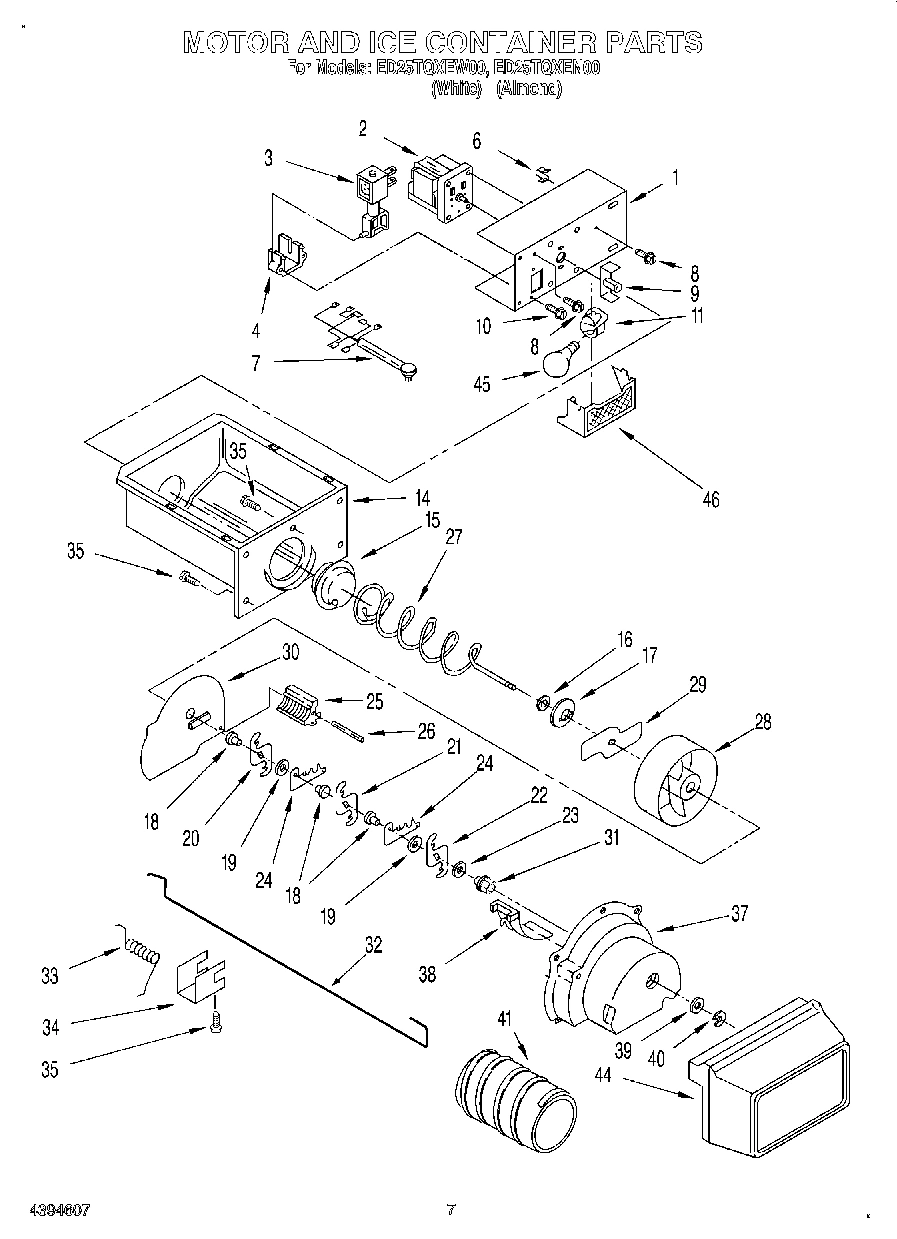

05 - MOTOR AND ICE CONTAINER

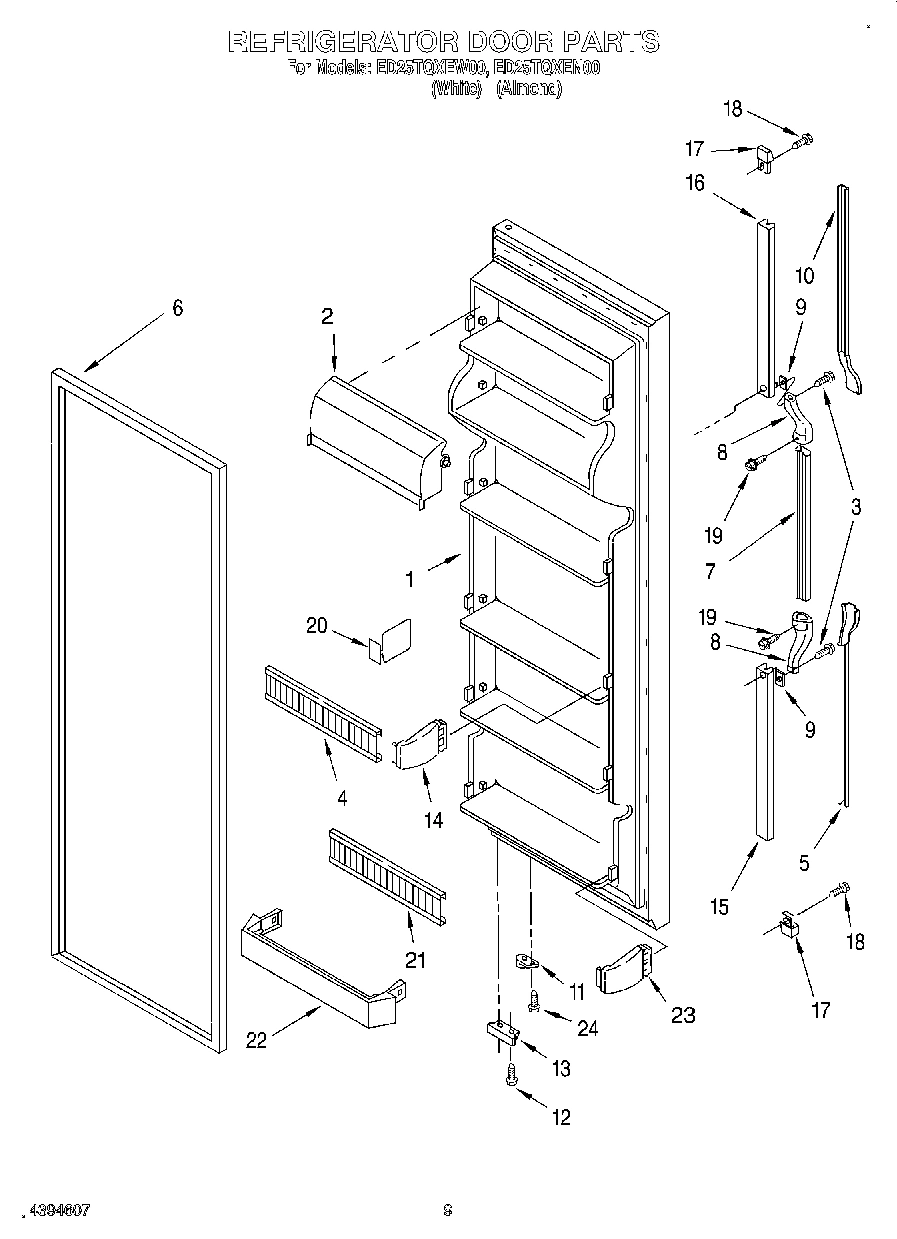

06 - REFRIGERATOR DOOR

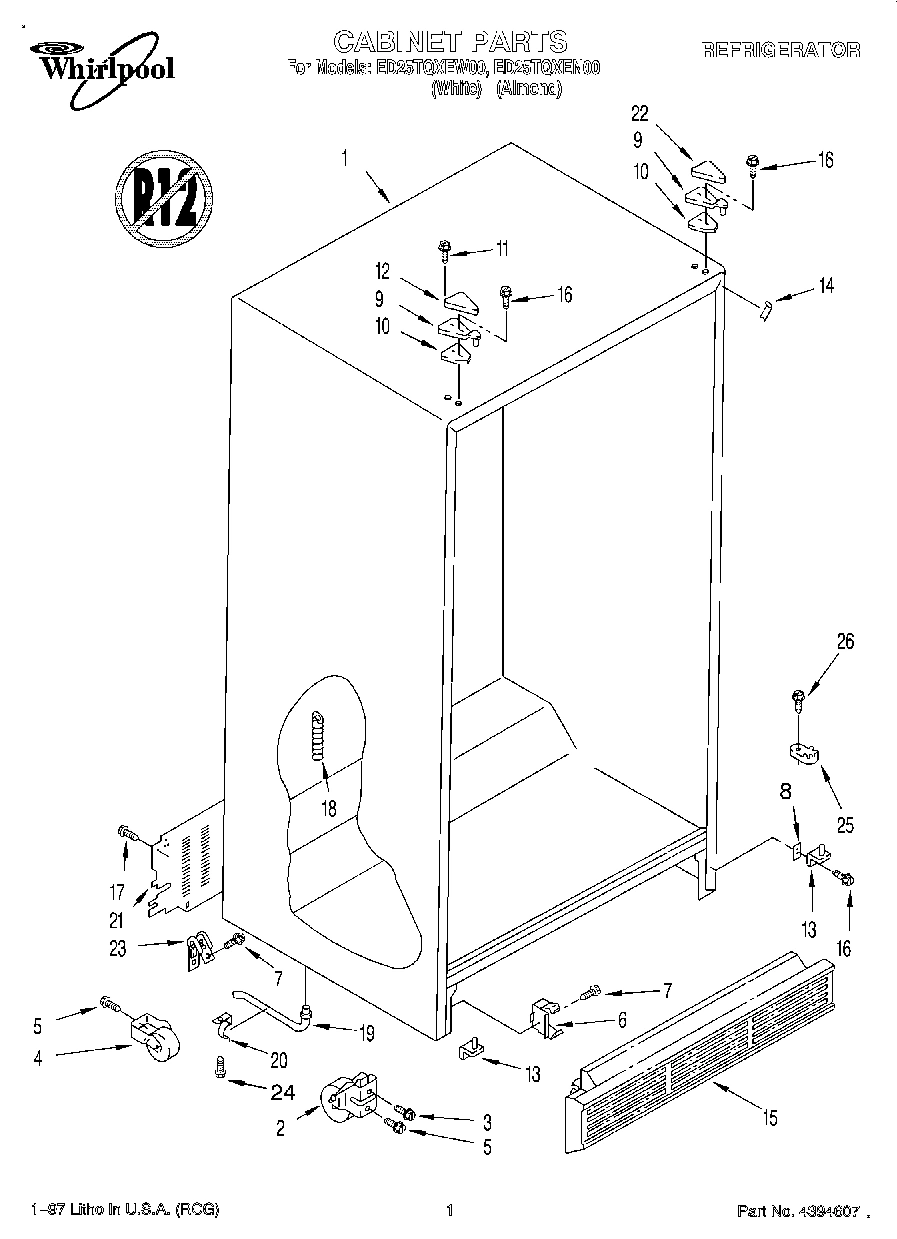

01 - CABINET

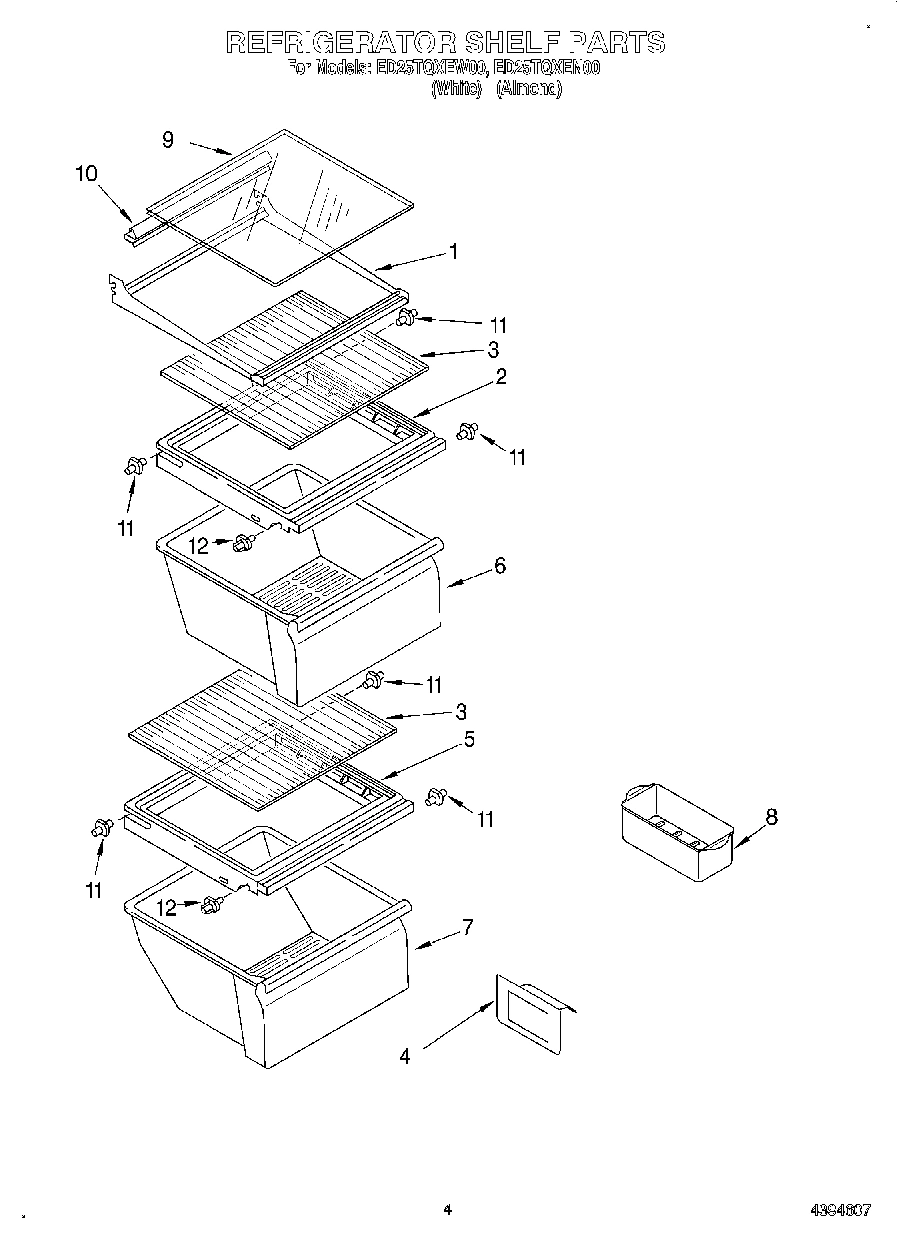

03 - REFRIGERATOR SHELF
10 - AIRFLOW
12 - ICEMAKER, LIT/OPTIONAL
Common parts from model Whirlpool ED25TQXEW00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2176787 WPL LIT2176787 Contact Us For Availability
WPL LIT2194921 WPL LIT2194921 Contact Us For Availability
WPL LIT2198133 WPL LIT2198133 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Bracket, Motor WPL 2183726 Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (Almond) WPL 2194811N Contact Us For Availability
1
Refrigerator Door (Includes Item 6) (White) WPL 2194811W Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI28089A7 Contact Us For Availability
1
Shelf, Cantilever (3) WPL 2163572 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
4
Trim, Door (3) WPL 2175989 Contact Us For Availability
5
Insert, Handle (Almond) WPL 2194773N Contact Us For Availability
5
Insert, Handle (White) WPL 2194773W Contact Us For Availability
5
Air Duct Freezer WPL 2182063 Contact Us For Availability
6
Defrost Timer (10 Hr.) WPL 2162046 Contact Us For Availability
7
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
7
Handle, Center (Almond) WPL 2194767N Contact Us For Availability
7
Handle, Center (White) WPL 2194767W Contact Us For Availability
8
End Cap, Center Handle WPL 1119359 Contact Us For Availability
9
Shim WPL 935075 Contact Us For Availability
9
Glass, Shelf WPL 2175987 Contact Us For Availability
10
Grommet WPL 2176134 Contact Us For Availability
10
Insert, Handle (Almond) WPL 2194775N Contact Us For Availability
10
Insert, Handle (White) WPL 2194775W Contact Us For Availability
10
Shim, Hinge Top WPL 2171868 Contact Us For Availability
10
Reflector WPL 2170621 Contact Us For Availability
11
Cam Assembly WPL 2182008 Contact Us For Availability
11
Screw WPL 489284 Contact Us For Availability
12
Hinge Cover (White) WPL 1129262 Contact Us For Availability
12
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
13
Bracket, Door Stop WPL 2155332 Contact Us For Availability
14
Filler, Wrapper (White) WPL 1110708 Contact Us For Availability
14
Filler, Wrapper (Almond) WPL 1110709 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
15
Retainer, Insert (Bottom) WPL 2194770 Contact Us For Availability
15
Grille (White) WPL 2155486 Contact Us For Availability
15
Grille (Almond) WPL 2155487 Contact Us For Availability
16
Spring, Lever (2) WPL 983696 Contact Us For Availability
16
Stop, Cone WPL 1118480 Contact Us For Availability
16
Retainer, Insert WPL 2194772 Contact Us For Availability
17
Feeder Cone WPL 1119074 Contact Us For Availability
17
End Cap (2) WPL 2156220 Contact Us For Availability
17
Cover, Evaporator WPL 2155612 Contact Us For Availability
18
Screw WPL 489075 Contact Us For Availability
19
Spacer, Switch WPL 625834 Contact Us For Availability
19
Screw WPL 489022 Contact Us For Availability
20
Control Box Harness WPL 2189566 Contact Us For Availability
20
Divider WPL 2160050 Contact Us For Availability
21
Trim, Door (1) WPL 2175990 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
24
Lever Assembly, Ice Dispenser (White) WPL 2177144 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
25
Guide, Ice (White) WPL 1124730 Contact Us For Availability
25
Escutcheon, Control Box WPL 2170787 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
27
Cement Alumilastic) WPL 542369 Contact Us For Availability
28
Knob, Retainer WPL 837444 Contact Us For Availability
31
Shelf (2) WPL 2174268 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
38
Lever Assembly, Water Dispenser (White) WPL 2177149 Contact Us For Availability
40
Nut, Compression WPL 1129179 Contact Us For Availability
44
Front Cover, Ice Container WPL 2196004 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
100
WPL 876029 WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
PAINT, BULK (1 Q WPL 799344 Contact Us For Availability
100
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
100
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
100
WPL 799833 WPL 799833 Contact Us For Availability
100
WPL 978883 WPL 978883 Contact Us For Availability
× ![]()
