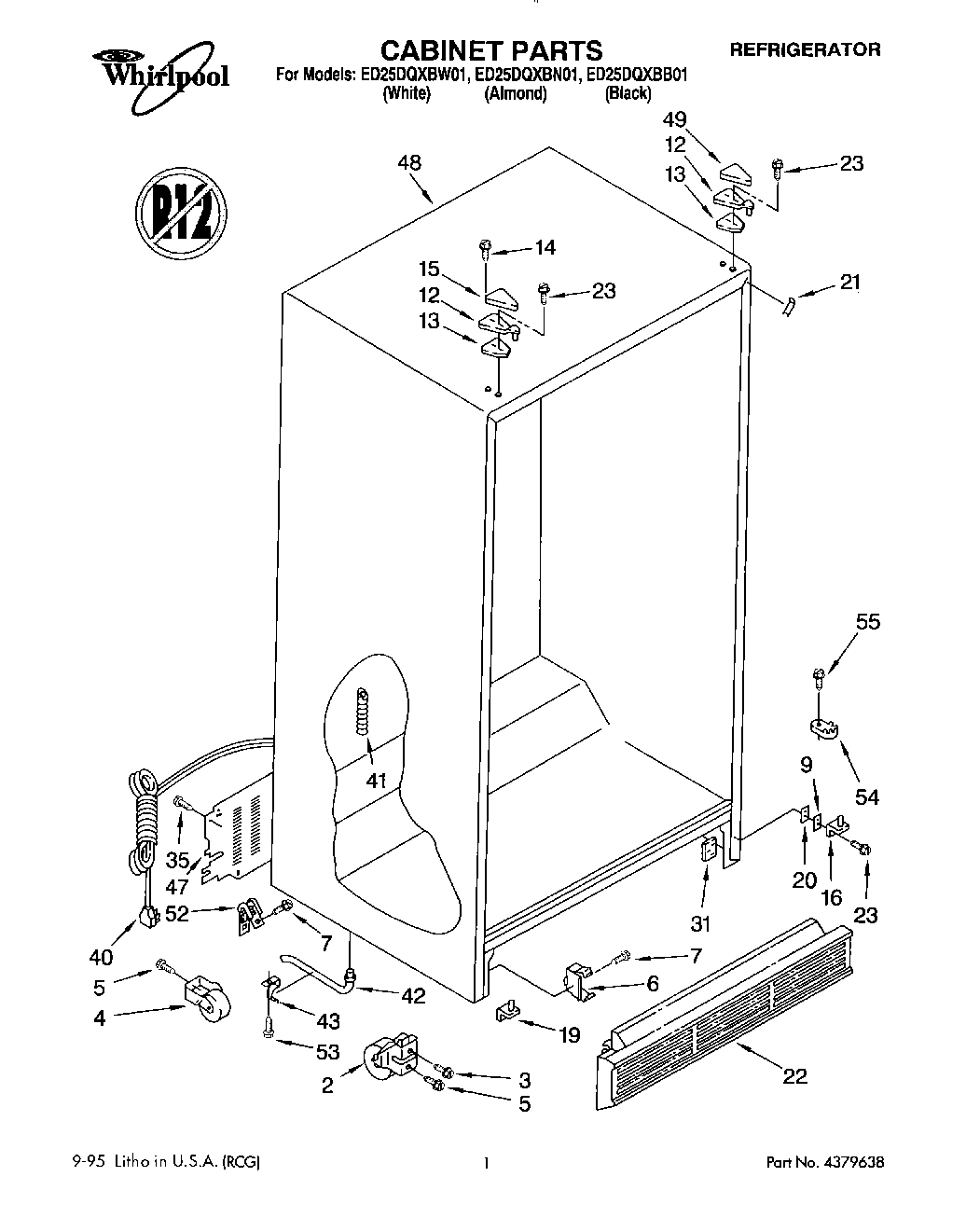

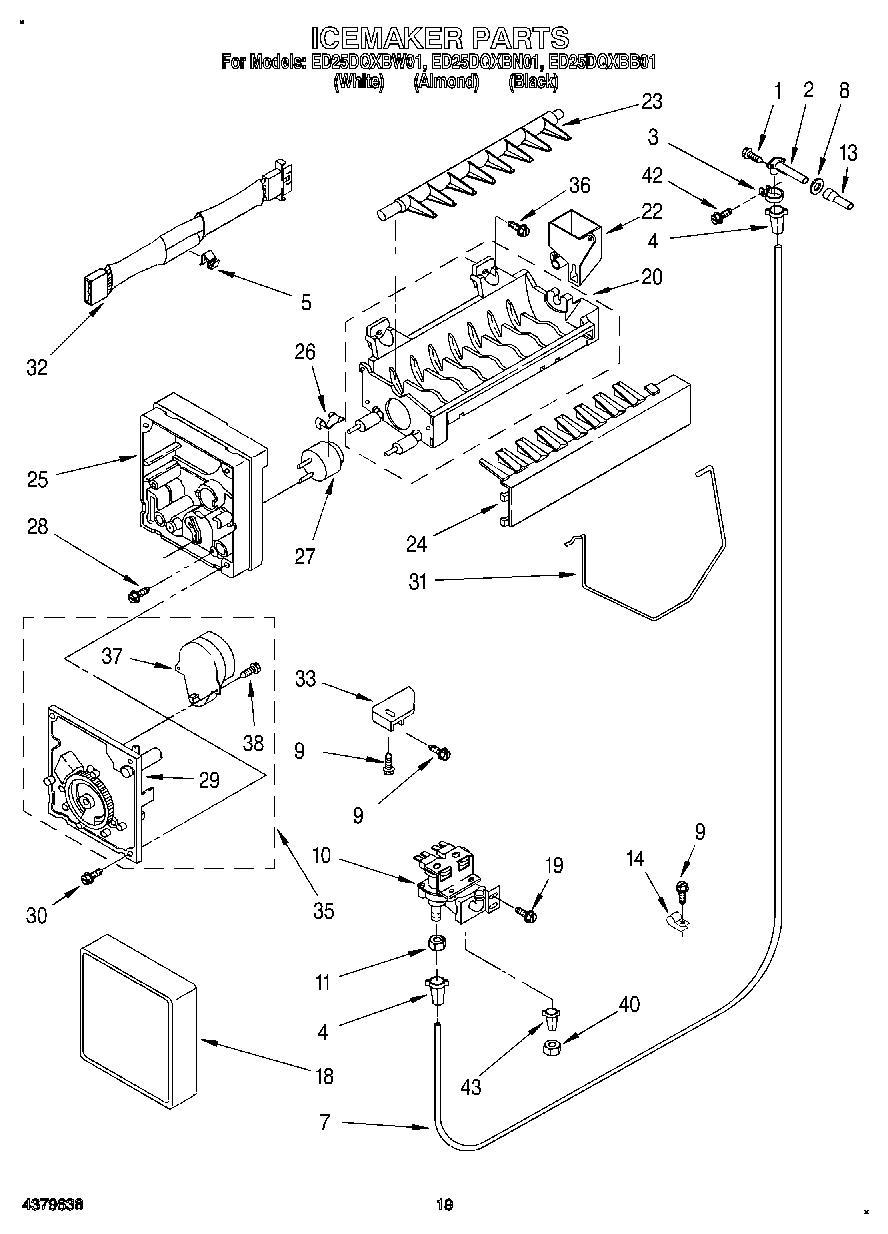

Model Whirlpool ED25DQXBW01 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams

WPL  1117510
WPL 1117510 WPL 1117510 Contact Us For Availability
View on Model
WPL  LIT2170895
WPL LIT2170895 WPL LIT2170895 Contact Us For Availability
View on Model
WPL  LIT2170990
WPL LIT2170990 WPL LIT2170990 Contact Us For Availability
View on Model
WPL  LIT2176624
WPL LIT2176624 WPL LIT2176624 Contact Us For Availability
View on Model
WPL  LIT628370
WPL LIT628370 WPL LIT628370 Contact Us For Availability
View on Model
1

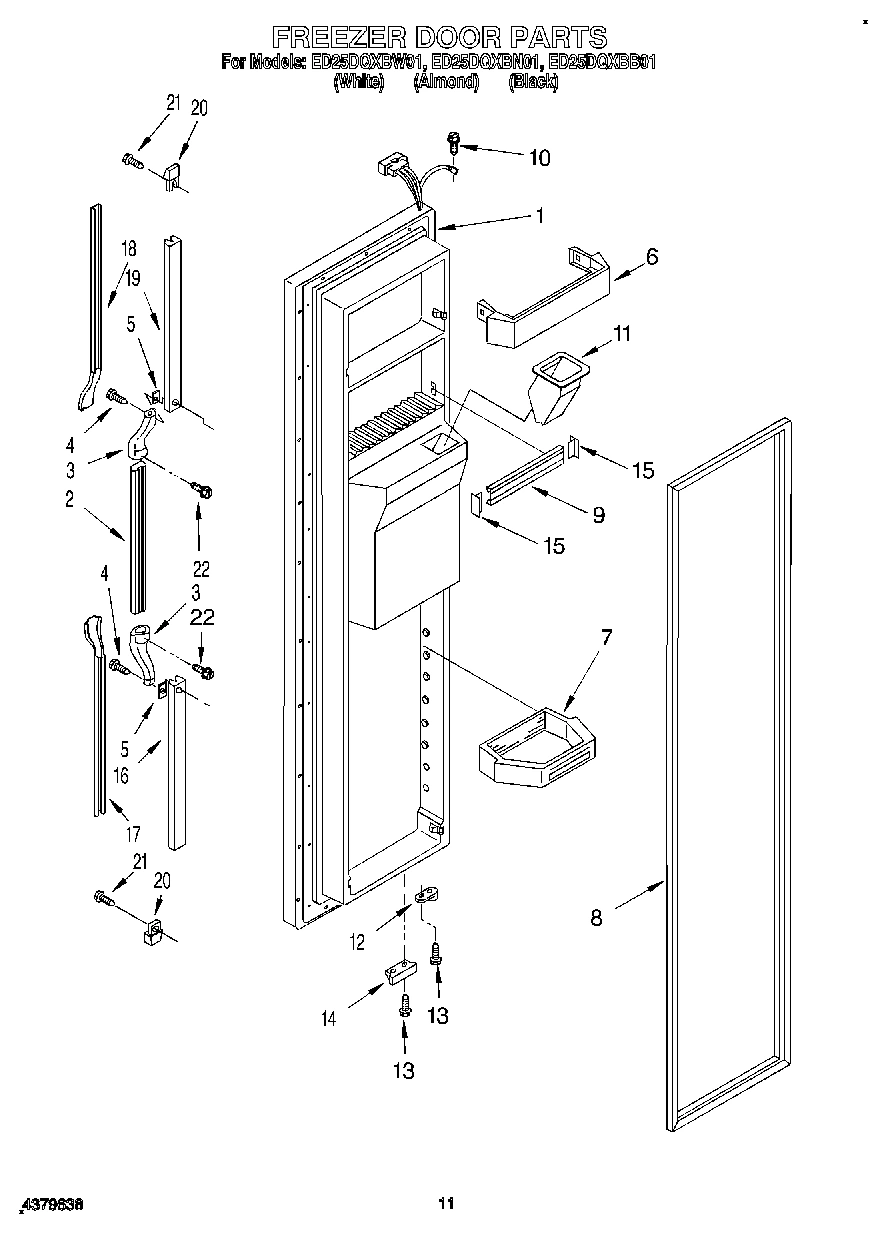

Freezer Door (Includes Item 8 And Dispenser F
Freezer Door (Includes Item 8 And Dispenser F WPL 2159339 Contact Us For Availability
View on Model
1
Freezer Door (Includes Item 8 And Dispenser F
Freezer Door (Includes Item 8 And Dispenser F WPL 2159376 Contact Us For Availability
View on Model
1
Freezer Door (Includes Item 8 And Dispenser F
Freezer Door (Includes Item 8 And Dispenser F WPL 2159377 Contact Us For Availability
View on Model
1

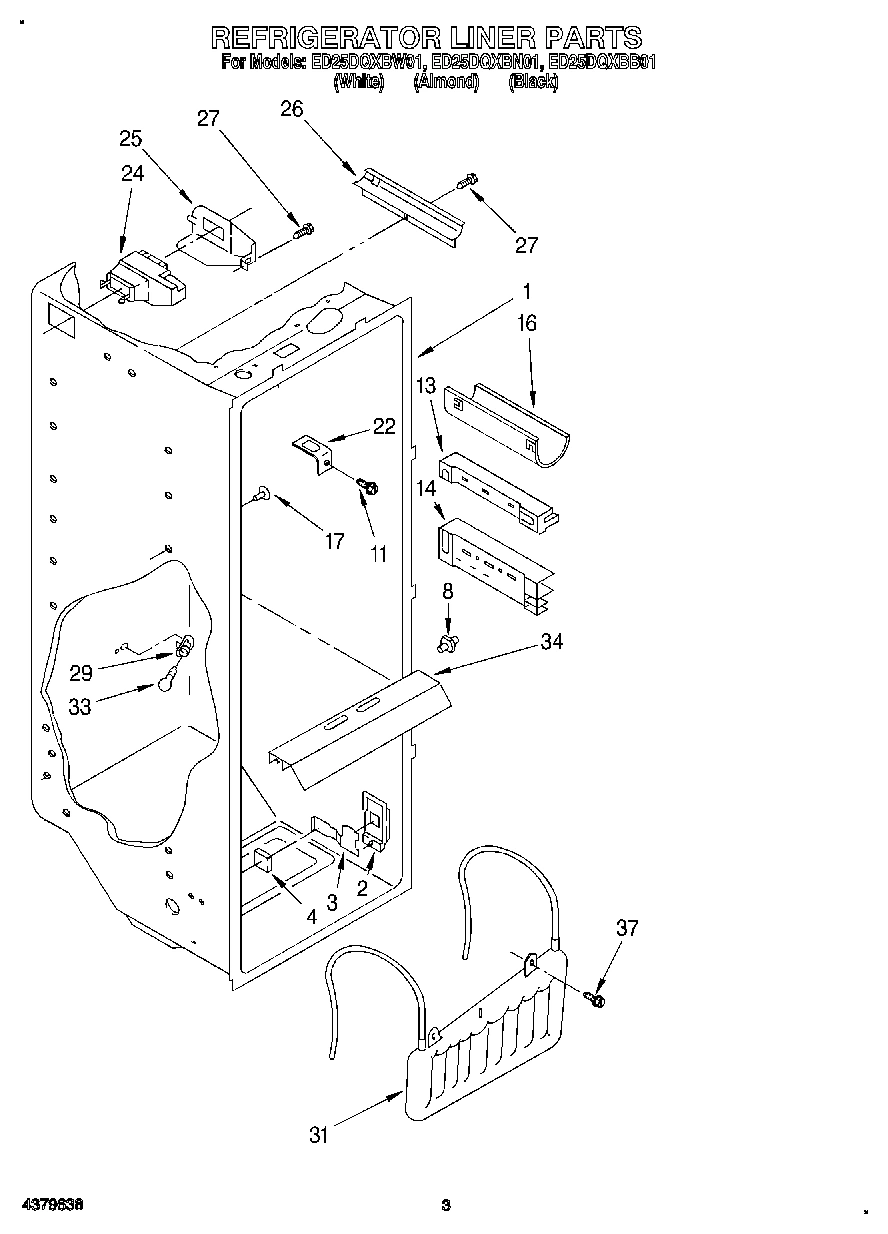

Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI145707A Contact Us For Availability
View on Model
1
Bracket, Motor
Bracket, Motor WPL 1118386 Contact Us For Availability
View on Model
1

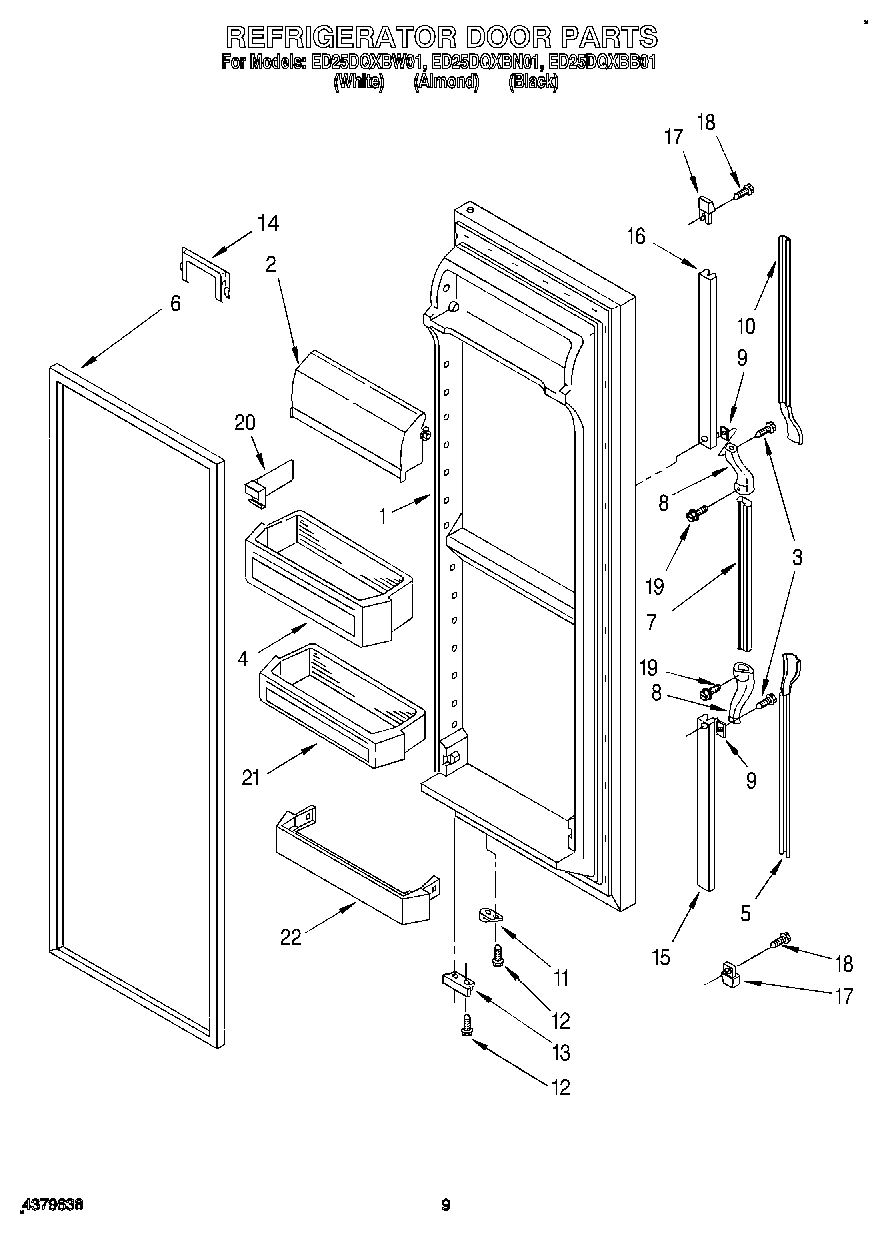

Refrigerator Door (Includes Item 6) (White)
Refrigerator Door (Includes Item 6) (White) WPL 2159337 Contact Us For Availability
View on Model
1
Refrigerator Door (Includes Item 6) (Almond)
Refrigerator Door (Includes Item 6) (Almond) WPL 2159374 Contact Us For Availability
View on Model
1
Refrigerator Door (Includes Item 6) (Black)
Refrigerator Door (Includes Item 6) (Black) WPL 2159375 Contact Us For Availability
View on Model
2
Fan, Blade
Fan, Blade WPL 1108179 Contact Us For Availability
View on Model
2
Mounting Bracket
Mounting Bracket WPL 1110629 Contact Us For Availability
View on Model
2
Escutcheon, Meat Pan Control
Escutcheon, Meat Pan Control WPL 985468 Contact Us For Availability
View on Model
3

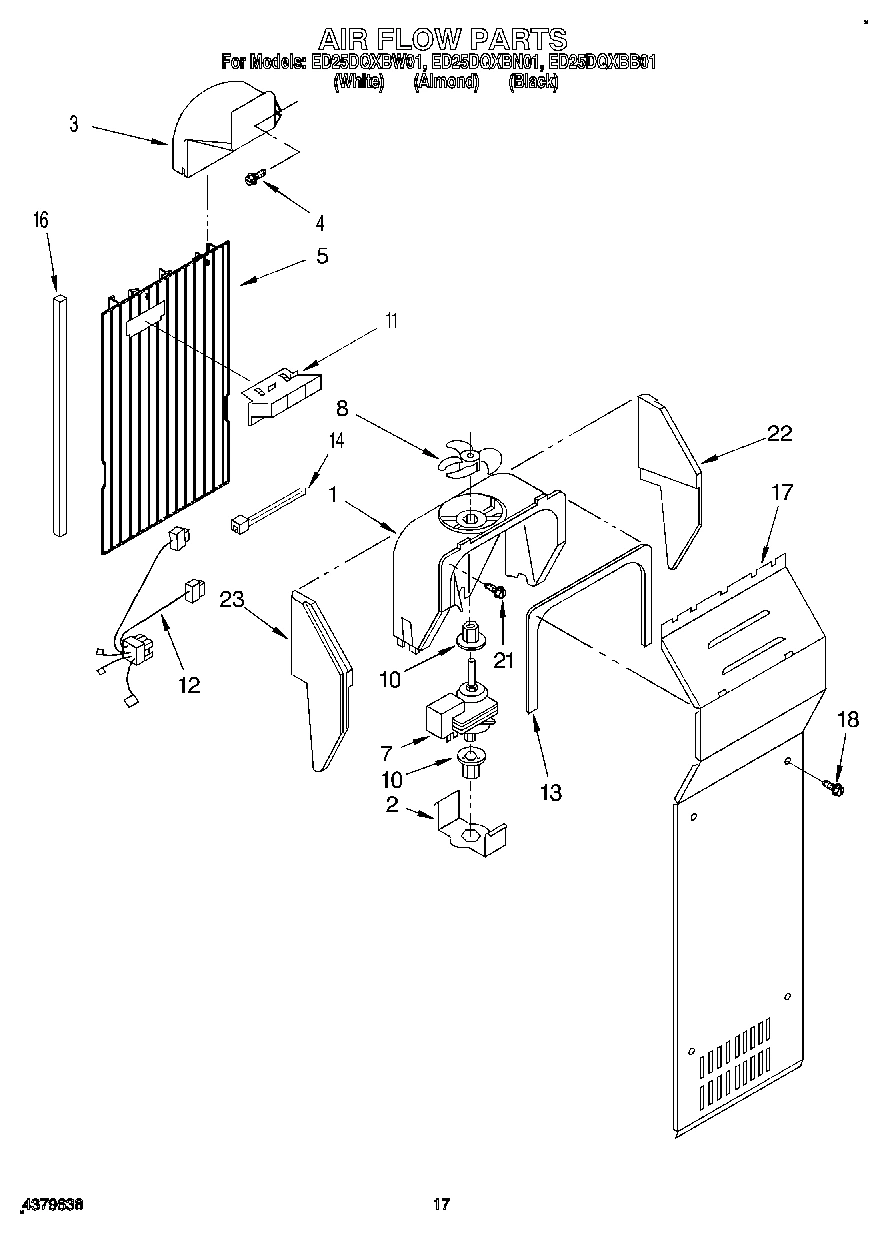

Air Scoop
Air Scoop WPL 2161231 Contact Us For Availability
View on Model
3
Slide, Meat Pan Control
Slide, Meat Pan Control WPL 984102 Contact Us For Availability
View on Model
3

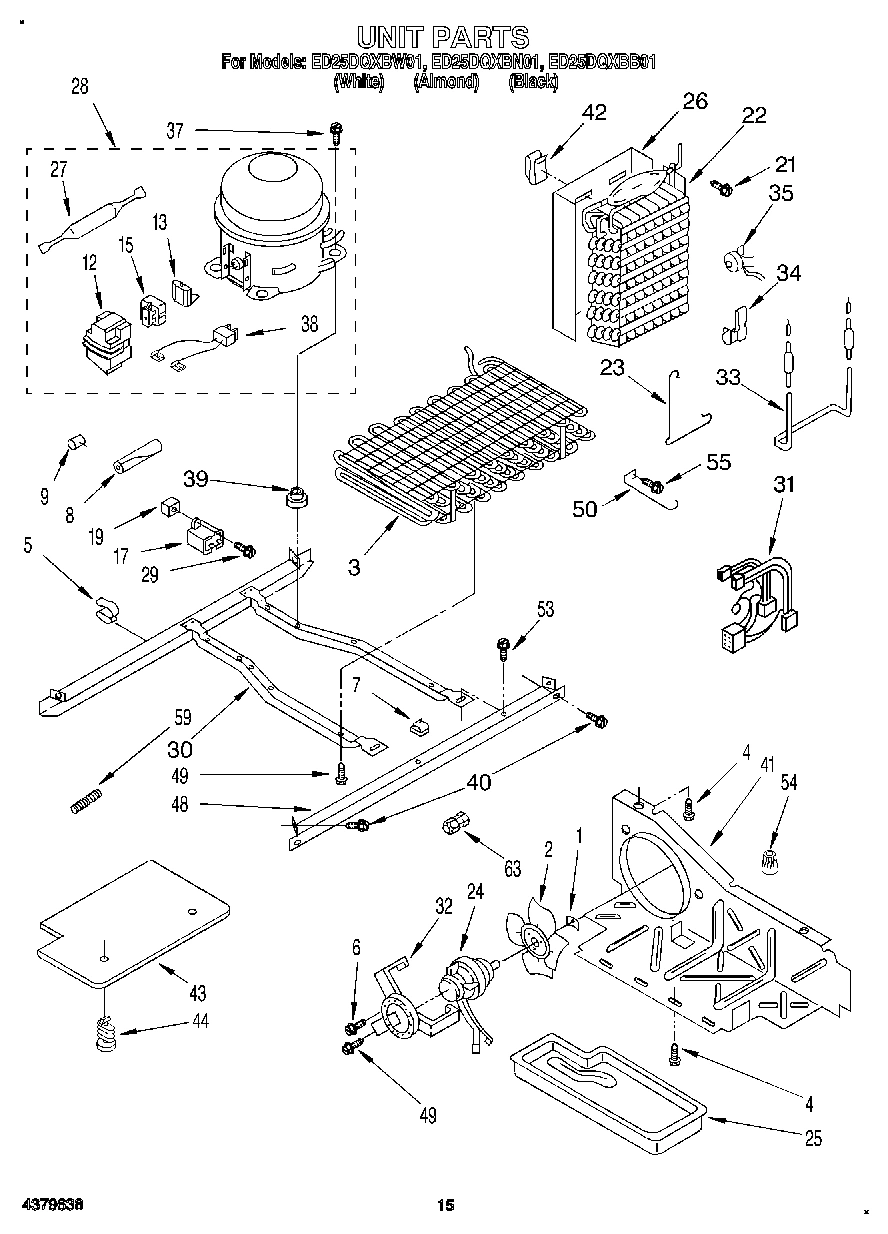

Condenser Assembly
Condenser Assembly WPL 2164504 Contact Us For Availability
View on Model
4

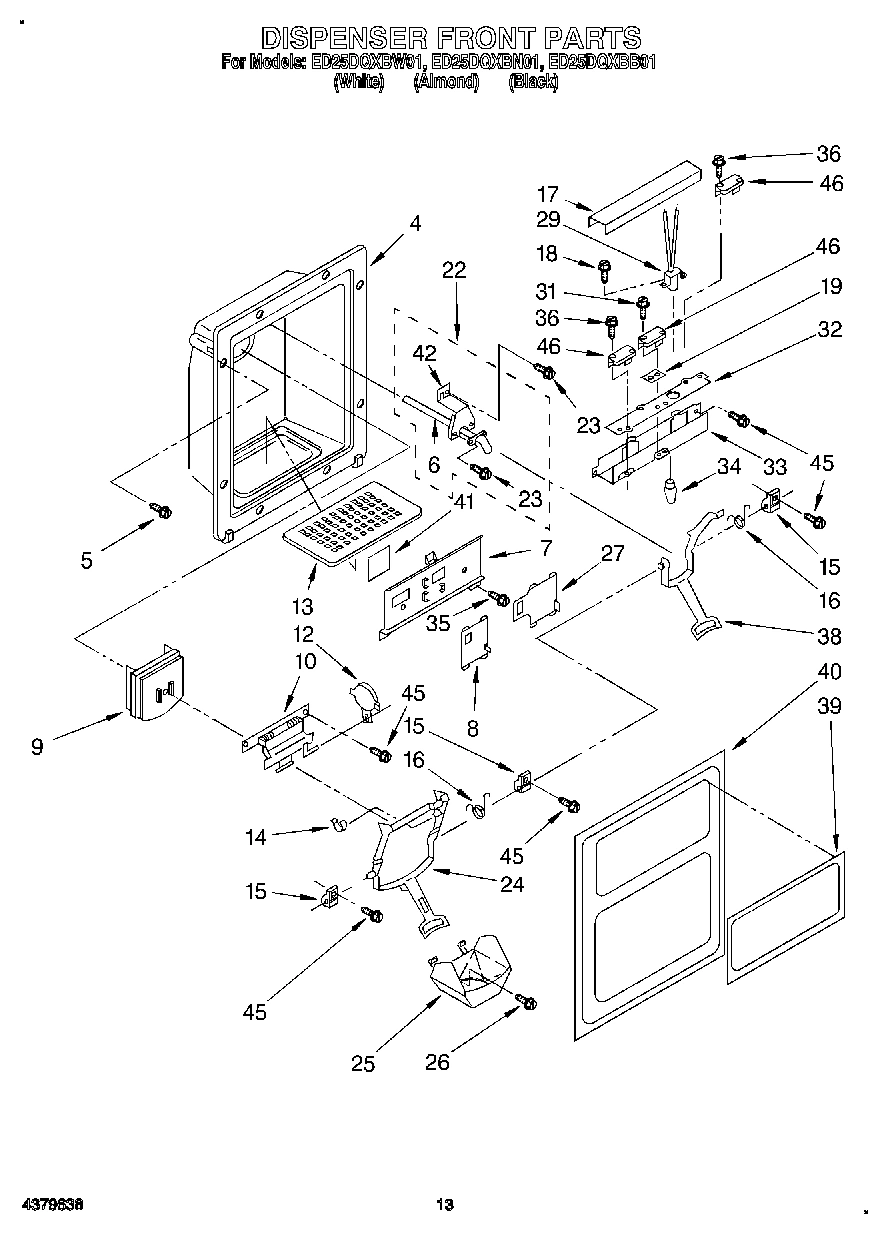

Housing, Dispenser (Not a Serviceable Part)
Housing, Dispenser (Not a Serviceable Part) WPL ARI145709A Contact Us For Availability
View on Model
4
Pad, Foam
Pad, Foam WPL 992358 Contact Us For Availability
View on Model
4

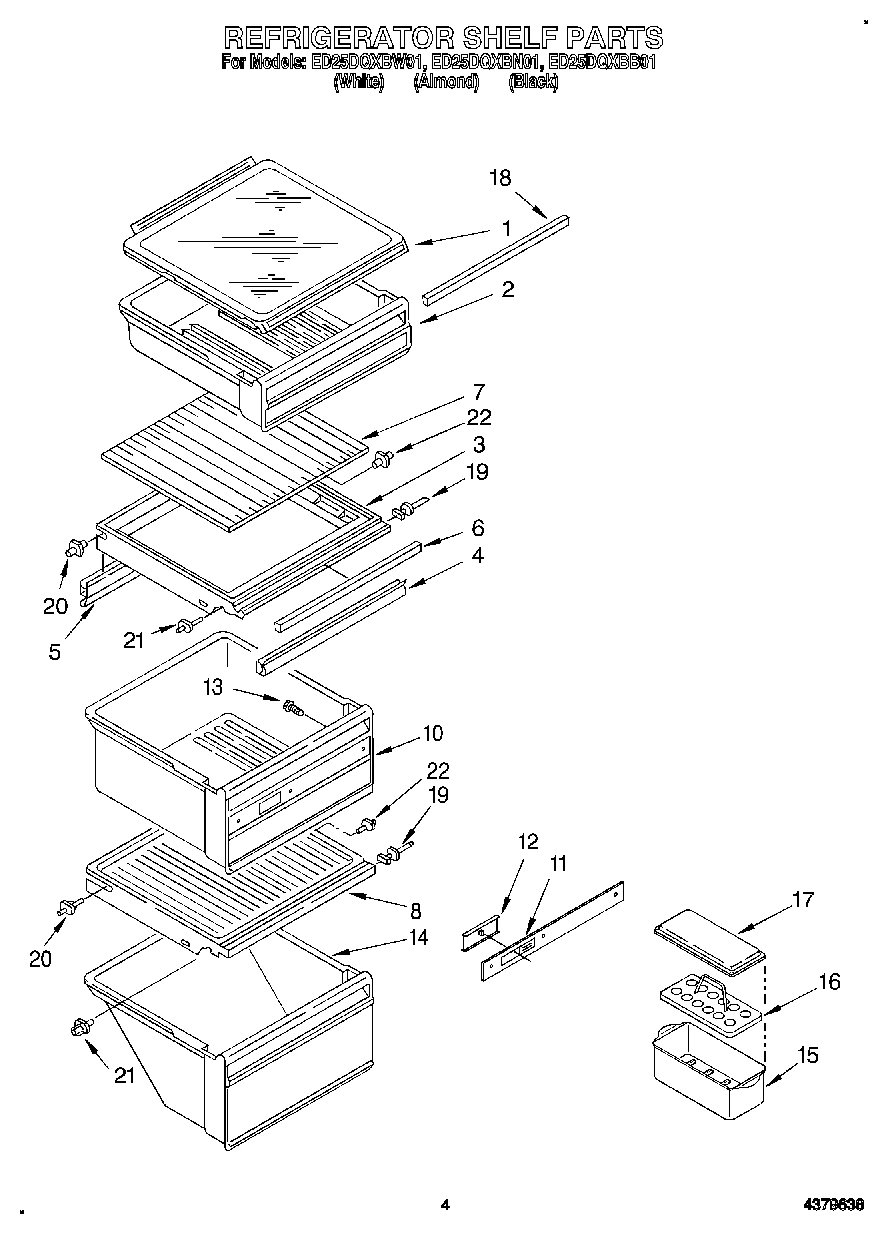

Shelf Bin (2)
Shelf Bin (2) WPL 2162888 Contact Us For Availability
View on Model
5
Air Duct Freezer
Air Duct Freezer WPL 2176072 Contact Us For Availability
View on Model
5
Insert, Handle (Black)
Insert, Handle (Black) WPL 1118435 Contact Us For Availability
View on Model
5
Insert, Handle (White)
Insert, Handle (White) WPL 1119361 Contact Us For Availability
View on Model
5
Insert, Handle (Almond)
Insert, Handle (Almond) WPL 1119363 Contact Us For Availability
View on Model
5
Clip, Wire
Clip, Wire WPL 2155658 Contact Us For Availability
View on Model
6
Trivet, Shelf (2)
Trivet, Shelf (2) WPL 2171166 Contact Us For Availability
View on Model
6
Tube, Water (See Item No.22)
Tube, Water (See Item No.22) WPL ARI145710A Contact Us For Availability
View on Model
7
Handle, Center (Black)
Handle, Center (Black) WPL 1118417 Contact Us For Availability
View on Model
7
Handle, Center (White)
Handle, Center (White) WPL 1124713 Contact Us For Availability
View on Model
7
Handle, Center (Almond)
Handle, Center (Almond) WPL 943079 Contact Us For Availability
View on Model
7
Shelf Bin (2)
Shelf Bin (2) WPL 2162891 Contact Us For Availability
View on Model
7
Frame, Slides (Black)
Frame, Slides (Black) WPL 2152716 Contact Us For Availability
View on Model
7
Frame, Slides (White)
Frame, Slides (White) WPL 2152717 Contact Us For Availability
View on Model
7
Frame, Slides (Almond)
Frame, Slides (Almond) WPL 2152718 Contact Us For Availability
View on Model
7
Clip, Tube (3)
Clip, Tube (3) WPL 934011 Contact Us For Availability
View on Model
7
Wiring Assembly, Ice Dispenser
Wiring Assembly, Ice Dispenser WPL 2169490 Contact Us For Availability
View on Model
8
End Cap, Center Handle
End Cap, Center Handle WPL 1119359 Contact Us For Availability
View on Model
8
Slide, Cube/Crush Switch (Black)
Slide, Cube/Crush Switch (Black) WPL 2152719 Contact Us For Availability
View on Model
8
Slide, Cube/Crush Switch (White)
Slide, Cube/Crush Switch (White) WPL 2152720 Contact Us For Availability
View on Model
8
Slide, Cube/Crush Switch (Almond)
Slide, Cube/Crush Switch (Almond) WPL 2152721 Contact Us For Availability
View on Model
9
Shim
Shim WPL 935075 Contact Us For Availability
View on Model
9
Trim, Door Shelf
Trim, Door Shelf WPL 2170920 Contact Us For Availability
View on Model
10
Pan, Crisper
Pan, Crisper WPL 2162860 Contact Us For Availability
View on Model
10
Insert, Handle (Black)
Insert, Handle (Black) WPL 1118437 Contact Us For Availability
View on Model
10
Insert, Handle (White)
Insert, Handle (White) WPL 1119373 Contact Us For Availability
View on Model
10
Insert, Handle (Almond)
Insert, Handle (Almond) WPL 1119375 Contact Us For Availability
View on Model
10
Door Mechanism Assembly (Includes Item 9)
Door Mechanism Assembly (Includes Item 9) WPL 2157650 Contact Us For Availability
View on Model
11
Front, Crisper Pan
Front, Crisper Pan WPL 2162854 Contact Us For Availability
View on Model
11
Chute, Ice
Chute, Ice WPL 2156146 Contact Us For Availability
View on Model
12
Slide, Humidity Control
Slide, Humidity Control WPL 2162849 Contact Us For Availability
View on Model
12
Harness, Fan Evaporator, And Heater, Bi-Metal
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161327 Contact Us For Availability
View on Model
12
Cover, Motor
Cover, Motor WPL 1115339 Contact Us For Availability
View on Model
13
Track, Shelf (Right Side (3))
Track, Shelf (Right Side (3)) WPL 1114632 Contact Us For Availability
View on Model
13
Track, Shelf (Left Side (3))
Track, Shelf (Left Side (3)) WPL 1114633 Contact Us For Availability
View on Model
13
Screw (3)
Screw (3) WPL 489162 Contact Us For Availability
View on Model
13
Tube, Water Inlet
Tube, Water Inlet WPL 2155247 Contact Us For Availability
View on Model
13
Bracket, Door Stop (Chrome)
Bracket, Door Stop (Chrome) WPL 2155332 Contact Us For Availability
View on Model
13
Bracket, Door Stop (Black)
Bracket, Door Stop (Black) WPL 2155334 Contact Us For Availability
View on Model
13
Grille, Overflow (White)
Grille, Overflow (White) WPL 1126120 Contact Us For Availability
View on Model
13
Grille, Overflow (Almond)
Grille, Overflow (Almond) WPL 1126121 Contact Us For Availability
View on Model
13
Grille, Overflow (Black)
Grille, Overflow (Black) WPL 2152678 Contact Us For Availability
View on Model
14
Track, Shelf (Right Side)
Track, Shelf (Right Side) WPL 1115264 Contact Us For Availability
View on Model
14
Meat Pan
Meat Pan WPL 2162932 Contact Us For Availability
View on Model
14
Clip, Bearing (2)
Clip, Bearing (2) WPL 987917 Contact Us For Availability
View on Model
14
Retainer, Bottle
Retainer, Bottle WPL 2163566 Contact Us For Availability
View on Model
15
Pivot Arm
Pivot Arm WPL 1110559 Contact Us For Availability
View on Model
15
Retainer, Insert (Bottom)
Retainer, Insert (Bottom) WPL 1119360 Contact Us For Availability
View on Model
15
Bearing, Lever (3)
Bearing, Lever (3) WPL 983697 Contact Us For Availability
View on Model
15
Relay (See Overload)
Relay (See Overload) WPL ARI145711A Contact Us For Availability
View on Model
16
Spring, Lever (2)
Spring, Lever (2) WPL 983696 Contact Us For Availability
View on Model
16
Retainer, Insert
Retainer, Insert WPL 1119372 Contact Us For Availability
View on Model
16
Wine Rack
Wine Rack WPL 1124828 Contact Us For Availability
View on Model
16
Stop, Cone
Stop, Cone WPL 1118480 Contact Us For Availability
View on Model
17
Cover
Cover WPL 2164374 Contact Us For Availability
View on Model
17
Cover, Evaporator
Cover, Evaporator WPL 2155612 Contact Us For Availability
View on Model
17
End Cap (2)
End Cap (2) WPL 2156220 Contact Us For Availability
View on Model
17
Shield, Wiring
Shield, Wiring WPL 2147165 Contact Us For Availability
View on Model
17
Capacitor
Capacitor WPL 2169137 Contact Us For Availability
View on Model
17

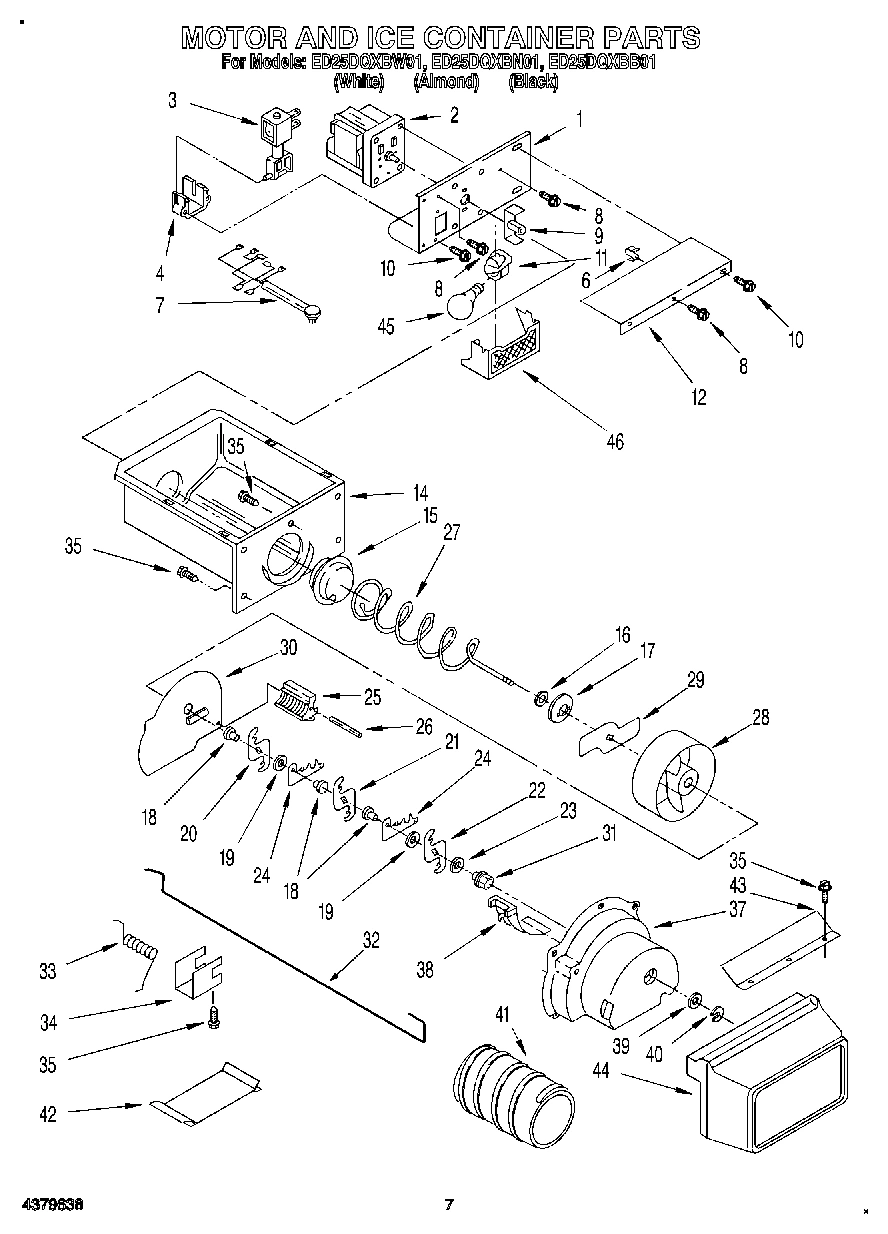

Feeder Cone
Feeder Cone WPL 1119074 Contact Us For Availability
View on Model
18
Trim
Trim WPL 2162989 Contact Us For Availability
View on Model
18
Cover
Cover WPL 628355 Contact Us For Availability
View on Model
18
Screw
Screw WPL 489075 Contact Us For Availability
View on Model
19
Spacer, Switch
Spacer, Switch WPL 625834 Contact Us For Availability
View on Model
19
Screw
Screw WPL 489022 Contact Us For Availability
View on Model
19
Screw Grommet
Screw Grommet WPL 509812 Contact Us For Availability
View on Model
20
Shelf Stud
Shelf Stud WPL 1115290 Contact Us For Availability
View on Model
20
Divider (3)
Divider (3) WPL 2152335 Contact Us For Availability
View on Model
21
Shelf Bin
Shelf Bin WPL 2162889 Contact Us For Availability
View on Model
22
Grille (Black)
Grille (Black) WPL 2155485 Contact Us For Availability
View on Model
22
Evaporator
Evaporator WPL 2164519 Contact Us For Availability
View on Model
22
Trim Kit
Trim Kit WPL 4210344 Contact Us For Availability
View on Model
22
Trimless Black Decor Panel
Trimless Black Decor Panel WPL 4210352 Contact Us For Availability
View on Model
22
Black Handle Insert
Black Handle Insert WPL 4210378 Contact Us For Availability
View on Model
22
Woodgrain Handle Insert
Woodgrain Handle Insert WPL 4210446 Contact Us For Availability
View on Model
23
Clamp
Clamp WPL 2161324 Contact Us For Availability
View on Model
24
Fastener, Push-On
Fastener, Push-On WPL 489285 Contact Us For Availability
View on Model
24
Lever Assembly, Ice Dispenser (White)
Lever Assembly, Ice Dispenser (White) WPL 1124718 Contact Us For Availability
View on Model
24
Lever Assembly, Ice Dispenser (Almond)
Lever Assembly, Ice Dispenser (Almond) WPL 1125972 Contact Us For Availability
View on Model
24
Lever Assembly, Ice Dispenser (Black)
Lever Assembly, Ice Dispenser (Black) WPL 1127421 Contact Us For Availability
View on Model
24
Blade, Fixed (2)
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
View on Model
25
Guide, Ice (White)
Guide, Ice (White) WPL 1124730 Contact Us For Availability
View on Model
25
Guide, Ice (Black)
Guide, Ice (Black) WPL 1119035 Contact Us For Availability
View on Model
25
Guide, Ice (Almond)
Guide, Ice (Almond) WPL 1126026 Contact Us For Availability
View on Model
25
Tray, Evaporator
Tray, Evaporator WPL 1110674 Contact Us For Availability
View on Model
26
Screw
Screw WPL 488892 Contact Us For Availability
View on Model
26
Heat Shield
Heat Shield WPL 2149294 Contact Us For Availability
View on Model
27
Cement Alumilastic)
Cement Alumilastic) WPL 542369 Contact Us For Availability
View on Model
27
Slide, Light Switch (Black)
Slide, Light Switch (Black) WPL 2152724 Contact Us For Availability
View on Model
27
Slide, Light Switch (White)
Slide, Light Switch (White) WPL 2152726 Contact Us For Availability
View on Model
27
Slide, Light Switch (Almond)
Slide, Light Switch (Almond) WPL 2152727 Contact Us For Availability
View on Model
29
Lamp Holder
Lamp Holder WPL 2147131 Contact Us For Availability
View on Model
31
Screw
Screw WPL 488361 Contact Us For Availability
View on Model
31
Unit, Harness
Unit, Harness WPL 2149199 Contact Us For Availability
View on Model
32
Insulator, Control Bracket
Insulator, Control Bracket WPL 2147164 Contact Us For Availability
View on Model
32
Fan, Motor Bracket
Fan, Motor Bracket WPL 548695 Contact Us For Availability
View on Model
33
Heater, Defrost
Heater, Defrost WPL 2161323 Contact Us For Availability
View on Model
33

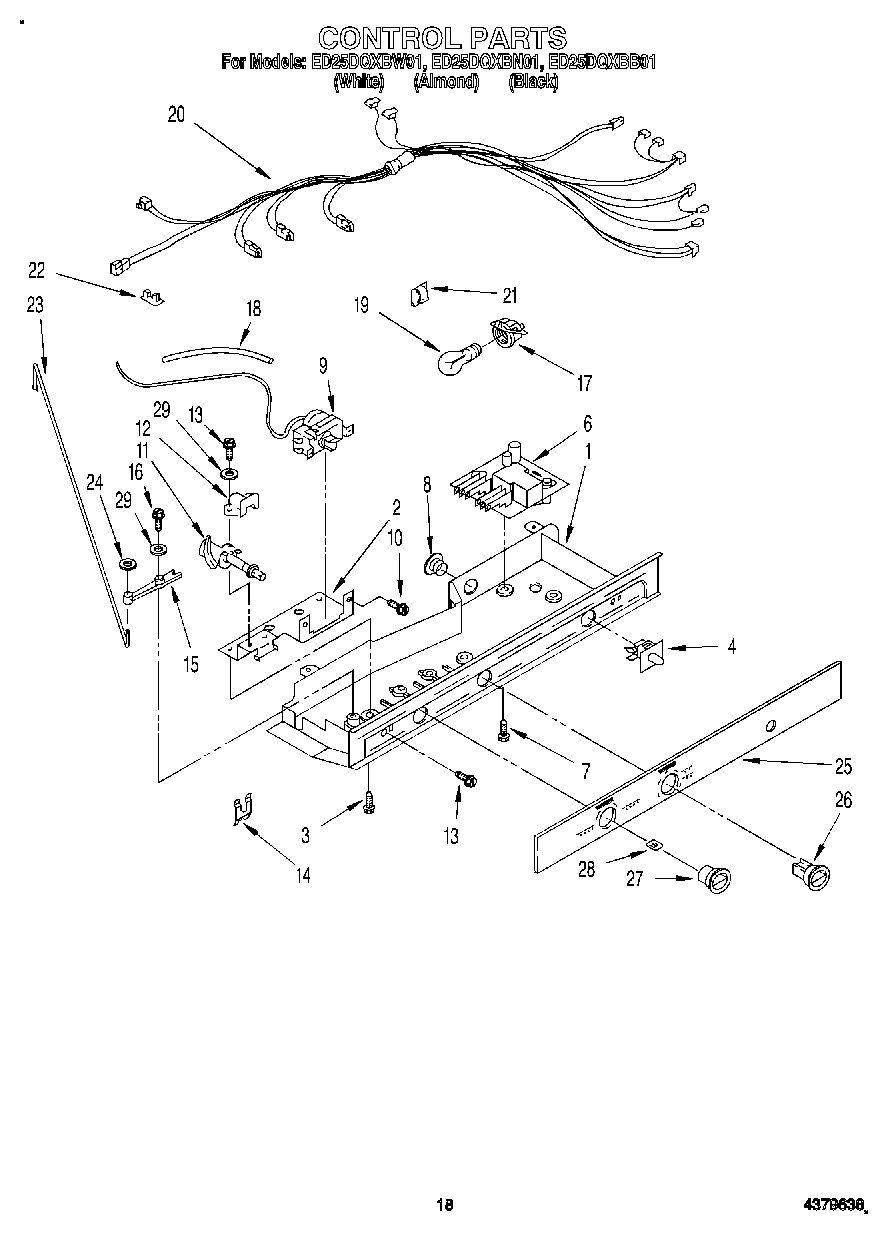

Bracket, Control
Bracket, Control WPL 2147163 Contact Us For Availability
View on Model
34
Light Lens
Light Lens WPL 2169504 Contact Us For Availability
View on Model
34
Clip
Clip WPL 2161330 Contact Us For Availability
View on Model
36
Screw,
Screw, WPL 489155 Contact Us For Availability
View on Model
37
Screw (2)
Screw (2) WPL 488280 Contact Us For Availability
View on Model
38
Lever Assembly, Water Disp
Lever Assembly, Water Disp WPL 2159196 Contact Us For Availability
View on Model
38
WPL  2159197
WPL 2159197 WPL 2159197 Contact Us For Availability
View on Model
38
WPL  2159198
WPL 2159198 WPL 2159198 Contact Us For Availability
View on Model
39
WPL  2150319
WPL 2150319 WPL 2150319 Contact Us For Availability
View on Model
39
WPL  2162923
WPL 2162923 WPL 2162923 Contact Us For Availability
View on Model
39
WPL  2162924
WPL 2162924 WPL 2162924 Contact Us For Availability
View on Model
40
Nut, Compression
Nut, Compression WPL 1129179 Contact Us For Availability
View on Model
40
WPL  2150311
WPL 2150311 WPL 2150311 Contact Us For Availability
View on Model
40
WPL  2162926
WPL 2162926 WPL 2162926 Contact Us For Availability
View on Model
40
WPL  2162928
WPL 2162928 WPL 2162928 Contact Us For Availability
View on Model
41
WPL  2147172
WPL 2147172 WPL 2147172 Contact Us For Availability
View on Model
42
WPL  987049
WPL 987049 WPL 987049 Contact Us For Availability
View on Model
42
Clip, Heat Shield
Clip, Heat Shield WPL 2155547 Contact Us For Availability
View on Model
42
Housing Filler
Housing Filler WPL 2152700 Contact Us For Availability
View on Model
43
Insert
Insert WPL 1129177 Contact Us For Availability
View on Model
43
Unit Cover, Bottom
Unit Cover, Bottom WPL 2161363 Contact Us For Availability
View on Model
43
Deflector, Ice Container
Deflector, Ice Container WPL 1119043 Contact Us For Availability
View on Model
44
Front Cover, Ice Container
Front Cover, Ice Container WPL 2162949 Contact Us For Availability
View on Model
46
Light Lens, Dispenser
Light Lens, Dispenser WPL 983359 Contact Us For Availability
View on Model
49
Hinge Cover (Black)
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
View on Model
49
Screw
Screw WPL 488624 Contact Us For Availability
View on Model
50
Guard, Fan
Guard, Fan WPL 1110663 Contact Us For Availability
View on Model
54
Wire Connector
Wire Connector WPL 227991 Contact Us For Availability
View on Model
59
Spring-Tube
Spring-Tube WPL 983659 Contact Us For Availability
View on Model
63
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
63
VALVE, ACCESS (1/2``)
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
View on Model
100
WPL  876029
WPL 876029 WPL 876029 Contact Us For Availability
View on Model
100
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
100
Leveler, Enamel (13 Oz. Spray Can)
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
View on Model
100
CEMENT, ALUMILASTIC (1 1/4 OZ.)
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
View on Model
100
Enamel, Black (1
Enamel, Black (1 WPL 799340 Contact Us For Availability
View on Model
100
WPL  799833
WPL 799833 WPL 799833 Contact Us For Availability
View on Model
100
WPL  978883
WPL 978883 WPL 978883 Contact Us For Availability
View on Model
