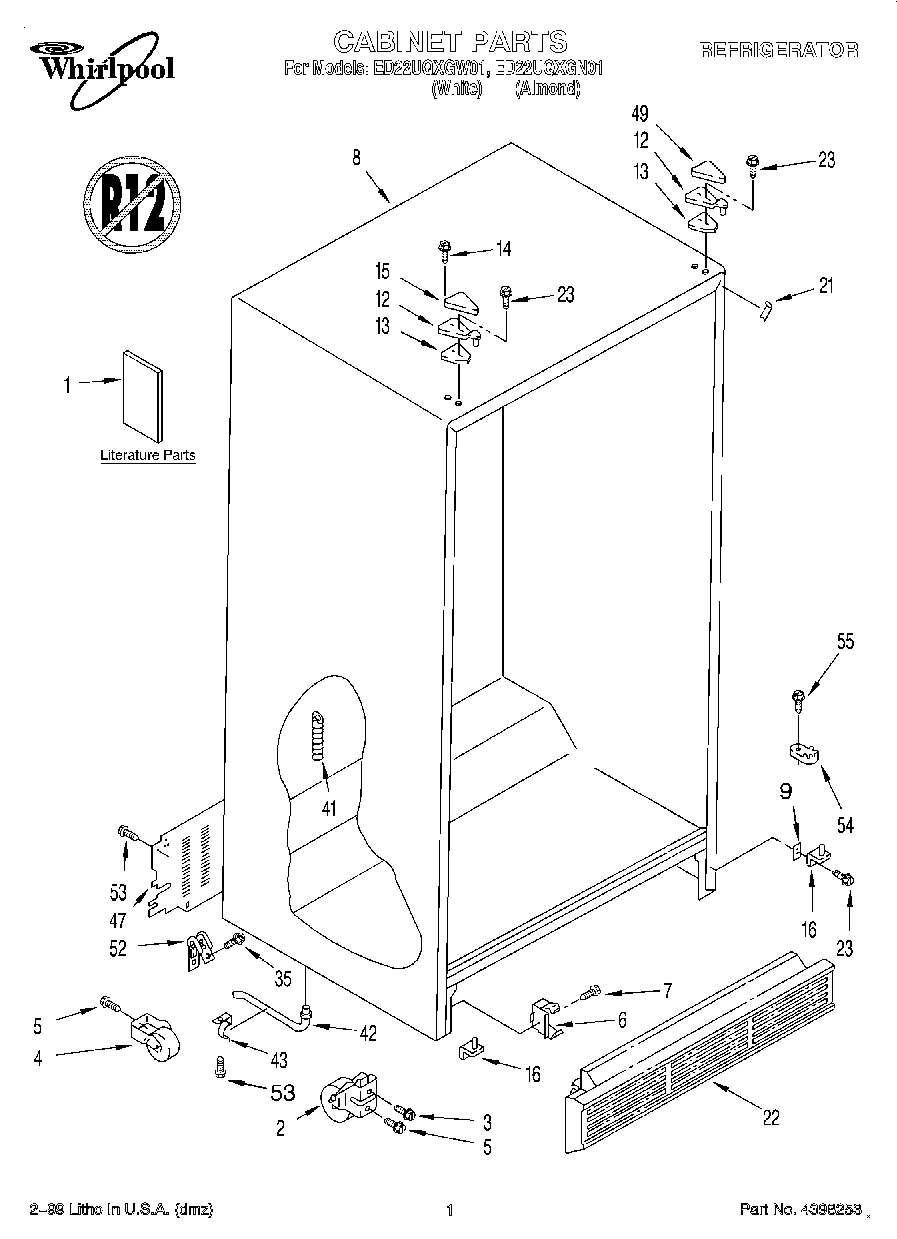

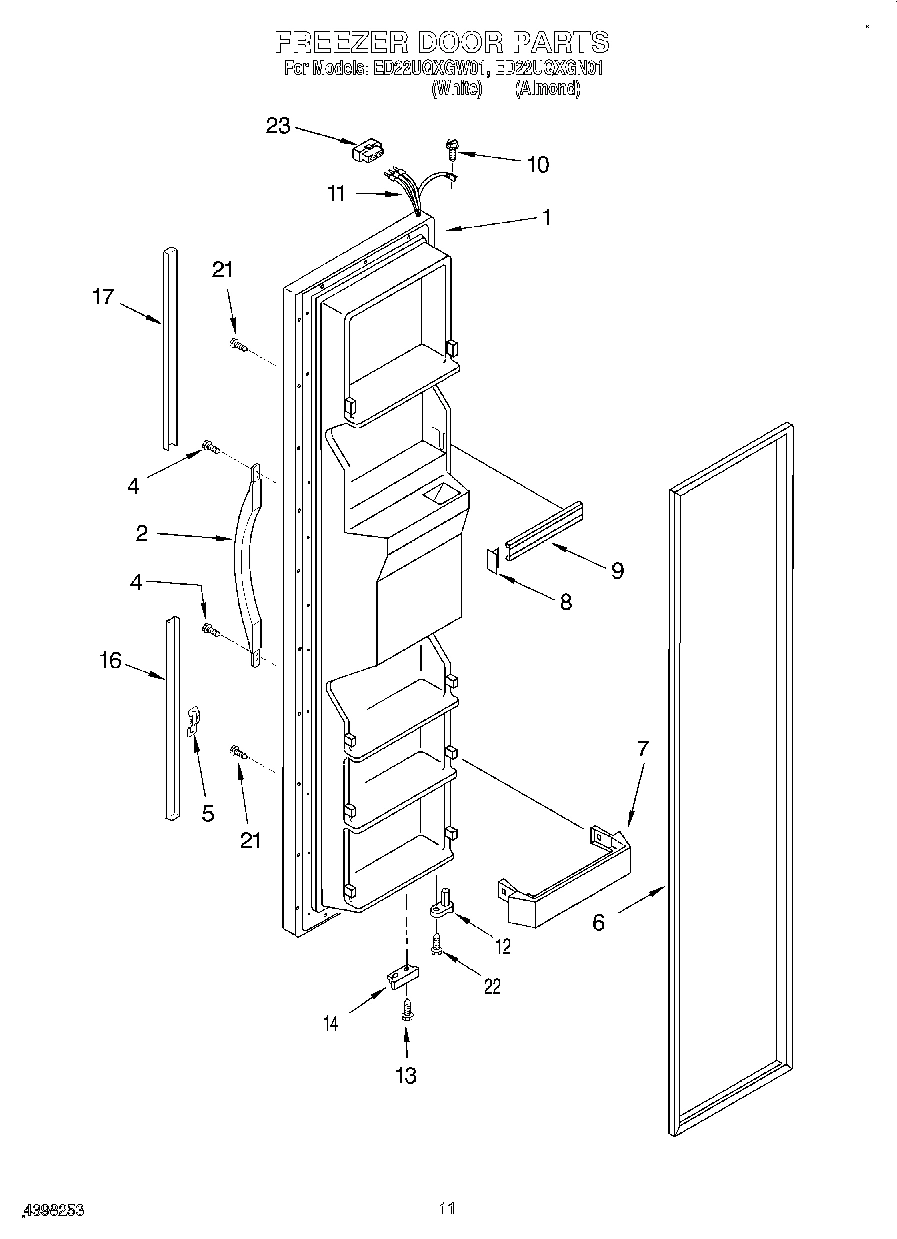

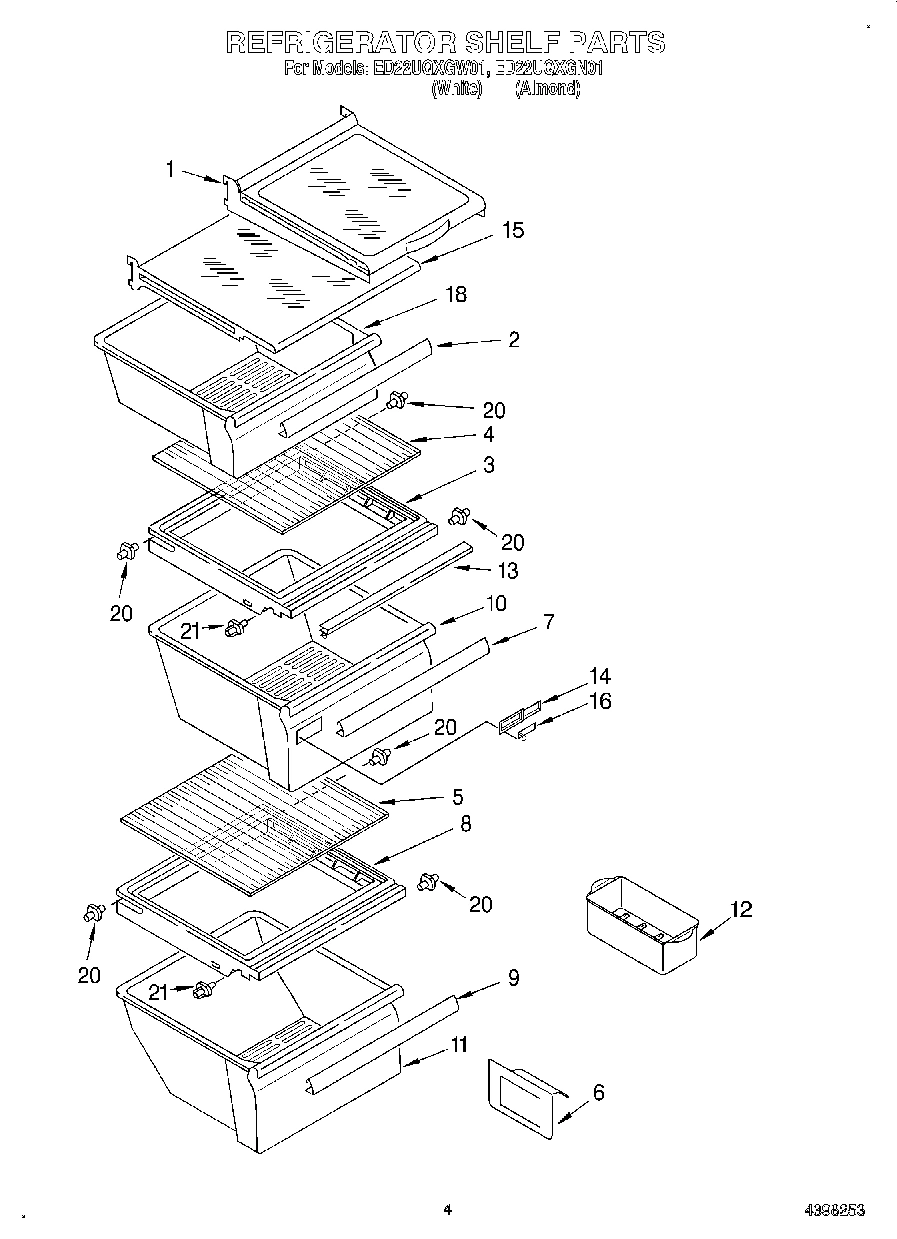

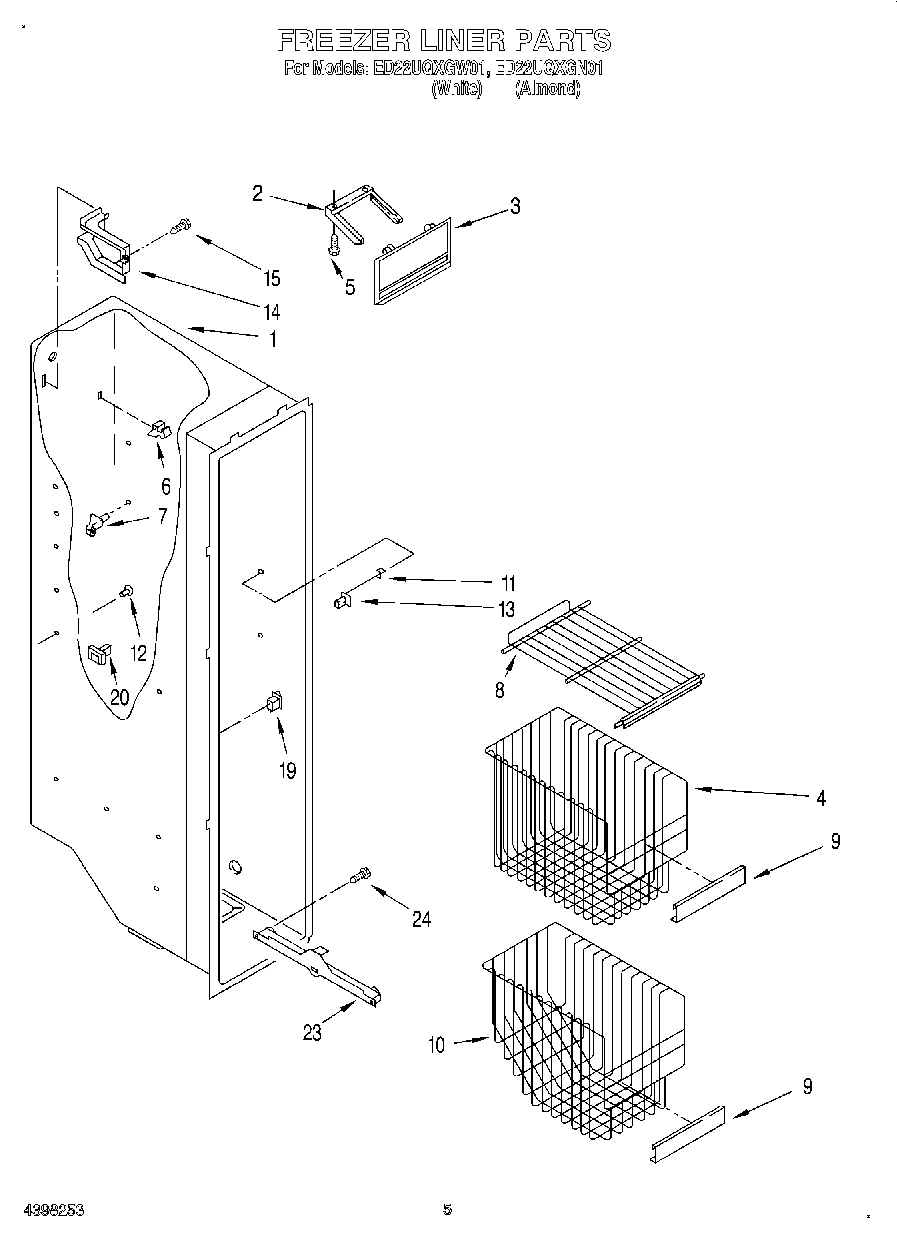

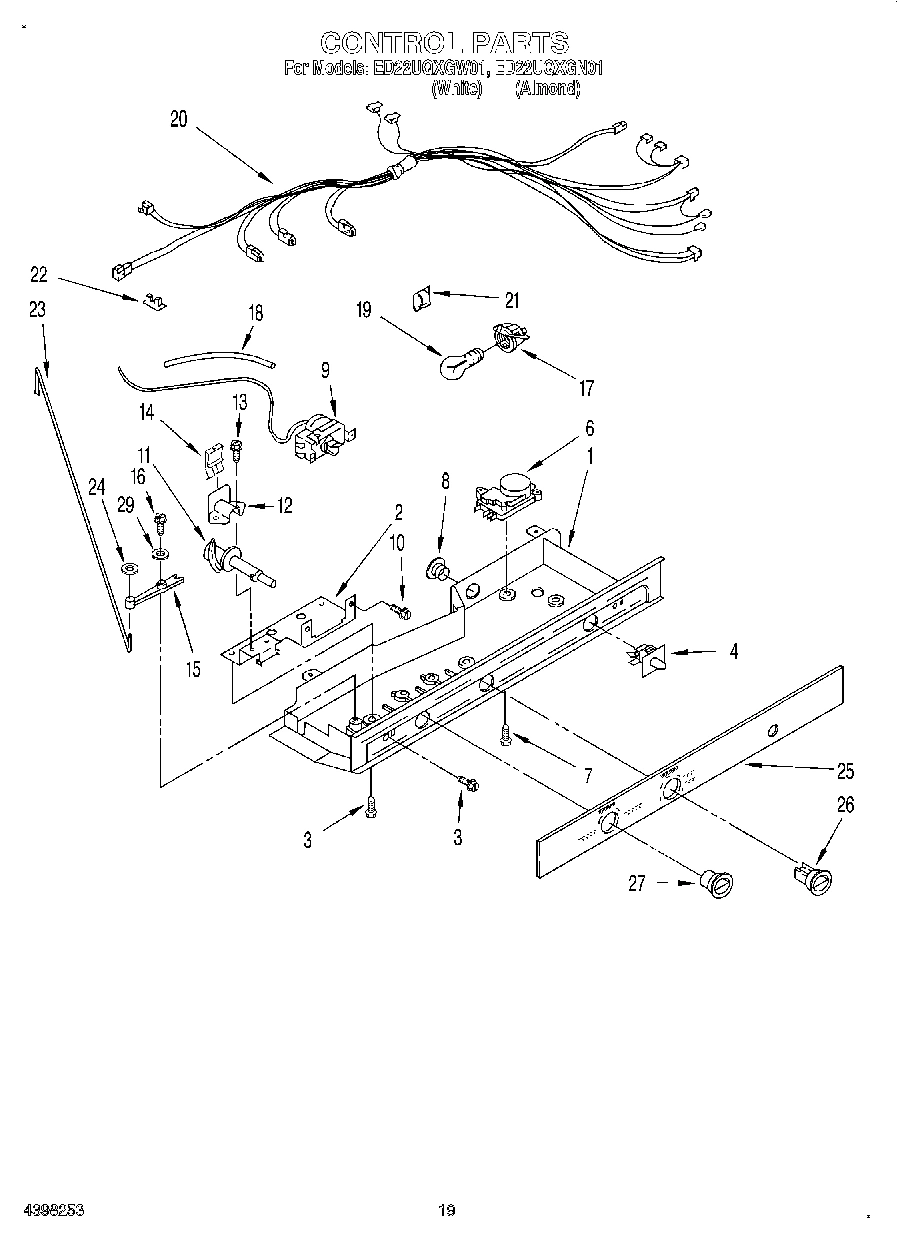

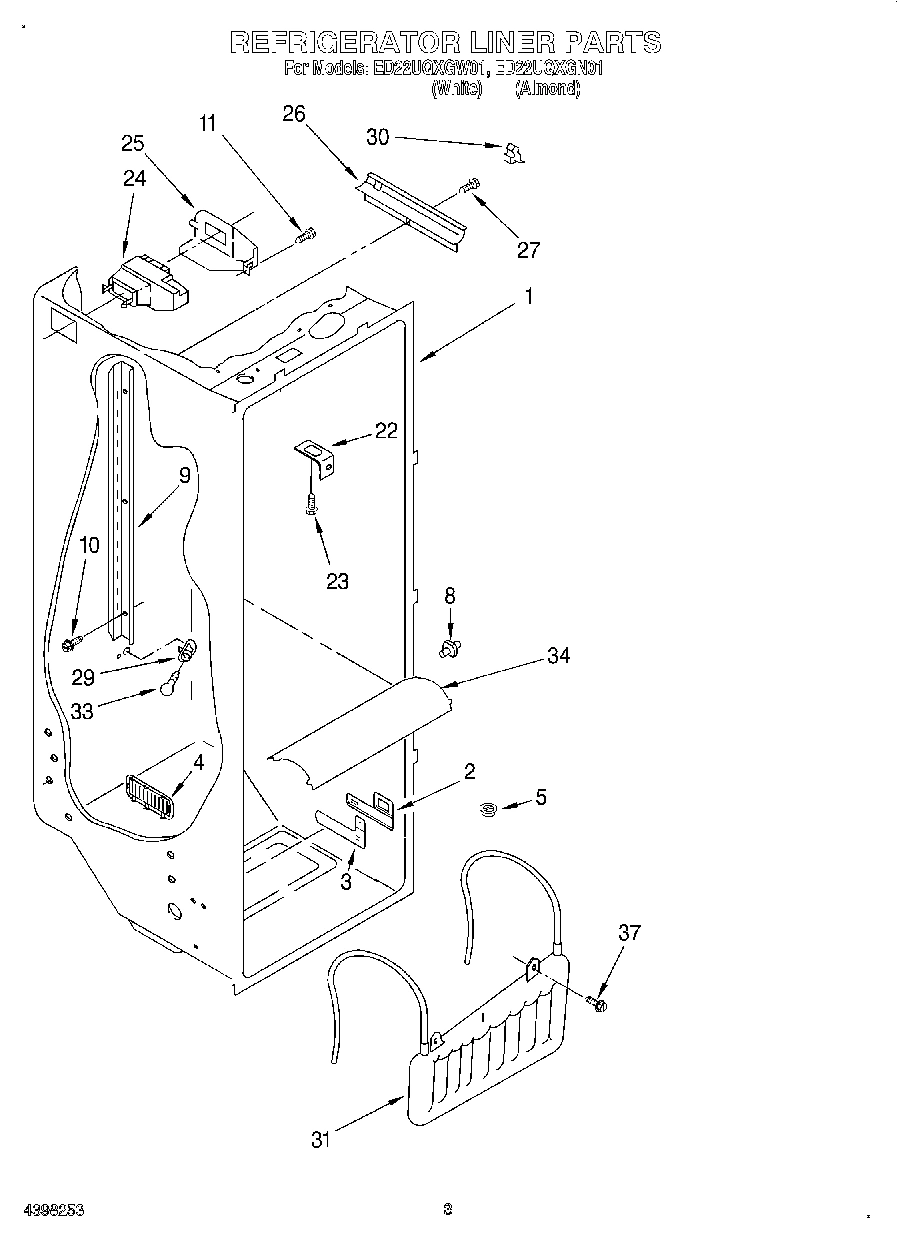

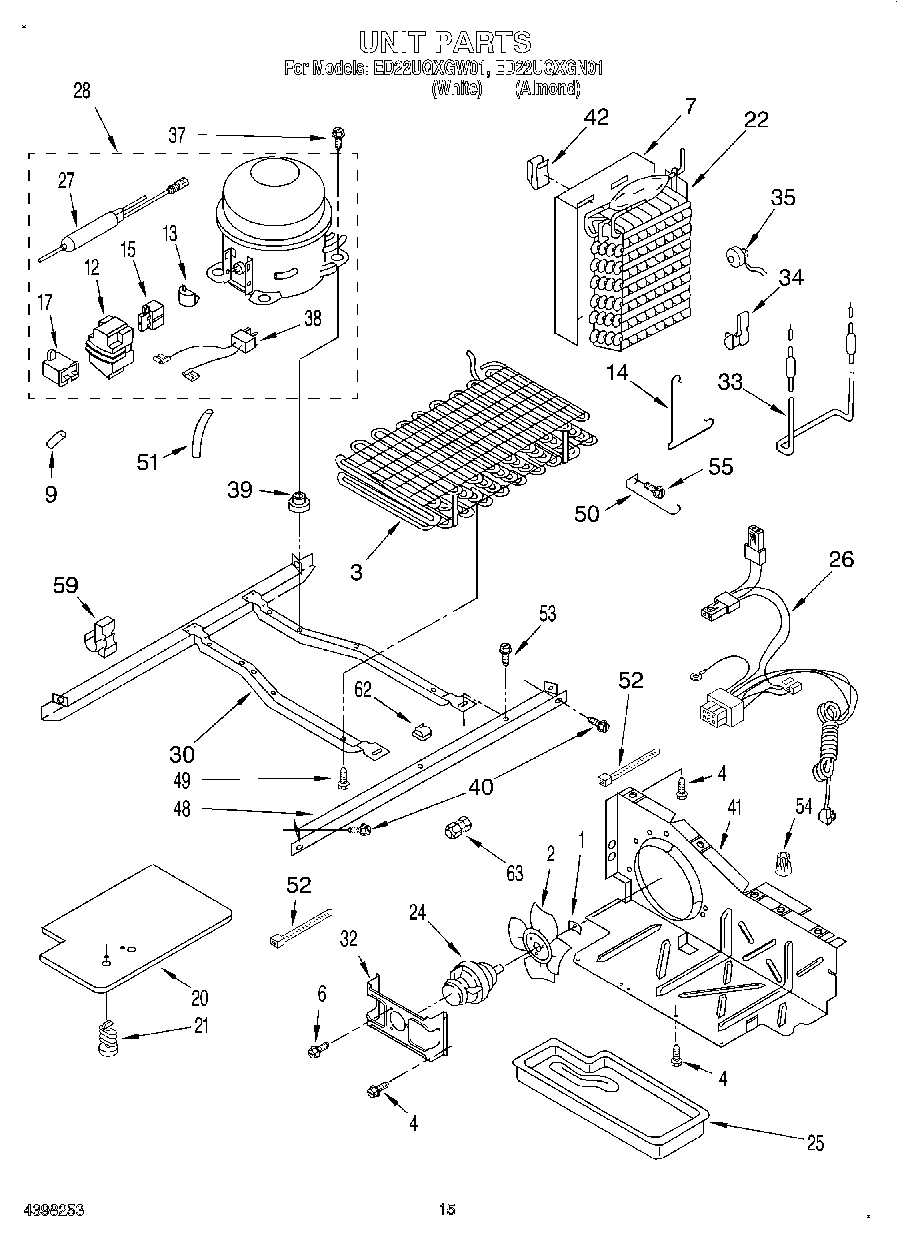

Model Whirlpool ED22UQXGN01 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

Liner (Not A Serviceable Part) WPL ARI27191A7 Contact Us For Availability

1

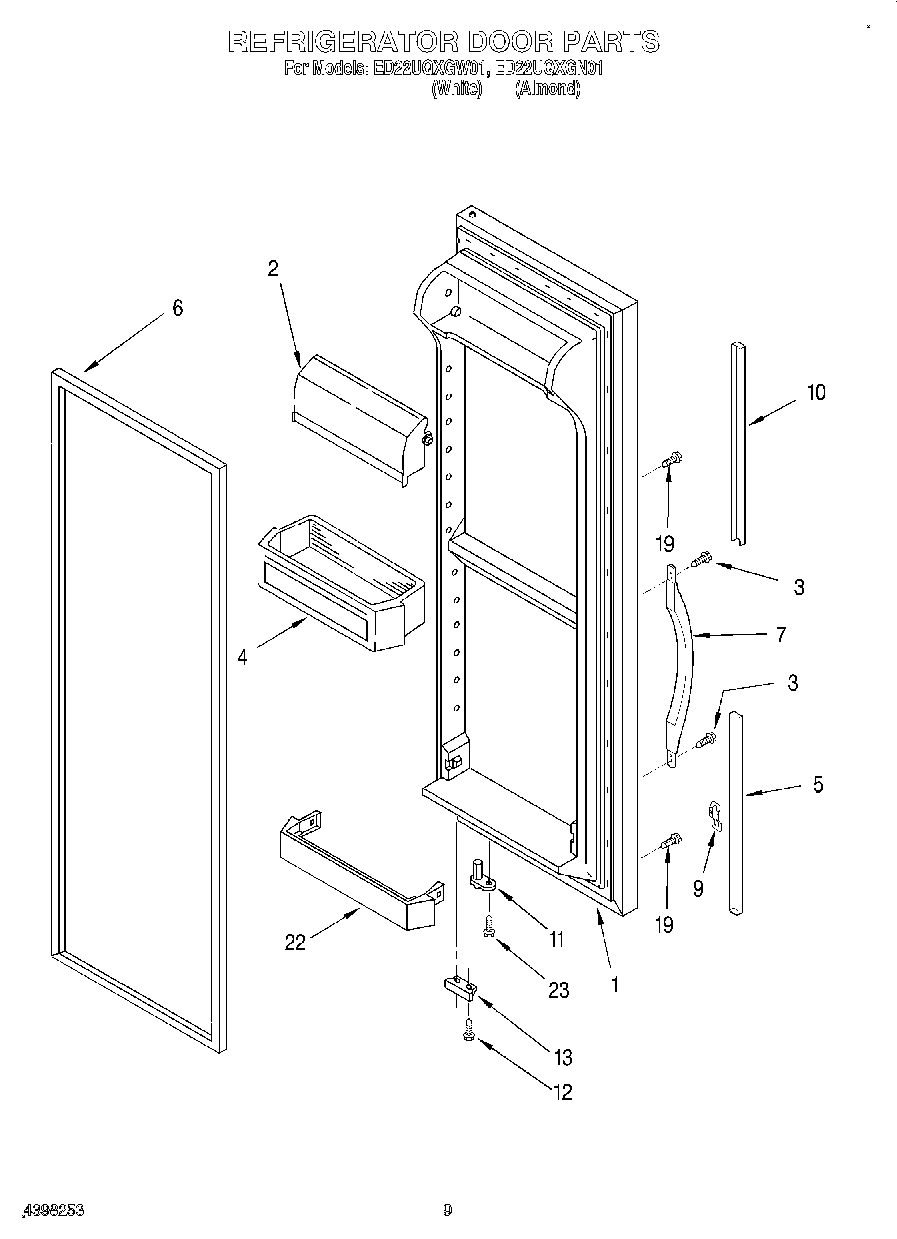

Refrigerator Door (Includes No.6) (Almond) WPL 2194275N Contact Us For Availability

1

Refrigerator Door (Includes No.6) (White) WPL 2194275W Contact Us For Availability

1

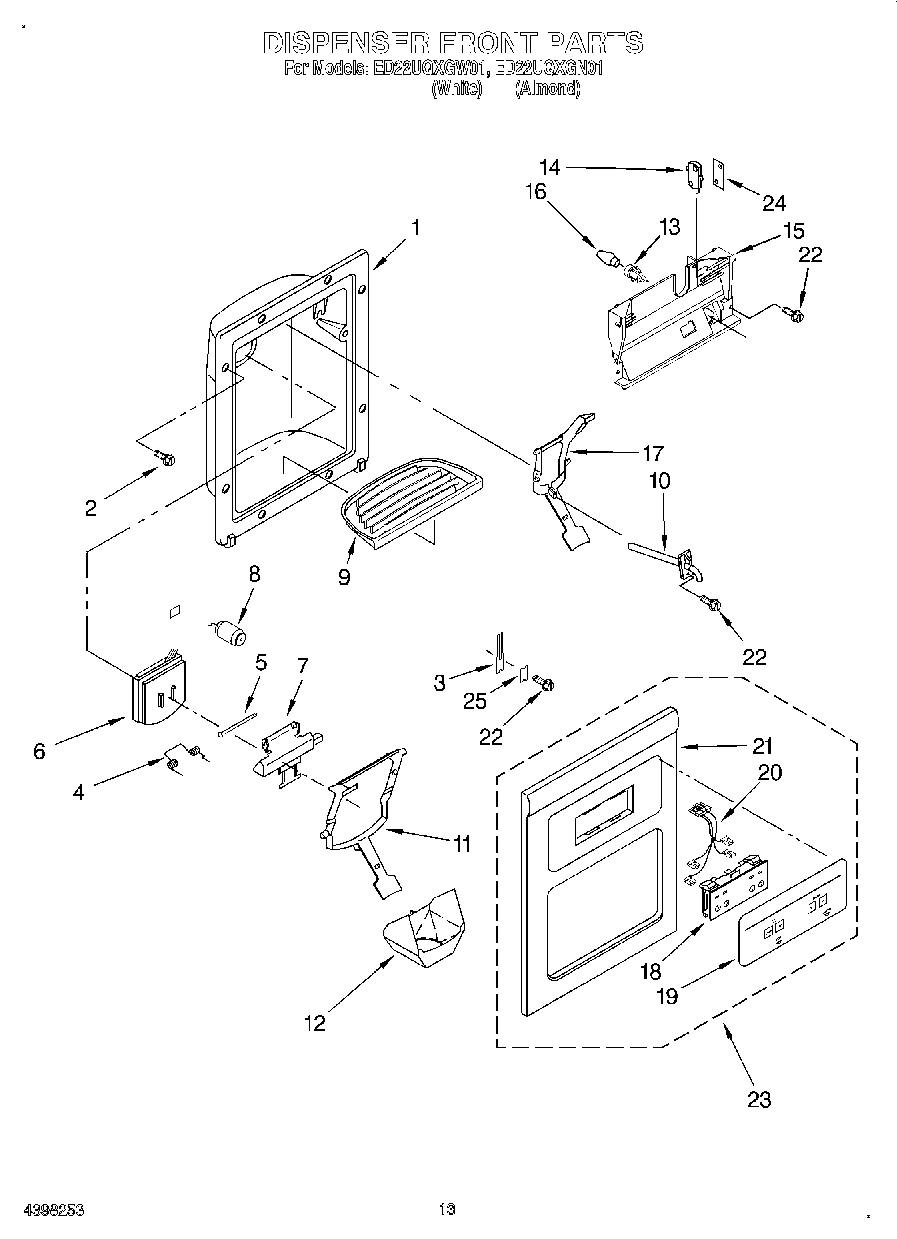

Housing, Dispenser (Not a Serviceable Part) WPL ARI27192A1 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $234.92

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Fan, Blade WPL 1108179 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Slide, Ice Door WPL 1115380 Contact Us For Availability

3

2171712 Whirlpool Refrigerator Ice Door Backorder WPL 2171712 $47.55

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $172.77

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Basket, Tall WPL 2181761 Contact Us For Availability

4

Shelf Bin (3) WPL 2194917 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

5

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

5

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

Extension, Bottom (Almond) WPL 2194970N Contact Us For Availability

5

Extension, Bottom (White) WPL 2194970W Contact Us For Availability

6

2159072 Whirlpool Refrigerator FIP Gasket In Stock WPL 2159072 $134.99

6

2159073 Whirlpool Refrigerator Door Gasket In Stock WPL 2159073 $134.99

6

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

Diffuser, Air Duct WPL 2149544 Contact Us For Availability

6

Door, Ice WPL 2180205 Contact Us For Availability

7

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.77

7

Handle, Center (Almond) WPL 2186649N Contact Us For Availability

7

Door Mechanism Assembly WPL 2180208 Contact Us For Availability

8

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2174249K Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174249K $129.49

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

8

Delay Mechanism WPL 2180223 Contact Us For Availability

9

2195904K Whirlpool Refrigerator Basket Trim Backorder WPL 2195904K $60.23

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $21.08

9

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.66

9

Grille, Overflow (White) WPL 2183787W Contact Us For Availability

9

Grille, Overflow (Almond) WPL 2183787N Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $133.64

Basket, Slope WPL 2181762 Contact Us For Availability

Extension, Top (Almond) WPL 2194972N Contact Us For Availability

Extension, Top (White) WPL 2194972W Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

support stud (8) WPL 946355 Contact Us For Availability

Lever, Ice Dispenser (Almond) WPL 2195089N Contact Us For Availability

Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $70.35

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Grommet (8) WPL 2176134 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2186800 Contact Us For Availability

13

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

13

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

13

Stud-Front (3) R.S. WPL 946356 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2196089 Whirlpool Refrigerator Container In Stock WPL WP2196089 $134.99

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Bracket, Door Stop WPL 2195950 Contact Us For Availability

Clip, Defrost Heater WPL 2161324 Contact Us For Availability

Cover, Wiring WPL 2155572 Contact Us For Availability

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $15.42

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

16

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

16

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

16

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $54.59

17

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

17

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

18

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

18

WP2180279 Whirlpool Refrigerator Switch Backorder WPL WP2180279 $169.83

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $17.77

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

Plaque, Front Cover (White) WPL 2180355 Contact Us For Availability

Plaque, Front Cover (Almond) WPL 2180356 Contact Us For Availability

Unit Cover, Bottom WPL 2182057 Contact Us For Availability

Control Box Harness WPL 2186802 Contact Us For Availability

Stud-Rear (3) R.S. WPL 1106982 Contact Us For Availability

Wire Assembly WPL 2196198 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Front Cover, Housing (Not Available, Order No WPL ARI27193A3 Contact Us For Availability

WP2177962K Whirlpool Refrigerator Door Trim In Stock WPL WP2177962K $64.51

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

CLIP, WIRING WPL 1115375 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Connecting Rod WPL 1123960 Contact Us For Availability

Slide, Freezer Bin (Left Side (2)) WPL 2181759 Contact Us For Availability

Slide, Freezer Bin (Right Side (2)) WPL 2181760 Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2194569N Contact Us For Availability

Front Cover Assembly (Includes Items 18, 19, WPL 2194569W Contact Us For Availability

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

Escutcheon, Control Box WPL 2194977 Contact Us For Availability

26

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

26

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $18.73

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

27

Knob, Air Control WPL 2197871 Contact Us For Availability

28

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPW10312301 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312301 $270.67

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Light Lens WPL 2203266 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

38

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

40

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

44

Front Cover, Ice Container WPL 2171709 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $130.99
