Model Whirlpool DG18CM WASHER – Common Parts & Diagrams
02 - FRONT VIEW (SERIES 03)

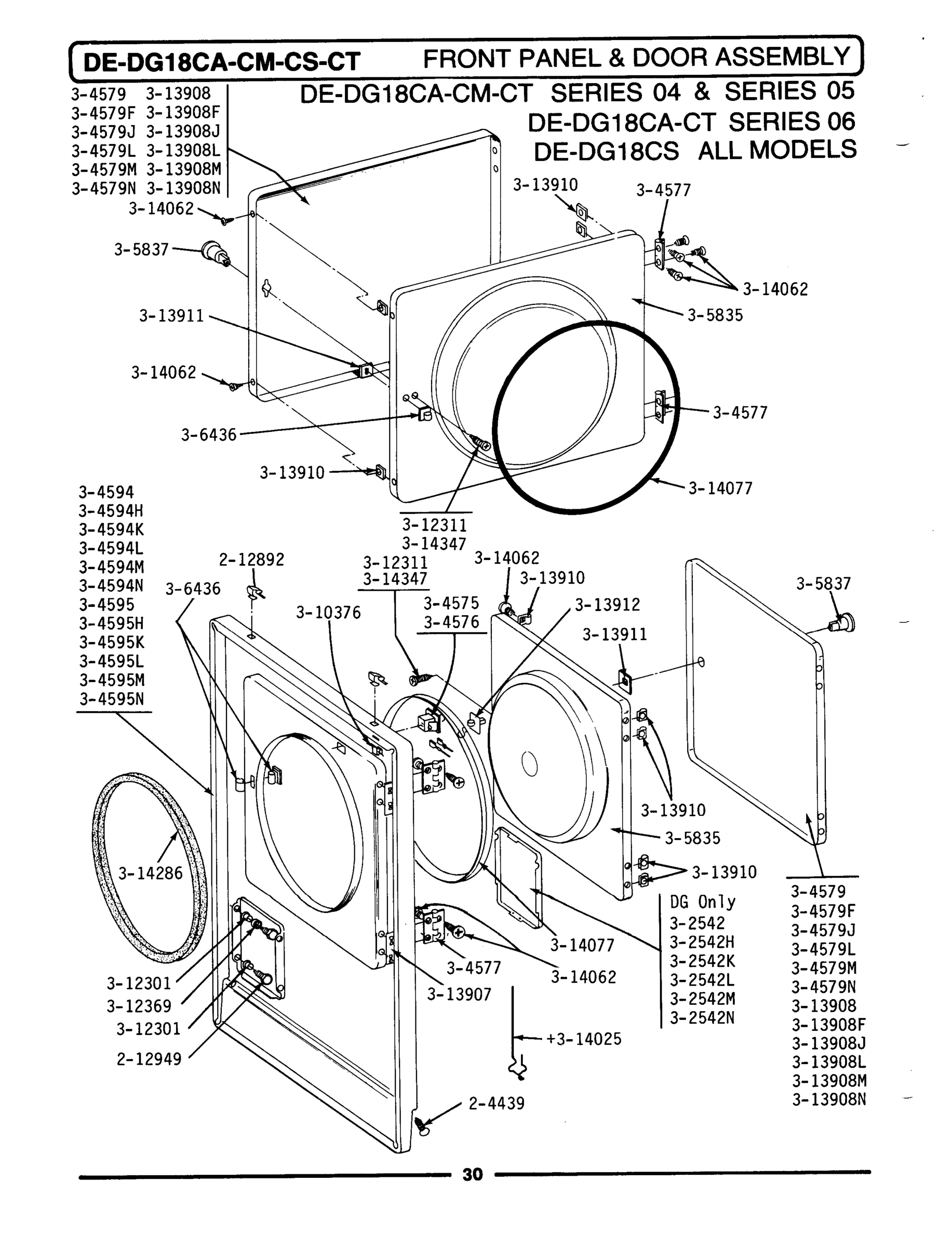

10 - FRONT PANEL & DOOR ASSEMBLY

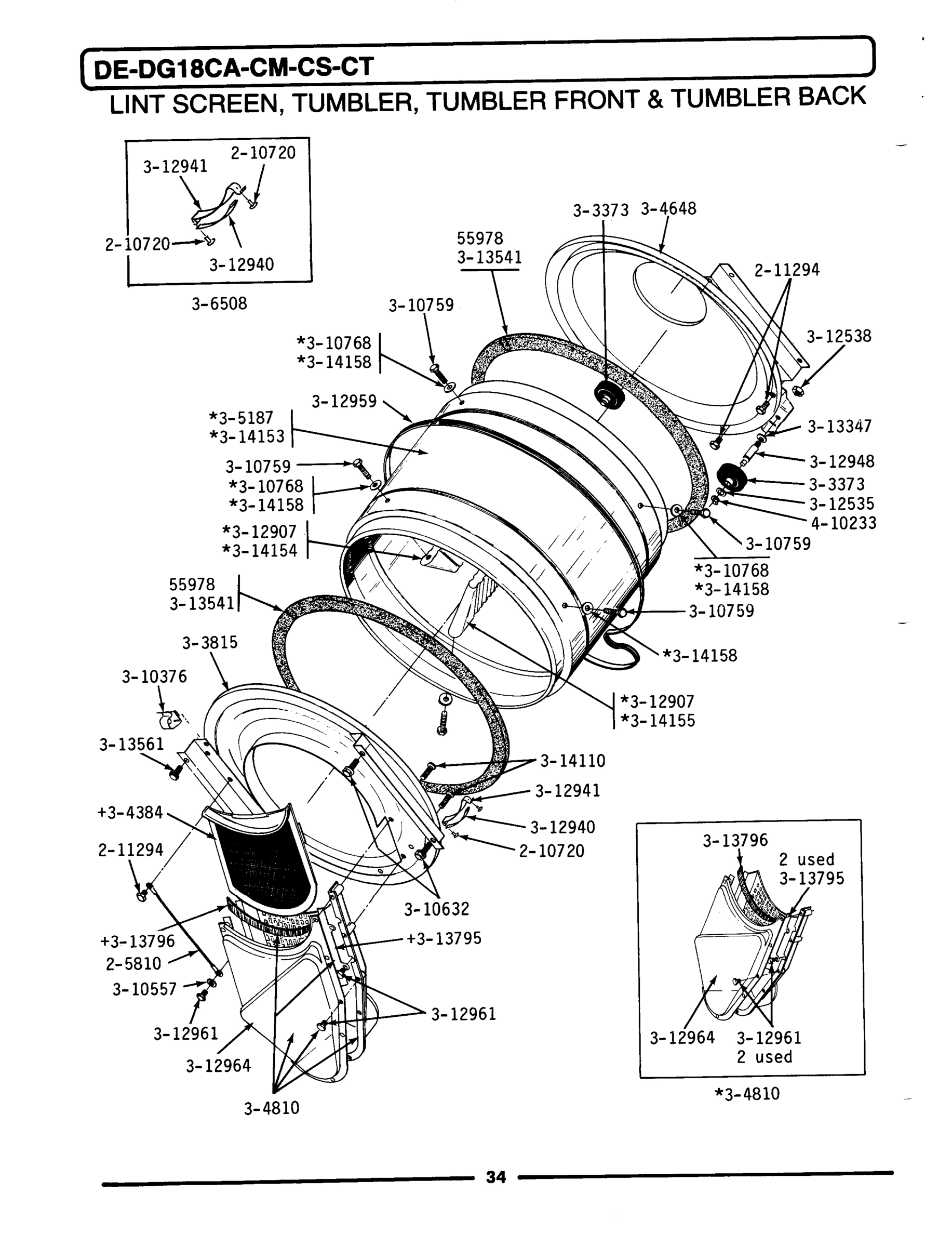

12 - LINT SCREEN, TUMBLER (FRONT & BACK)
03 - REAR VIEW

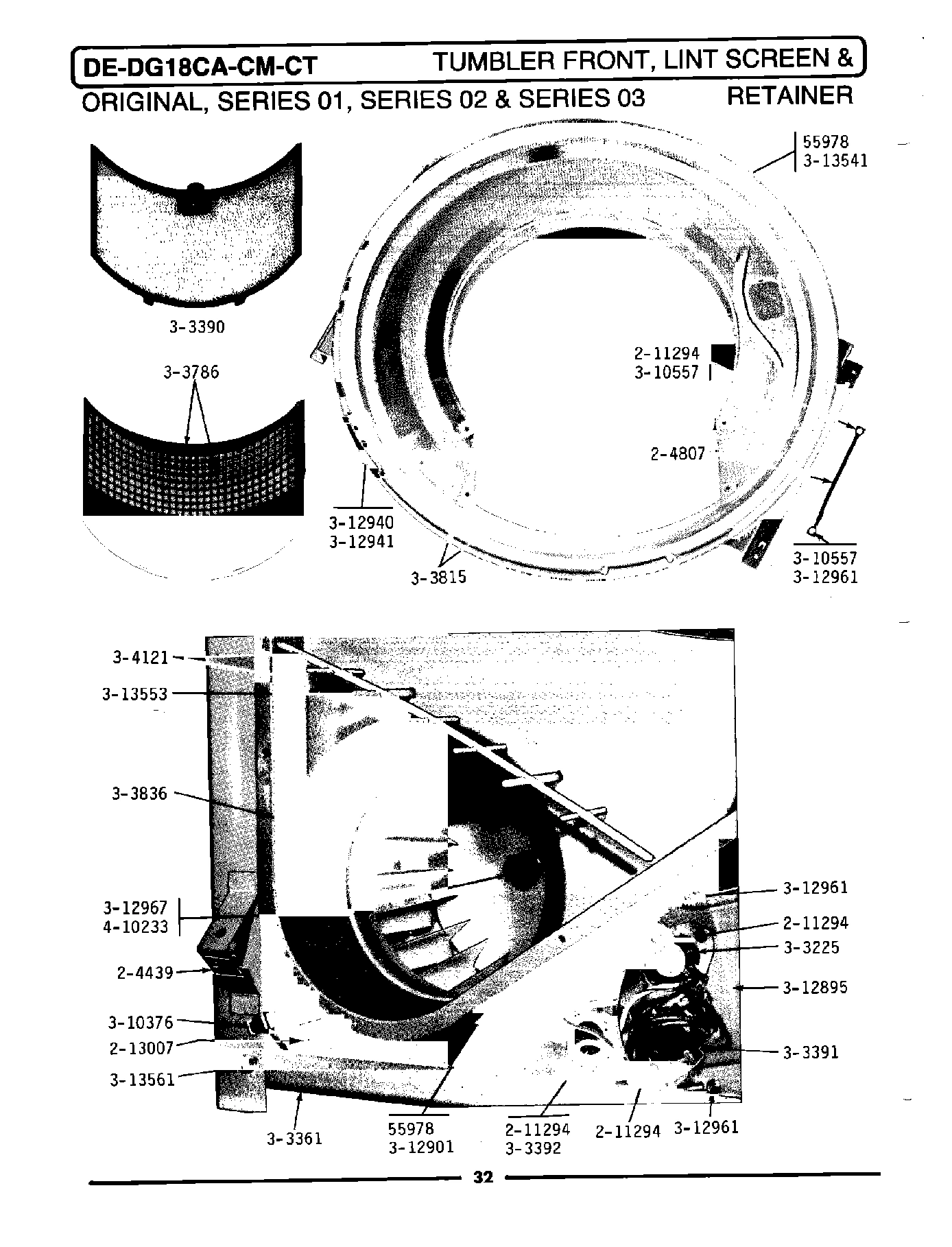

11 - TUMBLER FRONT, LINT SCREEN & RETAINER

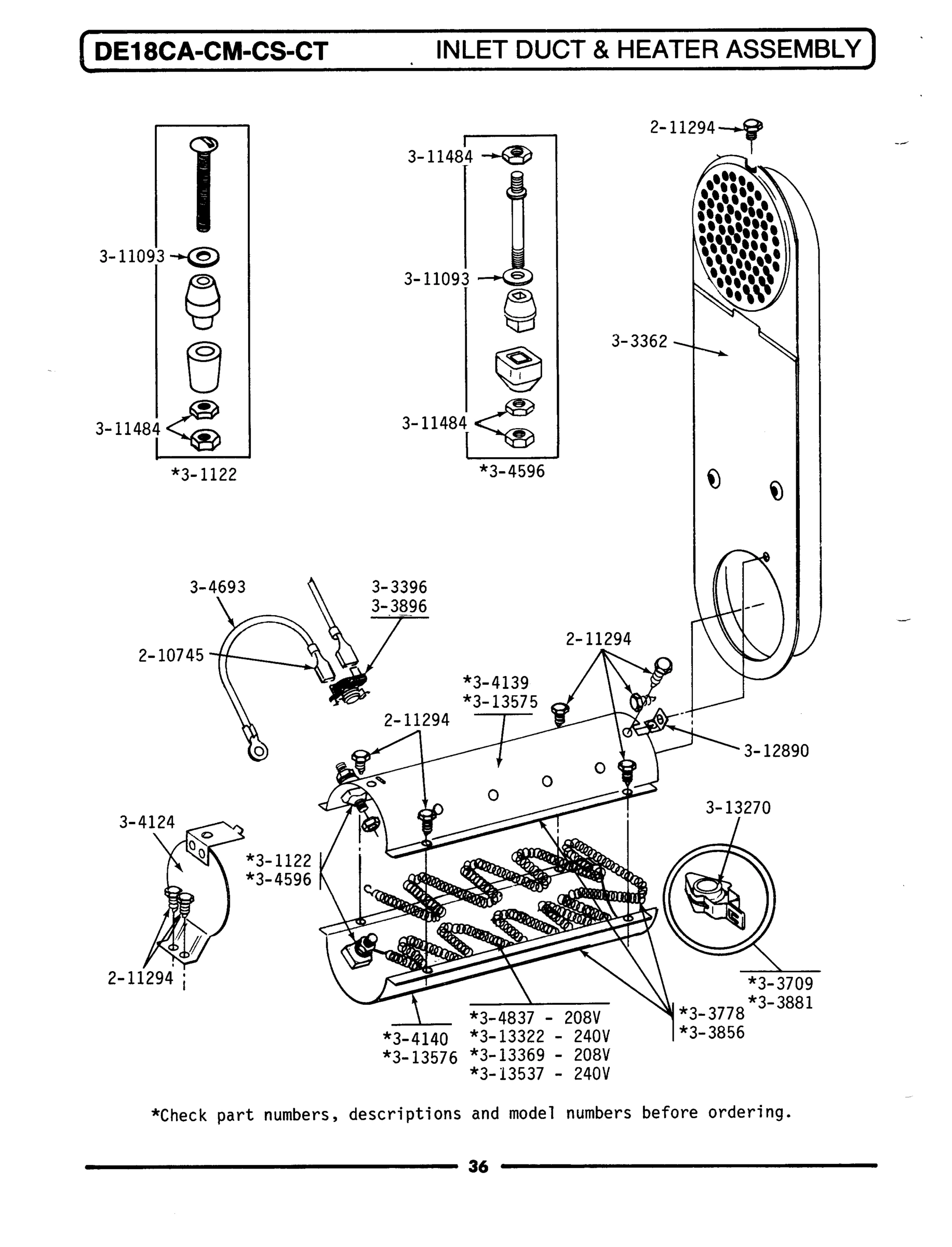

13 - INLET DUCT & HEATER ASSEMBLY

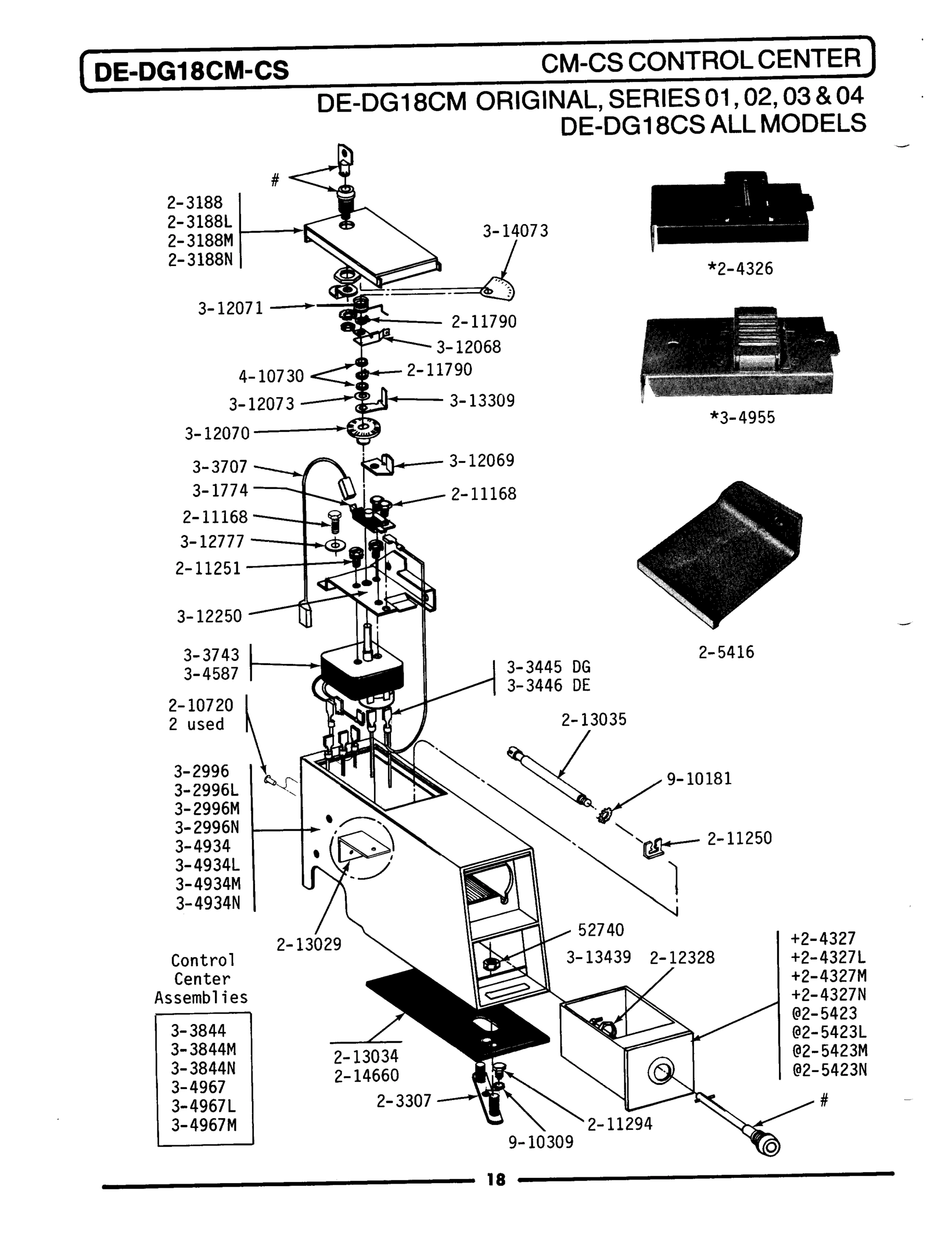

06 - CM CONTROL CENTER

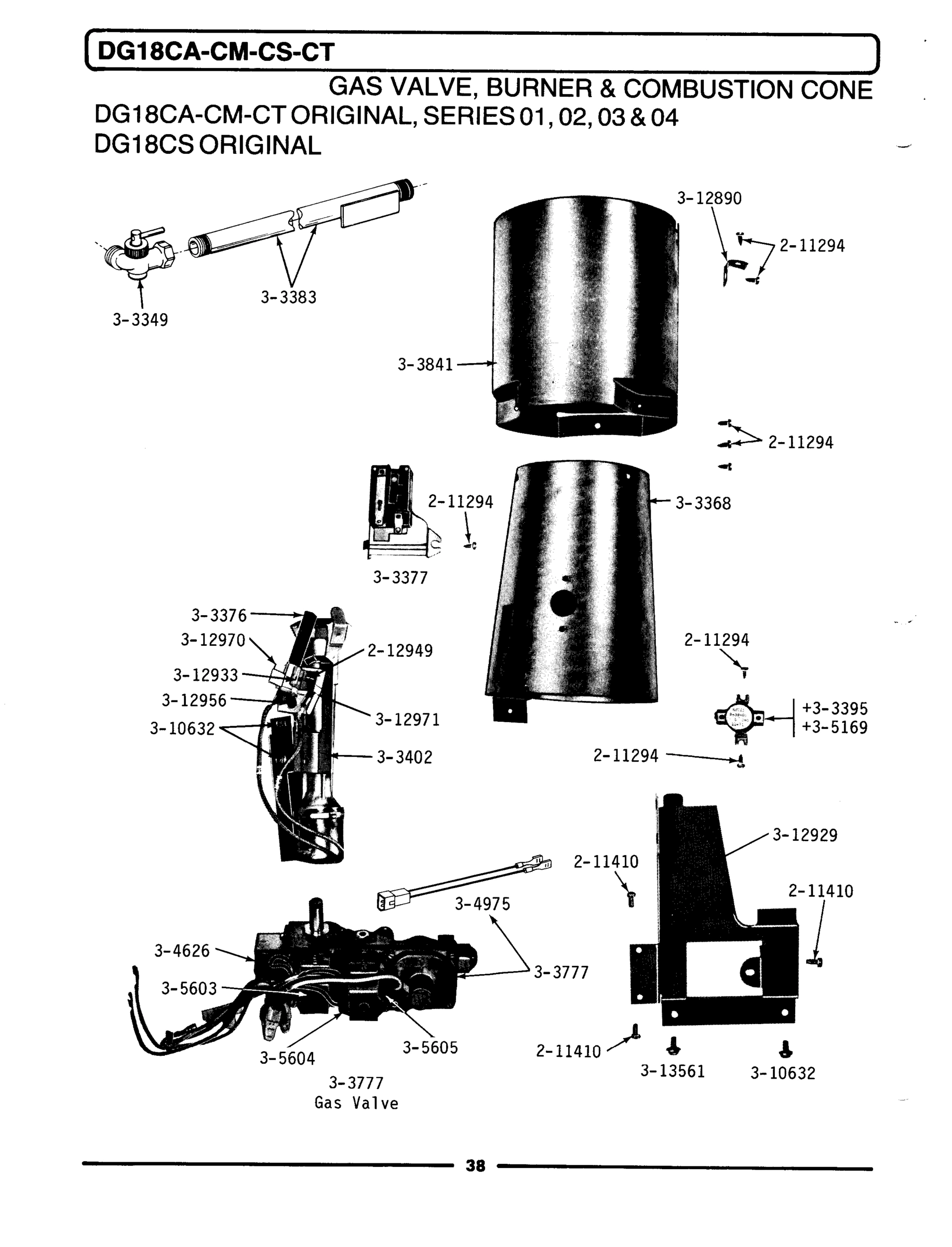

14 - GAS VALVE, BURNER & COMBUSTION CONE

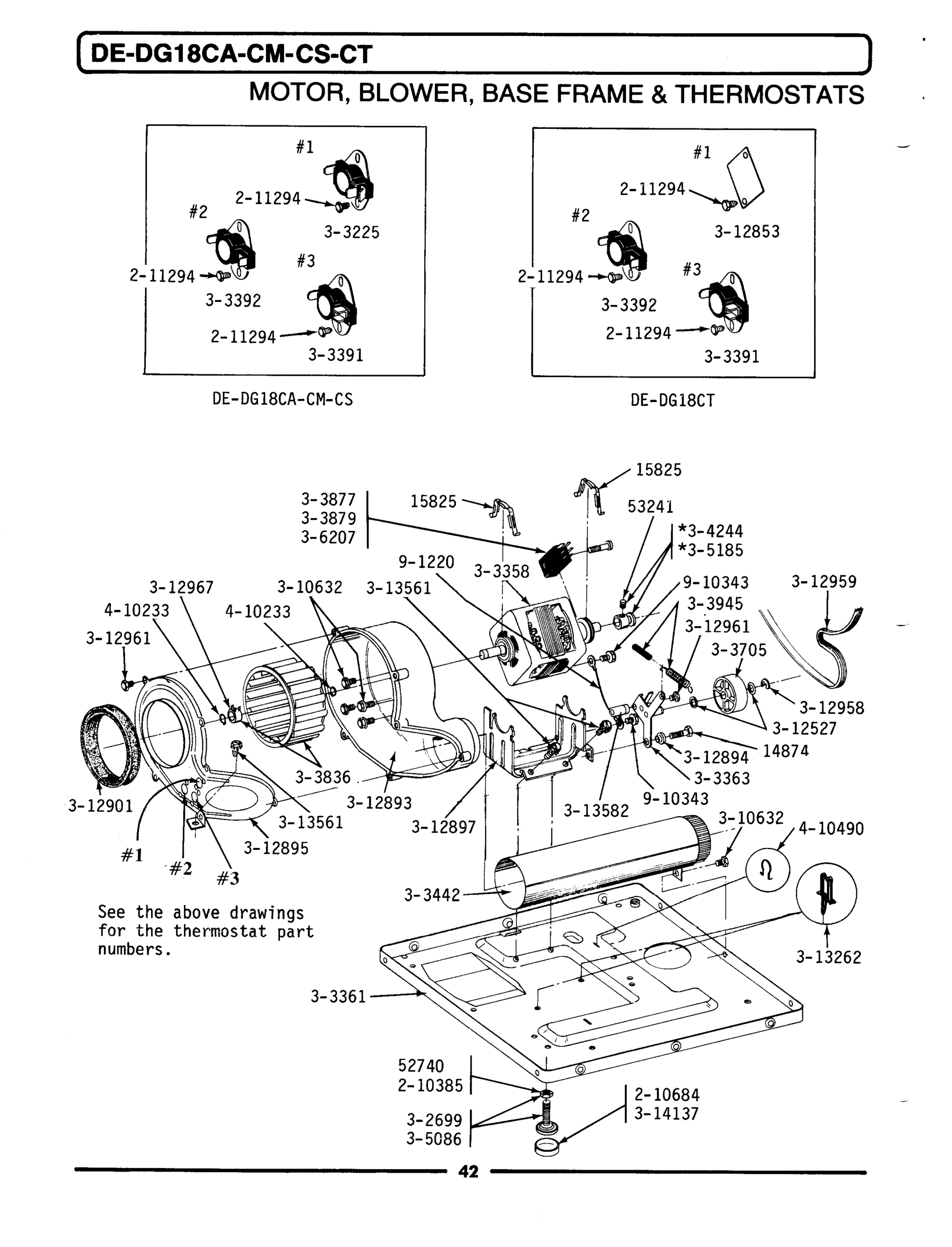

16 - MOTOR, BLOWER, BASE FRAME & THERMOSTATS

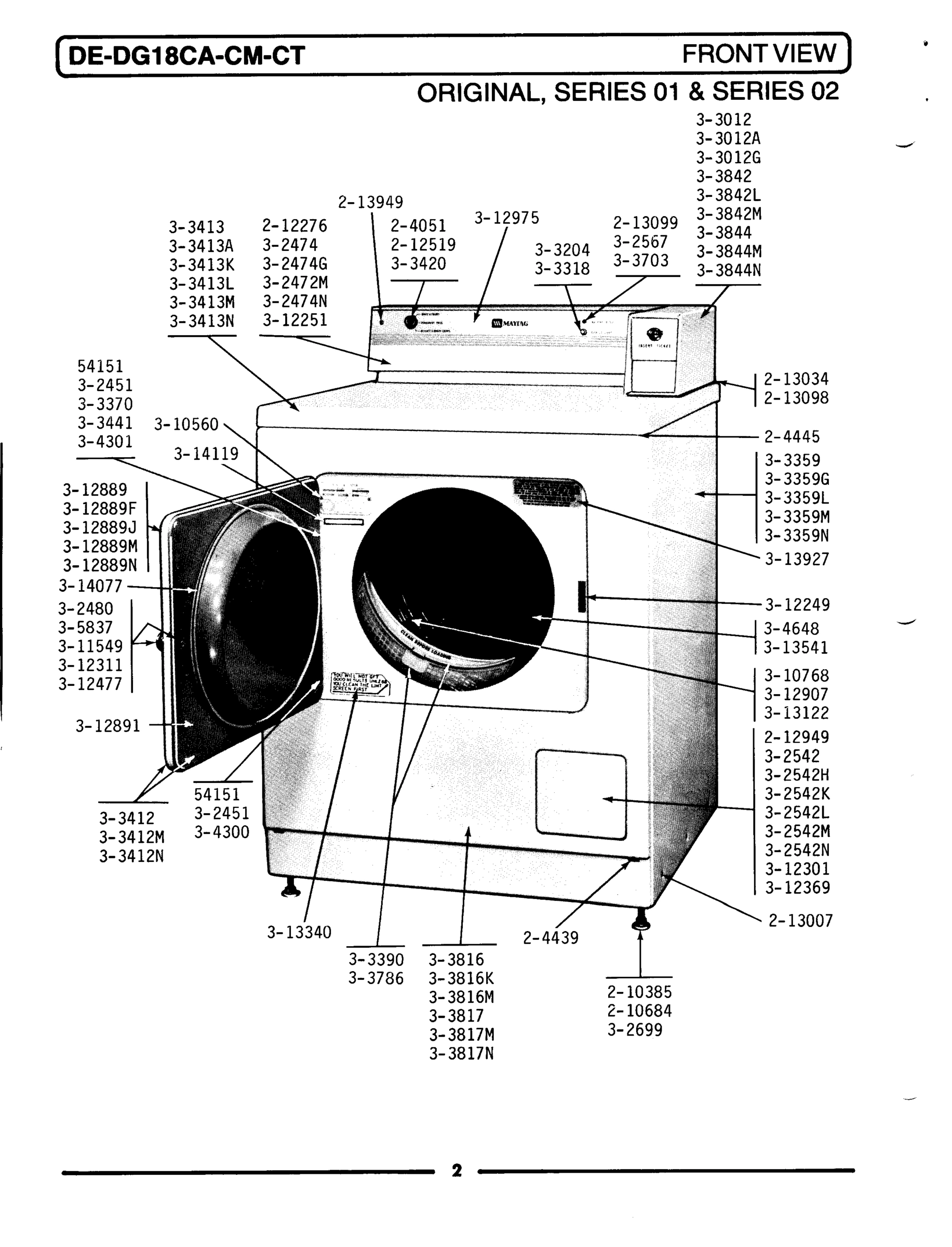

01 - FRONT VIEW
04 - CONTROL PANEL-REAR VIEW

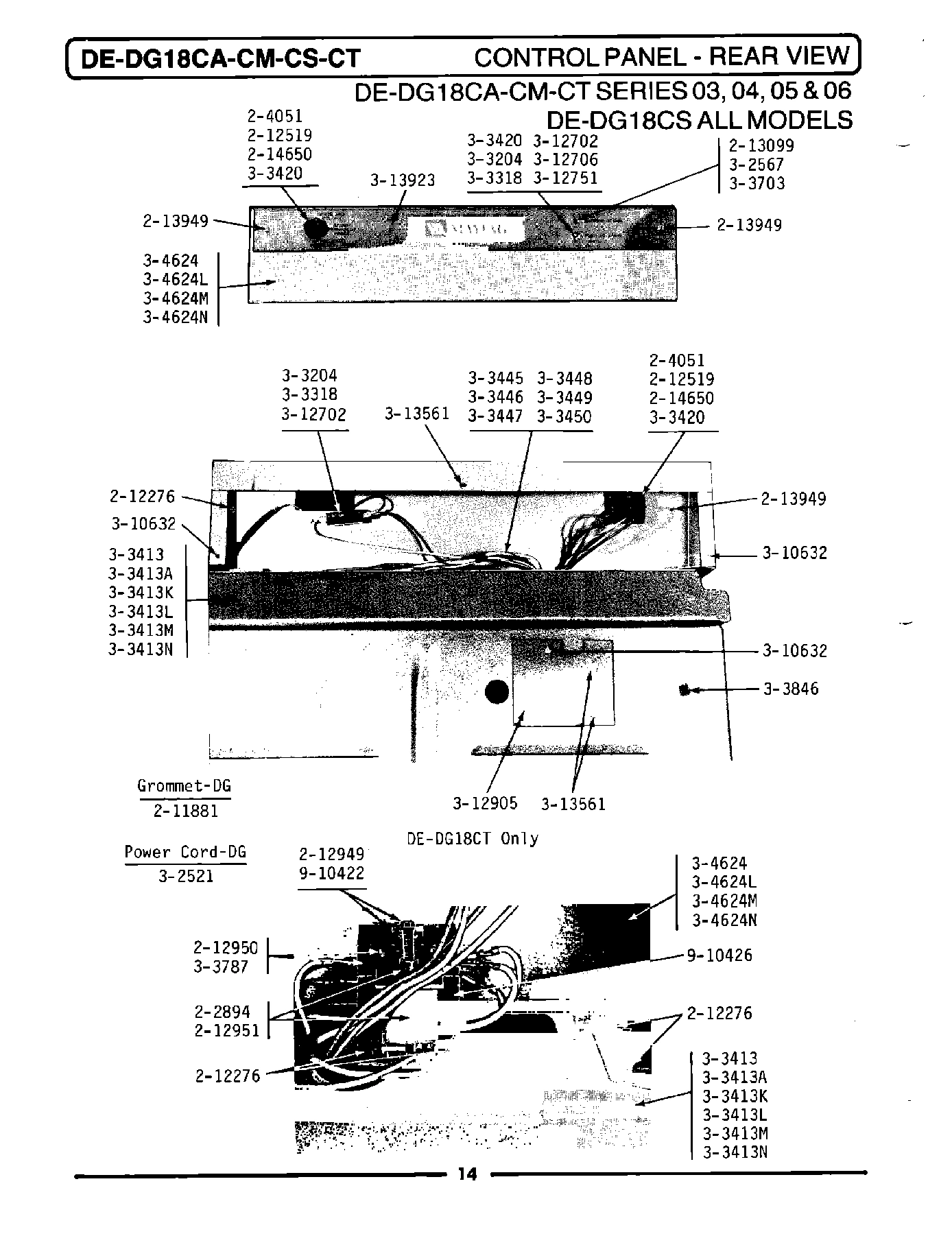

05 - CONTROL PANEL

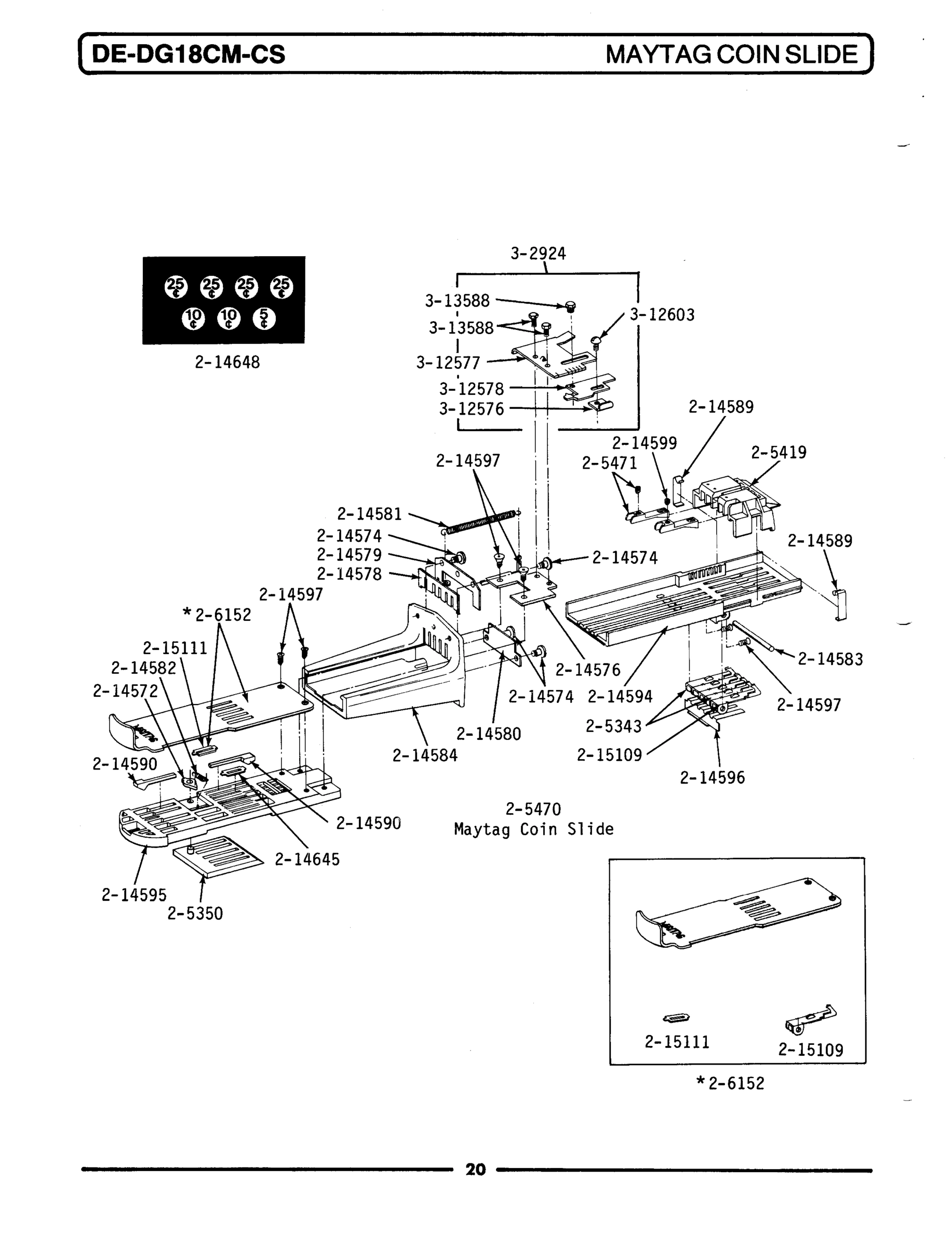

07 - MAYTAG COIN SLIDE

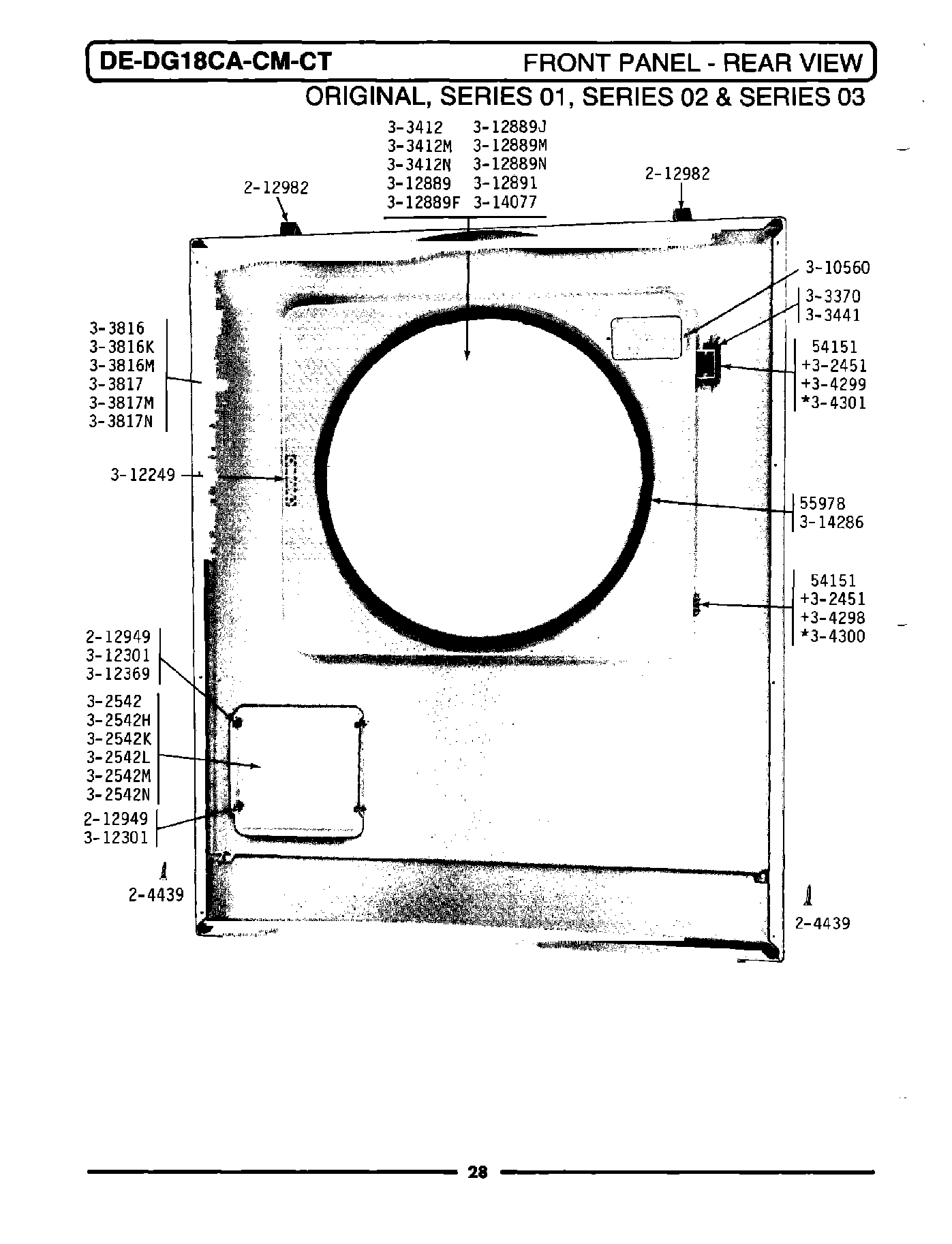

09 - FRONT PANEL-REAR VIEW

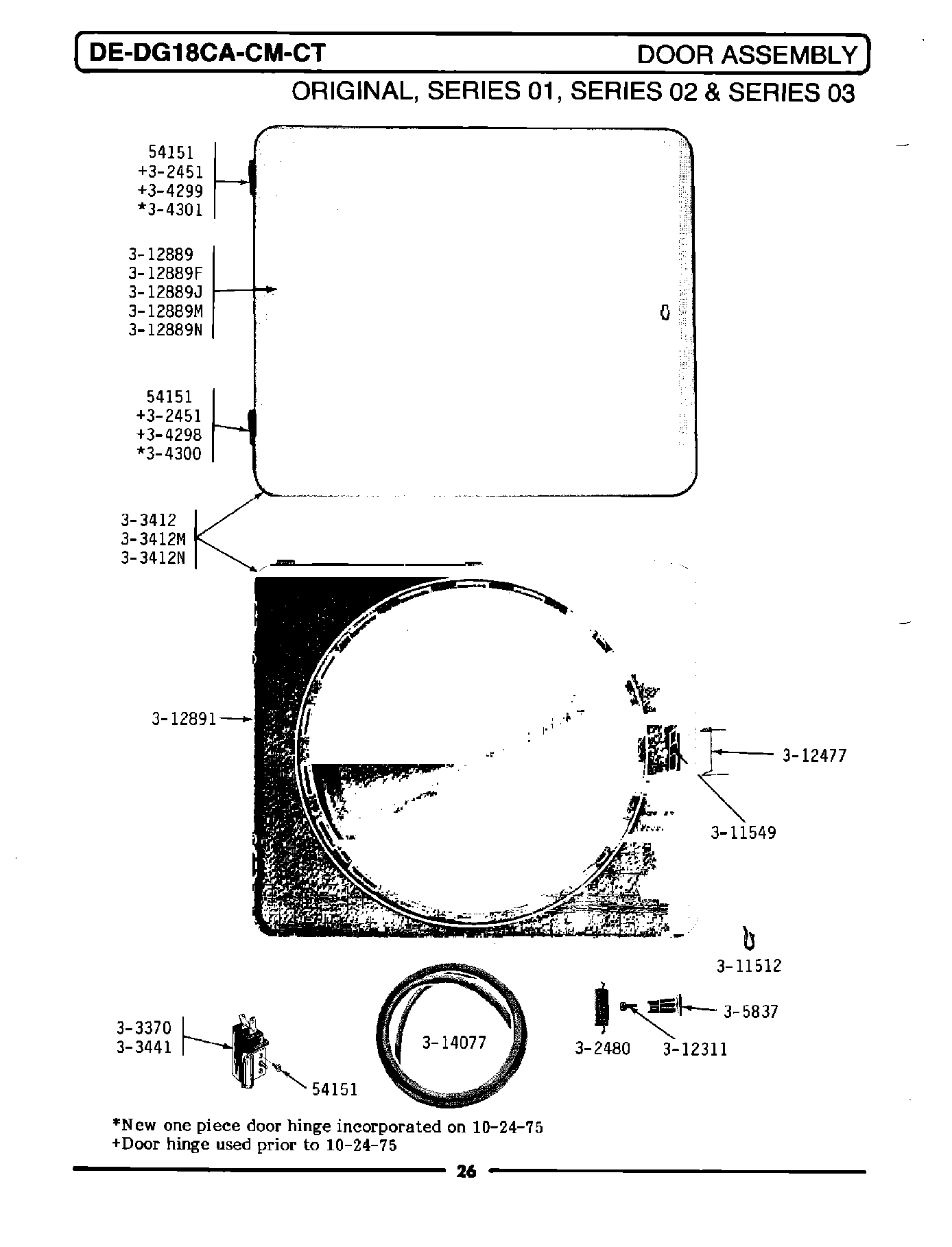

08 - DOOR ASSEMBLY

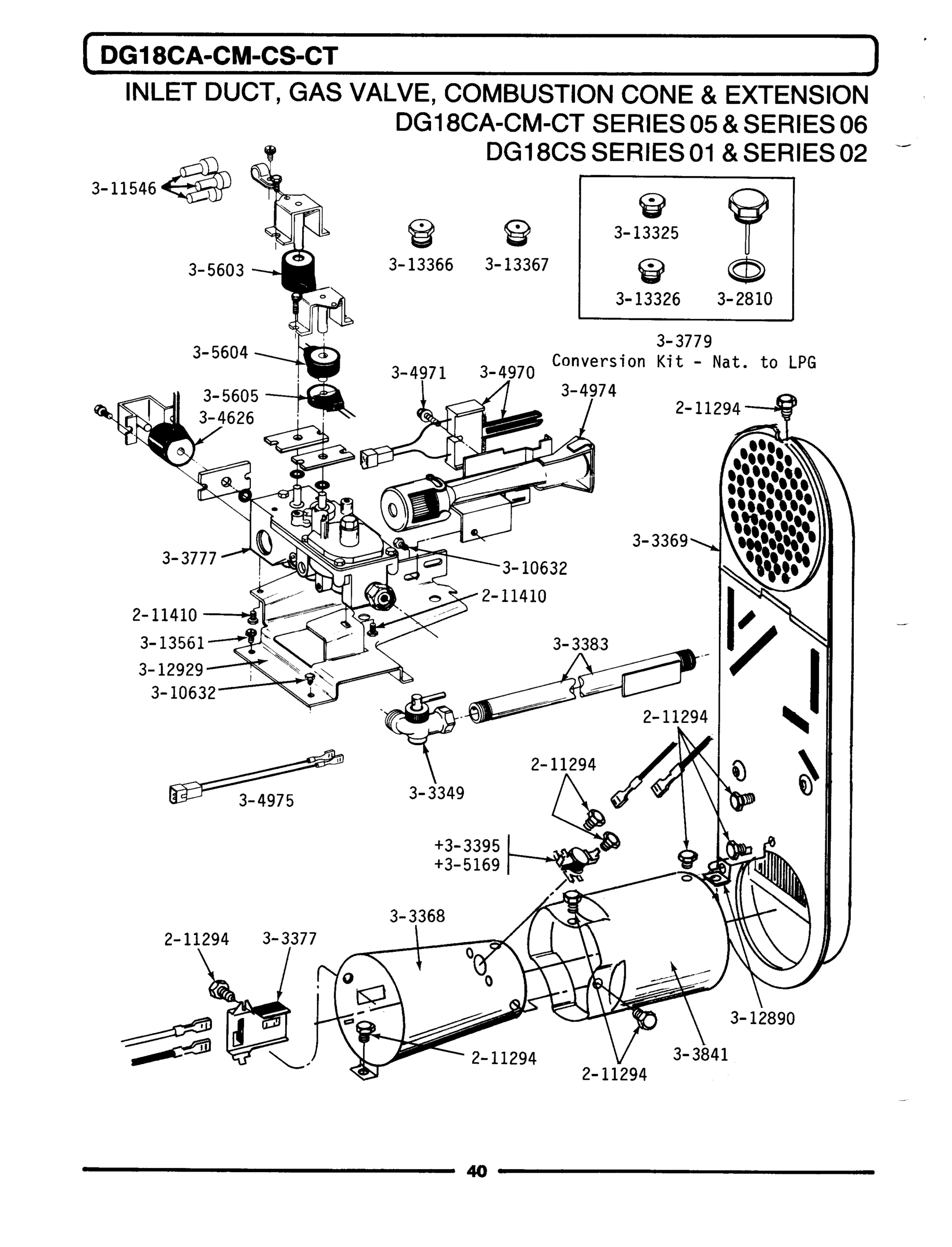

15 - INLET DUCT, GAS VALVE, CONE & EXTENSION
Common parts from model Whirlpool DG18CM WASHER
001
WIRE TERMINAL WPL 210745 Contact Us For Availability
001
KNOB WPL 204051 Contact Us For Availability
001
LOWER GAGE ARM ASSEMBLY WPL 205343 Contact Us For Availability
002
RUBBER ADHESIVE, 2 OZ TUBE WPL Y055978 Contact Us For Availability
002
GROMMET, CORD WPL 211881 Contact Us For Availability
002
DOOR, ACCESS (WHT) WPL 203188 Contact Us For Availability
002
STOP BLOCK ASSEMBLY WPL 205350 Contact Us For Availability
003
SCREW & FSTNER ASSY(FRT.PANEL) WPL 204439 Contact Us For Availability
003
WIRE, GROUND WPL 205810 Contact Us For Availability
003
GRND.WIRE,SUPP.PLTE TO TOP CVR WPL 204807 Contact Us For Availability
003
ACCESS DOOR-ALMOND WPL 203188L Contact Us For Availability
004
SCREW WPL 212949 Contact Us For Availability
004
SET SCREW, PULLEY WPL Y053241 Contact Us For Availability
004
INLET DUCT ASSEMBLY - DE WPL Y303362 Contact Us For Availability
004
ACCESS DOOR-HARVEST WHEAT WPL 203188M Contact Us For Availability
004
SHUT-OFF, GAS VALVE WPL Y303349 Contact Us For Availability
004
SCREW & FASTENER ASY. WPL 204445 Contact Us For Availability
005
CONE, COMBUSTION WPL Y303368 Contact Us For Availability
006
CLIP AND INSULATOR ASSEMBLY WPL 303709 Contact Us For Availability
006
DOOR SWITCH WPL Y303441 Contact Us For Availability
006
SCREW, RELAY SWITCH TO BRKT WPL 212950 Contact Us For Availability
006
INLET DUCT ASSEMBLY (DG) WPL Y303369 Contact Us For Availability
007
HEATER ASSEMBLY COMPLETE WPL Y303778 Contact Us For Availability
007
IGNITER FOR GAS VALVE PILOT WPL 303376 Contact Us For Availability
007
SCREW, No.6-32 X 1/4 INCH WPL 212951 Contact Us For Availability
007
RATCHET ARM WPL 214572 Contact Us For Availability
007
HINGE - LOWER WPL Y304298 Contact Us For Availability
008
LENS FOR CONTROL PANEL WPL 213099 Contact Us For Availability
008
DOOR HINGE ----S WPL Y304577 Contact Us For Availability
008
PIPE & BRACKET ASSY. WPL Y303383 Contact Us For Availability
008
HEATER ASSEMBLY COMPLETE WPL Y303856 Contact Us For Availability
009
DOOR-WHITE WPL Y304579 Contact Us For Availability
009
THERMOSTAT, PERMANENT PRESS WPL Y303225 Contact Us For Availability
010
GUARD FOR COIN BOX WPL 205416 Contact Us For Availability
010
GAS VALVE ASSEMBLY WPL Y303777 Contact Us For Availability
010
SCREW FOR 2-4051 KNOB WPL 214650 Contact Us For Availability
010
GATE FOR COIN OPENING WPL 214578 Contact Us For Availability
011
POWER CORD WPL 302521 Contact Us For Availability
011
BASE ASSY. WPL Y303361 Contact Us For Availability
011
HEATER SHIELD WPL 304124 Contact Us For Availability
011
COIN BOX-WHITE WPL 205423 Contact Us For Availability
011
BURNER ASSEMBLY NA WPL Y303402 Contact Us For Availability
011
CONVERSION KIT-NAT. TO LPG WPL Y303779 Contact Us For Availability
012
START SWITCH WITH NUTS WPL Y303204 Contact Us For Availability
012
COIN BOX-ALMOND WPL 205423L Contact Us For Availability
012
CONE, EXTENSION (COMBUSTION) WPL Y303841 Contact Us For Availability
013
TUMBLER FRONT----SUB WPL Y303815 Contact Us For Availability
013
TUMBLER WPL 305187 Contact Us For Availability
013
COIN BOX-HARVEST WHEAT WPL 205423M Contact Us For Availability
013
SIDE COIL WPL Y304626 Contact Us For Availability
013
RETURN SPRING WPL 214581 Contact Us For Availability
014
SPRING FOR RATCHET ARM WPL 214582 Contact Us For Availability
015
EXHAUST DUCT ASSY. WPL Y303442 Contact Us For Availability
015
SCREW WPL 304971 Contact Us For Availability
016
SELECTOR SWITCH WPL Y303420 Contact Us For Availability
016
OUTLET DUCT ASSEMBLY---S WPL Y304810 Contact Us For Availability
016
HOUSING FOR COIN SLIDE WPL 214584 Contact Us For Availability
017
CLIP, WIRE HARNESS WPL Y310376 Contact Us For Availability
017
MAIN WIRE HARNESS WPL Y303445 Contact Us For Availability
017
GAS VALVE HARNESS WPL 304975 Contact Us For Availability
017
SPRING CLIP WPL 214589 Contact Us For Availability
018
SCREW WPL Y310759 Contact Us For Availability
018
PILOT LIGHT WPL Y303703 Contact Us For Availability
018
INSULATOR FOR HEATER ELEMEN WPL Y313270 Contact Us For Availability
018
SCREW WPL 211251 Contact Us For Availability
018
SWITCH, MOTOR WPL Y303877 Contact Us For Availability
018
DOOR LINER - INNER HALF WPL Y312891 Contact Us For Availability
019
DOOR SEAL WPL 314077 Contact Us For Availability
019
SECONDARY COIL WPL 305603 Contact Us For Availability
019
SWITCH, MOTOR START-PROD. WPL Y303879 Contact Us For Availability
019
BASE INSERT FOR HOUSING WPL 214594 Contact Us For Availability
020
LOCK RING FOR TIMER SHAFT WPL 211790 Contact Us For Availability
020
HOLDING COIL WPL 305604 Contact Us For Availability
020
IDLER SPRING ASSEMBLY WPL Y303945 Contact Us For Availability
021
SLEEVE-ACCESS PANEL STUD WPL 312369 Contact Us For Availability
021
BEARING PAD F/TUMBLER FRONT WPL 312940 Contact Us For Availability
021
SPRING FOR LOWER GAGE ARM WPL 214596 Contact Us For Availability
022
SCREW WPL Y310632 Contact Us For Availability
022
TIMER SUPPORT BRACKET WPL 213029 Contact Us For Availability
022
IDLER, PULLEY & SLEEVE KIT WPL Y304245 Contact Us For Availability
022
SCREW WPL 214597 Contact Us For Availability
023
ADJUSTABLE LEG & NUT WPL W10176519 No Longer Available
023
TWIN FASTENER WPL Y313907 Contact Us For Availability
023
CLOSED CONNECTOR WPL 311546 Contact Us For Availability
024
DOOR PANEL-WHITE WPL Y313908 Contact Us For Availability
024
PULLEY, MOTOR (W/SET SCREW) WPL Y305185 Contact Us For Availability
024
OUTLET DUCT - OUTER HALF WPL Y312964 Contact Us For Availability
024
RETAINER, HEATER CHAMBER WPL Y312890 Contact Us For Availability
024
BOLT, LOCKING WPL 213035 Contact Us For Availability
025
WASHER WPL 310557 Contact Us For Availability
025
SWITCH FOR COIN SLIDE WPL Y301774 Contact Us For Availability
025
GAS VALVE BRACKET WPL 312929 Contact Us For Availability
025
SCREW-IGNITER & CLIP MOUNT WPL 312956 Contact Us For Availability
025
COINAGE DECAL WPL 214648 Contact Us For Availability
026
LABEL, LINT SCREEN INSTRUCTION WPL Y313340 Contact Us For Availability
026
LINT SCREEN WPL Y303390 Contact Us For Availability
026
KNURLED NUT WPL Y312702 Contact Us For Availability
027
CLIP, DOOR LINER TO OUTER PNL WPL Y313910 Contact Us For Availability
027
INSTRUCTION LABEL WPL Y313927 Contact Us For Availability
027
INTERNAL ORIFICE - LPG WPL NLA Contact Us For Availability
027
INSULATOR FOR IGNITER MOUNT WPL Y312971 Contact Us For Availability
027
HEX NUT ON SWITCH WPL Y312706 Contact Us For Availability
028
HOUSING, BLOWER WPL Y312893 Contact Us For Availability
028
DOOR STRIKE RETAINER WPL Y313911 Contact Us For Availability
028
MAIN BURNER ORIFICE-EXT-NAT WPL 313366 Contact Us For Availability
028
ACTUATOR KIT-DRYER SLIDES WPL Y302924 Contact Us For Availability
029
GUIDE FOR LINT SCREEN WPL Y313795 Contact Us For Availability
029
COVER, TERMINAL WPL Y312905 Contact Us For Availability
029
WIRE ASSEMBLY WPL Y303707 Contact Us For Availability
029
MAIN BURNER ORIFICE-INT-NAT WPL 313367 Contact Us For Availability
029
ZERO SLIDE ADJUSTMENT WPL Y312576 Contact Us For Availability
030
LATCH FOR ACCESS DOOR WPL Y314025 Contact Us For Availability
030
SCREW----NA WPL Y313561 Contact Us For Availability
030
LINT SEAL WPL Y313796 Contact Us For Availability
030
COVER FOR BLOWER----NA WPL Y312895 Contact Us For Availability
030
TIMER WPL Y303743 Contact Us For Availability
030
BRACKET FOR SLIDE WPL Y312577 Contact Us For Availability
031
SCREW WPL Y314062 Contact Us For Availability
031
SLIDE ADJUSTMENT WPL Y312578 Contact Us For Availability
034
SEAL FOR FRONT PANEL WPL 314286 Contact Us For Availability
035
TUMBLER No. WPL Y314153 Contact Us For Availability
035
LINT SCREEN WITH RETAINER WPL Y303786 Contact Us For Availability
035
CABLE STRAP-HARNESS TO BASE WPL 910768 Contact Us For Availability
037
RETAINER, WIRE HARNESS WPL Y313262 Contact Us For Availability
038
WASHER WPL 314158 Contact Us For Availability
038
COVER, ACCESS WPL Y312951 Contact Us For Availability
038
RETURN LEVER WPL Y312068 Contact Us For Availability
039
STOP FOR ACTUATOR WPL Y312069 Contact Us For Availability
041
RETURN SPRING FOR ACTUATOR WPL Y312071 Contact Us For Availability
042
TUMBLER BACK WITH SEAL WPL Y304648 Contact Us For Availability
042
SPRING WASHER WPL 312073 Contact Us For Availability
042
SPRING, WIRE HARNESS WPL 410490 Contact Us For Availability
043
TIMER SUPPORT BRACKET WPL 312250 Contact Us For Availability
043
WIRE, GROUND WPL 901220 Contact Us For Availability
045
TIMER ACTUATOR LEVER WPL Y313309 Contact Us For Availability
046
INSTRUCTION LABEL WPL Y313439 Contact Us For Availability
047
TIME INDICATOR GAGE WPL 314073 Contact Us For Availability
048
WASHER WPL 410730 Contact Us For Availability
049
LOCK WASHER WPL 910181 Contact Us For Availability
050
WASHER WPL 910309 Contact Us For Availability
056
WPL Y312907 WPL Y312907 Contact Us For Availability
058
WPL 313122 WPL 313122 Contact Us For Availability
× ![]()
