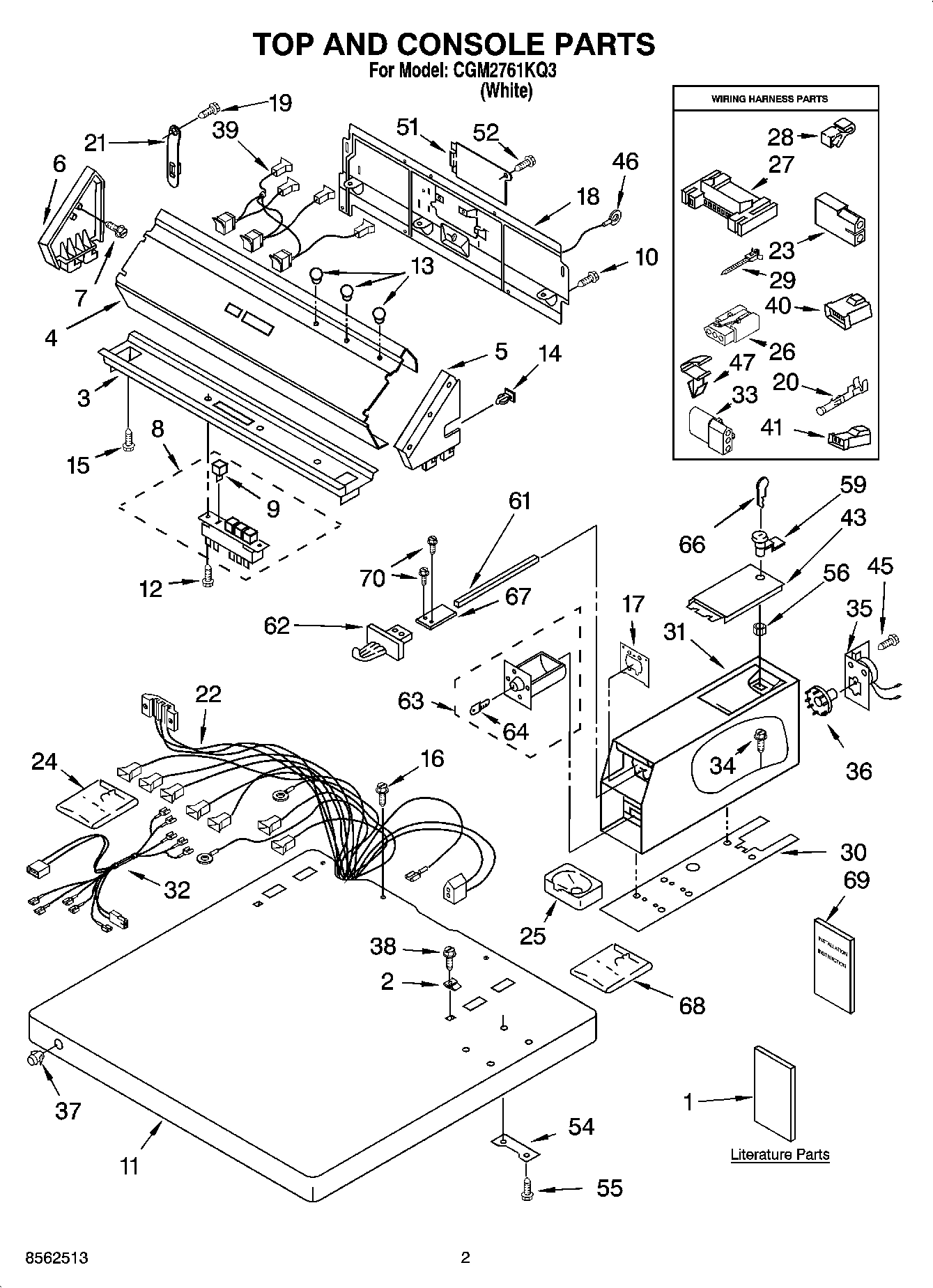

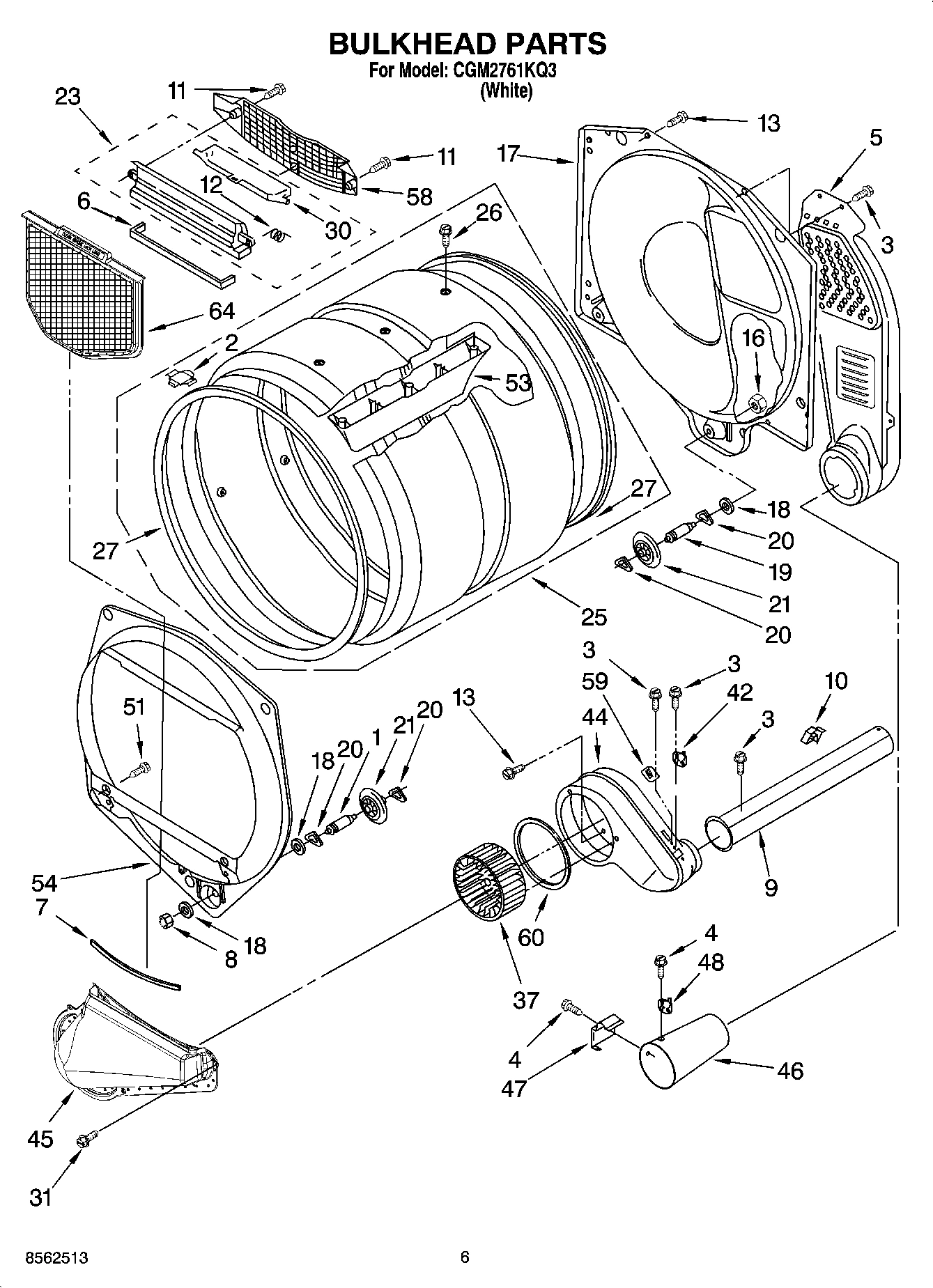

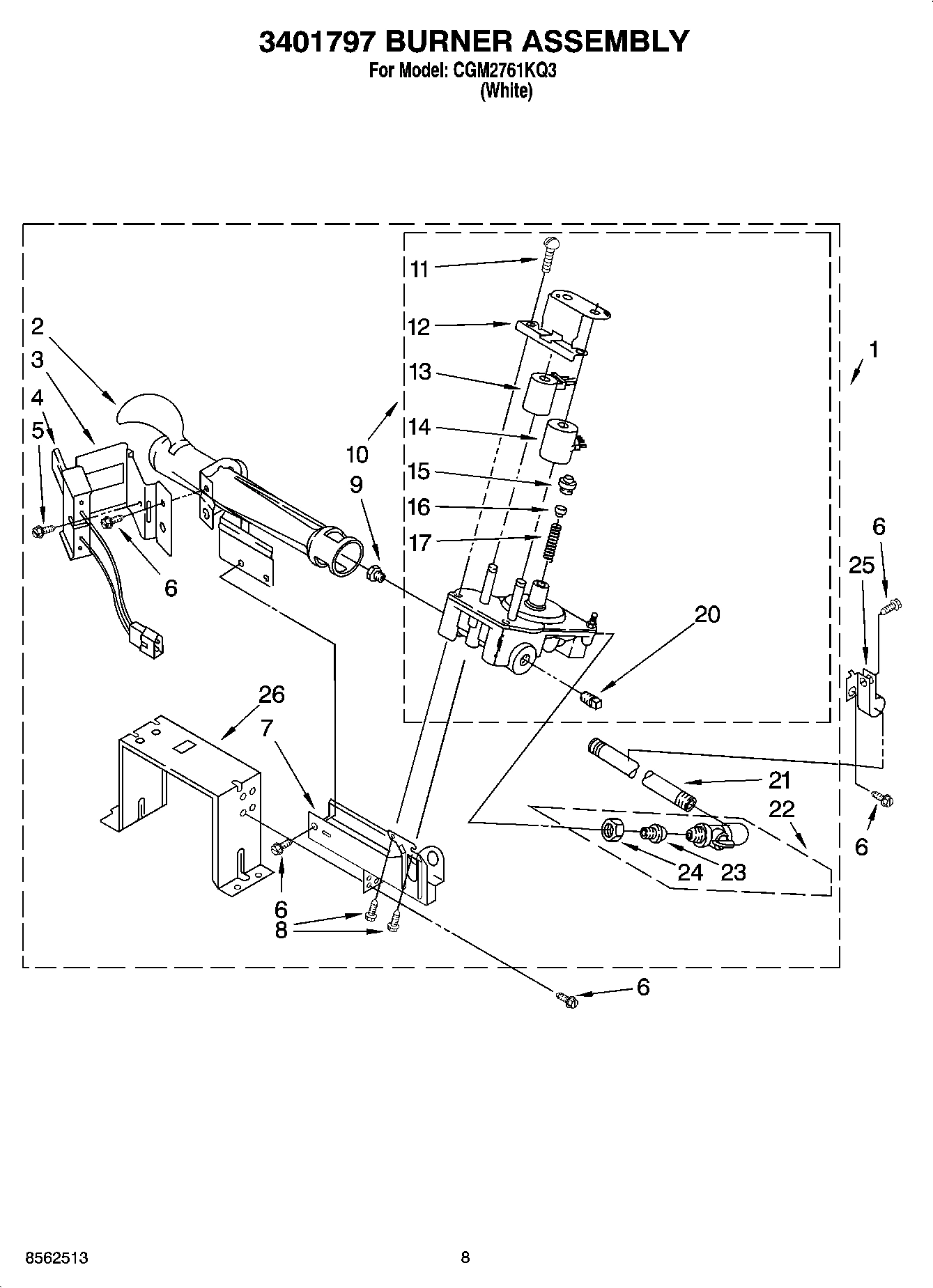

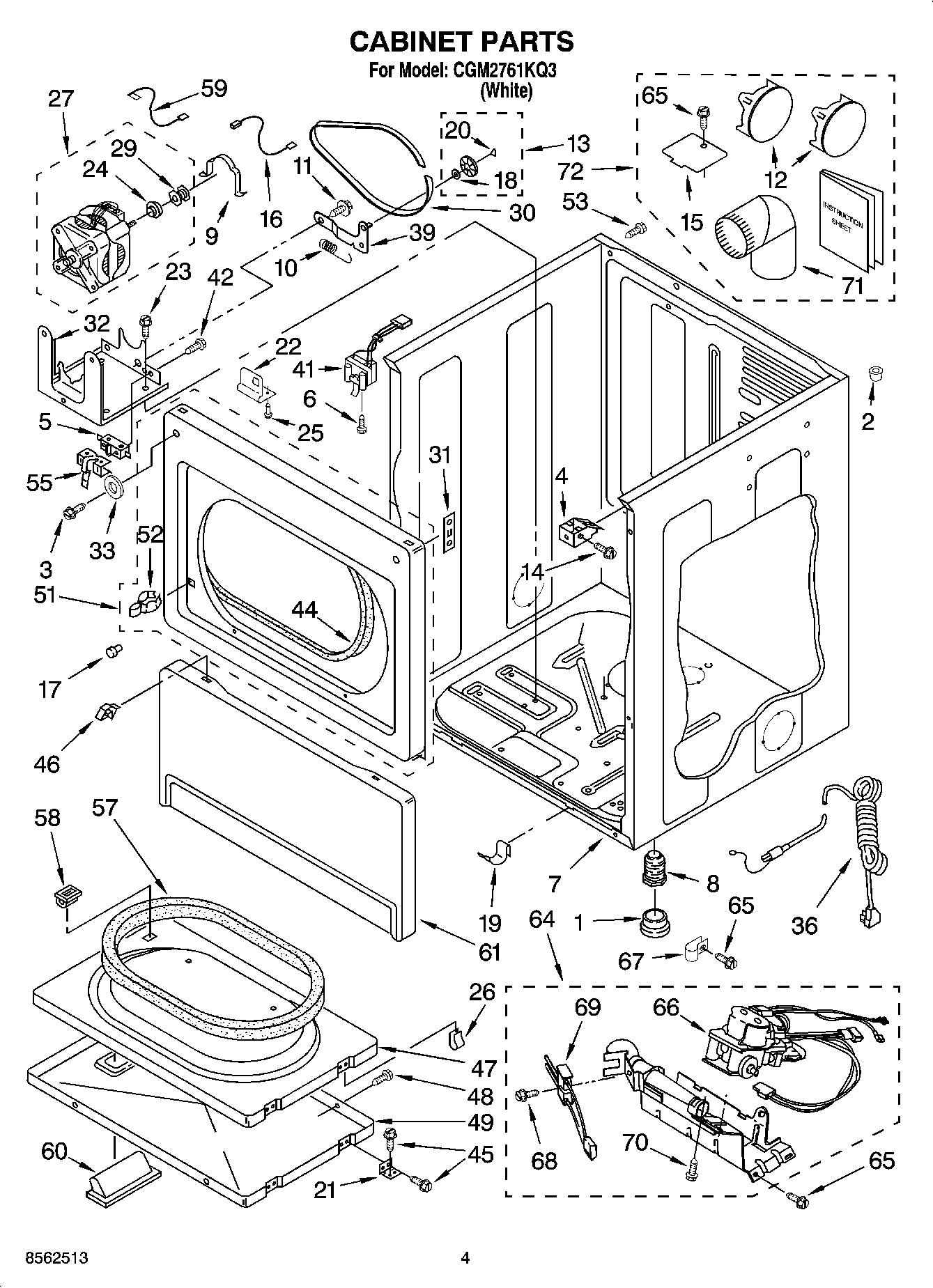

Model Whirlpool CGM2761KQ3 COMMERCIAL GAS DRYER – Common Parts &amp; Diagrams

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $37.48

2

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

2

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

3

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $4.99

4

3391846 Whirlpool Clip In Stock WPL 3391846 $14.02

4

Panel, Control WPL 8316634 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $99.54

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

9

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $97.26

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

9

WPW10330137 Whirlpool Push Button Switch In Stock WPL WPW10330137 $235.52

10

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

11

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

12

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

13

WP3348109 Whirlpool Light Lens In Stock WPL WP3348109 $8.72

13

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

14

NUT, PUSH IN WPL 689559 Contact Us For Availability

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

16

Nut, 3/8-16 (L.H.) WPL 3387709 Contact Us For Availability

17

693152 Whirlpool Bumper In Stock WPL 693152 $11.45

17

W11299300 Whirlpool Bulkhead Assembly Backorder WPL W11299300 $186.88

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

18

W11089934 Whirlpool Rear Panel Backorder WPL W11089934 $189.76

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $20.83

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $8.99

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $52.55

20

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

21

W11175815 Whirlpool Hinge Backorder WPL W11175815 $56.19

21

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $19.51

22

WP8529870 Whirlpool Wire Harness Backorder WPL WP8529870 $188.42

22

Valve & Union Shut-Off WPL 697441 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $53.71

23

Receptacle, 2 Way WPL 717252 Contact Us For Availability

24

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $85.97

24

WP3406965 Whirlpool Coin Chute Backorder WPL WP3406965 $247.79

24

Nut, Compression WPL 233076 Contact Us For Availability

25

W10545923 Whirlpool Drum Assembly Backorder WPL W10545923 $285.61

25

WP385421 Whirlpool Washer Coin-Operated Laund In Stock WPL WP385421 $48.50

26

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $4.99

26

Receptacle, 4-Way WPL 717315 Contact Us For Availability

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $31.56

27

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

28

W10113937 Whirlpool Clamp Backorder WPL W10113937 $7.16

29

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $20.96

30

W11222846 Whirlpool Door Backorder WPL W11222846 $134.12

30

WP3954812 Whirlpool Cushion Backorder WPL WP3954812 $19.74

31

WPW10461200 Whirlpool Case Backorder WPL WPW10461200 $219.58

32

3401126 Whirlpool Wire Harness Backorder WPL 3401126 $121.21

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $87.42

33

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

34

W11715721 Whirlpool Screw Assembly Backorder WPL W11715721 $4.67

35

279737 Whirlpool Dryer Load Timer In Stock WPL 279737 $271.54

WP3387974 Whirlpool Cam In Stock WPL WP3387974 $7.99

WP339853 Whirlpool Cam Backorder WPL WP339853 $4.82

WP339854 Whirlpool Cam Backorder WPL WP339854 $4.55

WP339855 Whirlpool Cam Backorder WPL WP339855 $4.82

WP343777 Whirlpool Cam Backorder WPL WP343777 $4.82

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

37

Top Lock WPL 358290 Contact Us For Availability

37

Lock, Plug Also Available WPL 387371 Contact Us For Availability

38

SCREW, 8-18 X 1 1/4 WPL 8281182 Contact Us For Availability

39

Lights, Indicator Assembly WPL 8316640 Contact Us For Availability

40

WP3403498 Whirlpool Connector Backorder WPL WP3403498 $4.82

41

WP3403499 Whirlpool Connector Backorder WPL WP3403499 $4.55

42

WP3387138 Whirlpool Cycling Thermostat In Stock WPL WP3387138 $56.61

43

W11283272 Whirlpool Washer Dryer Access Door In Stock WPL W11283272 $85.93

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $41.99

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

45

339805 Whirlpool Screw Backorder WPL 339805 $8.89

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $124.99

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.98

46

WP8066047 Whirlpool Funnel Backorder WPL WP8066047 $96.68

46

WPL 3398893 WPL 3398893 Contact Us For Availability

47

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

47

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

48

WP3391912 Whirlpool High Limit Thermostat In Stock WPL WP3391912 $83.99

51

W10819767 Whirlpool Cover Backorder WPL W10819767 $70.98

51

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

52

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

53

Baffle, Drum (3) WPL 697693 Contact Us For Availability

54

3347825 Whirlpool Plate Backorder WPL 3347825 $4.67

54

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $129.39

55

W10841059 Whirlpool Screw Backorder WPL W10841059 $1.83

55

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

56

WP90406 Whirlpool Nut Backorder WPL WP90406 $4.55

57

WP3390735 Whirlpool Door Seal In Stock WPL WP3390735 $85.48

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

59

3398948 Whirlpool Wire Backorder WPL 3398948 $43.98

59

W11315637 Whirlpool Lock Assembly In Stock WPL W11315637 $31.99

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

60

3389522 Whirlpool Handle Backorder WPL 3389522 $53.31

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

61

WP8576635 Whirlpool Bolt Backorder WPL WP8576635 $47.66

62

W11126319 Whirlpool Washer Dryer Coin Chute In Stock WPL W11126319 $194.99

62

WPL 8316264 WPL 8316264 Contact Us For Availability

62

WPL 8316265 WPL 8316265 Contact Us For Availability

63

W11190039 Whirlpool Coin Box Assembly In Stock WPL W11190039 $144.52

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $52.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $34.95

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $11.79

WPL ARI144802A WPL ARI144802A Contact Us For Availability

ACCESSORY PARTS WPL ARI144803A Contact Us For Availability

66

WPL 67001048 WPL 67001048 Contact Us For Availability

67

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

67

3390424 Whirlpool Extension Backorder WPL 3390424 $45.58

68

WPL 8316524 WPL 8316524 Contact Us For Availability

69

WPL 8316532 WPL 8316532 Contact Us For Availability

70

WPL 3400086 WPL 3400086 Contact Us For Availability

70

WPL B0592401 WPL B0592401 Contact Us For Availability

70

WPL C4889201 WPL C4889201 Contact Us For Availability
