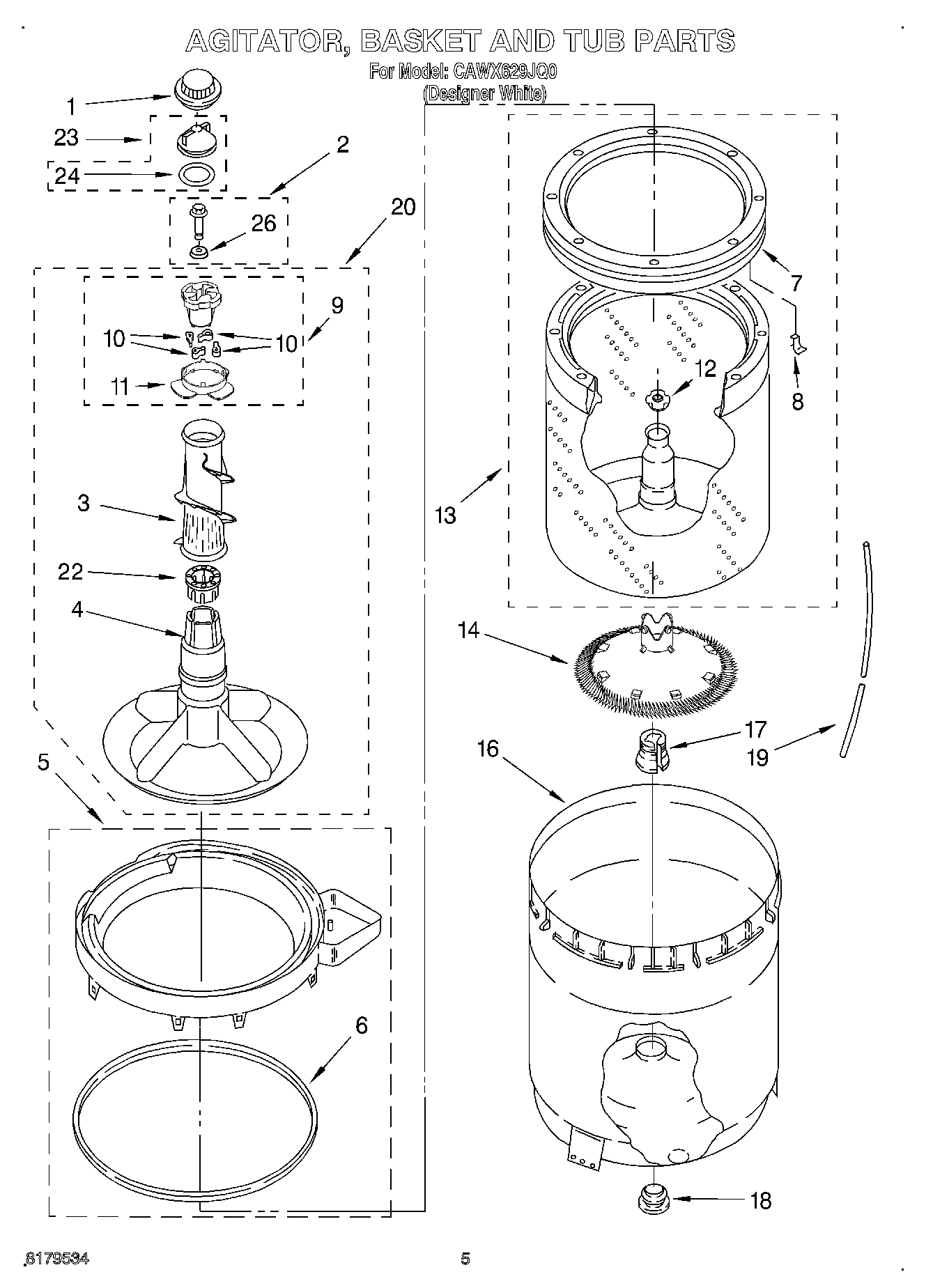

Model Whirlpool CAWX629JQ0 WASHER – Common Parts &amp; Diagrams

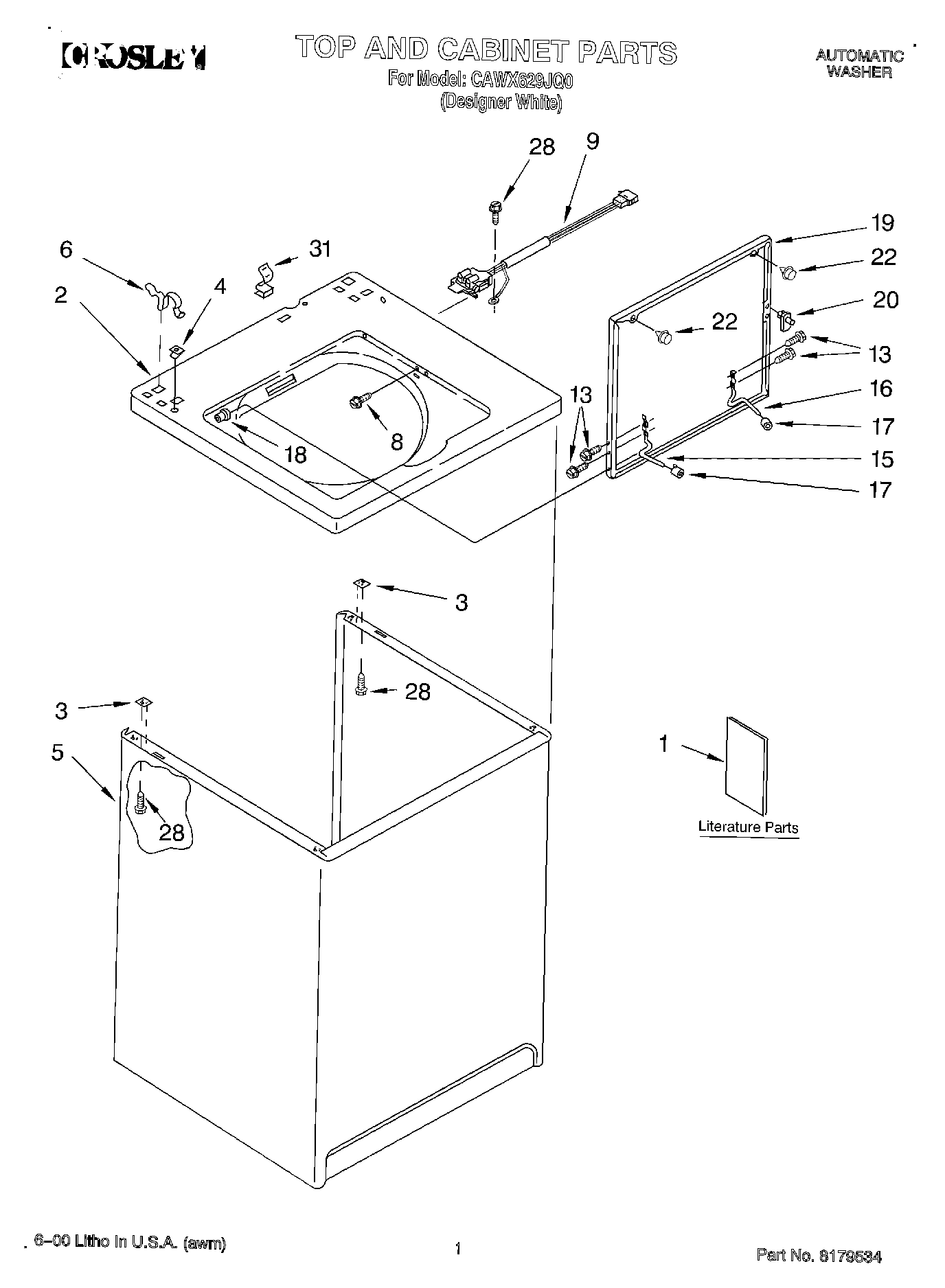

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

285321 Whirlpool Sleeve Backorder WPL 285321 $54.14

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

3

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

3

WP3349019 Whirlpool Upper Agitator Backorder WPL WP3349019 $140.53

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

4

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $4.82

4

WP3350830 Whirlpool Agitator Assembly In Stock WPL WP3350830 $112.73

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $222.60

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

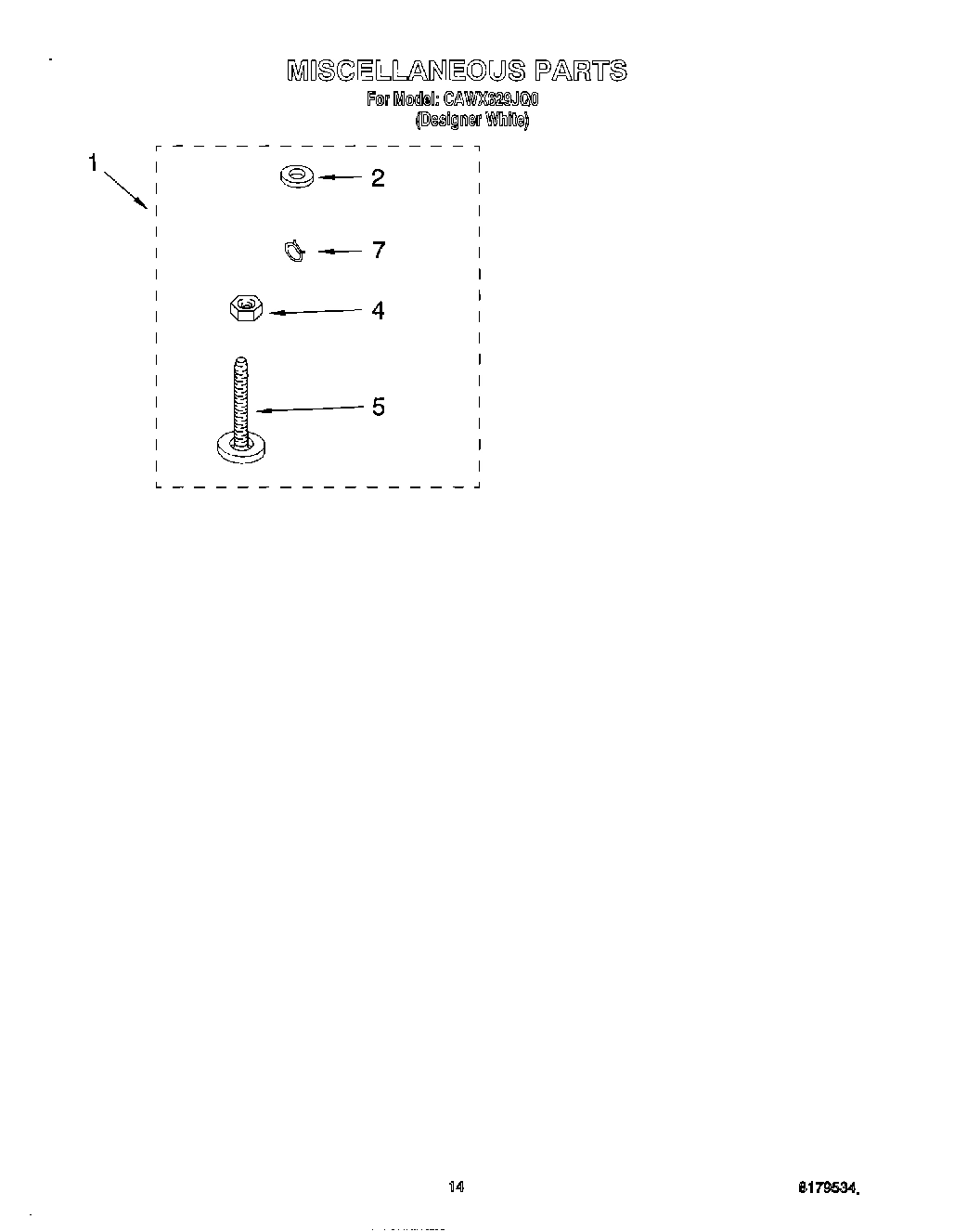

7

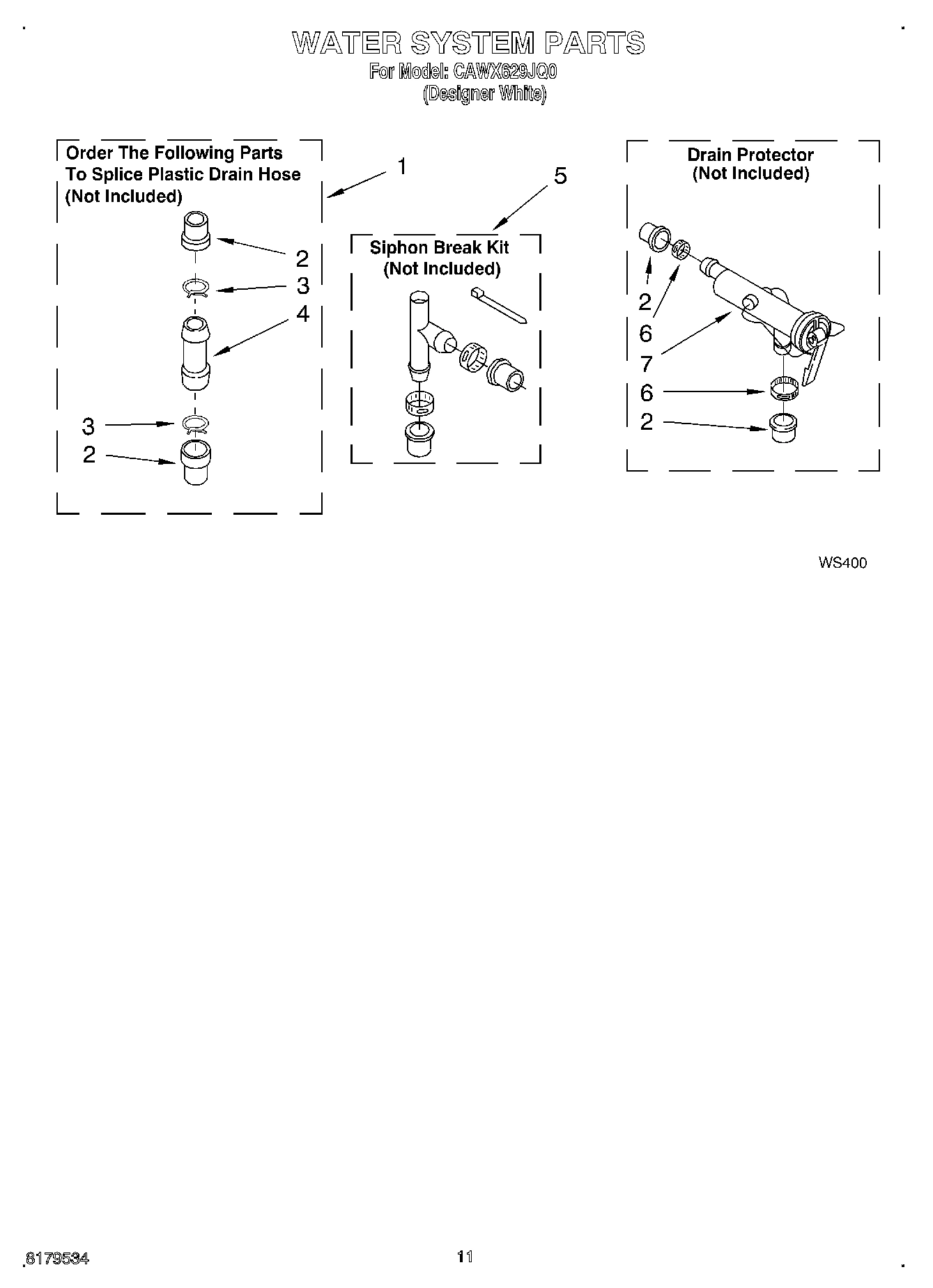

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

7

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

7

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

7

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

7

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

7

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

7

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

7

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

7

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

7

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

7

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

7

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.99

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.99

8

285702 Whirlpool Extensions Backorder WPL 285702 $34.84

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $22.99

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP3948357 Whirlpool Timer Assembly In Stock WPL WP3948357 $269.99

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

10

Spring, Agitator WPL 62676 Contact Us For Availability

11

353424 Whirlpool Connector Backorder WPL 353424 $14.02

11

WP3363661 Whirlpool Bearing Cam Backorder WPL WP3363661 $4.82

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

62619 Whirlpool Washer Backorder WPL 62619 $8.89

W10337780 Whirlpool Pressure Switch In Stock WPL W10337780 $53.47

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $76.20

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

14

W10820044 Whirlpool Power Cord In Stock WPL W10820044 $95.99

14

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.99

Strain Relief, Power Cord WPL 3952821 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $22.76

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

Tub WPL 63125 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

3400073 Whirlpool Screw Backorder WPL 3400073 $5.85

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.99

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $36.94

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

19

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $208.97

19

Base Assembly (Includes Illus, 6, 7, 8, 9, 16 WPL 3946512 Contact Us For Availability

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $6.57

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.99

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

33

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

35

Switch, Water Temperature WPL 661614 Contact Us For Availability

36

WP3400064 Whirlpool Screw Backorder WPL WP3400064 $4.82

39

Panel, Console WPL 3954254 Contact Us For Availability

44

WP3364293 Whirlpool Timer Knob In Stock WPL WP3364293 $36.77

45

Dial, Timer WPL 3951053 Contact Us For Availability

47

WP3957796 Whirlpool Knob In Stock WPL WP3957796 $37.84

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

51

279960 Whirlpool Endcap Assembly Backorder WPL 279960 $56.11

55

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

59

Harness, Wiring WPL 3952570 Contact Us For Availability
