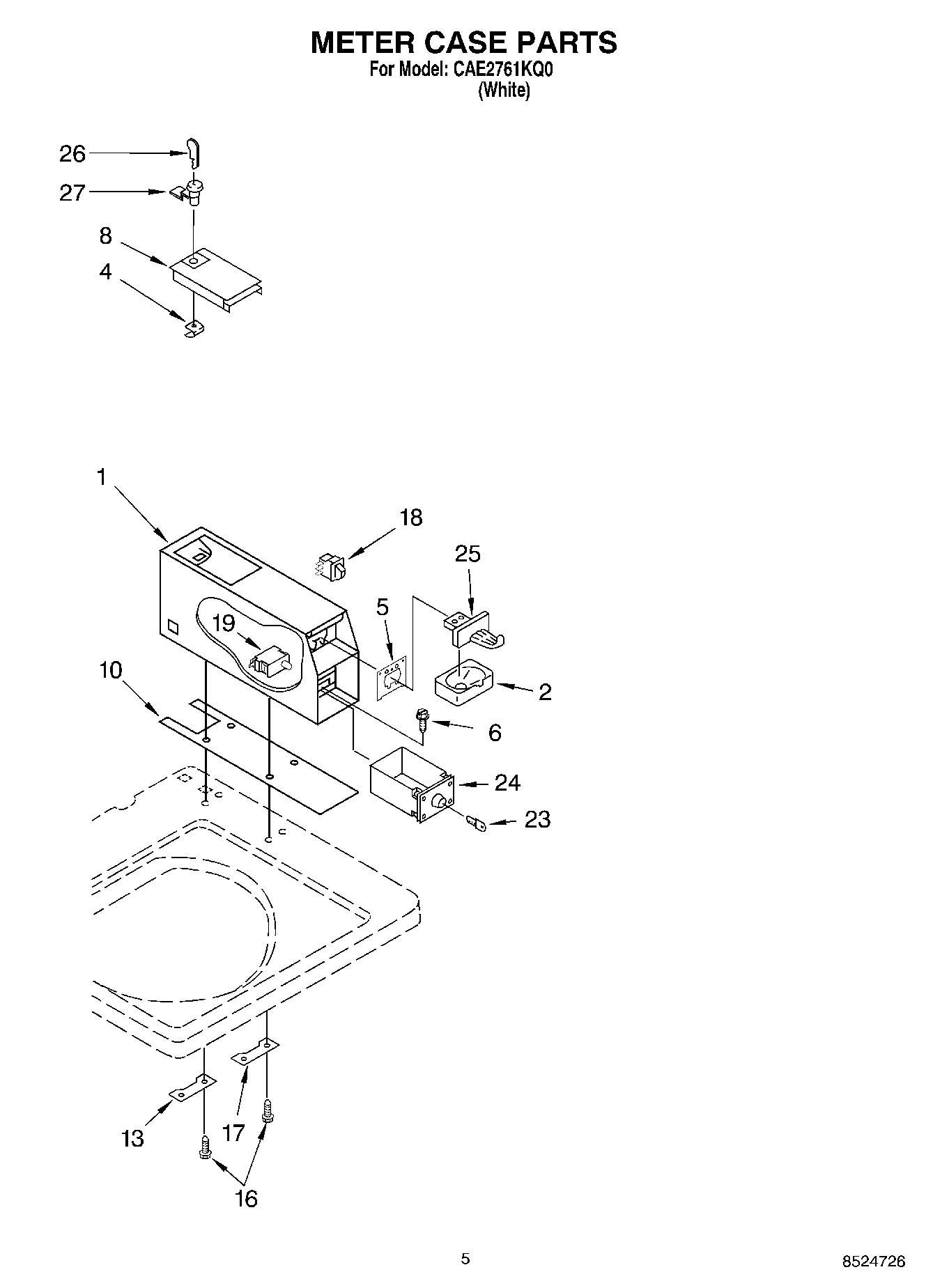

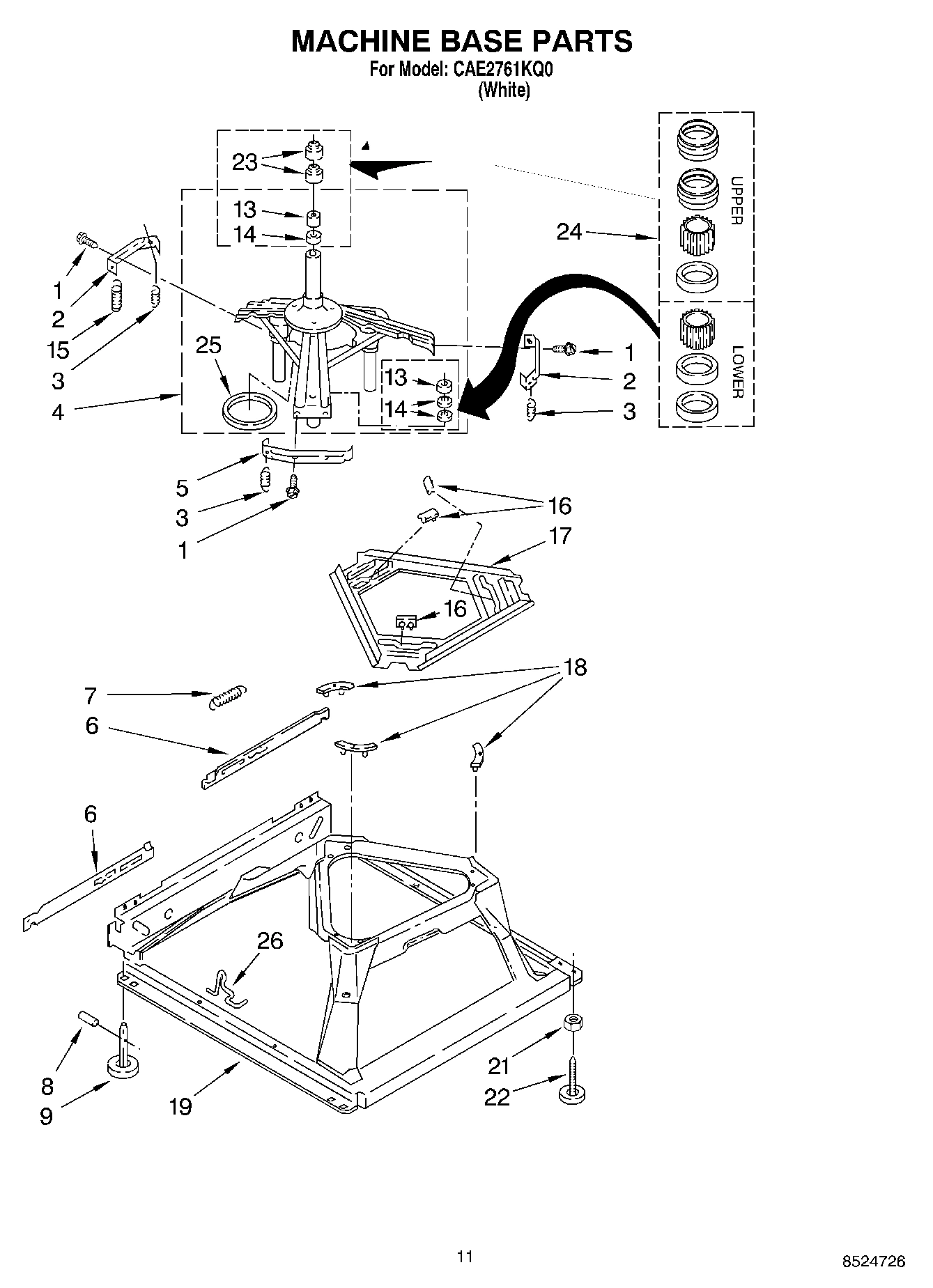

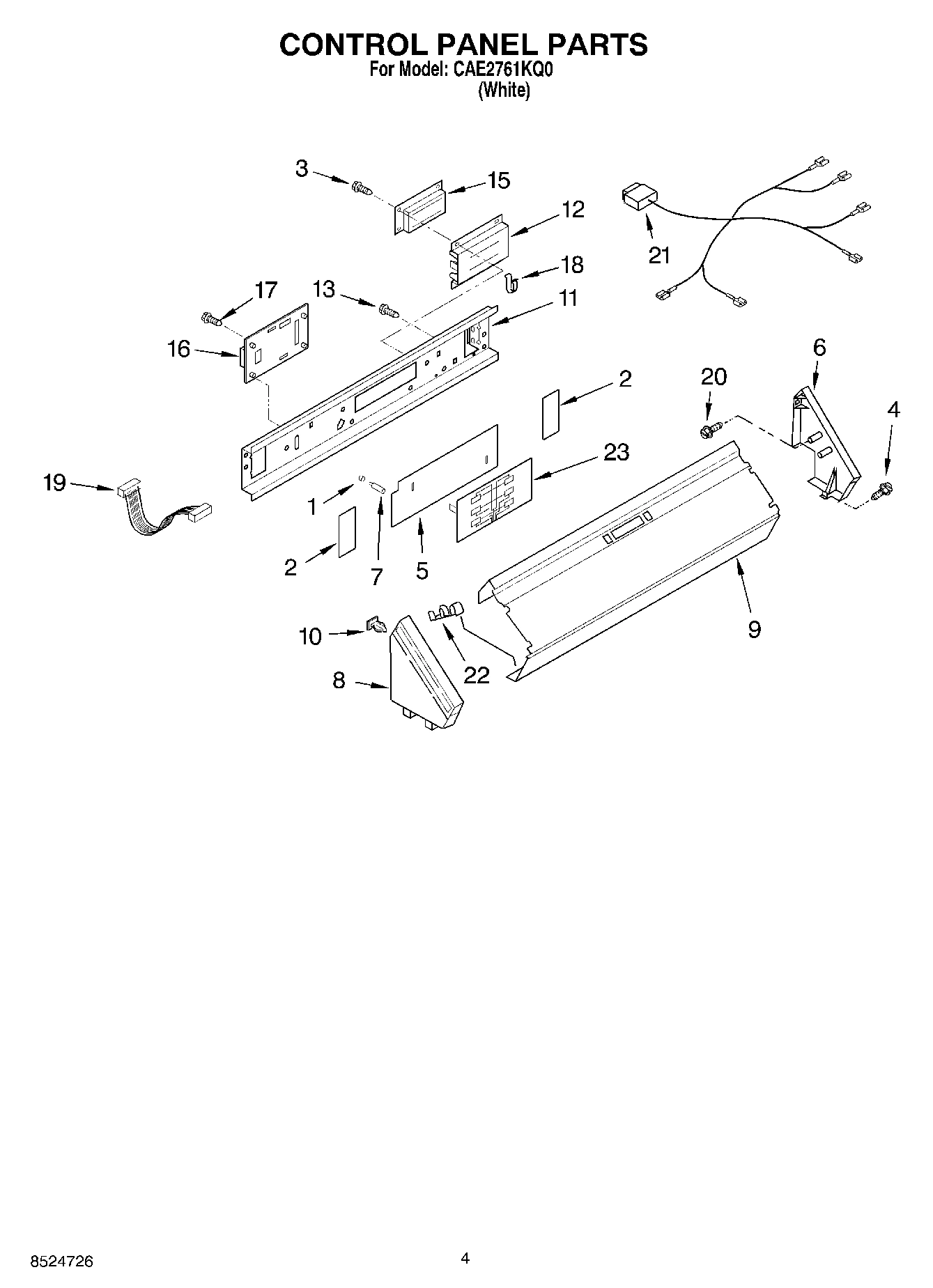

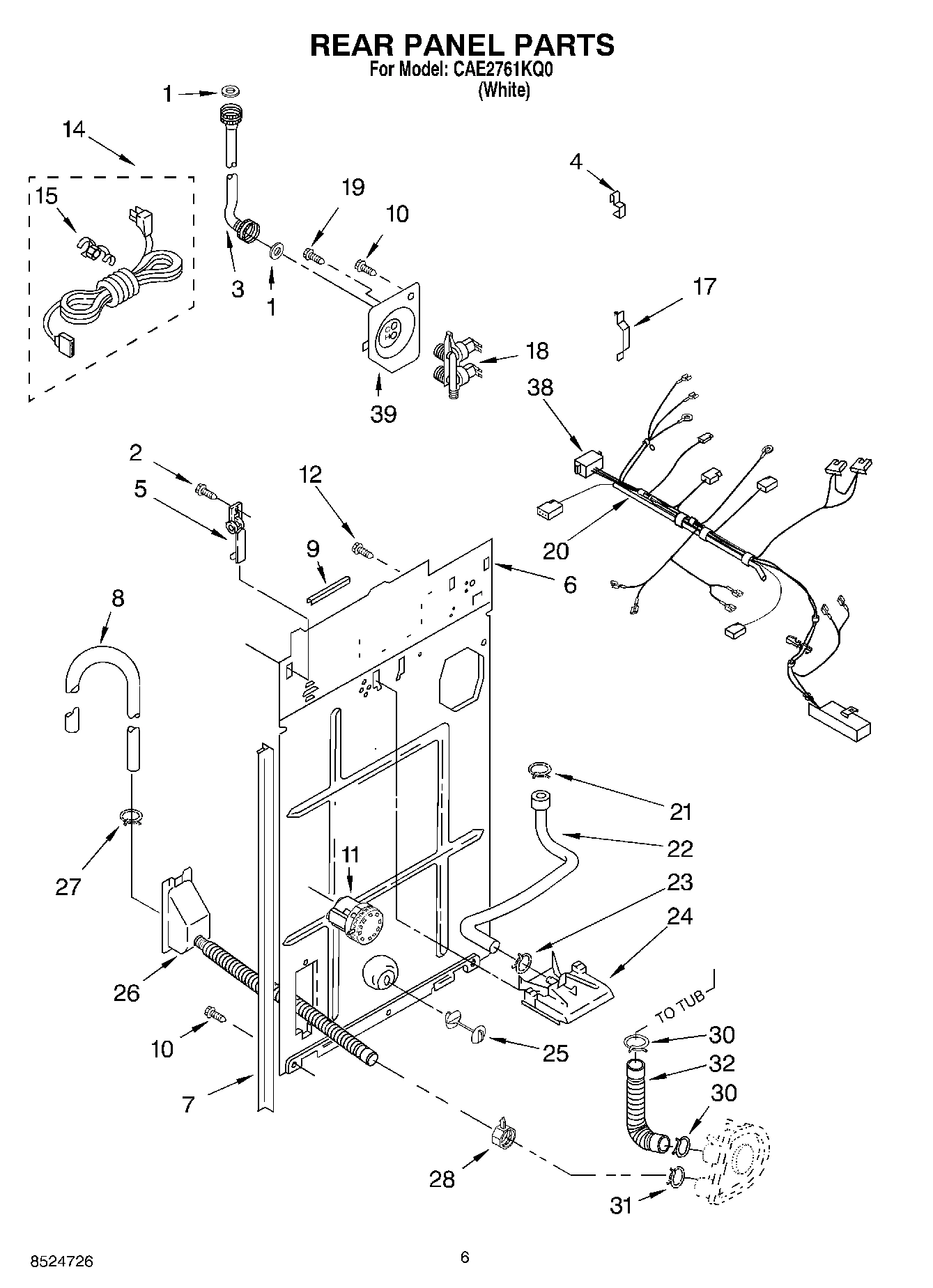

Model Whirlpool CAE2761KQ0 COMMERCIAL WASHER – Common Parts &amp; Diagrams

1

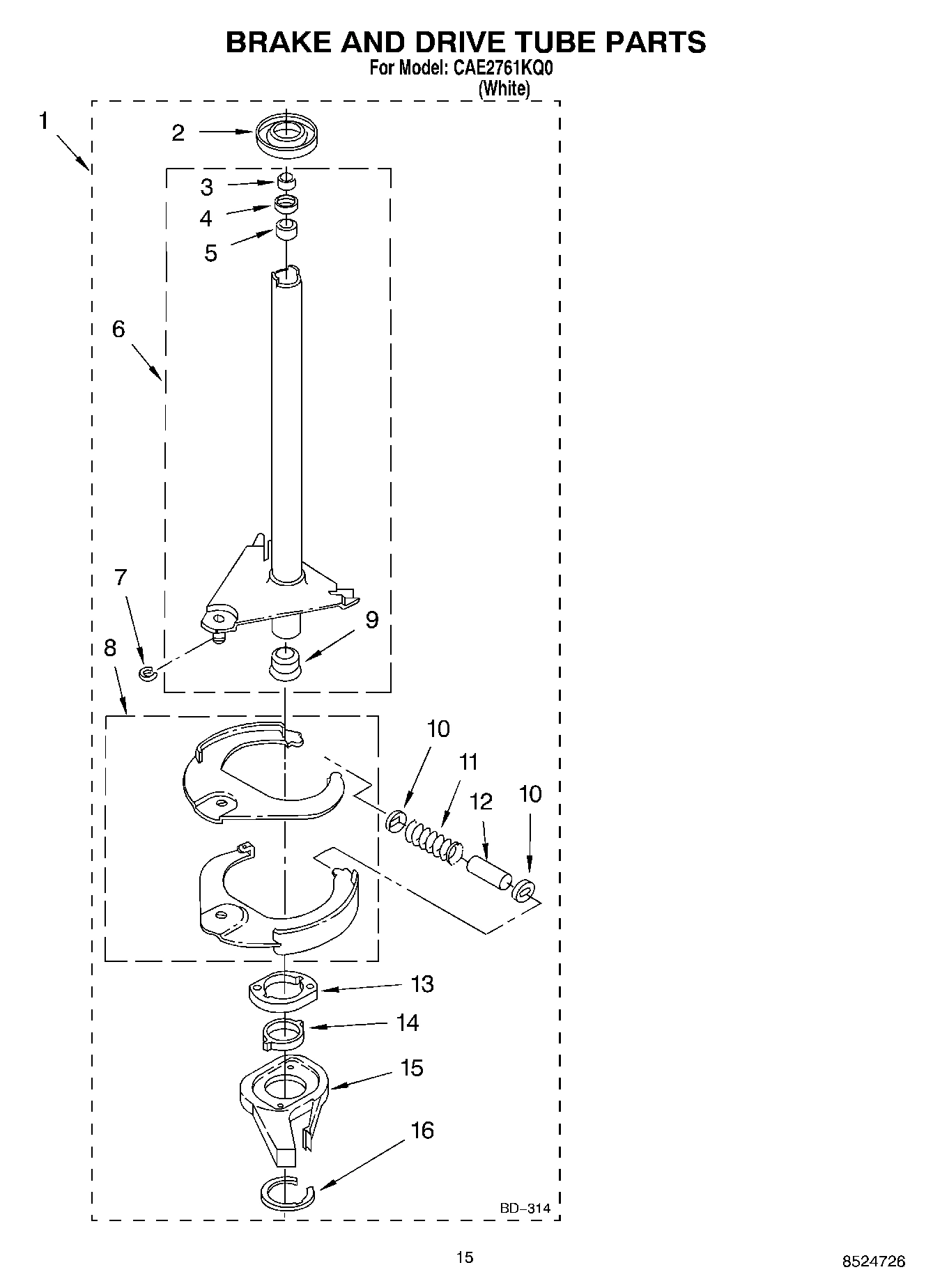

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

WPW10461200 Whirlpool Case Backorder WPL WPW10461200 $219.58

1

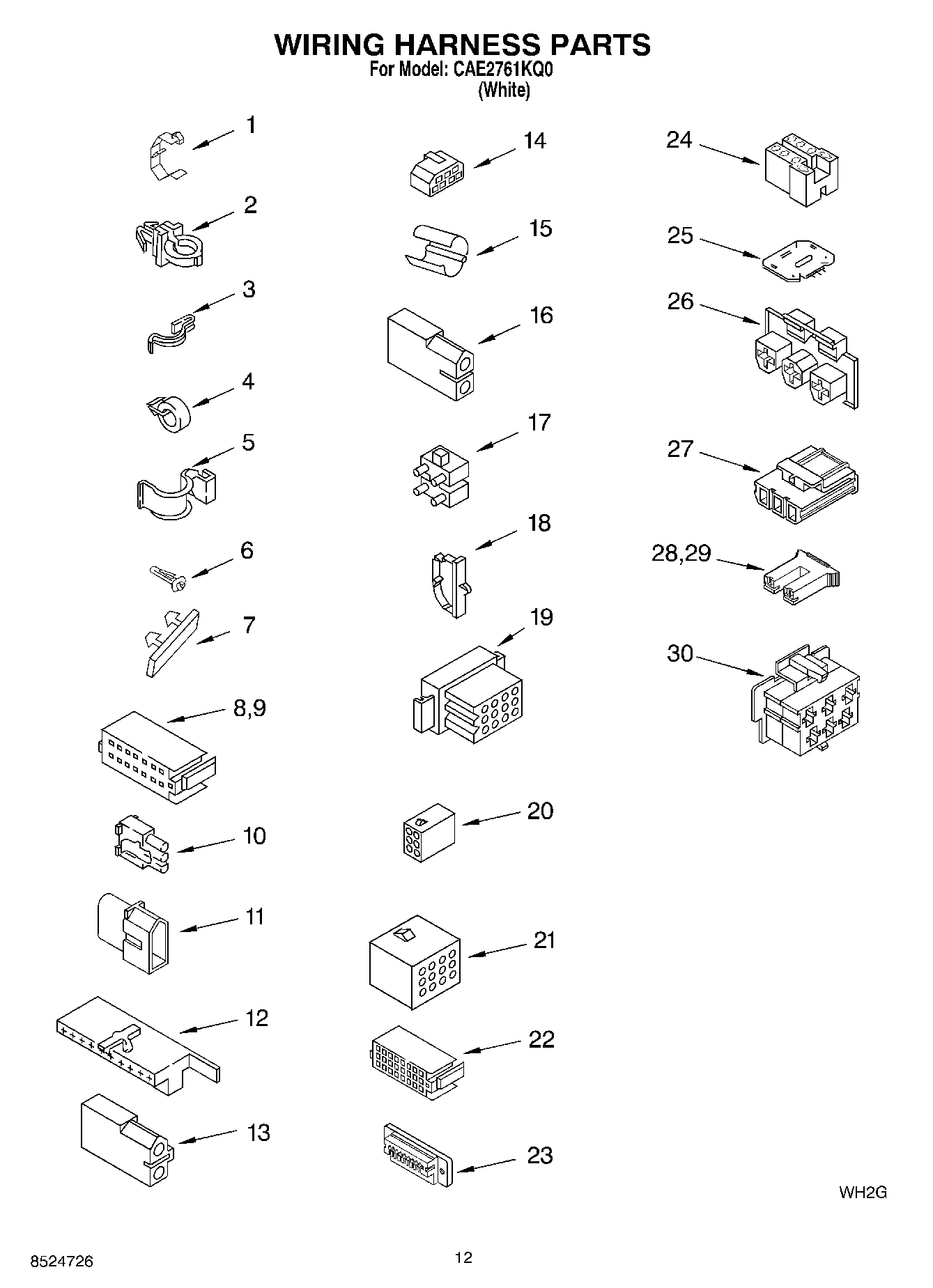

Clip, Harness WPL 3349557 Contact Us For Availability

1

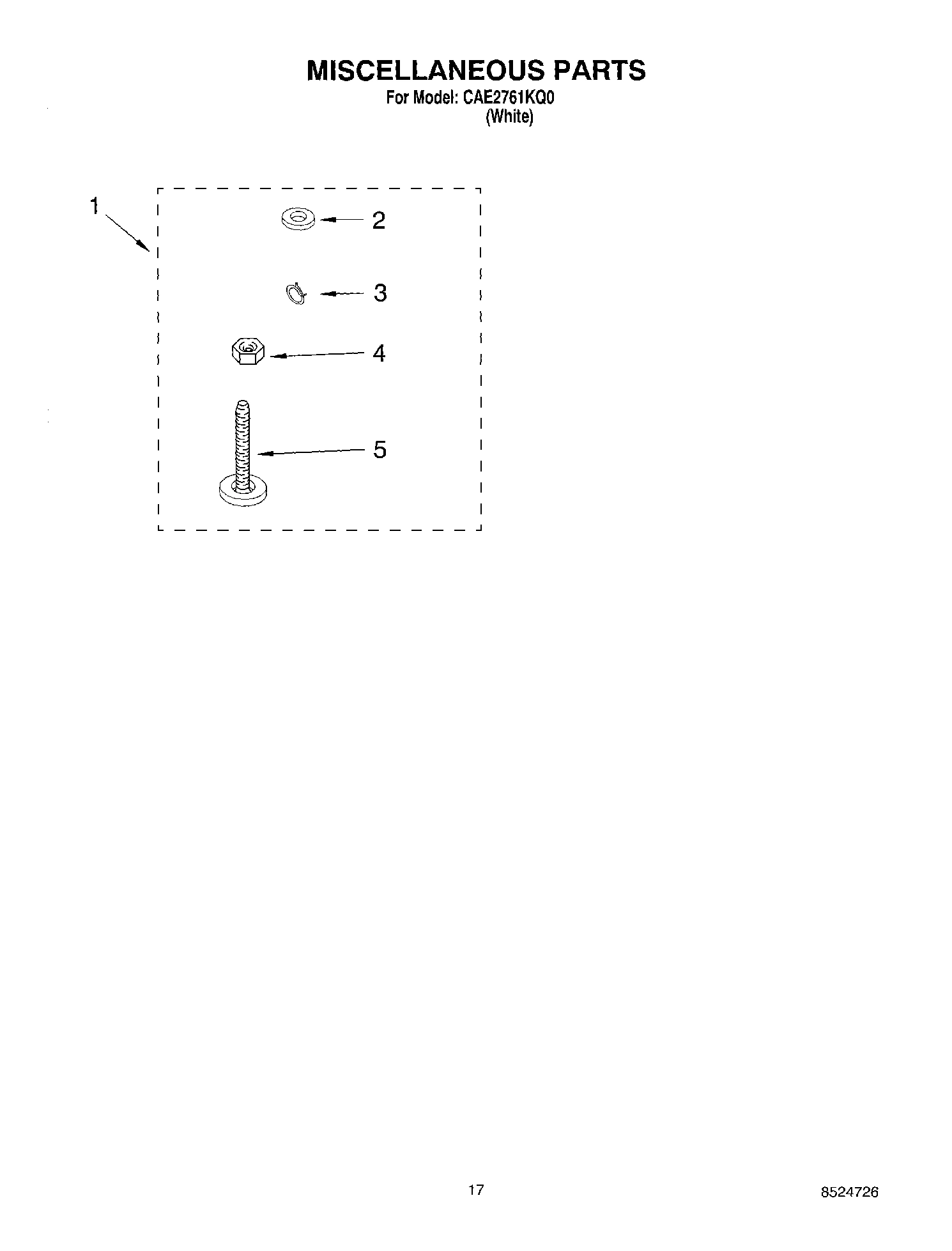

Miscellaneous Parts Bag WPL 3954579 Contact Us For Availability

1

Literature Parts (Repair Parts List) WPL LIT8524726 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT8524730 Contact Us For Availability

1

Literature Parts (Tech Sheet) WPL LIT8524734 Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT8524739 Contact Us For Availability

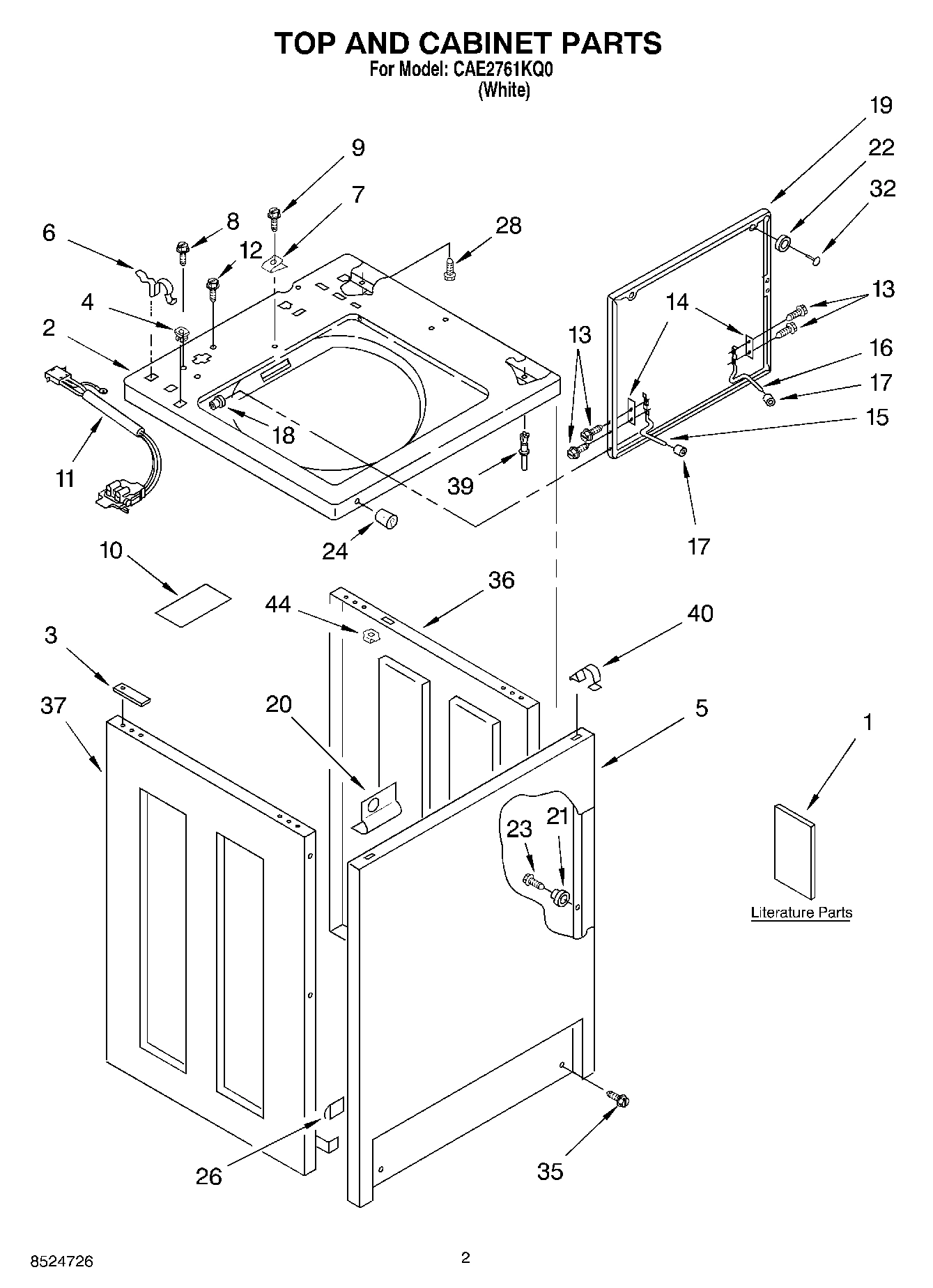

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP385421 Whirlpool Washer Coin-Operated Laund In Stock WPL WP385421 $48.50

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

Snap-In-Plugs (2) WPL 3352284 Contact Us For Availability

2

Top WPL 8524688 Contact Us For Availability

2

Clip, Harness WPL 388498 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

3

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

WPW10080230 Whirlpool Ring Backorder WPL WPW10080230 $7.49

3

Spacer, Cabinet To Top (4) WPL 3353950 Contact Us For Availability

4

285353 Whirlpool Ring Backorder WPL 285353 $4.82

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.46

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

4

Nut, Push-In (2) WPL 358473 Contact Us For Availability

5

279950 Whirlpool Funnel In Stock WPL 279950 $17.57

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

285785 Whirlpool Washer Direct Drive Clutch In Stock WPL 285785 $54.71

5

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

5

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

5

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

5

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

5

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

5

WP3358500 Whirlpool Panel Backorder WPL WP3358500 $204.99

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

5

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

5

Agitator WPL 3350151 Contact Us For Availability

6

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

6

3353994 Whirlpool Screw Assembly Backorder WPL 3353994 $8.39

6

W11715721 Whirlpool Screw Assembly Backorder WPL W11715721 $4.67

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

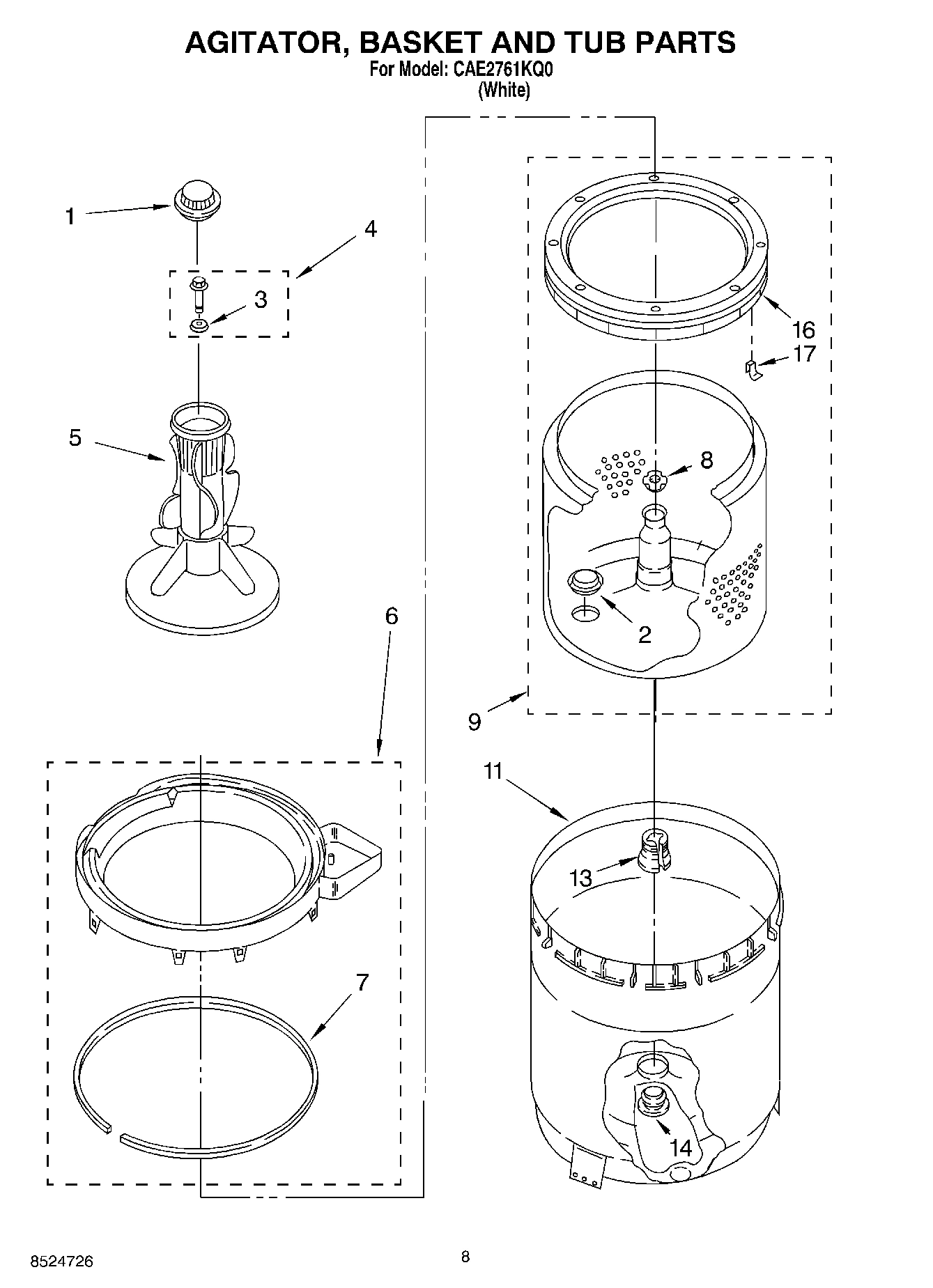

Tub Ring WPL 3360611 Contact Us For Availability

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

7

WP389379 Whirlpool Retainer Backorder WPL WP389379 $4.82

7

WP62646 Whirlpool Cap In Stock WPL WP62646 $4.99

7

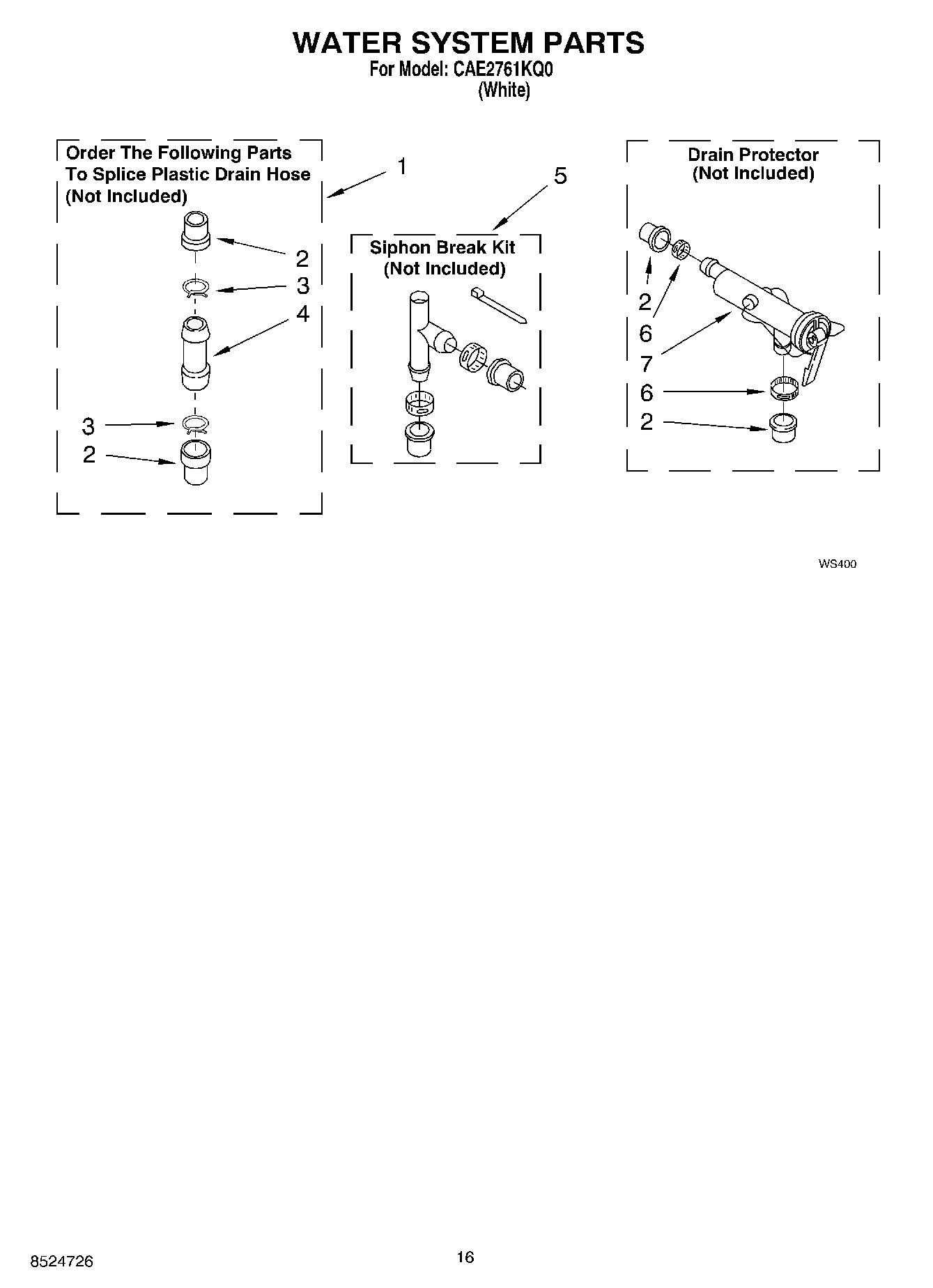

Drain Protector (Not Included) WPL 367031 Contact Us For Availability

7

Clip, Ground WPL 3355753 Contact Us For Availability

8

W11283272 Whirlpool Washer Dryer Access Door In Stock WPL W11283272 $85.93

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

8

WP3946792 Whirlpool Spring Backorder WPL WP3946792 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP96743 Whirlpool Hose Backorder WPL WP96743 $59.71

8

Screw & Washer, Lid Switch (2) WPL 3400611 Contact Us For Availability

8

Timer, Block Disconnect (White) WPL 352090 Contact Us For Availability

9

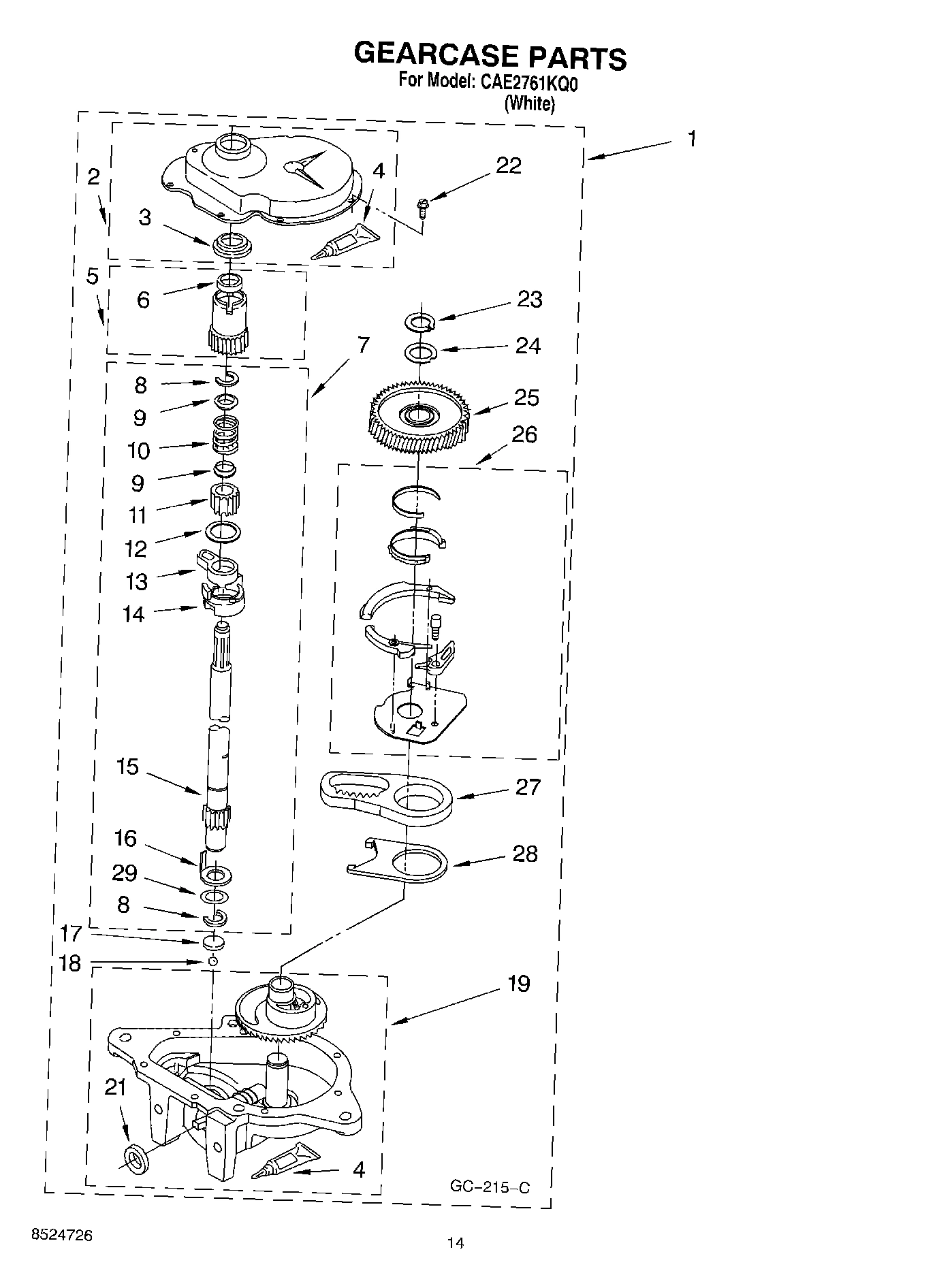

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.98

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

9

WP355214 Whirlpool Screw In Stock WPL WP355214 $6.99

9

Basket and Balance Ring WPL 8271650 Contact Us For Availability

WP3400516 Whirlpool Screw In Stock WPL WP3400516 $4.82

WP3954812 Whirlpool Cushion Backorder WPL WP3954812 $19.74

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

Nut, Push-In (2) WPL 689559 Contact Us For Availability

Shield, Pressure Switch WPL 3953152 Contact Us For Availability

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP62611 Whirlpool Plate In Stock WPL WP62611 $76.63

WP8054980 Whirlpool Lid Switch Assembly In Stock WPL WP8054980 $117.95

Tub WPL 63125 Contact Us For Availability

12

62619 Whirlpool Washer Backorder WPL 62619 $8.89

12

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

12

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

285852A Whirlpool Washer Direct Drive Heavy D In Stock WPL 285852A $18.99

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

Plate, Mounting WPL 3353813 Contact Us For Availability

Block, Disconnect (Motor 3 Speed) (Use Term. WPL 3348075 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Block, Disconnect (Use Term. 352088) WPL 3347243 Contact Us For Availability

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WP8524784 Whirlpool Hinge Assembly Backorder WPL WP8524784 $20.91

Protector WPL 63523 Contact Us For Availability

W10841059 Whirlpool Screw Backorder WPL W10841059 $1.83

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $6.99

Connector (2-Way) (Use Term. 94614) WPL 717252 Contact Us For Availability

3347825 Whirlpool Plate Backorder WPL 3347825 $4.67

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

Switch, Service Diagnostic WPL 3402784 Contact Us For Availability

Clip, Harness WPL 3352944 Contact Us For Availability

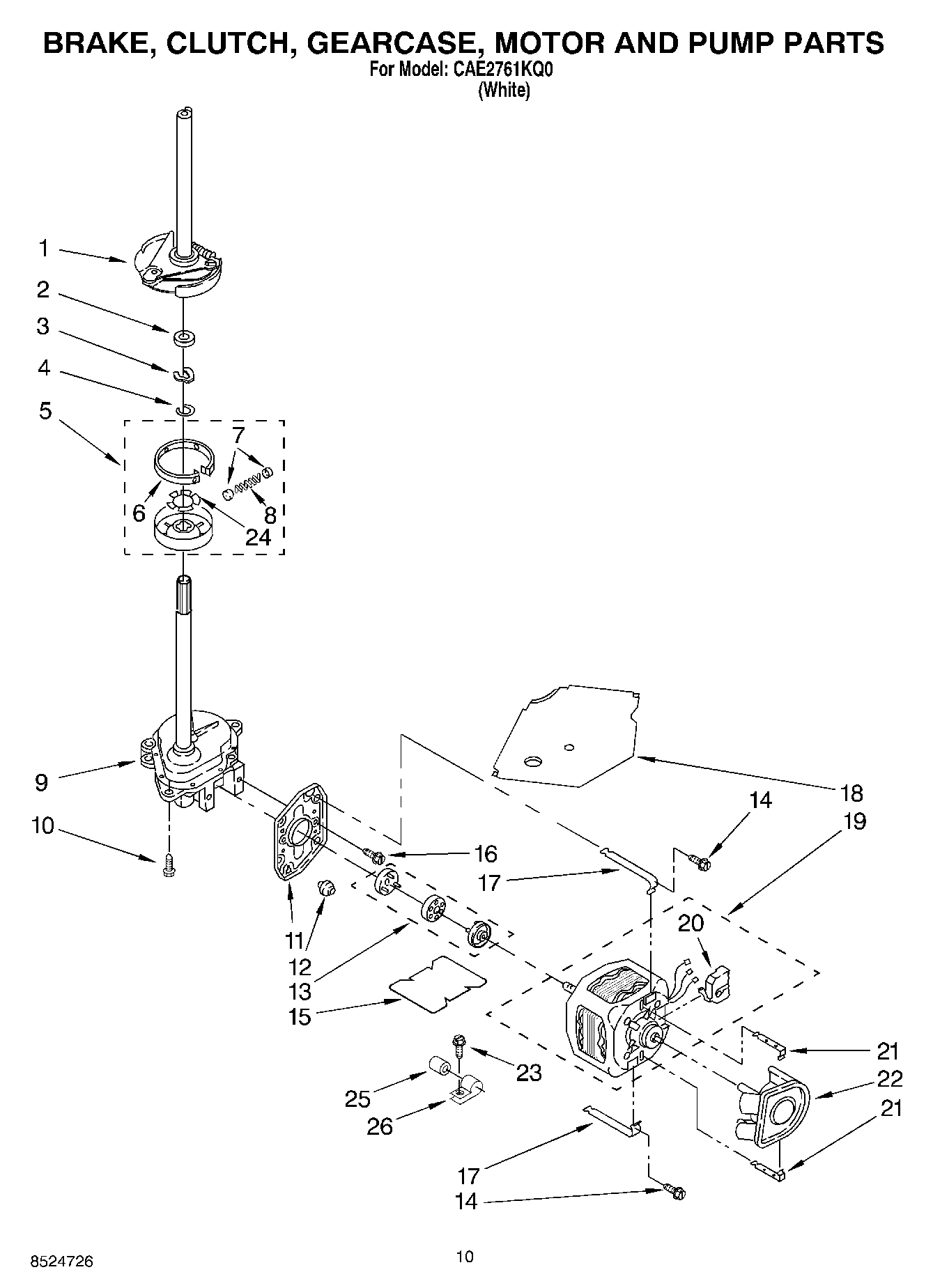

WP661600 Whirlpool Drive Motor In Stock WPL WP661600 $208.97

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

WPW10193854 Whirlpool Lid Assembly Backorder WPL WPW10193854 $236.76

Switch, Vault Counter WPL 3406406 Contact Us For Availability

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

Bracket, Lock WPL 3353948 Contact Us For Availability

Rivet (2) WPL 63554 Contact Us For Availability

Switch, Main Drive Motor WPL 62850 Contact Us For Availability

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

Locator (4) WPL 3353812 Contact Us For Availability

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

BUMPER WPL 356908 Contact Us For Availability

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $4.99

Key, Money Box WPL ARI144398A Contact Us For Availability

Connector, Etc WPL 3349494 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

PLUG LOCK WPL 387371 Contact Us For Availability

Clip, Anti-Rattle WPL 3355454 Contact Us For Availability

Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

E.T.C. Control WPL 3407125 Contact Us For Availability

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $12.98

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

Fascia, Disp (Black) WPL W10123497 Contact Us For Availability

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

27

Security Lock & Cam Assembly WPL ARI144399A Contact Us For Availability

28

3354925 Whirlpool Connector Backorder WPL 3354925 $14.02

28

Clamp, Hose WPL 3976395 Contact Us For Availability

28

Screw (2) WPL 3353993 Contact Us For Availability

29

Block, Con WPL 3354926 Contact Us For Availability

30

WPL 3948615 WPL 3948615 Contact Us For Availability

32

WP356907 Whirlpool Rivet Backorder WPL WP356907 $4.82

35

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $4.82

36

Panel, Right Hand WPL 3353708 Contact Us For Availability

37

Panel, Left Hand WPL 3353714 Contact Us For Availability

39

Pin, Locator (2) WPL 3353949 Contact Us For Availability

40

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

44

WP90406 Whirlpool Nut Backorder WPL WP90406 $4.55
