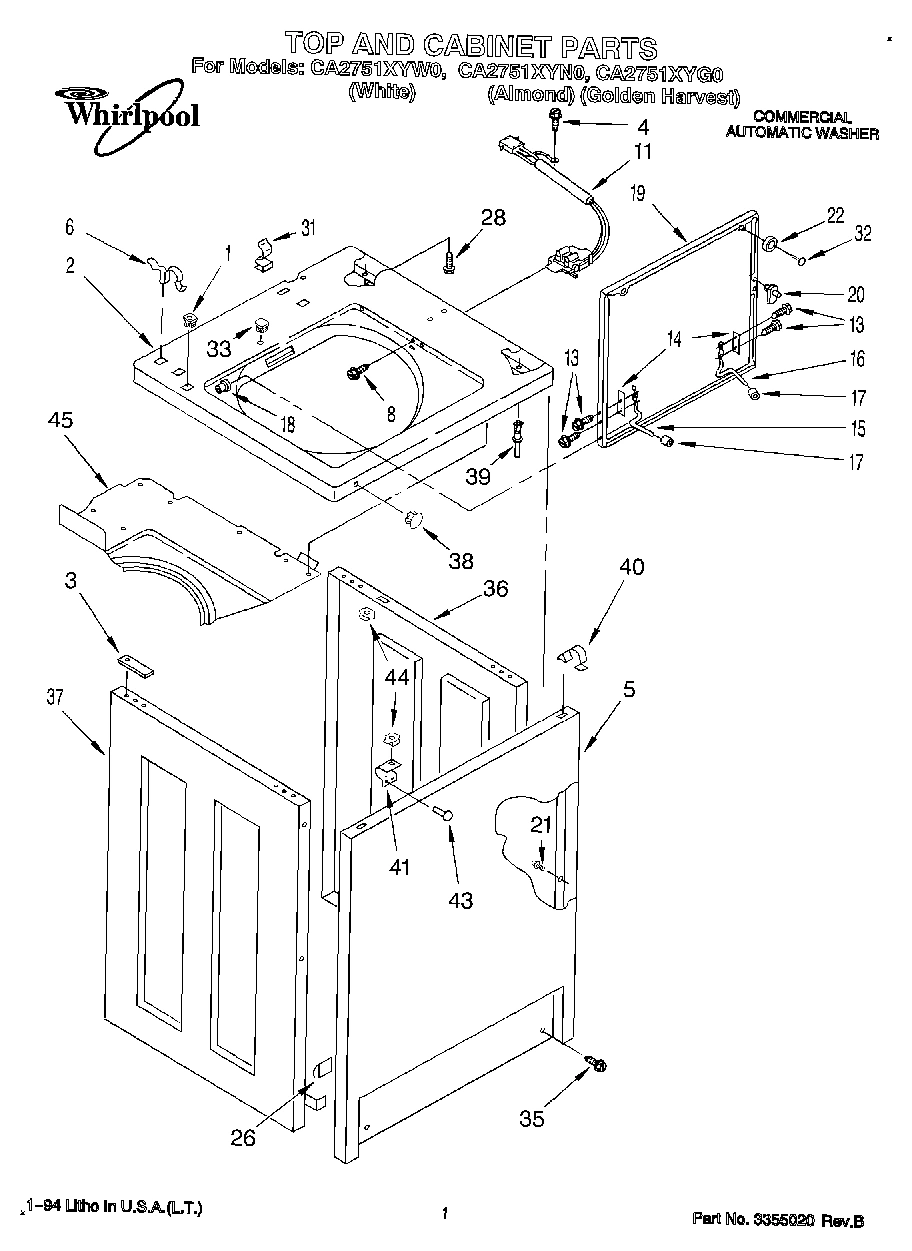

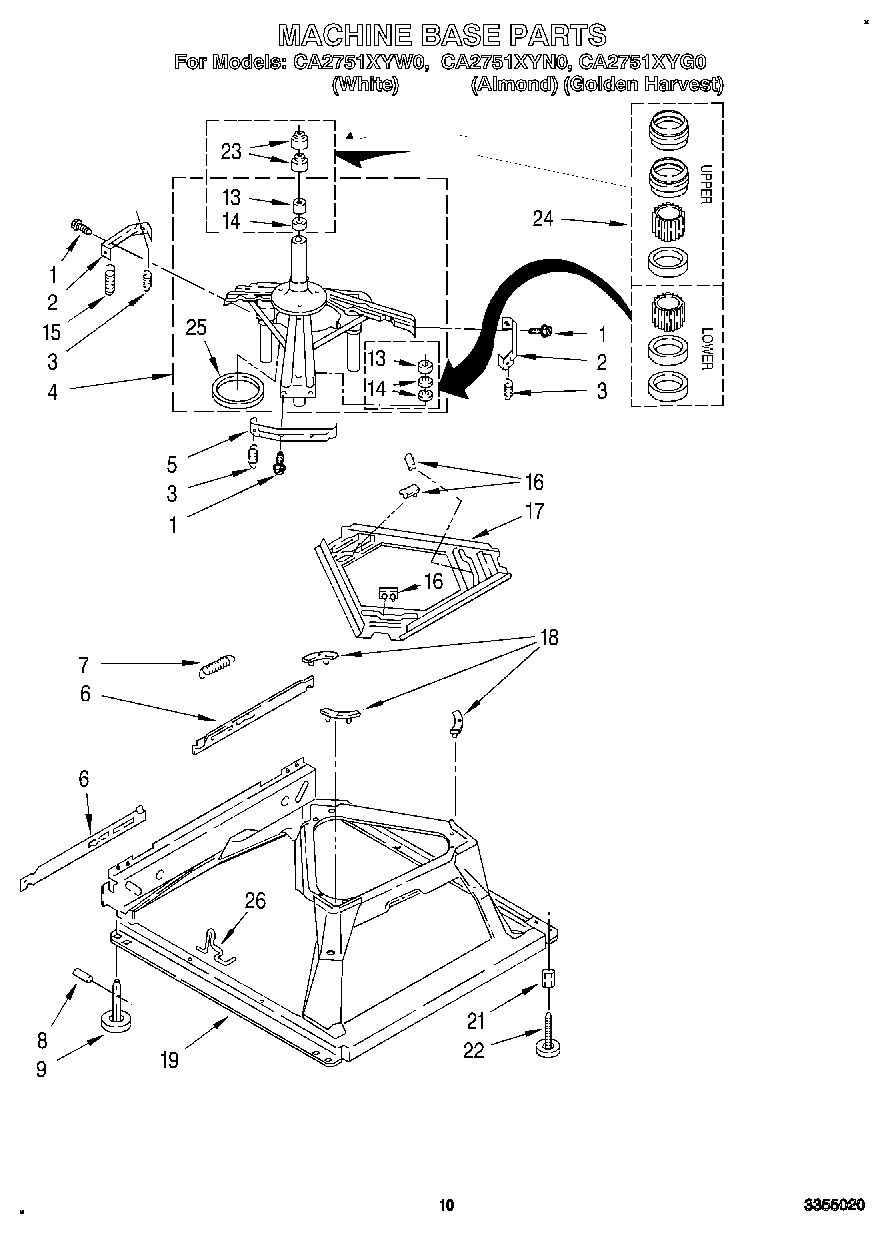

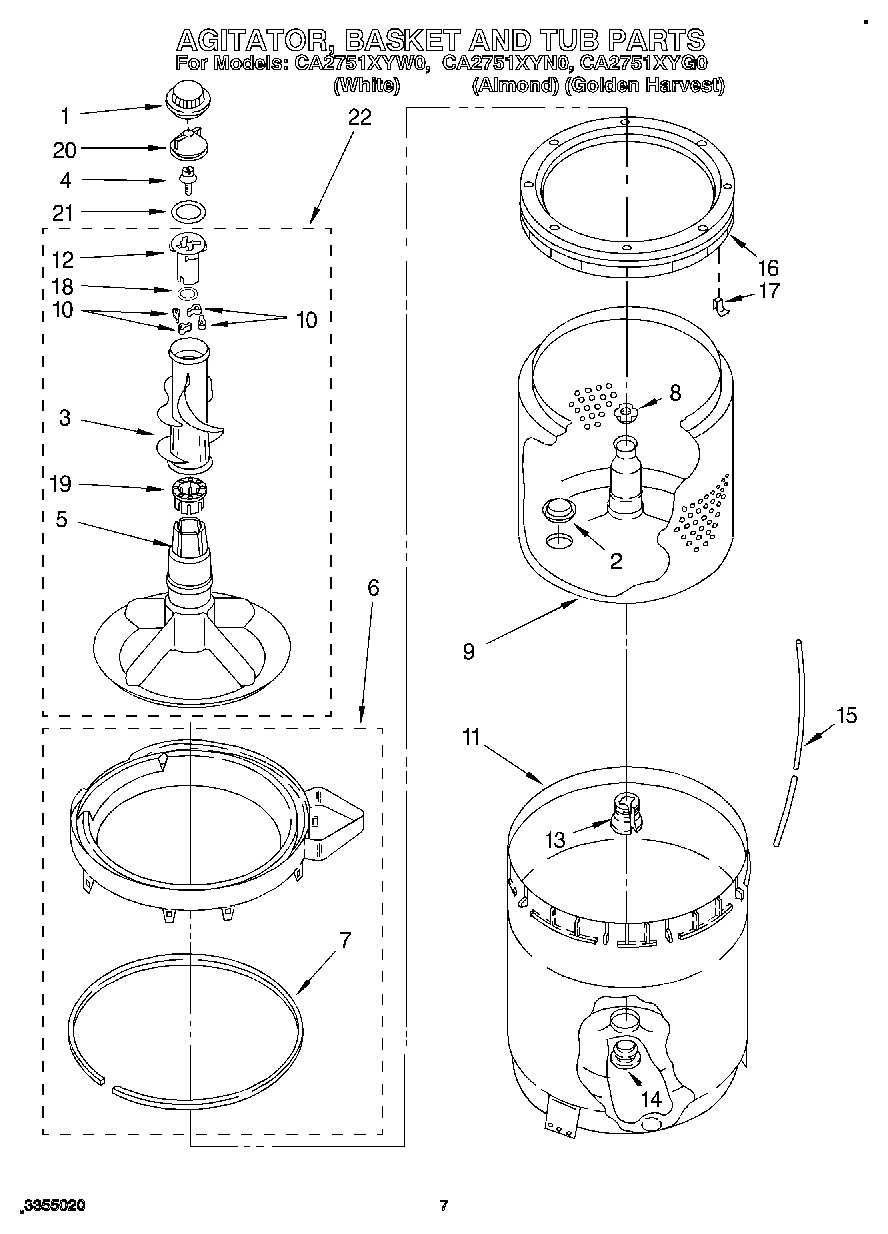

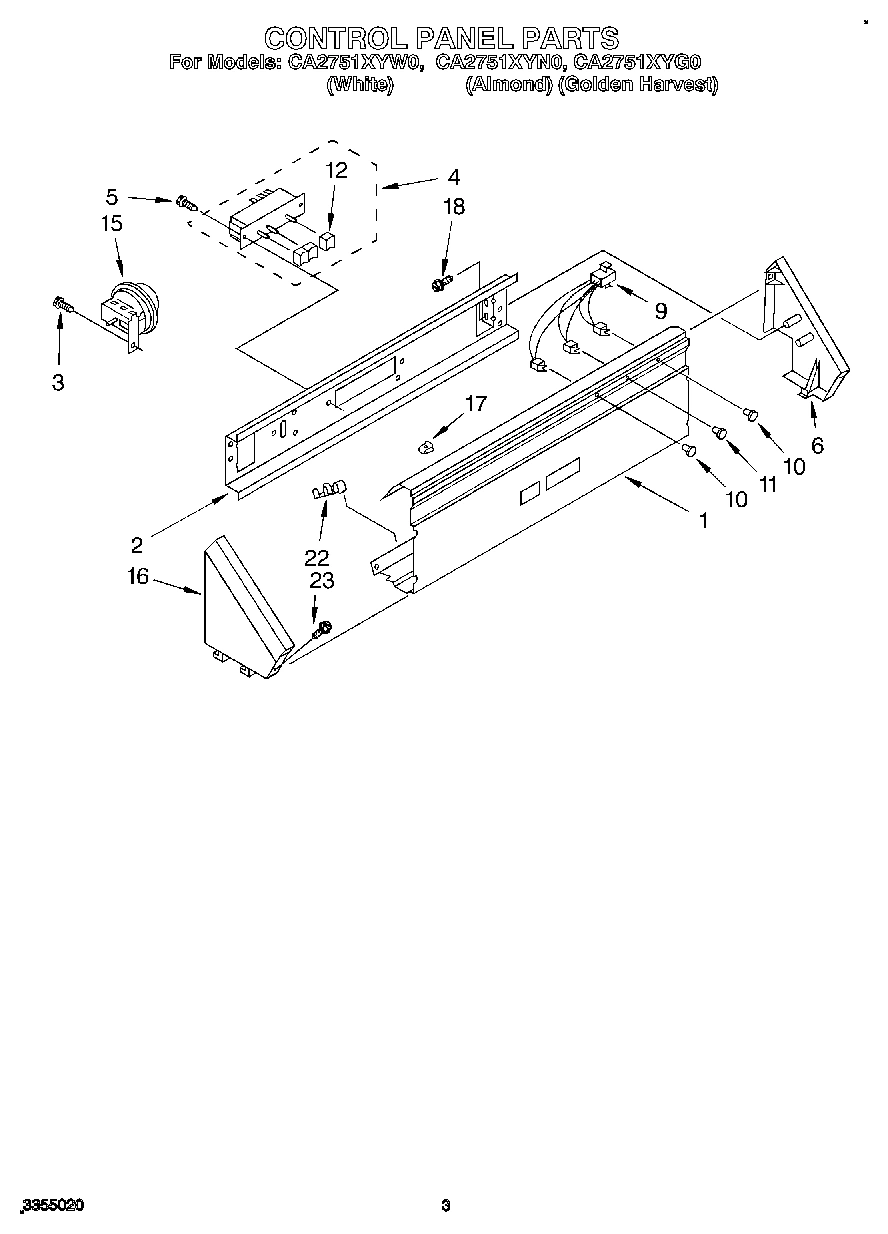

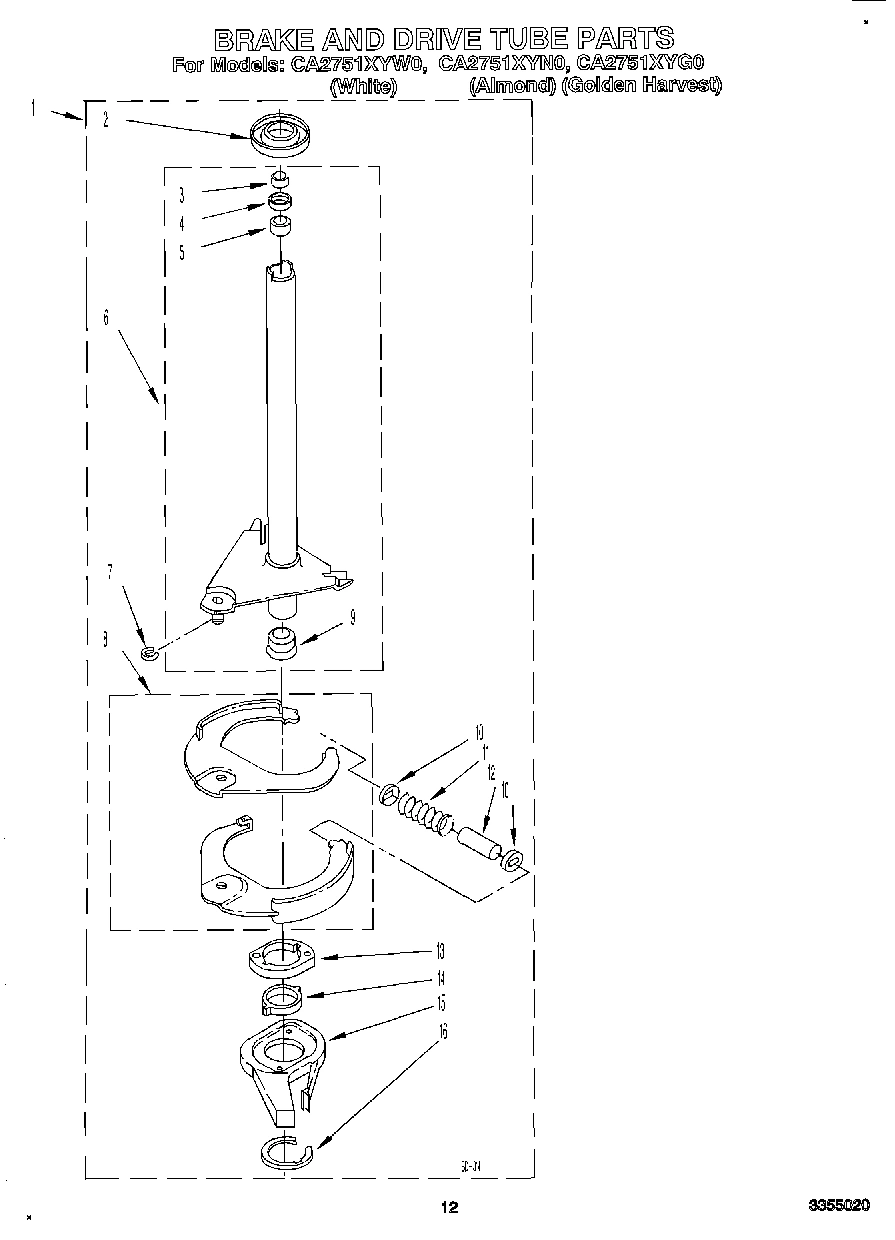

Model Whirlpool CA2751XYN0 WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPL 799344 WPL 799344 Contact Us For Availability

LUBRICANT (USE ONLY IN BRAKE SHOE ASSEMBLY ON WPL 285208 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Golden Harvest (Uncut) WPL 261891 Contact Us For Availability

Shipping Kit WPL 3348675 Contact Us For Availability

WPL 350941 WPL 350941 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3355020 WPL LIT3355020 Contact Us For Availability

WPL LIT3355024 WPL LIT3355024 Contact Us For Availability

WPL LIT3360613 WPL LIT3360613 Contact Us For Availability

1

285442 Whirlpool Coupling Backorder WPL 285442 $59.26

1

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.98

1

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

1

Nut, Push-In (2) WPL 358473 Contact Us For Availability

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

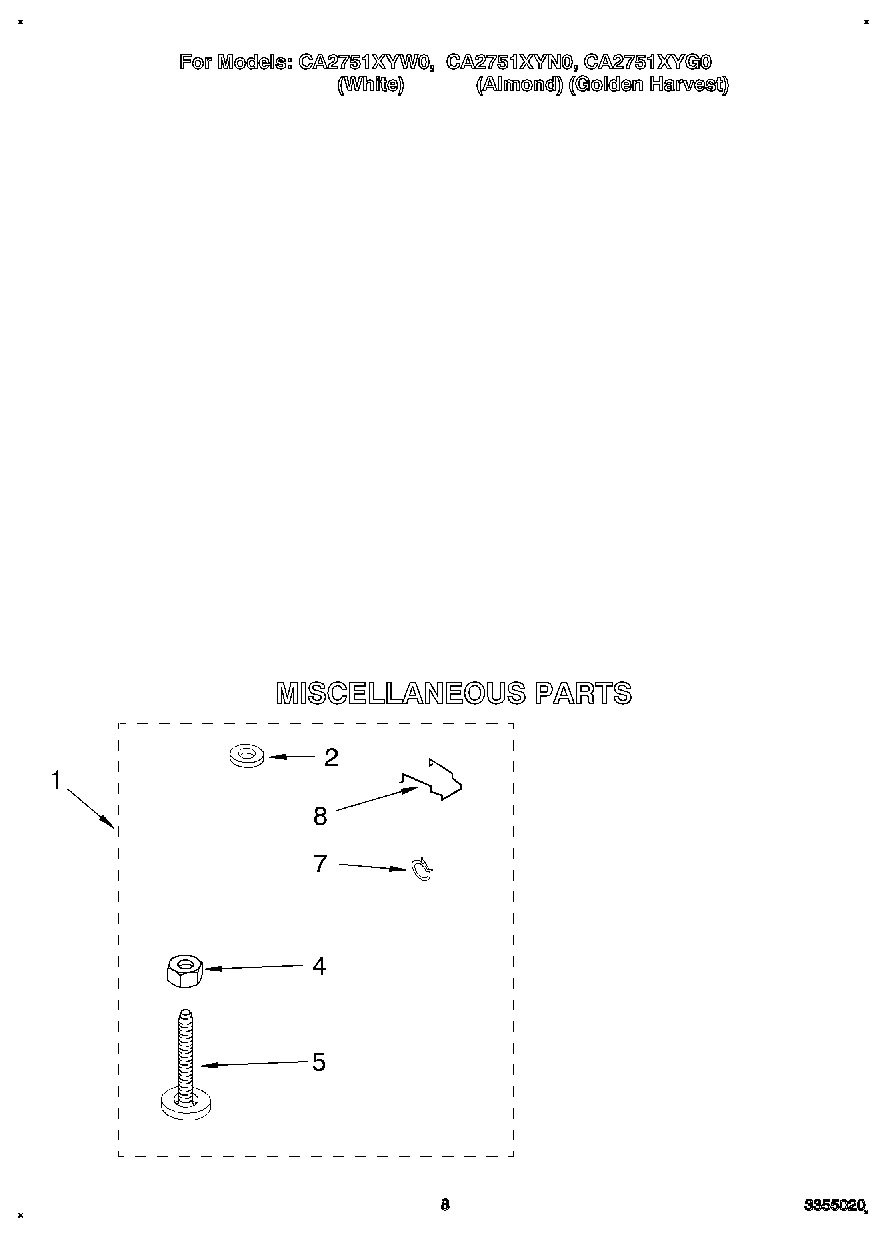

Miscellaneous Parts Bag WPL 3360623 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP385421 Whirlpool Washer Coin-Operated Laund In Stock WPL WP385421 $48.50

2

WP62658 Whirlpool Seal Ring Backorder WPL WP62658 $7.86

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

Top (White) WPL 3357346 Contact Us For Availability

2

Top (For Almond Model) WPL 3357347 Contact Us For Availability

2

Top (For Golden Harvest Model) WPL 3357348 Contact Us For Availability

3

339805 Whirlpool Screw Backorder WPL 339805 $8.89

3

W11676449 Whirlpool Agitator Mover Backorder WPL W11676449 $41.10

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

3

Spacer, Cabinet To Top (4) WPL 3353950 Contact Us For Availability

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

4

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

4

Support & Brake, Tub WPL 3362087 Contact Us For Availability

5

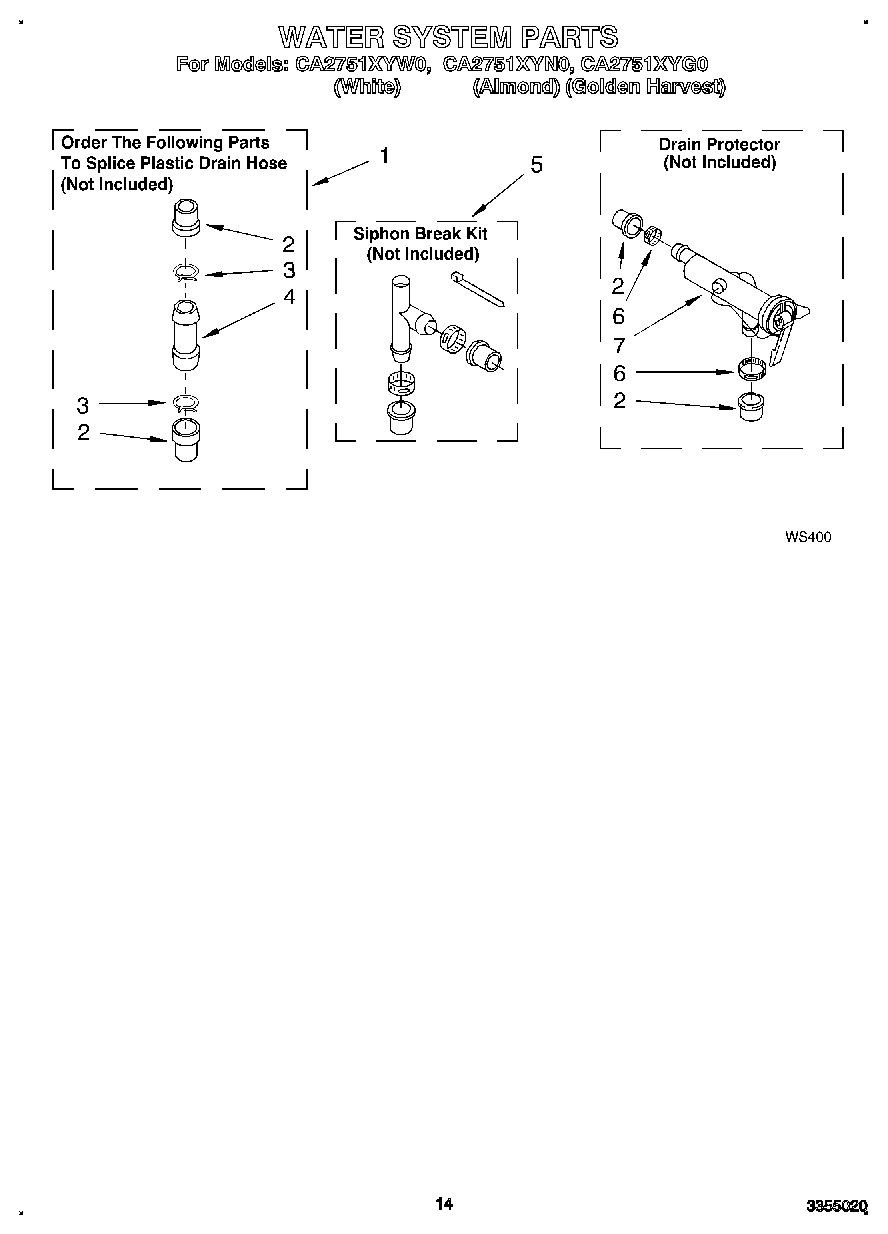

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

5

WP3358500 Whirlpool Panel Backorder WPL WP3358500 $204.99

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Spacer, Drive Tube WPL 356937 Contact Us For Availability

5

Panel, Front (For Almond Model) WPL 3358501 Contact Us For Availability

5

Panel, Front (For Golden Harvest Model) WPL 3358502 Contact Us For Availability

6

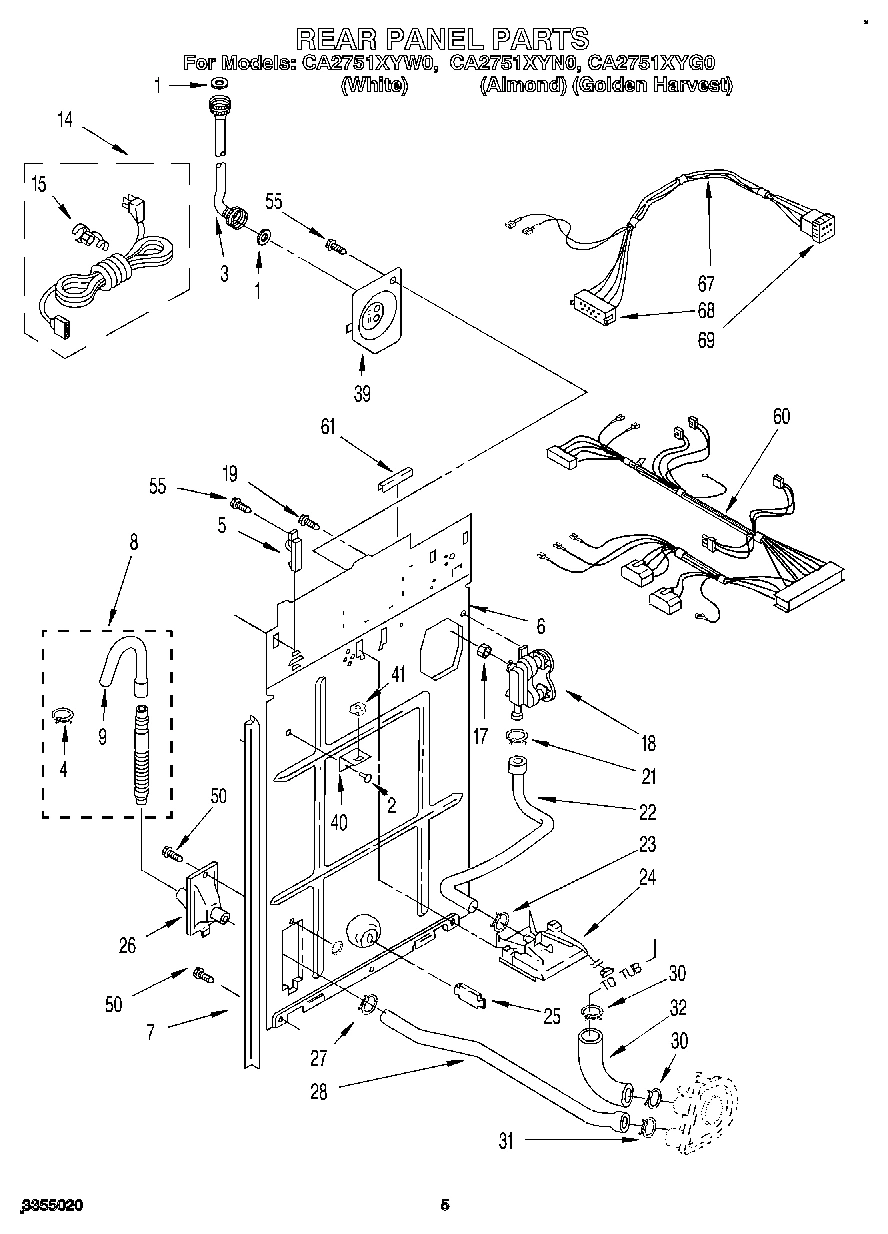

285929 Whirlpool Rear Panel Backorder WPL 285929 $215.07

6

W11715721 Whirlpool Screw Assembly Backorder WPL W11715721 $4.67

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

WP64208 Whirlpool Spin Tube Backorder WPL WP64208 $187.55

6

Tub Ring WPL 3360611 Contact Us For Availability

6

Link, Leveling Mechanism (2) WPL 3348727 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

W10083190 Whirlpool Ring-E Backorder WPL W10083190 $7.41

7

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

8

285438 Whirlpool Brake Shoe In Stock WPL 285438 $103.99

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.99

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.99

8

W11283272 Whirlpool Washer Dryer Access Door In Stock WPL W11283272 $85.93

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

8

Guide, Drawer WPL 355636 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $22.99

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

9

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $4.98

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

WP3348109 Whirlpool Light Lens In Stock WPL WP3348109 $8.72

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

Spring, Agitator WPL 62676 Contact Us For Availability

285671 Whirlpool Lid Switch Assembly In Stock WPL 285671 $28.99

353424 Whirlpool Connector Backorder WPL 353424 $14.02

WP3348110 Whirlpool Light Lens In Stock WPL WP3348110 $5.99

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $4.55

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

Tub WPL 63125 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP3355023 Whirlpool Timer Backorder WPL WP3355023 $267.93

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Pushbutton (3) WPL 3348587 Contact Us For Availability

13

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

13

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

285928 Whirlpool Power Cord Assembly Backorder WPL 285928 $93.66

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.63

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $6.50

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

Clutch, Timer WPL 385571 Contact Us For Availability

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $33.99

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.99

Strain Relief, Power Cord To Rear Panel WPL 62733 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $22.76

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

3347825 Whirlpool Plate Backorder WPL 3347825 $4.67

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $5.99

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Nut, Push-In (2) WPL 689559 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.99

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $36.94

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

Seal, Agitator WPL 64002 Contact Us For Availability

WPW10193854 Whirlpool Lid Assembly Backorder WPL WPW10193854 $236.76

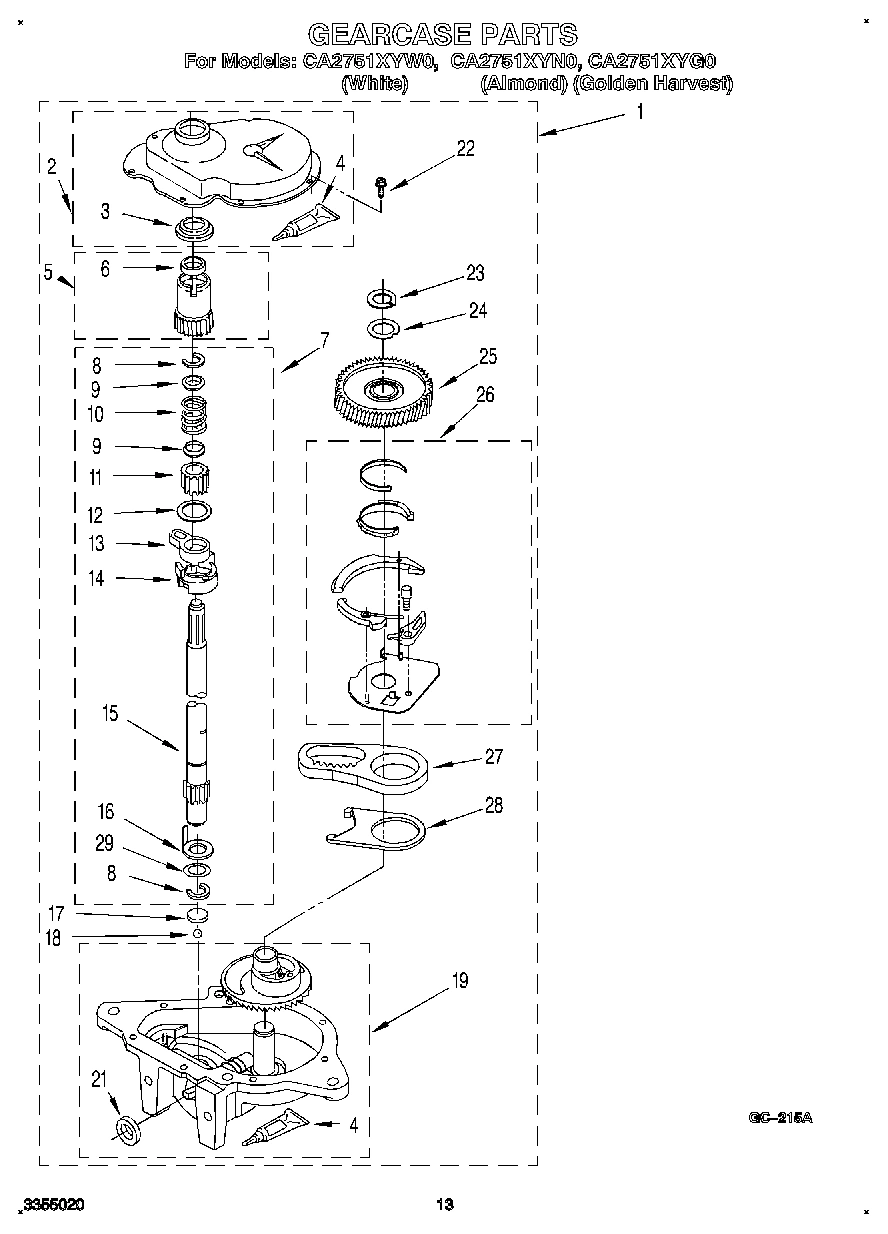

Bottom and Pinion, Gearcase WPL 389229 Contact Us For Availability

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3359886 Contact Us For Availability

Lid (For Almond Model) WPL 3360832 Contact Us For Availability

Lid (Golden Harvest) WPL 3360833 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

21

Locator (4) WPL 3366900 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

BUMPER WPL 356908 Contact Us For Availability

23

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.99

23

Ring, Retaining WPL 95082 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

24

Washer Kit, Thrust WPL 285292 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

WP98234 Whirlpool Nut In Stock WPL WP98234 $5.99

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $6.57

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.99

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

28

WP3348552 Whirlpool Hose In Stock WPL WP3348552 $50.83

28

Screw (2) WPL 3353993 Contact Us For Availability

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

32

WP356907 Whirlpool Rivet Backorder WPL WP356907 $4.82

33

Stop, Push-In Top WPL 358472 Contact Us For Availability

35

WP3373329 Whirlpool Dishwasher Screw Backorder WPL WP3373329 $4.82

36

Panel, R. H. (White) WPL 3353708 Contact Us For Availability

36

Panel, R. H. (Almond) WPL 3353709 Contact Us For Availability

36

Panel, R. H. (Golden Harvest) WPL 3353710 Contact Us For Availability

37

Panel, L. H. (White) WPL 3353714 Contact Us For Availability

37

Panel, L. H. (Almond) WPL 3353715 Contact Us For Availability

37

Panel, L. H. (For Golden Harvest Model) WPL 3353716 Contact Us For Availability

38

PLUG LOCK WPL 387371 Contact Us For Availability

39

285930 Whirlpool Plate Backorder WPL 285930 $49.94

39

Pin, Locator (2) WPL 3353949 Contact Us For Availability

40

WP18776 Whirlpool Lock In Stock WPL WP18776 $11.99

40

Bracket, Top Lock WPL 3347824 Contact Us For Availability

41

Bracket, Lock WPL 3353948 Contact Us For Availability

43

Rivet (2) WPL 63554 Contact Us For Availability

44

WP90406 Whirlpool Nut Backorder WPL WP90406 $4.55

45

Shield, Lid Switch WPL 3357851 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

60

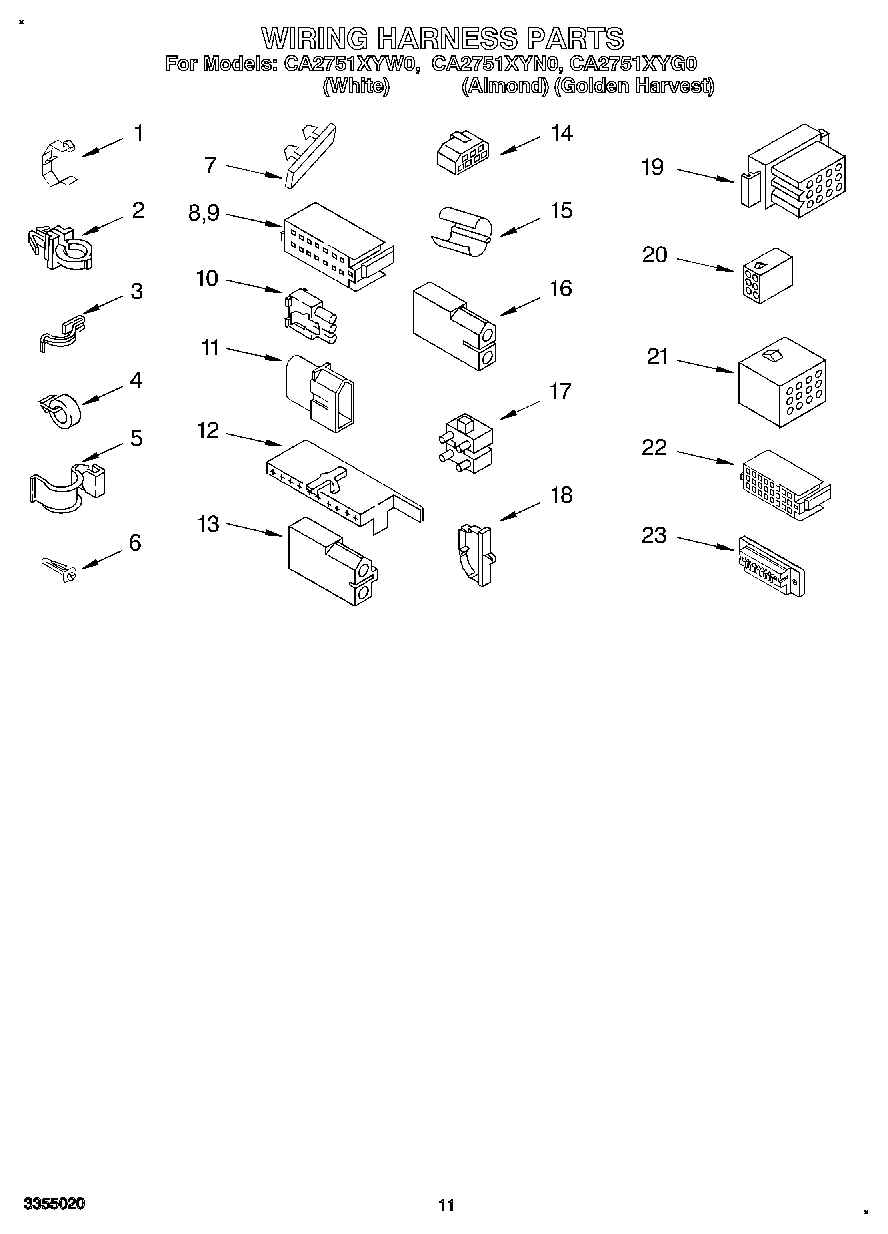

Harness, Wiring (For Detail See Wiring Harnes WPL 3359813 Contact Us For Availability

61

Edge Protector WPL 303294 Contact Us For Availability

67

Harness, Timer (Includes Illus. 68 & 69) WPL 3355804 Contact Us For Availability

68

W10876590 Whirlpool Connector In Stock WPL W10876590 $7.85

69

Cap, Terminal WPL 96895 Contact Us For Availability
