Model Maytag ASI2275FRS00 REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams

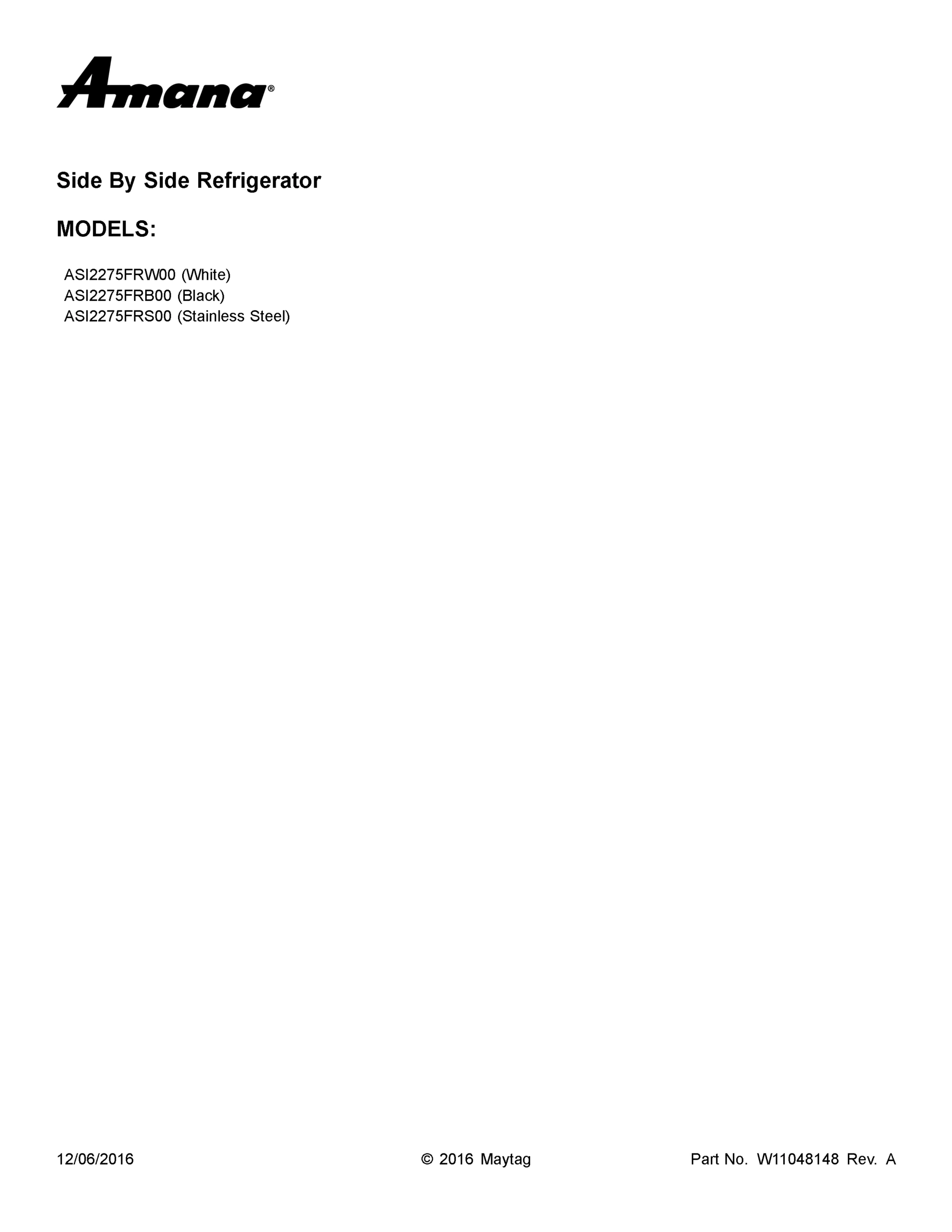

01 - COVER SHEET

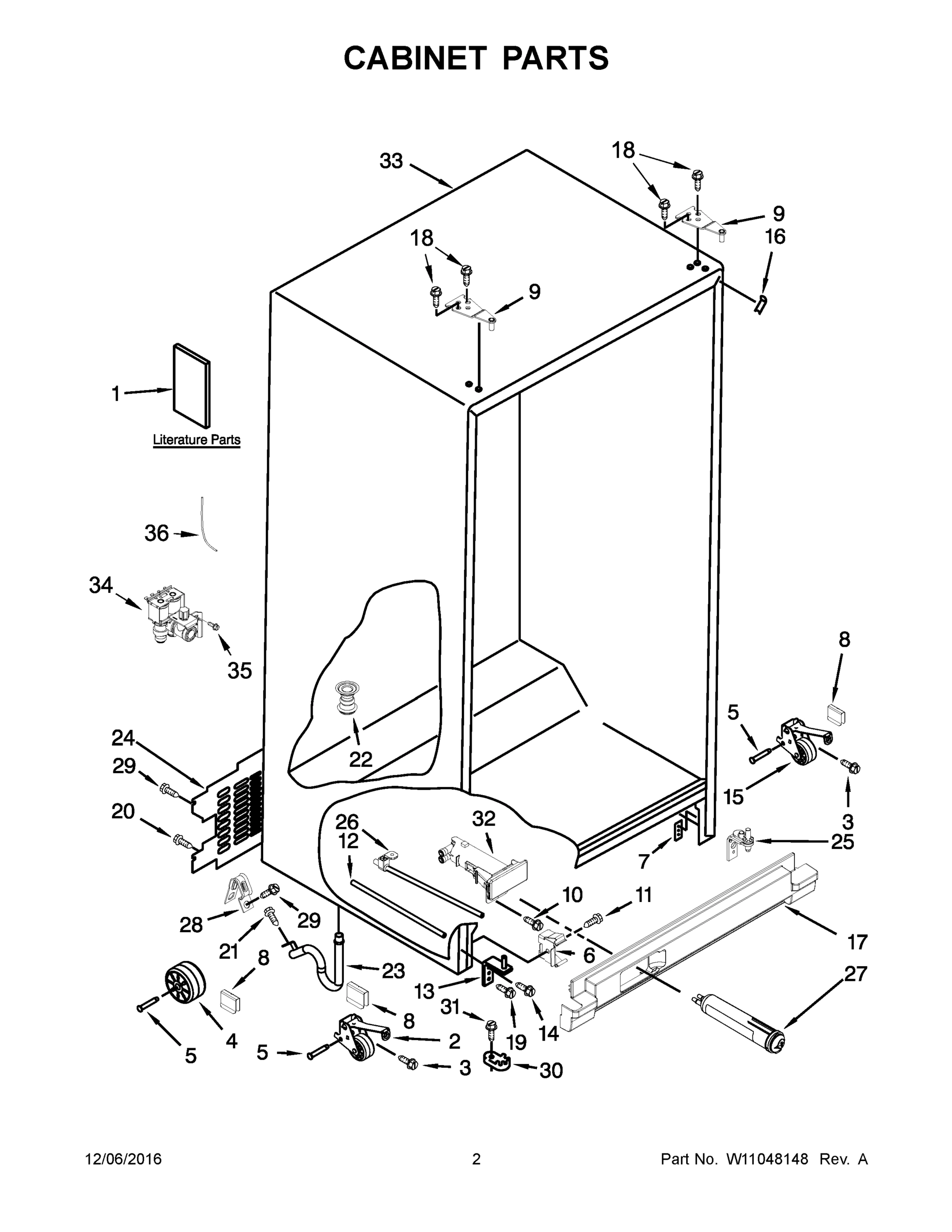

02 - CABINET PARTS

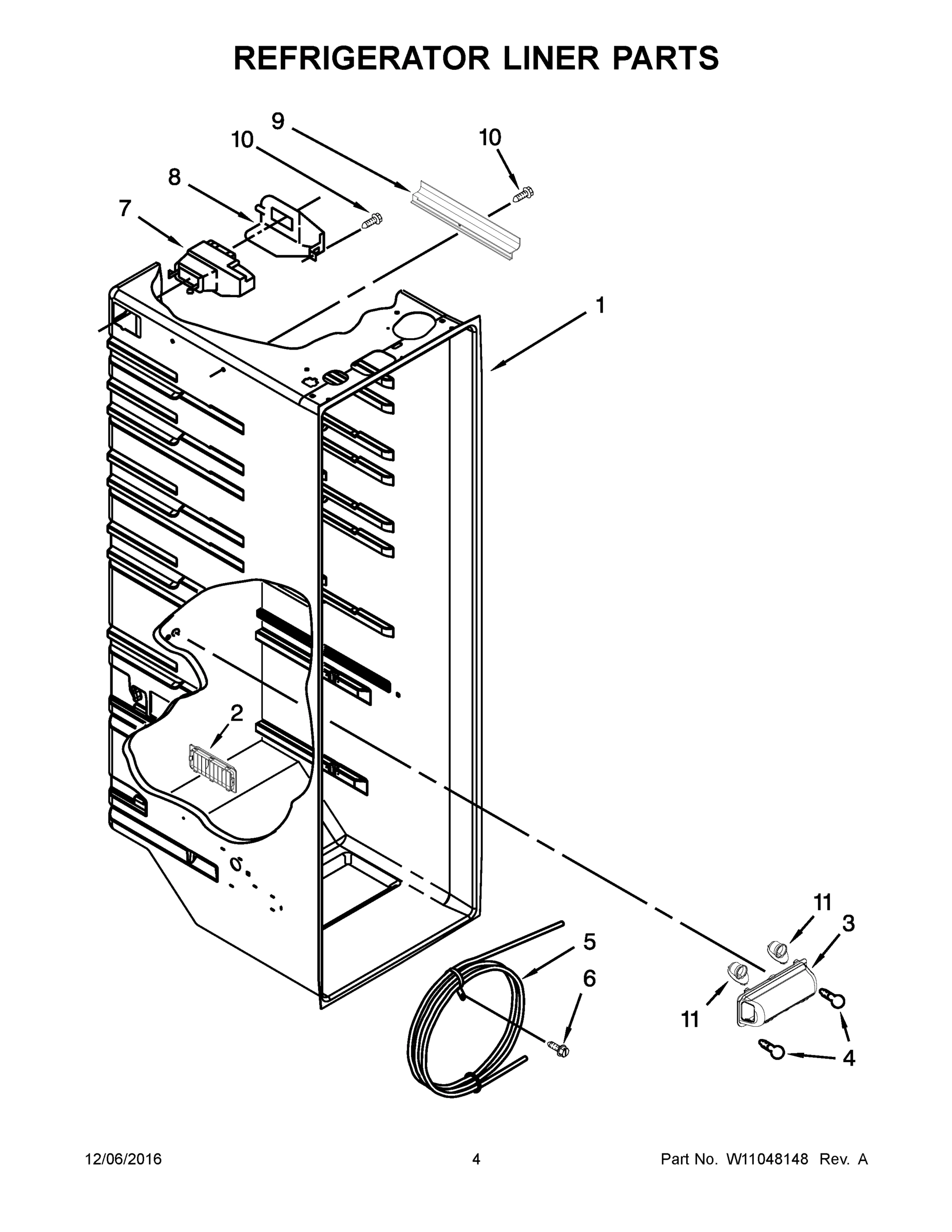

03 - REFRIGERATOR LINER PARTS

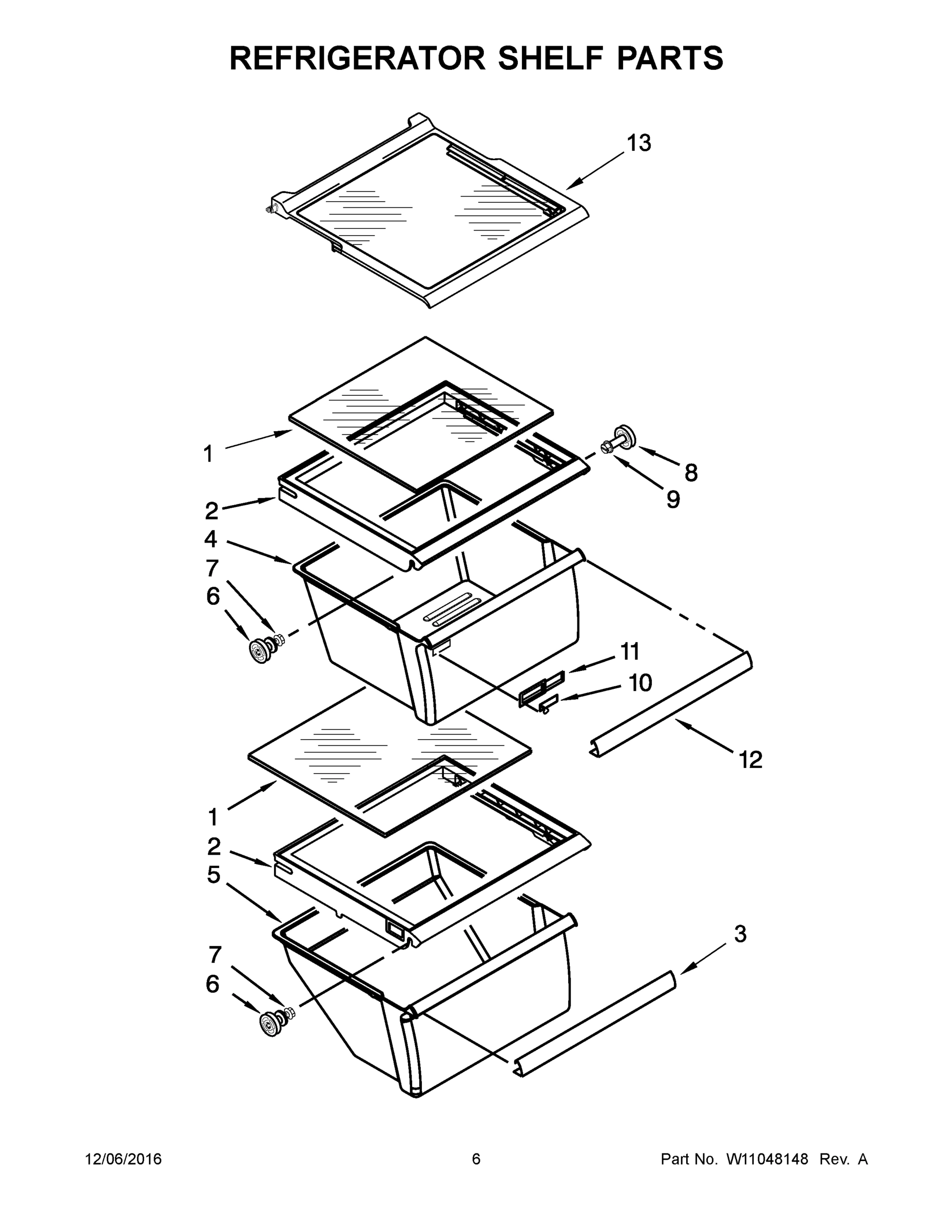

04 - REFRIGERATOR SHELF PARTS

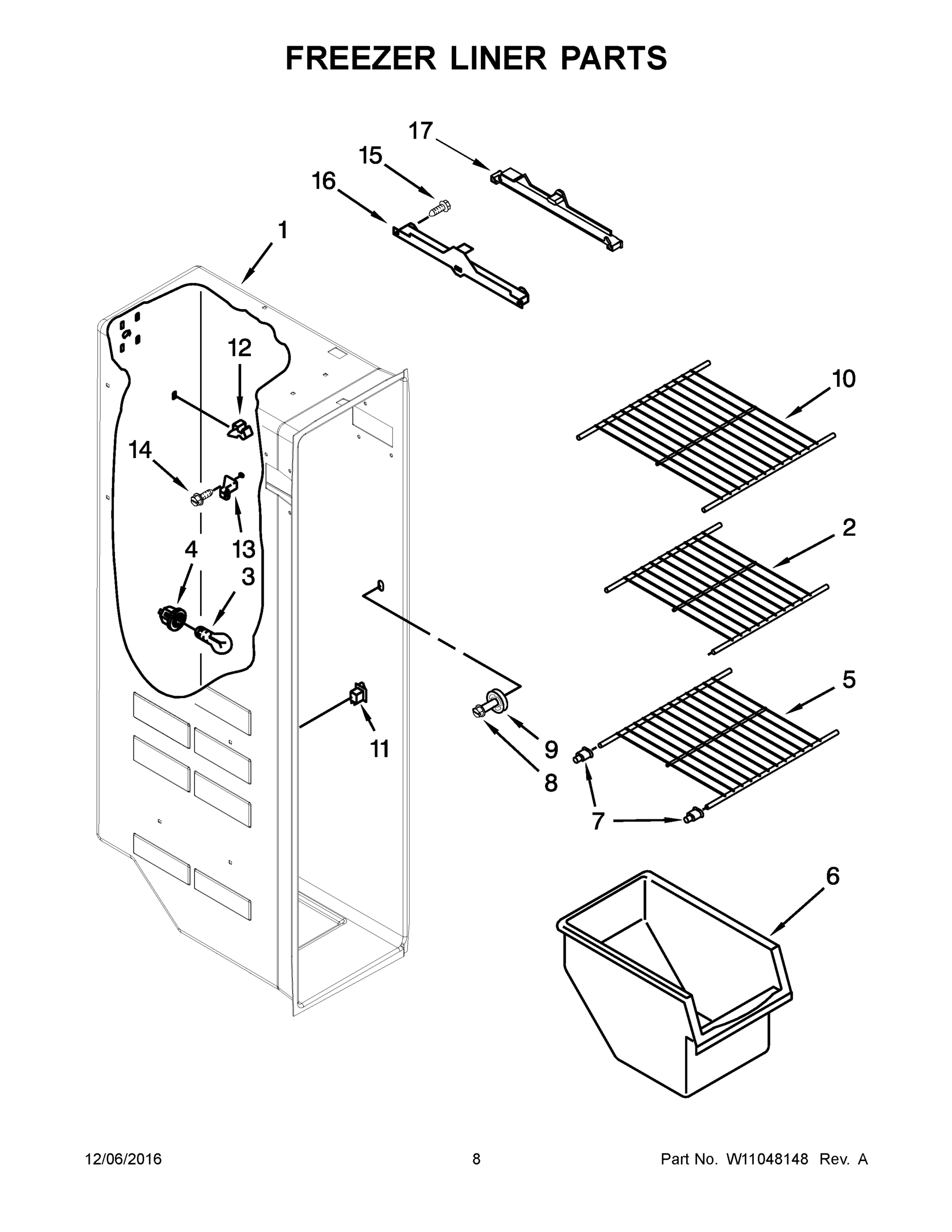

05 - FREEZER LINER PARTS
06 - MOTOR AND ICE CONTAINER PARTS

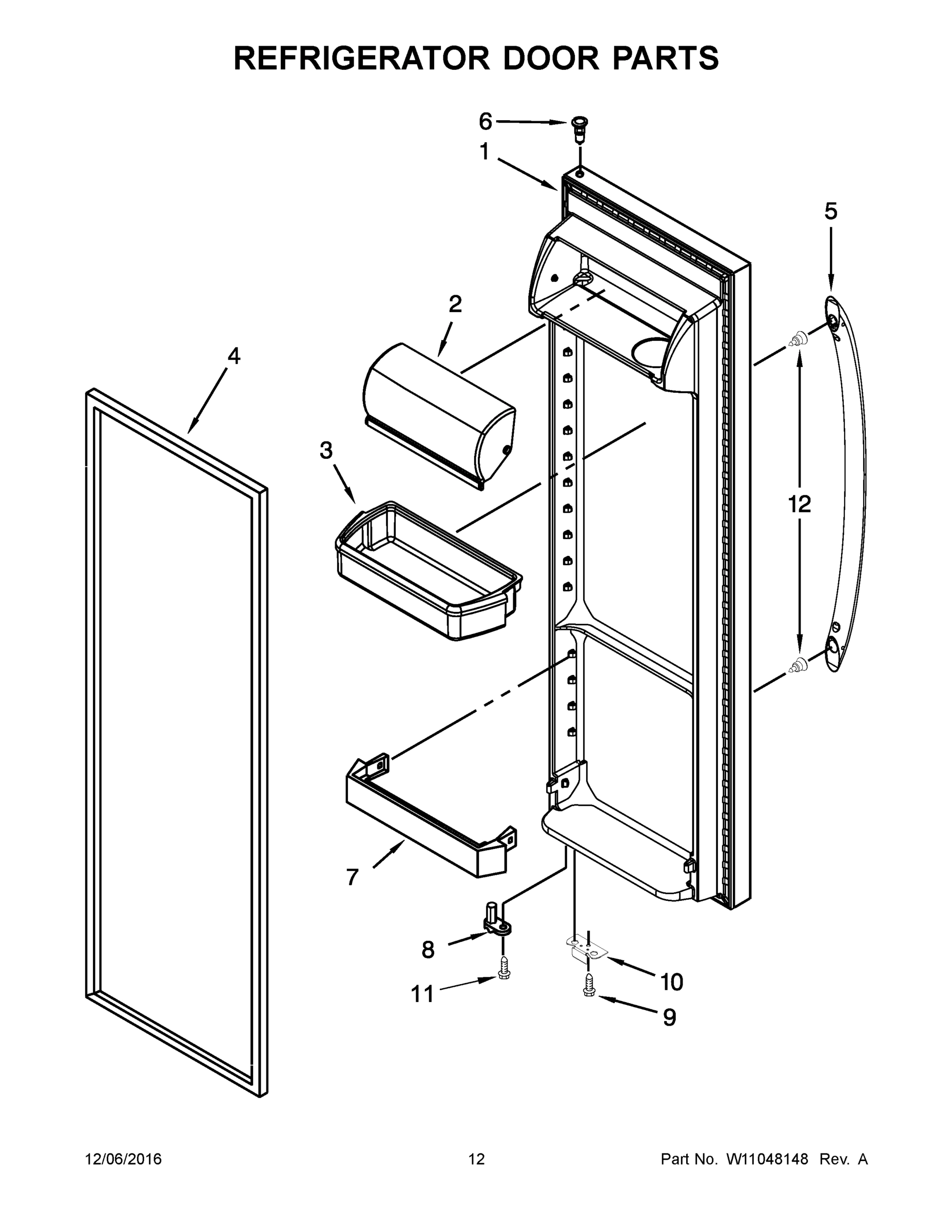

07 - REFRIGERATOR DOOR PARTS

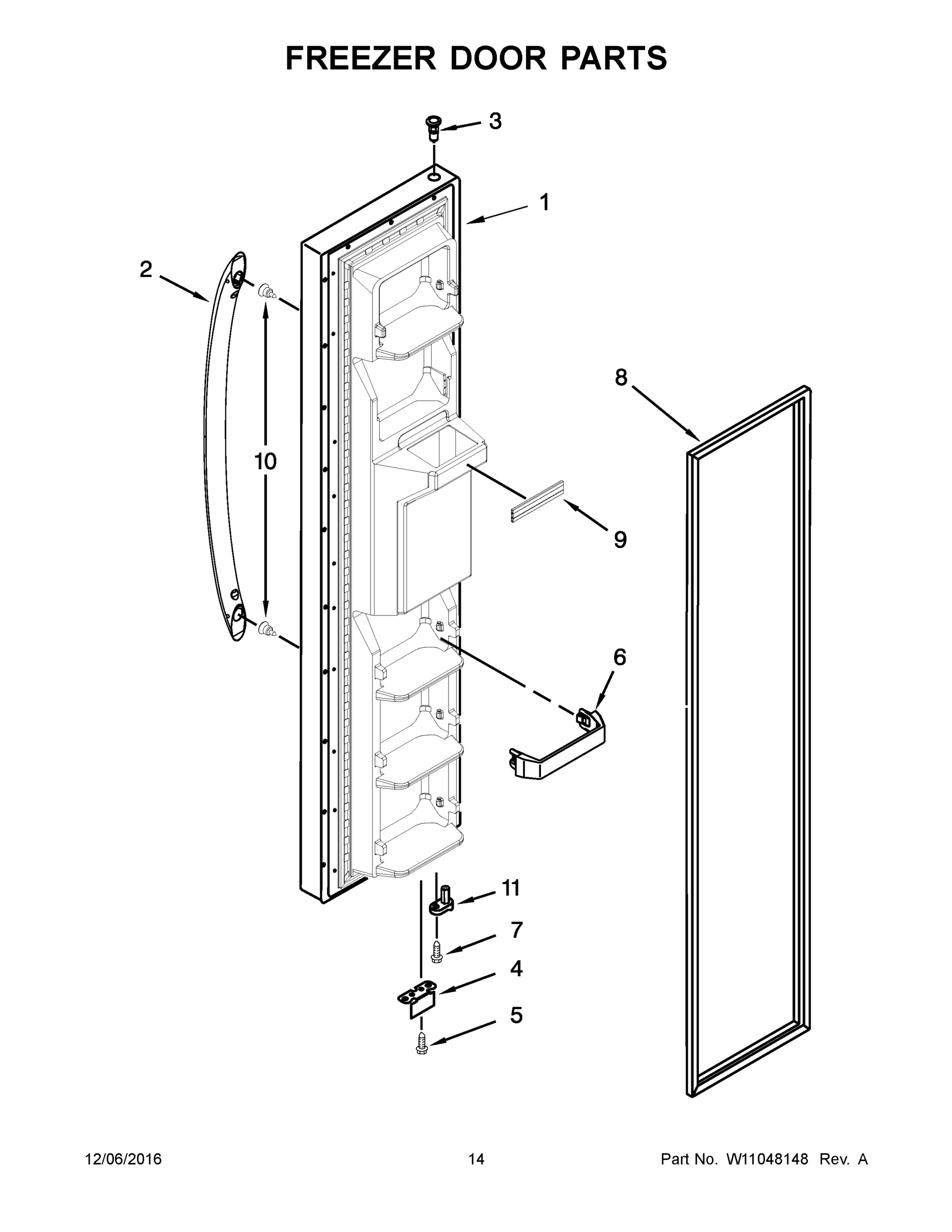

08 - FREEZER DOOR PARTS

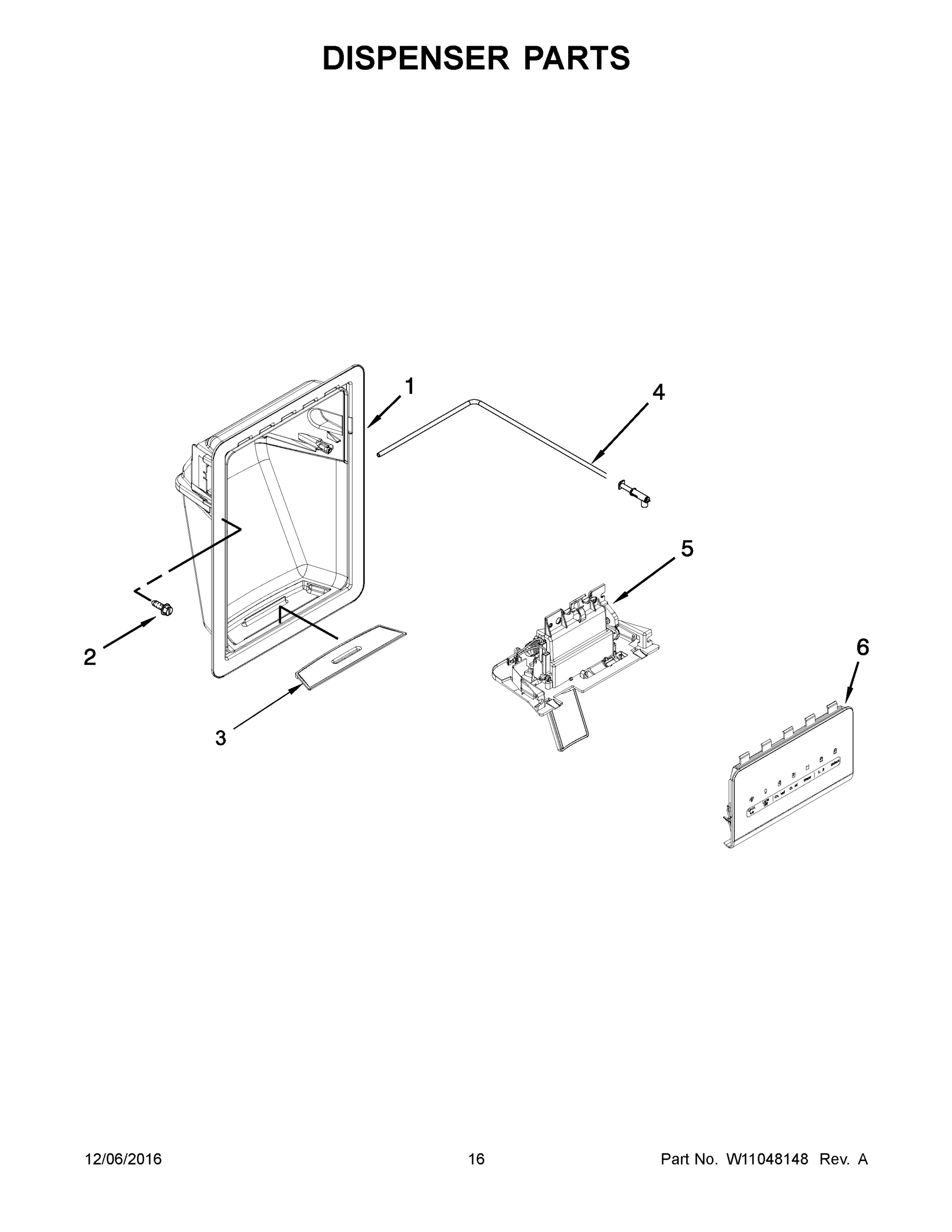

09 - DISPENSER PARTS

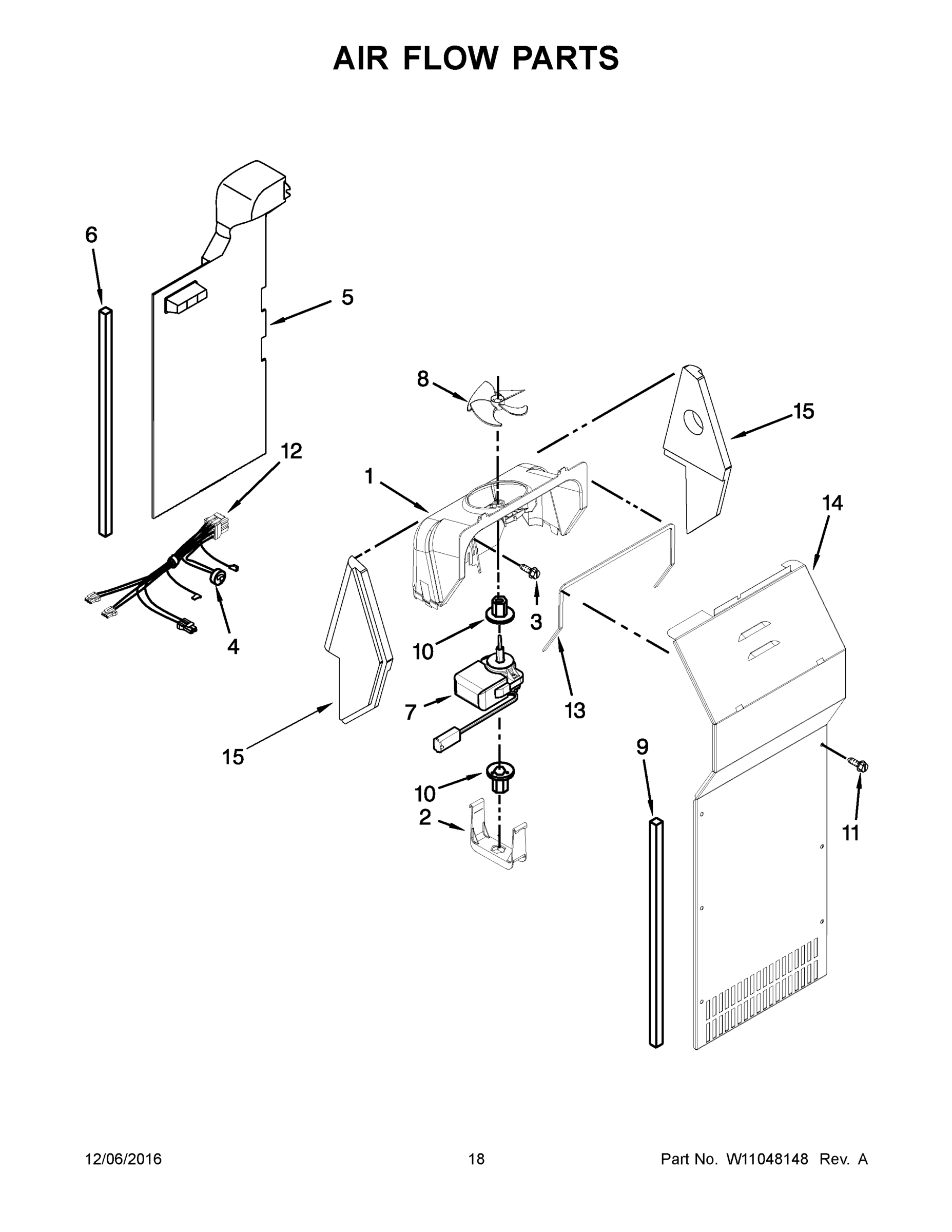

10 - AIR FLOW PARTS

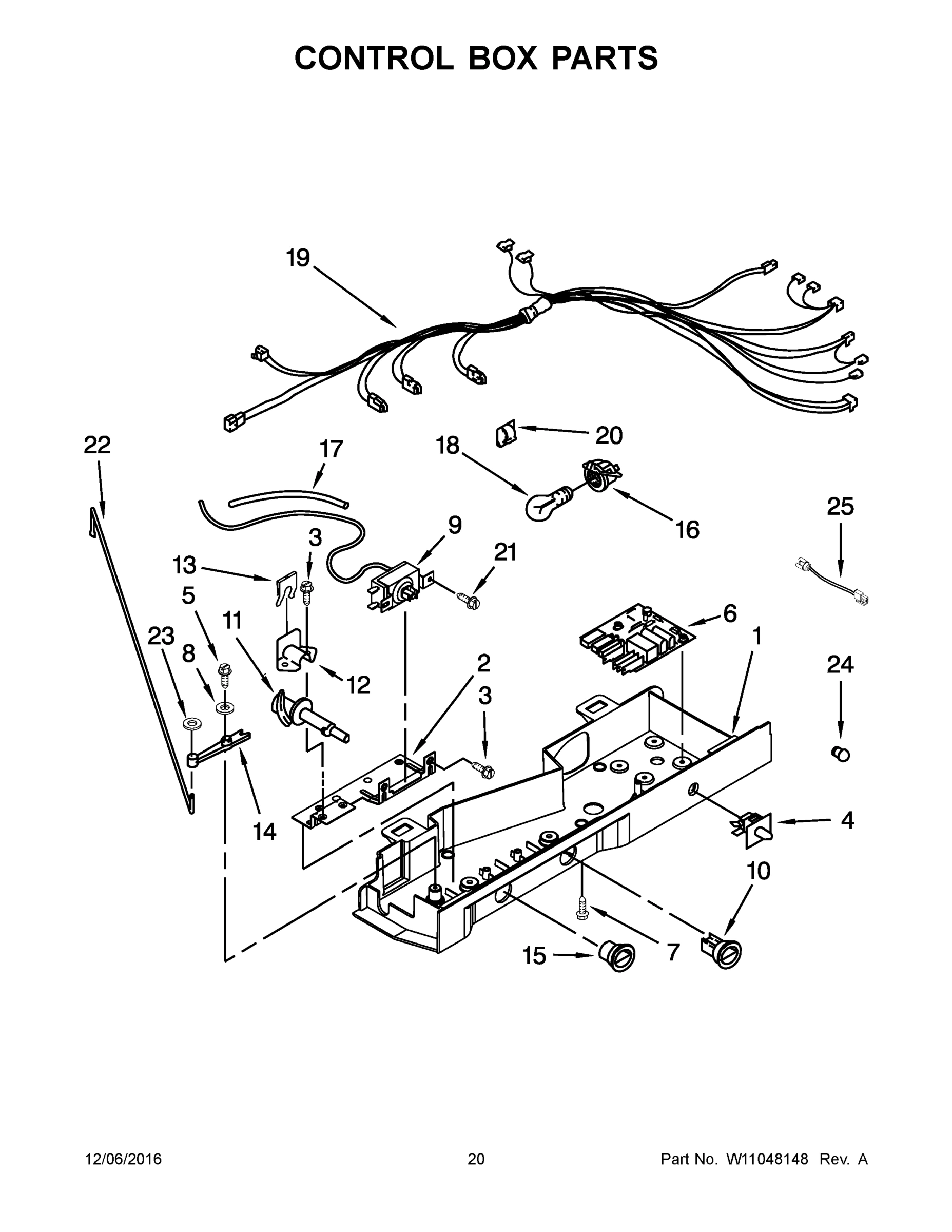

11 - CONTROL BOX PARTS

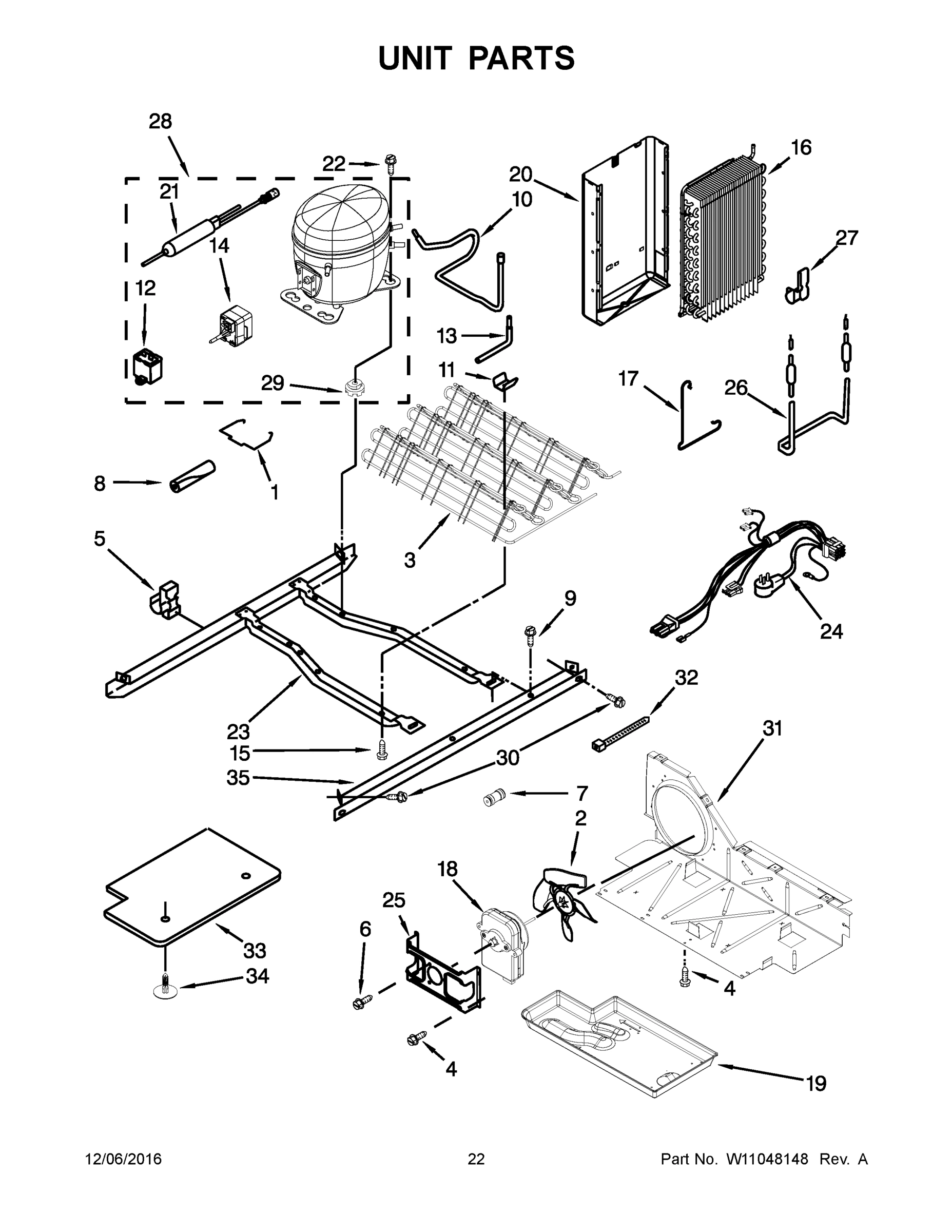

12 - UNIT PARTS
13 - OPTIONAL PARTS
Common parts from model Maytag ASI2275FRS00 REFRIGERATOR, SIDE-BY-SIDE
1
MAY W10452514 MAY W10452514 Contact Us For Availability
1
MAY 2179259 MAY 2179259 Contact Us For Availability
1
MAY W10284487 MAY W10284487 Contact Us For Availability
1
MAY W10428790 MAY W10428790 Contact Us For Availability
1
MAY W10877606 MAY W10877606 Contact Us For Availability
1
SCROLL, FAN MAY 2182119 Contact Us For Availability
1
MAY W10482525 MAY W10482525 Contact Us For Availability
1
STRAP, BALE MAY 2212996 Contact Us For Availability
1A
MAY W10568358 MAY W10568358 Contact Us For Availability
1A
REFRIGERATOR DOOR (INCLUDES ITEM 4) (BLACK) MAY W10750030 Contact Us For Availability
1A
MAY W10877602 MAY W10877602 Contact Us For Availability
1B
MAY W10624266 MAY W10624266 Contact Us For Availability
1B
MAY W10590563 MAY W10590563 Contact Us For Availability
1B
MAY W10877603 MAY W10877603 Contact Us For Availability
2
ROLLER ASSEMBLY (LEFT HAND) MAY W10304660 Contact Us For Availability
2
MAY W10550195 MAY W10550195 Contact Us For Availability
2
MAY W10797580 MAY W10797580 Contact Us For Availability
2
SHELF, WIRE (SHORT) MAY W10318960 Contact Us For Availability
2
MAY W10317991 MAY W10317991 Contact Us For Availability
2
DOOR, COMPARTMENT MAY 2256101 Contact Us For Availability
2
MAY W10210942 MAY W10210942 Contact Us For Availability
2
MAY W10188846 MAY W10188846 Contact Us For Availability
2
BRACKET, MOUNTING MAY 2311611 Contact Us For Availability
2
MAY W10817071 MAY W10817071 Contact Us For Availability
2A
HANDLE (BLACK) MAY W10210943 Contact Us For Availability
2B
MAY W10257120 MAY W10257120 Contact Us For Availability
3
MAY 2152958 MAY 2152958 Contact Us For Availability
3
LENS, LIGHT MAY W10166019 Contact Us For Availability
3
MAY W10630548 MAY W10630548 Contact Us For Availability
3
ASSEMBLY, SOLENOID MAY 2152713 Contact Us For Availability
3
DOOR BIN MAY 2187172 Contact Us For Availability
3
THIMBLE MAY 2182181 Contact Us For Availability
3
SCREW MAY 3196537 Contact Us For Availability
3
MAY W10397392 MAY W10397392 Contact Us For Availability
3
MAY 489478 MAY 489478 Contact Us For Availability
3
MAY 2324712 MAY 2324712 Contact Us For Availability
3A
MAY W10397394 MAY W10397394 Contact Us For Availability
4
MAY W10475495 MAY W10475495 Contact Us For Availability
4
MAY 489464 MAY 489464 Contact Us For Availability
4
MAY W10178772 MAY W10178772 Contact Us For Availability
4
GASKET, DOOR (BEIGE) MAY 2309600 Contact Us For Availability
4
MAY 2306940 MAY 2306940 Contact Us For Availability
4
ASSEMBLY, WATER FITTING MAY W10397435 Contact Us For Availability
4
MAY W10225581 MAY W10225581 Contact Us For Availability
4
SWITCH, LIGHT MAY 2219875 Contact Us For Availability
4A
GASKET, DOOR (BLACK) MAY 2309653 Contact Us For Availability
5
AXLE, ROLLER MAY 2262072 Contact Us For Availability
5
MAY W10276792 MAY W10276792 Contact Us For Availability
5
PAN, MEAT MAY 2188654 Contact Us For Availability
5
MAY W10318952 MAY W10318952 Contact Us For Availability
5
MAY 489420 MAY 489420 Contact Us For Availability
5
MAY W10818871 MAY W10818871 Contact Us For Availability
5
DUCT, FREEZER AIR MAY W10166220 Contact Us For Availability
5
MAY 627068 MAY 627068 Contact Us For Availability
5
MAY 2326941 MAY 2326941 Contact Us For Availability
5A
MAY W10845114 MAY W10845114 Contact Us For Availability
6
MAY 2155013 MAY 2155013 Contact Us For Availability
6
SCREW MAY 488280 Contact Us For Availability
6
ASSEMBLY, SHELF STUD MAY W10173126 Contact Us For Availability
6
MAY 2309758 MAY 2309758 Contact Us For Availability
6
MAY W10298069 MAY W10298069 Contact Us For Availability
6
TRIM, DOOR MAY 2309717 Contact Us For Availability
6
MAY W10869819 MAY W10869819 Contact Us For Availability
6
MAY W10252476 MAY W10252476 Contact Us For Availability
6
CONTROL, ADAPTIVE DEFROST MAY W10366605 Contact Us For Availability
6
MAY 8533993 MAY 8533993 Contact Us For Availability
7
MAY 2304249 MAY 2304249 Contact Us For Availability
7
ASSEMBLY, AIR DIFFUSER MAY W10151374 Contact Us For Availability
7
MAY W10191954 MAY W10191954 Contact Us For Availability
7
CUP, SHELF MAY W10130299 Contact Us For Availability
7
MAY 489399 MAY 489399 Contact Us For Availability
7
TRIVET MAY 2309941 Contact Us For Availability
7
MAY 3400012 MAY 3400012 Contact Us For Availability
7
MAY W10236142 MAY W10236142 Contact Us For Availability
7
SCREW MAY 489398 Contact Us For Availability
7
CONNECTOR, UNION MAY W10271541 Contact Us For Availability
8
CLIP, ROLLER MAY 2174706 Contact Us For Availability
8
MAY 2152019 MAY 2152019 Contact Us For Availability
8
MAY W10191952 MAY W10191952 Contact Us For Availability
8
MAY W10169511 MAY W10169511 Contact Us For Availability
8
THIMBLE, CAM MAY 2182178 Contact Us For Availability
8
GASKET, DOOR (BEIGE) MAY 2309604 Contact Us For Availability
8
MAY 2169142 MAY 2169142 Contact Us For Availability
8
MAY W10657618 MAY W10657618 Contact Us For Availability
8
MAY 2161302 MAY 2161302 Contact Us For Availability
8A
GASKET, DOOR (BLACK) MAY 2309654 Contact Us For Availability
9
HINGE, TOP (WHITE) MAY W10704885 Contact Us For Availability
9
COVER, WIRING MAY W10252495 Contact Us For Availability
9
ASSEMBLY, SHELF STUD MAY W10173127 Contact Us For Availability
9
LENS, LIGHT MAY 2171706 Contact Us For Availability
9
MAY W10307492 MAY W10307492 Contact Us For Availability
9
GASKET MAY 2304241 Contact Us For Availability
9
MAY W10583801 MAY W10583801 Contact Us For Availability
9
MAY 489427 MAY 489427 Contact Us For Availability
9A
HINGE, TOP (BLACK) MAY W10704884 Contact Us For Availability
10
MAY 489500 MAY 489500 Contact Us For Availability
10
MAY 486298 MAY 486298 Contact Us For Availability
10
MAY 2179342 MAY 2179342 Contact Us For Availability
10
MAY W10318953 MAY W10318953 Contact Us For Availability
10
MAY W10219801 MAY W10219801 Contact Us For Availability
10
MAY W10288153 MAY W10288153 Contact Us For Availability
10
GROMMET, MOTOR MAY 2176759 Contact Us For Availability
10
KNOB, THERMOSTAT MAY 2311614 Contact Us For Availability
10
MAY W10745338 MAY W10745338 Contact Us For Availability
11
MAY 488500 MAY 488500 Contact Us For Availability
11
BODY, HUMIDITY CONTROL MAY 2179343 Contact Us For Availability
11
SWITCH, ROCKER ARM COMBINATION (FREEZER) MAY 1115373 Contact Us For Availability
11
MAY W10670844 MAY W10670844 Contact Us For Availability
11
THIMBLE, CAM MAY 2223752 Contact Us For Availability
11
SCREW MAY W10142292 Contact Us For Availability
11
ASSEMBLY, CAM MAY 2182195 Contact Us For Availability
11
MAY 2311725 MAY 2311725 Contact Us For Availability
12
MAY W10350006 MAY W10350006 Contact Us For Availability
12
MAY W10449632 MAY W10449632 Contact Us For Availability
12
MAY 2315163 MAY 2315163 Contact Us For Availability
12
MAY W10189661 MAY W10189661 Contact Us For Availability
12
HARNESS, FAN TUBE EVAPORATOR (INCLUDES BI-MET MAY W10297480 Contact Us For Availability
12
BODY, BEARING MAY 1110560 Contact Us For Availability
12
MAY W10350564 MAY W10350564 Contact Us For Availability
13
ASSEMBLY, BOTTOM HINGE (FREEZER) MAY W10414753 Contact Us For Availability
13
ASSEMBLY, SHELF MAY W10276348 Contact Us For Availability
13
STUD, SUPPORT MAY 2196206 Contact Us For Availability
13
MAY W10189658 MAY W10189658 Contact Us For Availability
13
GASKET, SCROLL ASSEMBLY MAY 2155788 Contact Us For Availability
13
DAMPER, CONTROL MAY 2196062 Contact Us For Availability
13
TUBE, PROCESS MAY 2325479 Contact Us For Availability
14
MAY 3400113 MAY 3400113 Contact Us For Availability
14
MAY 3400893 MAY 3400893 Contact Us For Availability
14
MAY W10278731 MAY W10278731 Contact Us For Availability
14
MAY W10463012 MAY W10463012 Contact Us For Availability
14
ARM, PIVOT MAY 1110559 Contact Us For Availability
14
DEVICE, COMBINATION START (START RELAY AND OV MAY W10197428 Contact Us For Availability
15
ROLLER ASSEMBLY (RIGHT HAND) MAY W10304659 Contact Us For Availability
15
MAY 489100 MAY 489100 Contact Us For Availability
15
MAY W10278732 MAY W10278732 Contact Us For Availability
15
SUPPORT, FAN SCROLL (RIGHT HAND) MAY 2203595 Contact Us For Availability
15
KNOB, CONTROL MAY 2311615 Contact Us For Availability
15
MAY 8281232 MAY 8281232 Contact Us For Availability
15A
SUPPORT, FAN SCROLL (LEFT HAND) MAY 2203596 Contact Us For Availability
16
MAY W10283959 MAY W10283959 Contact Us For Availability
16
SOCKET, LIGHT MAY 2162085 Contact Us For Availability
16
MAY W10845585 MAY W10845585 Contact Us For Availability
16
MAY W10278733 MAY W10278733 Contact Us For Availability
16
MAY 2188822 MAY 2188822 Contact Us For Availability
16A
FILLER, WRAPPER (BLACK) MAY W10283960 Contact Us For Availability
17
MAY W10393044 MAY W10393044 Contact Us For Availability
17
MAY W10845583 MAY W10845583 Contact Us For Availability
17
TUBE, THERMOSTAT BARRIER MAY 2196001 Contact Us For Availability
17A
MAY W10393045 MAY W10393045 Contact Us For Availability
18
SCREW (WHITE) MAY W10308750 Contact Us For Availability
18
BULB, LIGHT MAY 2311792 Contact Us For Availability
18
MAY W10181990 MAY W10181990 Contact Us For Availability
18
MAY W10508362 MAY W10508362 Contact Us For Availability
18A
SCREW (BLACK) MAY W10308751 Contact Us For Availability
19
MAY 3400103 MAY 3400103 Contact Us For Availability
19
MAY W10189708 MAY W10189708 Contact Us For Availability
19
MAY W10354806 MAY W10354806 Contact Us For Availability
19
MAY W10614158 MAY W10614158 Contact Us For Availability
20
SCREW MAY 489290 Contact Us For Availability
20
CLIP, WIRE MAY 1115374 Contact Us For Availability
20
PIN, ROLL MAY 489229 Contact Us For Availability
20
ASSEMBLY, HEAT SHIELD AND DRAIN PAN MAY W10194474 Contact Us For Availability
21
MAY W10295082 MAY W10295082 Contact Us For Availability
21
SCREW MAY 487869 Contact Us For Availability
21
MAY W10771114 MAY W10771114 Contact Us For Availability
22
FITTING, DRAIN MAY 2304888 Contact Us For Availability
22
MAY W10698642 MAY W10698642 Contact Us For Availability
22
MAY W10804348 MAY W10804348 Contact Us For Availability
22
MAY W10476309 MAY W10476309 Contact Us For Availability
23
EXTENSION, DRAIN FITTING MAY W10153550 Contact Us For Availability
23
MAY W10403781 MAY W10403781 Contact Us For Availability
23
MAY W10672286 MAY W10672286 Contact Us For Availability
23
FRAME, UNIT MOUNTING MAY 2304903 Contact Us For Availability
24
MAY 2188734 MAY 2188734 Contact Us For Availability
24
MAY 1119018 MAY 1119018 Contact Us For Availability
24
LENS, LIGHT MAY 2200096 Contact Us For Availability
24
MAY W10670169 MAY W10670169 Contact Us For Availability
25
MAY W10846222 MAY W10846222 Contact Us For Availability
25
MAY W10838981 MAY W10838981 Contact Us For Availability
25
ASSEMBLY, LED MAY 2213462 Contact Us For Availability
25
BRACKET, FAN MOUNTING MAY 2181929 Contact Us For Availability
26
MAY W10350007 MAY W10350007 Contact Us For Availability
26
MAY 1119020 MAY 1119020 Contact Us For Availability
26
MAY W10495967 MAY W10495967 Contact Us For Availability
27
FILTER, WATER MAY W10569758 Contact Us For Availability
27
CLIP, RETAINER (DISPENSER ROD) MAY 1119021 Contact Us For Availability
27
MAY 2161324 MAY 2161324 Contact Us For Availability
28
CLAMP, POWER CORD MAY 549193 Contact Us For Availability
28
SCREW MAY 488886 Contact Us For Availability
28
MAY W10253005 MAY W10253005 Contact Us For Availability
29
MAY 489084 MAY 489084 Contact Us For Availability
29
MAY W10185018 MAY W10185018 Contact Us For Availability
29
GROMMET MAY 10835903 Contact Us For Availability
30
MAY W10846218 MAY W10846218 Contact Us For Availability
30
DEFLECTER, ICE MAY 1119017 Contact Us For Availability
30
BOLT MAY 489340 Contact Us For Availability
31
MAY W10142234 MAY W10142234 Contact Us For Availability
31
WASHER, PLAIN UPPER CAM MAY 489234 Contact Us For Availability
31
MAY W10332806 MAY W10332806 Contact Us For Availability
32
MAY W10350062 MAY W10350062 Contact Us For Availability
32
RING, RETAINER MAY 489236 Contact Us For Availability
32
TIE, WIRE MAY 2263990 Contact Us For Availability
32A
MAY W10350063 MAY W10350063 Contact Us For Availability
33
MAY W10189274 MAY W10189274 Contact Us For Availability
33
MAY W10836751 MAY W10836751 Contact Us For Availability
34
ASSEMBLY, FILTER VALVE MAY W10179146 Contact Us For Availability
34
DOOR, ICE MAY W10406979 Contact Us For Availability
34
MAY 489396 MAY 489396 Contact Us For Availability
35
MAY 488649 MAY 488649 Contact Us For Availability
35
MAY W10698668 MAY W10698668 Contact Us For Availability
35
RAIL, UNIT MOUNTING MAY W10207512 Contact Us For Availability
36
MAY W10357069 MAY W10357069 Contact Us For Availability
36
MAY 2149100 MAY 2149100 Contact Us For Availability
37
MAY W10300022 MAY W10300022 Contact Us For Availability
38
MAY W10289690 MAY W10289690 Contact Us For Availability
39
MAY W10508644 MAY W10508644 Contact Us For Availability
40
MAY W10512602 MAY W10512602 Contact Us For Availability
100
MAY W10407621 MAY W10407621 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
MAY 350930 MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 QT. BISCUIT/BISQUE) MAY 4392900 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
MAY 72017 MAY 72017 Contact Us For Availability
NI
MAY 72032 MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
× ![]()
