Model Maytag ACR4303MFS3 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts & Diagrams
01 - COVER SHEET
02 - COOKTOP PARTS

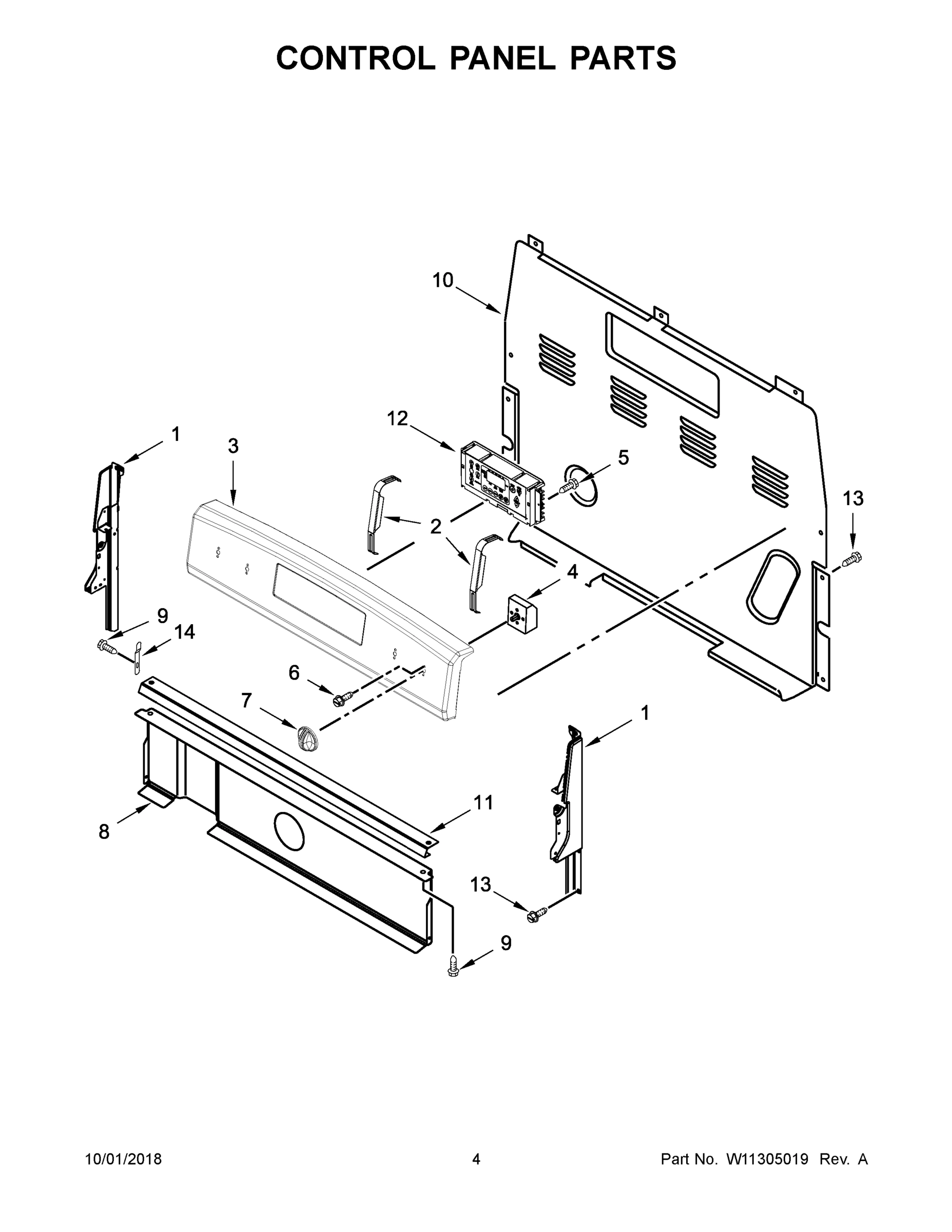

03 - CONTROL PANEL PARTS

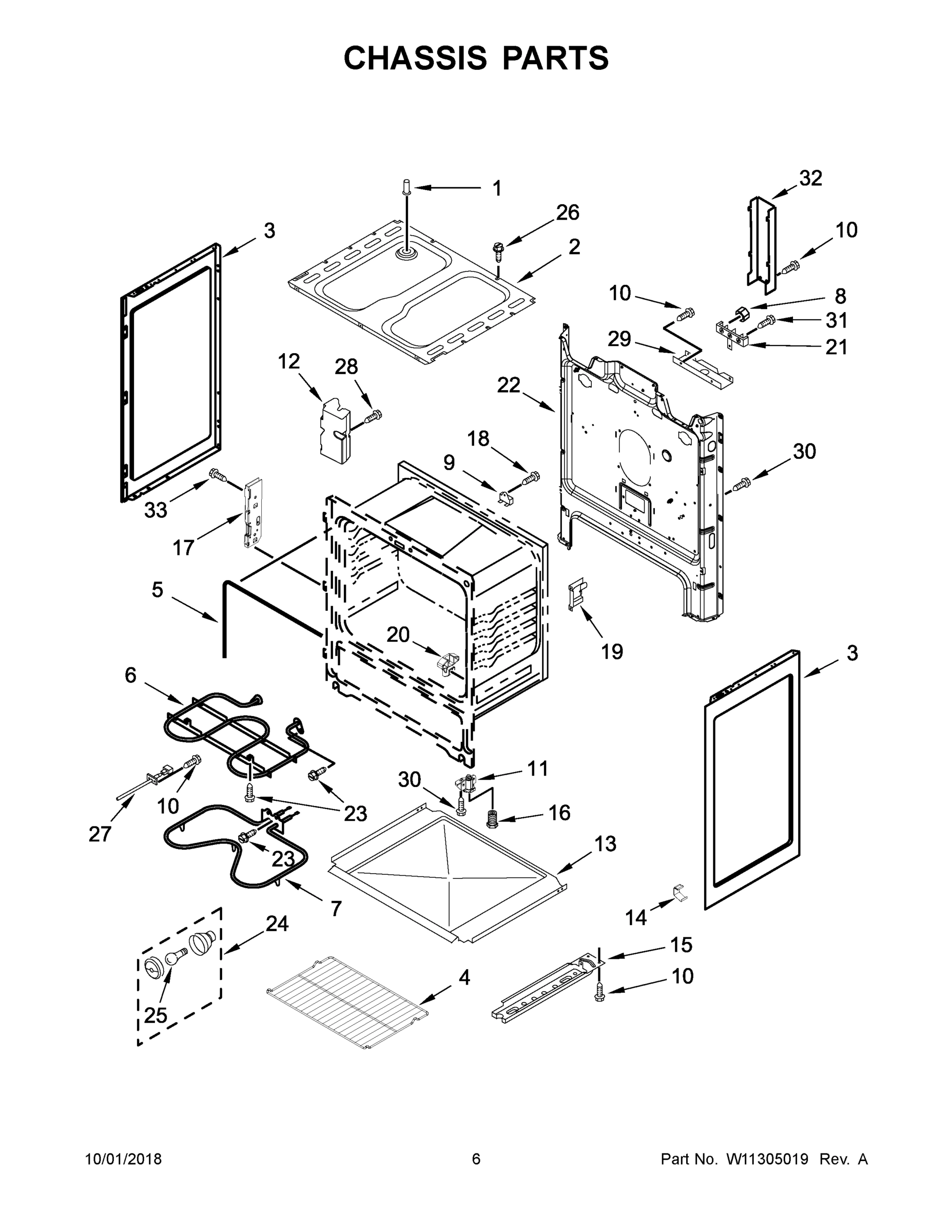

04 - CHASSIS PARTS

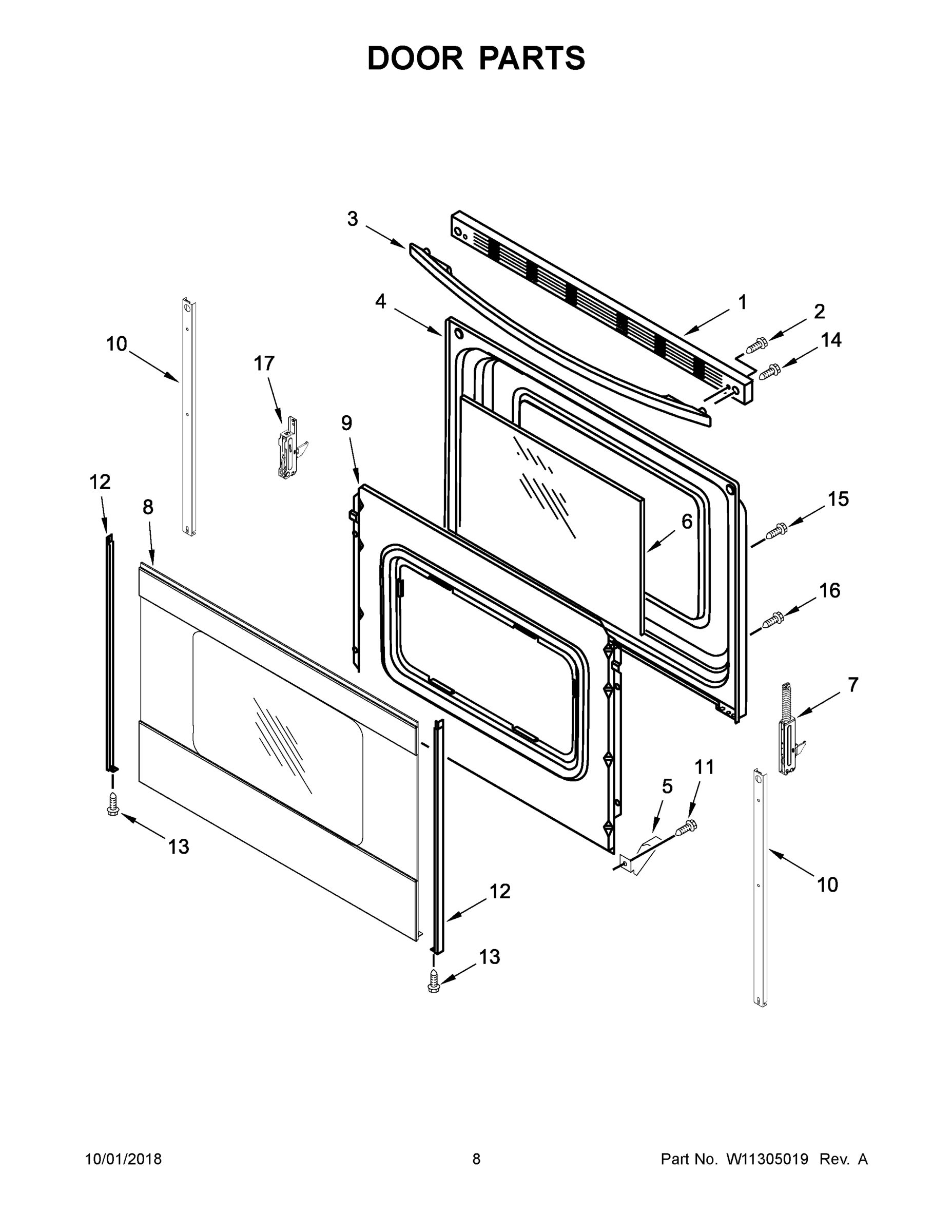

05 - DOOR PARTS

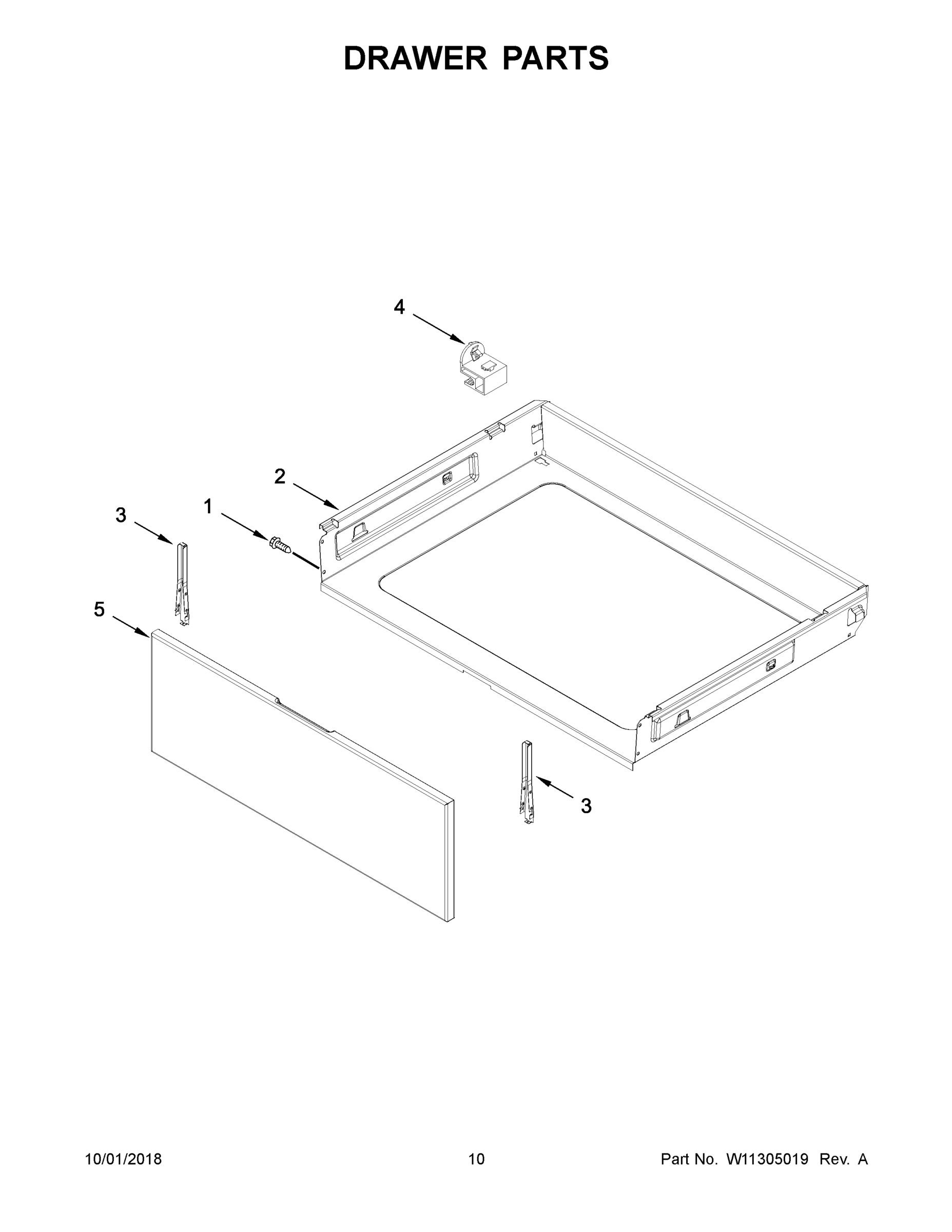

06 - DRAWER PARTS
07 - OPTIONAL PARTS
Common parts from model Maytag ACR4303MFS3 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH
1
USER INSTRUCTIONS MAY W11235898 Contact Us For Availability
1
ENDCAP (BLACK (LEFT)) MAY W11130372 Contact Us For Availability
1
SCREW MAY 3196165 Contact Us For Availability
1
TUBE, VENT MAY W11222267 Contact Us For Availability
1
TRIM, TOP (BLACK) MAY W10310922 Contact Us For Availability
1A
WIRING DIAGRAM MAY W11241246 Contact Us For Availability
1A
ENDCAP (BLACK (RIGHT)) MAY W11130379 Contact Us For Availability
1B
INSTRUCTIONS, INSTALLATION MAY W11047681 Contact Us For Availability
2
BOWL, DRIP (8") (LEFT FRONT AND RIGHT REAR) MAY W10196405 Contact Us For Availability
2
BRACKET, CONTROL MAY W10695491 Contact Us For Availability
2
BOX, BURNER MAY W10209613 Contact Us For Availability
2
SCREW MAY W10163951 Contact Us For Availability
2
DRAWER, STORAGE MAY W10688022 Contact Us For Availability
2A
BOWL, DRIP (6") (RIGHT FRONT AND LEFT REAR) MAY W10196406 Contact Us For Availability
3
COOKTOP (BLACK) MAY 3186233 Contact Us For Availability
3
PANEL, CONTROL (STAINLESS) MAY W11157011 Contact Us For Availability
3
PANEL, SIDE (BLACK) MAY W10162245 Contact Us For Availability
3
HANDLE, DOOR (STAINLESS) MAY W10144883 Contact Us For Availability
3
BRACKET, MOUNTING DRAWER MAY W10462910 Contact Us For Availability
4
HINGE, COOKTOP MAY 3195060 Contact Us For Availability
4
SWITCH, INFINITE (LEFT FRONT AND RIGHT REAR) MAY 3148951 Contact Us For Availability
4
RACK, OVEN MAY W10268578 Contact Us For Availability
4
LINER, DOOR MAY 9761344 Contact Us For Availability
4
GLIDE, DRAWER REAR MAY W10674708 Contact Us For Availability
4A
SWITCH, INFINITE (GREEN) (RIGHT FRONT AND LEF MAY 3148953 Contact Us For Availability
5
SEAL, DOOR MAY W10129032 Contact Us For Availability
5
CLIP, PANEL MAY W10137382 Contact Us For Availability
5
PANEL, DRAWER FRONT (STAINLESS) MAY W10330070 Contact Us For Availability
6
ROD, SUPPORT MAY 3195812 Contact Us For Availability
6
SCREW MAY 3400882 Contact Us For Availability
6
ELEMENT, BROIL MAY W10308476 Contact Us For Availability
6
GLASS, INNER MAY W10620754 Contact Us For Availability
7
SCREW, ANTI-TIP KIT MAY 7101P485-60 Contact Us For Availability
7
KNOB, INFINITE (STAINLESS) MAY W10844802 Contact Us For Availability
7
ELEMENT, BAKE MAY W11022836 Contact Us For Availability
7
HINGE, ACTIVE MAY W10299225 Contact Us For Availability
8
SCREW MAY 3196154 Contact Us For Availability
8
SHIELD, HEAT MAY W10134247 Contact Us For Availability
8
NUT MAY 3400029 Contact Us For Availability
8
GLASS ASSEMBLY, OUTER DOOR (STAINLESS) MAY W10817930 Contact Us For Availability
9
ELEMENT, COIL HEATING (2150W) (LEFT FRONT AND MAY W11199518 Contact Us For Availability
9
FUSE, THERMAL MAY 3196548 Contact Us For Availability
9
RETAINER, INSULATION MAY 9761505 Contact Us For Availability
9A
ELEMENT, COIL HEATING (1300W) (RIGHT FRONT AN MAY W11199519 Contact Us For Availability
10
BRACKET, ANTI-TIP MAY W10306542 Contact Us For Availability
10
SCREW MAY 3196169 Contact Us For Availability
10
COVER, UPPER REAR MAY 8272473 Contact Us For Availability
10
STRAP, DOOR MAY W10544179 Contact Us For Availability
11
BRACKET, CONSOLE MOUNTING MAY W10525121 Contact Us For Availability
11
ASSEMBLY, FRONT FOOT MAY W10341186 Contact Us For Availability
12
CONTROL, ELECTRONIC (BLACK) MAY W11204487 Contact Us For Availability
12
COUNTERWEIGHT MAY W10910404 Contact Us For Availability
12
TRIM, SIDE (BLACK (LEFT)) MAY W10746436 Contact Us For Availability
12A
TRIM, SIDE (BLACK (RIGHT)) MAY W10746435 Contact Us For Availability
13
RETAINER, INSULATION MAY 8054068 Contact Us For Availability
13
SCREW MAY W10327235 Contact Us For Availability
14
CLIP, SPRING MAY 3196200 Contact Us For Availability
14
SCREW MAY W10200660 Contact Us For Availability
15
ASSEMBLY, BASE RAIL (LEFT) MAY W10390008 Contact Us For Availability
15
SCREW MAY W10031790 Contact Us For Availability
15A
ASSEMBLY, BASE RAIL (RIGHT) MAY W10390007 Contact Us For Availability
16
FOOT, LEVELING MAY W10058460 Contact Us For Availability
16
SCREW MAY W10031780 Contact Us For Availability
17
RECEIVER, HINGE MAY W10289077 Contact Us For Availability
17
HINGE, DOOR (PASSIVE) MAY W10299227 Contact Us For Availability
18
SCREW MAY 3196172 Contact Us For Availability
19
CLIP, OVEN SUPPORT MAY W10404688 Contact Us For Availability
20
GLIDE, DRAWER FRONT MAY W10674705 Contact Us For Availability
21
BLOCK, TERMINAL MAY W10245259 Contact Us For Availability
23
SCREW MAY 3196174 Contact Us For Availability
24
ASSEMBLY, LIGHT MAY W11175594 Contact Us For Availability
25
BULB, HALOGEN 40 WATTS MAY W10571723 Contact Us For Availability
26
SCREW MAY 3196567 Contact Us For Availability
27
SENSOR, OVEN MAY W10181986 Contact Us For Availability
28
SCREW MAY W11034869 Contact Us For Availability
29
BRACKET, SERVICE MAY 3186034 Contact Us For Availability
30
SCREW MAY 3196178 Contact Us For Availability
31
SCREW MAY 3400016 Contact Us For Availability
32
COVER, TERMINAL BLOCK MAY W10326122 Contact Us For Availability
NI
SCREW (GROUNDING) MAY 3196173 Contact Us For Availability
NI
FOLLOWING PARTS NOT ILLUSTRATED MAY N/P Contact Us For Availability
NI
KIT, BARE WIRE ADAPTER BLOCK MAY W10281322 Contact Us For Availability
NI
HARNESS, COOKTOP MAY W11134595 Contact Us For Availability
NI
HARNESS, MAIN MAY W11134841 Contact Us For Availability
NI
INSULATION, BACK MAY 8272611 Contact Us For Availability
NI
INSULATION, WRAP MAY 8273263 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. PRIMER (WHITE MAY 206922 Contact Us For Availability
NI
INSULATION (2-1/2" X 22" X 120") MAY 240132 Contact Us For Availability
NI
ACCESSORY PARTS, ALUMINUM FOIL MAY 241430 Contact Us For Availability
NI
REFINISHING MATERIAL, OVEN LINER TOUCH UP PAI MAY 242756 Contact Us For Availability
NI
INSULATION (1-1/2" X 24" X 120") MAY 261514 Contact Us For Availability
NI
ACCESSORY PARTS, CLEANER, GLASS MAY 3184478 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12OZ. WHITE) MAY 350930 Contact Us For Availability
NI
ACCESSORY PARTS, GRID, BROILER PAN AND MAY 4396923 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
× ![]()
