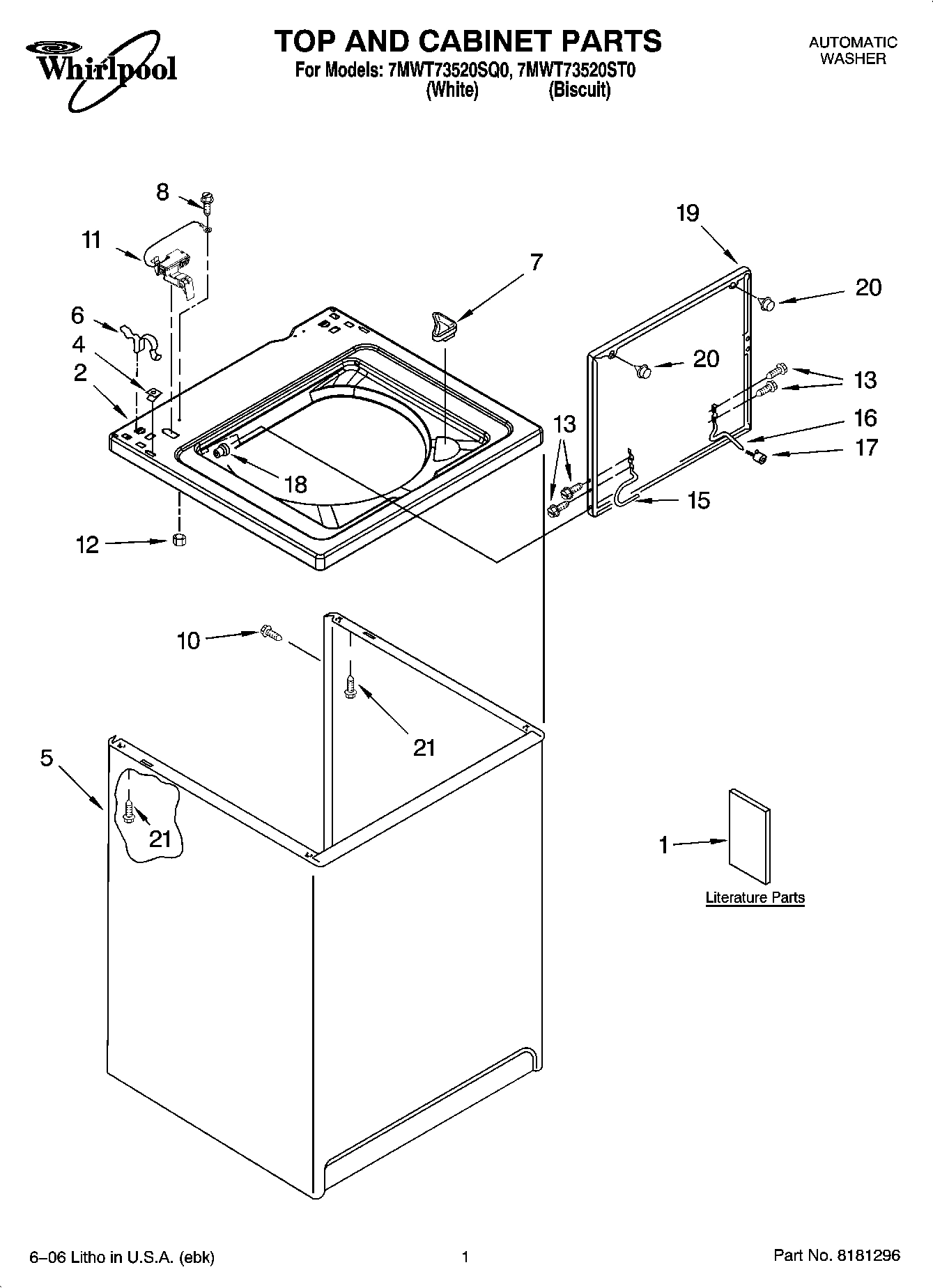

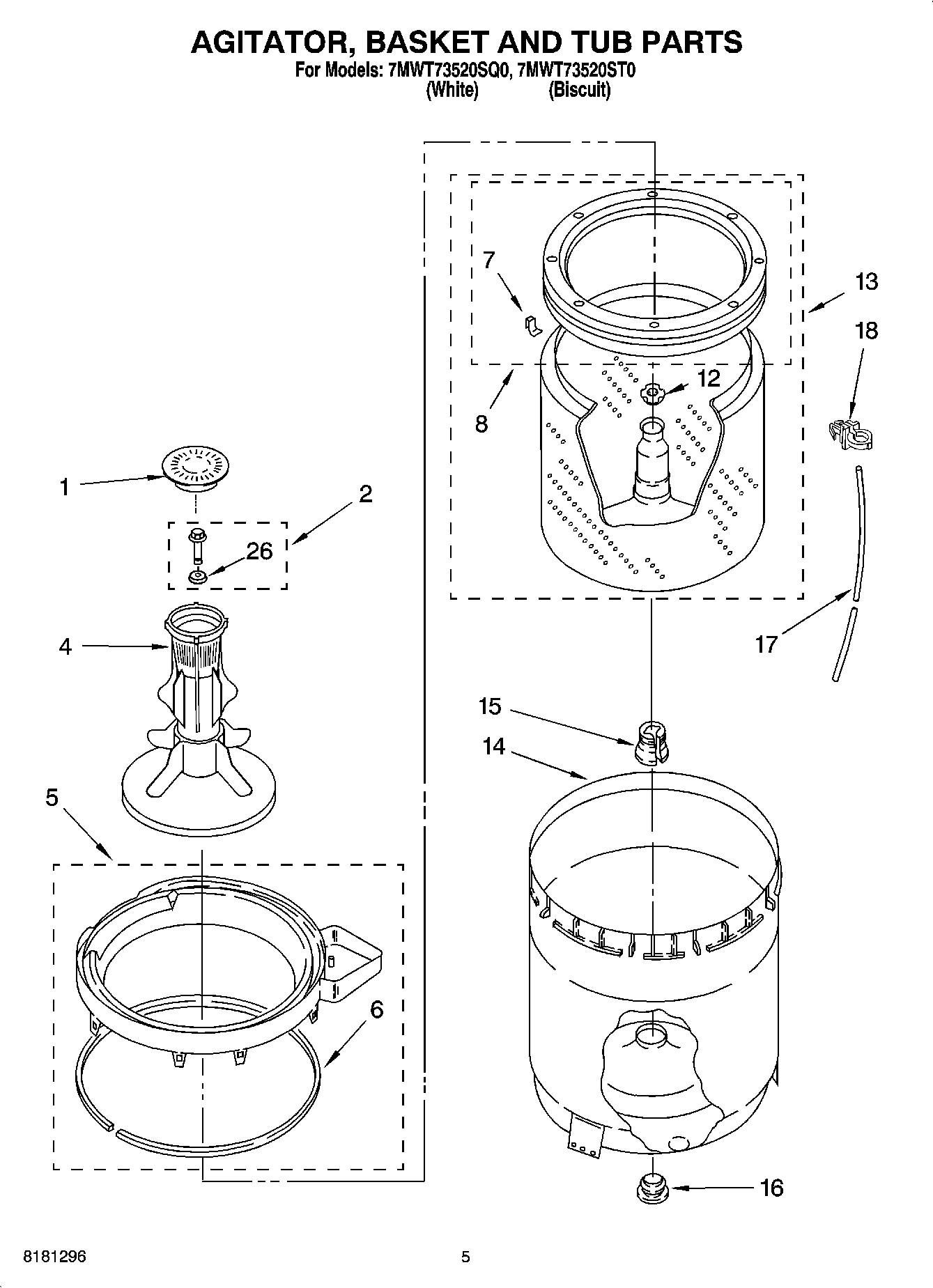

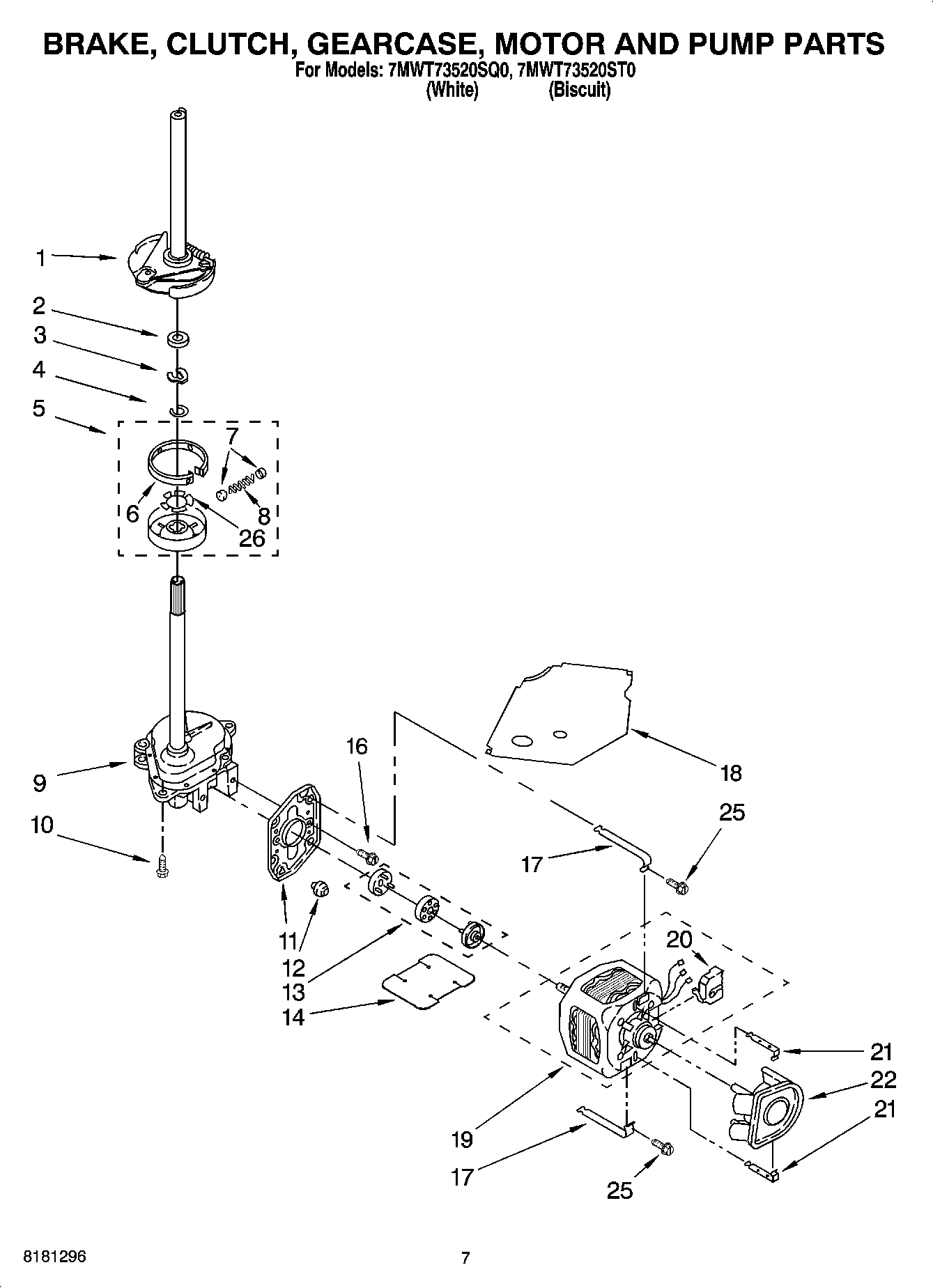

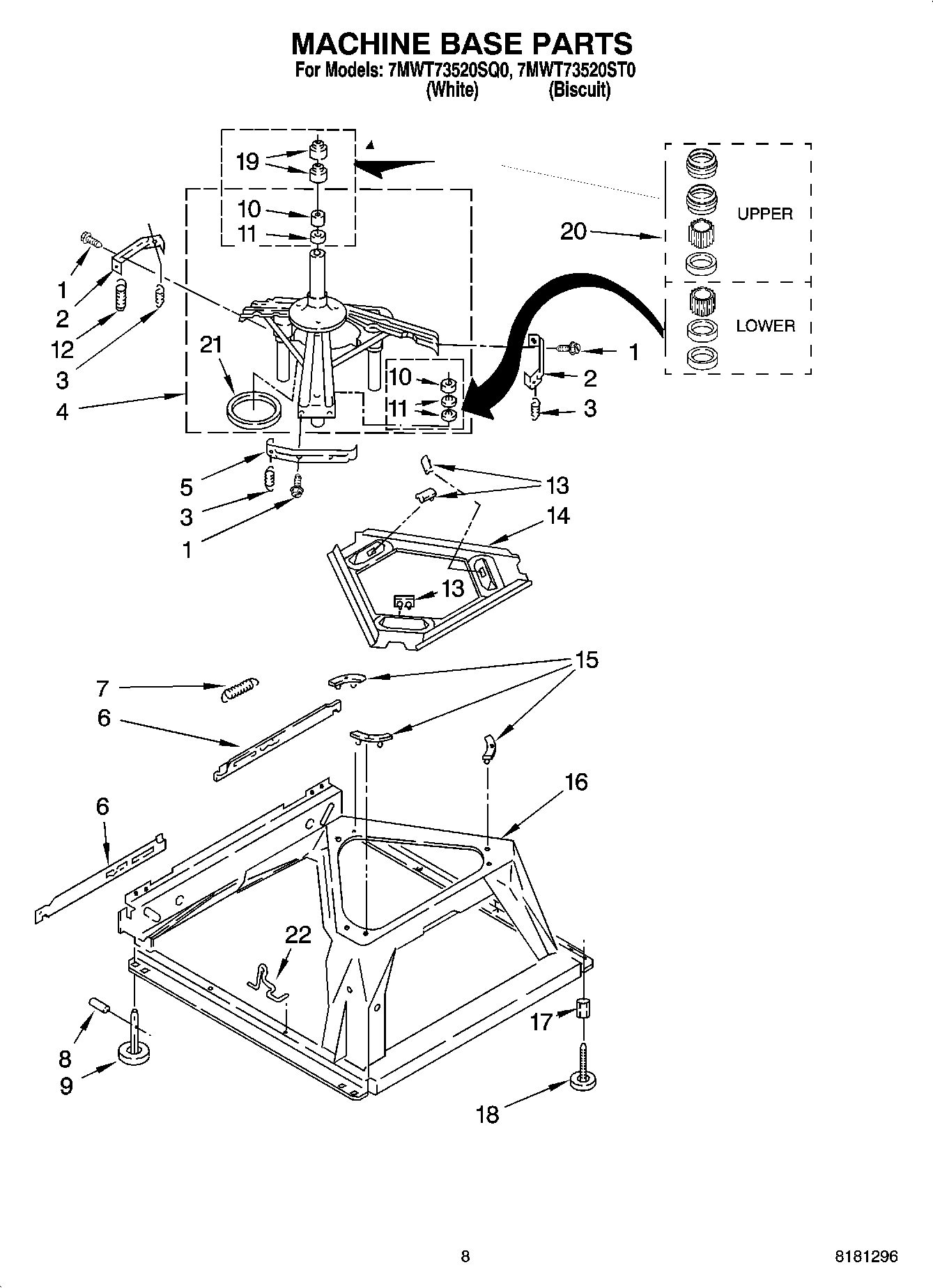

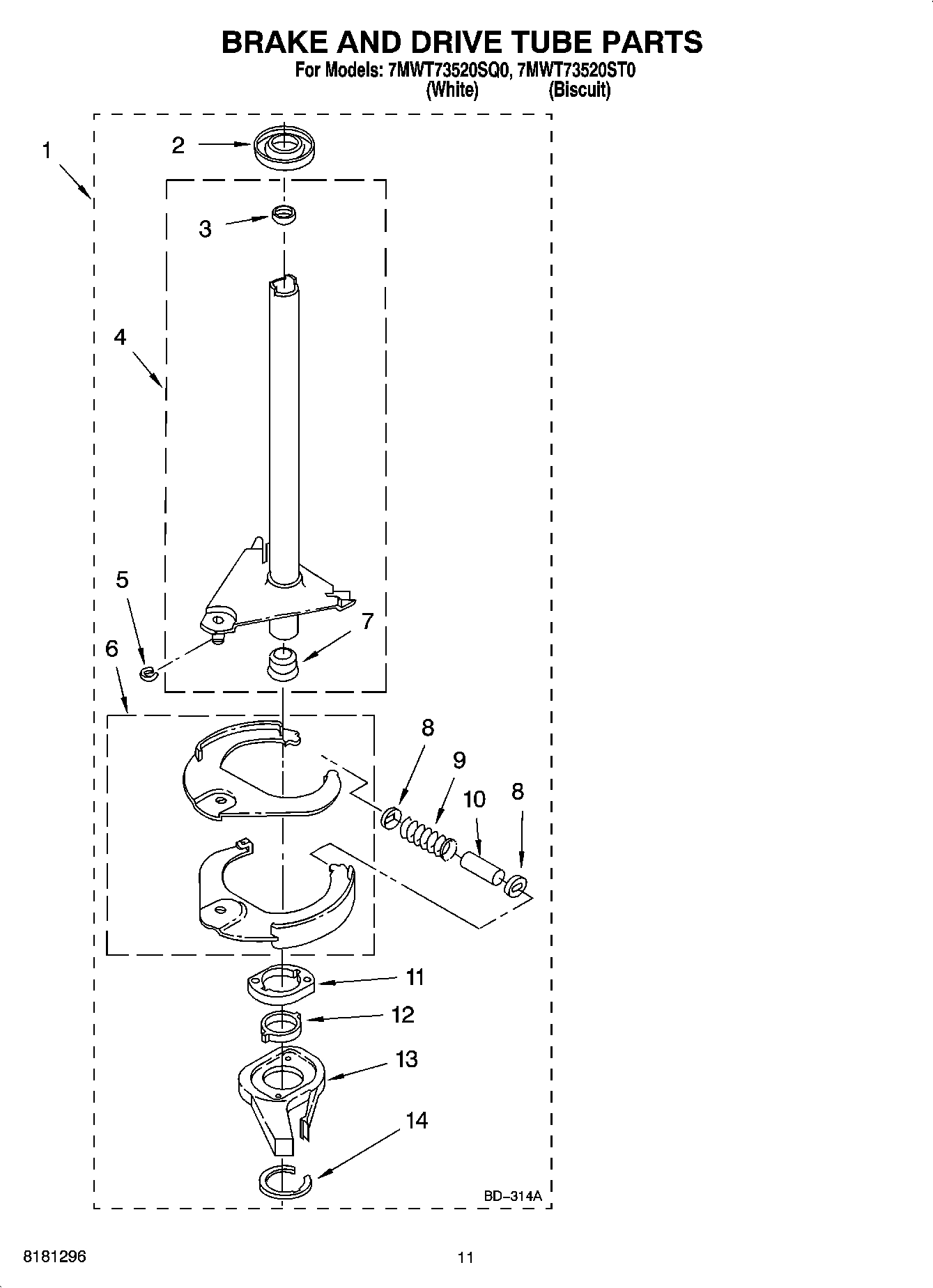

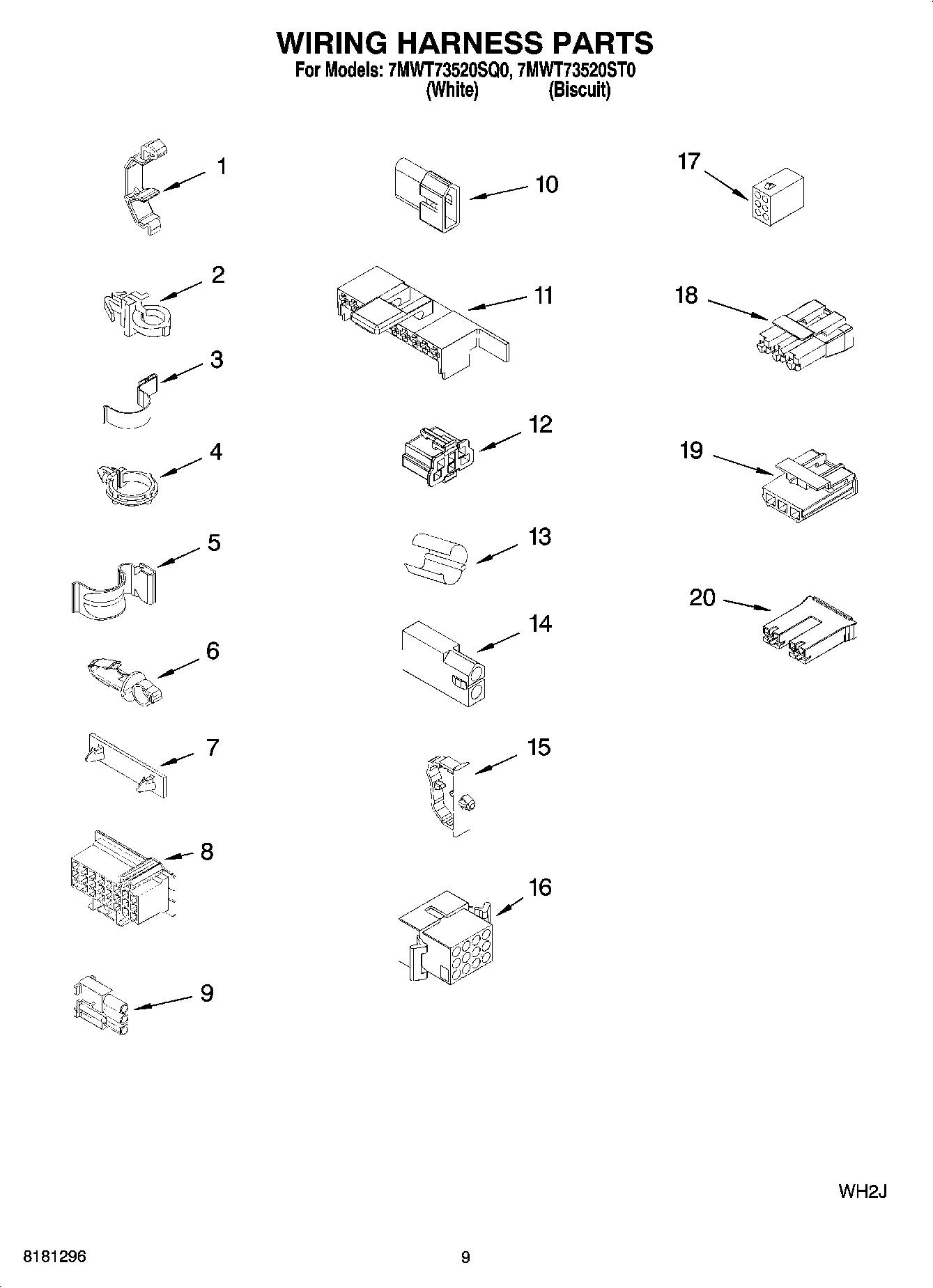

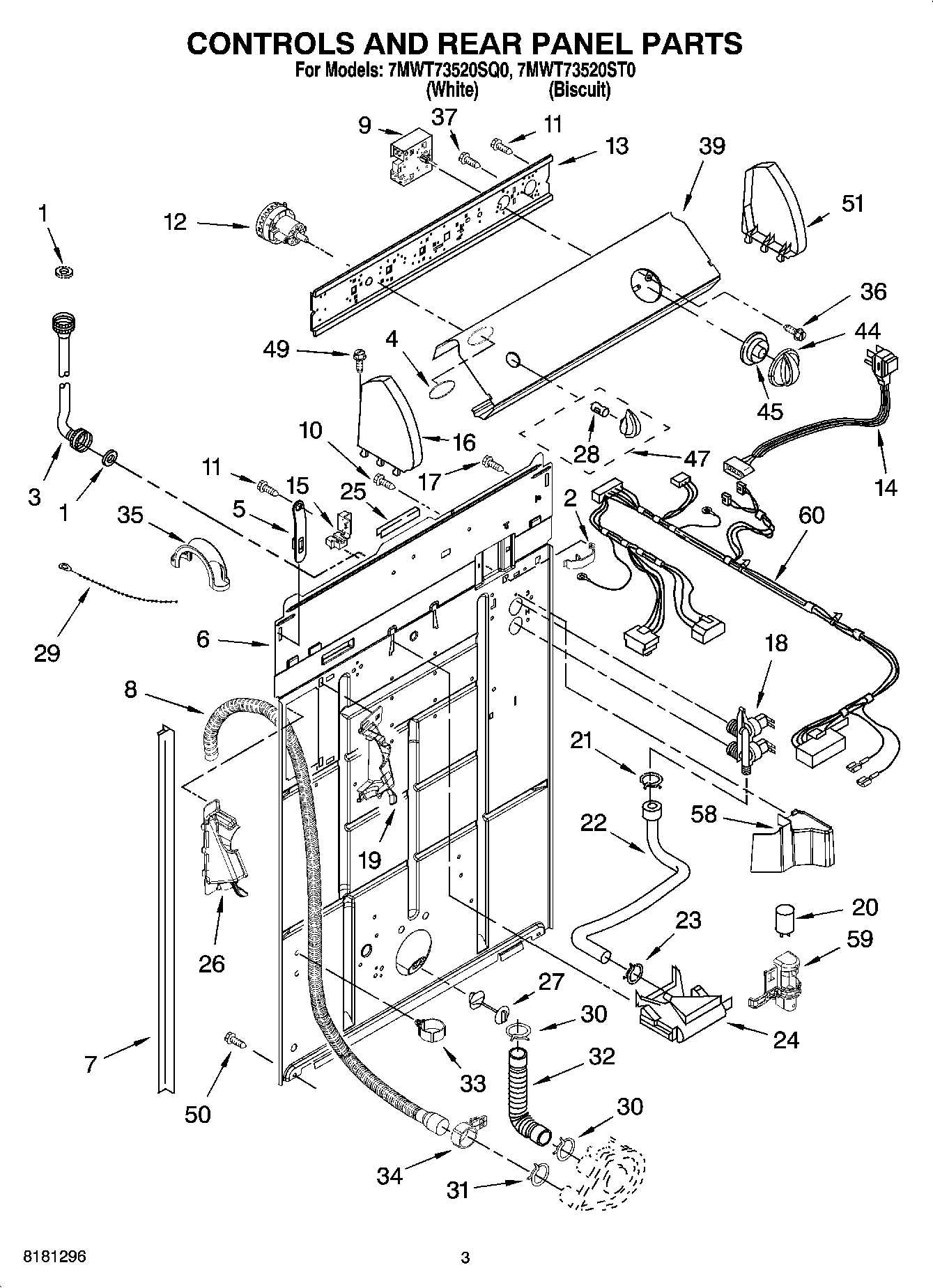

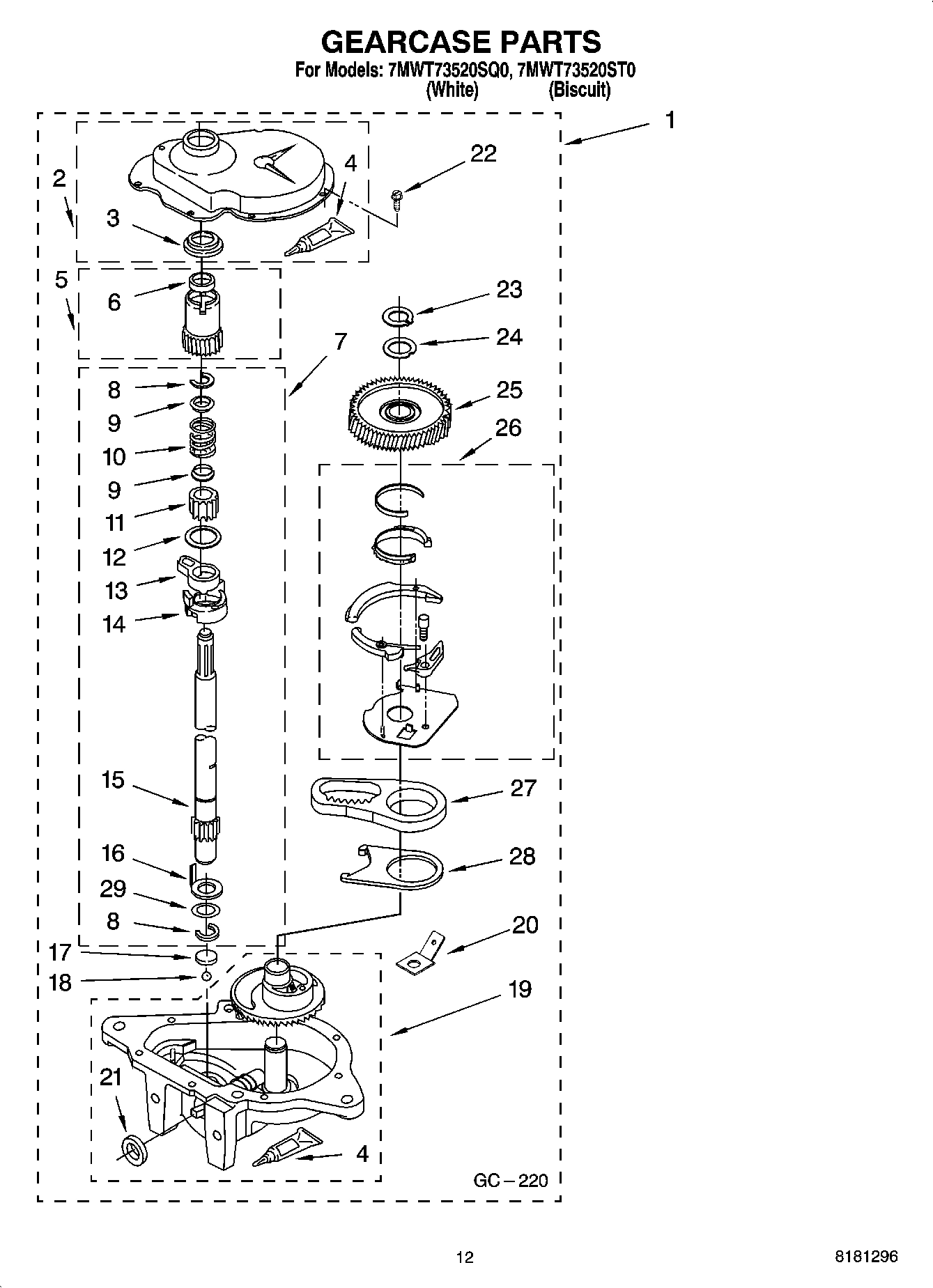

Model Whirlpool 7MWT73520ST0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

WPL 799344 WPL 799344 Contact Us For Availability

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

1

WP3352483 Whirlpool Cap Backorder WPL WP3352483 $40.35

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

Retainer, Harness WPL 3349557 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

4

WPW10131112 Whirlpool Agitator In Stock WPL WPW10131112 $118.45

4

Medallion WPL 3400985 Contact Us For Availability

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Tub Ring WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

6

Panel, Rear WPL 8541686 Contact Us For Availability

7

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $6.99

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

Balance Ring WPL 3956205 Contact Us For Availability

8

Timer, Block Disconnect (Natural) WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

10

353424 Whirlpool Connector Backorder WPL 353424 $14.02

10

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

10

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

11

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

11

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $40.99

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

62619 Whirlpool Washer Backorder WPL 62619 $8.89

W10820051 Whirlpool Washer Pressure Switch In Stock WPL W10820051 $143.99

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

13

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

13

Bracket, Control WPL 3948814 Contact Us For Availability

13

BASKET WPL 3956206 Contact Us For Availability

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

WP8559419 Whirlpool Power Cord Backorder WPL WP8559419 $88.87

Tub WPL 63125 Contact Us For Availability

Following Parts Not Illustrated WPL ARI143059A Contact Us For Availability

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.64

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

Strain Relief, Power Cord WPL 8559337 Contact Us For Availability

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

16

WP54583 Whirlpool Hinge Backorder WPL WP54583 $18.77

16

Cap, End (L.H.) (Biscuit) WPL 8314852 Contact Us For Availability

17

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

17

WP353244 Whirlpool Hose In Stock WPL WP353244 $37.95

17

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

2219077 Whirlpool Refrigerator Clip Backorder WPL 2219077 $42.00

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.99

Valve, Water Inlet-Single Port WPL 8541697 Contact Us For Availability

19

Plug (T.P.A) (3-Circuit) (Pressure Switch) WPL 3360056 Contact Us For Availability

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $9.86

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

25

Edge Protector WPL 303294 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

26

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

26

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $45.99

27

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

28

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $9.86

29

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

33

Clamp, Hose WPL 8541667 Contact Us For Availability

34

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $14.02

35

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $4.82

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

37

3400073 Whirlpool Screw Backorder WPL 3400073 $5.85

39

Panel, Console (Includes Item 4) (White) WPL 8543004 Contact Us For Availability

39

Panel, Console (Includes Item 4) (Biscuit) WPL 8543005 Contact Us For Availability

44

W10034740 Whirlpool Knob Assembly Backorder WPL W10034740 $59.77

44

Knob, Timer (White) WPL 8566022 Contact Us For Availability

45

WP8566018 Whirlpool Dial Assembly Backorder WPL WP8566018 $34.58

47

Knob, Control (White) WPL 8565944 Contact Us For Availability

47

Knob, Control (Biscuit) WPL 8565947 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

51

Cap, End (R.H.) ( WPL 8314851 Contact Us For Availability

58

WPL 8314879 WPL 8314879 Contact Us For Availability

59

WPL 8318046 WPL 8318046 Contact Us For Availability

60

WPL 3956737 WPL 3956737 Contact Us For Availability
