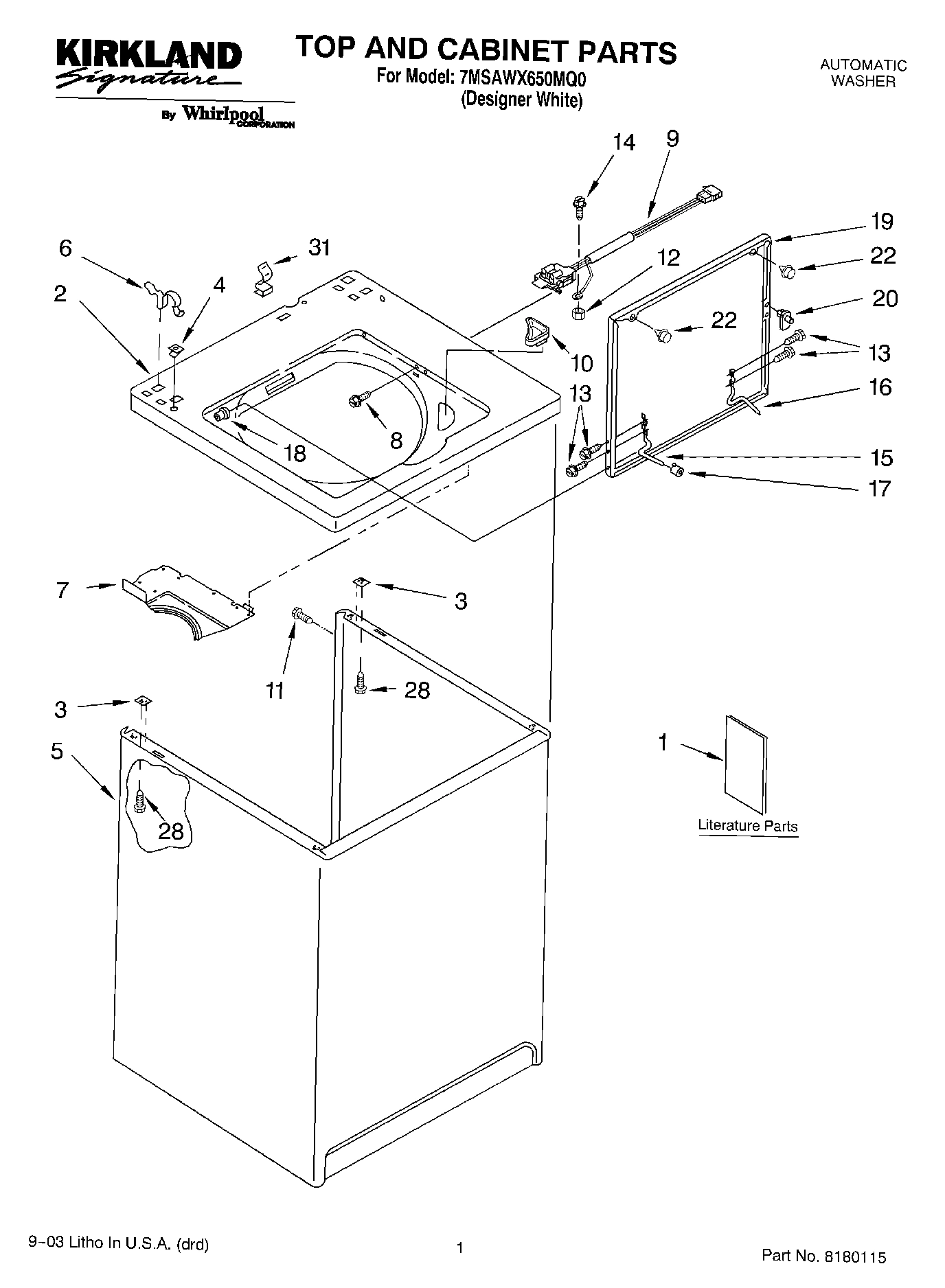

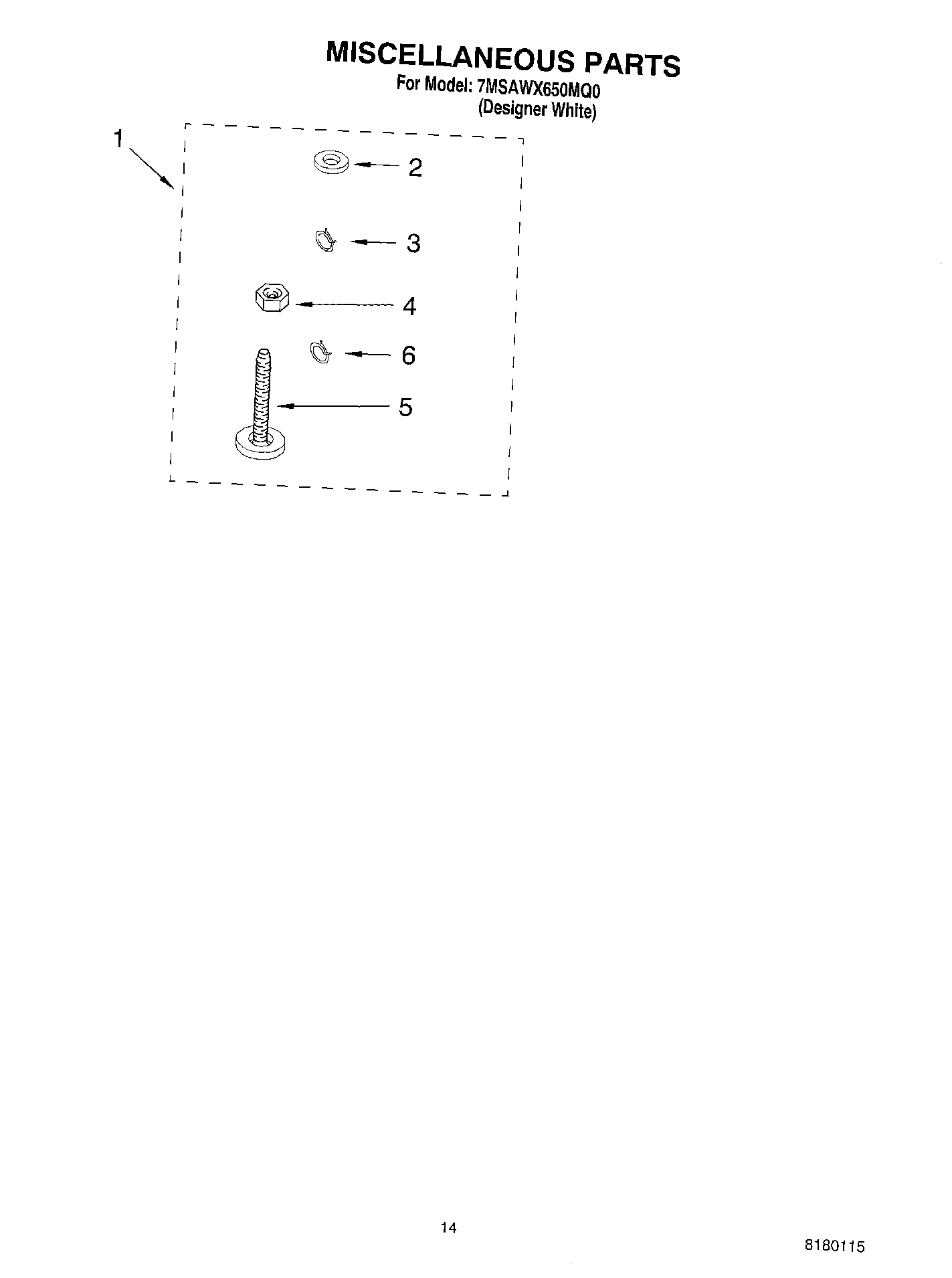

Model Whirlpool 7MSAWX650MQ0 AUTOMATIC WASHER – Common Parts &amp; Diagrams

1

W10846509 Whirlpool Screw Backorder WPL W10846509 $4.82

1

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

1

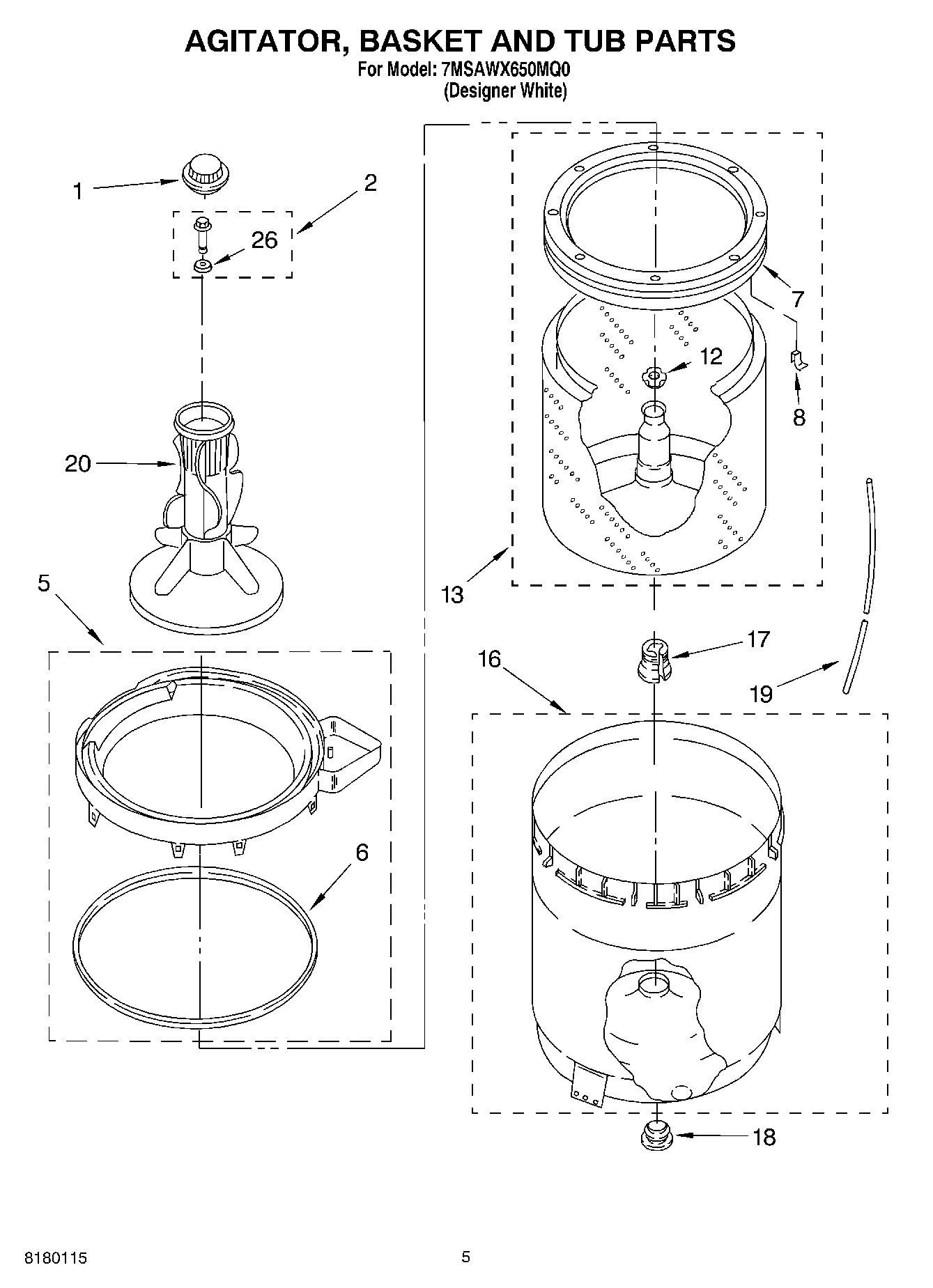

WP3355758 Whirlpool Agitator Cap In Stock WPL WP3355758 $9.65

1

Clip, Harness WPL 3349557 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI142859A Contact Us For Availability

1

Literature Parts (Installation Instructions) WPL LIT3954763 Contact Us For Availability

1

Literature Parts (Manual, Washer) WPL LIT4313896 Contact Us For Availability

1

Literature Parts (Energy Guide) WPL LIT8539725 Contact Us For Availability

1

Literature Parts (Use & Care Guide) WPL LIT8539779 Contact Us For Availability

1

Literature Parts (Wiring Diagram) WPL LIT8542052 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $124.99

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.99

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $9.65

2

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

2

Top WPL 8271378 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.91

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.98

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $16.85

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.98

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $58.50

4

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $244.07

5

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

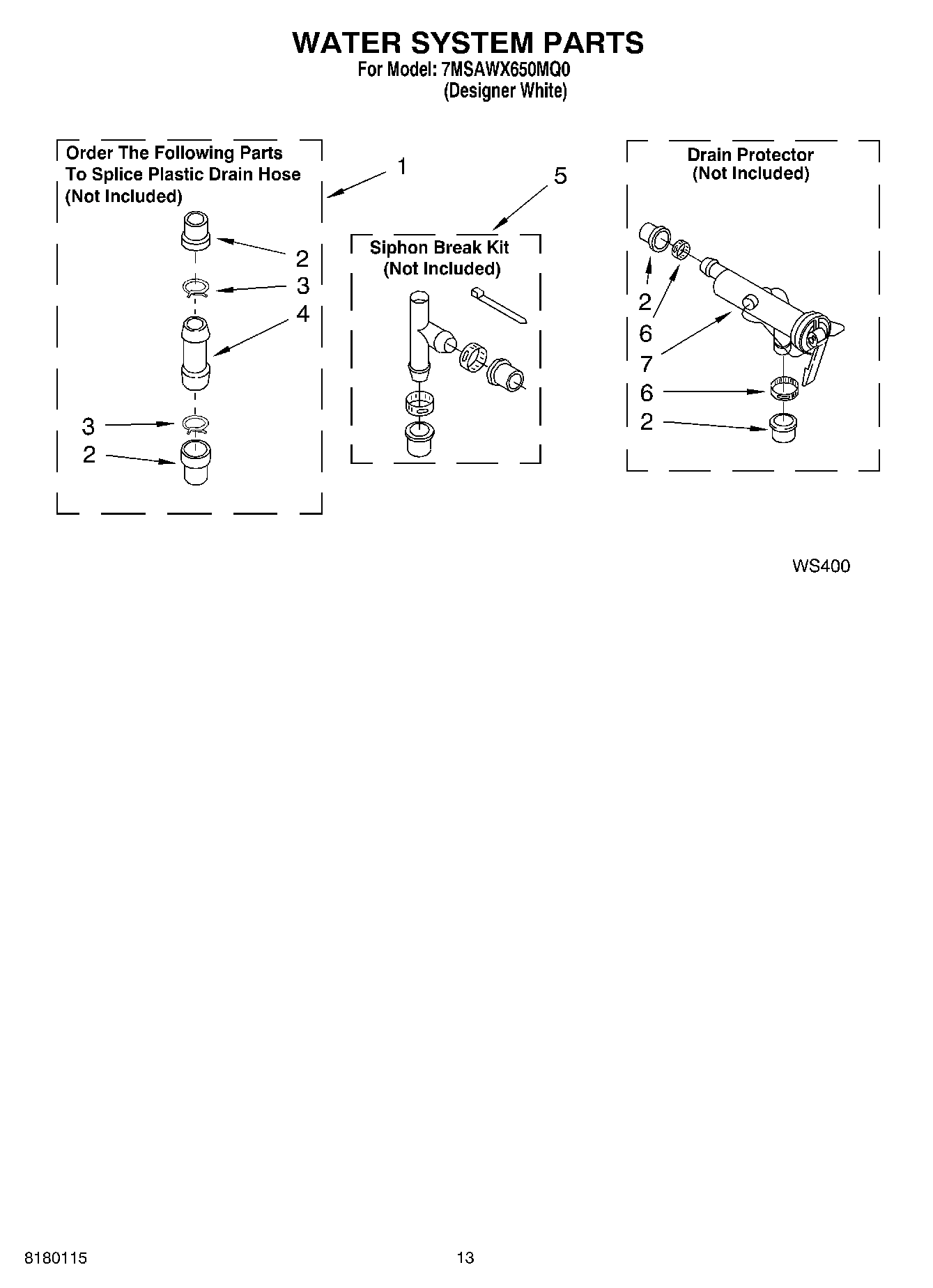

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $48.81

6

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $37.99

6

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

6

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

6

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.99

6

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

6

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $67.35

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $58.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.98

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $7.99

6

Link, Leveling Mechanism (2) WPL 63466 Contact Us For Availability

6

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

6

Panel, Rear WPL 8318405 Contact Us For Availability

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

Balance Ring WPL 3956205 Contact Us For Availability

7

Shield, Lid Switch WPL 3950994 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.99

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $43.99

8

285702 Whirlpool Extensions Backorder WPL 285702 $34.84

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $6.99

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP3950298 Whirlpool Lid Switch Backorder WPL WP3950298 $85.68

9

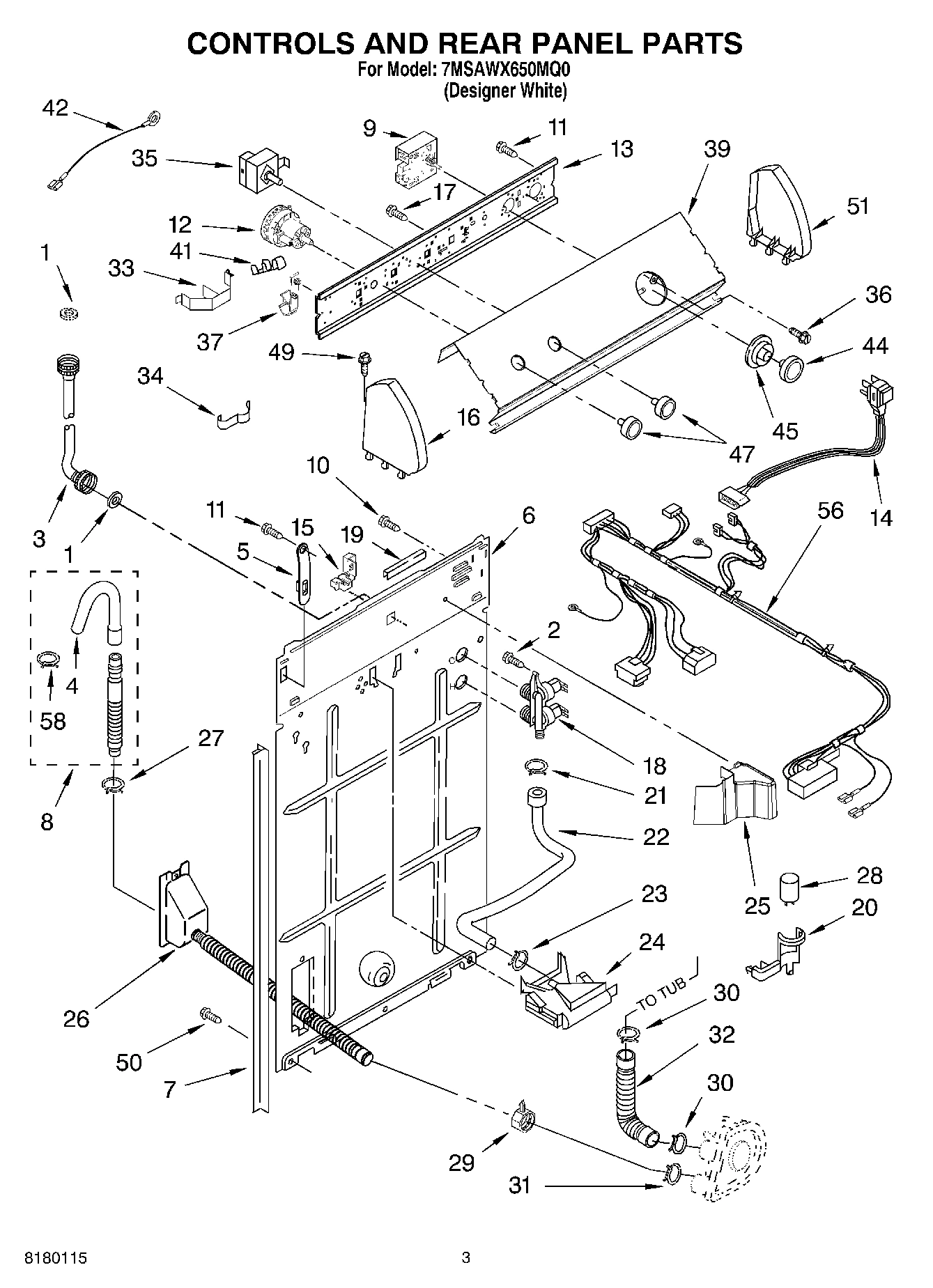

WP8542050 Whirlpool Timer In Stock WPL WP8542050 $242.99

10

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.99

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

11

353424 Whirlpool Connector Backorder WPL 353424 $14.02

11

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.52

11

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

62619 Whirlpool Washer Backorder WPL 62619 $8.89

W10080180 Whirlpool Nut Backorder WPL W10080180 $8.89

W10820051 Whirlpool Washer Pressure Switch In Stock WPL W10820051 $143.99

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.98

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

13

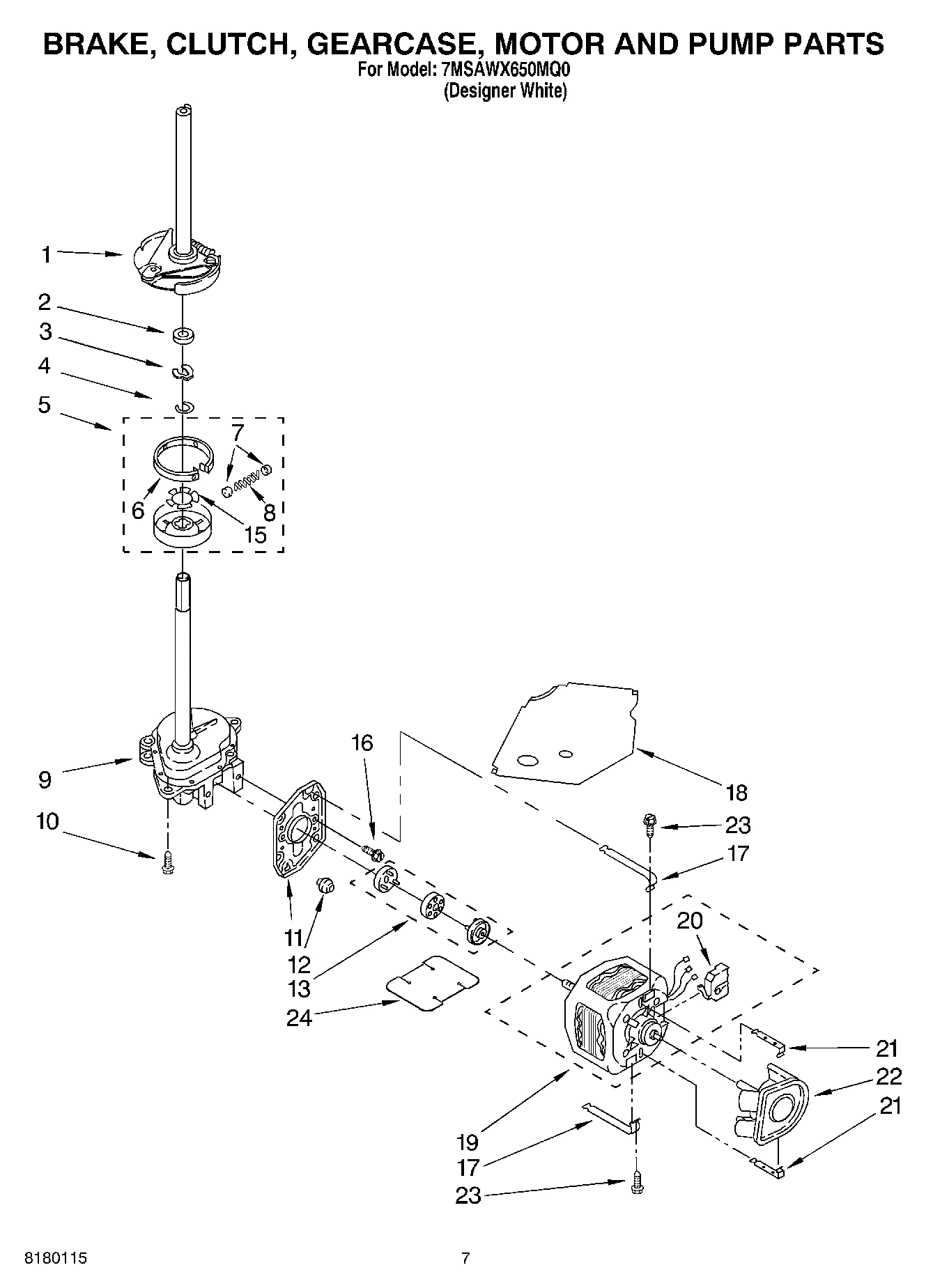

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $11.99

13

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $76.20

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $3.52

14

W10130795 Whirlpool Power Cord Backorder WPL W10130795 $110.44

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $164.99

15

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

15

Strain Relief, Power Cord WPL 3949468 Contact Us For Availability

16

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

16

Tub WPL 63125 Contact Us For Availability

16

Cap, End (L.H.) WPL 8532108 Contact Us For Availability

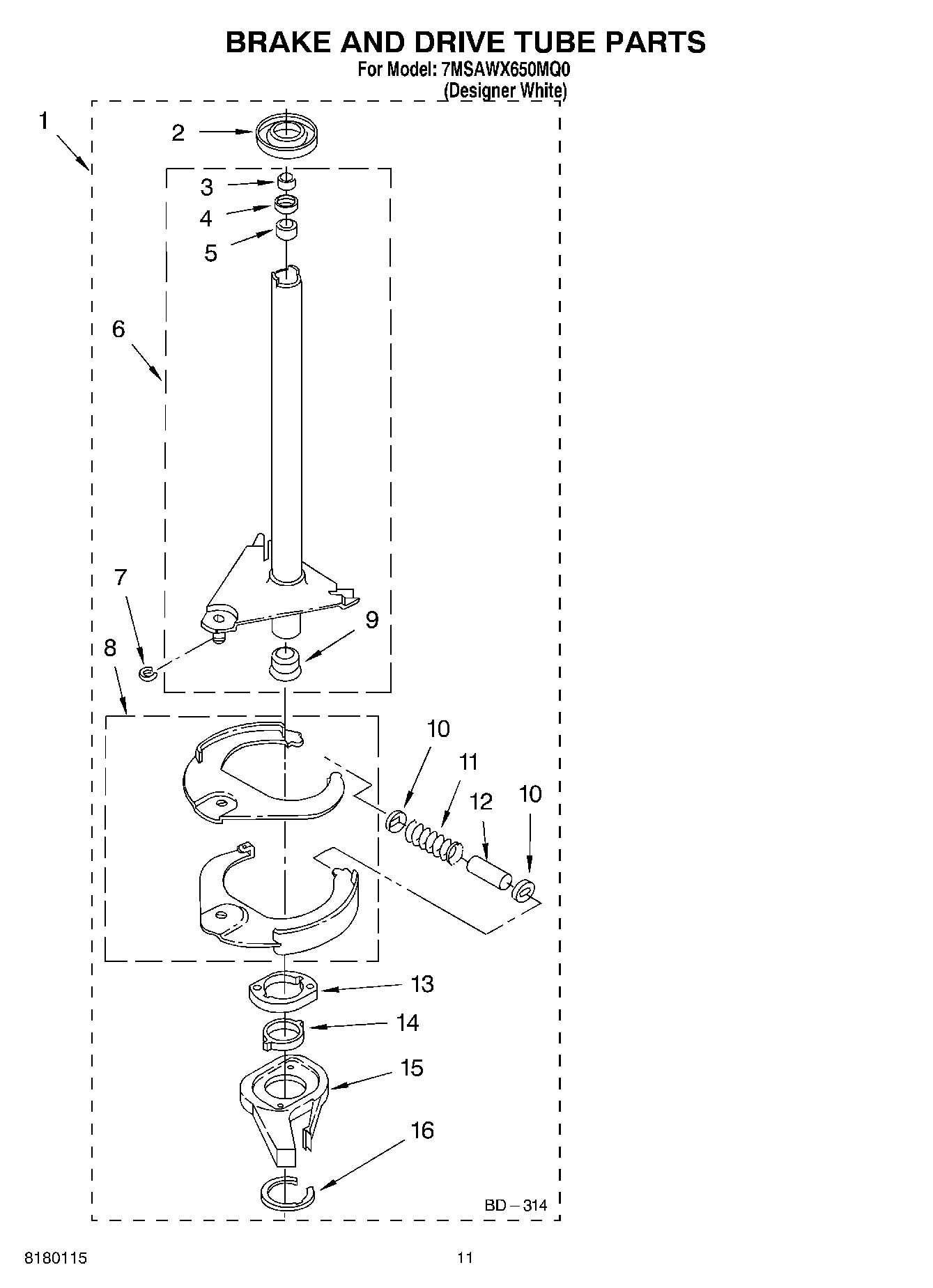

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.79

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $129.15

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Plug, Terminal (4-Way) (Power Cord) (Use M3 S WPL 387566 Contact Us For Availability

Screw, Ground WPL 3179795 Contact Us For Availability

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $36.94

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.99

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $8.53

Clip, Harness WPL 3352944 Contact Us For Availability

19

Block, Disconnect (12-Way) (Timer) (Use Term. WPL 3390423 Contact Us For Availability

19

Lid WPL 8532145 Contact Us For Availability

19

Edge Protector WPL 303294 Contact Us For Availability

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $8.99

WP63235 Whirlpool Agitator Assembly Backorder WPL WP63235 $185.88

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

Receptacle, (6-Way) (Use Term. 94613) WPL 3347730 Contact Us For Availability

Clip, Capacitor WPL 8318201 Contact Us For Availability

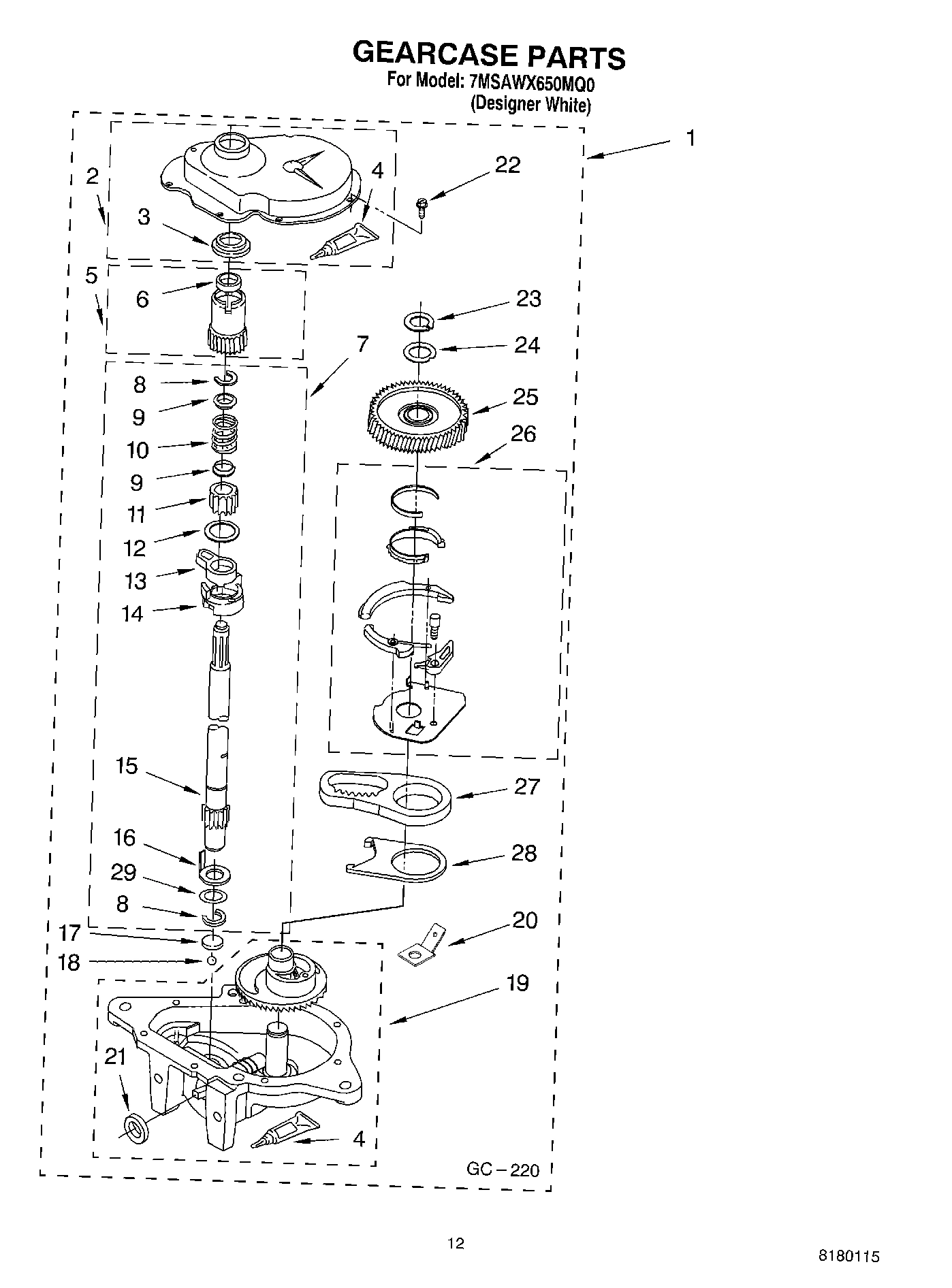

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $59.80

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

Plug, Terminal (12-Way) (Use Term. 94613 Or 9 WPL 388818 Contact Us For Availability

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $17.91

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.85

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $7.99

Timer, Block Disconnect (Black) (Amp) (Use Te WPL 3369366 Contact Us For Availability

23

Connector, Etc WPL 3349494 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $93.99

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $58.99

24

Connector, Relay (Use Term. 308569) WPL 60687 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

E.T.C. Control WPL 3407125 Contact Us For Availability

25

Shield, Inlet Valve WPL 8314879 Contact Us For Availability

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $44.63

WP2172937 Whirlpool Connector In Stock WPL WP2172937 $12.98

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $5.99

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.99

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.98

27

Connector (T.P.A) (3-Circuit) (Pressure Switc WPL 3360056 Contact Us For Availability

28

3354925 Whirlpool Connector Backorder WPL 3354925 $14.02

28

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

28

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $52.84

29

Clamp, Hose WPL 3976395 Contact Us For Availability

29

WPL 3354926 WPL 3354926 Contact Us For Availability

30

WP616099 Whirlpool Clamp Backorder WPL WP616099 $4.42

30

WPL 3948615 WPL 3948615 Contact Us For Availability

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.99

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.99

33

Clip, Harness & Pressure Hose WPL 8055003 Contact Us For Availability

34

8528351 Whirlpool Clip Backorder WPL 8528351 $50.83

35

WPW10168256 Whirlpool Temperature Switch Backorder WPL WPW10168256 $88.90

36

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

37

Retainer, Harness WPL 8317975 Contact Us For Availability

39

Panel, Console WPL 8539627 Contact Us For Availability

41

W10113937 Whirlpool Clamp Backorder WPL W10113937 $7.16

42

Wire, Ground WPL 3398893 Contact Us For Availability

44

W10807860 Whirlpool White Control Knob In Stock WPL W10807860 $45.60

45

WP3957841 Whirlpool Dial Backorder WPL WP3957841 $42.69

47

WP3957796 Whirlpool Knob In Stock WPL WP3957796 $37.84

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

51

Cap, End (R.H.) WPL 8532107 Contact Us For Availability

56

Wir WPL 3956692 Contact Us For Availability

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99
