Model Whirlpool 7MMHW5500FC0 WASHER – Common Parts &amp; Diagrams

1

WPW10208415 Whirlpool Washer Dryer Door Hinge In Stock WPL WPW10208415 $136.67

1

WPW10435242 Whirlpool Water Inlet Valve In Stock WPL WPW10435242 $107.51

1A

ASSEMBLY, CONSOLE (CHROME SHADOW) WPL W10783707 Contact Us For Availability

2

WPW10208373 Whirlpool Top In Stock WPL WPW10208373 $224.95

2

WPW10208398 Whirlpool Hinge Pin Cap In Stock WPL WPW10208398 $13.65

2

WPW10253476 Whirlpool Screw In Stock WPL WPW10253476 $8.60

2

WPW10577770 Whirlpool Hose Backorder WPL WPW10577770 $18.41

2A

WPW10460693 Whirlpool Top Assembly In Stock WPL WPW10460693 $255.20

3

W10839743 Whirlpool Bracket Backorder WPL W10839743 $12.37

3

W10911042 Whirlpool Control Panel In Stock WPL W10911042 $225.15

3

W11166595 Whirlpool Cabinet Assembly Backorder WPL W11166595 $263.13

3

WPW10544980 Whirlpool Rotor Backorder WPL WPW10544980 $210.76

3A

W11166600 Whirlpool Cabinet Backorder WPL W11166600 $263.13

4

8572266 Whirlpool Bumper Assembly Backorder WPL 8572266 $7.30

4

W10853910 Whirlpool Knob In Stock WPL W10853910 $46.68

4

W11253212 Whirlpool Washer Screw In Stock WPL W11253212 $11.38

4

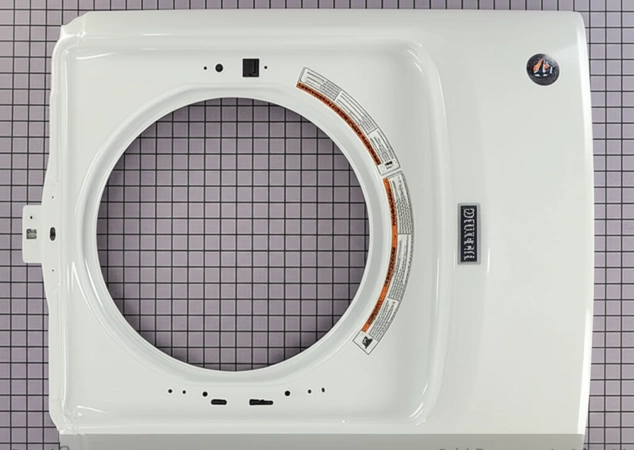

WPW10650837 Whirlpool Panel Backorder WPL WPW10650837 $229.34

4A

W10846340 Whirlpool Panel Backorder WPL W10846340 $236.52

5

W10435238 Whirlpool Hose Backorder WPL W10435238 $56.69

5

W11266654 Whirlpool Washer Door Boot Seal Cla In Stock WPL W11266654 $19.88

5

SCREW WPL W10288126 Contact Us For Availability

5

PIPE, VENTILATION ASSEMBLY WPL W10261582 Contact Us For Availability

6

W10237535 Whirlpool Counterweight Backorder WPL W10237535 $134.88

6

W10685628 Whirlpool Wire Harness Backorder WPL W10685628 $111.49

6

WPW10443885 Whirlpool Door Lock In Stock WPL WPW10443885 $78.75

6

WPW10488048 Whirlpool Strike In Stock WPL WPW10488048 $5.30

7

W10208197 Whirlpool Bracket Backorder WPL W10208197 $120.27

7

W10253014 Whirlpool Counterweight Backorder WPL W10253014 $134.80

7

W11230114 Whirlpool Screw Assembly In Stock WPL W11230114 $8.89

8

WP8534022 Whirlpool Screw Backorder WPL WP8534022 $4.82

8

WPW10365885 Whirlpool Washer Dispenser Drawer Backorder WPL WPW10365885 $82.72

9

W11084830 Whirlpool Detergent Divider Backorder WPL W11084830 $116.59

9

W11316776 Whirlpool Inner Door Backorder WPL W11316776 $112.42

9

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $5.02

9

WPW10653575 Whirlpool Channel Backorder WPL WPW10653575 $60.98

W10580186 Whirlpool Wire Harness Backorder WPL W10580186 $25.11

W10746378 Whirlpool Wire Harness Backorder WPL W10746378 $124.05

WPW10237499 Whirlpool Door Boot Seal In Stock WPL WPW10237499 $178.64

WPW10365887 Whirlpool Dispenser Cover Housing Backorder WPL WPW10365887 $65.05

11

W11218344 Whirlpool Boot Seal Retaining Ring In Stock WPL W11218344 $16.85

11

WPW10239966 Whirlpool Hose Backorder WPL WPW10239966 $61.27

11

GLASS, DOOR WPL W10607723 Contact Us For Availability

12

W10239910 Whirlpool Clamp Backorder WPL W10239910 $41.55

12

WPW10424239 Whirlpool Outer Door Backorder WPL WPW10424239 $251.03

12

WPW10597205 Whirlpool Washer Drum Baffle In Stock WPL WPW10597205 $58.62

13

W10237498 Whirlpool Bracket Assembly Backorder WPL W10237498 $52.19

13

W10626041 Whirlpool Handle Backorder WPL W10626041 $57.93

13

W11254812 Whirlpool Handle In Stock WPL W11254812 $55.20

13A

HANDLE, DRAWER (CHROME SHADOW) WPL W10783705 Contact Us For Availability

14

W10903220 Whirlpool Trap Assembly In Stock WPL W10903220 $27.00

14

W11199206 Whirlpool Panel Backorder WPL W11199206 $233.15

15

SCREW WPL 9742177 Contact Us For Availability

15

CLAMP, HOSE WPL 371499 Contact Us For Availability

16

WPW10467483 Whirlpool Bracket Backorder WPL WPW10467483 $20.69

17

W10261496 Whirlpool Screw Backorder WPL W10261496 $8.40

18

WPW10181028 Whirlpool Clip Backorder WPL WPW10181028 $11.88

18

WPW10568614 Whirlpool Hose In Stock WPL WPW10568614 $54.60

19

W10273034 Whirlpool Clamp Backorder WPL W10273034 $7.16

19

WPW10367632 Whirlpool Filter In Stock WPL WPW10367632 $59.01

20

W10353599 Whirlpool Hose Clamp Backorder WPL W10353599 $14.95

20

WPW10448876 Whirlpool Pressure Switch In Stock WPL WPW10448876 $50.49

21

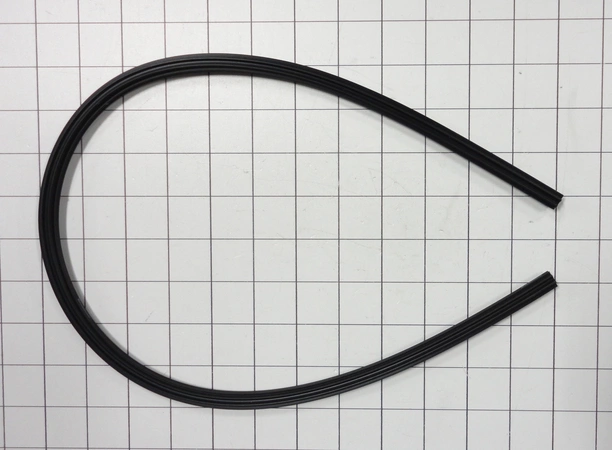

W11044559 Whirlpool Hose In Stock WPL W11044559 $20.16

21

WPW10352818 Whirlpool Vent Pipe Backorder WPL WPW10352818 $53.98

22

W10316388 Whirlpool Clip Assembly Backorder WPL W10316388 $7.15

22

RETAINER Backorder WPL W11846996 $7.19

23

W10467484 Whirlpool Bracket Backorder WPL W10467484 $30.43

23

W11415987 Whirlpool Shock Absorber In Stock WPL W11415987 $70.68

24

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.82

25

W10318155 Whirlpool Cover Backorder WPL W10318155 $56.46

25

WPW10280024 Whirlpool Retainer Backorder WPL WPW10280024 $56.13

26

W11281268 Whirlpool Hose In Stock WPL W11281268 $27.87

26

WPW10605427 Whirlpool Washer Drain Pump In Stock WPL WPW10605427 $56.24

27

W11035353 Whirlpool Washer Power Cord Backorder WPL W11035353 $92.17

27

W11568579 Whirlpool Cap Backorder WPL W11568579 $8.89

28

W11712579 Whirlpool Filter Backorder WPL W11712579 $12.80

28

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

29

W11673307 Whirlpool Washer Seal Backorder WPL W11673307 $4.67

30

W10870753 Whirlpool Shield Backorder WPL W10870753 $23.18

31

WPW10562025 Whirlpool Hose In Stock WPL WPW10562025 $56.85

32

W10441646 Whirlpool Clip Assembly Backorder WPL W10441646 $11.93

34

WPW10434964 Whirlpool Fan Assembly Backorder WPL WPW10434964 $193.44

35

WP8540282 Whirlpool Screw In Stock WPL WP8540282 $7.75

37

WPW10467289 Whirlpool Sensor In Stock WPL WPW10467289 $30.62

1903WH Whirlpool Laundry Cart Backorder WPL 1903WH $78.00

285863 Whirlpool Drain Hose Extension 4' In Stock WPL 285863 $24.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $30.02

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $19.58

8212526 Whirlpool Washer Water Leak Protectio Backorder WPL 8212526 $64.56

8212638RP Whirlpool Fill Hose Assembly, 2 Pac In Stock WPL 8212638RP $53.25

W10446202 Whirlpool Washer/Dryer Touch-Up Pai Backorder WPL W10446202 $18.89

WPW10269488 Whirlpool Connector Backorder WPL WPW10269488 $62.15

ACCESSORY PARTS, AFFRESH ODOR REMOVER WPL W10135699 Contact Us For Availability

ACCESSORY PARTS, APPLIANCE CLEANER WPL 31682 Contact Us For Availability

PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
