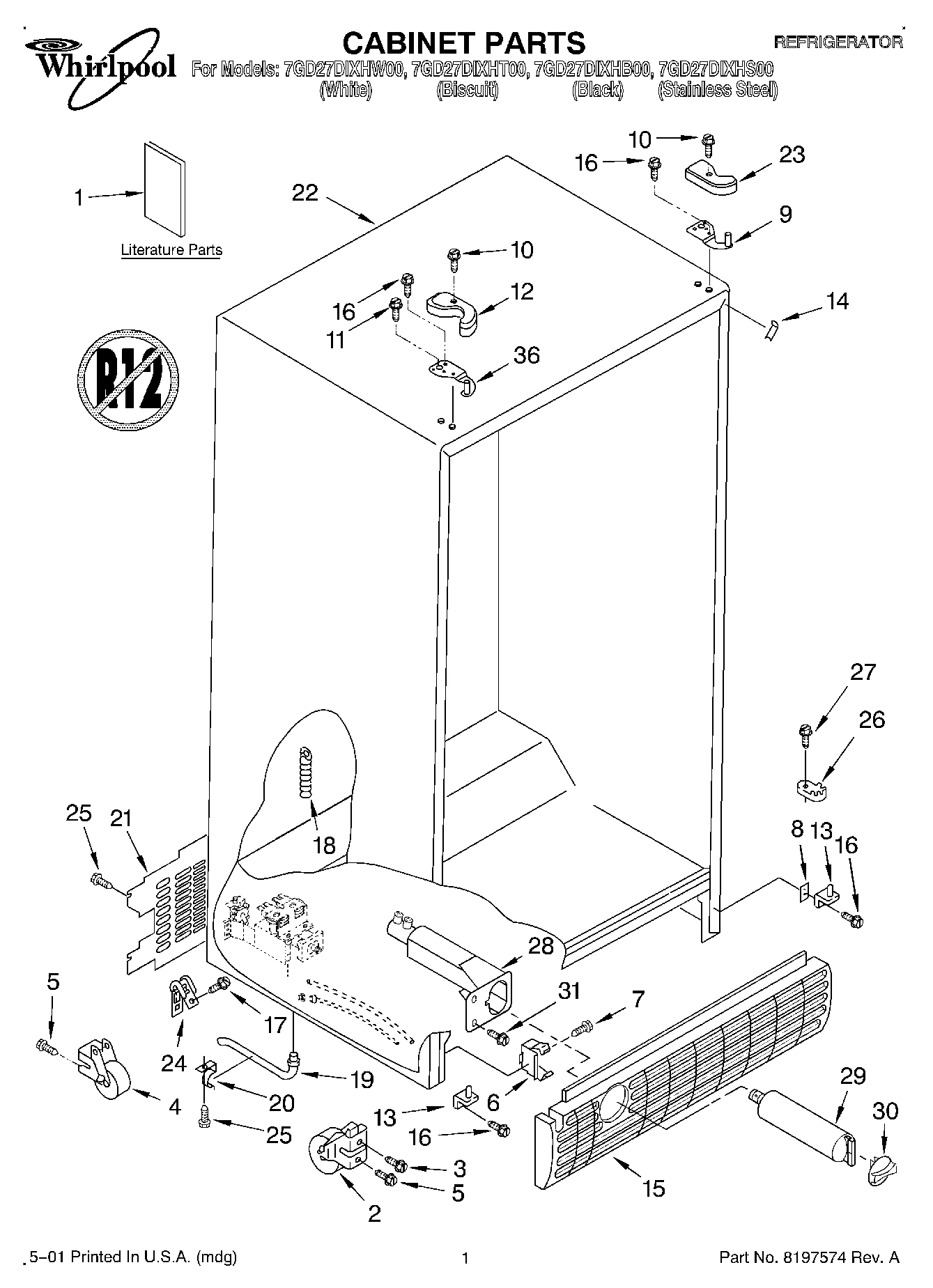

Model Whirlpool 7GD27DIXHW00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

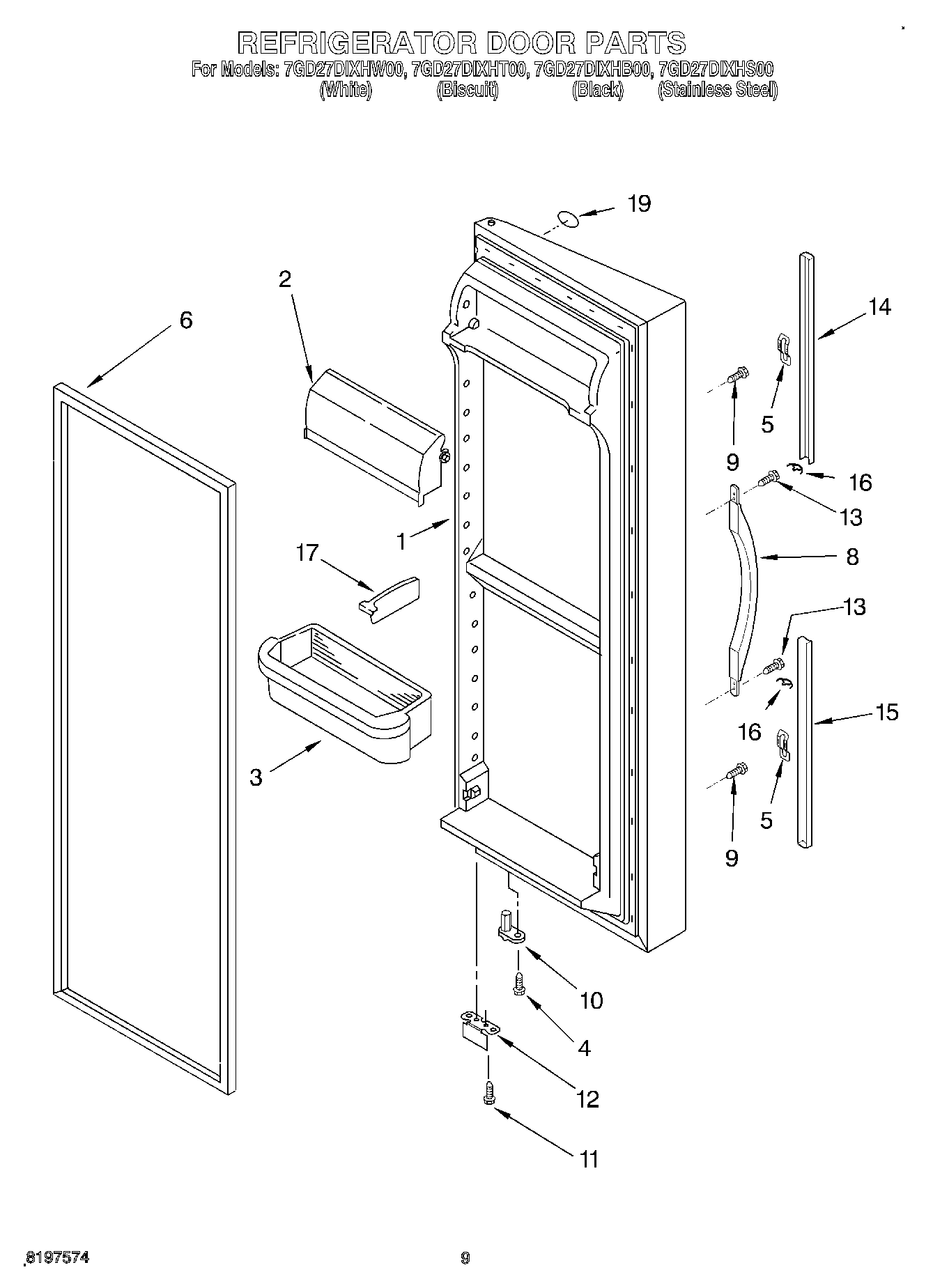

Refrigerator Door (Includes Item No.6) (Black WPL 2207024B Contact Us For Availability

1

Refrigerator Door (Includes Item No.6) (Stain WPL 2207024S Contact Us For Availability

1

Refrigerator Door (Includes Item No.6) (Biscu WPL 2207024T Contact Us For Availability

1

Refrigerator Door (Includes Item No.6) (White WPL 2207024W Contact Us For Availability

1

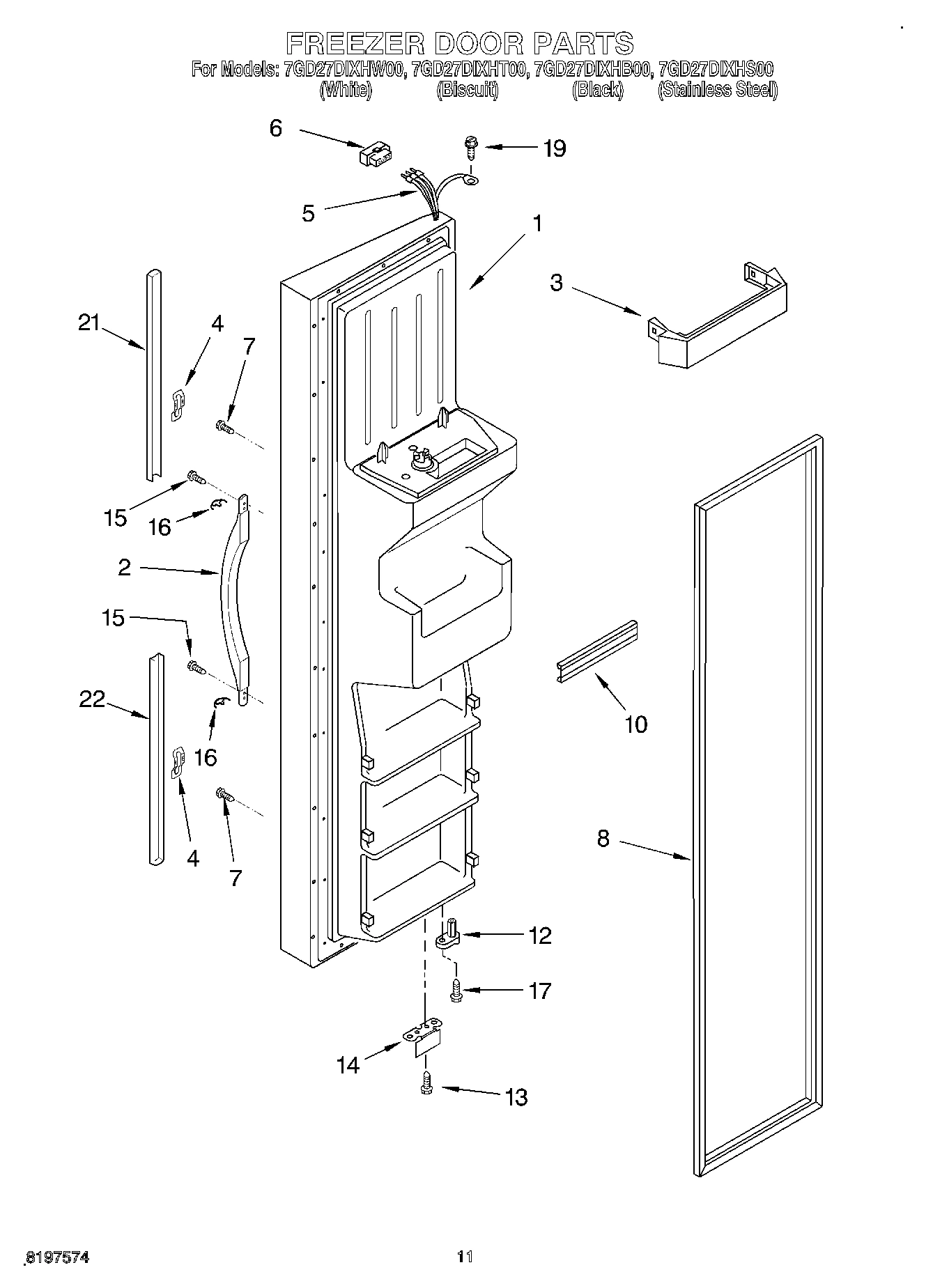

Freezer Door (Includes No.8 And Dispenser Fro WPL 2216059B Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2216059S Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2216059T Contact Us For Availability

1

Freezer Door (Includes No.8 And Dispenser Fro WPL 2216059W Contact Us For Availability

1

Control Box WPL 2200136 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

WP2256096 Whirlpool Refrigerator Fitting In Stock WPL WP2256096 $130.70

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $72.67

2

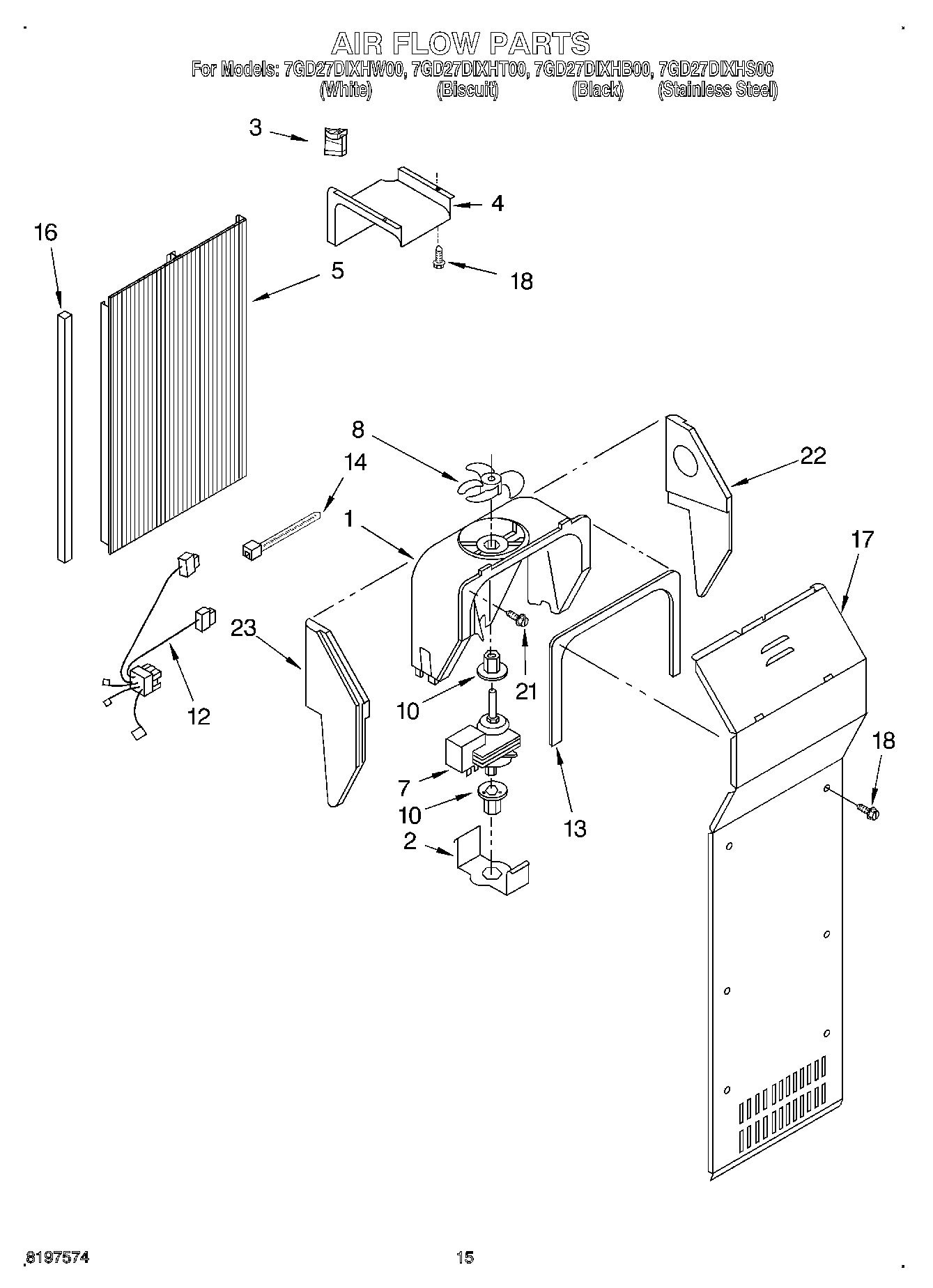

Blade, Fan WPL 2190685 Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle (Black) WPL 2207003B Contact Us For Availability

2

Handle (Biscuit) WPL 2207003T Contact Us For Availability

2

Handle (Tempest Gray) WPL 2207003TG Contact Us For Availability

2

Handle (White) WPL 2207003W Contact Us For Availability

3

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $25.54

3

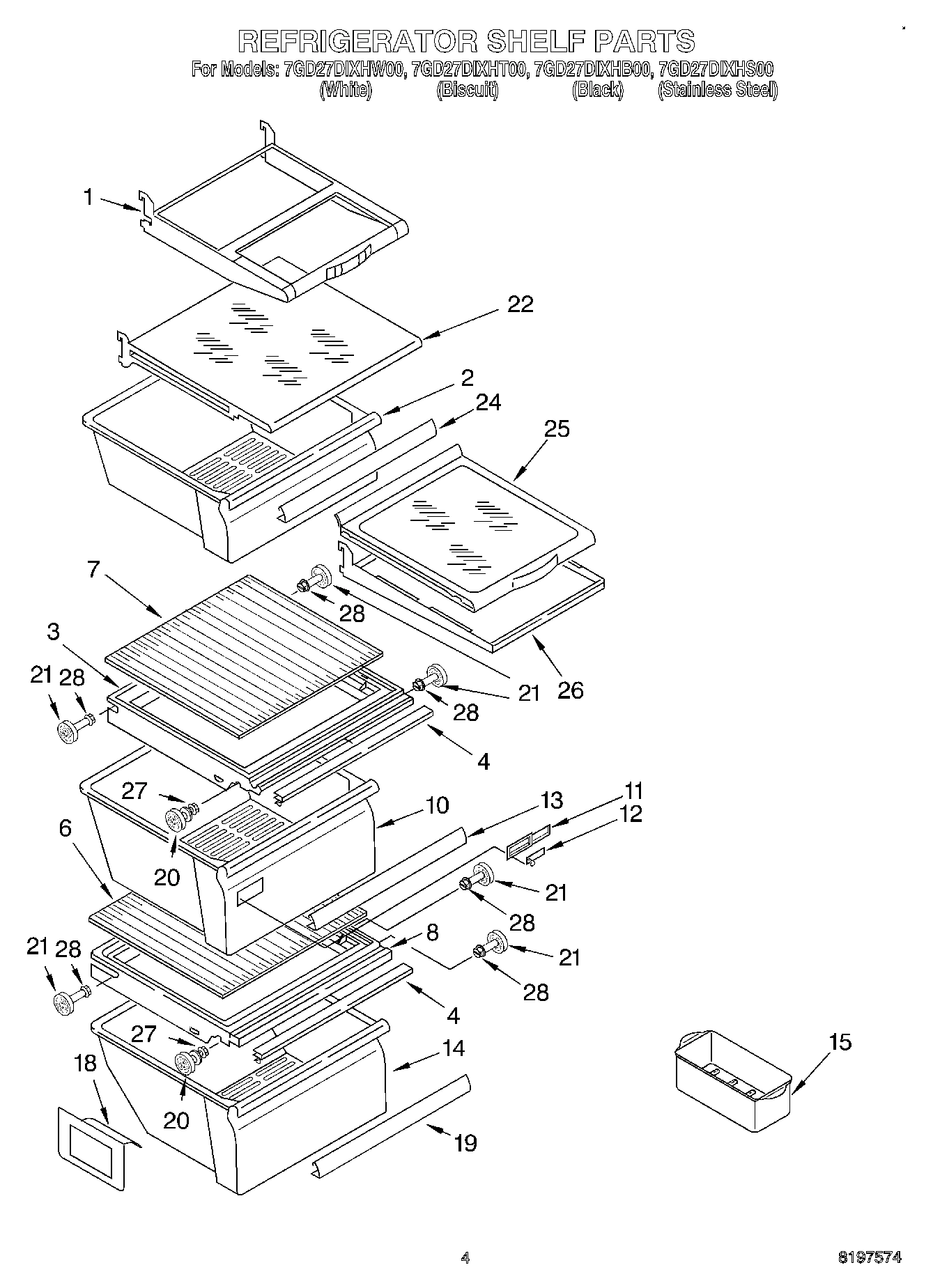

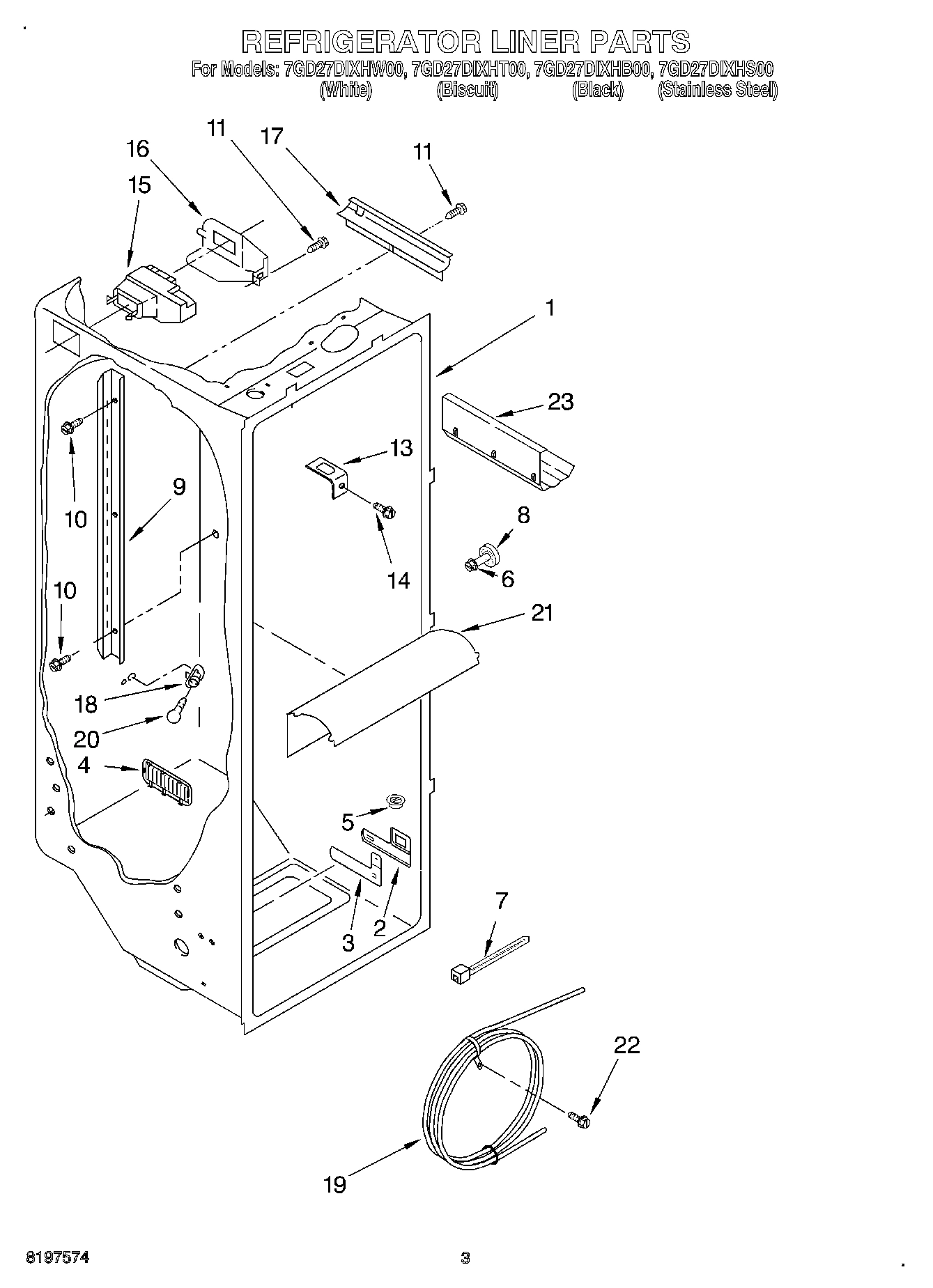

WP2171157 Whirlpool Shelf Trim Backorder WPL WP2171157 $43.33

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $7.58

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

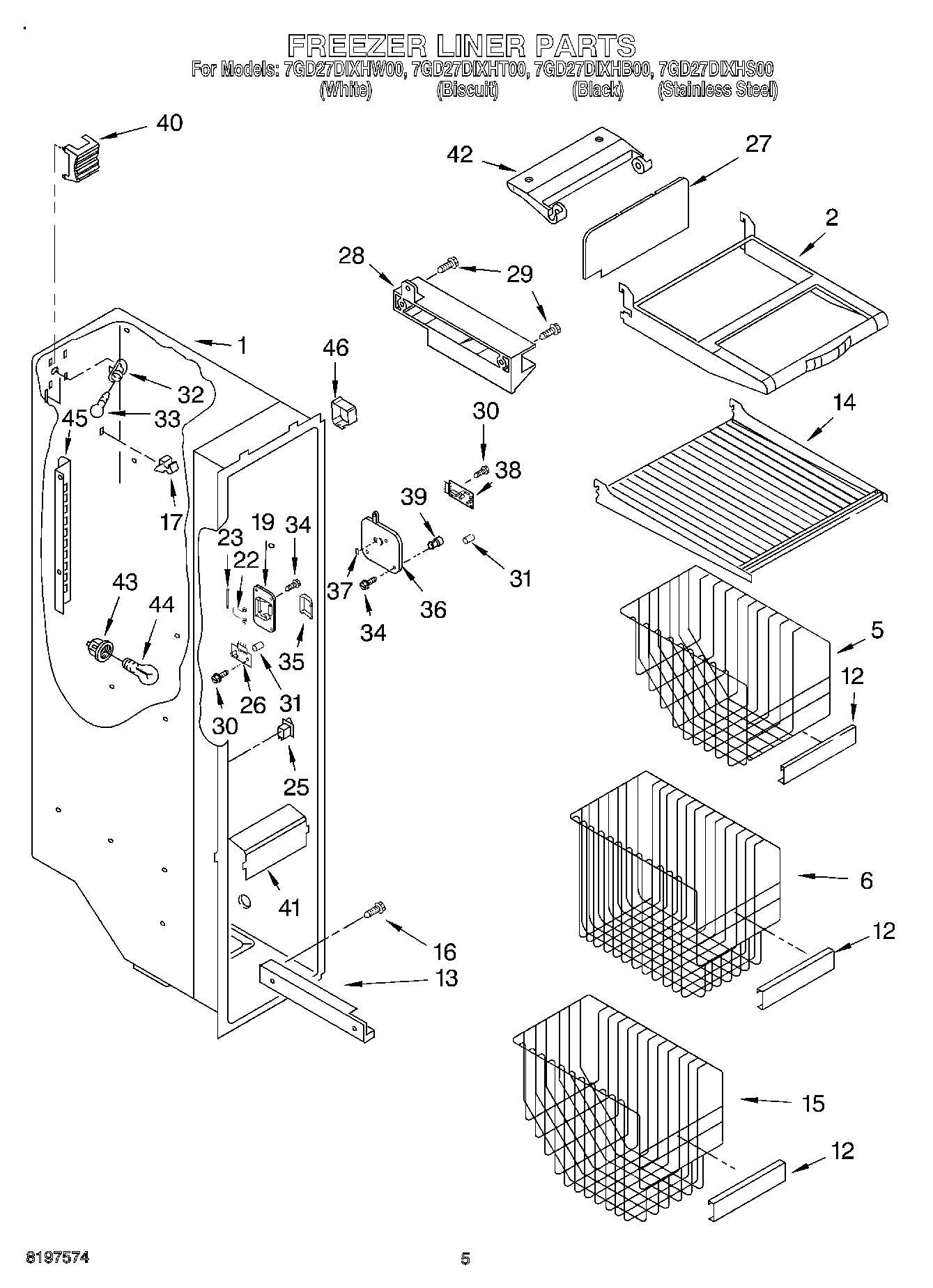

Shelf Bin (4) WPL 2179608 Contact Us For Availability

3

Air Scoop WPL 2198595 Contact Us For Availability

4

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $42.98

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Air Duct, Upper WPL 2198581 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

5

2198619 Whirlpool Refrigerator Wire Harness Backorder WPL 2198619 $90.20

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

COVER, LIGHT LENS WPL 2200096 Contact Us For Availability

5

Air Duct Freezer WPL 2198580 Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $254.76

6

4388932 Whirlpool Refrigerator Adaptive Defro In Stock WPL 4388932 $239.48

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

Nut, Compression WPL 2200083 Contact Us For Availability

7

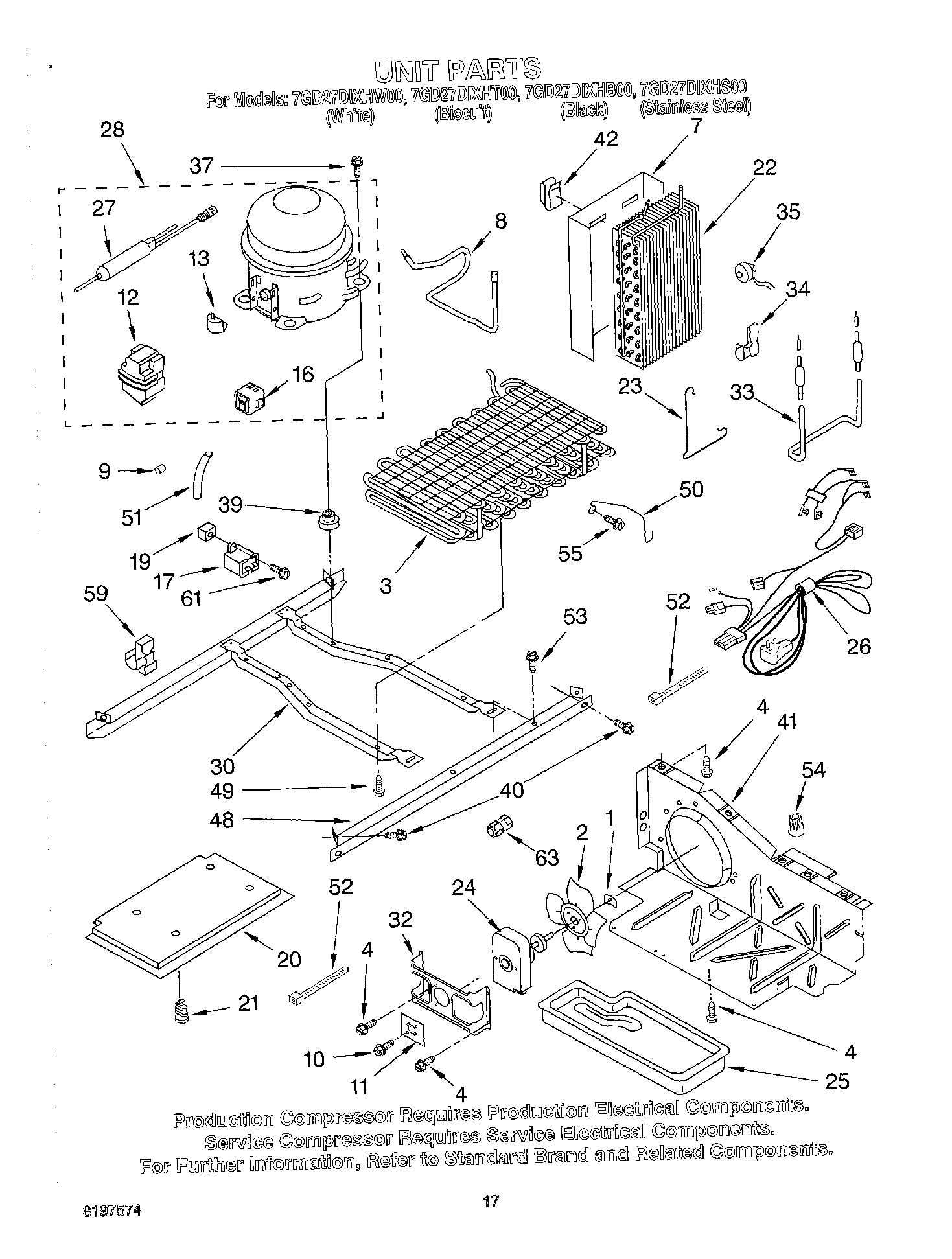

4389144 Whirlpool Refrigerator Evaporator Fan In Stock WPL 4389144 $62.77

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $8.89

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.88

7

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

7

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $234.99

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $228.51

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $13.22

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.66

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $62.99

9

WP2207007B Whirlpool Refrigerator Grille In Stock WPL WP2207007B $45.74

9

Grille, Overflow (White) WPL 2207007W Contact Us For Availability

9

Grille, Overflow (Biscuit) WPL 2207007T Contact Us For Availability

W10408179 Whirlpool Ice Maker Water Inlet Fil In Stock WPL W10408179 $96.99

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

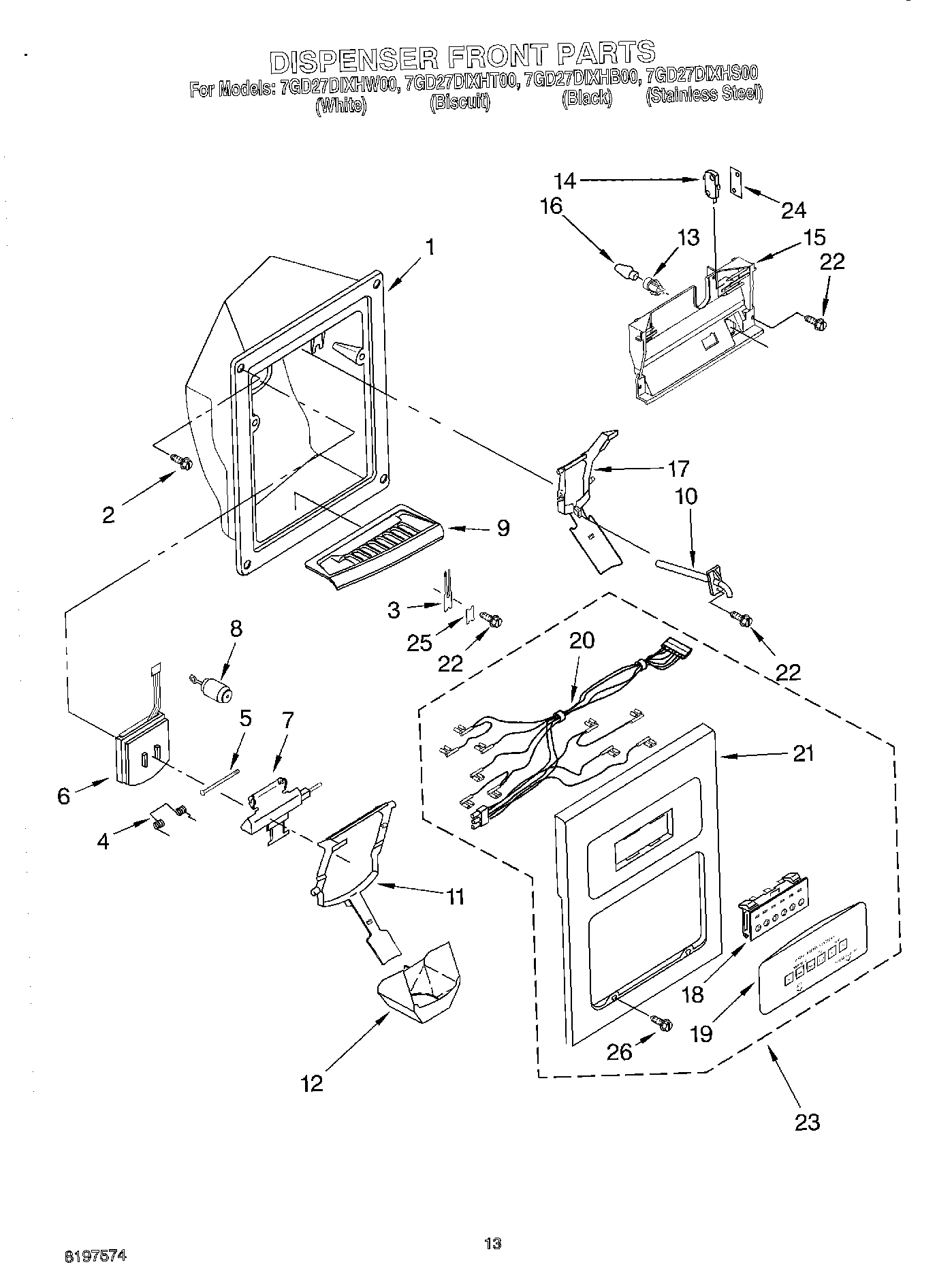

Lever, Ice Dispenser (Black (Storm Grey Pad)) WPL 2203562B Contact Us For Availability

Block, Blade WPL 2198602 Contact Us For Availability

Lever, Ice Dispenser (Biscuit (Almond Shadow WPL 2203562T Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $83.53

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

WP2198677 Whirlpool Refrigerator Connector In Stock WPL WP2198677 $15.57

WP4387835 Whirlpool Refrigerator Overload In Stock WPL WP4387835 $74.99

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $6.89

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Bracket, Door Stop WPL 2206910 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

Grille (Biscuit) WPL 2198468T Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $8.05

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

Jewelry, Handle (Gold) WPL 2207010G Contact Us For Availability

Jewelry, Handle (Satin Nickel) WPL 2207010SN Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

2203561W Whirlpool Refrigerator Dispenser Arm Backorder WPL 2203561W $65.67

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $67.99

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.74

Lever, Water Dispenser (Black (Storm Grey Pad WPL 2203561B Contact Us For Availability

Lever, Water Dispenser (Biscuit (Almond Shado WPL 2203561T Contact Us For Availability

Divider WPL 2195496 Contact Us For Availability

Cover, Evaporator WPL 2206314 Contact Us For Availability

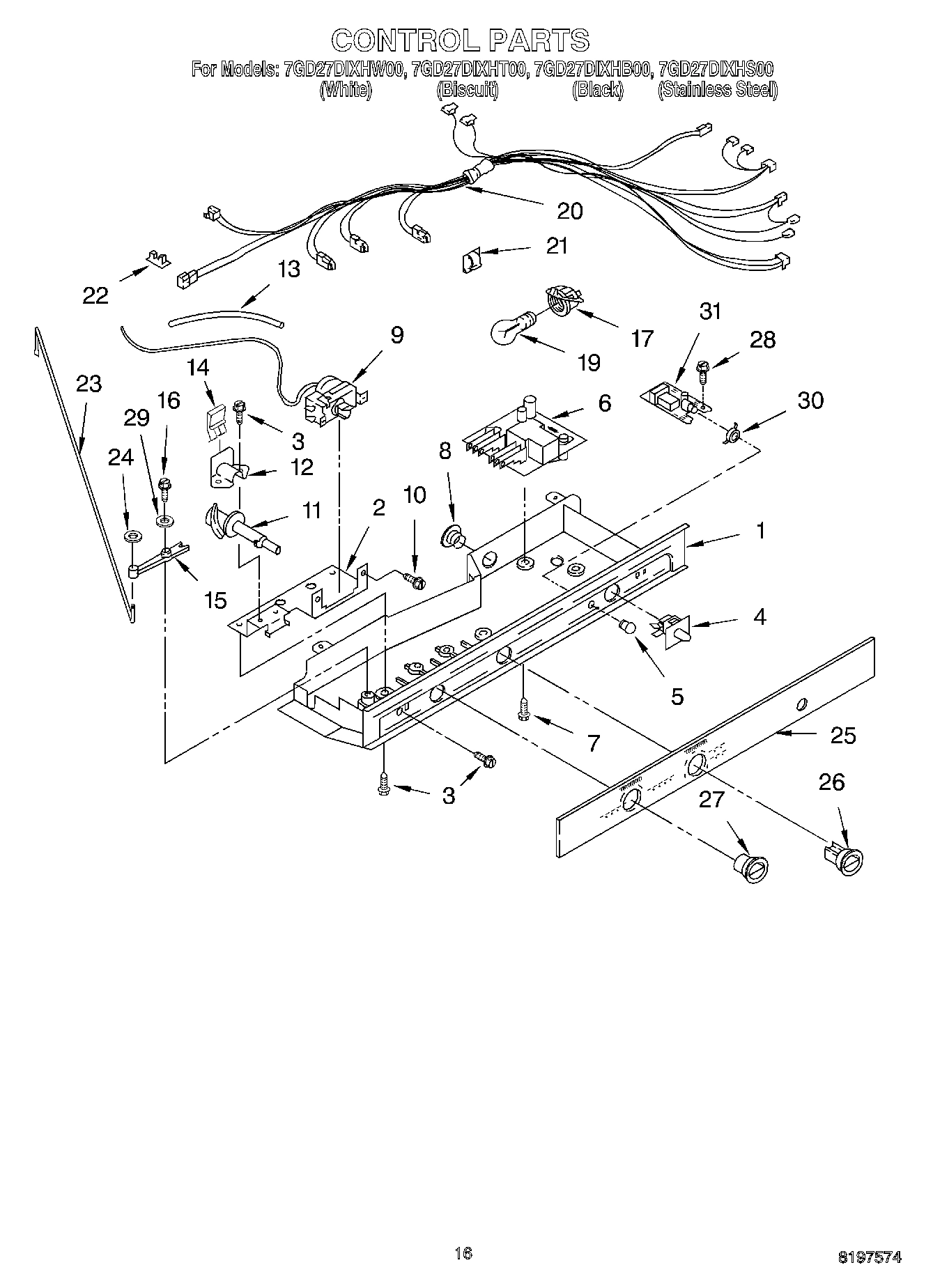

18

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

18

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $9.81

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.94

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $67.24

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $57.77

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $4.99

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

20

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $14.99

20

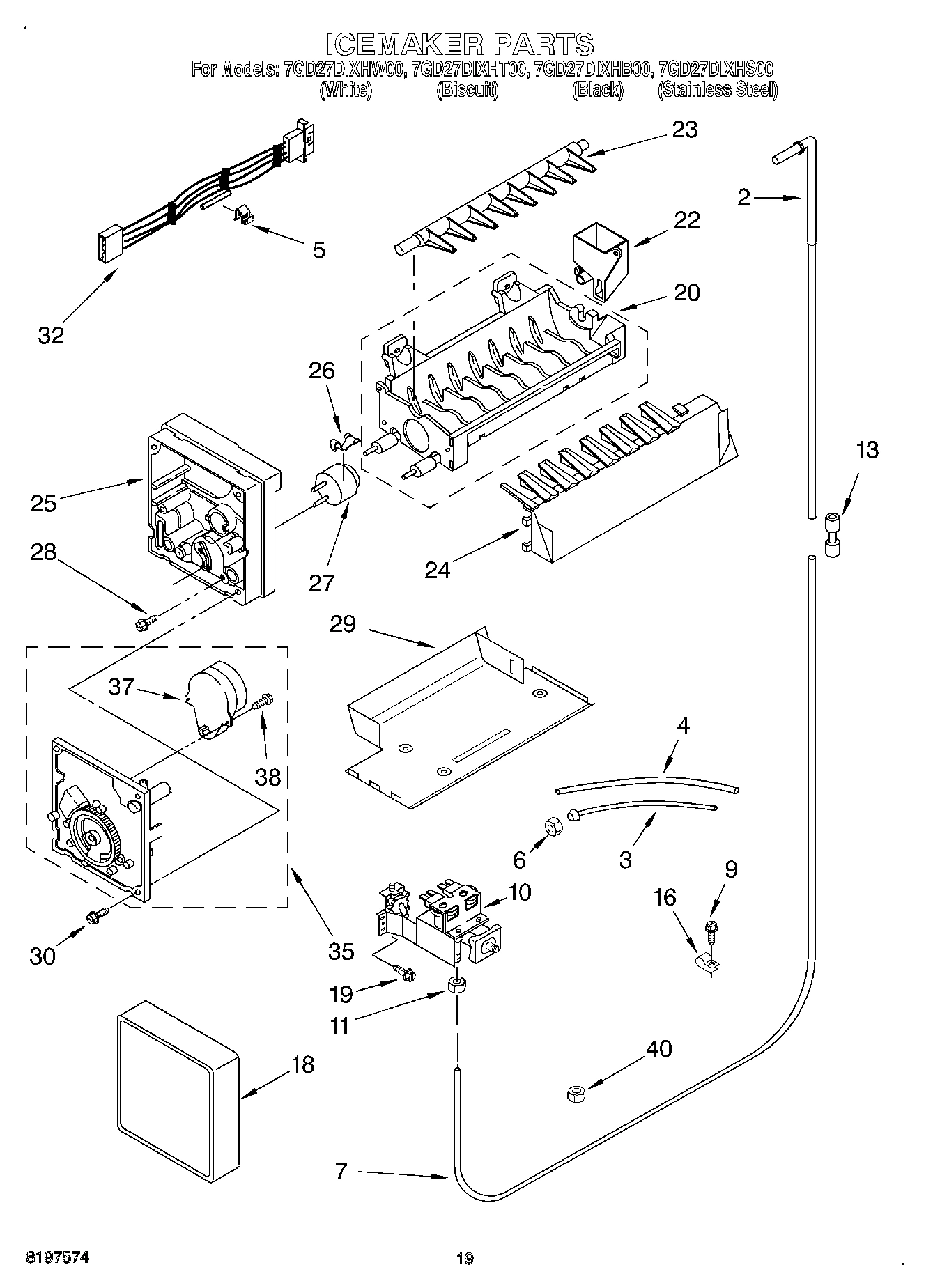

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $176.99

20

Harness, Control Box WPL 2211318 Contact Us For Availability

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $4.82

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $6.50

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

Trim, Door-Top (Black) WPL 2207037B Contact Us For Availability

Trim, Door-Top (Biscuit) WPL 2207037T Contact Us For Availability

Trim, Door-Top (Tempest Gray) WPL 2207037TG Contact Us For Availability

Trim, Door-Top (White) WPL 2207037W Contact Us For Availability

2198671 Whirlpool Refrigerator Screw In Stock WPL 2198671 $6.84

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $59.45

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Shelf, Snack Bin WPL 2206347 Contact Us For Availability

Trim, Door-Bottom (Black) WPL 2207038B Contact Us For Availability

Trim, Door-Bottom (Biscuit) WPL 2207038T Contact Us For Availability

Trim, Door-Bottom (Tempest Gray) WPL 2207038TG Contact Us For Availability

Trim, Door-Bottom (White) WPL 2207038W Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $19.99

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

Clip WPL 2161324 Contact Us For Availability

Connecting Rod WPL 1123960 Contact Us For Availability

W10297244 Whirlpool Refrigerator Arm Strip In Stock WPL W10297244 $56.99

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WPL 625834 WPL 625834 Contact Us For Availability

Fastener, Push-On WPL 489285 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $210.57

Escutcheon, Control Box WPL 2200100 Contact Us For Availability

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $18.73

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $6.59

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

Frame, Shelf WPL 2195975 Contact Us For Availability

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $4.82

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Knob, Air Control WPL 2197871 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

WP2186443 Whirlpool Water Filter Housing In Stock WPL WP2186443 $68.99

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $4.99

Slide, Ice Maker Mounting WPL 2212321 Contact Us For Availability

29

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $6.47

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $15.99

29

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $70.78

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $42.99

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $7.99

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $36.34

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

Retainer, Light Lens WPL 2200097 Contact Us For Availability

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

31

P.C. Board Filter Indicator WPL 2203384 Contact Us For Availability

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $88.98

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $28.99

36

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $62.57

37

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $71.99

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

39

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.99

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $16.99

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $49.86

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WPL 80051 WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Nut, Compression WPL 1129179 Contact Us For Availability

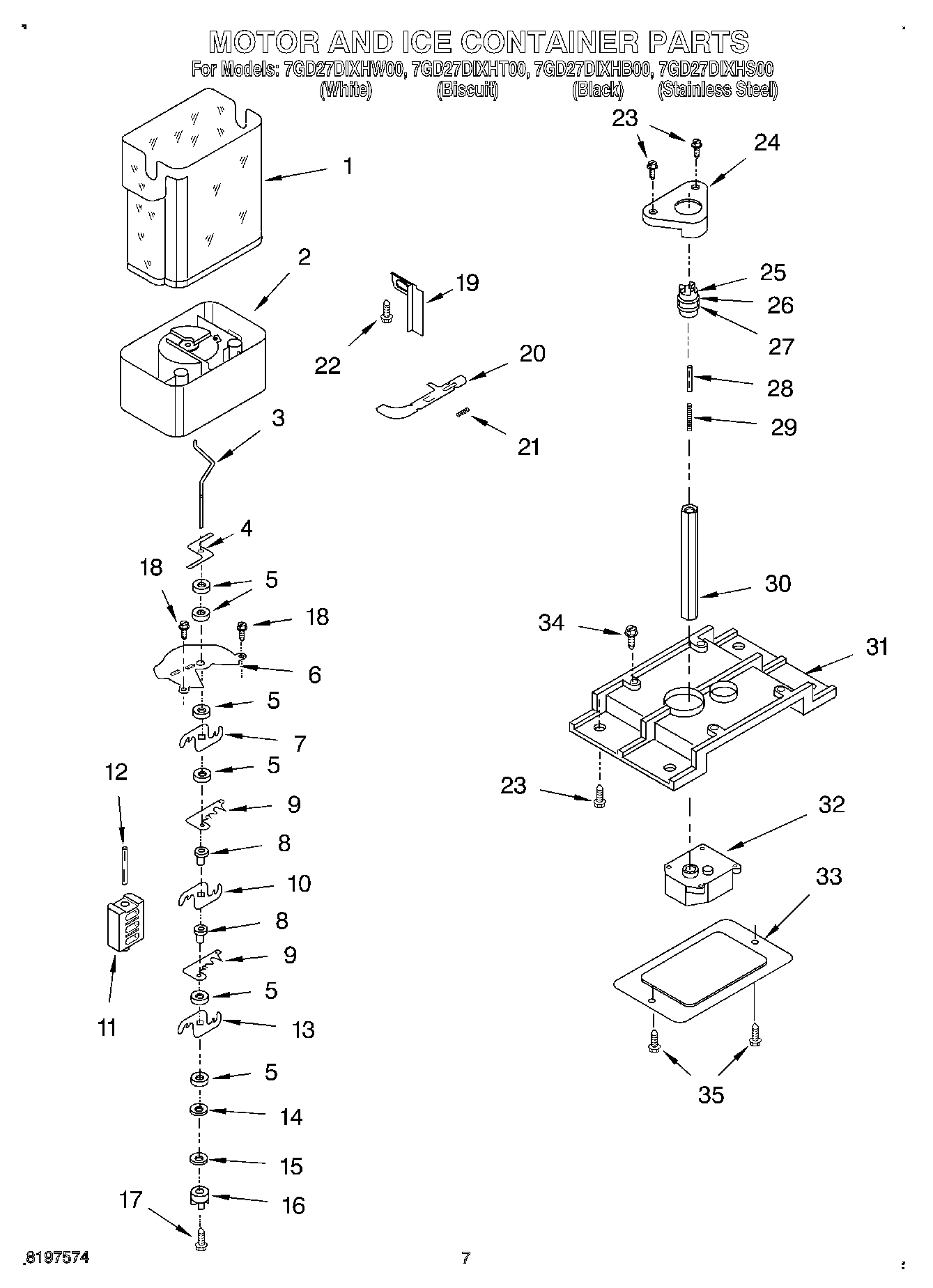

Ice Container- Crusher Assembly WPL 2198648 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability

WPL 8171358 WPL 8171358 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co Backorder WPL WP2198641 $6.99

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

55

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
