Model Whirlpool 4YED25DQFN00 REFRIGERATOR – Common Parts & Diagrams
12 - ICEMAKER, LIT/OPTIONAL
10 - AIRFLOW

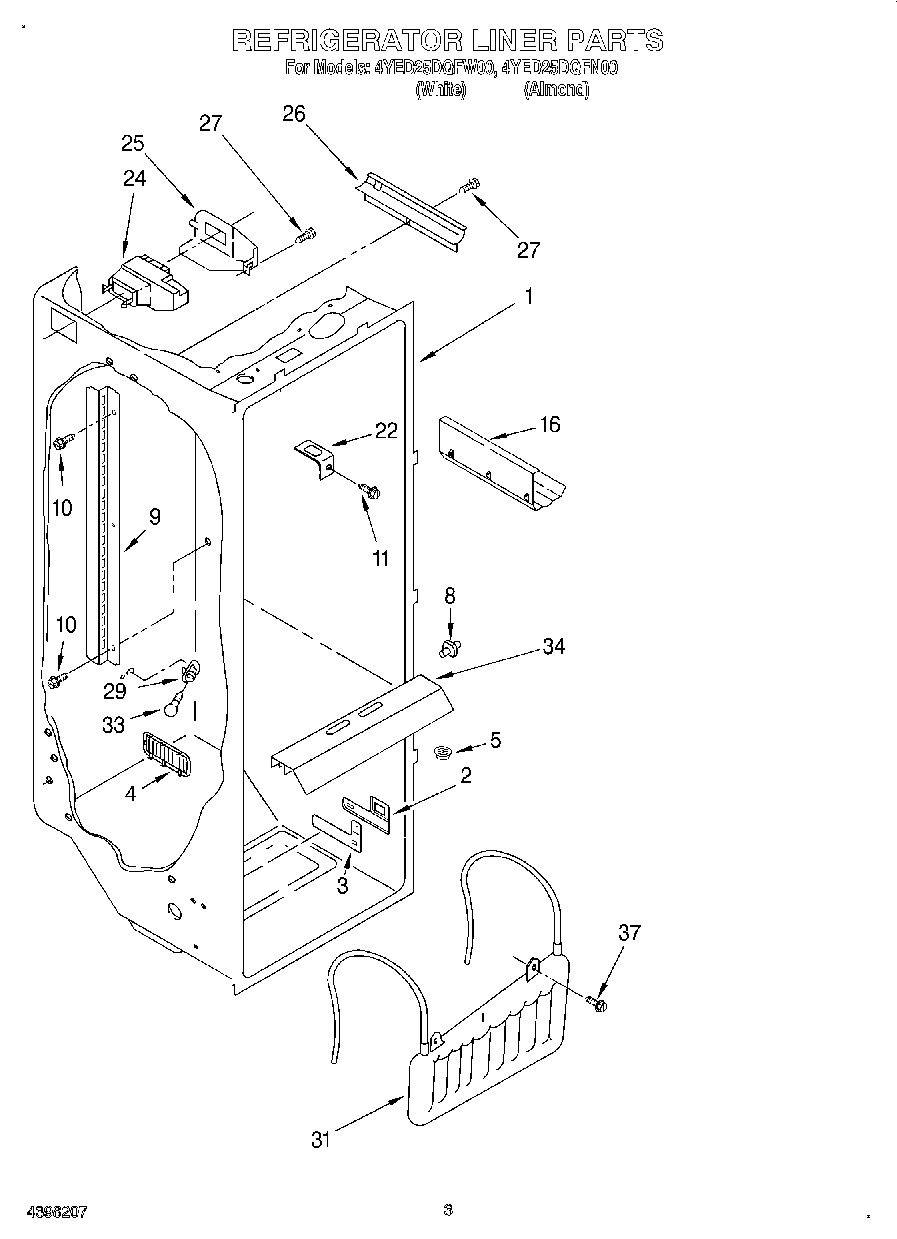

02 - REFRIGERATOR LINER

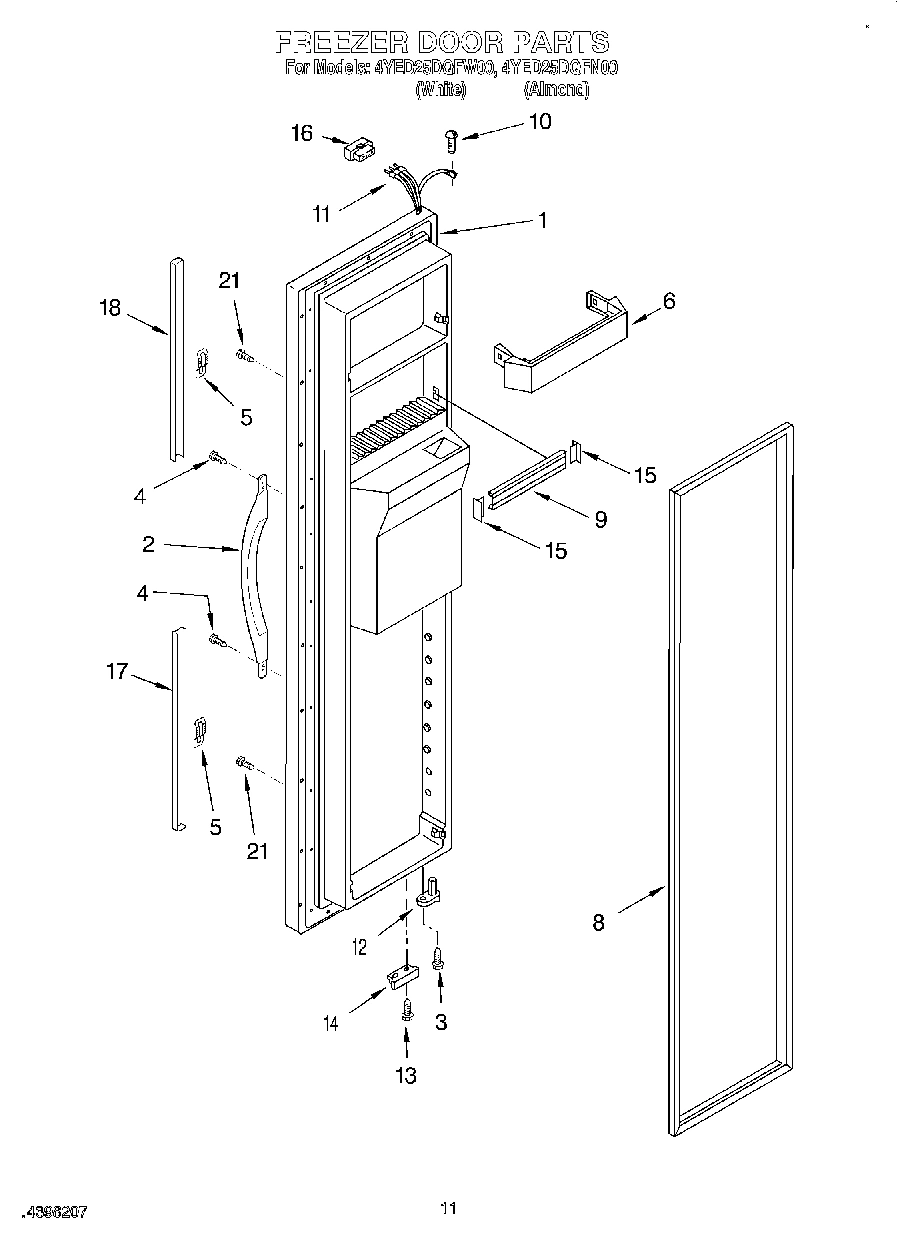

07 - FREEZER DOOR

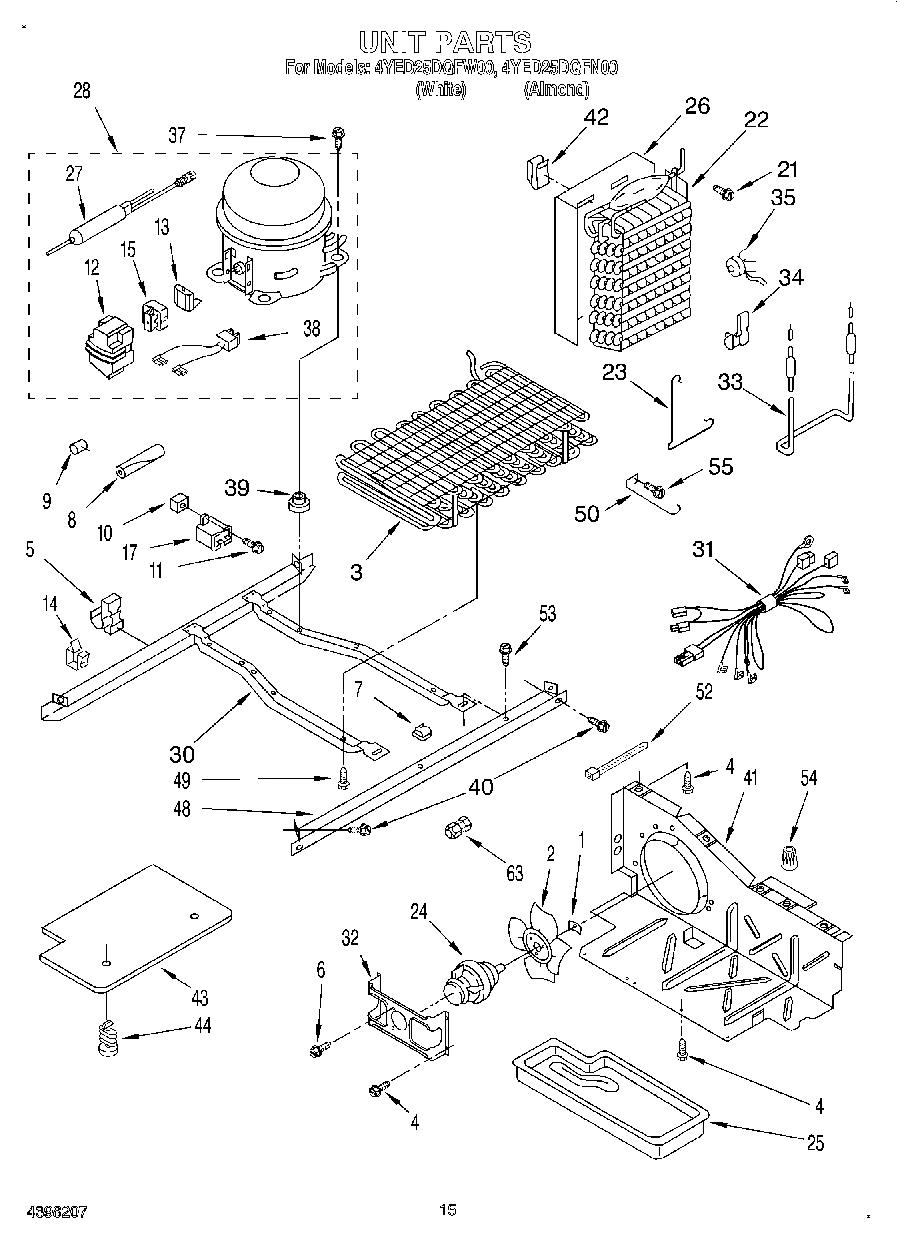

09 - UNIT

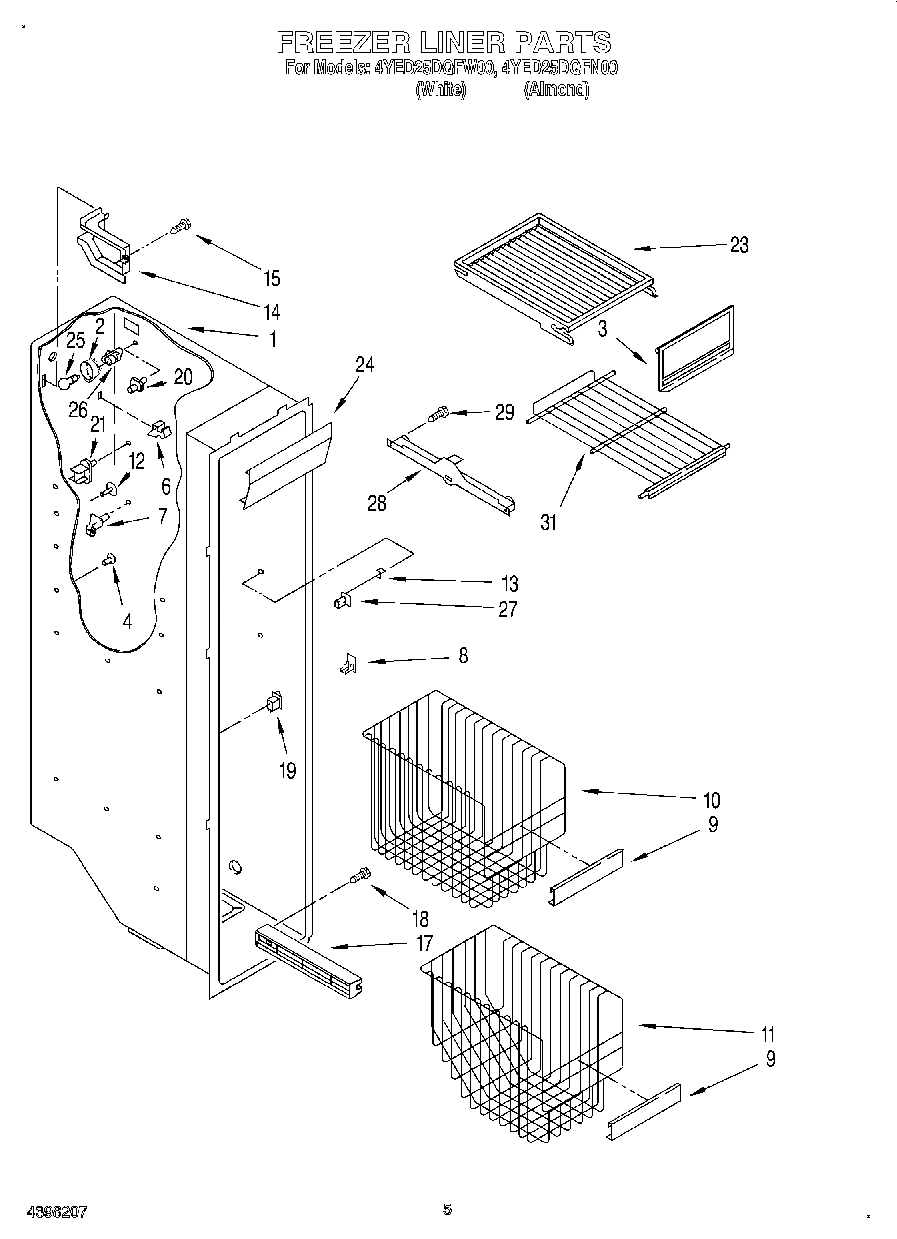

04 - FREEZER LINER

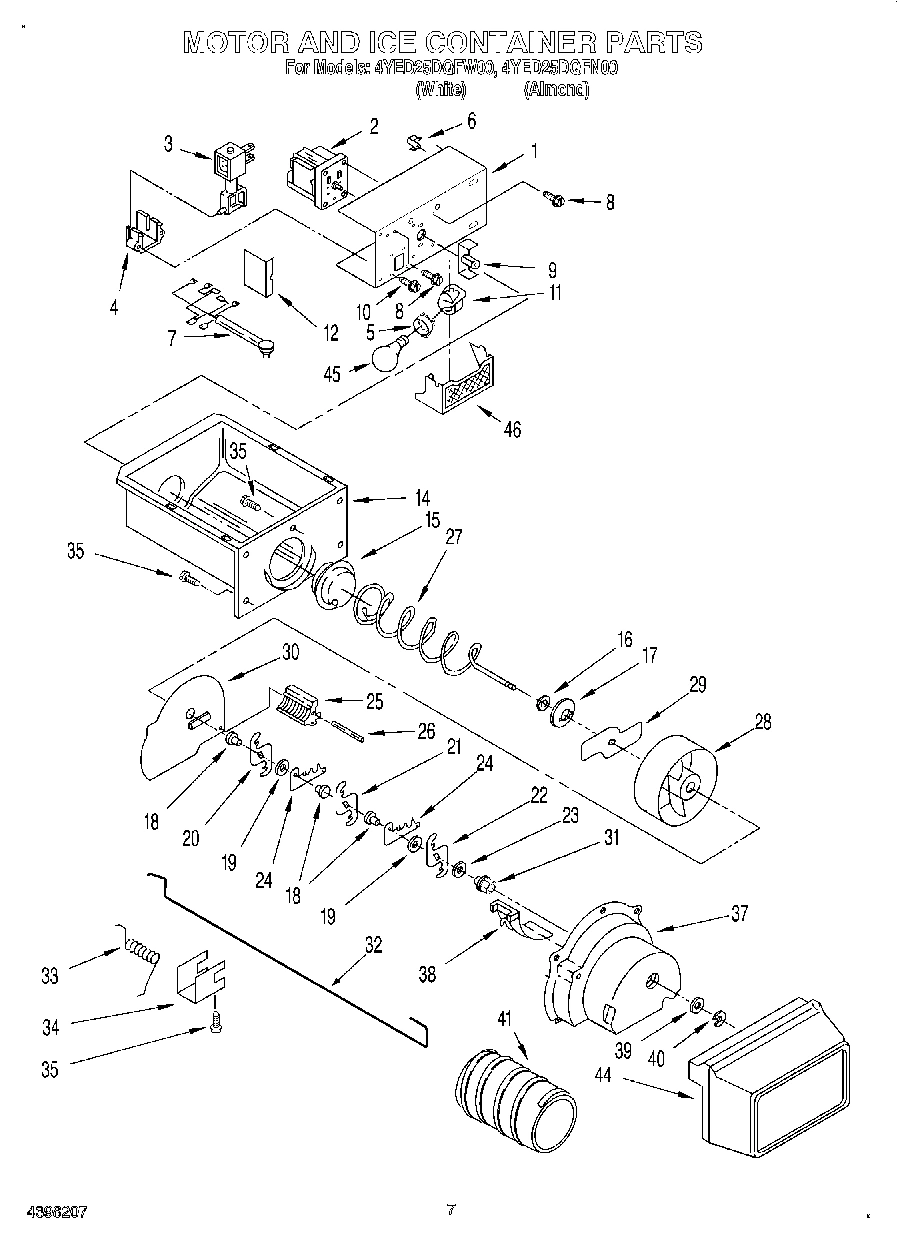

05 - MOTOR AND ICE CONTAINER

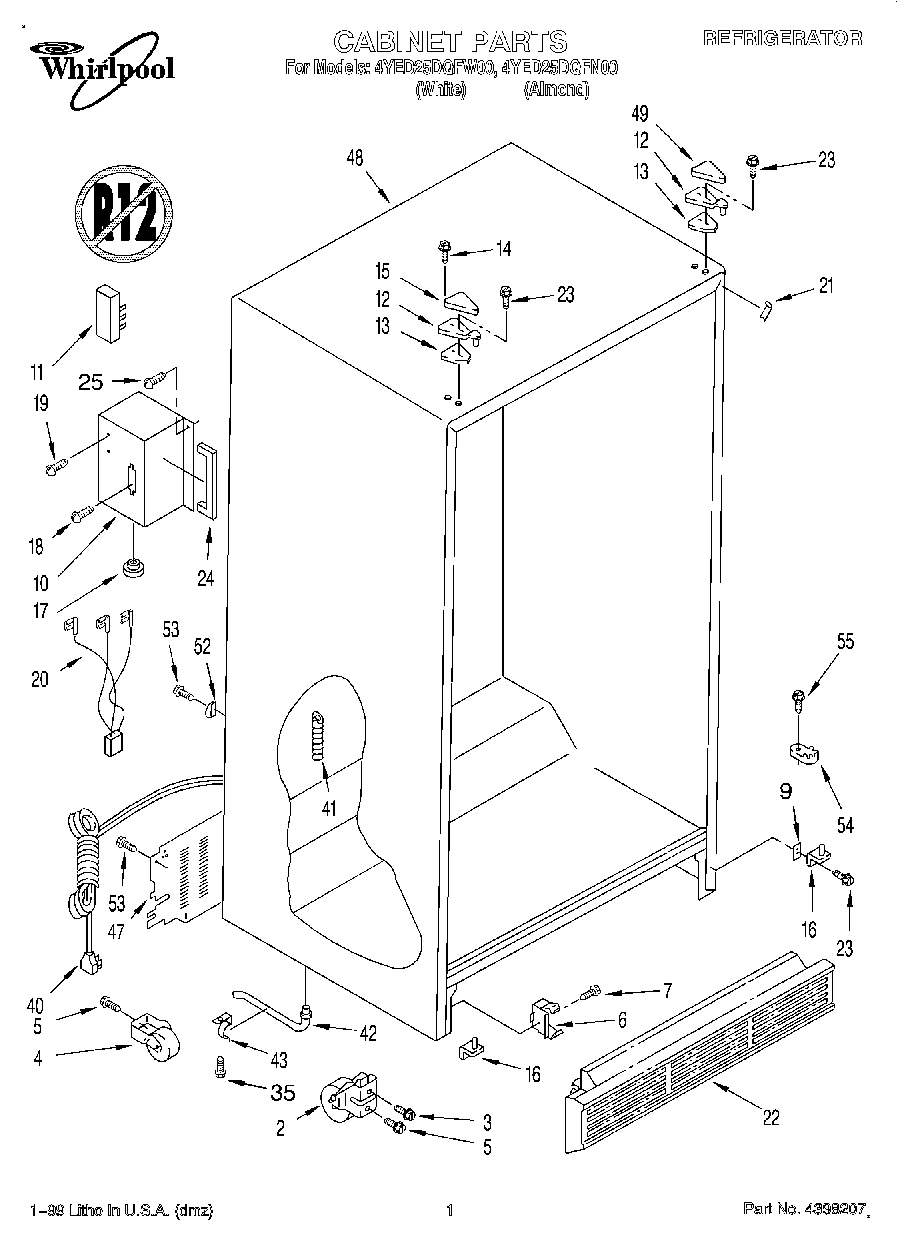

01 - CABINET

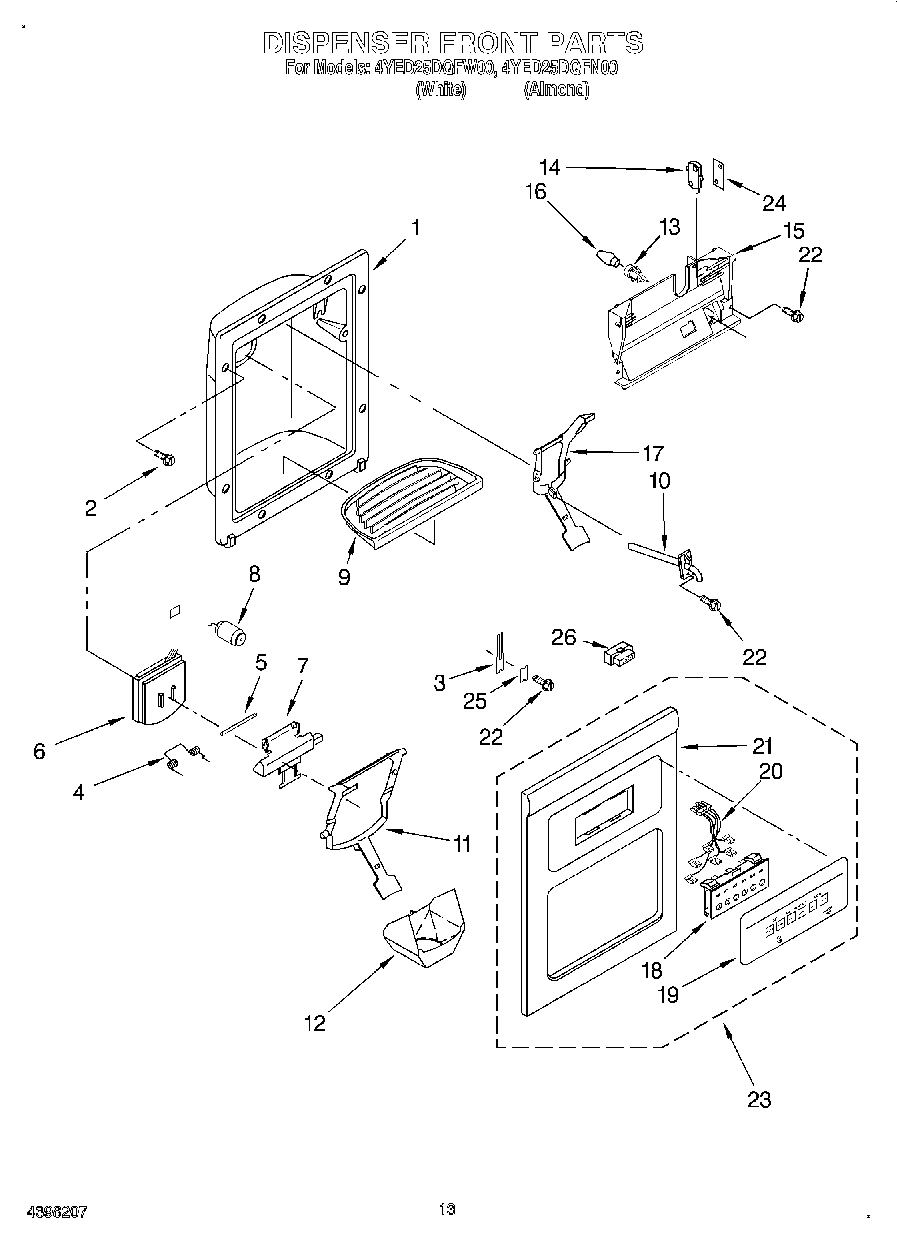

08 - DISPENSER FRONT

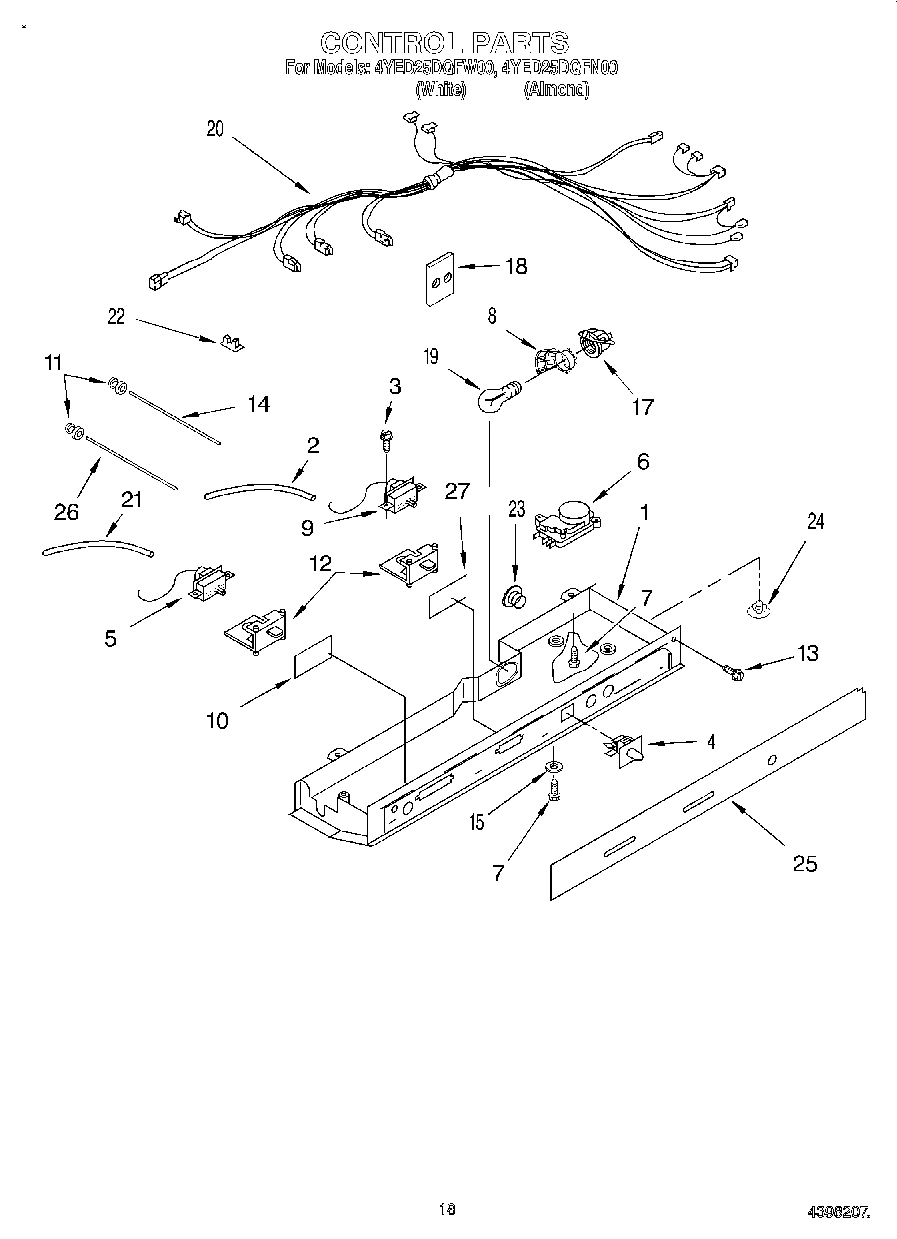

11 - CONTROL

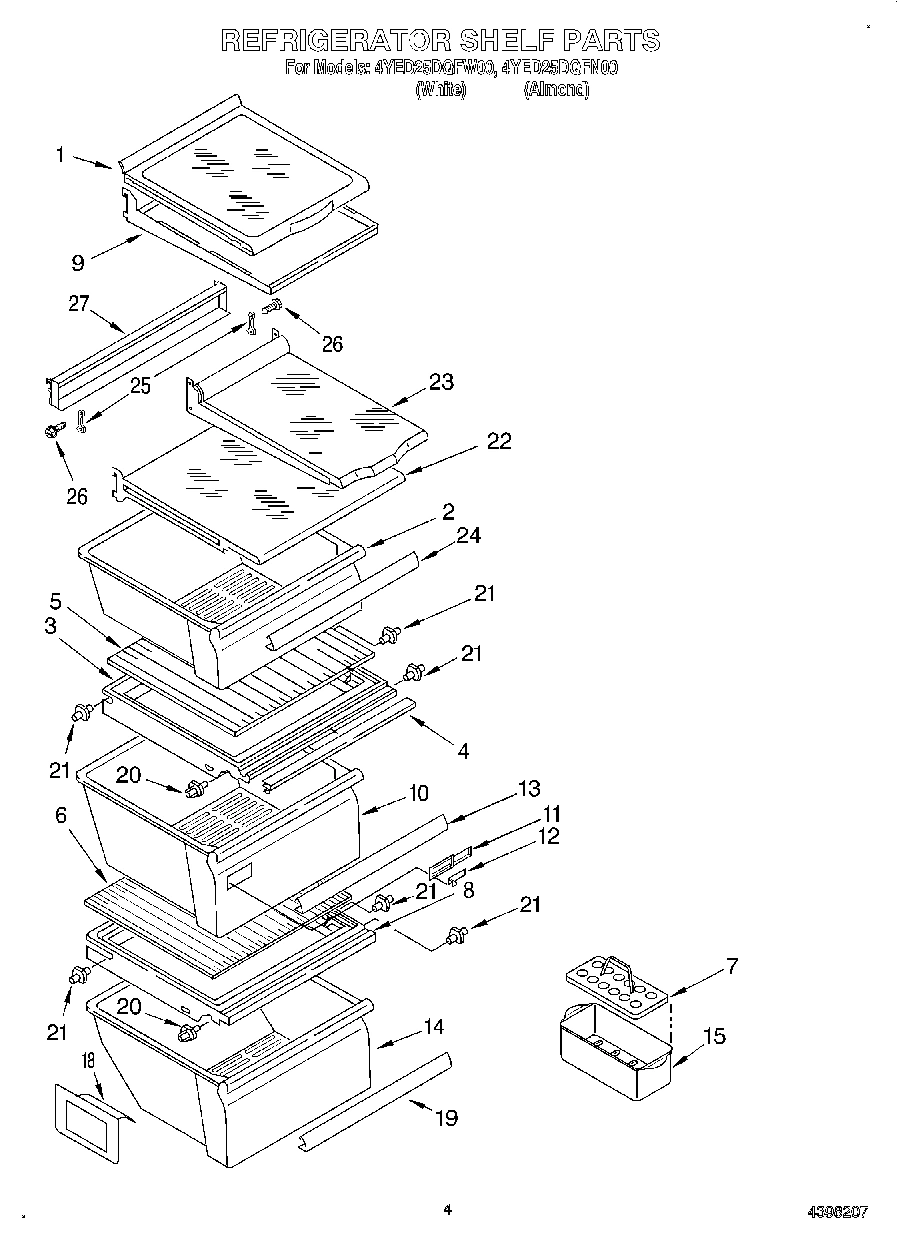

03 - REFRIGERATOR SHELF

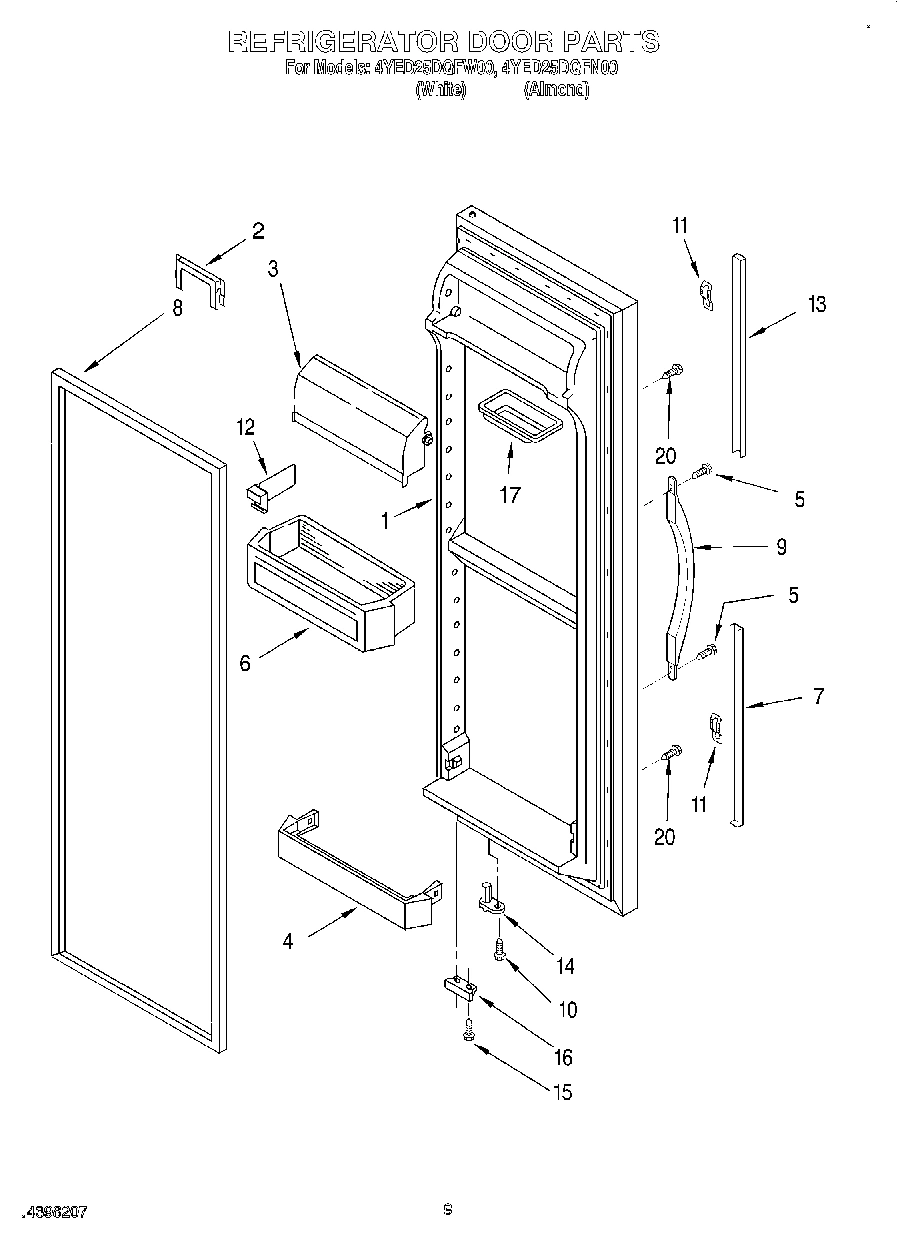

06 - REFRIGERATOR DOOR
Common parts from model Whirlpool 4YED25DQFN00 REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI14747A5 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194509N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194509W Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Handle, Center (White) WPL 2186649W Contact Us For Availability
2
Front Roller (2) WPL 2174748 Contact Us For Availability
2
Retainer, Bottle WPL 2173643 Contact Us For Availability
3
SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability
4
Grommet WPL 2176134 Contact Us For Availability
4
Gasket, Cover (Front) WPL 2174442 Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194969N Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180242 Contact Us For Availability
9
Frame, Shelf (2) WPL 2195975 Contact Us For Availability
9
Handle, Center (Almond) WPL 2186649N Contact Us For Availability
10
Valve, Solenoid WPL 2175056 Contact Us For Availability
10
Enclosure, Terminal Block WPL 2188194 Contact Us For Availability
11
Terminal Block WPL 1129346 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180256 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2180257 Contact Us For Availability
11
Grommet, Light Bar WPL 2172906 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
13
Shim, Hinge Top WPL 2196048 Contact Us For Availability
13
Extension, Top (Almond) WPL 2194973N Contact Us For Availability
14
Light Bar (RC) WPL 2179920 Contact Us For Availability
14
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
14
Screw WPL 489284 Contact Us For Availability
14
Meat Pan WPL 2194907 Contact Us For Availability
15
Hinge Cover (White) WPL 1129262 Contact Us For Availability
15
Hinge Cover (Almond) WPL 2150343 Contact Us For Availability
15
Washer WPL 486632 Contact Us For Availability
16
Bulb, Light WPL 989331 Contact Us For Availability
17
Extension, Bottom (White) WPL 2194969W Contact Us For Availability
17
Bushing WPL 1129449 Contact Us For Availability
17
Lever, Water Dispenser (Almond) WPL 2180266 Contact Us For Availability
17
Tray, Butter WPL 2165792 Contact Us For Availability
19
Overlay, Front Cover (Almond) WPL 2197636N Contact Us For Availability
19
Overlay, Front Cover (White) WPL 2197636W Contact Us For Availability
20
Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability
20
Control Box Harness WPL 2183733 Contact Us For Availability
21
Filler, Wrapper (White) WPL 2196094 Contact Us For Availability
21
Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI14748A9 Contact Us For Availability
22
Grille (White) WPL 2155486 Contact Us For Availability
22
Grille (Almond) WPL 2155487 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Shelf, Snack Bin WPL 2194734 Contact Us For Availability
23
Clamp WPL 2161324 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2197645N Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2197645W Contact Us For Availability
23
Shelf, Slide (Side To Side) WPL 2194741 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Blade, Fixed (2) WPL 1119009 Contact Us For Availability
24
Gasket WPL 2167227 Contact Us For Availability
24
Hole Plug WPL 2166844 Contact Us For Availability
25
Escutcheon, Control Box WPL 2175179 Contact Us For Availability
25
Hook, Shelf WPL 2169608 Contact Us For Availability
26
Connector WPL 2169477 Contact Us For Availability
26
Light Bar (FC) WPL 2179921 Contact Us For Availability
26
Screw WPL 489419 Contact Us For Availability
27
Window WPL 2172941 Contact Us For Availability
27
Track, Shelf WPL 2174422 Contact Us For Availability
34
Light Lens WPL 2174436 Contact Us For Availability
40
WPL 876029 WPL 876029 Contact Us For Availability
40
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
40
PAINT, BULK (1 QT.) (WH WPL 799344 Contact Us For Availability
40
Service Cord WPL 1129332 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171708 Contact Us For Availability
47
Cover, Unit WPL 2189570 Contact Us For Availability
48
Cabinet (Not A Serviceable Part) WPL ARI14744A5 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
