Model Whirlpool 3VED29DQFB01 REFRIGERATOR – Common Parts &amp; Diagrams

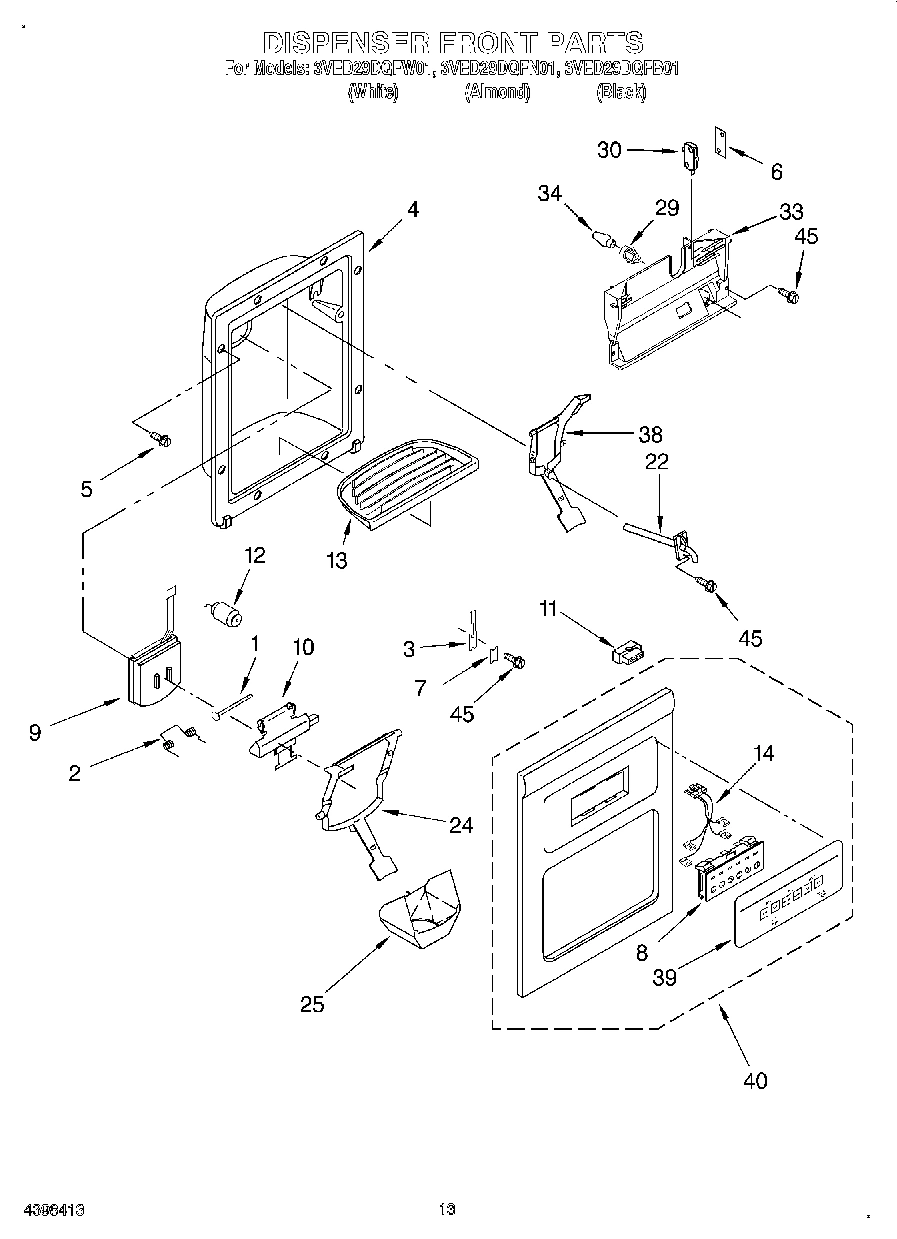

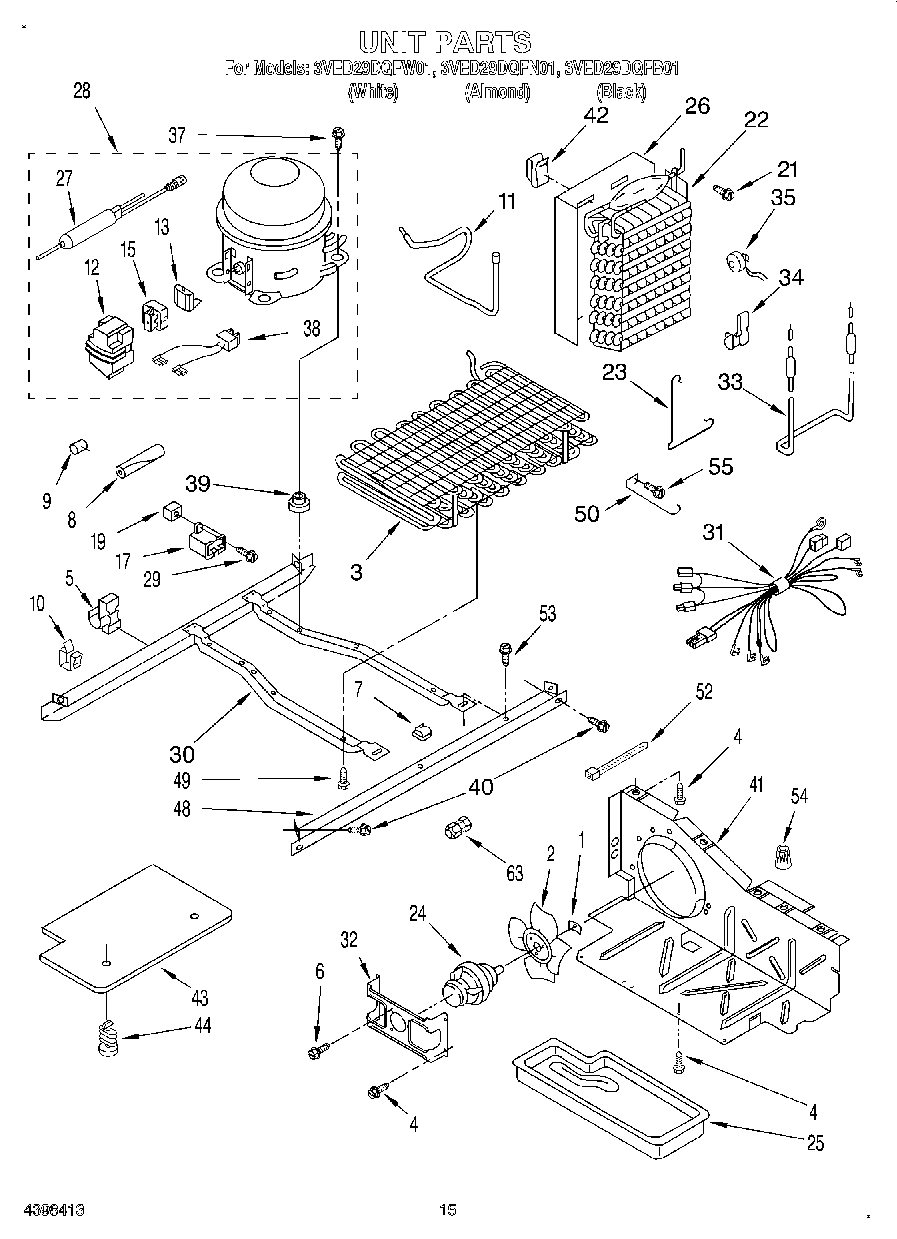

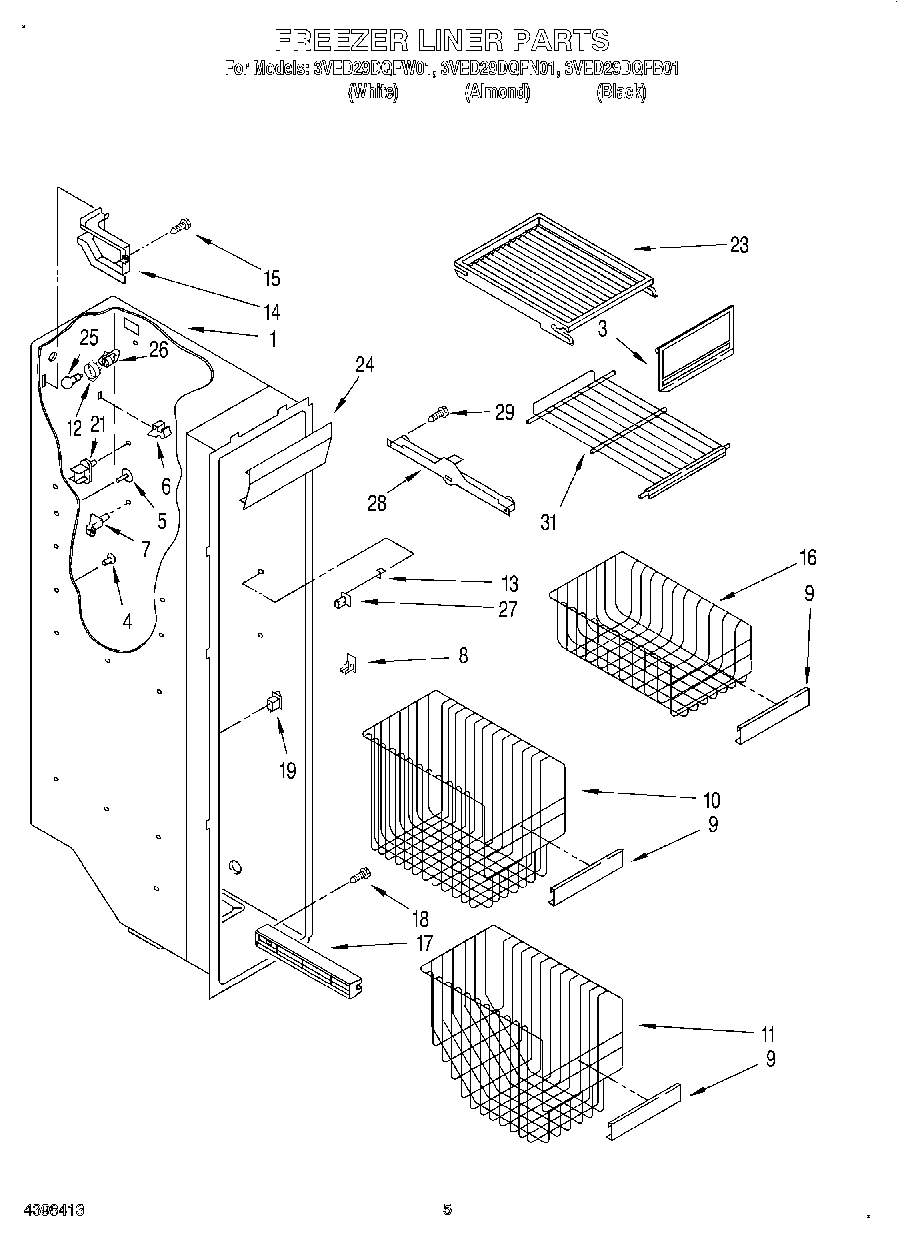

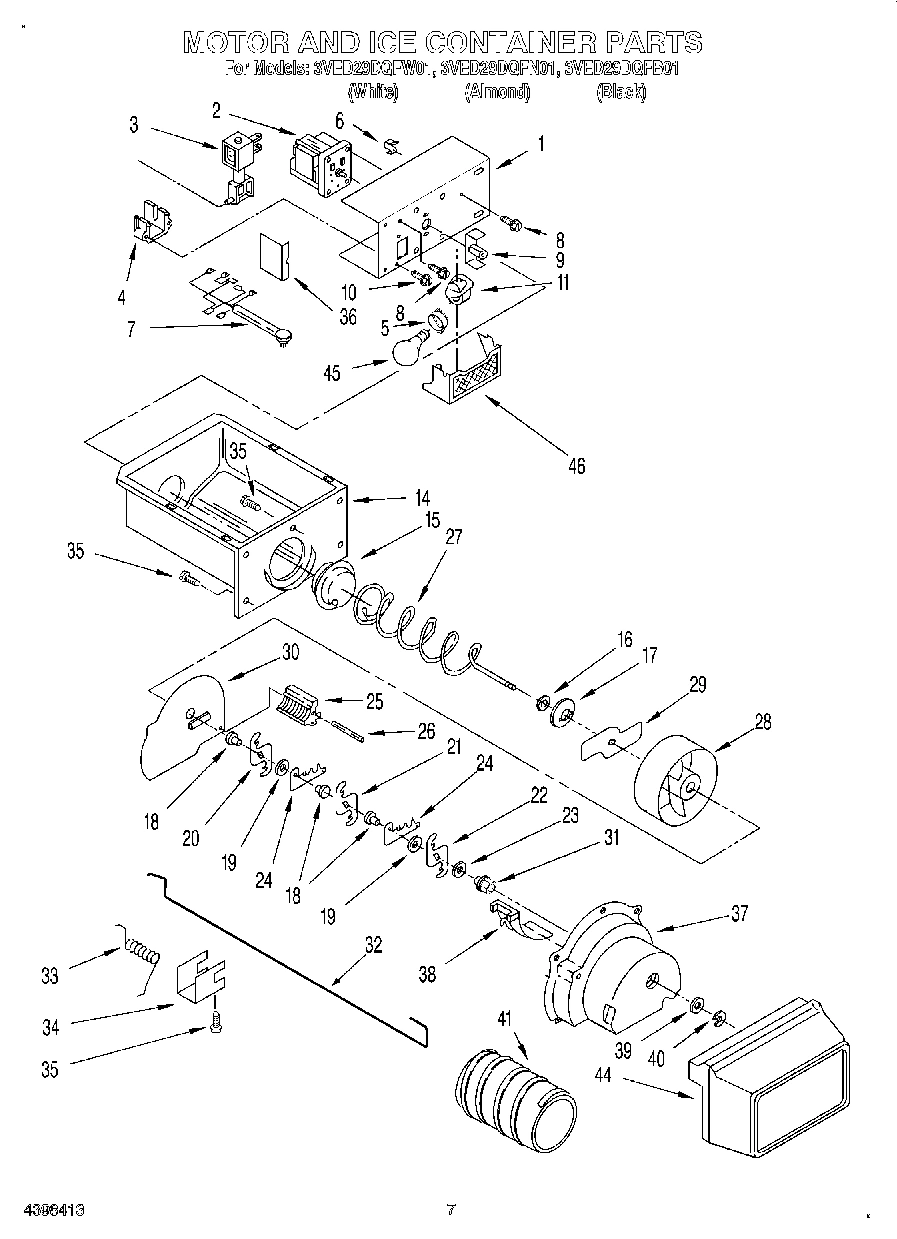

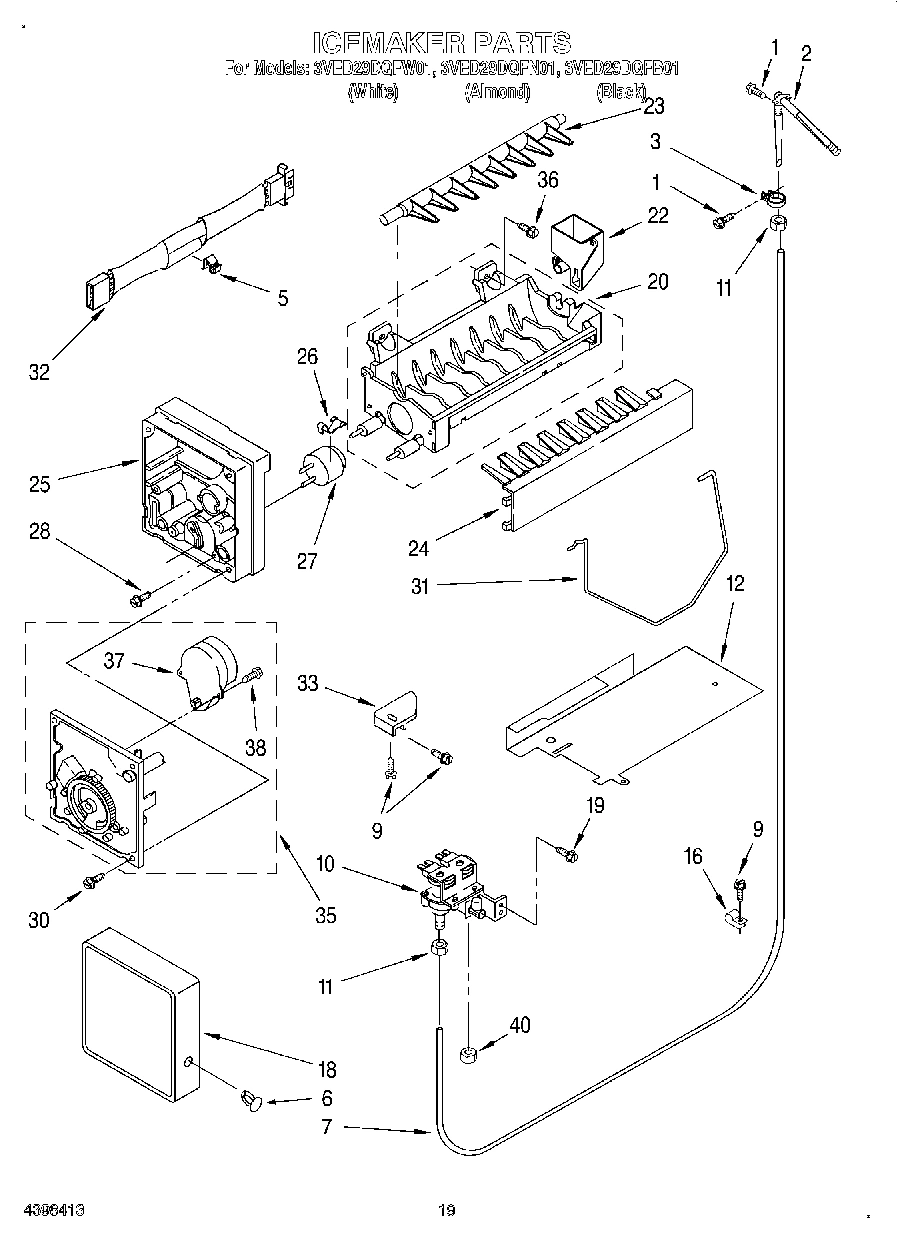

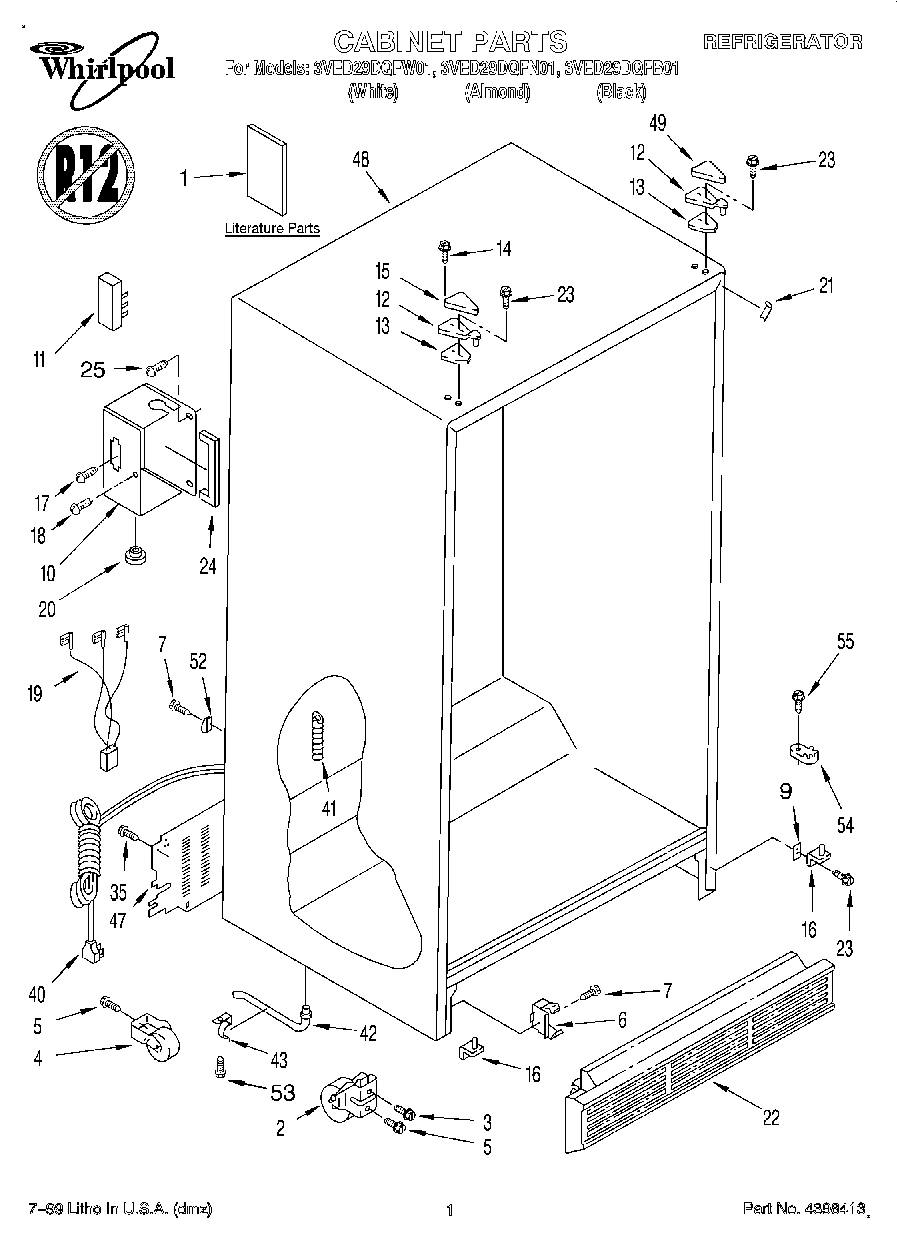

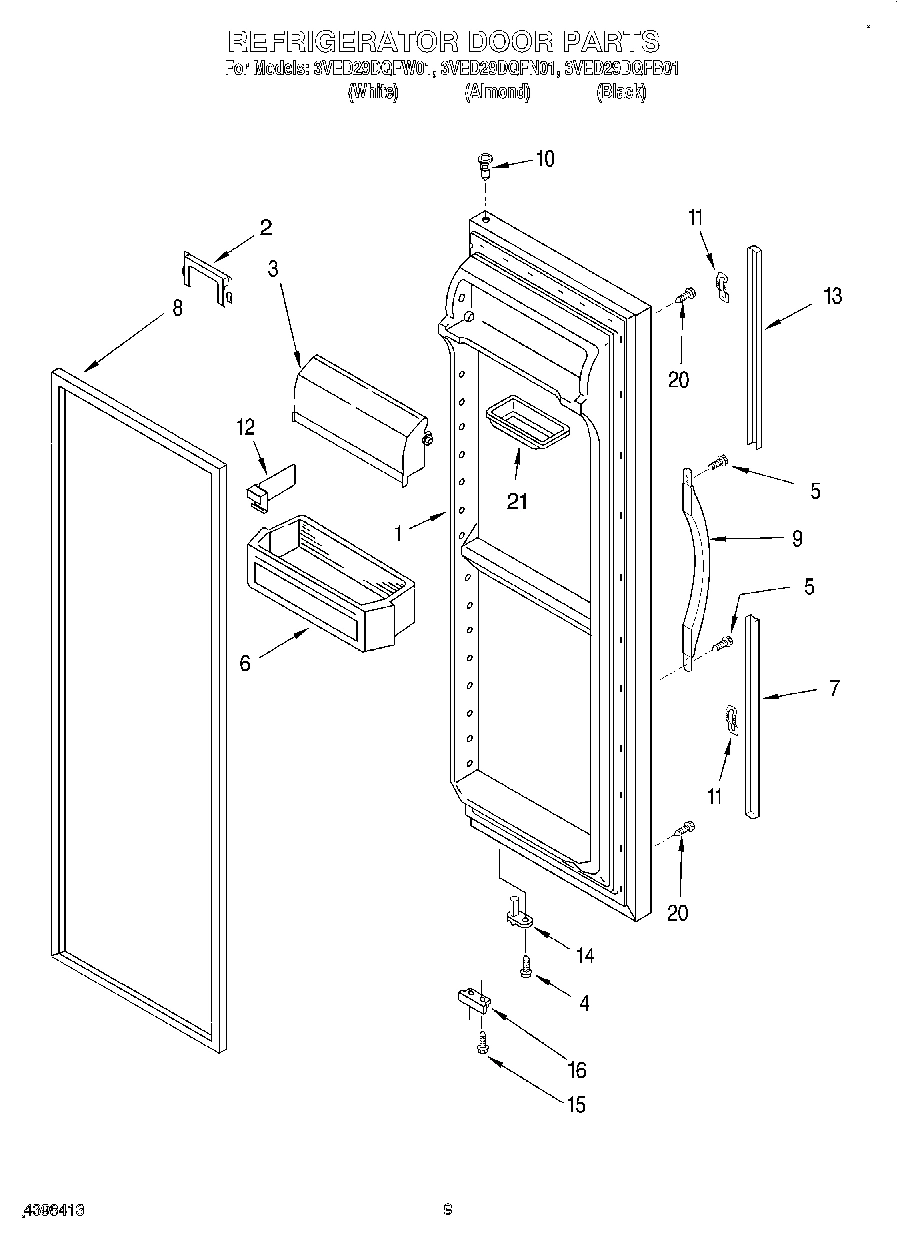

1

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

1

NLA:SCREW Backorder WPL WPW10141645 $4.82

1

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $210.57

1

Literature Parts (Service & Wiring Sheet) WPL LIT2186937 Contact Us For Availability

1

LITERATURE PARTS (Use & Care Guide) WPL LIT2187141 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL LIT628371 Contact Us For Availability

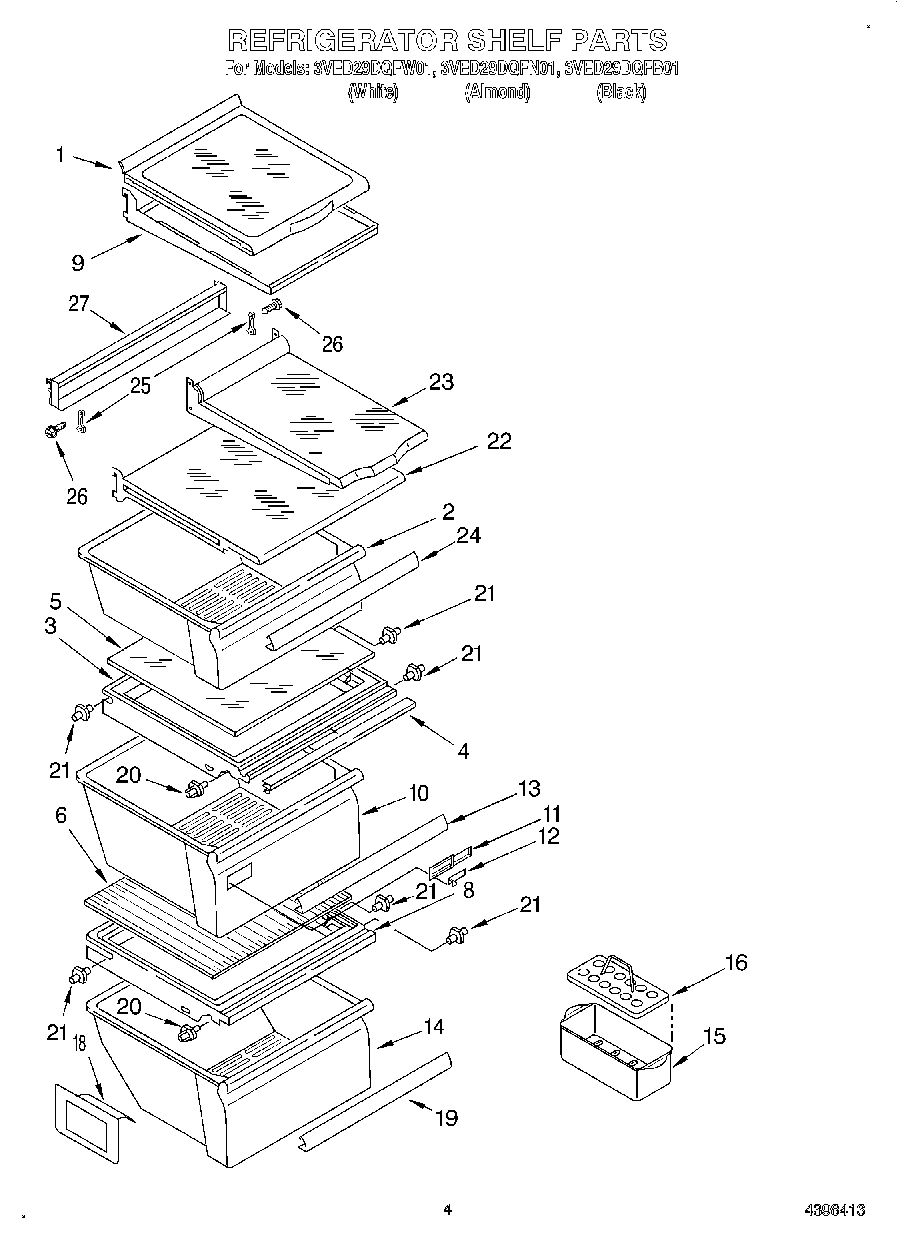

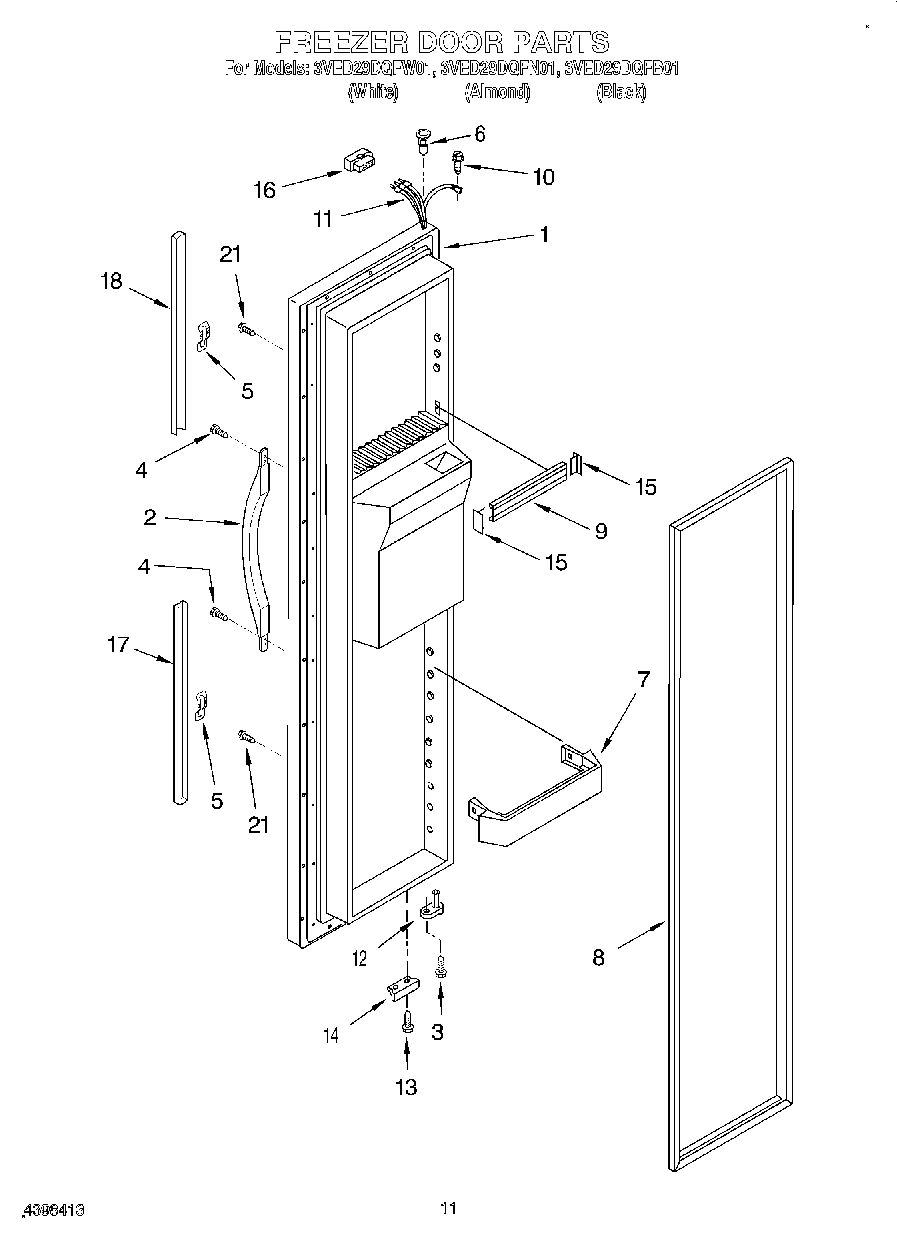

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $62.28

2

W11497323 Whirlpool Snack Pan Backorder WPL W11497323 $139.99

2

WP2196157 Whirlpool Fill Tube In Stock WPL WP2196157 $5.99

2

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $60.55

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Handle, Center (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

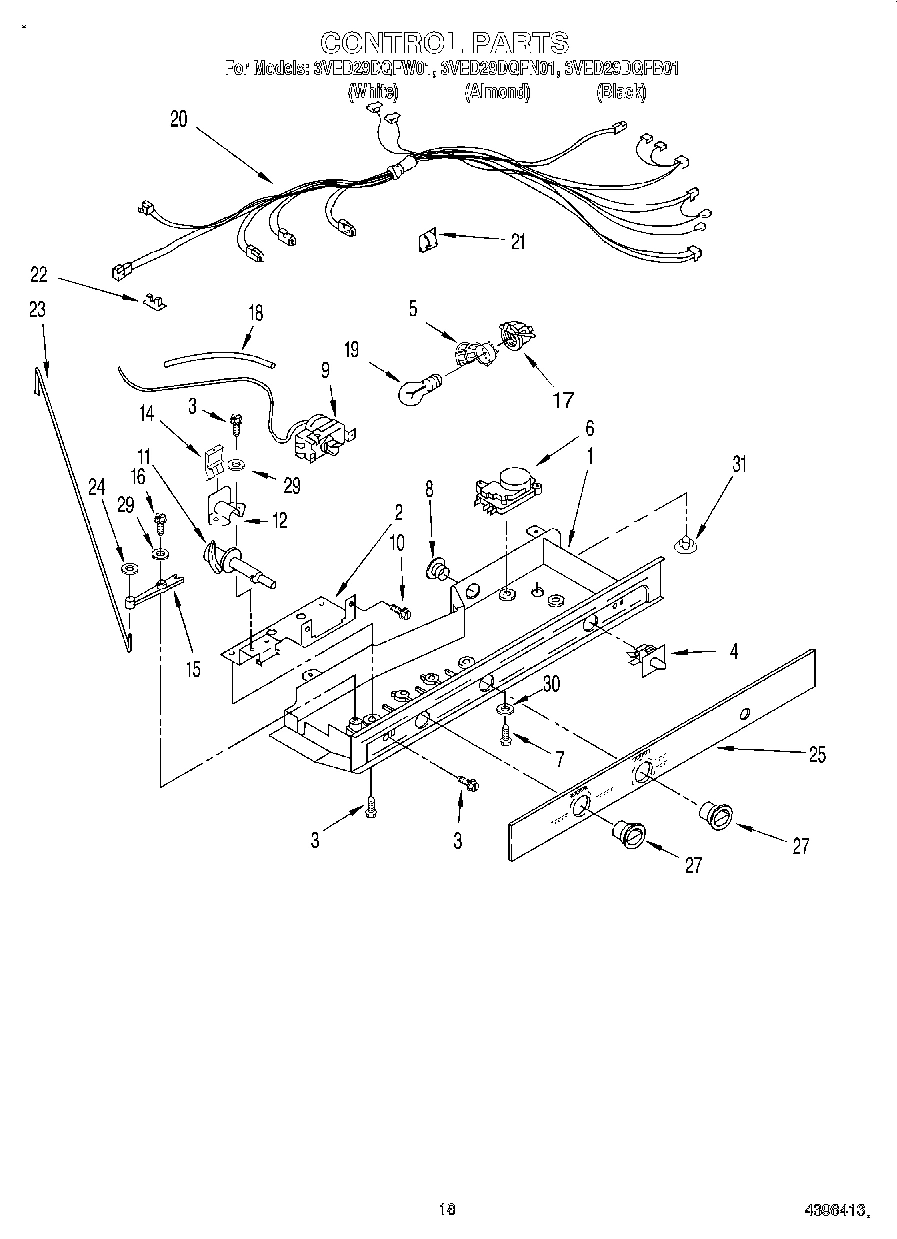

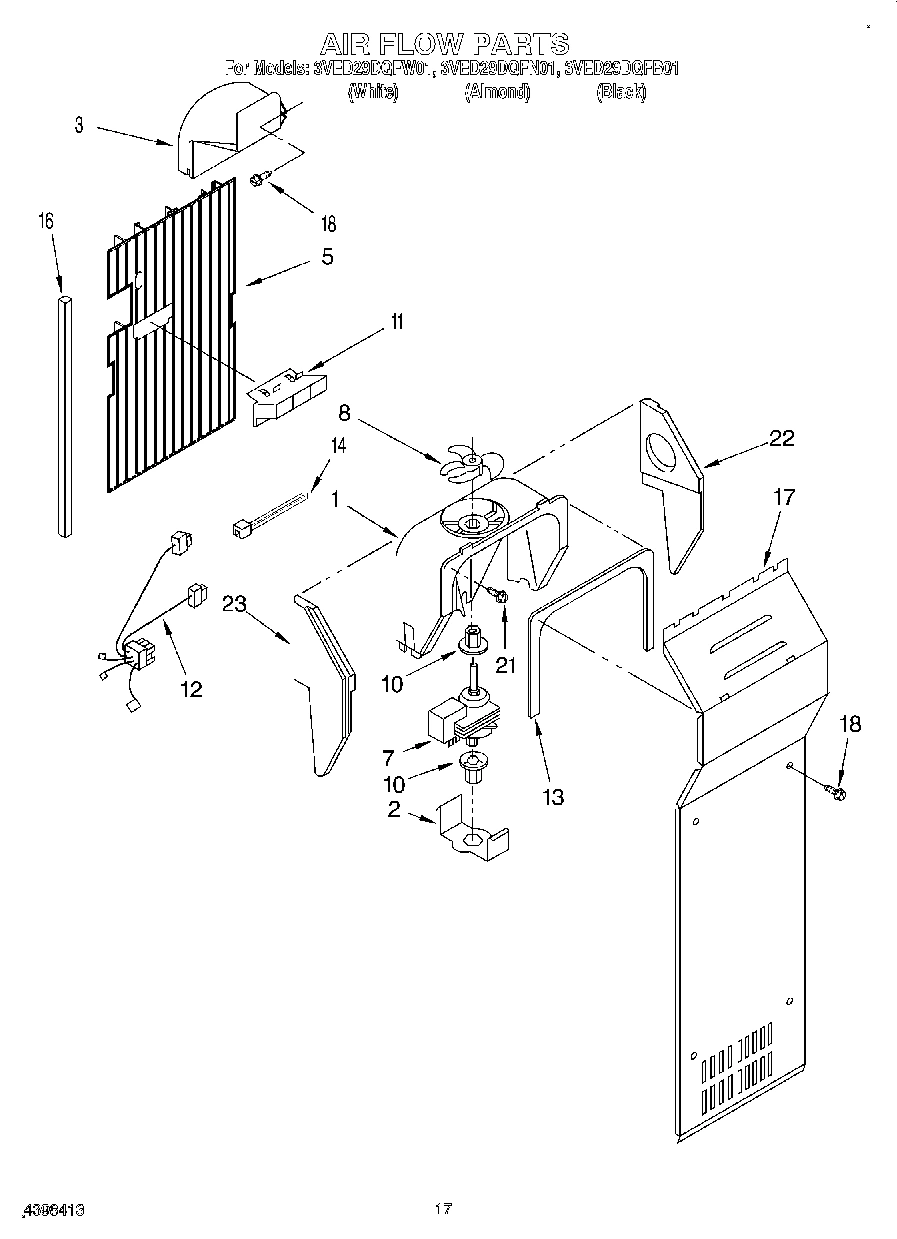

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $7.08

3

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $55.83

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $11.99

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

3

Air Scoop WPL 2161231 Contact Us For Availability

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $27.81

4

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $4.82

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Grommet WPL 2176134 Contact Us For Availability

4

Housing, Dispenser (Not a Serviceable Part) WPL ARI12465A9 Contact Us For Availability

4

Gasket, Cover (Front) WPL 2174442 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $14.02

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $177.48

5

WP2175210 Whirlpool Refrigerator Shroud Backorder WPL WP2175210 $55.95

5

WP489069 Whirlpool Compactor Screw In Stock WPL WP489069 $4.99

5

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

5

Air Duct Freezer WPL 2203593 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $9.65

6

WP489115 Whirlpool Refrigerator Rivet Backorder WPL WP489115 $4.82

6

Spacer, Switch WPL 625834 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $15.88

7

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

7

Fan, Motor WPL 2154976 Contact Us For Availability

8

2159074 Whirlpool Door Gasket Seal In Stock WPL 2159074 $234.99

8

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $240.61

8

2159082 Whirlpool Refrigerator Door Gasket Bl In Stock WPL 2159082 $228.51

8

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $254.76

8

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $201.86

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $30.99

8

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $189.29

9

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.99

9

WP2181911 Whirlpool Refrigerator Shim Backorder WPL WP2181911 $21.08

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $63.66

9

Frame, Shelf (2) WPL 2195975 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.96

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $100.89

Door Mechanism Assembly WPL 2180208 Contact Us For Availability

Enclosure, Terminal Block WPL 2188194 Contact Us For Availability

Valve, Solenoid WPL 2187233 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $64.58

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $6.63

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $4.82

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

Connector WPL 2169477 Contact Us For Availability

Terminal Block WPL 1129346 Contact Us For Availability

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $7.12

2256178 Whirlpool Shield Assembly Backorder WPL 2256178 $119.63

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.60

WP2196046 Whirlpool Refrigerator Door Hinge Backorder WPL WP2196046 $70.35

Delay Mechanism WPL 2180223 Contact Us For Availability

Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2186799 Contact Us For Availability

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $4.82

Grille, Overflow (White) WPL 2180241 Contact Us For Availability

Grille, Overflow (Almond) WPL 2180242 Contact Us For Availability

Grille, Overflow (Black) WPL 2180243 Contact Us For Availability

Shim, Hinge Top WPL 2196048 Contact Us For Availability

2311650 Whirlpool Refrigerator Wire Harness Backorder WPL 2311650 $60.71

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $57.82

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

Screw WPL 489284 Contact Us For Availability

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $10.99

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $15.42

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $5.47

Hinge Cover (White) WPL 1129262 Contact Us For Availability

Pivot Arm WPL 1110559 Contact Us For Availability

Hinge Cover (Almond) WPL 2150343 Contact Us For Availability

Hinge Cover (Black) WPL 2151694 Contact Us For Availability

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $57.18

8201707 Whirlpool Door Hinge In Stock WPL 8201707 $53.71

WP2177817 Whirlpool Refrigerator Egg Containe Backorder WPL WP2177817 $10.72

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

WP2194969B Whirlpool Refrigerator Handle Trim Backorder WPL WP2194969B $78.31

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $122.18

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $7.55

Extension, Bottom (White) WPL 2194969W Contact Us For Availability

Cover, Evaporator WPL 2203841 Contact Us For Availability

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $56.13

W11233072 Whirlpool Screw In Stock WPL W11233072 $19.85

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

WP2194973W Whirlpool Door Trim Backorder WPL WP2194973W $3.34

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.91

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

Extension, Top (Black) WPL 2194973B Contact Us For Availability

Extension, Top (Almond) WPL 2194973N Contact Us For Availability

19

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

19

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $55.94

19

Wiring Assembly, Terminal Block WPL 2165297 Contact Us For Availability

20

4388539 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388539 $14.93

20

Bushing WPL 1129449 Contact Us For Availability

4388538 Whirlpool Refrigerator Shelf Stud Kit In Stock WPL 4388538 $15.69

WP3400852 Whirlpool Refrigerator Screw Backorder WPL WP3400852 $6.83

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

Filler, Wrapper (White) WPL 2196094 Contact Us For Availability

Filler, Wrapper (Almond) WPL 2196095 Contact Us For Availability

Filler, Wrapper (Black) WPL 2196097 Contact Us For Availability

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $20.18

W10283947 Whirlpool Grille Assembly Backorder WPL W10283947 $84.13

WP4388152 Whirlpool Refrigerator Fitting In Stock WPL WP4388152 $133.64

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

WPW10283946 Whirlpool Refrigerator Grille Backorder WPL WPW10283946 $96.17

Shelf, Snack Bin WPL 2194734 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.75

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $59.71

Clamp WPL 2161324 Contact Us For Availability

Shelf, Slide (Side To Side) WPL 2194741 Contact Us For Availability

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $71.86

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $67.13

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $55.70

Fastener, Push-On WPL 489285 Contact Us For Availability

Lever Assembly, Ice Dispenser (White (White S WPL 2180256 Contact Us For Availability

Lever Assembly, Ice Dispenser (Almond (Almond WPL 2180257 Contact Us For Availability

Lever Assembly, Ice Dispenser (Black (Storm G WPL 2180258 Contact Us For Availability

Gasket WPL 2167227 Contact Us For Availability

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $58.83

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $14.02

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $8.97

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $68.41

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

Hook, Shelf WPL 2169608 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.65

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

Screw WPL 489419 Contact Us For Availability

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $71.99

Knob, Control WPL 2197871 Contact Us For Availability

Track, Shelf WPL 2174422 Contact Us For Availability

Cement Alumilastic) WPL 542369 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $49.99

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $81.92

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $90.95

29

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $67.59

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $20.97

30

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $10.72

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.91

31

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $43.68

31

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $4.82

31

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $58.88

32

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $19.99

32

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $88.98

33

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $12.12

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $16.99

33

WP2180226 Whirlpool Ice Dispenser Control Swi In Stock WPL WP2180226 $17.71

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $6.92

34

Light Lens WPL 2203266 Contact Us For Availability

34

Bulb, Light WPL 989331 Contact Us For Availability

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

36

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $4.82

WP2172890 Whirlpool Refrigerator Wire Backorder WPL WP2172890 $4.82

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $62.59

Lever Assembly, Water Dispenser (Almond (Almo WPL 2180266 Contact Us For Availability

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $8.89

Overlay, Front Cover (Black) WPL 2197636B Contact Us For Availability

Overlay, Front Cover (Almond) WPL 2197636N Contact Us For Availability

Overlay, Front Cover (White) WPL 2197636W Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.99

285006 Whirlpool Spray In Stock WPL 285006 $31.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350942 Whirlpool Spray Paint Backorder WPL 350942 $49.86

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $53.03

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $141.89

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $7.64

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $75.04

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $111.80

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $30.85

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPW10312300 Whirlpool Refrigerator Ice Contai In Stock WPL WPW10312300 $271.70

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

Front Cover, Housing (Includes Items 8, 14 & WPL 2197645B Contact Us For Availability

Front Cover, Housing (Includes Items 8, 14 & WPL 2197645N Contact Us For Availability

Front Cover, Housing (Includes Items 8, 14 & WPL 2197645W Contact Us For Availability

Service Cord WPL 1129332 Contact Us For Availability

Nut, Compression WPL 1129179 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, EVAPOR WPL 799833 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

42

WP1108438 Whirlpool Refrigerator Extension Backorder WPL WP1108438 $19.72

43

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $6.93

44

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

45

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $4.82

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $65.24

47

Cover, Unit WPL 2204421 Contact Us For Availability

48

Cabinet (Not A Serviceable Part) WPL ARI12462A9 Contact Us For Availability

49

1119787 Whirlpool Refrigerator Hinge Cover Backorder WPL 1119787 $15.75

49

Hinge Cover (Black) WPL 2155938 Contact Us For Availability

52

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.51

53

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

54

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.60

55

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

55

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $37.88

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $82.11

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $86.15

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
