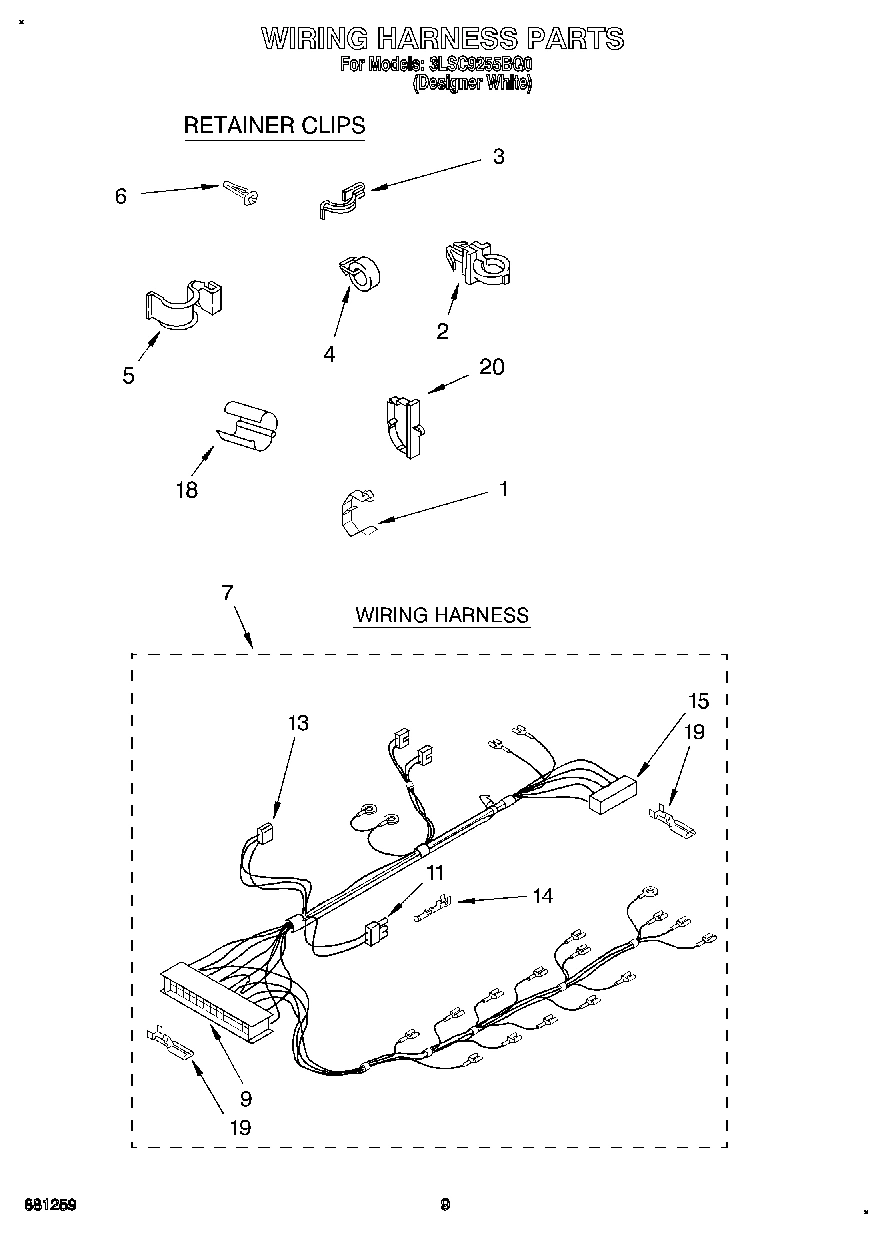

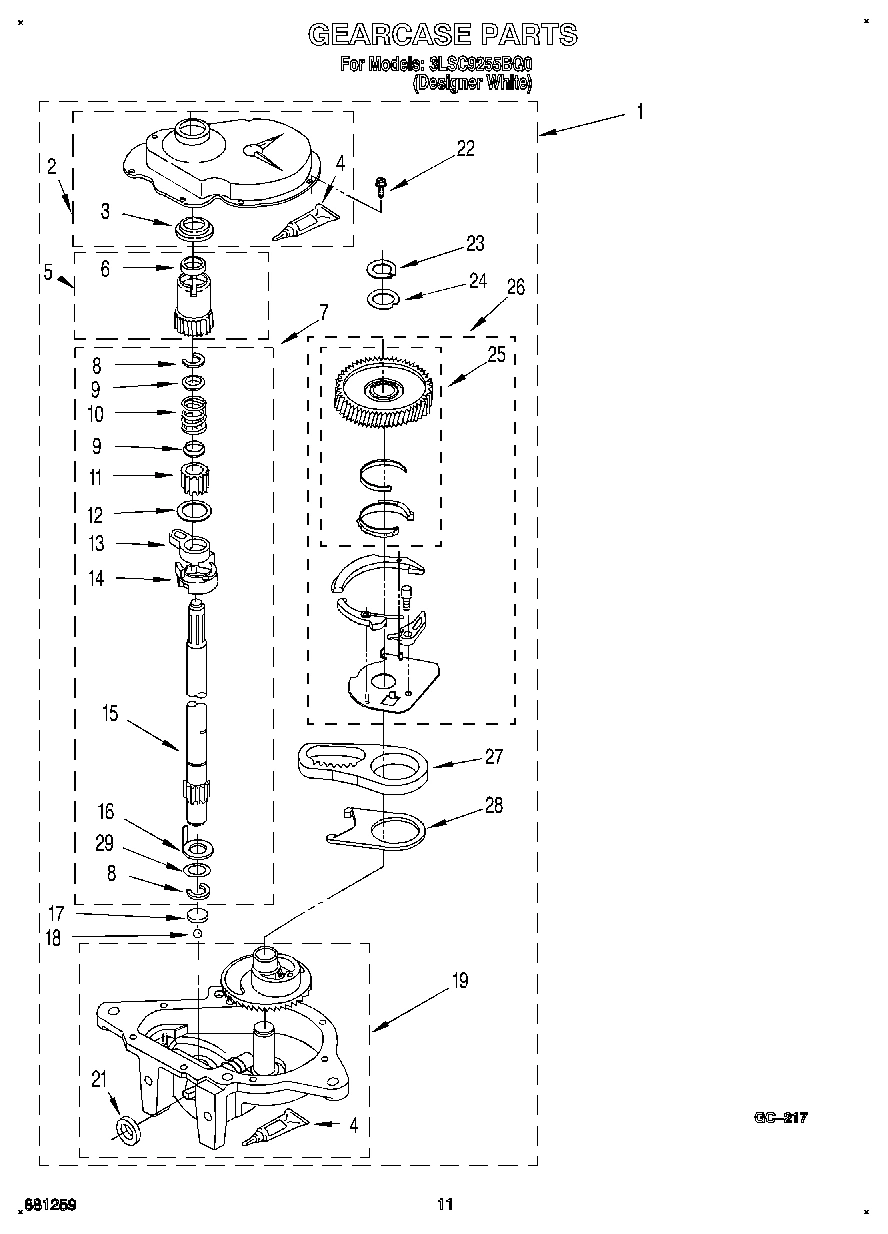

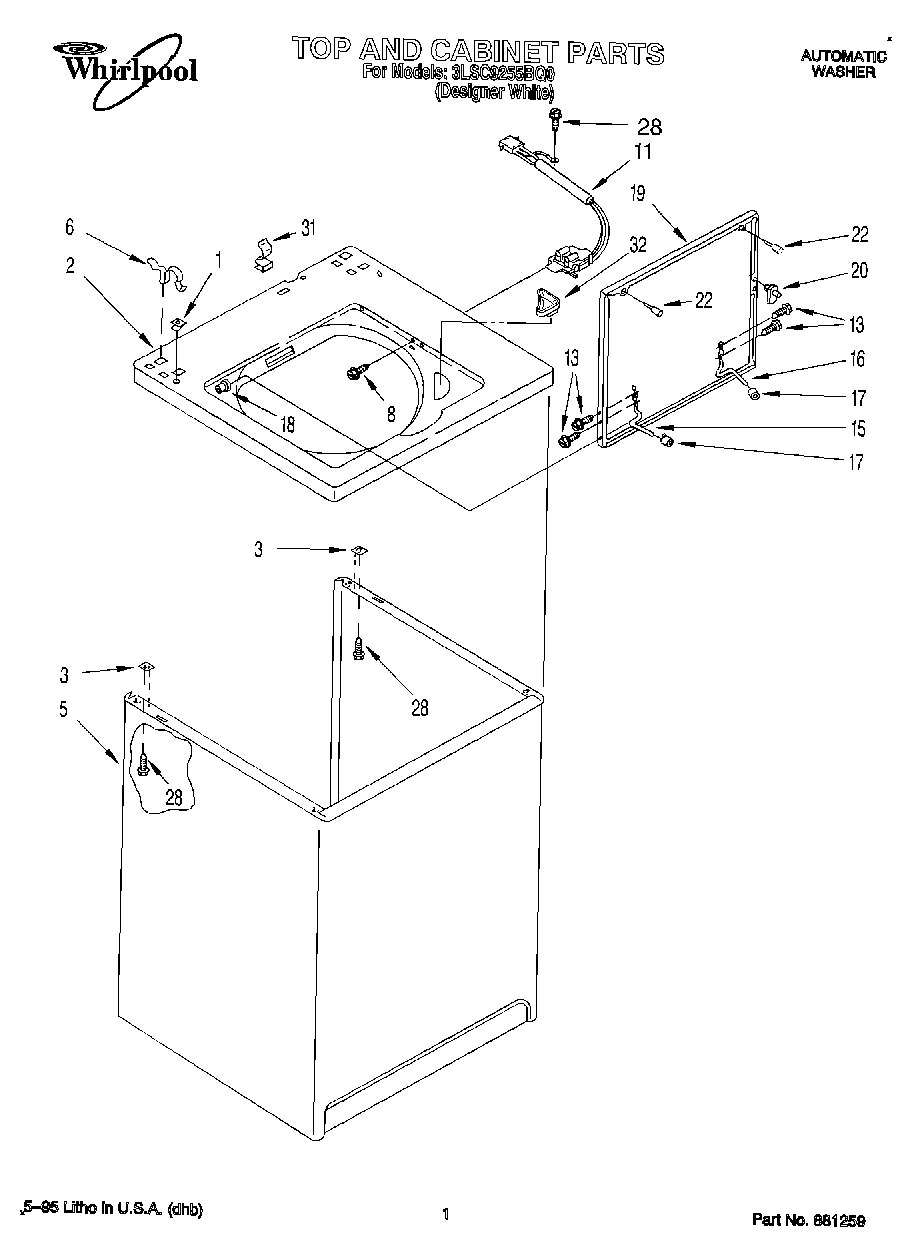

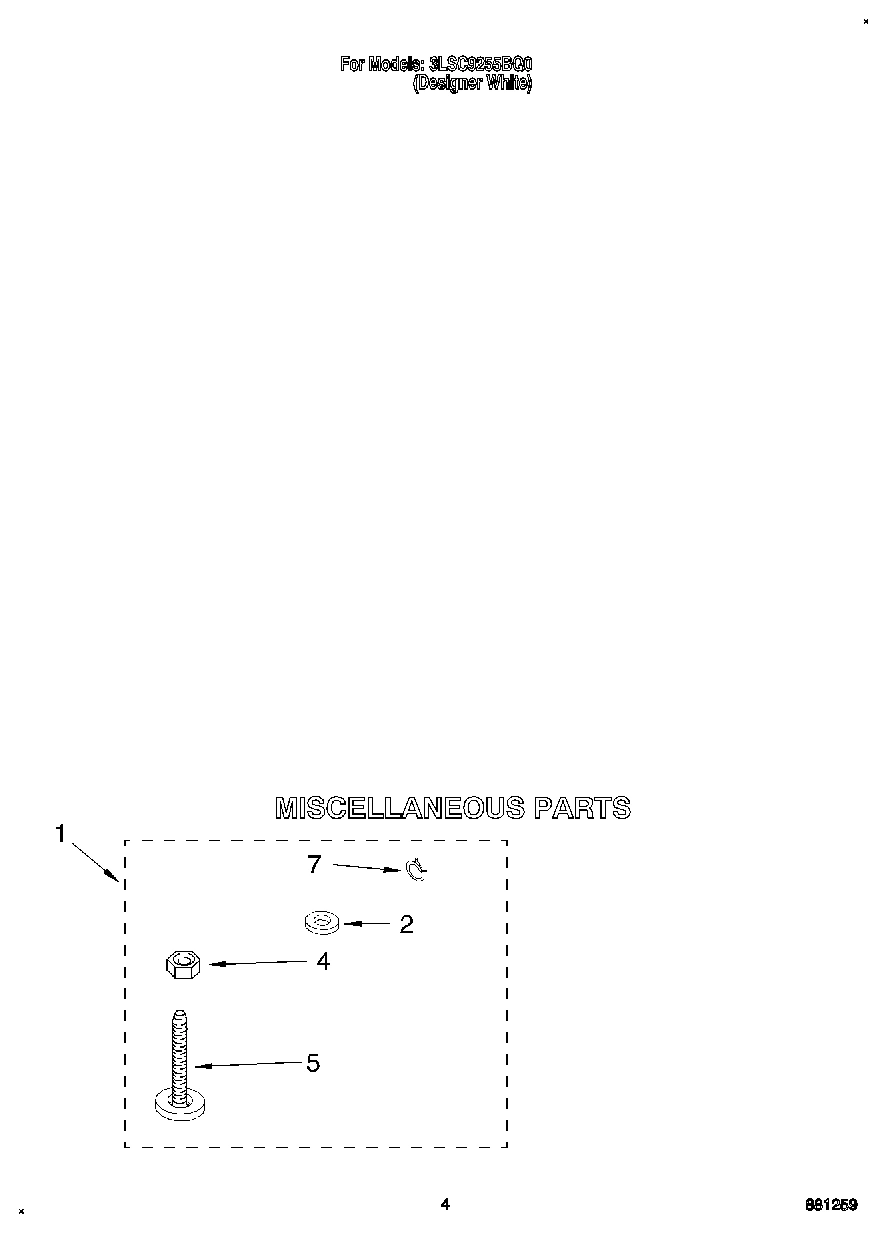

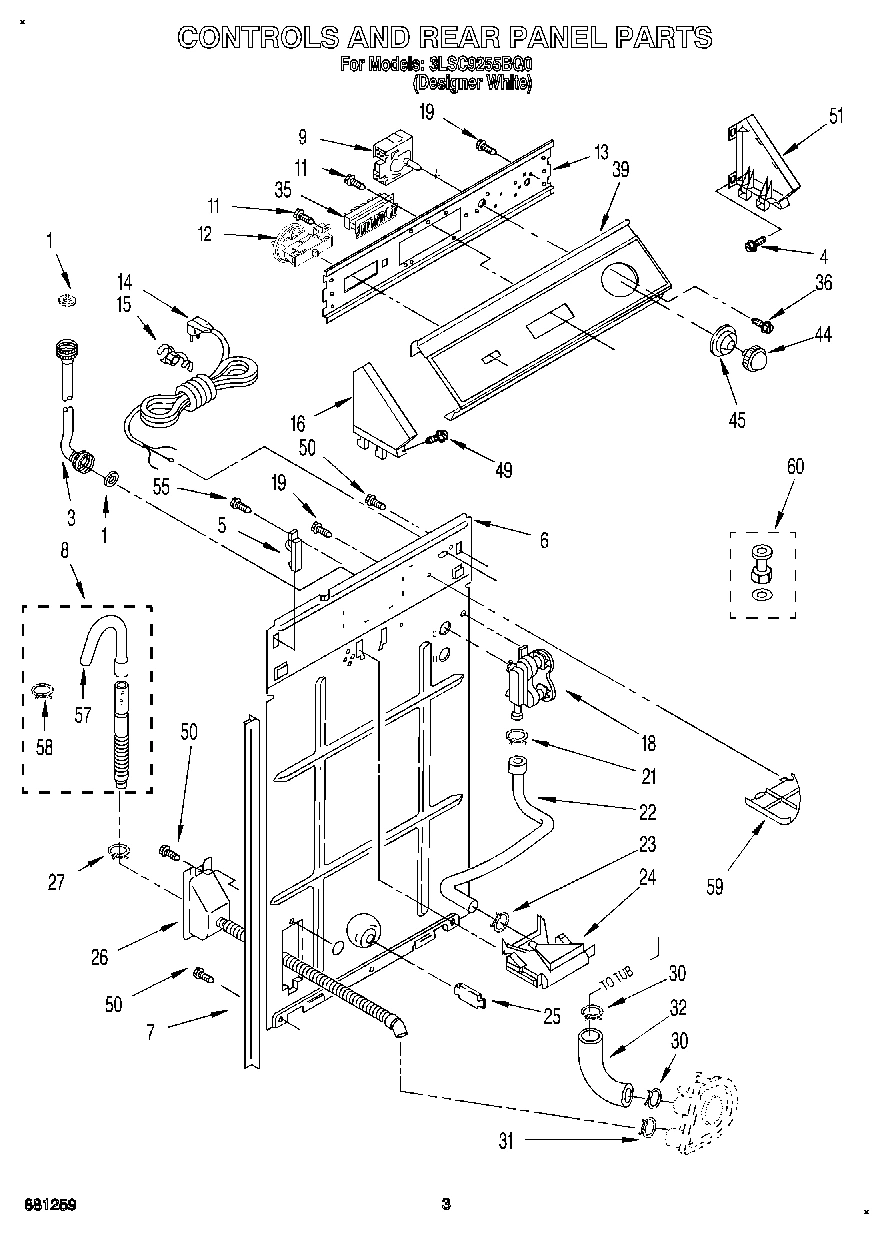

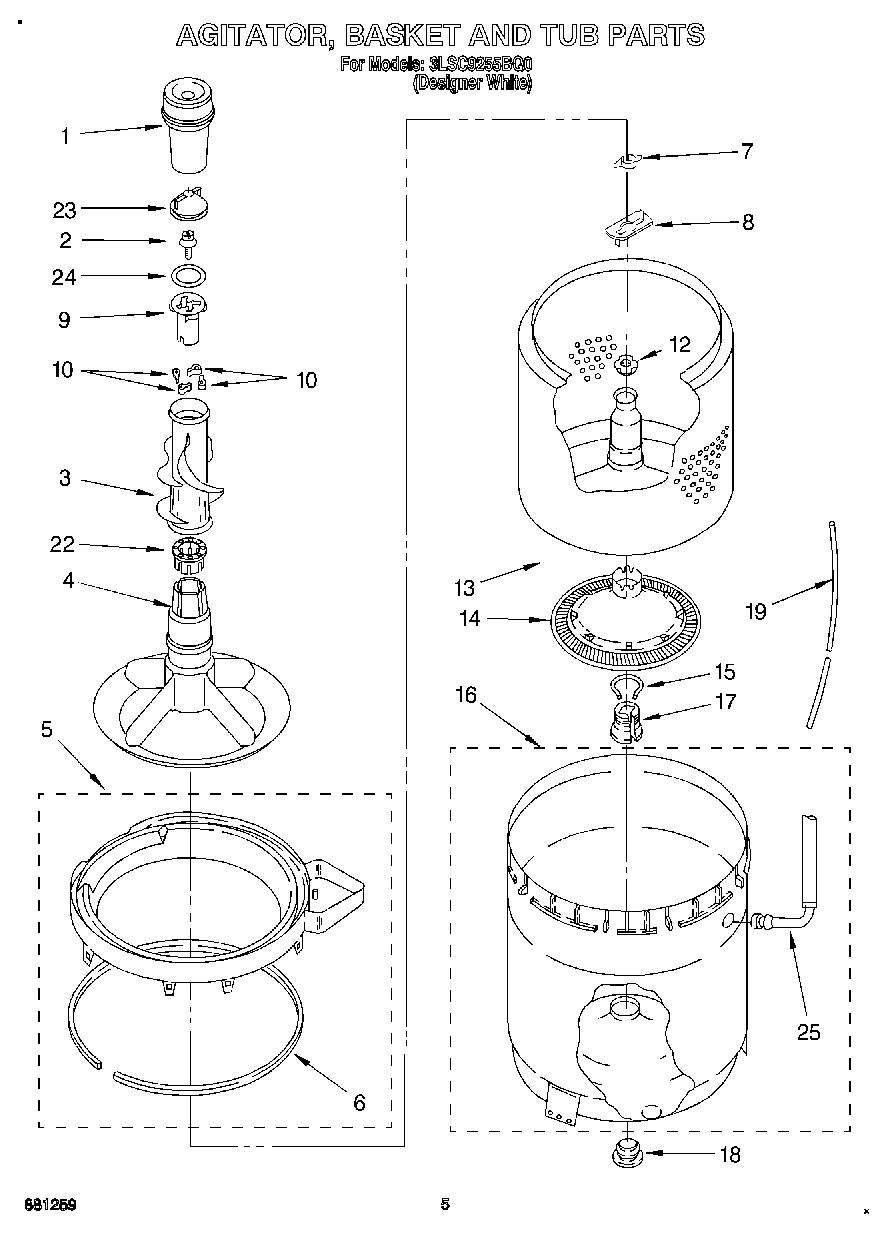

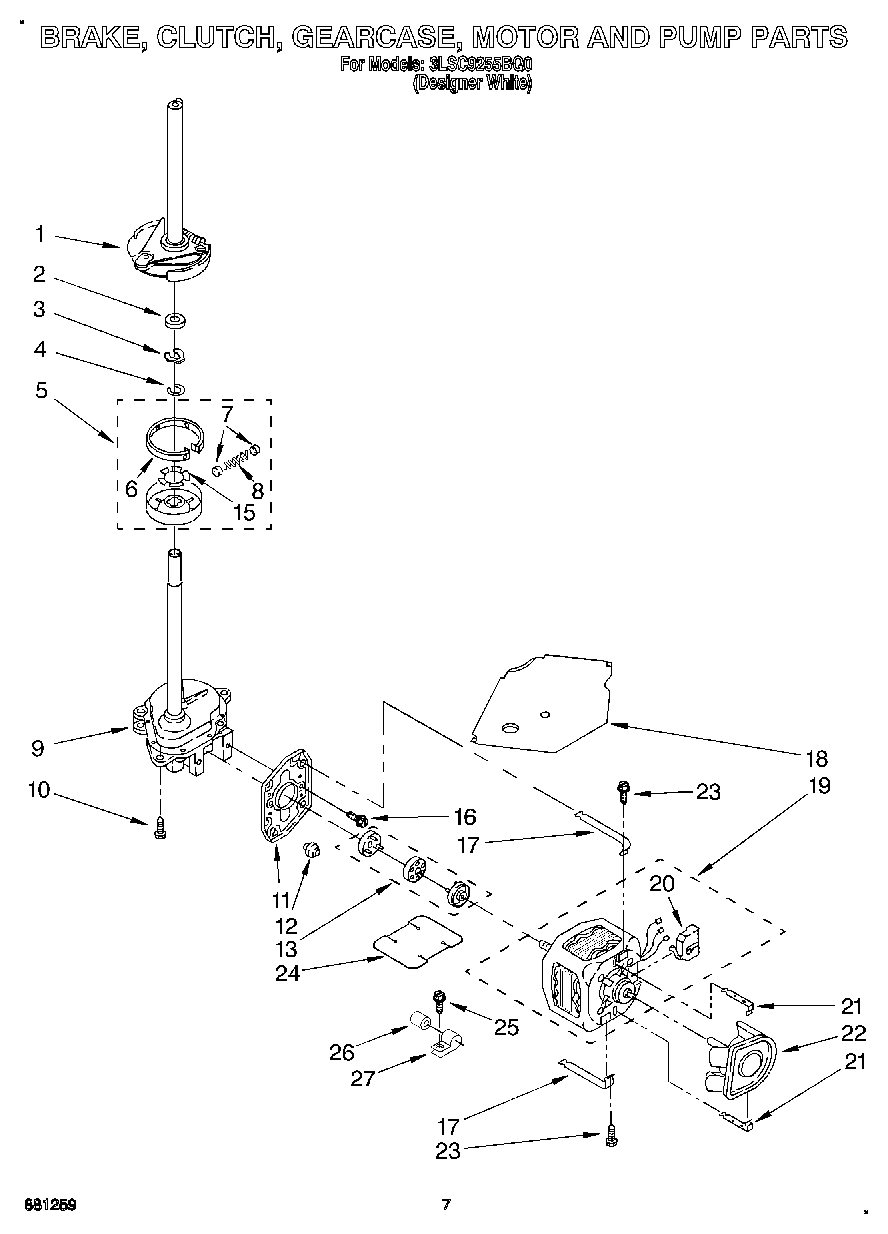

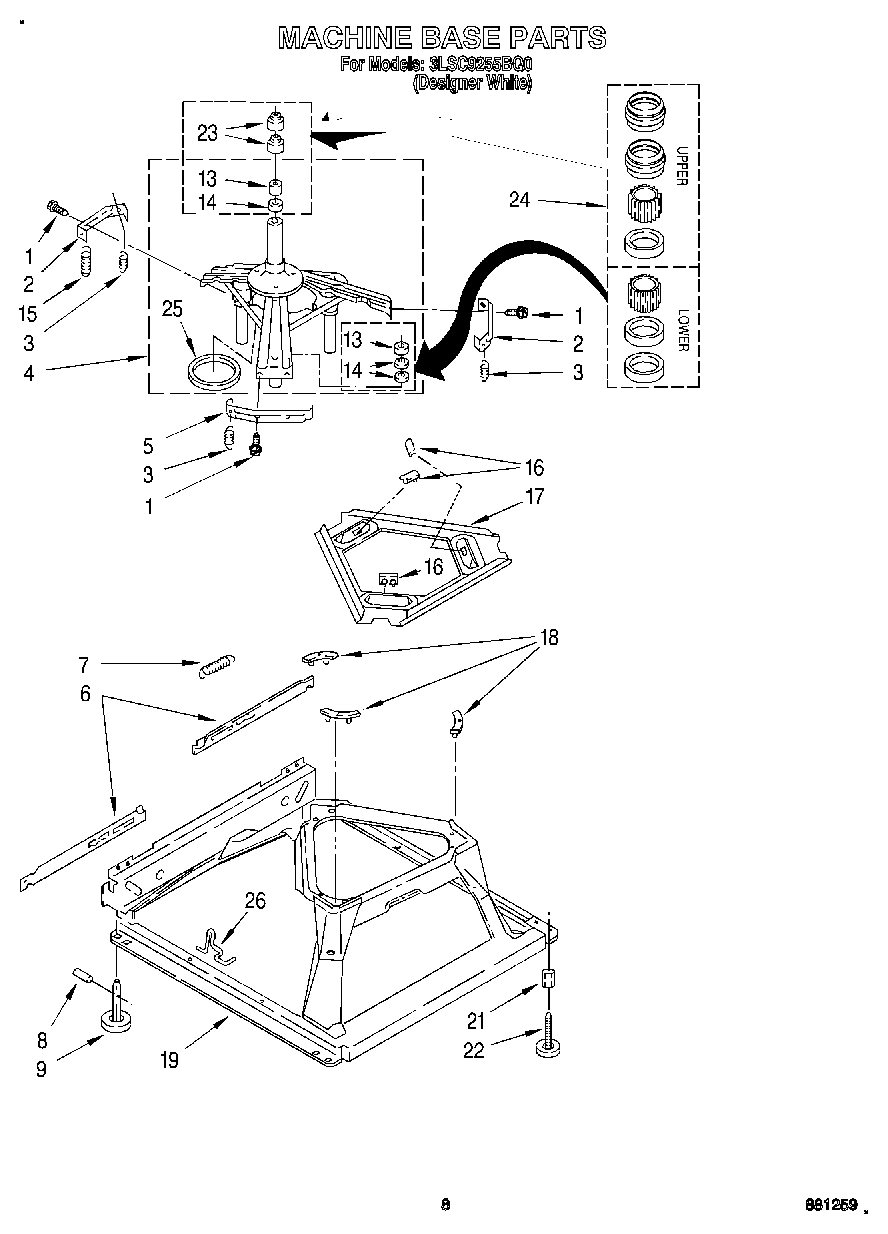

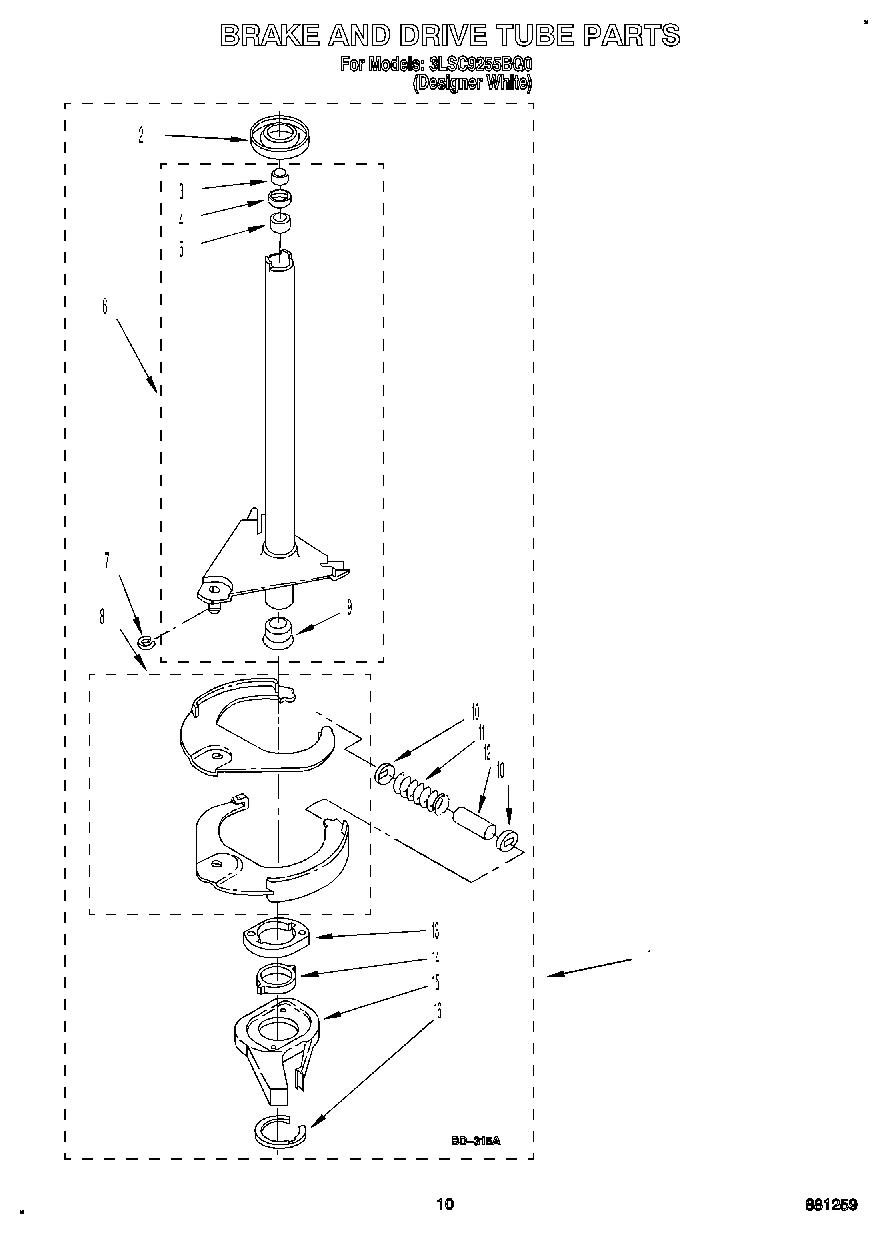

Model Whirlpool 3LSC9255BQ0 WASHER – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

350938 Whirlpool Spray Gun In Stock WPL 350938 $28.93

350956 Whirlpool Spray Assembly In Stock WPL 350956 $17.07

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.38

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

WP72107 Whirlpool Touchup In Stock WPL WP72107 $6.60

1

285442 Whirlpool Coupling Backorder WPL 285442 $58.70

1

3363395 Whirlpool Gearcase Backorder WPL 3363395 $305.17

1

63580 Whirlpool Washer Fabric Softener Dispen In Stock WPL 63580 $13.75

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.51

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $123.80

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.77

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $2.80

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $4.19

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $4.20

2

Clip, Harness WPL 62749 Contact Us For Availability

3

8528351 Whirlpool Clip Backorder WPL 8528351 $50.35

3

WP3348752 Whirlpool Agitator Mover Backorder WPL WP3348752 $104.77

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $11.46

3

WP62750 Whirlpool Spacer Backorder WPL WP62750 $4.19

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $4.53

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.46

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $4.53

4

8559320 Whirlpool Clip Backorder WPL 8559320 $31.16

4

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $70.05

4

WP3347288 Whirlpool Washer Agitator Base In Stock WPL WP3347288 $89.65

4

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.46

5

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $54.86

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $414.05

5

Hinge, Console (2) WPL 387402 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

6

WP3357978 Whirlpool Rear Panel Backorder WPL WP3357978 $244.82

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $4.53

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $4.19

6

Clip, Harness WPL 3390496 Contact Us For Availability

7

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $13.19

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $13.77

7

Wiring Harness WPL 3361105 Contact Us For Availability

8

285664 Whirlpool Drain Hose In Stock WPL 285664 $21.56

8

285666 Whirlpool Drain Hose 10' In Stock WPL 285666 $29.23

8

285702 Whirlpool Extensions Backorder WPL 285702 $59.11

8

WP3356311 Whirlpool Screw Backorder WPL WP3356311 $3.22

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.56

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $11.80

9

W10876590 Whirlpool Connector Backorder WPL W10876590 $7.78

9

Timer, Control (50 Hz.) (Motor Not A Service WPL 3947783 Contact Us For Availability

10

Spring, Agitator WPL 62676 Contact Us For Availability

11

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.19

11

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $2.59

62619 Whirlpool Washer Backorder WPL 62619 $14.93

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $4.53

WP62691 Whirlpool Grommet In Stock WPL WP62691 $6.79

Switch, Water Level (For Designer White Model WPL 3357481 Contact Us For Availability

Switch, Water Level (For Almond Model) WPL 3357482 Contact Us For Availability

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $13.04

13

Bracket, Control WPL 3361414 Contact Us For Availability

13

Plug, Terminal (3-Way) (Power Cord) WPL 387566 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $13.18

WP596797 Whirlpool Terminal Backorder WPL WP596797 $4.77

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $17.49

Cord, Power WPL 3361035 Contact Us For Availability

WP389387 Whirlpool Agitator Shaft In Stock WPL WP389387 $118.71

WP54584 Whirlpool Hinge Backorder WPL WP54584 $12.90

WP62505 Whirlpool Connector Backorder WPL WP62505 $13.77

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $2.80

Lock, Filter WPL 62942 Contact Us For Availability

Strain Relief, Power Cord WPL 63848 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $11.59

WP54583 Whirlpool Hinge Backorder WPL WP54583 $11.99

Cap, End (L.H.) (For Designer White Model) WPL 3358528 Contact Us For Availability

Washer, Cam Thrust WPL 62618 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $5.76

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $10.34

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $127.92

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $6.86

285874 Whirlpool Valve Assembly Backorder WPL 285874 $86.38

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.94

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $4.19

Protector, Harness WPL 63523 Contact Us For Availability

19

Base Assembly (Includes Illus, 6, 7, 8, 9, 18 WPL 3946512 Contact Us For Availability

19

Terminal WPL 3371761 Contact Us For Availability

20

WP358684 Whirlpool Strike Assembly In Stock WPL WP358684 $4.20

20

Clip, Harness WPL 3352944 Contact Us For Availability

21

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $33.22

21

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $3.22

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.85

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.77

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $8.91

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $30.73

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $2.80

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $4.81

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $88.08

24

WP3360977 Whirlpool Washer Tub Fill Nozzle In Stock WPL WP3360977 $29.83

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.19

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $10.18

25

WPW10233584 Whirlpool Spin Gear Backorder WPL WPW10233584 $161.93

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $36.05

26

WPW10145155 Whirlpool Retainer In Stock WPL WPW10145155 $2.53

26

WPW10358149 Whirlpool Hose In Stock WPL WPW10358149 $17.63

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $264.53

27

357030 Whirlpool Clamp Backorder WPL 357030 $13.77

27

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $4.53

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.77

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.44

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $4.81

31

WP90016 Whirlpool Clip Backorder WPL WP90016 $6.11

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $9.71

32

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $3.92

35

Switch, Touch-Pad (7) (For Designer White Mod WPL 3363673 Contact Us For Availability

36

WP356418 Whirlpool Screw Backorder WPL WP356418 $3.22

39

Panel, Console (For Designer White Model) WPL 3360382 Contact Us For Availability

44

WP3364293 Whirlpool Timer Knob In Stock WPL WP3364293 $35.00

45

Dial, Timer (For Designer White Model) WPL 3946261 Contact Us For Availability

49

WP388326 Whirlpool Screw Backorder WPL WP388326 $3.22

50

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $3.46

51

Cap, End (R.H.) (For Designer White Model) WPL 3358513 Contact Us For Availability

55

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $3.07

57

WP3357027 Whirlpool Nozzle Assembly Backorder WPL WP3357027 $34.75

58

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $3.81

59

WPL 3348424 WPL 3348424 Contact Us For Availability

60

WPL 3357451 WPL 3357451 Contact Us For Availability
