Model Whirlpool 110.96572500 Dryer (Kenmore 11096572500) – Common Parts &amp; Diagrams

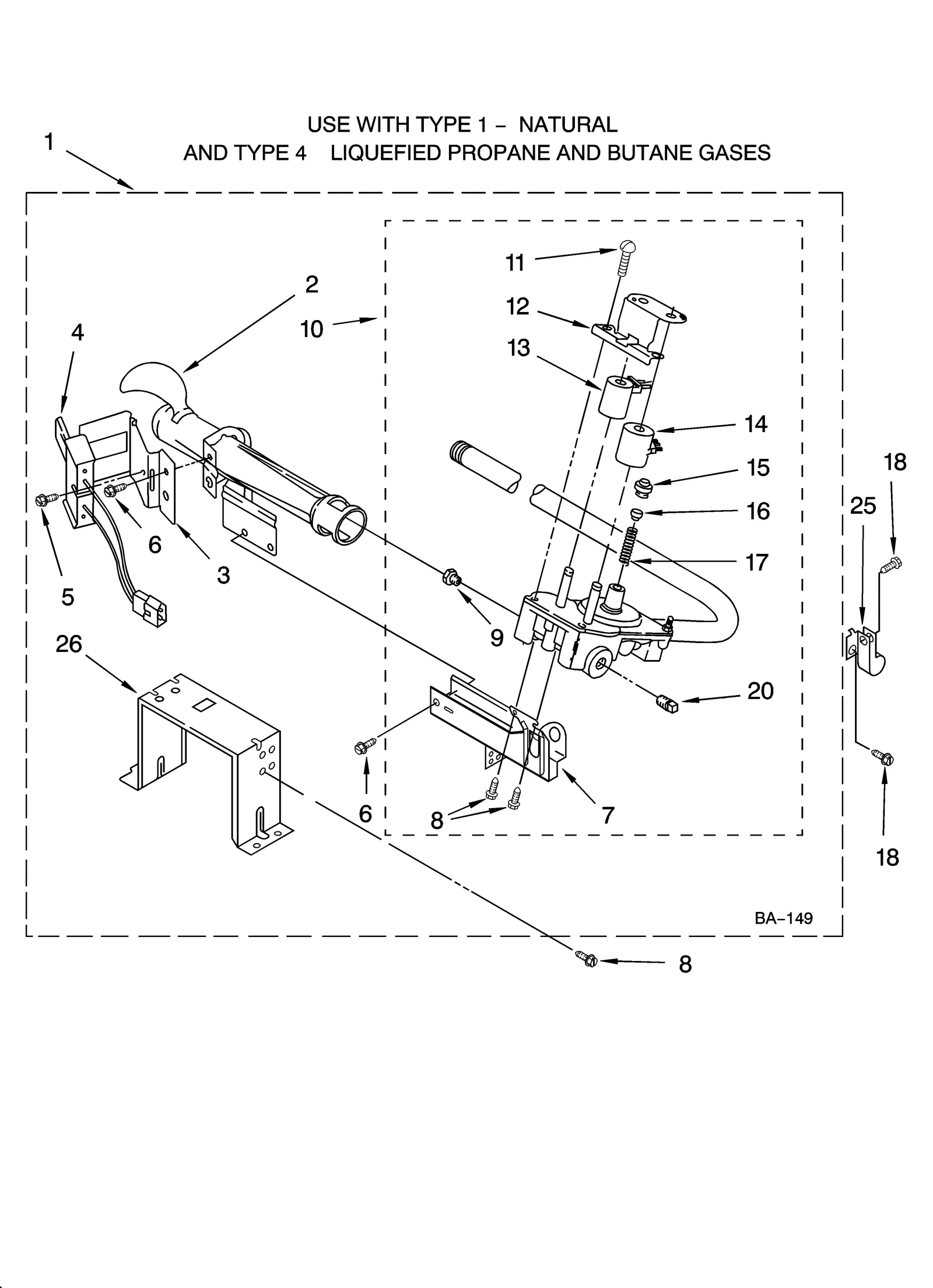

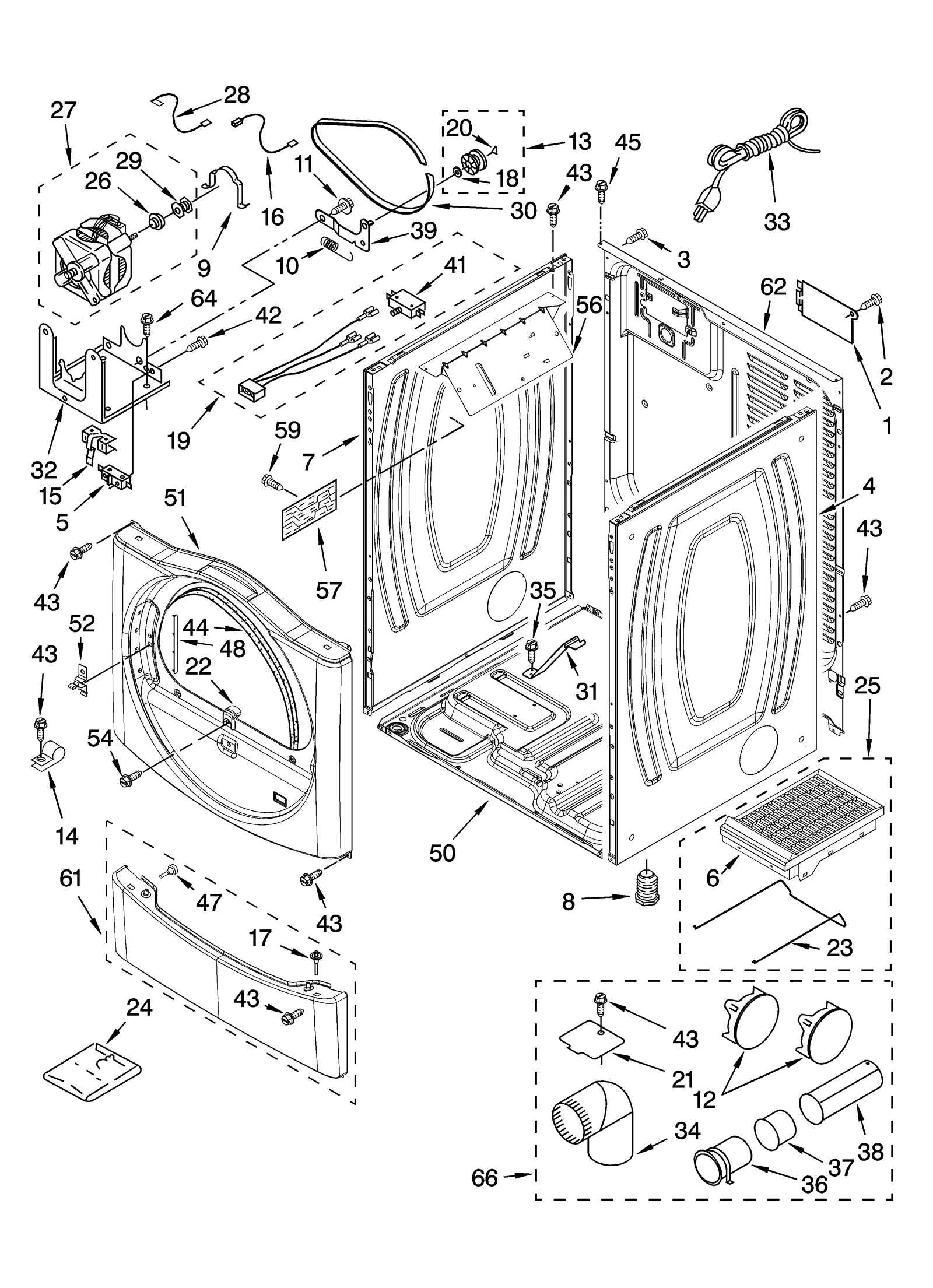

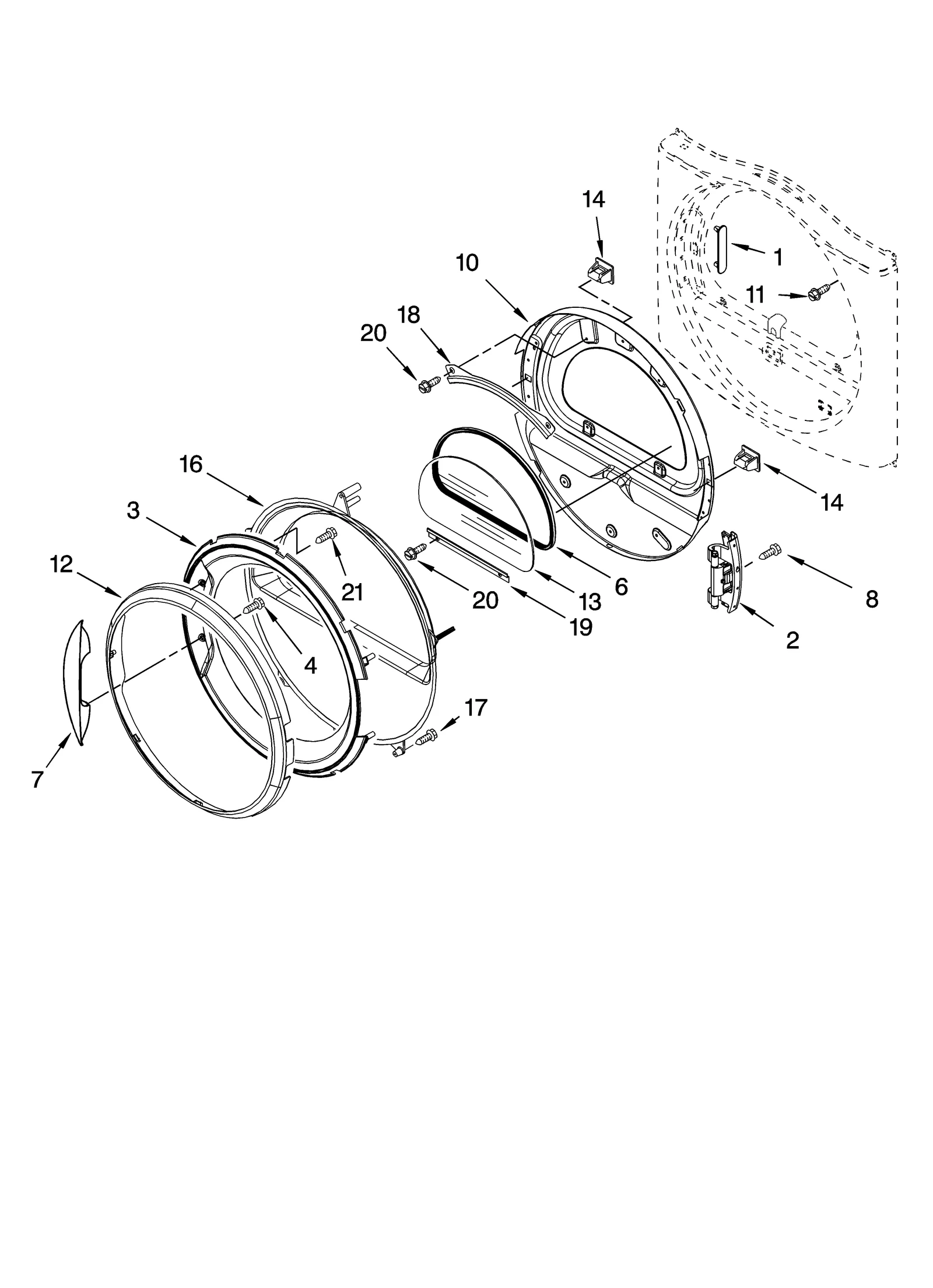

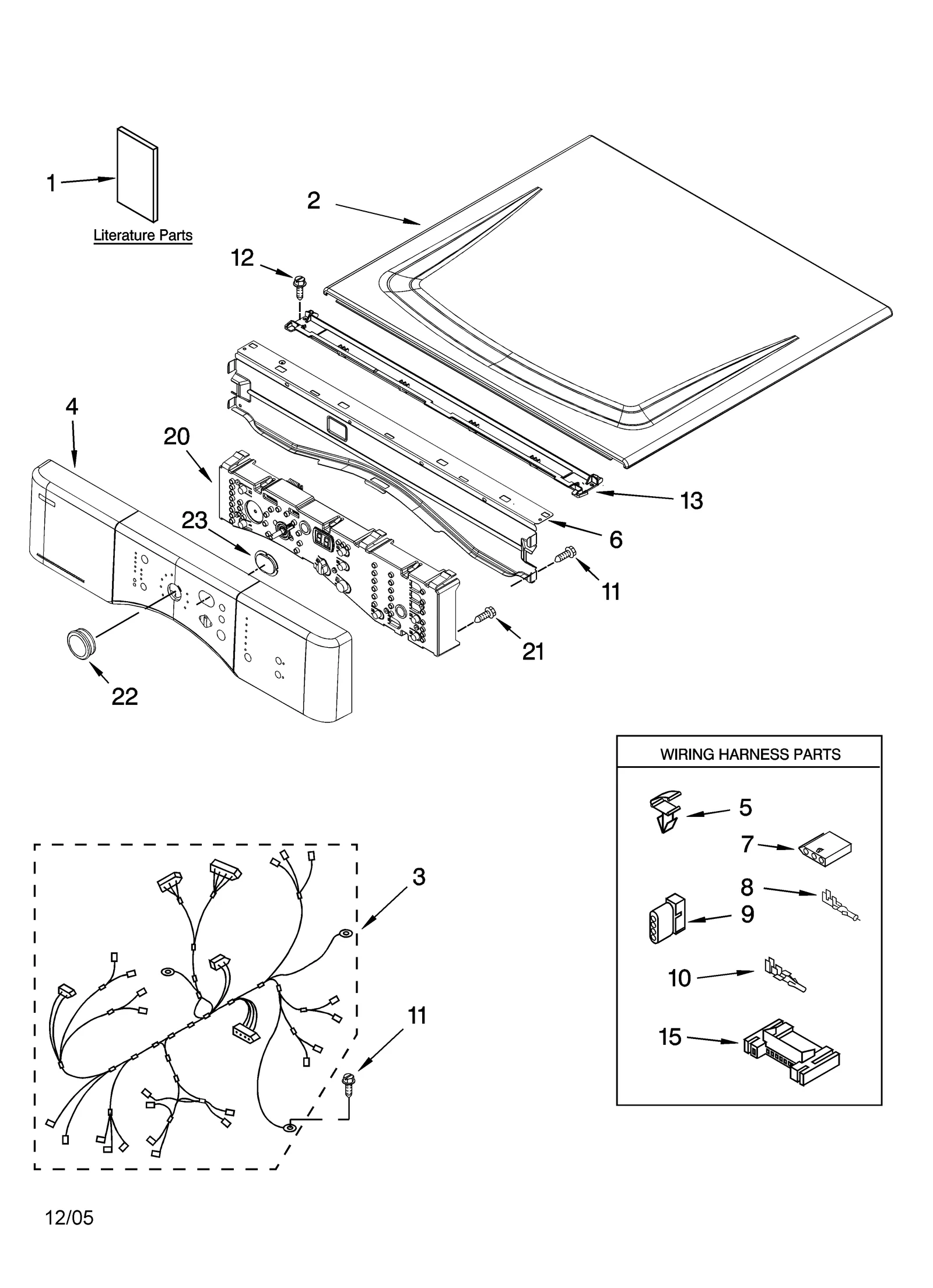

1

Dryer Owner's Manual WPL 8572744 Contact Us For Availability

1A

Dryer Guide WPL 8572750 Contact Us For Availability

1B

Technical Sheet WPL 8572745 Contact Us For Availability

1C

Parts List WPL 8571623 Contact Us For Availability

2

WPW10336080 Whirlpool Top Assembly Backorder WPL WPW10336080 $209.52

3

Wire Harness WPL 8530001 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $74.58

4

Dryer Screw WPL 9742177 Contact Us For Availability

4

Dryer Control Panel WPL 8574889 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $105.51

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.53

6

WP8565237 Whirlpool Bracket Assembly In Stock WPL WP8565237 $128.73

7

Washer Terminal Connector WPL 353424 Contact Us For Availability

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8A

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.07

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9A

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $22.94

9B

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $22.94

10

WP8318281 Whirlpool Gas Valve Backorder WPL WP8318281 $263.47

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $18.11

11

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $4.99

11

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

12

Dryer Outer Door Ring WPL 8565110 Contact Us For Availability

12

Screw WPL 8534015 Contact Us For Availability

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $23.67

13

WPW10266747 Whirlpool Channel Backorder WPL WPW10266747 $49.63

14

3978776 Whirlpool Bracket Backorder WPL 3978776 $61.09

15

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

15

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

16

Dryer Belt Switch Jumper Wire WPL 3394081 Contact Us For Availability

8518891 Whirlpool Rivet Backorder WPL 8518891 $8.89

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $162.31

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

WP8534022 Whirlpool Screw Backorder WPL WP8534022 $4.82

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

19

WP8283288 Whirlpool Door Switch In Stock WPL WP8283288 $77.75

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

20

Dryer User Interface WPL 8571916 Contact Us For Availability

21

3400618 Whirlpool Screw Backorder WPL 3400618 $4.41

21

WPW10354249 Whirlpool Cover Backorder WPL WPW10354249 $4.82

21

Dryer Console Panel Screw WPL 3400238 Contact Us For Availability

22

8565083 Whirlpool Ramp Assembly Backorder WPL 8565083 $67.96

22

WP8563728 Whirlpool Exhaust Pipe Backorder WPL WP8563728 $99.21

22

WP8565247 Whirlpool Knob Assembly Backorder WPL WP8565247 $44.98

23

Support WPL 8521961 Contact Us For Availability

23

Lens WPL 8574886 Contact Us For Availability

24

8572546 Whirlpool Washer Duet Sport Epic Stac In Stock WPL 8572546 $39.99

24

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

26

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $149.82

28

3398948 Whirlpool Wire Backorder WPL 3398948 $47.06

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $9.23

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $22.27

31

W10181903 Whirlpool Bracket Backorder WPL W10181903 $18.02

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

33

W11628810 Whirlpool Power Cord Backorder WPL W11628810 $67.35

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $15.21

35

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $65.33

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $48.15

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $56.29

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $63.22

38

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $48.88

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $27.19

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $15.87

46

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $124.03

47

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $70.41

48

8565043 Whirlpool Plug Backorder WPL 8565043 $67.96

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $27.24

50

W11215531 Whirlpool Base Backorder WPL W11215531 $231.82

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.28

51

Dryer Front Panel WPL 8565070 Contact Us For Availability

52

WP8565122 Whirlpool Strike Assembly Backorder WPL WP8565122 $4.82

53

Dryer Drum Baffle WPL 8565733 Contact Us For Availability

54

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

56

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $121.61

57

Electronic Control WPL 3978981 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $22.04

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

61

Toe Panel WPL 8565123 Contact Us For Availability

62

Rear Panel WPL 8565059 Contact Us For Availability

64

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

66

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $70.15

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $9.23

Paint (White) WPL 799344 Contact Us For Availability
