Model Whirlpool 110.95872402 Dryer (Kenmore 11095872402) – Common Parts &amp; Diagrams

1

Label WPL 8066209 Contact Us For Availability

2

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

2

Hinge WPL 8565927 Contact Us For Availability

2A

Hinge (Black) WPL 8565678 Contact Us For Availability

3

W10850756 Whirlpool Screw Backorder WPL W10850756 $4.82

3

Dryer Wire Harness WPL 8299950 Contact Us For Availability

3

Dryer Cover WPL 8546187 Contact Us For Availability

3A

Dryer Cover WPL 8519482 Contact Us For Availability

3B

Dryer Door Hinge Cover WPL 8519483 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $74.58

4

Dryer Screw WPL 9742177 Contact Us For Availability

4

Panel WPL 8519213 Contact Us For Availability

4A

Panel WPL 8519214 Contact Us For Availability

4B

Rh Side Panl WPL 8519215 Contact Us For Availability

5

279782 Whirlpool Lid Switch In Stock WPL 279782 $37.12

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $105.51

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

5

Screw WPL 8534015 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.53

6

Dryer Rack WPL 8521947 Contact Us For Availability

7

W10819774 Whirlpool Dryer Door Handle Assembl Backorder WPL W10819774 $56.67

7

Washer Terminal Connector WPL 353424 Contact Us For Availability

7

Panel WPL 8519209 Contact Us For Availability

7A

WP8559751 Whirlpool Handle In Stock WPL WP8559751 $34.11

7A

Panel WPL 8519210 Contact Us For Availability

7B

Panel WPL 8519211 Contact Us For Availability

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

Screw WPL 3400224 Contact Us For Availability

8A

49621 Whirlpool Leveling Feet In Stock WPL 49621 $4.07

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

8066086 Whirlpool Plug Backorder WPL 8066086 $7.15

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $16.64

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

9

Dryer Door Handle Screw Hole Plug (Graphite) WPL 8519373 Contact Us For Availability

9A

Dryer Door Handle Screw Hole Plug (Black) WPL 8519374 Contact Us For Availability

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $18.11

10

Dryer Inner Door Assembly WPL 8557500 Contact Us For Availability

11

WP3389420 Whirlpool Screw Backorder WPL WP3389420 $4.99

11

WP355515 Whirlpool Screw Backorder WPL WP355515 $4.82

12

Dryer Door Outer Panel WPL 8546186 Contact Us For Availability

12A

WP8519326 Whirlpool Door Assembly Backorder WPL WP8519326 $235.79

12B

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $48.97

12B

Dryer Door Outer Frame (Black) WPL 8519327 Contact Us For Availability

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $23.67

13

Dryer Door Outer Window WPL 8545878 Contact Us For Availability

13A

Window WPL 8545879 Contact Us For Availability

14

3978776 Whirlpool Bracket Backorder WPL 3978776 $61.09

14

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $5.30

15

3395683 Whirlpool Connector Backorder WPL 3395683 $39.64

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

15

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

16

Dryer Belt Switch Jumper Wire WPL 3394081 Contact Us For Availability

2203186 Whirlpool Connector Backorder WPL 2203186 $8.09

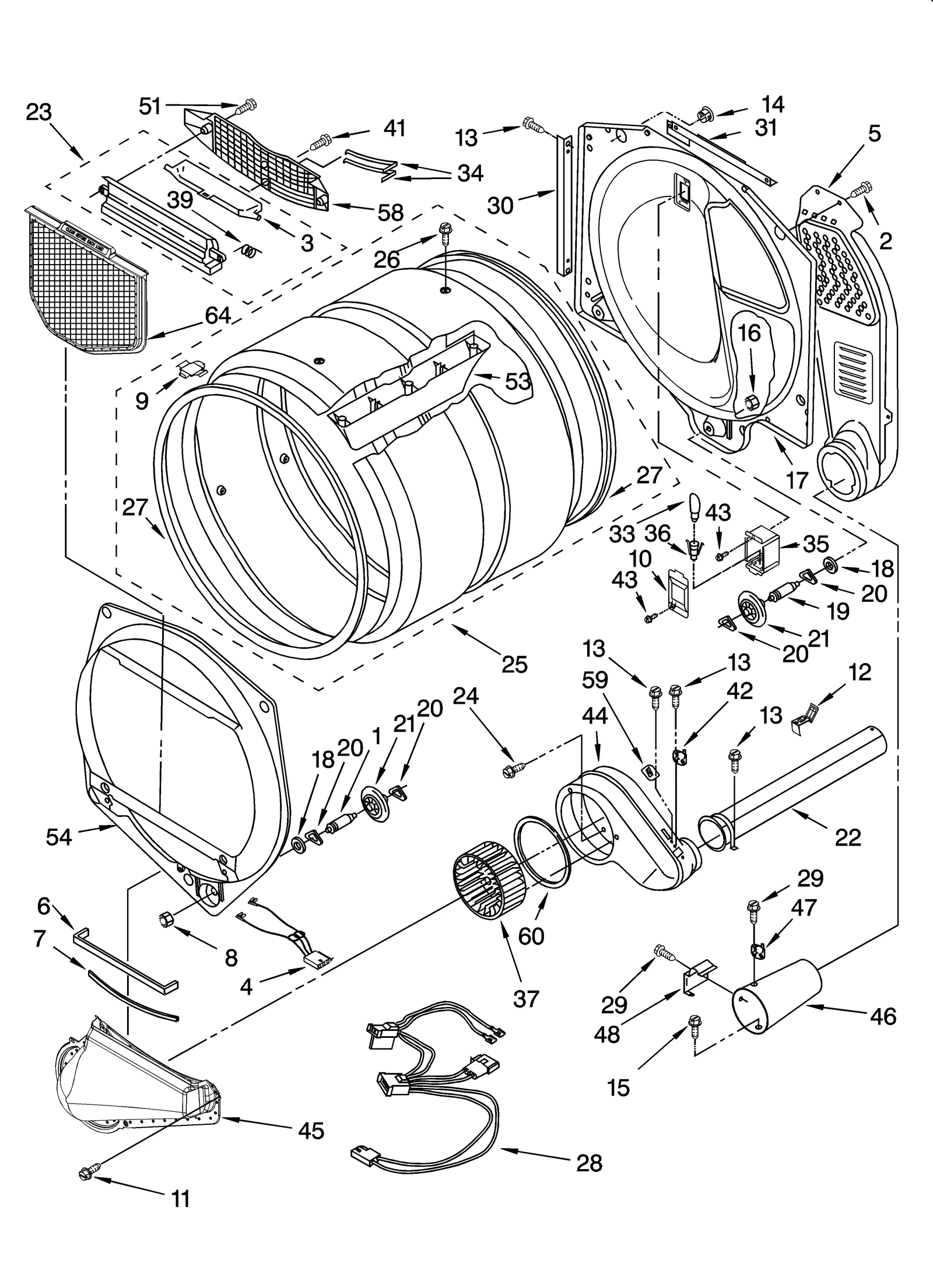

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $162.31

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

Sound Panel WPL 8564132 Contact Us For Availability

18

WP3403498 Whirlpool Connector Backorder WPL WP3403498 $4.82

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

19

Wire WPL 8519456 Contact Us For Availability

19

Dryer Door Switch WPL 8574875 Contact Us For Availability

20

WP3403499 Whirlpool Connector Backorder WPL WP3403499 $4.55

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

21

WPW10354249 Whirlpool Cover Backorder WPL WPW10354249 $4.82

22

Ramp WPL 8529053 Contact Us For Availability

23

Support WPL 8521961 Contact Us For Availability

24

8541503 Whirlpool Stacking Kit Backorder WPL 8541503 $48.67

24

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

25

Dryer Rack WPL 8521950 Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $149.82

28

3398948 Whirlpool Wire Backorder WPL 3398948 $47.06

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $9.23

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $22.27

31

W10181903 Whirlpool Bracket Backorder WPL W10181903 $18.02

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $93.54

33

W11628810 Whirlpool Power Cord Backorder WPL W11628810 $67.35

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $5.19

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $15.21

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.63

35

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $65.33

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $48.15

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $56.29

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $63.22

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $27.19

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $56.83

40

Mounting Clip WPL 62825 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $31.82

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

43

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $15.87

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $14.02

47

WP8573028 Whirlpool Thermostat Assembly In Stock WPL WP8573028 $43.89

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $27.24

50

Base WPL 8519207 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $4.28

51

Panel WPL 8562162 Contact Us For Availability

51A

Panel WPL 8562163 Contact Us For Availability

51B

Panel WPL 8562164 Contact Us For Availability

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

54

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

55

Dryer Wire Harness WPL 8299929 Contact Us For Availability

56

Bracket WPL 8519273 Contact Us For Availability

57

Dryer Electronic Control Board WPL 8546219 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $22.04

59

3400826 Whirlpool Screw Backorder WPL 3400826 $5.51

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $5.30

61

Dryer Toe Panel WPL 8519233 Contact Us For Availability

61A

Toe Panel WPL 8519234 Contact Us For Availability

61B

Toe Panel WPL 8519235 Contact Us For Availability

62

Rear Panel WPL 8519219 Contact Us For Availability

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $5.30

64

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

66

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $70.15

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $37.72

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $9.23

Appliance Touch-Up Paint, 0.6-oz (Graphite) WPL 80051 Contact Us For Availability

Paint (White) WPL 799344 Contact Us For Availability

Appliance Paint, 1-qt (Bisque) WPL 4392900 Contact Us For Availability

Paint (Graphite) WPL 8171358 Contact Us For Availability

Hold-Down Kit WPL 8529894 Contact Us For Availability
