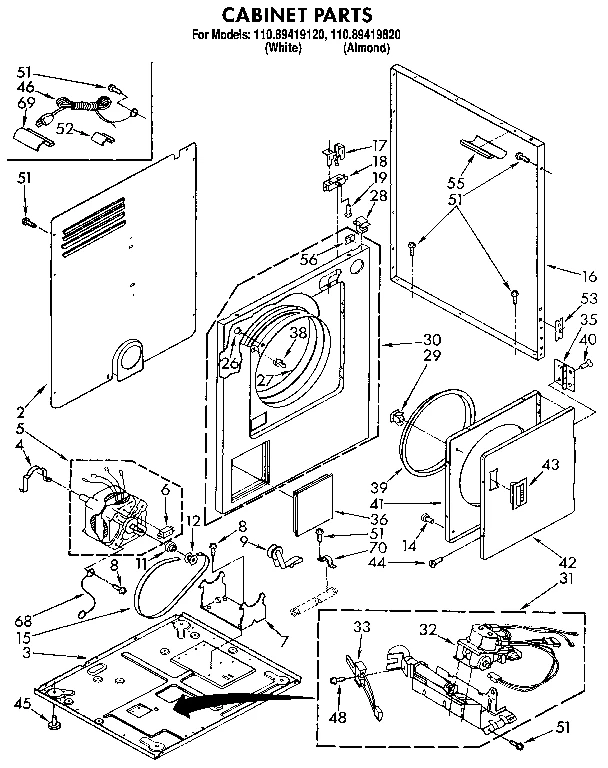

Whirlpool 110.89419120 Gas Dryer (Kenmore 11089419120) Parts List

1

694421 Whirlpool Screw Assembly Backorder WPL 694421 $8.13

View on Model

1A

345703 Whirlpool White Maintop Backorder WPL 345703 $176.06

View on Model

1A

Operating Instructions WPL LIT3389134 Contact Us For Availability

View on Model

1B

Top Al WPL 4319405 Contact Us For Availability

View on Model

1B

Wiring Diagram WPL LIT9830403 Contact Us For Availability

View on Model

1C

Installation Instructions WPL LIT9830411 Contact Us For Availability

View on Model

1D

Dryer Guide WPL LIT9830319 Contact Us For Availability

View on Model

1E

Operating Instructions WPL LIT9830513 Contact Us For Availability

View on Model

1F

Parts List WPL LIT4319496 Contact Us For Availability

View on Model

1H

Washer Service Manual WPL LIT787206 Contact Us For Availability

View on Model

1I

Serv Manul WPL LIT787207 Contact Us For Availability

View on Model

2

Sears Canada Dryer Valve Coil Bracket WPL 694538 Contact Us For Availability

View on Model

2

Rivet WPL 307563 Contact Us For Availability

View on Model

2

Air Duct WPL 9830484 Contact Us For Availability

View on Model

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

View on Model

4

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $25.18

View on Model

4

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $29.98

View on Model

5

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.32

View on Model

6

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

View on Model

6

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

View on Model

7

696541 Whirlpool Base Backorder WPL 696541 $64.59

View on Model

7

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

View on Model

7

WP696426 Whirlpool Wheel In Stock WPL WP696426 $41.44

View on Model

8

WP3401850 Whirlpool Wire Harness Backorder WPL WP3401850 $185.70

View on Model

8

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

View on Model

8

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $94.27

View on Model

9

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

View on Model

9

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.43

View on Model

9

Clip WPL 694510 Contact Us For Availability

View on Model

9

Bracket WPL 3390412 Contact Us For Availability

View on Model

10

696419 Whirlpool Housing Backorder WPL 696419 $97.76

View on Model

10

W10295523 Whirlpool Plug Backorder WPL W10295523 $15.58

View on Model

10

Switch WPL 696887 Contact Us For Availability

View on Model

11

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $91.99

View on Model

11

Bulkhead WPL 4319404 Contact Us For Availability

View on Model

12

279771 Whirlpool Clip Backorder WPL 279771 $9.33

View on Model

12

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $9.23

View on Model

12

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $22.99

View on Model

13

Knob WPL 388038 Contact Us For Availability

View on Model

13

Heater Box WPL 346952 Contact Us For Availability

View on Model

14

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $70.41

View on Model

14

686770 Whirlpool Support Bracket Backorder WPL 686770 $8.05

View on Model

14

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

View on Model

15

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $48.48

View on Model

15

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $5.74

View on Model

17

Thermostat WPL 660036 Contact Us For Availability

View on Model

18

347455 Whirlpool Support Assembly Backorder WPL 347455 $8.82

View on Model

20

345335 Whirlpool Cover Backorder WPL 345335 $75.27

View on Model

20

Timer WPL 3390417 Contact Us For Availability

View on Model

21

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $27.24

View on Model

22

348171 Whirlpool Bracket Backorder WPL 348171 $56.81

View on Model

23

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

View on Model

23

Dryer Thermostat Heater WPL 61894 Contact Us For Availability

View on Model

24

279900 Whirlpool Box O/S1 Backorder WPL 279900 $228.97

View on Model

25

WP3388703 Whirlpool Washer Backorder WPL WP3388703 $4.67

View on Model

26

Gusset WPL 4319441 Contact Us For Availability

View on Model

28

3391834 Whirlpool Drum Backorder WPL 3391834 $215.70

View on Model

28

WP345670 Whirlpool Lock In Stock WPL WP345670 $5.30

View on Model

29

279735 Whirlpool Dryer Rear Drum Seal White S In Stock WPL 279735 $44.53

View on Model

29

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $5.30

View on Model

30

Screw WPL 690372 Contact Us For Availability

View on Model

31

Gas Burner WPL 4319410 Contact Us For Availability

View on Model

31

Control Panel WPL 3390468 Contact Us For Availability

View on Model

32

279923 Whirlpool Gas Valve In Stock WPL 279923 $142.44

View on Model

32

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $53.86

View on Model

32

Timer Knob WPL 9830416 Contact Us For Availability

View on Model

33

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $32.84

View on Model

33

8528351 Whirlpool Clip Backorder WPL 8528351 $54.39

View on Model

34

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

View on Model

35

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $19.45

View on Model

36

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $48.95

View on Model

36

Push-to-Start Switch WPL 3390511 Contact Us For Availability

View on Model

37

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.99

View on Model

37

Knob WPL 697198 Contact Us For Availability

View on Model

38

345396 Whirlpool Clip Backorder WPL 345396 $54.31

View on Model

41

W10828351 Whirlpool Dryer Filter Lint Screen In Stock WPL W10828351 $41.03

View on Model

42

Washer WPL 4319307 Contact Us For Availability

View on Model

44

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

View on Model

46

Seal WPL 9830394 Contact Us For Availability

View on Model

48

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $4.99

View on Model

48

Wire Harness WPL 4319398 Contact Us For Availability

View on Model

50

Support Washer WPL 339492 Contact Us For Availability

View on Model

52

Support WPL 686768 Contact Us For Availability

View on Model

53

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $8.77

View on Model

55

Support WPL 686767 Contact Us For Availability

View on Model

56

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

View on Model

56

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

View on Model

58

W11233063 Whirlpool Shield Assembly Backorder WPL W11233063 $14.02

View on Model

68

Wire WPL 4319390 Contact Us For Availability

View on Model

70

341029 Whirlpool Clamp Backorder WPL 341029 $8.13

View on Model

NI

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

View on Model

NI

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

View on Model

NI

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

View on Model

NI

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

View on Model

NI

W10402145 Whirlpool LP Gas Connection Backorder WPL W10402145 $77.69

View on Model

NI

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

View on Model

NI

Paint (White) WPL 799344 Contact Us For Availability

View on Model

NI

(338471) (ALT.) WPL N/P Contact Us For Availability

View on Model

NI

Spray Th WPL 350941 Contact Us For Availability

View on Model

NI

Paint (Almond) WPL 978883 Contact Us For Availability

View on Model
