Model Whirlpool 110.86379330 Electric Dryer (Kenmore 11086379330) – Common Parts &amp; Diagrams

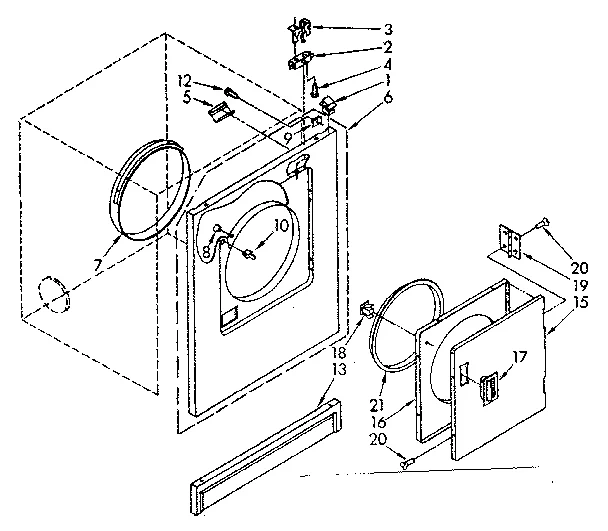

1

WP345670 Whirlpool Lock In Stock WPL WP345670 $5.30

1

Dryer Cabinet Panel Guide Pin WPL 98669 Contact Us For Availability

2

686770 Whirlpool Support Bracket Backorder WPL 686770 $8.05

2

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

2

Air Duct WPL 696539 Contact Us For Availability

3

WP691581 Whirlpool Actuator In Stock WPL WP691581 $5.30

3

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

3

Pedestal WPL 692671 Contact Us For Availability

4

WP348726 Whirlpool Base Assembly Backorder WPL WP348726 $191.17

4

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

5

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

5

Support WPL 686768 Contact Us For Availability

6

WP339956 Whirlpool Foam Seal In Stock WPL WP339956 $5.30

6

Coverplate WPL 696019 Contact Us For Availability

6A

Panel (White) WPL 693044 Contact Us For Availability

6B

Panel (Almond) WPL 693045 Contact Us For Availability

6C

Panel WPL 693048 Contact Us For Availability

6D

Panel WPL 695768 Contact Us For Availability

6E

Panel (Platinum) WPL 695769 Contact Us For Availability

7

279264 Whirlpool Bearing and Seal Kit In Stock WPL 279264 $52.39

7

WP696426 Whirlpool Wheel In Stock WPL WP696426 $41.44

7

End Cap Clip WPL 689559 Contact Us For Availability

7

(338471) (ALT.) WPL N/P Contact Us For Availability

7A

Panel (White) WPL 692681 Contact Us For Availability

7B

Panel (Almond) WPL 692682 Contact Us For Availability

7C

Panel WPL 692685 Contact Us For Availability

7D

Toast WPL 695772 Contact Us For Availability

7E

Platinum (Platinum) WPL 695773 Contact Us For Availability

8

279220 Whirlpool Clip Backorder WPL 279220 $18.99

9

WP694674 Whirlpool Cycling Thermostat In Stock WPL WP694674 $29.98

9

WP98234 Whirlpool Nut In Stock WPL WP98234 $7.88

9A

Panel (White) WPL 692687 Contact Us For Availability

9B

Panel (Almond) WPL 692688 Contact Us For Availability

9C

Panel WPL 692691 Contact Us For Availability

9D

Toast WPL 695774 Contact Us For Availability

9E

Platinum (Platinum) WPL 695775 Contact Us For Availability

10

280050 Whirlpool Rear Panel Backorder WPL 280050 $216.05

10

696419 Whirlpool Housing Backorder WPL 696419 $97.76

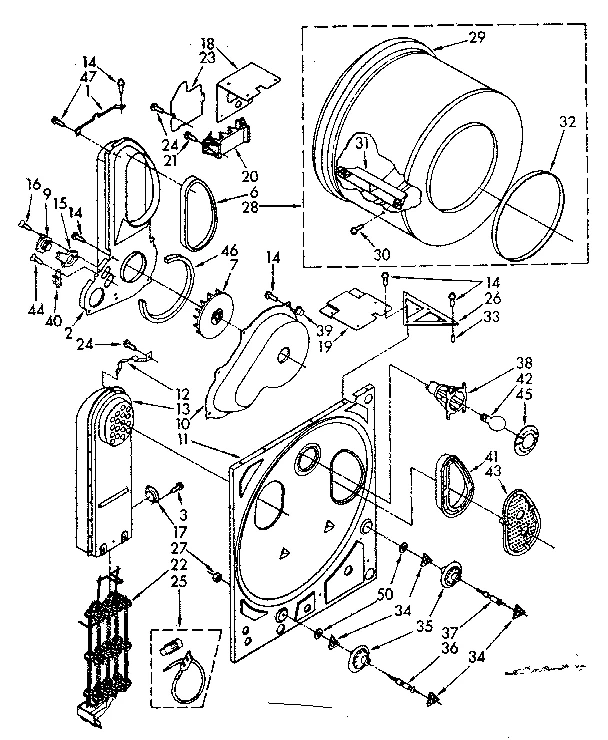

11

279848 Whirlpool Bulkhead Backorder WPL 279848 $230.45

11

Protector WPL 693067 Contact Us For Availability

12

279771 Whirlpool Clip Backorder WPL 279771 $9.33

12A

692790 Whirlpool Plug Backorder WPL 692790 $57.71

12B

Plug (Almond) WPL 692791 Contact Us For Availability

12C

Plug WPL 692794 Contact Us For Availability

12D

Toast WPL 692792 Contact Us For Availability

12E

Platinum (Platinum) WPL 692793 Contact Us For Availability

13

Box WPL 685457 Contact Us For Availability

13A

Panel (White) WPL 692662 Contact Us For Availability

13B

Panel (Almond) WPL 692663 Contact Us For Availability

13C

Panel WPL 692666 Contact Us For Availability

13D

Toast WPL 695776 Contact Us For Availability

13E

Platinum (Platinum) WPL 695777 Contact Us For Availability

14

Wire WPL 687261 Contact Us For Availability

15

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $9.23

15

Dryer Thermostat Heater WPL 61894 Contact Us For Availability

15A

WP348205 Whirlpool Door Backorder WPL WP348205 $97.40

15B

Dryer Door (Almond) WPL 689314 Contact Us For Availability

15C

Door WPL 689319 Contact Us For Availability

15D

Door WPL 695214 Contact Us For Availability

15E

Door (Platinum) WPL 695215 Contact Us For Availability

16

280077 Whirlpool Door Backorder WPL 280077 $124.82

16

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $5.30

17

696541 Whirlpool Base Backorder WPL 696541 $64.59

17

Dryer Thermostat WPL 696818 Contact Us For Availability

17A

WP686711 Whirlpool Door Handle In Stock WPL WP686711 $5.30

17B

Handle (Almond) WPL 689497 Contact Us For Availability

17C

Handle WPL 689499 Contact Us For Availability

17D

Handle WPL 695222 Contact Us For Availability

17E

Handle (Platinum) WPL 695223 Contact Us For Availability

18

279304 Whirlpool Block Terminal Backorder WPL 279304 $130.28

18

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $6.56

18

WP660658 Whirlpool Clamp In Stock WPL WP660658 $5.30

19

WP348023 Whirlpool Hinge Backorder WPL WP348023 $4.82

19

WP691366 Whirlpool Dryer Idler Pulley Assembl In Stock WPL WP691366 $16.43

19

Support WPL 692697 Contact Us For Availability

279320 Whirlpool Dryer Rear Terminal Block Ki In Stock WPL 279320 $31.31

3394652 Whirlpool Drum Belt In Stock WPL 3394652 $48.48

WP694091 Whirlpool Screw Backorder WPL WP694091 $4.82

Dryer Timer Knob WPL 688865 Contact Us For Availability

21

W11613302 Whirlpool Door Seal In Stock WPL W11613302 $33.70

21

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

21

Pipe WPL 692873 Contact Us For Availability

22

Element WPL 696632 Contact Us For Availability

22

Clamp WPL 692874 Contact Us For Availability

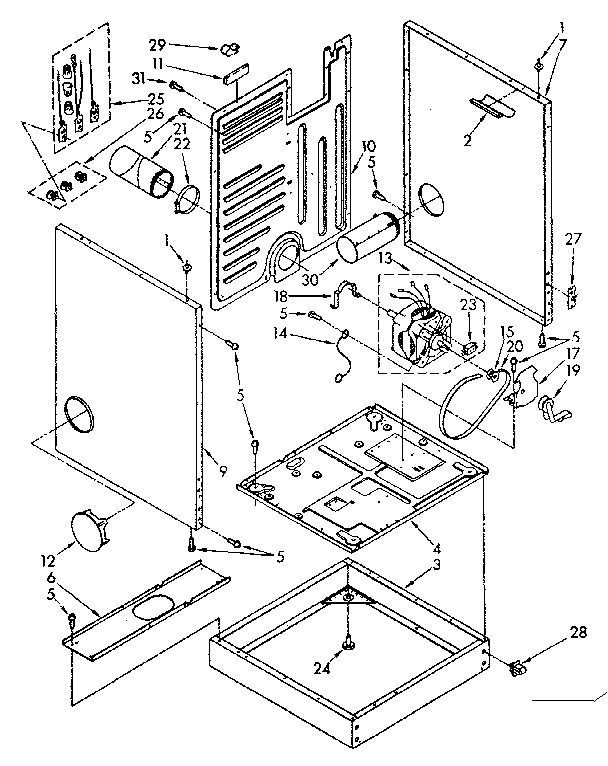

23

279827 Whirlpool Dryer Drive Motor In Stock WPL 279827 $78.97

23

W11736322 Whirlpool Cover Assembly Backorder WPL W11736322 $42.20

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

24

WP233550 Whirlpool Leveling Feet Backorder WPL WP233550 $4.82

25

279318 Whirlpool Terminal In Stock WPL 279318 $52.31

25

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $6.11

26

345325 Whirlpool Gusset Backorder WPL 345325 $61.38

26

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

27

W10854425 Whirlpool Dryer Front Panel Bottom In Stock WPL W10854425 $8.77

28

3391834 Whirlpool Drum Backorder WPL 3391834 $215.70

28

Clip WPL 696232 Contact Us For Availability

29

279735 Whirlpool Dryer Rear Drum Seal White S In Stock WPL 279735 $44.53

29

687000 Whirlpool Connector Backorder WPL 687000 $57.11

30

WP693995 Whirlpool Screw In Stock WPL WP693995 $4.09

30

Screw WPL 690372 Contact Us For Availability

30

Extension WPL 693738 Contact Us For Availability

31

Sears Canada Dryer Drum Baffle WPL 685207 Contact Us For Availability

32

WP3394508 Whirlpool Bearing Ring In Stock WPL WP3394508 $53.86

33

W10491983 Whirlpool Tine Tip Backorder WPL W10491983 $5.74

34

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $7.98

35

349241T Whirlpool Dryer Drum Support Roller K In Stock WPL 349241T $19.45

36

WPW10359270 Whirlpool Dryer Drum Roller Shaft In Stock WPL WPW10359270 $48.95

37

WPW10359269 Whirlpool Dryer Shaft Support Rol In Stock WPL WPW10359269 $33.99

38

Socket WPL 691034 Contact Us For Availability

40

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $17.27

41

W10828351 Whirlpool Dryer Filter Lint Screen In Stock WPL W10828351 $41.03

42

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

44

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

45

Lens WPL 341165 Contact Us For Availability

46

Washer Seal WPL 696658 Contact Us For Availability

50

WP348197 Whirlpool Washer Assembly Backorder WPL WP348197 $4.82

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Spray (Toast) WPL 285365 Contact Us For Availability

Spray (Platinum) WPL 285366 Contact Us For Availability

Paint To WPL 285367 Contact Us For Availability

Paint Pl WPL 285368 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Touch-Up WPL 72112 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Operating Instructions WPL LIT687759 Contact Us For Availability

Operating Instructions WPL LIT692149 Contact Us For Availability

Label WPL LIT692834 Contact Us For Availability

Owner's Manual WPL LIT693160 Contact Us For Availability

Installation Instructions WPL LIT693161 Contact Us For Availability

Parts List WPL LIT697576 Contact Us For Availability
