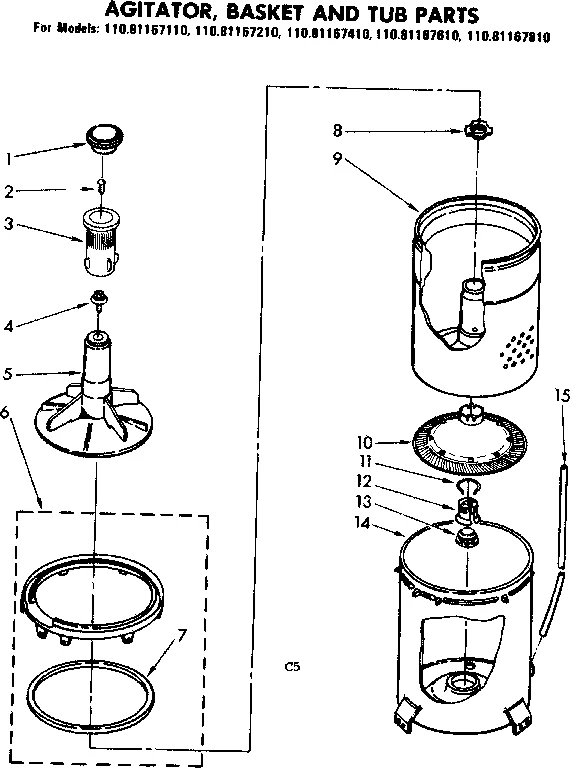

Model Whirlpool 110.81167810 Electric Washer (Kenmore 11081167810) – Common Parts &amp; Diagrams

1

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

1

Replacement Part WPL 384249 Contact Us For Availability

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2A

Top (White) WPL 62854 Contact Us For Availability

2B

Top (Almond) WPL 62855 Contact Us For Availability

2C

Top WPL 62856 Contact Us For Availability

2D

Top WPL 62857 Contact Us For Availability

2E

Top WPL 62858 Contact Us For Availability

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $12.77

3

Spring WPL 62740 Contact Us For Availability

3

Ground Strap WPL 22965 Contact Us For Availability

4

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

4

WP62739 Whirlpool Nut Backorder WPL WP62739 $4.82

4

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

4

Support WPL 62798 Contact Us For Availability

5

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

5

Bracket WPL 62606 Contact Us For Availability

5

Hinge WPL 62748 Contact Us For Availability

5A

Cabinet (White) WPL 62558 Contact Us For Availability

5B

Cabinet (Almond) WPL 62559 Contact Us For Availability

5C

Cabinet WPL 62560 Contact Us For Availability

5D

Cabinet WPL 62561 Contact Us For Availability

5E

Cabinet WPL 62562 Contact Us For Availability

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Spacer WPL 356937 Contact Us For Availability

6

Link WPL 62604 Contact Us For Availability

6

Screw WPL 132848 Contact Us For Availability

6

Panel WPL 62694 Contact Us For Availability

7

8316845 Whirlpool Washer Spring In Stock WPL 8316845 $6.49

7

98460 Whirlpool Nut Backorder WPL 98460 $8.89

7

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

7

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8546462 Whirlpool Bearing In Stock WPL WP8546462 $5.30

8

WP96743 Whirlpool Hose In Stock WPL WP96743 $63.89

8

Terminal WPL 352088 Contact Us For Availability

8

Washer Lid Switch Screw WPL 354764 Contact Us For Availability

9

285244 Whirlpool Leveling Feet In Stock WPL 285244 $14.95

9

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

9

Washer Terminal Connector WPL 353424 Contact Us For Availability

9

Harness WPL 62870 Contact Us For Availability

9A

Timer WPL 63014 Contact Us For Availability

9B

Timer WPL 63013 Contact Us For Availability

10

WP359231 Whirlpool Shield In Stock WPL WP359231 $5.99

10

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $4.55

10

Mounting Clip WPL 62825 Contact Us For Availability

10A

Motor WPL 62920 Contact Us For Availability

10B

Washer Motor WPL 362681 Contact Us For Availability

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $15.30

WP354987 Whirlpool C-Clip In Stock WPL WP354987 $5.87

WP3946532 Whirlpool Shield Backorder WPL WP3946532 $19.73

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

Washer Filter Plate Lock Ring WPL 62942 Contact Us For Availability

W10820043 Whirlpool Washer Drive and Brake Ba In Stock WPL W10820043 $161.53

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

Actuator WPL 370959 Contact Us For Availability

Switch WPL 62802 Contact Us For Availability

13

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

13

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

13

Bracket WPL 381474 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $15.42

WP21097 Whirlpool Pad In Stock WPL WP21097 $5.99

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

Cord WPL 62734 Contact Us For Availability

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

WPW10250667 Whirlpool Washer Suspension Sprin In Stock WPL WPW10250667 $4.85

Relief WPL 62733 Contact Us For Availability

Lid Hinge WPL 54567 Contact Us For Availability

285219 Whirlpool Washer Suspension Plate Fric In Stock WPL 285219 $17.52

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

WP91770 Whirlpool Hinge In Stock WPL WP91770 $17.43

Cap (Chestnut) WPL 372127 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WP96160 Whirlpool Washer Inlet Valve Screen Backorder WPL WP96160 $5.83

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

18

285744 Whirlpool Washer Tub Suspension Rod Ki In Stock WPL 285744 $9.92

18

285805 Whirlpool Washer Water Inlet Valve In Stock WPL 285805 $31.16

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

19

285459 Whirlpool Washer Base Backorder WPL 285459 $260.42

19

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

19

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

19A

Lid (White) WPL 354944 Contact Us For Availability

19B

Lid (Almond) WPL 377653 Contact Us For Availability

19C

Lid WPL 377654 Contact Us For Availability

19D

Lid WPL 377655 Contact Us For Availability

19E

Lid WPL 377656 Contact Us For Availability

20

Retainer WPL 62737 Contact Us For Availability

20

Strike WPL 354252 Contact Us For Availability

21

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

21

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $4.99

22

WP3357328 Whirlpool Water Inlet Hose In Stock WPL WP3357328 $14.97

22

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

23

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $5.30

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $40.15

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

25

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

26

Connector WPL 62608 Contact Us For Availability

27

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

28

Hose WPL 62730 Contact Us For Availability

29

Hanger WPL 63124 Contact Us For Availability

30

WP371502 Whirlpool Clamp Backorder WPL WP371502 $7.16

31

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $5.30

32

285871 Whirlpool Hose and Clamp In Stock WPL 285871 $15.57

33

357030 Whirlpool Clamp Backorder WPL 357030 $14.02

34

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

35

Switch WPL 358934 Contact Us For Availability

36

Screw WPL 359504 Contact Us For Availability

37

Washer Control Knob WPL 382825 Contact Us For Availability

38

Compression Ring WPL 90015 Contact Us For Availability

39

Panel WPL 382472 Contact Us For Availability

40

End Cap Clip WPL 689559 Contact Us For Availability

41

Cap (Chestnut) WPL 372134 Contact Us For Availability

42

Screw WPL 355326 Contact Us For Availability

43

Screw, Nibbed WPL 339607 Contact Us For Availability

44

Washer Timer Knob WPL 359507 Contact Us For Availability

45

Pointer WPL 62754 Contact Us For Availability

46

Clip WPL 359710 Contact Us For Availability

49

Screw WPL 358225 Contact Us For Availability

50

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

51

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.46

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

350956 Whirlpool Spray Assembly In Stock WPL 350956 $26.25

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $13.75

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP72107 Whirlpool Touchup In Stock WPL WP72107 $10.96

Paint (White) WPL 799344 Contact Us For Availability

(338471) (ALT.) WPL N/P Contact Us For Availability

Spray Cf WPL 261886 Contact Us For Availability

Paint Cf WPL 261887 Contact Us For Availability

Spray (Avocado) WPL 261888 Contact Us For Availability

Paint Na WPL 261889 Contact Us For Availability

Spray (Golden Harvest) WPL 261890 Contact Us For Availability

Natural Gas Paint WPL 261891 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Spray Th WPL 350941 Contact Us For Availability

Touch-Up WPL 72108 Contact Us For Availability

Thinnr 1 Gal WPL 799351 Contact Us For Availability

Paint (Almond) WPL 978883 Contact Us For Availability

Operating Instructions WPL LIT382316 Contact Us For Availability

Parts List WPL LIT382340 Contact Us For Availability

Checklist WPL LIT382582 Contact Us For Availability

Energy Guide WPL LIT383242 Contact Us For Availability

Installation Instructions WPL LIT62805 Contact Us For Availability

Guide WPL LIT62890 Contact Us For Availability

Label WPL LIT63012 Contact Us For Availability
