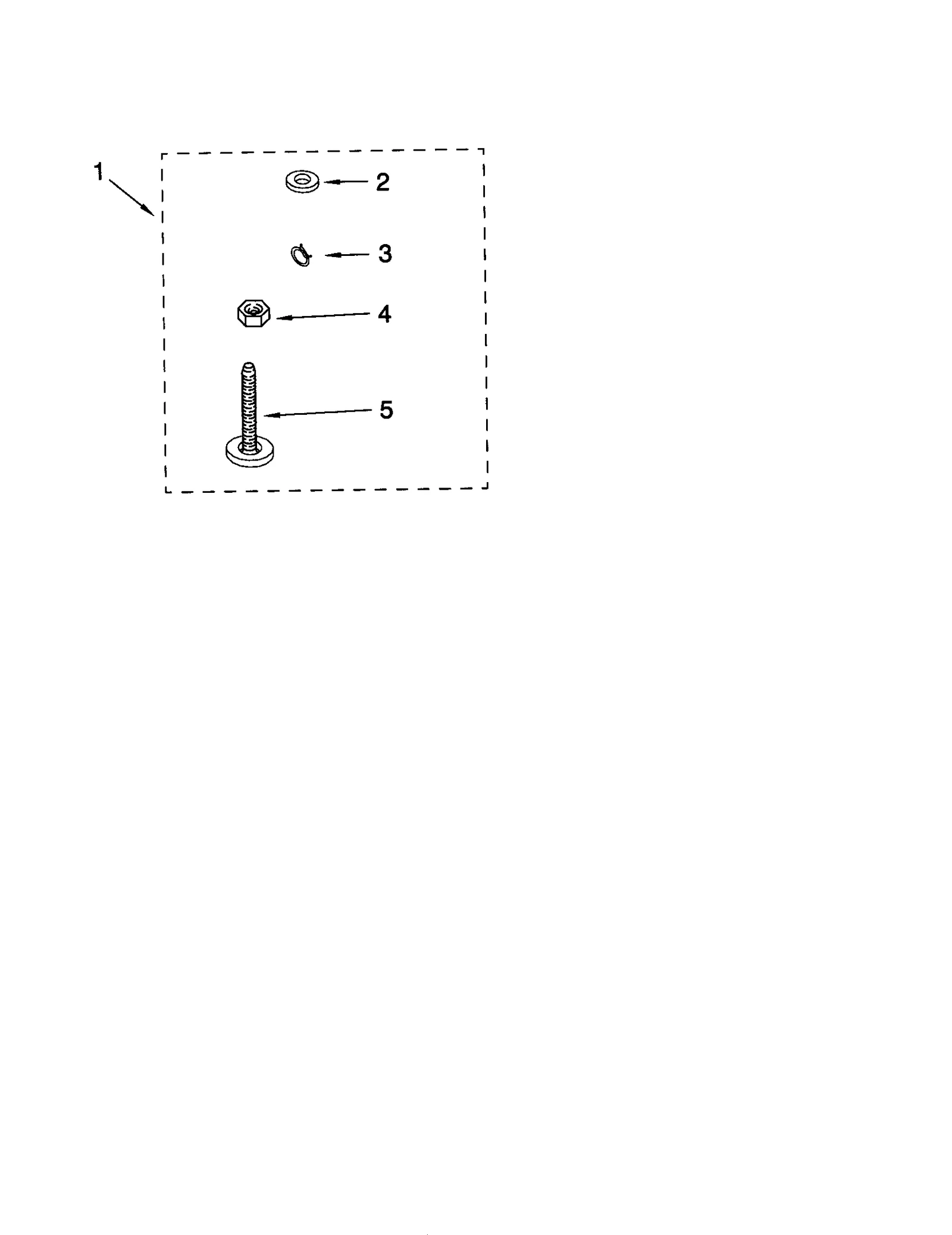

Model Whirlpool 110.22642100 Compact Washer (Kenmore 11022642100) – Common Parts & Diagrams

1
Washer Wire Harness Retainer
Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability
View on Model
1
Owner's Manual
Owner's Manual WPL LIT8526115 Contact Us For Availability
View on Model
1A
Technical Sheet
Technical Sheet WPL LIT3954131 Contact Us For Availability
View on Model
1B
Wiring Diagram
Wiring Diagram WPL LIT3952957 Contact Us For Availability
View on Model
1C
Energy Guide
Energy Guide WPL LIT8526187 Contact Us For Availability
View on Model
1D
Parts List
Parts List WPL LIT8526133 Contact Us For Availability
View on Model
1E
Repair Manual
Repair Manual WPL LIT4314044 Contact Us For Availability
View on Model
2
Top W
Top W WPL 3949955 Contact Us For Availability
View on Model
5
Bracket
Bracket WPL 64065 Contact Us For Availability
View on Model
5
Spacer
Spacer WPL 356937 Contact Us For Availability
View on Model
8
Retaining Ring
Retaining Ring WPL 90369 Contact Us For Availability
View on Model
9
Washer Control Knob (Gray and White)
Washer Control Knob (Gray and White) WPL 3402576 Contact Us For Availability
View on Model
10
Spring
Spring WPL 62676 Contact Us For Availability
View on Model
11
Washer Terminal Connector
Washer Terminal Connector WPL 353424 Contact Us For Availability
View on Model
11
Spring
Spring WPL 387806 Contact Us For Availability
View on Model
12
Washer Timer Dial
Washer Timer Dial WPL 3949432 Contact Us For Availability
View on Model
16
Washer
Washer WPL 62618 Contact Us For Availability
View on Model
18
Bumper, Lid Hinge
Bumper, Lid Hinge WPL 19119 Contact Us For Availability
View on Model
19
Gear Case
Gear Case WPL 389230 Contact Us For Availability
View on Model
19
Lid
Lid WPL 8526144 Contact Us For Availability
View on Model
20
Washer Motor Switch
Washer Motor Switch WPL 3952056 Contact Us For Availability
View on Model
20
Strike
Strike WPL 357141 Contact Us For Availability
View on Model
23
Connector
Connector WPL 3349494 Contact Us For Availability
View on Model
23
Retainer Ring
Retainer Ring WPL 3362552 Contact Us For Availability
View on Model
24
Housing
Housing WPL 60687 Contact Us For Availability
View on Model
24
Washer
Washer WPL 285735 Contact Us For Availability
View on Model
25
Washer Water Temperature Control Board
Washer Water Temperature Control Board WPL 3407125 Contact Us For Availability
View on Model
26
Control Panel
Control Panel WPL 8526034 Contact Us For Availability
View on Model
27
Connector
Connector WPL 3360056 Contact Us For Availability
View on Model
28
Washer Cold Water Inlet Valve Wire Connector
Washer Cold Water Inlet Valve Wire Connector WPL 3354925 Contact Us For Availability
View on Model
29
Connector
Connector WPL 3354926 Contact Us For Availability
View on Model
30
Connector
Connector WPL 3948615 Contact Us For Availability
View on Model
NI
Paint (White)
Paint (White) WPL 799344 Contact Us For Availability
View on Model
