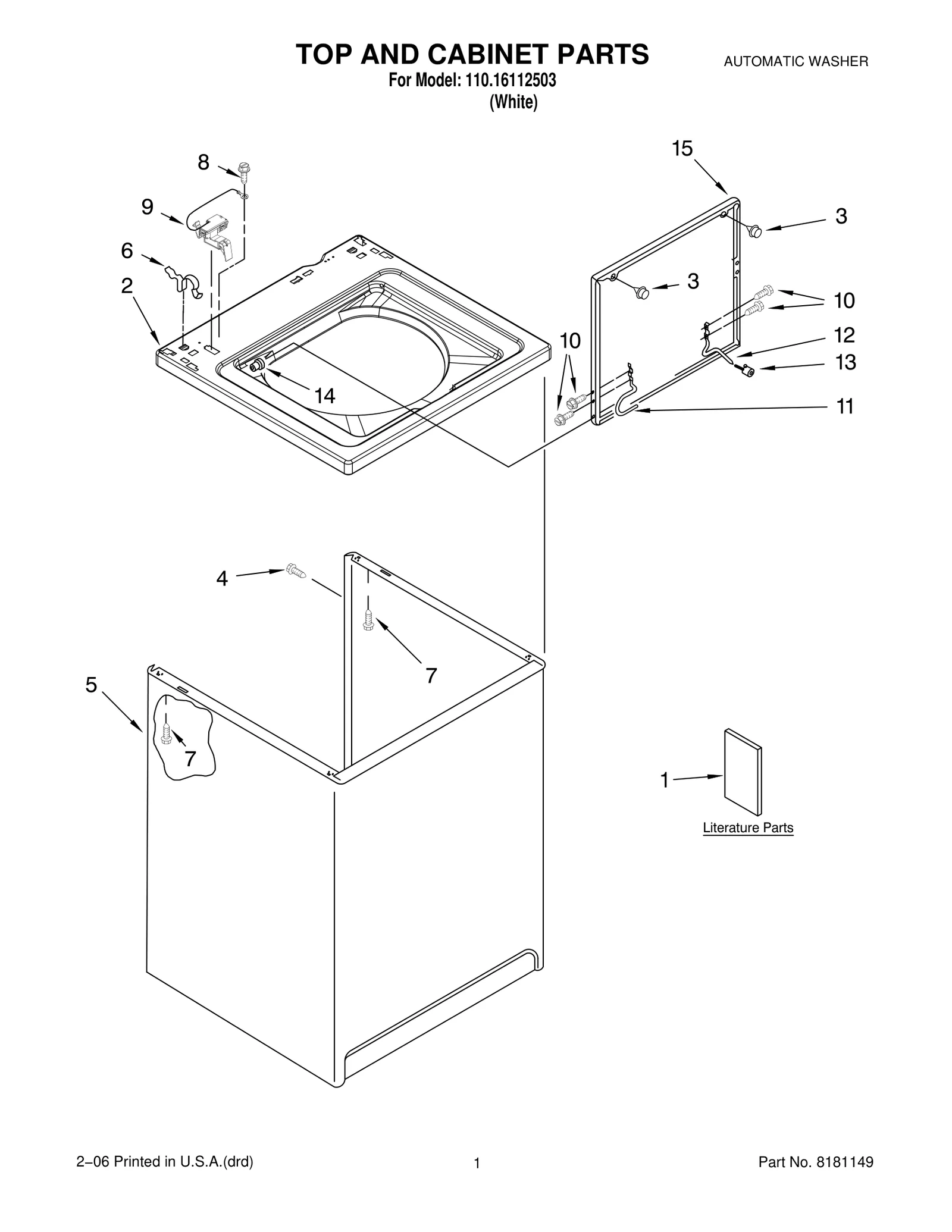

Model Whirlpool 110.16112503 Automatic Washer – Common Parts &amp; Diagrams

1

WP3352483 Whirlpool Cap Backorder WPL WP3352483 $43.18

1

Clip, Harness WPL 3349557 Contact Us For Availability

2

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WP8546681 Whirlpool Timer In Stock WPL WP8546681 $288.87

3

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

4

WP8577378 Whirlpool Retainer Backorder WPL WP8577378 $4.82

4

WPW10131112 Whirlpool Agitator In Stock WPL WPW10131112 $81.03

5

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

5

Tub Ring & Gasket WPL 3360611 Contact Us For Availability

5

Bracket, Spring Outer (L.F.) WPL 64065 Contact Us For Availability

5

Harness, Wiring (For Detail See Pages 11 & 12 WPL 3957018 Contact Us For Availability

6

WP3359586 Whirlpool Tub Seal In Stock WPL WP3359586 $63.12

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Link, Leveling Mechanism (2) WPL 63138 Contact Us For Availability

7

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

7

WP8559502 Whirlpool Endcap Assembly Backorder WPL WP8559502 $50.26

8

285658 Whirlpool Sleeve Kit Backorder WPL 285658 $6.91

8

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

WP8312709 Whirlpool Endcap Clip In Stock WPL WP8312709 $10.92

8

Timer, Block Disconnect — White WPL 3948614 Contact Us For Availability

8

Ring, Retaining (2) WPL 90369 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP62647 Whirlpool Spring Pressure In Stock WPL WP62647 $4.55

9

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

9

WP8318084 Whirlpool Washer Lid Switch Assembl In Stock WPL WP8318084 $34.37

9

WP8559501 Whirlpool Endcap Backorder WPL WP8559501 $50.11

9

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

9

Balance Ring WPL 3956205 Contact Us For Availability

W10816321 Whirlpool Knob Backorder WPL W10816321 $39.65

WP8519815 Whirlpool Washer Balance Ring Clip In Stock WPL WP8519815 $4.02

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $17.86

WP8568314 Whirlpool Strap Backorder WPL WP8568314 $4.82

Plug, Terminal WPL 353424 Contact Us For Availability

Spring, Agitate WPL 62676 Contact Us For Availability

8318088 Whirlpool Hinge Assembly Backorder WPL 8318088 $21.64

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $5.30

WP8546461 Whirlpool Brake Cam Assembly Backorder WPL WP8546461 $4.82

Tub WPL 63125 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

285790 Whirlpool Washer Clutch Band and Linin In Stock WPL 285790 $35.11

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

Knob, Timer WPL 3956786 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $7.99

15

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

15

WP8519200 Whirlpool Support Assembly Backorder WPL WP8519200 $11.94

16

Washer, Cam Thrust WPL 62618 Contact Us For Availability

17

285205 Whirlpool Bearing Backorder WPL 285205 $4.82

17

8541668 Whirlpool Washer Clamp Backorder WPL 8541668 $14.02

17

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

19

Clip, Capacitor WPL 8318046 Contact Us For Availability

19

Bottom and Pinion, Gearcase WPL 389230 Contact Us For Availability

20

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

20

WP8572717 Whirlpool Capacitor In Stock WPL WP8572717 $55.95

20

Switch, Main Drive Motor WPL 3952056 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

Connector (T.P.A) WPL 3360056 Contact Us For Availability

22

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

22

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

23

Ring, Retaining WPL 3362552 Contact Us For Availability

24

WP3347034 Whirlpool Vacuum Break In Stock WPL WP3347034 $40.15

24

Washer Kit, Thrust WPL 285735 Contact Us For Availability

26

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

27

3360629 Whirlpool Washer Gearcase Transmissio In Stock WPL 3360629 $304.47

27

WPW10096921 Whirlpool Hose In Stock WPL WPW10096921 $48.95

29

WP388815 Whirlpool Washer Backorder WPL WP388815 $4.82

OPT-1

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

OPT-2

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

OPT-3

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

OPT-4

White (Uncut) WPL 799344 Contact Us For Availability

OPT-5

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

OPT-6

Lubricant (Use WPL 285208 Contact Us For Availability

OPT-7

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

OPT-8

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44
