Model Whirlpool 110.15862400 Washer (Kenmore 11015862400) – Common Parts &amp; Diagrams

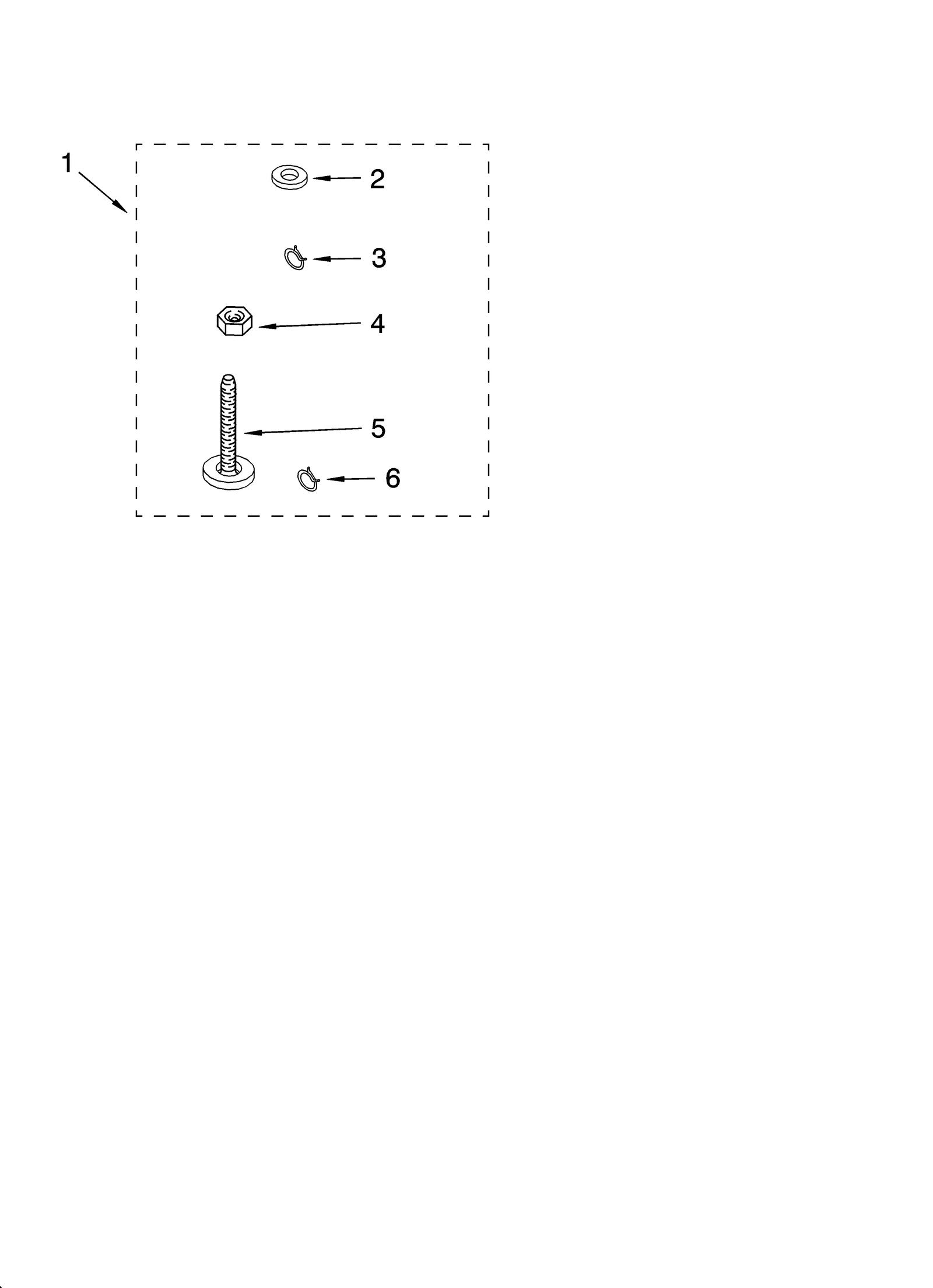

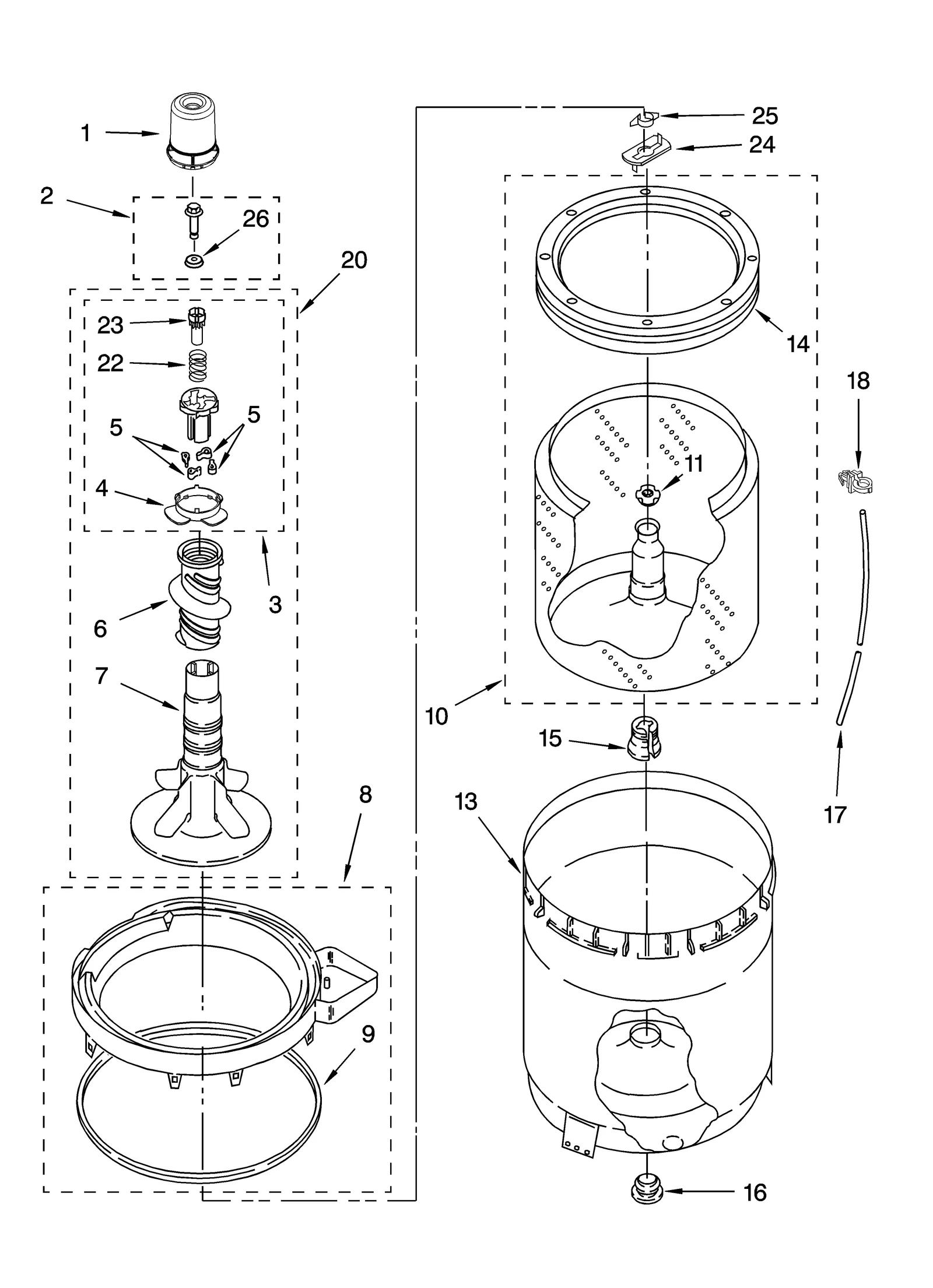

1

W10846509 Whirlpool Screw In Stock WPL W10846509 $4.82

1

WP8528278 Whirlpool Washer Fabric Softener Di In Stock WPL WP8528278 $11.32

1

Washer Wire Harness Retainer WPL 3349557 Contact Us For Availability

1

Owner's Manual WPL LIT8537143 Contact Us For Availability

1

Replacement Part WPL 3976263 Contact Us For Availability

1A

Installation Instructions WPL LIT8537142 Contact Us For Availability

1B

Laundry Guide WPL LIT8543628 Contact Us For Availability

1C

Wiring Diagram WPL LIT8563792 Contact Us For Availability

1D

Energy Guide WPL LIT8543613 Contact Us For Availability

1E

Parts List WPL LIT8543622 Contact Us For Availability

1F

(338471) (ALT.) WPL N/P Contact Us For Availability

1G

Repair Manual WPL LIT4314044 Contact Us For Availability

2

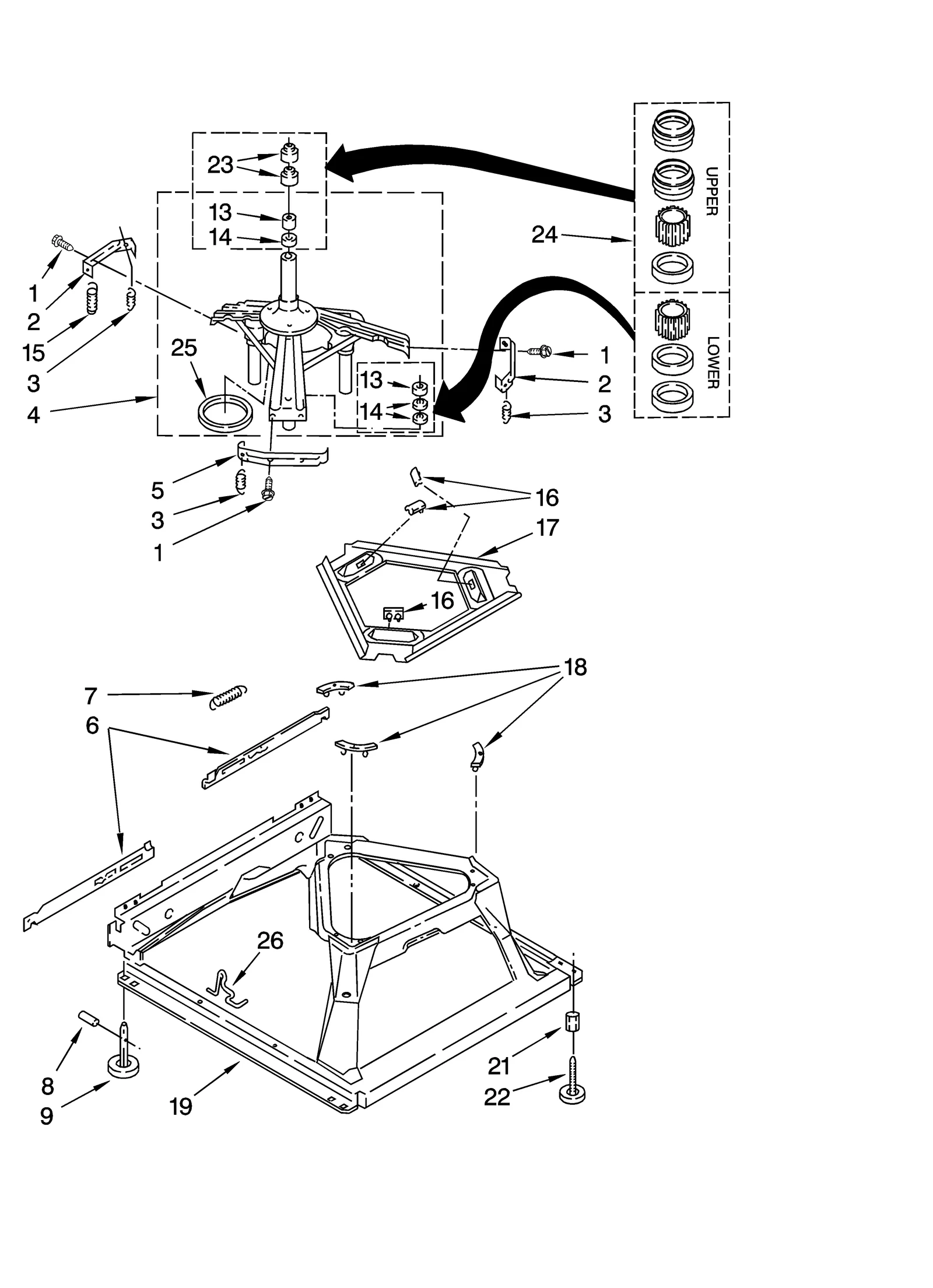

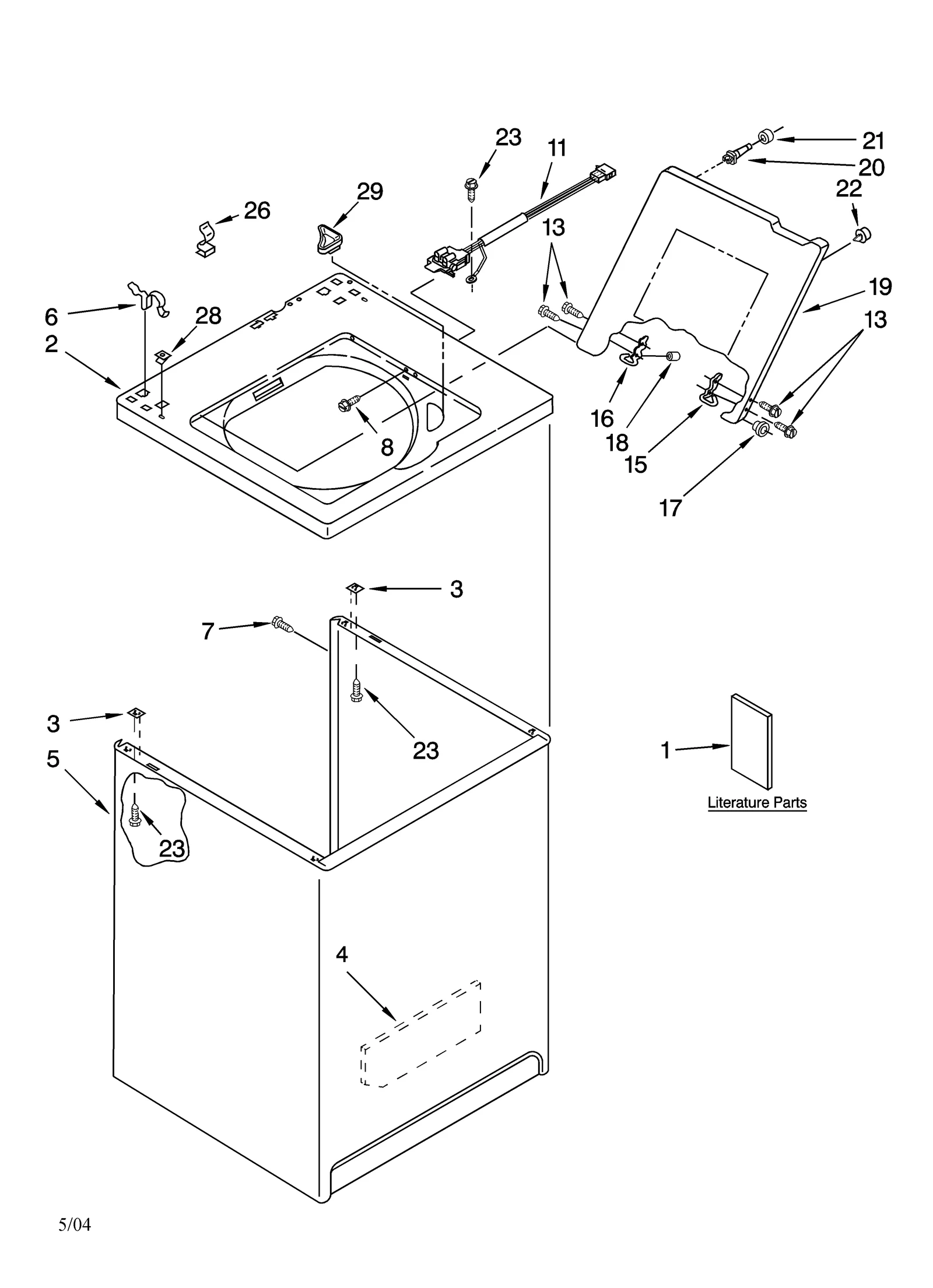

285202 Whirlpool Cover Assembly Backorder WPL 285202 $133.74

2

WP16123 Whirlpool Washer In Stock WPL WP16123 $4.82

2

WP358237 Whirlpool Agitator Bolt In Stock WPL WP358237 $5.19

2

WP63292 Whirlpool Washer In Stock WPL WP63292 $5.99

2

WP64067 Whirlpool Bracket In Stock WPL WP64067 $5.30

2

Top W WPL 3949955 Contact Us For Availability

2

Water-Level Pressure Switch WPL 8528337 Contact Us For Availability

2A

Top WPL 3949960 Contact Us For Availability

3

WP3349985 Whirlpool Shaft Seal In Stock WPL WP3349985 $15.68

3

WP356138 Whirlpool Hose Clamp Backorder WPL WP356138 $4.82

3

WP62750 Whirlpool Spacer In Stock WPL WP62750 $5.99

3

WP63907 Whirlpool Washer Suspension Spring In Stock WPL WP63907 $5.30

3

WP8537433 Whirlpool Agitator Cam In Stock WPL WP8537433 $39.08

3

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $5.30

3

Washer Temperature Switch WPL 8557872 Contact Us For Availability

4

WP3357027 Whirlpool Nozzle Assembly In Stock WPL WP3357027 $62.59

4

WP3948608 Whirlpool Bracket Backorder WPL WP3948608 $81.53

4

Sound Absorber, Cabinet WPL 3976348 Contact Us For Availability

5

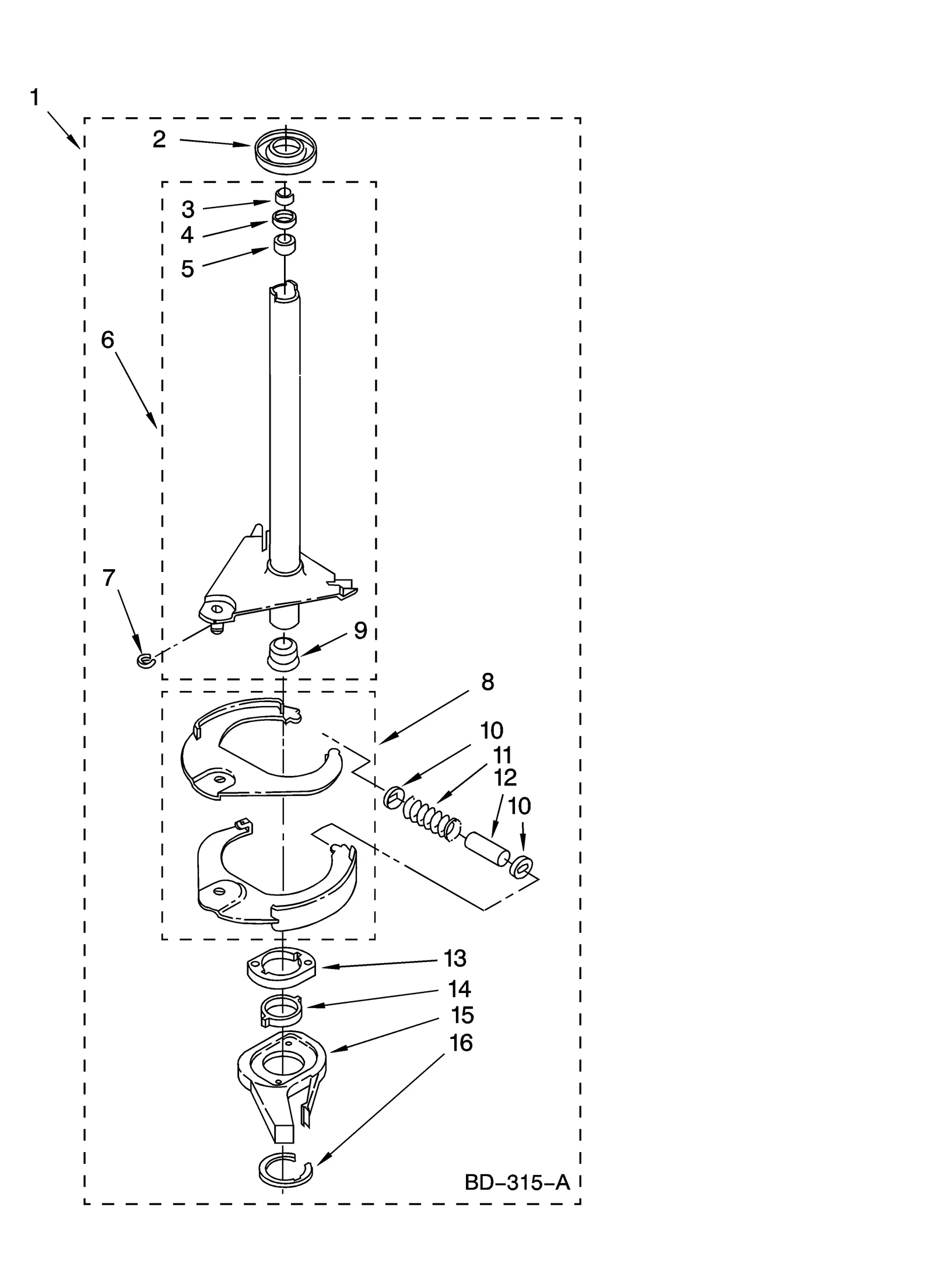

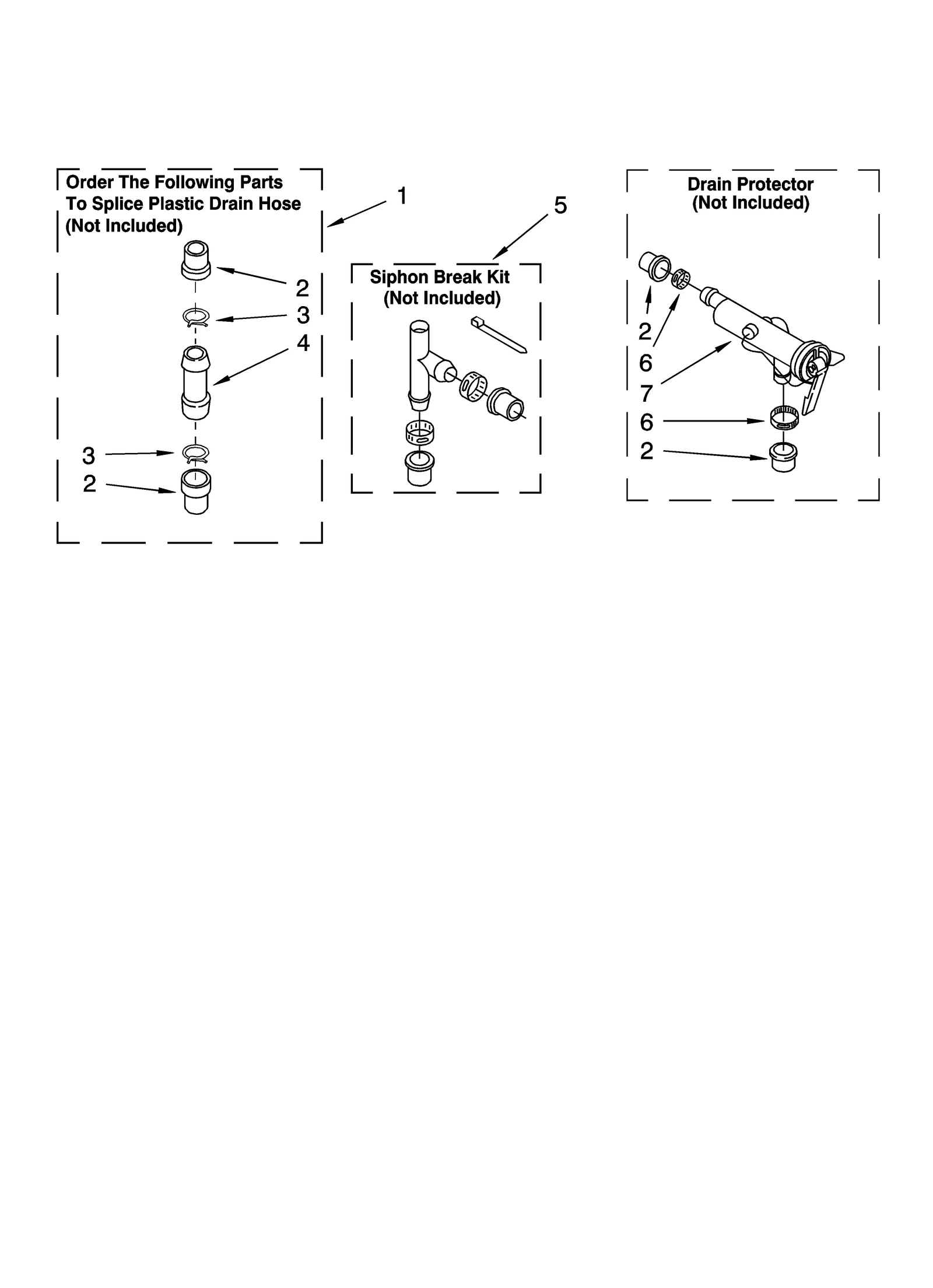

285320 Whirlpool Washer Siphon Break Kit In Stock WPL 285320 $59.84

5

63424 Whirlpool Cabinet Assembly Backorder WPL 63424 $258.72

5

WPW10001130 Whirlpool Leveling Leg In Stock WPL WPW10001130 $5.19

5

Bracket WPL 64065 Contact Us For Availability

5

Washer Wire Harness WPL 3957009 Contact Us For Availability

5A

Washer Cabinet WPL 3954357 Contact Us For Availability

6

Washer Drain Hose Support Clip WPL 3976395 No Longer Available

6

W11480892 Whirlpool Washer Agitator Auger In Stock WPL W11480892 $52.63

6

WP3357331 Whirlpool Clamp Backorder WPL WP3357331 $5.99

6

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $5.30

6

WP388326 Whirlpool Screw Backorder WPL WP388326 $4.82

6

WP62780 Whirlpool Cabinet Clip In Stock WPL WP62780 $5.30

6

Leveling Link Assembly WPL 63466 Contact Us For Availability

7

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $5.30

7

WP3947517 Whirlpool Agitator Backorder WPL WP3947517 $143.00

7A

End Cap WPL 3949284 Contact Us For Availability

8

3400073 Whirlpool Screw Backorder WPL 3400073 $5.85

8

WP3356311 Whirlpool Screw In Stock WPL WP3356311 $4.82

8

WP62837 Whirlpool Dowel Pin Backorder WPL WP62837 $7.18

8

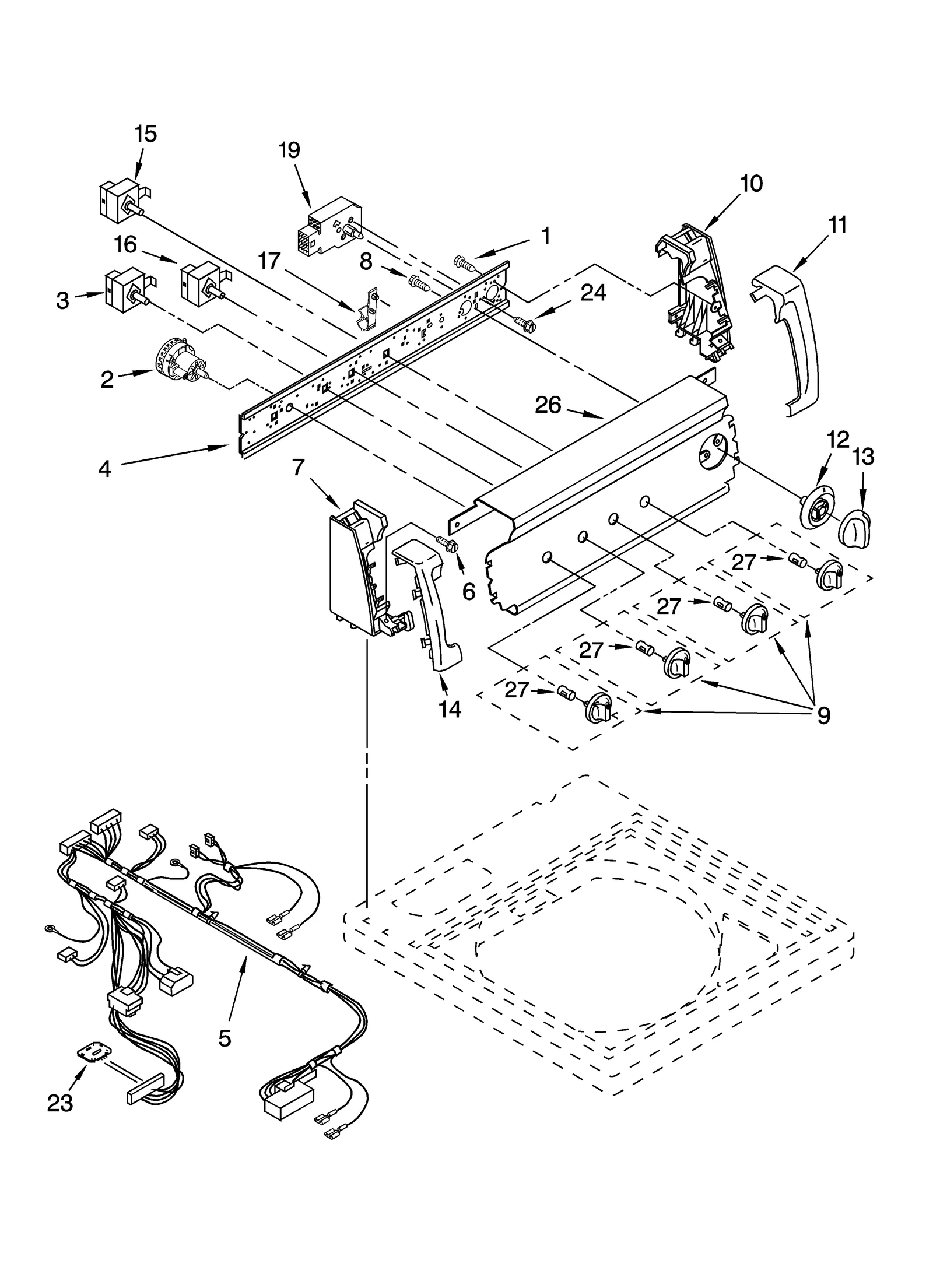

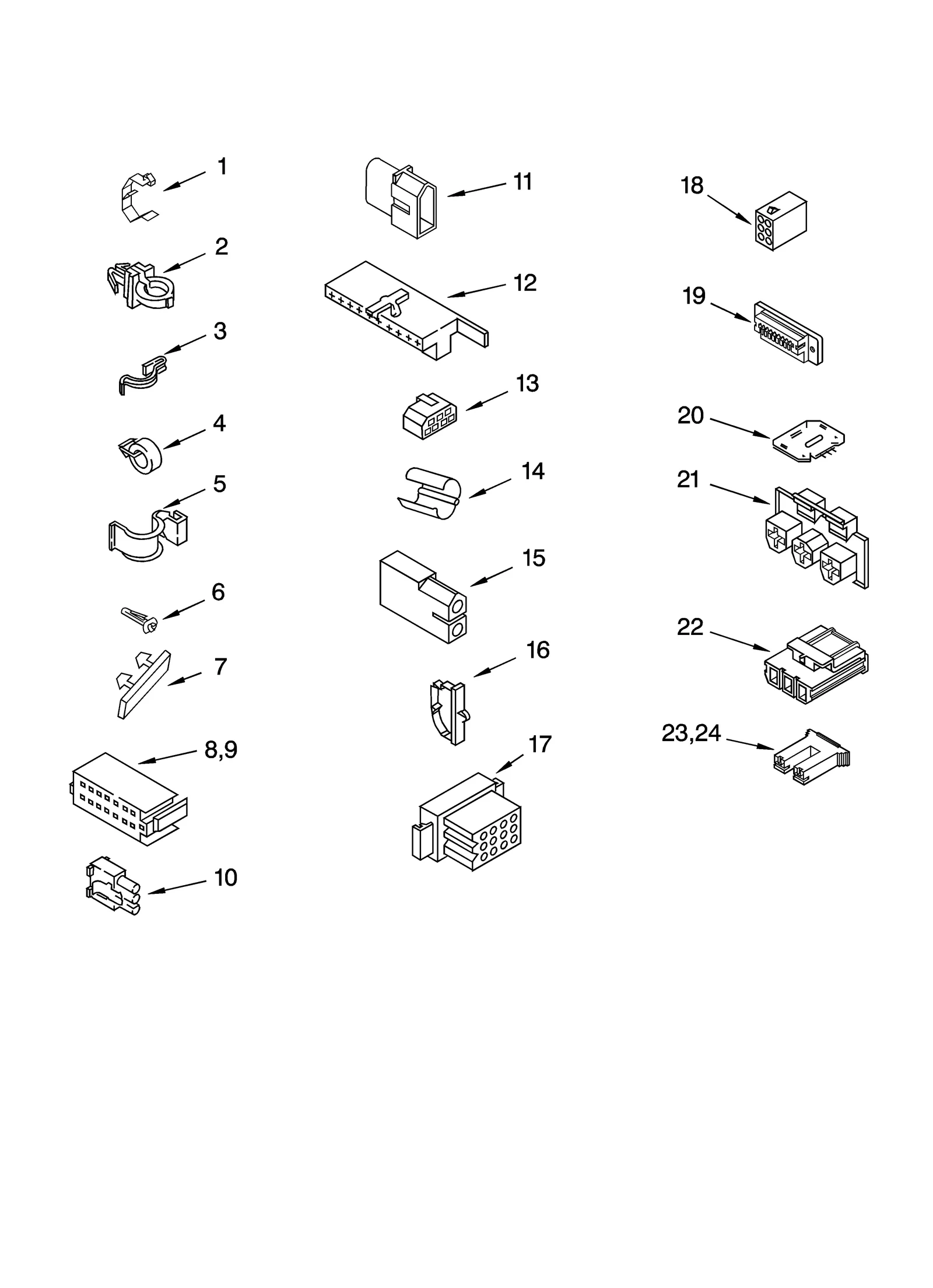

Washer Timer Wire Harness Connector WPL 3948614 Contact Us For Availability

9

62677 Whirlpool Retainer Backorder WPL 62677 $8.13

9

WP3976308 Whirlpool Tub Seal In Stock WPL WP3976308 $19.51

9

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.92

9

Washer Control Knob (Gray and White) WPL 3402576 Contact Us For Availability

9A

Dryer Timer Knob (White) WPL 3402575 Contact Us For Availability

10

279954 Whirlpool Endcap Kit (Left/Right) Backorder WPL 279954 $81.90

10

WP62889 Whirlpool Washer Lid Switch Receptacl Backorder WPL WP62889 $4.82

10A

End Cap (Off-White) WPL 3949278 Contact Us For Availability

11

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $5.30

11

WP3949238 Whirlpool Lid Switch Assembly In Stock WPL WP3949238 $35.46

11

Washer Terminal Connector WPL 353424 Contact Us For Availability

11A

Trim WPL 3977759 Contact Us For Availability

62619 Whirlpool Washer Backorder WPL 62619 $8.89

WP62505 Whirlpool Connector Backorder WPL WP62505 $15.58

WP62691 Whirlpool Grommet In Stock WPL WP62691 $7.92

Washer Timer Dial WPL 3949432 Contact Us For Availability

Washer Capacitor Strap WPL 8318046 Contact Us For Availability

12A

Washer Timer Dial (Bisque) WPL 3949431 Contact Us For Availability

285753A Whirlpool Washer Direct Drive Motor C In Stock WPL 285753A $20.50

63849 Whirlpool Outer Tub Primary Assembly In Stock WPL 63849 $191.59

WP3950715 Whirlpool Knob In Stock WPL WP3950715 $39.19

WPW10119828 Whirlpool Screw In Stock WPL WPW10119828 $5.30

13A

3950714 Whirlpool Knob Backorder WPL 3950714 $56.74

14

WP62747 Whirlpool Pad Backorder WPL WP62747 $15.58

14

WP63022 Whirlpool Sleeve Backorder WPL WP63022 $29.22

14A

Trim WPL 3977760 Contact Us For Availability

WP389140 Whirlpool Drive Block or Bell In Stock WPL WP389140 $13.78

WP389387 Whirlpool Agitator Shaft Backorder WPL WP389387 $176.44

WP54584 Whirlpool Hinge Backorder WPL WP54584 $20.16

Cycle Switch WPL 8280503 Contact Us For Availability

16

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $5.87

16

WP54583 Whirlpool Hinge In Stock WPL WP54583 $18.77

16

WPW10168257 Whirlpool Cycle Switch Backorder WPL WPW10168257 $98.45

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $5.30

WP3946509 Whirlpool Skate Plate Backorder WPL WP3946509 $138.19

WPW10086010 Whirlpool Motor Retainer Clip Backorder WPL WPW10086010 $4.82

Washer Clip WPL 8317975 Contact Us For Availability

18

W10838408 Whirlpool Motor Shield Backorder WPL W10838408 $23.18

18

Bumper, Lid Hinge WPL 19119 Contact Us For Availability

19

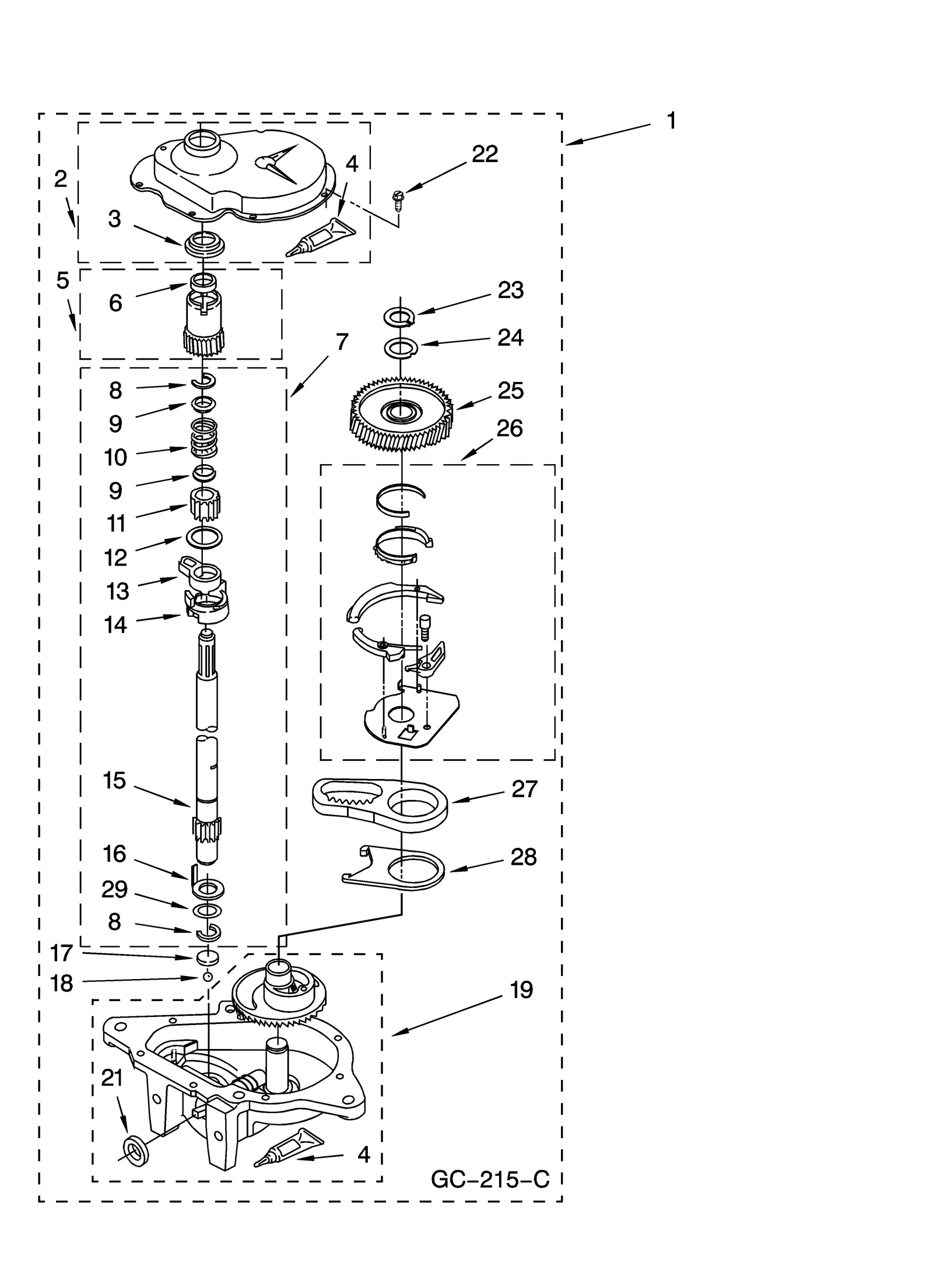

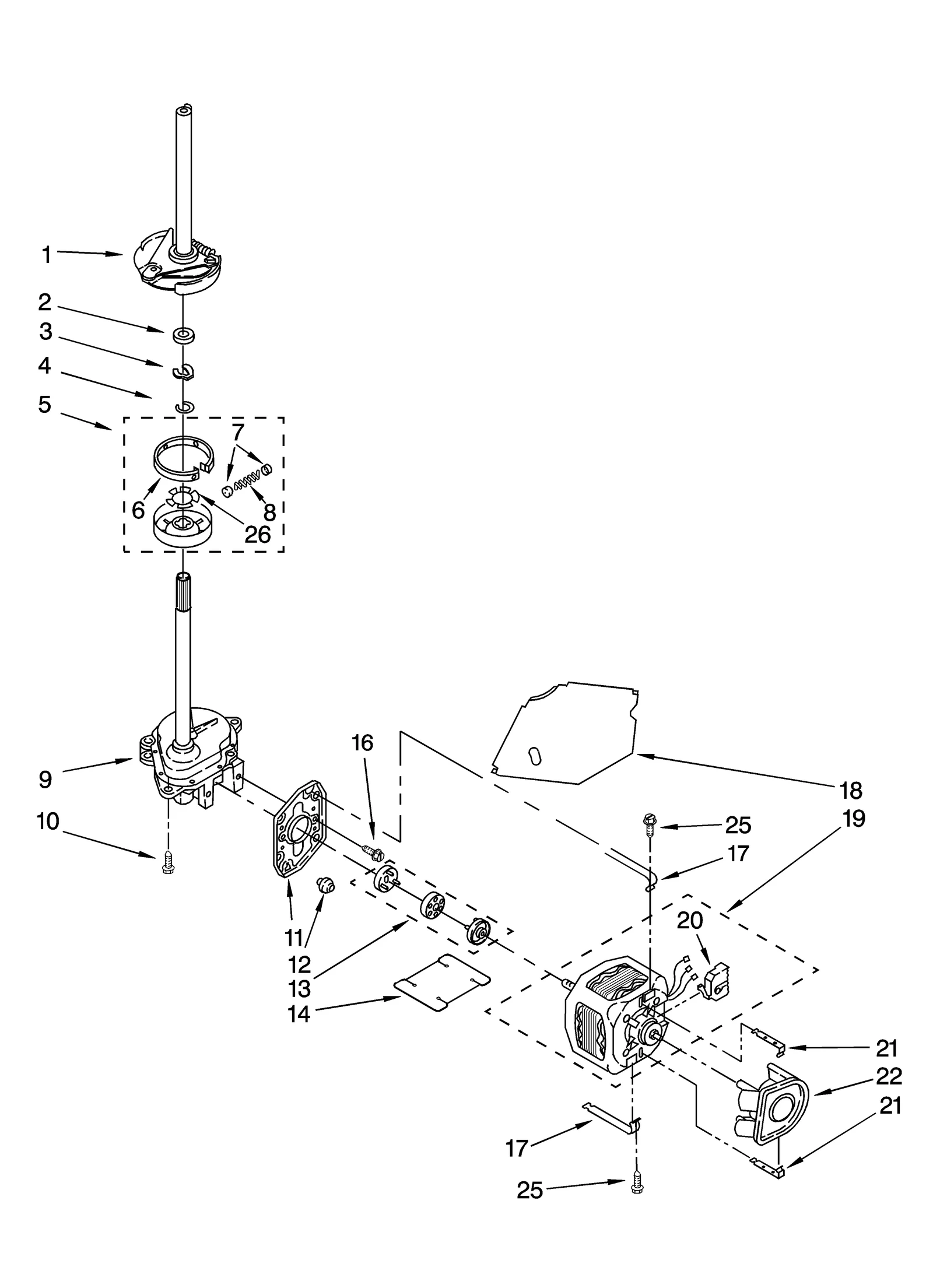

WP8529935 Whirlpool Drive Motor In Stock WPL WP8529935 $255.01

19

WP8557393 Whirlpool Timer Assembly In Stock WPL WP8557393 $210.95

19

Lid WPL 8526144 Contact Us For Availability

19A

Washer Lid (Bisque) WPL 8526146 Contact Us For Availability

20

WP8538246 Whirlpool Agitator In Stock WPL WP8538246 $229.50

20

Washer Motor Switch WPL 8529896 Contact Us For Availability

20

Strike WPL 357141 Contact Us For Availability

285352 Whirlpool Washer Oil Seal Kit for Gear In Stock WPL 285352 $40.48

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $4.99

WP354255 Whirlpool Bumper Assembly In Stock WPL WP354255 $4.82

WP8546127 Whirlpool Retainer Clip In Stock WPL WP8546127 $5.30

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $4.82

WP3363394 Whirlpool Washer Drain Pump In Stock WPL WP3363394 $40.37

WP9724509 Whirlpool Bumper In Stock WPL WP9724509 $5.30

Connector WPL 3360056 Contact Us For Availability

23

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

23

WP8533540 Whirlpool Retainer Clip In Stock WPL WP8533540 $5.30

23

Microcomputer WPL 3955787 Contact Us For Availability

24

285203 Whirlpool CP Bearing In Stock WPL 285203 $80.13

24

WP3400818 Whirlpool Screw Backorder WPL WP3400818 $4.82

25

WP273556 Whirlpool Screw In Stock WPL WP273556 $4.99

25

WP3354845 Whirlpool Clip Backorder WPL WP3354845 $15.44

25

WP63134 Whirlpool Ring Backorder WPL WP63134 $4.82

388253A Whirlpool Neutral Drain Kit In Stock WPL 388253A $42.58

WP3949550 Whirlpool Gasket Assembly In Stock WPL WP3949550 $6.88

WP90016 Whirlpool Clip Backorder WPL WP90016 $7.16

Clip WPL 3355454 Contact Us For Availability

Control Panel WPL 8543626 Contact Us For Availability

26A

Control Panel WPL 8543627 Contact Us For Availability

27

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $5.30

28

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $4.82

29

WP3362952 Whirlpool Bezel In Stock WPL WP3362952 $5.19

29

WP9740848 Whirlpool Dishwasher Screw Backorder WPL WP9740848 $4.82

41

Shield WPL 8539874 Contact Us For Availability

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $34.80

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350938 Whirlpool Spray Gun Backorder WPL 350938 $64.04

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

WP285195 Whirlpool Sealer Assembly Backorder WPL WP285195 $72.06

WP384496 Whirlpool Hose Coupling Backorder WPL WP384496 $62.44

Paint (White) WPL 799344 Contact Us For Availability

Washer Brake Shoe Roller and Pin Lubricant WPL 285208 Contact Us For Availability

Appliance Paint, 1-qt (Bisque) WPL 4392900 Contact Us For Availability
