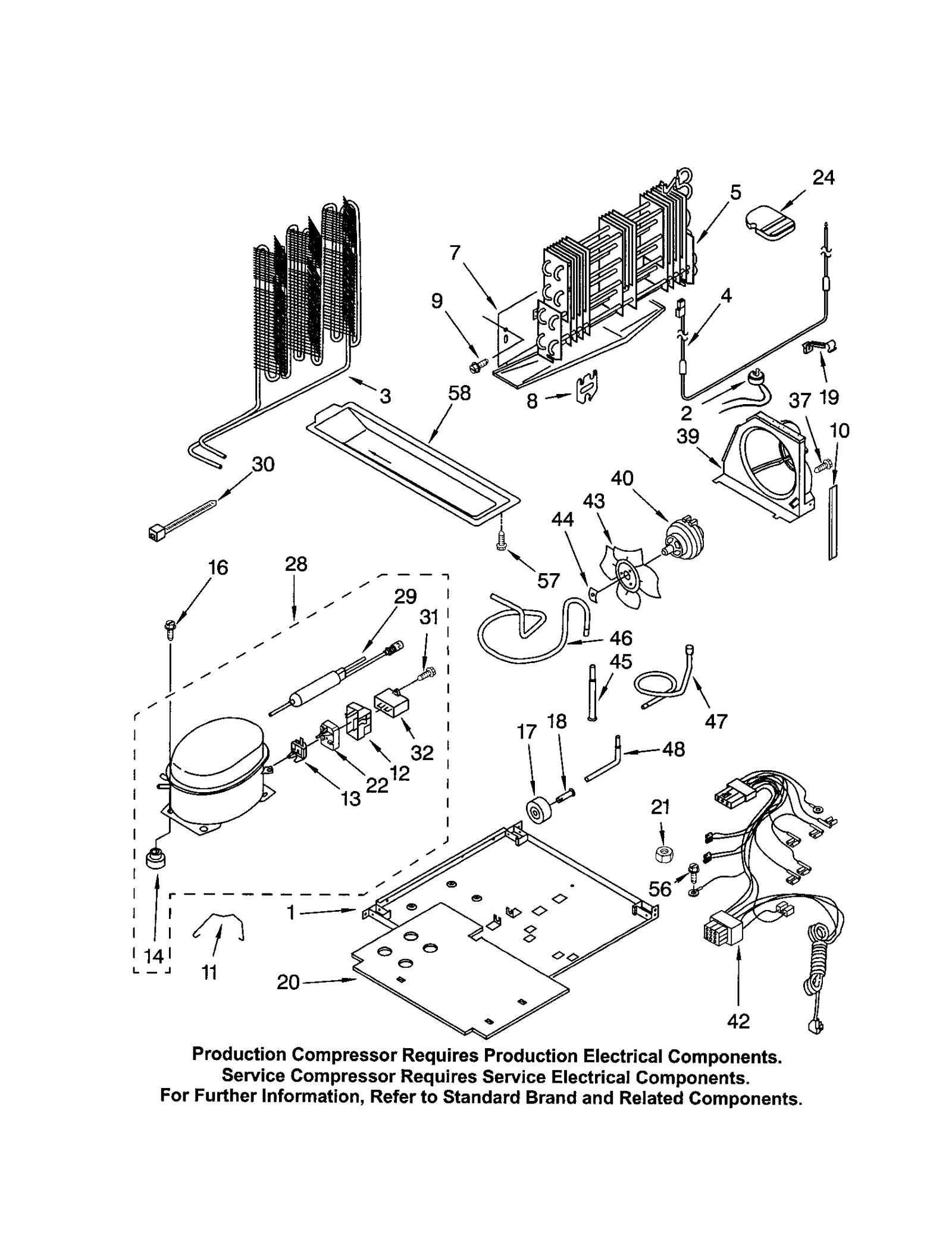

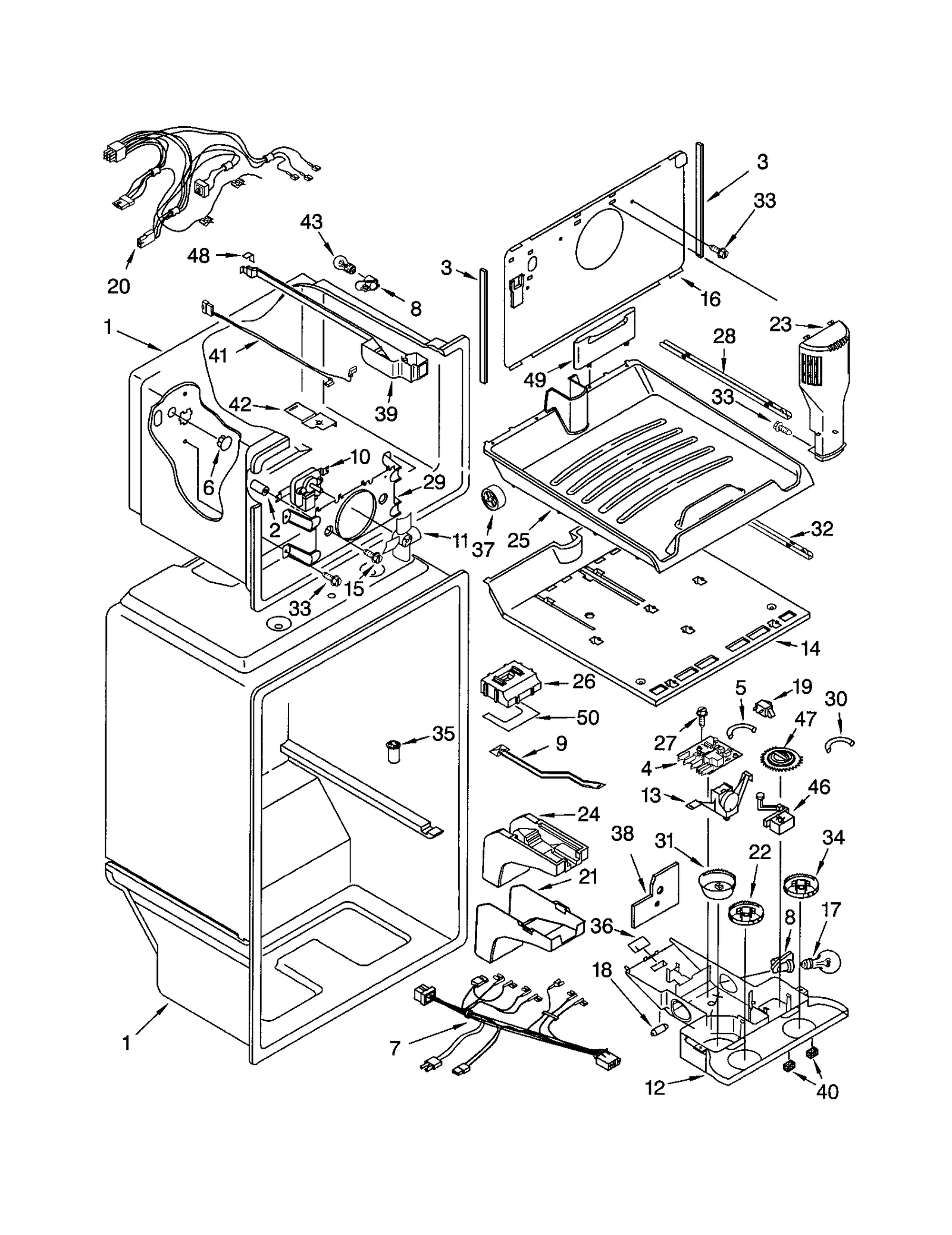

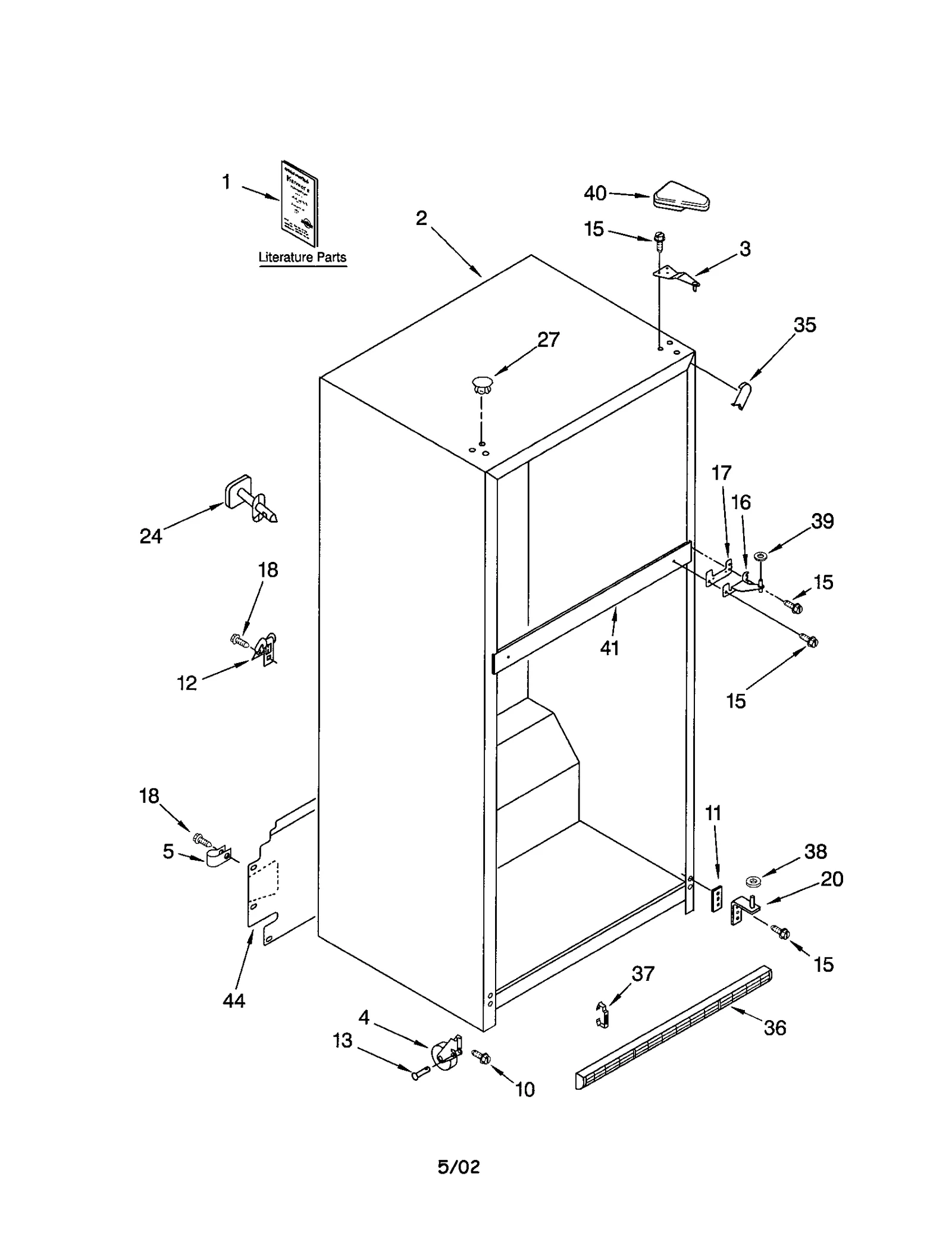

Model Whirlpool 106.72994207 Refrigerator (Kenmore 10672994207) – Common Parts &amp; Diagrams

1

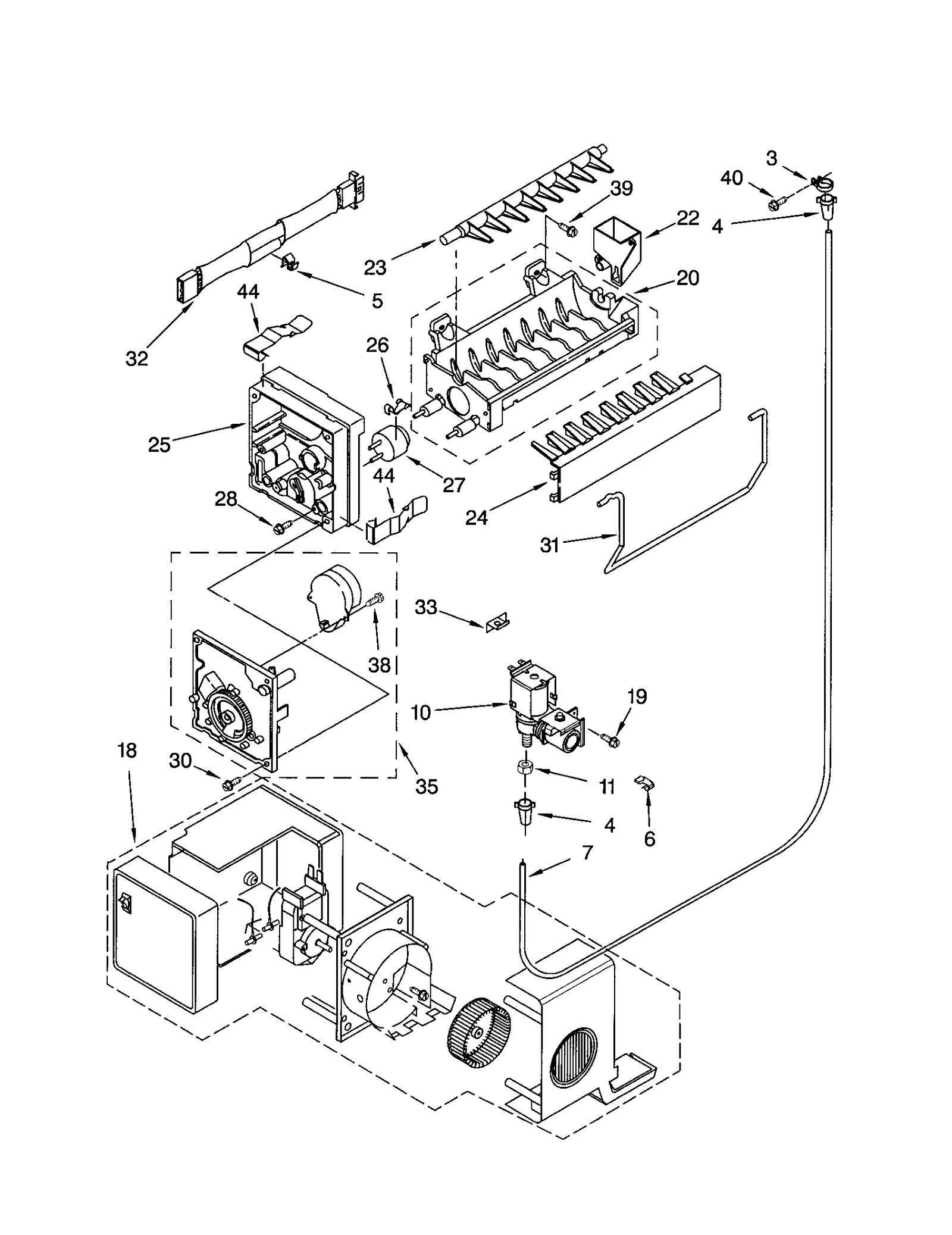

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

1

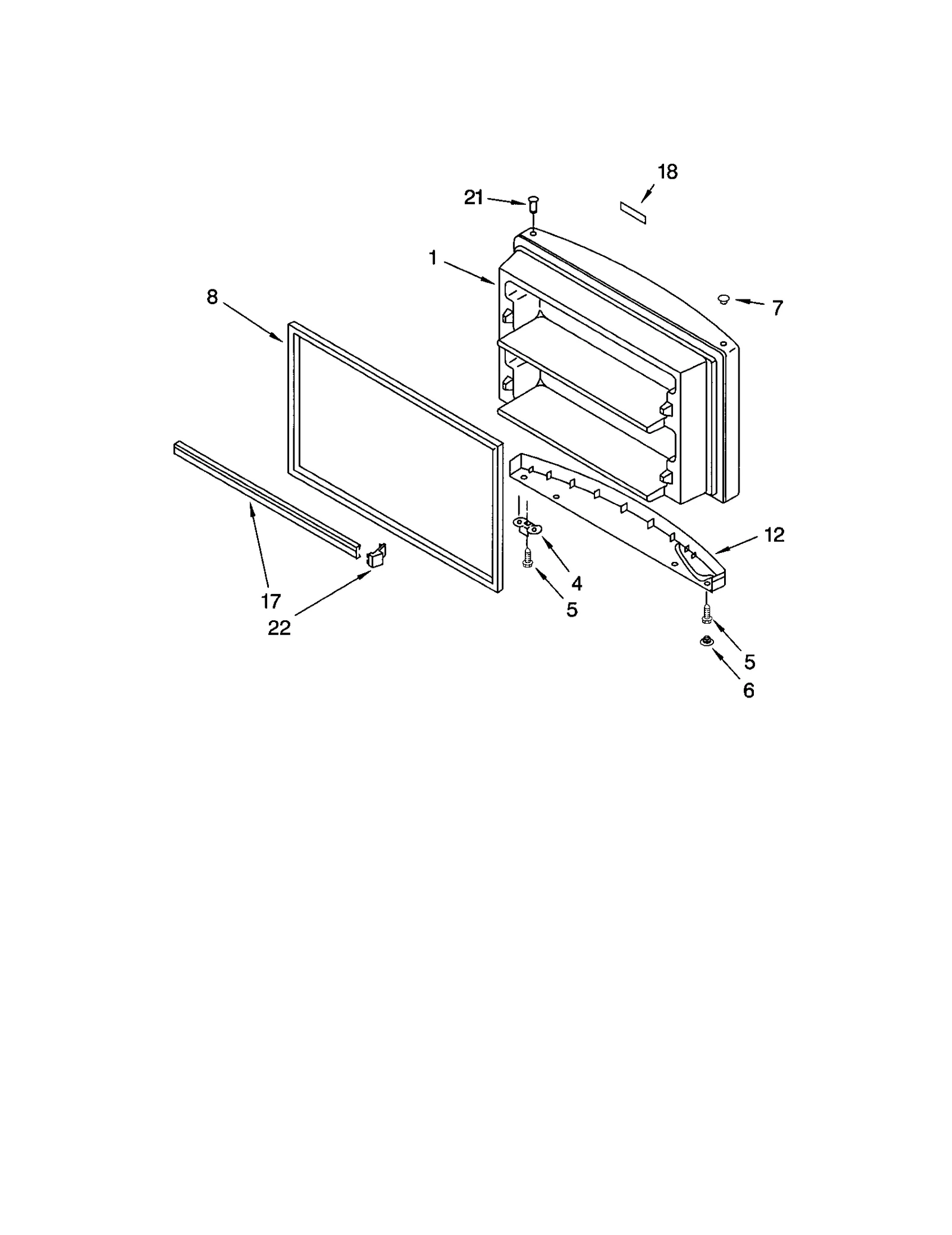

Freezer Door Assembly (White) WPL 2205399 Contact Us For Availability

1A

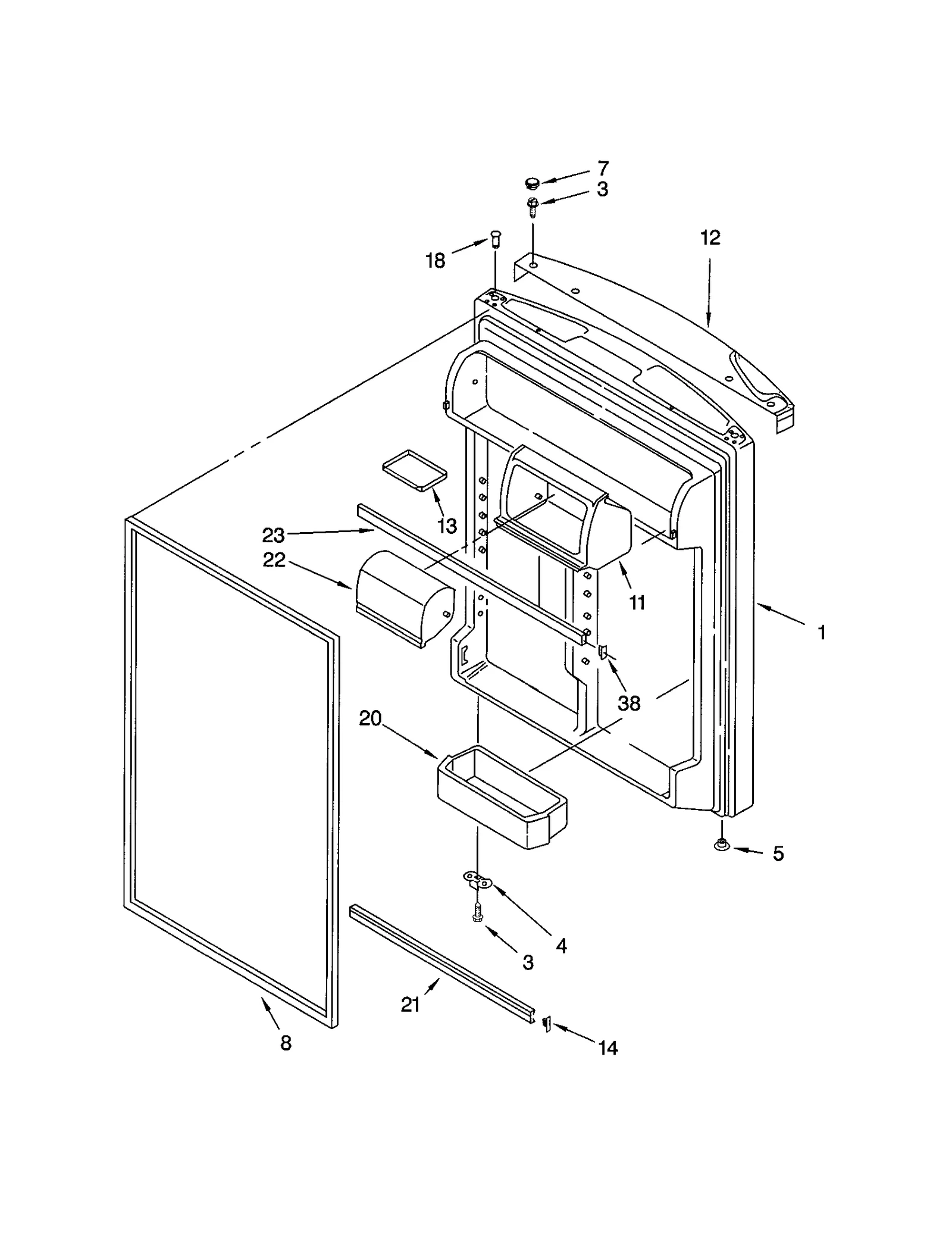

Refrigerator Door Panel WPL 2205401 Contact Us For Availability

1B

Freezer Door Assembly (Biscuit) WPL 2205400 Contact Us For Availability

1C

Freezer Door Assembly (Black) WPL 2205402 Contact Us For Availability

2

Grommet WPL 531933 Contact Us For Availability

3

WP2254360 Whirlpool Refrigerator Gasket Backorder WPL WP2254360 $16.47

3

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $7.20

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $5.99

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $9.42

4

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $18.65

4

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $59.83

4

WP2304099-includeCORE Whirlpool WP2304099 Ref Backorder WPL WP2304099-includeCORE $258.71

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

5

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

5

Refrigerator Barrier WPL 2212485 Contact Us For Availability

6

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $63.87

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $5.99

6

Refrigerator Crisper Drawer Humidity Control WPL 2176222 Contact Us For Availability

6

Refrigerator Cabinet Hole Plug WPL 2204837 Contact Us For Availability

6A

Plug-hndle WPL 2204839 Contact Us For Availability

6B

Refrigerator Door End Cap Hole Plug (Bisque) WPL 2204838 Contact Us For Availability

6C

Plug-hndle WPL 2204840 Contact Us For Availability

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $18.74

7

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $46.03

7

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $4.82

7

Refrigerator Wire Harness WPL 2187352 Contact Us For Availability

7A

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $4.82

7B

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $14.62

8

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $97.59

8

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $47.85

8A

2177304 Whirlpool Refrigerator FIP Gasket Backorder WPL 2177304 $214.37

9

Refrigerator Air Damper WPL 2212413 Contact Us For Availability

10

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $49.21

10

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $4.82

10

Refrigerator Evaporator Motor WPL 2205138 Contact Us For Availability

11

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $49.89

11

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $7.60

11

Shim WPL 2172743 Contact Us For Availability

12

Refrigerator Control Box WPL 2212979 Contact Us For Availability

12

Refrigerator Handle WPL 2205447 Contact Us For Availability

12A

Refrigerator Handle WPL 2221615 Contact Us For Availability

12B

Refrigerator Handle WPL 2205448 Contact Us For Availability

12C

Refrigerator Handle WPL 2221616 Contact Us For Availability

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $10.71

13

Refrigerator Butter Storage Tray WPL 2159302 Contact Us For Availability

13

Refrigerator Temperature Control WPL 2204984 Contact Us For Availability

14

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $7.66

14

Refrigerator Floor WPL 2204746 Contact Us For Availability

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $6.64

15

Refrigerator Screw WPL 489412 Contact Us For Availability

16

Refrigerator Evaporator Cover WPL 2201173 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $17.42

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $92.46

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $6.78

WPW10475495 Whirlpool Roller Assembly In Stock WPL WPW10475495 $12.10

Refrigerator Door Trim WPL 2195946 Contact Us For Availability

18

Refrigerator Cold Control Sensor Thermal Weig WPL 2200831 Contact Us For Availability

18

Refrigerator Acceler-Ice Module WPL 2210315 Contact Us For Availability

18

Refrigerator Medallion WPL 2205103 Contact Us For Availability

18A

Refrigerator Medallion WPL 2205104 Contact Us For Availability

18B

Medallion WPL 9744397 Contact Us For Availability

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $6.49

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $25.74

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

Refrigerator Defrost Heater Bracket WPL 2182338 Contact Us For Availability

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $187.20

20

Refrigerator Insulation WPL 2214857 Contact Us For Availability

20

Refrigerator Wire Harness WPL 2187301 Contact Us For Availability

21

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $4.53

21

Refrigerator Air Damper Cover WPL 2176281 Contact Us For Availability

8201647 Whirlpool Refrigerator Start Device Backorder WPL 8201647 $130.01

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $9.33

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $29.99

Refrigerator Butter Door Cover WPL 2218109 Contact Us For Availability

Refrigerator Thermostat Knob WPL 2205094 Contact Us For Availability

23

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $63.89

23

Refrigerator Freezer Air Tower WPL 2182340 Contact Us For Availability

23

Refrigerator Door Trim WPL 2159312 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $59.60

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $87.86

24

Refrigerator Support Evaporator WPL 2201184 Contact Us For Availability

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

25

Refrigerator Freezer Floor WPL 2189429 Contact Us For Availability

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

26

Refrigerator Diffuser WPL 2210455 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $56.90

27

WP98129 Whirlpool Screw Backorder WPL WP98129 $4.82

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W10309988 Whirlpool Refrigerator Compressor In Stock WPL W10309988 $360.30

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $14.59

Refrigerator Support WPL 2179713 Contact Us For Availability

29

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $31.99

29

Refrigerator Motor Bracket WPL 2200511 Contact Us For Availability

30

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $4.82

30

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $4.99

30

Refrigerator Pan Trim WPL 2195340 Contact Us For Availability

31

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

31

WP2184574 Whirlpool Refrigerator Gear Wheel Backorder WPL WP2184574 $48.18

31

WP627792 Whirlpool Refrigerator Shut Off Arm In Stock WPL WP627792 $61.68

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $95.20

32

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $46.70

32

Refrigerator Support WPL 2179714 Contact Us For Availability

32A

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $130.74

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $22.41

33

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

34

Refrigerator Thermostat Knob WPL 2204951 Contact Us For Availability

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $67.54

35

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $66.62

35

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $5.99

36

WP2205079 Whirlpool Refrigerator Seal Backorder WPL WP2205079 $6.17

37

WP8281196 Whirlpool Screw Backorder WPL WP8281196 $4.82

37

Refrigerator Toe Grille Clip WPL 2189356 Contact Us For Availability

37

Refrigerator Roller WPL 2176246 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $7.54

38

Shield WPL 2204639 Contact Us For Availability

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $4.82

39

Refrigerator Condenser Fan Shroud WPL 2198921 Contact Us For Availability

39

Refrigerator Housing WPL 2201152 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $60.81

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $12.19

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

Refrigerator Seal WPL 2205055 Contact Us For Availability

40A

Cover (Silver) WPL 2213388 Contact Us For Availability

40B

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $11.82

41

Refrigerator Wire Harness WPL 2187281 Contact Us For Availability

42

Refrigerator Main Wire Harness WPL 2187505 Contact Us For Availability

42

Insulation WPL 2193491 Contact Us For Availability

43

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $10.96

43

Refrigerator Condenser Fan WPL 2190685 Contact Us For Availability

44

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $4.82

44

Refrigerator Ice Maker Module Support Clip WPL 2204881 Contact Us For Availability

45

Refrigerator Tube WPL 2212603 Contact Us For Availability

46

2205533 Whirlpool Refrigerator Tube Backorder WPL 2205533 $66.59

46

Refrigerator Freezer Control Thermostat WPL 2204991 Contact Us For Availability

47

2214924 Whirlpool Refrigerator Tube Backorder WPL 2214924 $75.12

47

Refrigerator Gear Wheel WPL 2204992 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $53.08

48

Refrigerator Freezer Door Switch Housing Seal WPL 2166284 Contact Us For Availability

49

Refrigerator Fence WPL 2198768 Contact Us For Availability

50

Refrigerator Seal WPL 2179834 Contact Us For Availability

56

WP489128 Whirlpool Refrigerator Screw Backorder WPL WP489128 $6.83

58

Refrigerator Drain Pan WPL 2210451 Contact Us For Availability

NI01

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

NI02

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

NI03

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

NI04

Refrigerator Service Valve WPL 978028 Contact Us For Availability

NI05

Refrigerator Service Valve WPL 978029 Contact Us For Availability

NI06

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

NI07

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $32.12

NI09

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $37.42

NI10

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

NI11

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $151.82

NI13

Foam Slab WPL 876029 Contact Us For Availability

NI14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

NI15

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

NI16

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $43.18

NI17

Adhesive WPL 542639 Contact Us For Availability

NI18

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

NI19

Epoxy WPL 799833 Contact Us For Availability

NI20

Epoxy WPL 799832 Contact Us For Availability

NI21

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

NI22

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

NI23

285006 Whirlpool Spray In Stock WPL 285006 $52.65

NI24

350930 Whirlpool White Spray Paint In Stock WPL 350930 $26.50

NI25

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $53.67

NI26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $9.04

NI27

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $13.78

NI28

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $14.22

NI29

Pnt-blk-qrt WPL 799340 Contact Us For Availability

NI30

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

NI31

Paint, Bsq WPL 4392900 Contact Us For Availability

NI32

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

NI33

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability
