Model Whirlpool 106.56863603 Side-By-Side Refrigerator (Kenmore 10656863603) – Common Parts &amp; Diagrams

1

NLA:SCREW Backorder WPL WPW10141645 $4.82

1

WPW10141748 Whirlpool Refrigerator Glass Shel Backorder WPL WPW10141748 $225.31

1

Refrigerator Ice Bin WPL 2317244 Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $66.63

2

2301291 Whirlpool Refrigerator Track Backorder WPL 2301291 $125.66

2

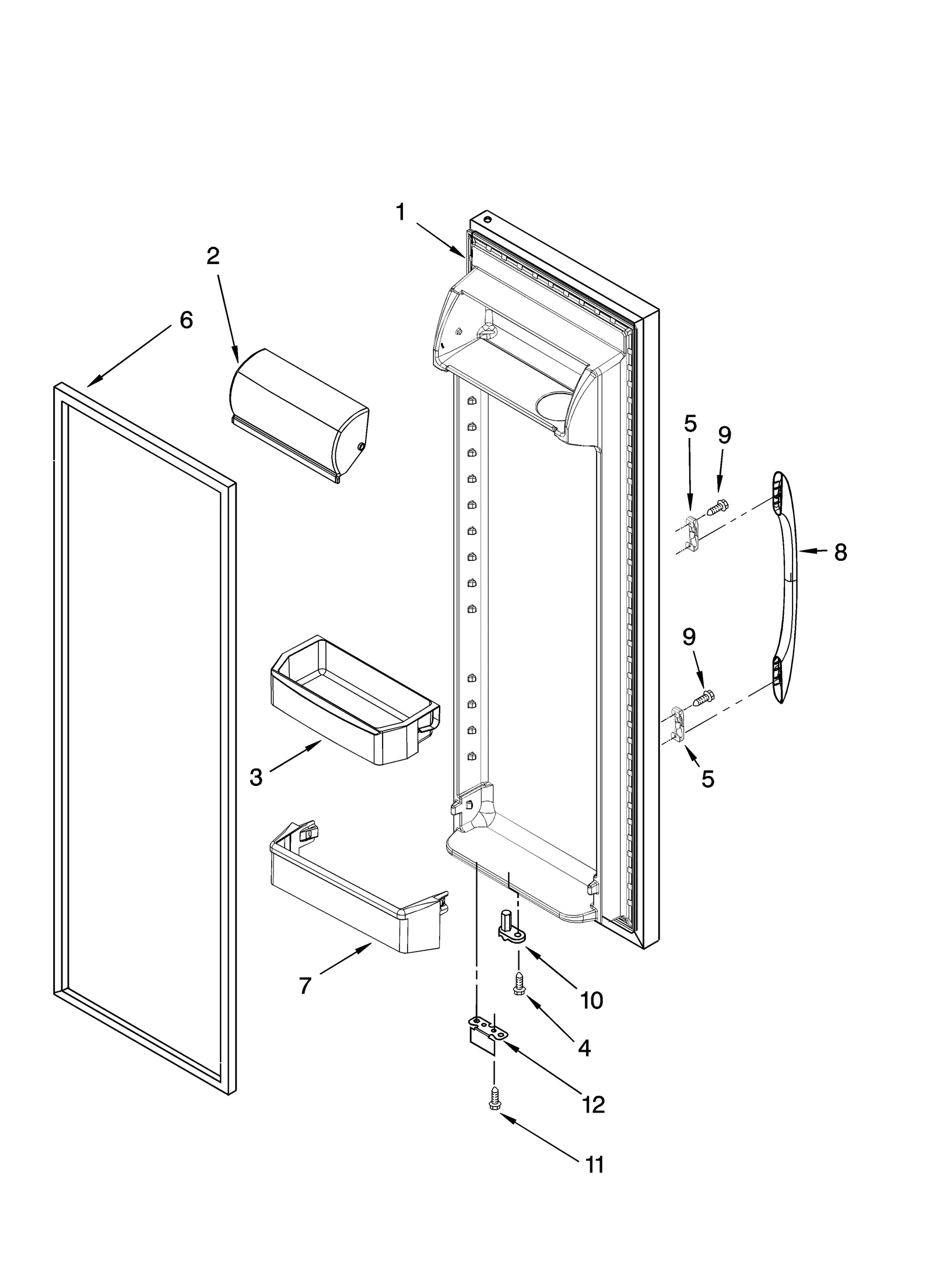

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $66.67

2

WPW10140630 Whirlpool Refrigerator Fitting Backorder WPL WPW10140630 $98.16

2

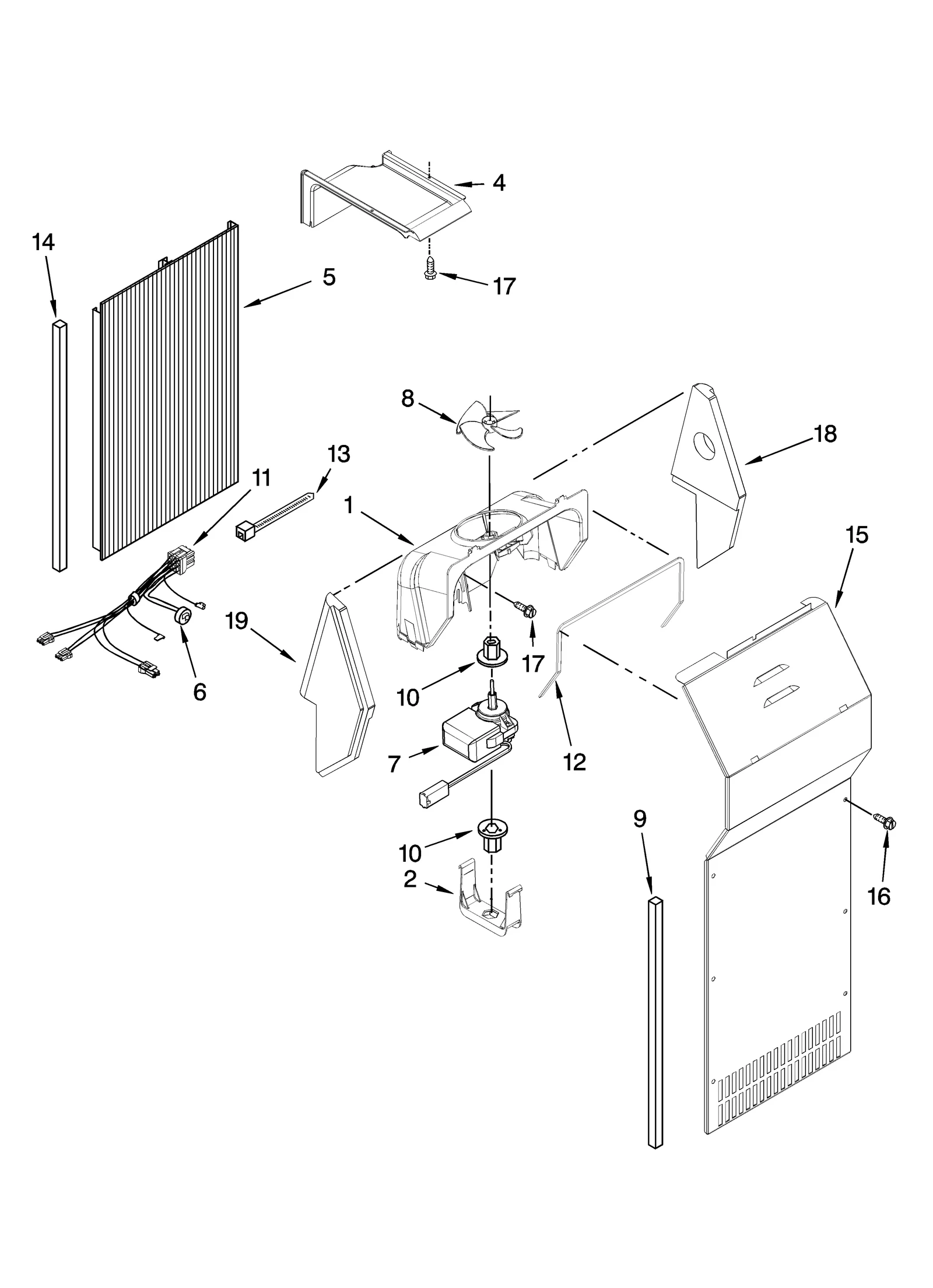

Refrigerator Evaporator Fan Motor Retainer WPL 2155590 Contact Us For Availability

2

Refrigerator Ice Container WPL 2317246 Contact Us For Availability

2A

2301292 Whirlpool Refrigerator Track Backorder WPL 2301292 $128.13

2B

Refrigerator Door Handle (Black) WPL 2319714B Contact Us For Availability

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $7.91

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $6.90

3

Refrigerator Deli Drawer Temperature Control WPL 2182757 Contact Us For Availability

3

Refrigerator Shelf Wire WPL 2211743K Contact Us For Availability

3

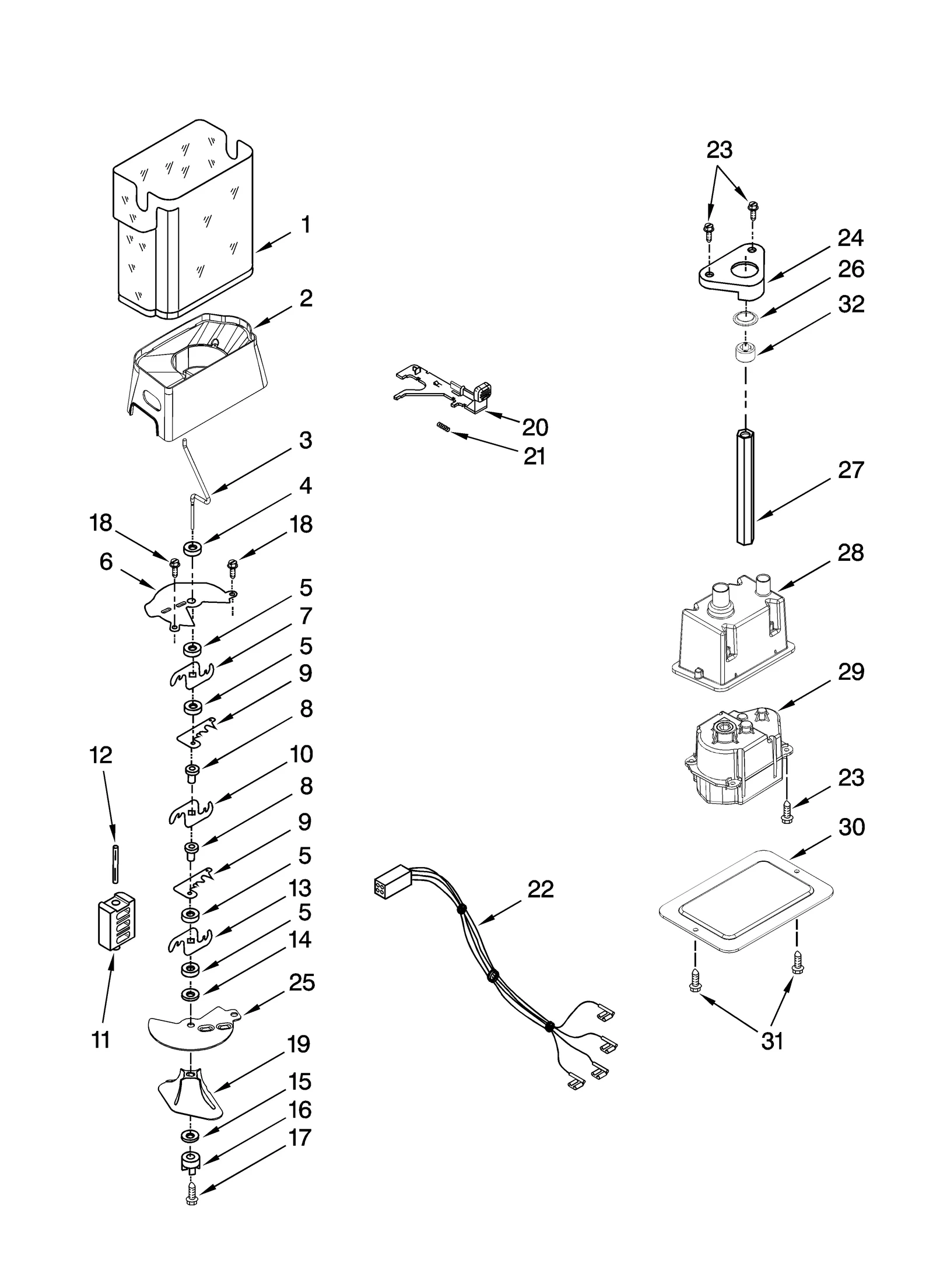

Refrigerator Ice Auger WPL 2317281 Contact Us For Availability

4

2195904K Whirlpool Refrigerator Basket Trim Backorder WPL 2195904K $64.45

4

2313359 Whirlpool Refrigerator Air Duct Backorder WPL 2313359 $76.47

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.69

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $25.38

4

Refrigerator Ice Dispenser Auger Washer WPL 2258220 Contact Us For Availability

5

2161307 Whirlpool Refrigerator Rod Backorder WPL 2161307 $8.63

5

W10822681 Whirlpool Refrigerator Water Inlet In Stock WPL W10822681 $117.48

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $8.89

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $11.99

5

WP2255411 Whirlpool Refrigerator Clip In Stock WPL WP2255411 $21.99

5

Refrigerator Freezer Drawer Slide Rail, Right WPL 2301289 Contact Us For Availability

5A

Refrigerator Freezer Drawer Slide Rail, Left WPL 2301290 Contact Us For Availability

6

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $121.07

6

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $15.58

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $5.99

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $12.74

6

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $7.20

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $33.84

6

Refrigerator Ice Crusher Blade Cover WPL 2317248 Contact Us For Availability

6

Refrigerator Freezer Wire Shelf WPL 2212343K Contact Us For Availability

7

2205764 Whirlpool Refrigerator Tube Backorder WPL 2205764 $60.78

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $61.38

7

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $55.36

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $145.73

7

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $4.82

7

Refrigerator Freezer Basket WPL 2301193 Contact Us For Availability

8

W10759522 Whirlpool Screw Backorder WPL W10759522 $4.82

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $6.99

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $22.25

8

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $13.89

8

Refrigerator Shim WPL 2209697 Contact Us For Availability

9

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $6.90

9

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $14.99

9

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $66.95

9

WP2315562 Whirlpool Refrigerator Thermostat In Stock WPL WP2315562 $61.16

9

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $4.82

9

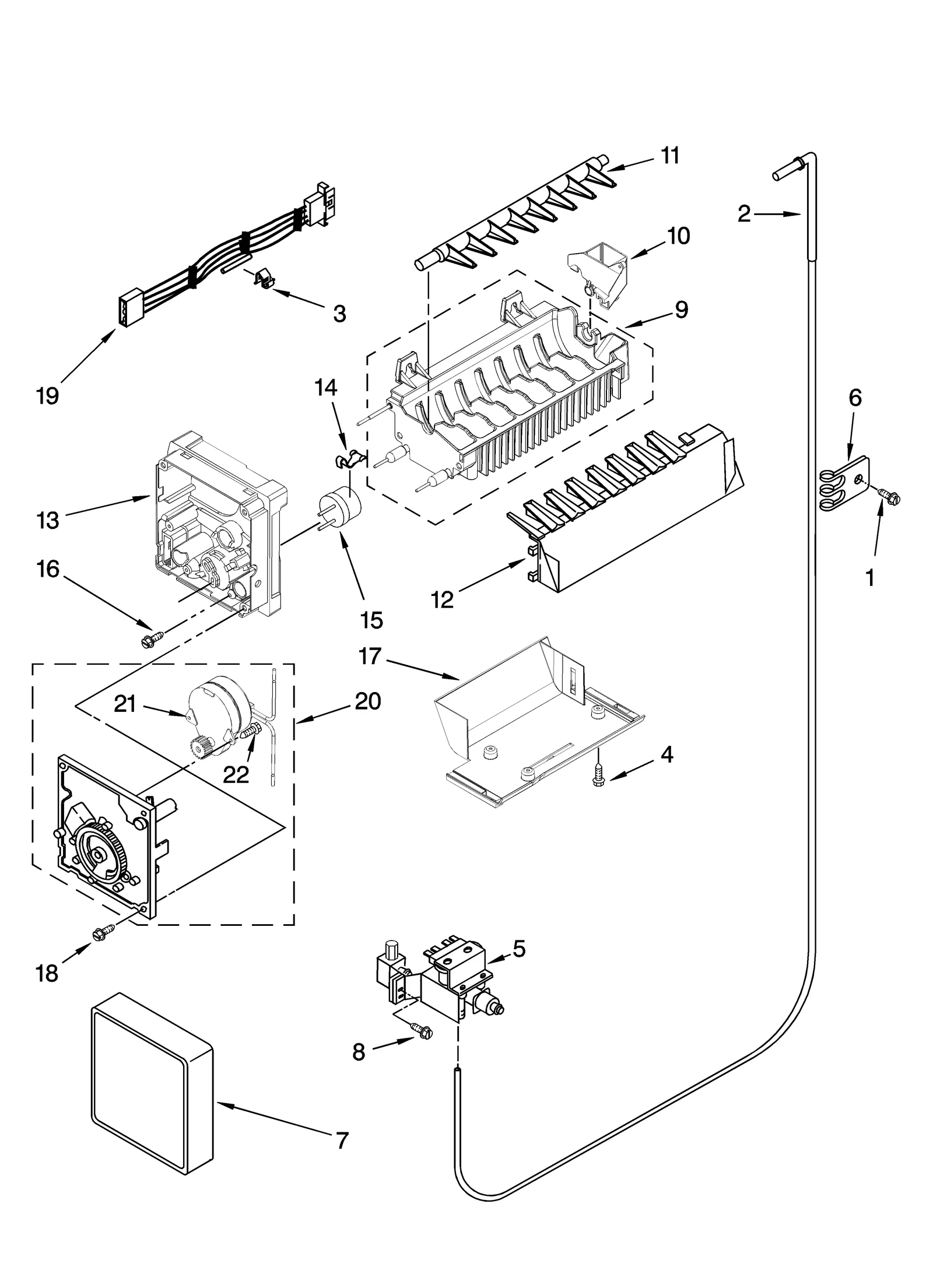

WPW10122550 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10122550 $153.06

9

Refrigerator Ice Crusher Fixed Blade WPL 2257020 Contact Us For Availability

9B

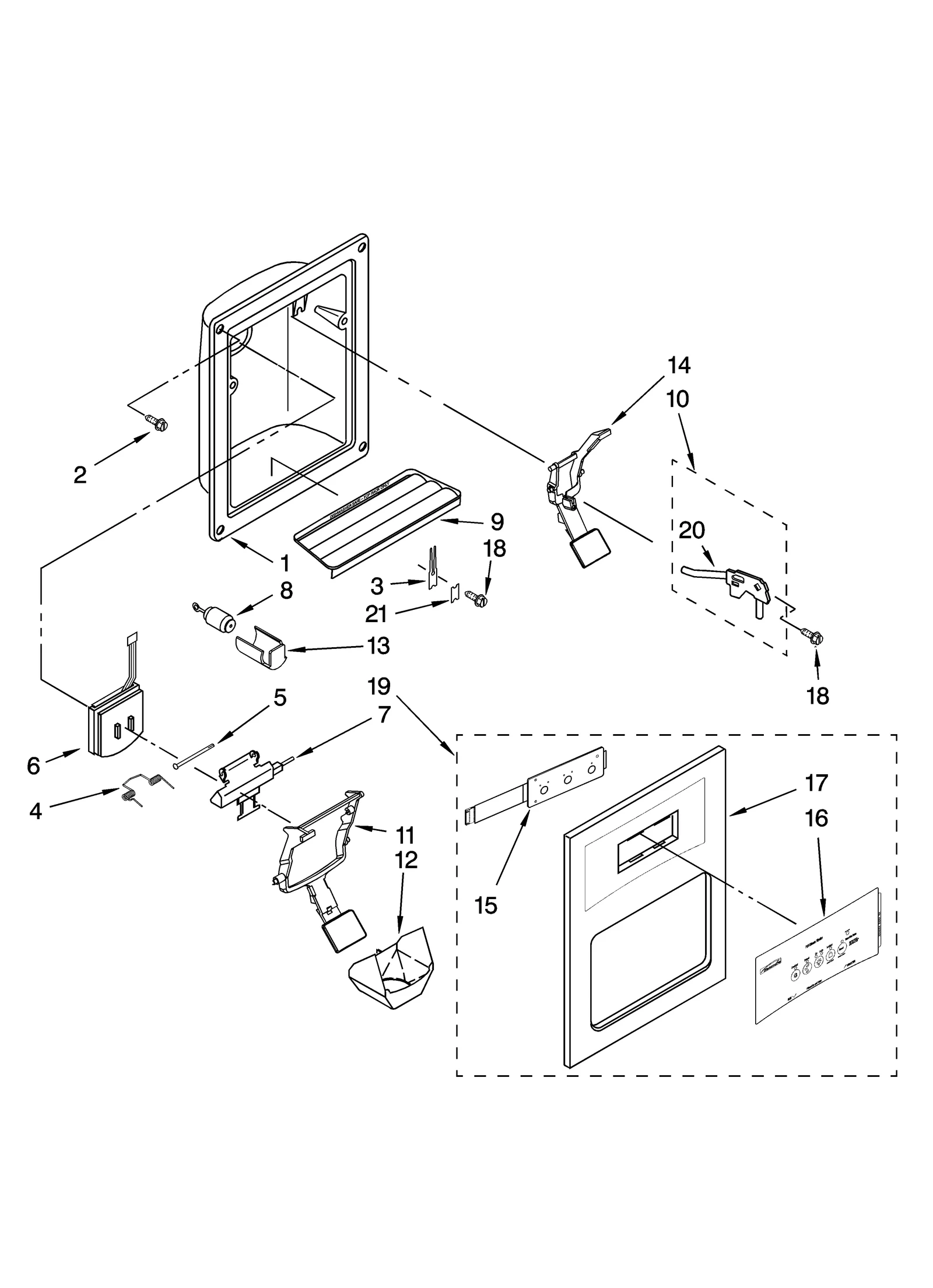

Refrigerator Dispenser Drip Tray WPL 2206908B Contact Us For Availability

2161466 Whirlpool Refrigerator Slide Backorder WPL 2161466 $14.02

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $61.38

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $5.30

WP2188656 Whirlpool Refrigerator Crisper Clea In Stock WPL WP2188656 $76.20

WP2198587 Whirlpool Refrigerator Cover Backorder WPL WP2198587 $71.95

WPW10272168 Whirlpool Refrigerator Water Fill Backorder WPL WPW10272168 $55.67

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $13.16

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $7.18

626753 Whirlpool Refrigerator Ejector Arm Backorder WPL 626753 $9.15

W10896198 Whirlpool Refrigerator Start Device Backorder WPL W10896198 $130.22

WP2179343 Whirlpool Refrigerator Control Body Backorder WPL WP2179343 $22.47

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $63.61

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $6.84

Refrigerator Fresh-Food Control Light Pipe WPL 2179920 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $33.86

W10297245 Whirlpool Refrigerator Arm Stripper Backorder WPL W10297245 $53.90

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $20.20

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $9.64

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $5.19

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $10.62

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $14.54

12B

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.92

2172931 Whirlpool Refrigerator Shield Backorder WPL 2172931 $51.65

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $61.31

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $27.54

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $73.20

WP489483 Whirlpool Screw In Stock WPL WP489483 $7.58

Refrigerator Dispenser Ice Chute Door Motor S WPL 2252127 Contact Us For Availability

2181741 Whirlpool Refrigerator Slide Backorder WPL 2181741 $69.16

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $7.11

W11629974-includeCORE Whirlpool W11629974 Ref Backorder WPL W11629974-includeCORE $303.28

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $6.88

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $6.87

Refrigerator Filler WPL 2304846 Contact Us For Availability

Refrigerator Door Stop Bracket WPL 2200082 Contact Us For Availability

14A

Refrigerator Door Stop (Black) WPL 2200082B Contact Us For Availability

2161306 Whirlpool Refrigerator Arm Pivot Backorder WPL 2161306 $7.10

W10180062 Whirlpool Refrigerator Ice Door Backorder WPL W10180062 $55.46

WP2188822 Whirlpool Refrigerator Evaporator In Stock WPL WP2188822 $203.37

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $6.90

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $4.82

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $52.34

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $38.68

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $62.95

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $60.06

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $14.99

W11629923 Whirlpool Coupling In Stock WPL W11629923 $23.13

Refrigerator Ice Maker Cover Bracket, Right WPL 2212321 Contact Us For Availability

Refrigerator Defrost Clip WPL 2161324 Contact Us For Availability

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $16.09

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $81.87

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $5.99

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $6.29

Refrigerator Bracket WPL W10131253 Contact Us For Availability

2006254 Whirlpool Refrigerator Screw Backorder WPL 2006254 $8.68

W11566763 Whirlpool Fitting In Stock WPL W11566763 $31.99

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $4.82

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $3.46

WP2179243 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179243 $71.83

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $7.55

WPW10309401 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10309401 $96.51

Refrigerator Drain Tube WPL 2304937 Contact Us For Availability

Thermador Refrigerator Ice Container Wiper WPL 2317243 Contact Us For Availability

2317274 Whirlpool Refrigerator Bin Latch Backorder WPL 2317274 $74.26

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $94.12

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.25

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $9.19

W10139462 Whirlpool Refrigerator Compressor In Stock WPL W10139462 $351.52

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $7.19

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $4.82

FOR FIELD INSTALLABLE ICEMAKER REPAIR PARTS L WPL N/P Contact Us For Availability

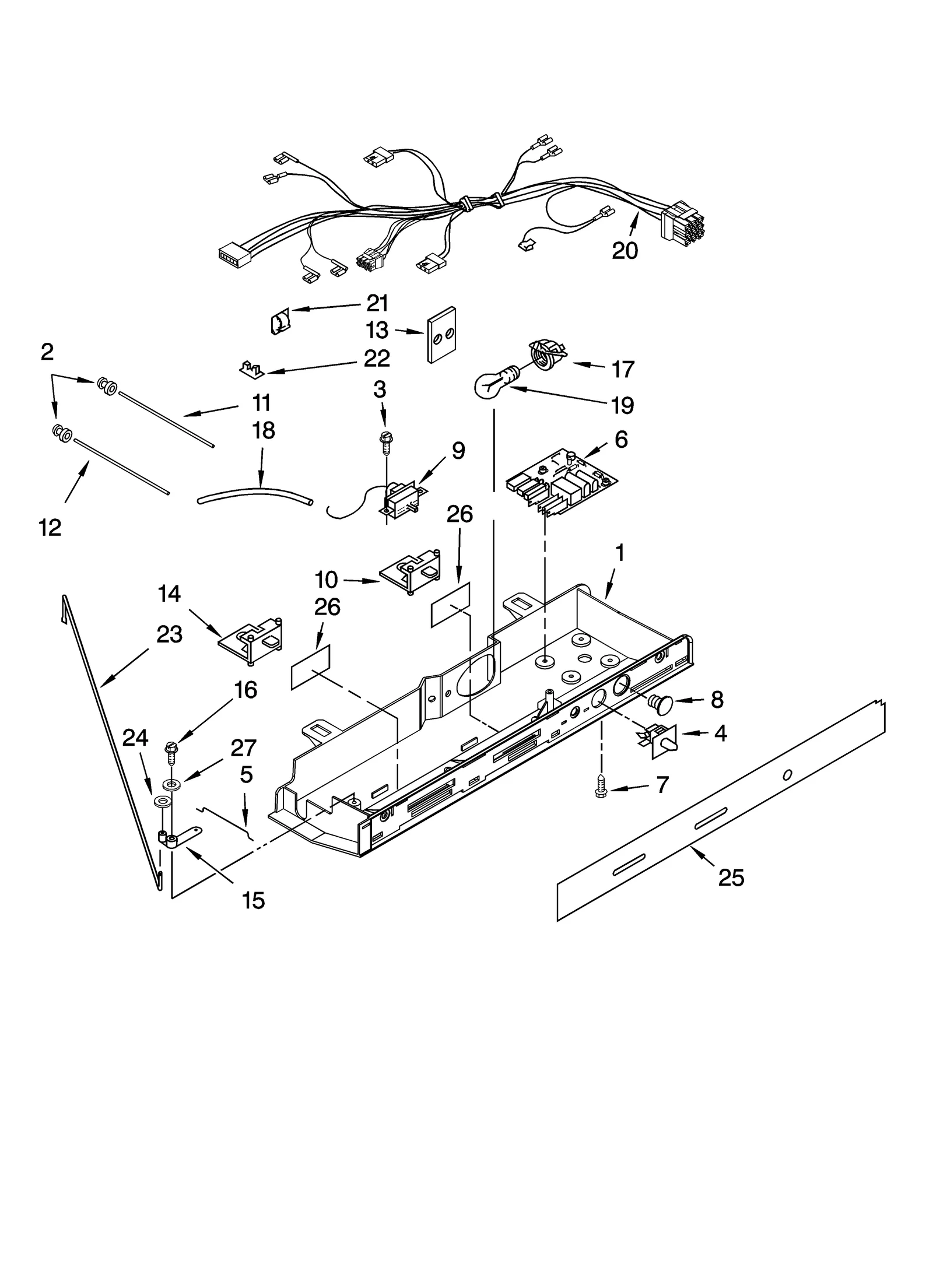

Refrigerator Control Board Cover WPL 2198698 Contact Us For Availability

22

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $7.18

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $6.83

22

W10683539 Whirlpool Refrigerator Dispensing H Backorder WPL W10683539 $23.56

23

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $7.28

23

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $14.39

23

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $6.83

23A

2203407T Whirlpool Refrigerator Cover Backorder WPL 2203407T $12.83

23B

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $13.08

24

WP2188919 Whirlpool Refrigerator Holder In Stock WPL WP2188919 $5.99

24

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $4.82

24

WP2323197 Whirlpool Refrigerator Heater Backorder WPL WP2323197 $86.68

25

2212376 Whirlpool Light Lens Backorder WPL 2212376 $66.60

25

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $22.62

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.77

26

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $5.30

27

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $66.78

27

WPW10119935 Whirlpool Refrigerator Socket Backorder WPL WPW10119935 $71.05

28

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $16.02

28

Refrigerator Ice Dispenser Motor Cover WPL 2256154 Contact Us For Availability

29

W10271509 Whirlpool Refrigerator Ice Maker Au Backorder WPL W10271509 $144.36

29

Refrigerator Ladder WPL 2212315 Contact Us For Availability

29A

Refrigerator Ladder WPL 2212316 Contact Us For Availability

30

2303234 Whirlpool Refrigerator Shield Backorder WPL 2303234 $64.04

30

Refrigerator Cover WPL 2212305 Contact Us For Availability

31

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $4.82

32

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $8.89

32

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.12

32

WP2315559 Whirlpool Motor Coupling In Stock WPL WP2315559 $42.66

36

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $4.82

37

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $23.69

37

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $4.82

100

WPW10190961 Whirlpool Ice Maker In Stock WPL WPW10190961 $157.86

100

Refrigerator Ice Container WPL 2317275 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $34.42

285006 Whirlpool Spray In Stock WPL 285006 $52.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $25.69

350942 Whirlpool Spray Paint Backorder WPL 350942 $64.04

4210463RW Whirlpool Refrigerator Coil Brush In Stock WPL 4210463RW $24.24

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $13.08

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $52.10

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $56.74

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $8.31

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $12.67

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $58.79

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $4.82

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $29.55

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $79.99

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $87.85

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $92.18

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $10.73

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $80.29

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $119.63

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $39.72

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $66.99

Refrigerator Service Valve WPL 978029 Contact Us For Availability

Refrigerator Vinyl Tape WPL 479502 Contact Us For Availability

Appliance Porcelain Touch-Up Paint, 1-qt (Whi WPL 799344 Contact Us For Availability

Refrigerator Ice Maker Torx Key Wrench WPL 1117510 Contact Us For Availability

Paint (Graphite) WPL 8171358 Contact Us For Availability

Refrigerator Cleaner WPL 2217061 Contact Us For Availability

Paint, Bsq WPL 4392900 Contact Us For Availability

Adhesive WPL 542639 Contact Us For Availability

Pnt-blk-qrt WPL 799340 Contact Us For Availability

Epoxy WPL 799833 Contact Us For Availability
