Model Samsung RF30HDEDTSR/AA-02 Refrigerator – Common Parts &amp; Diagrams

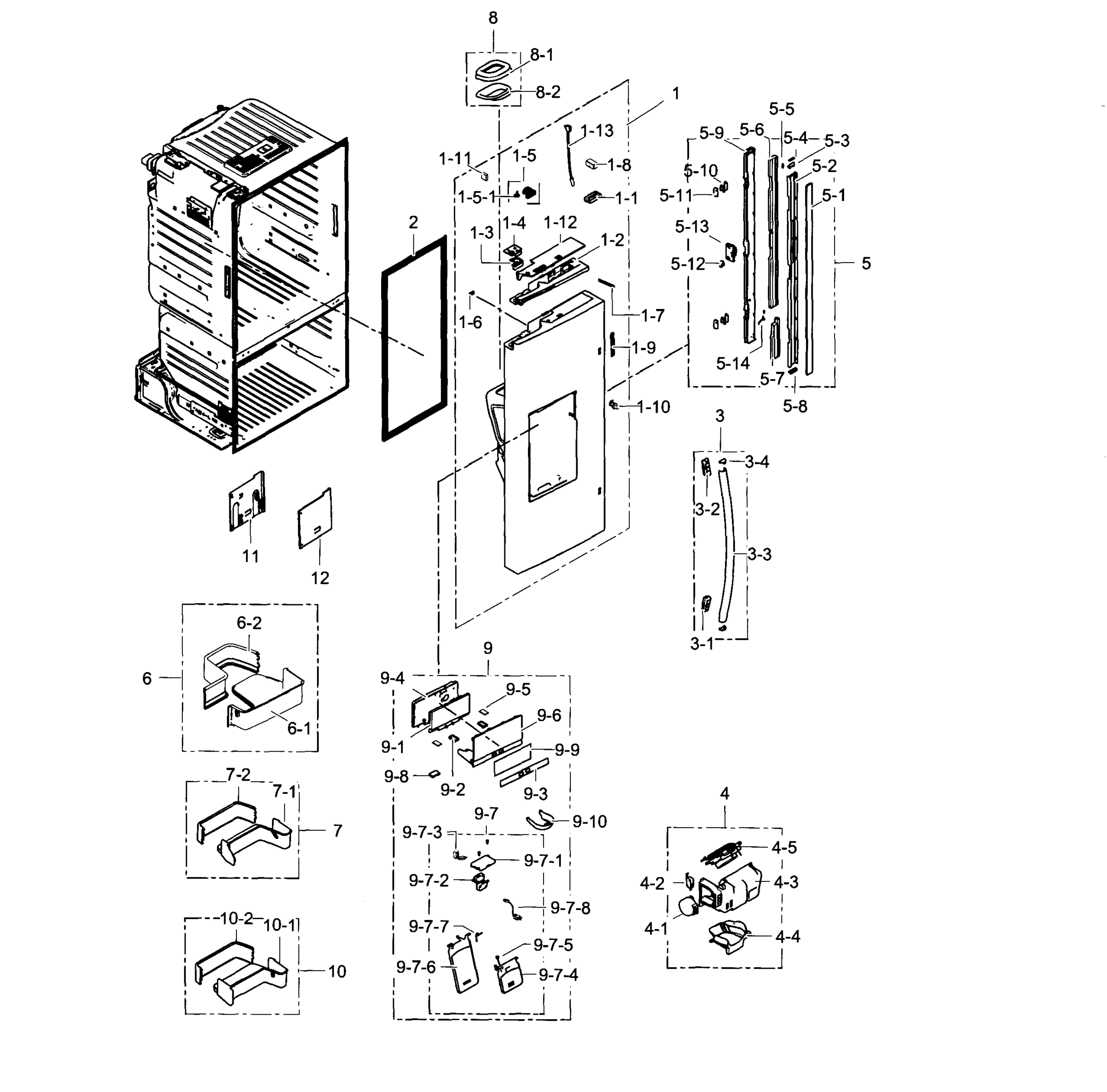

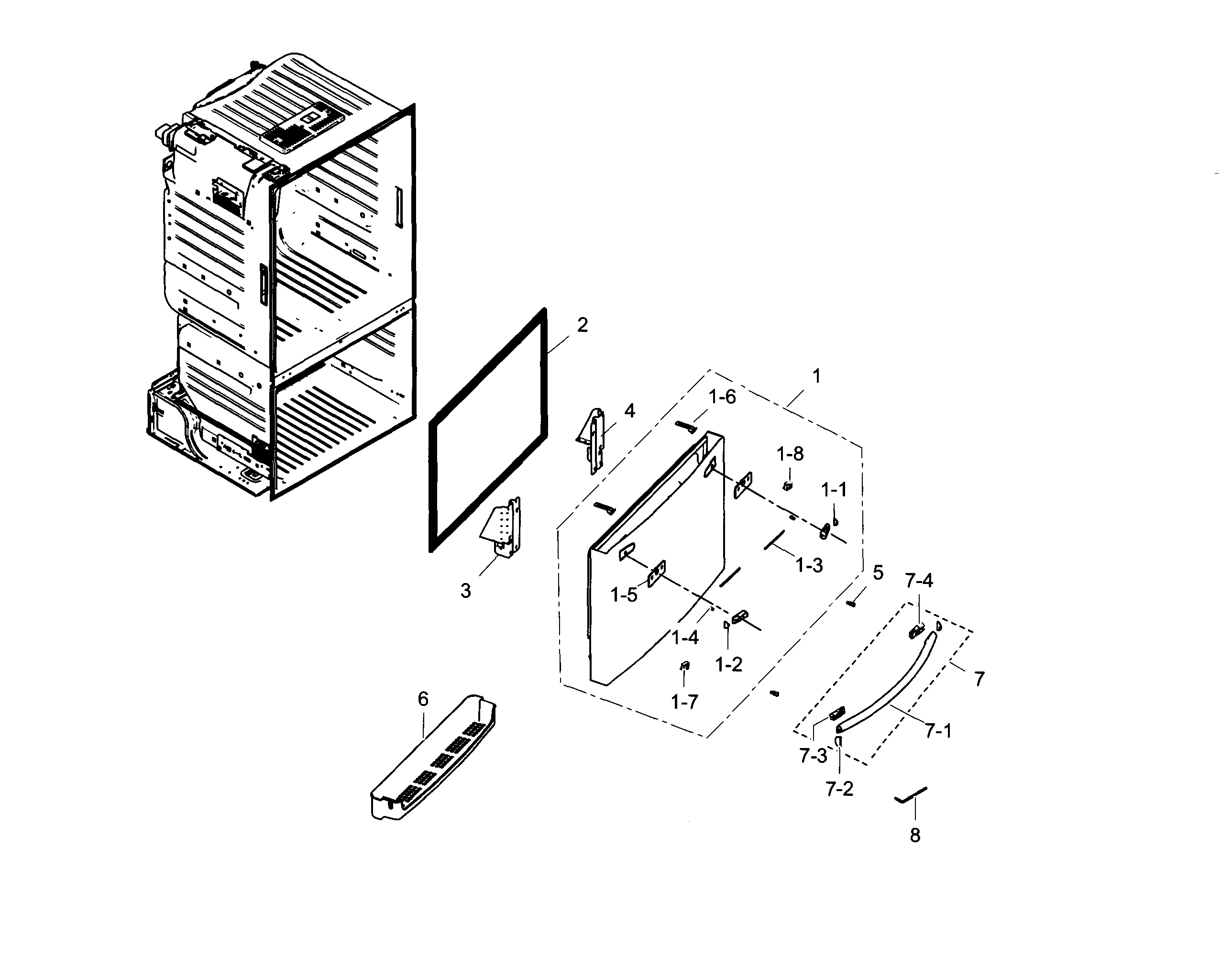

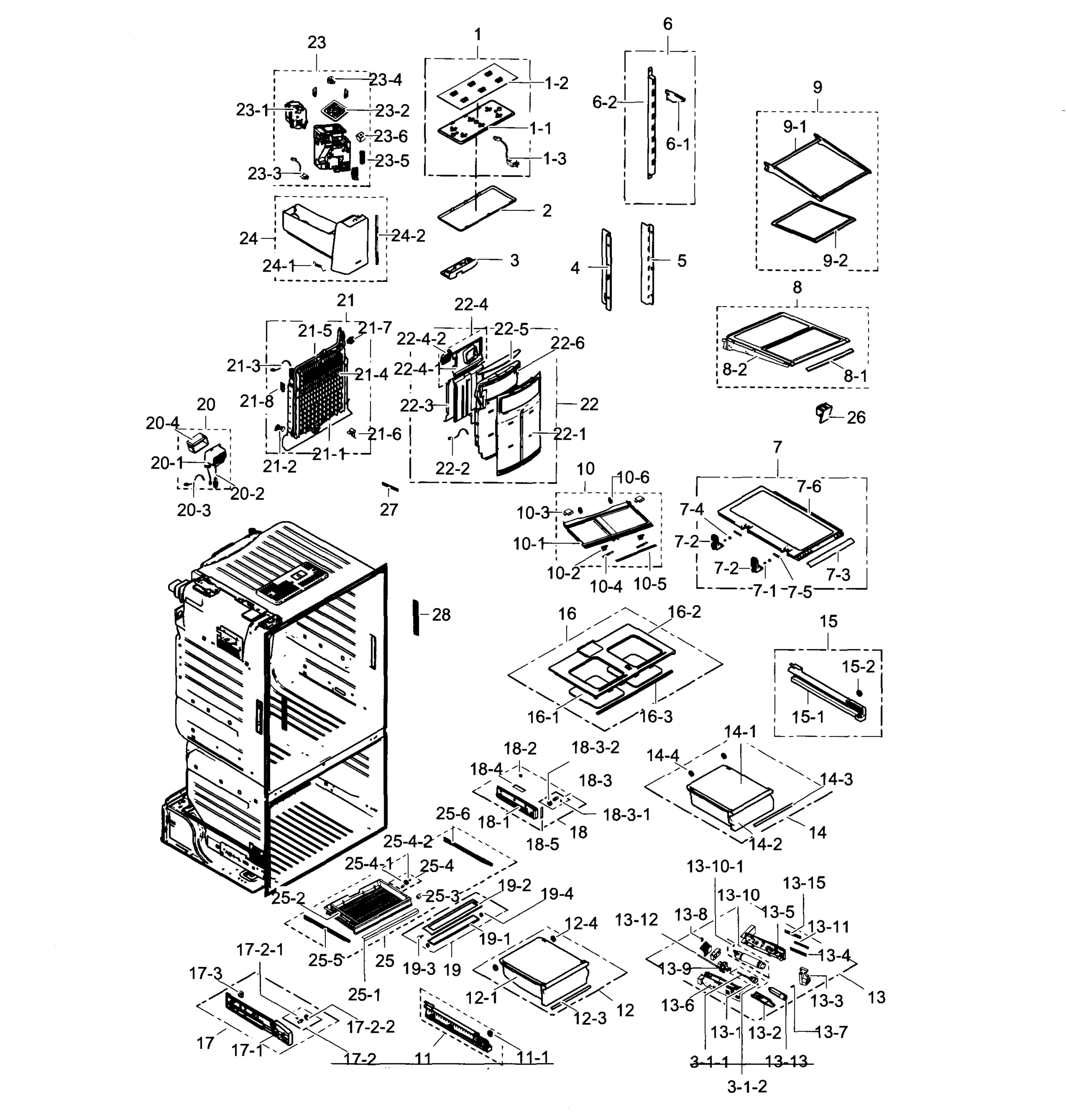

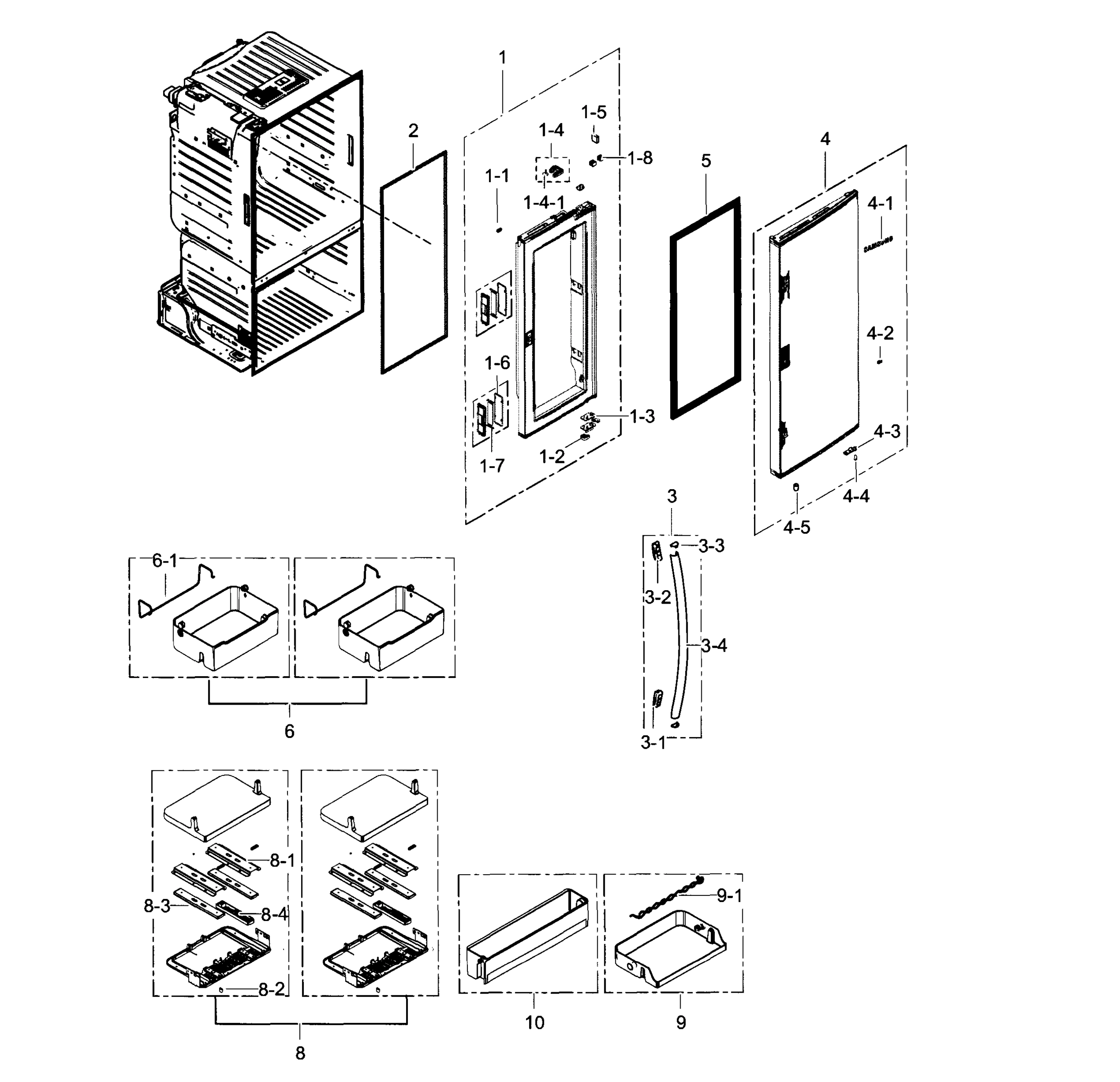

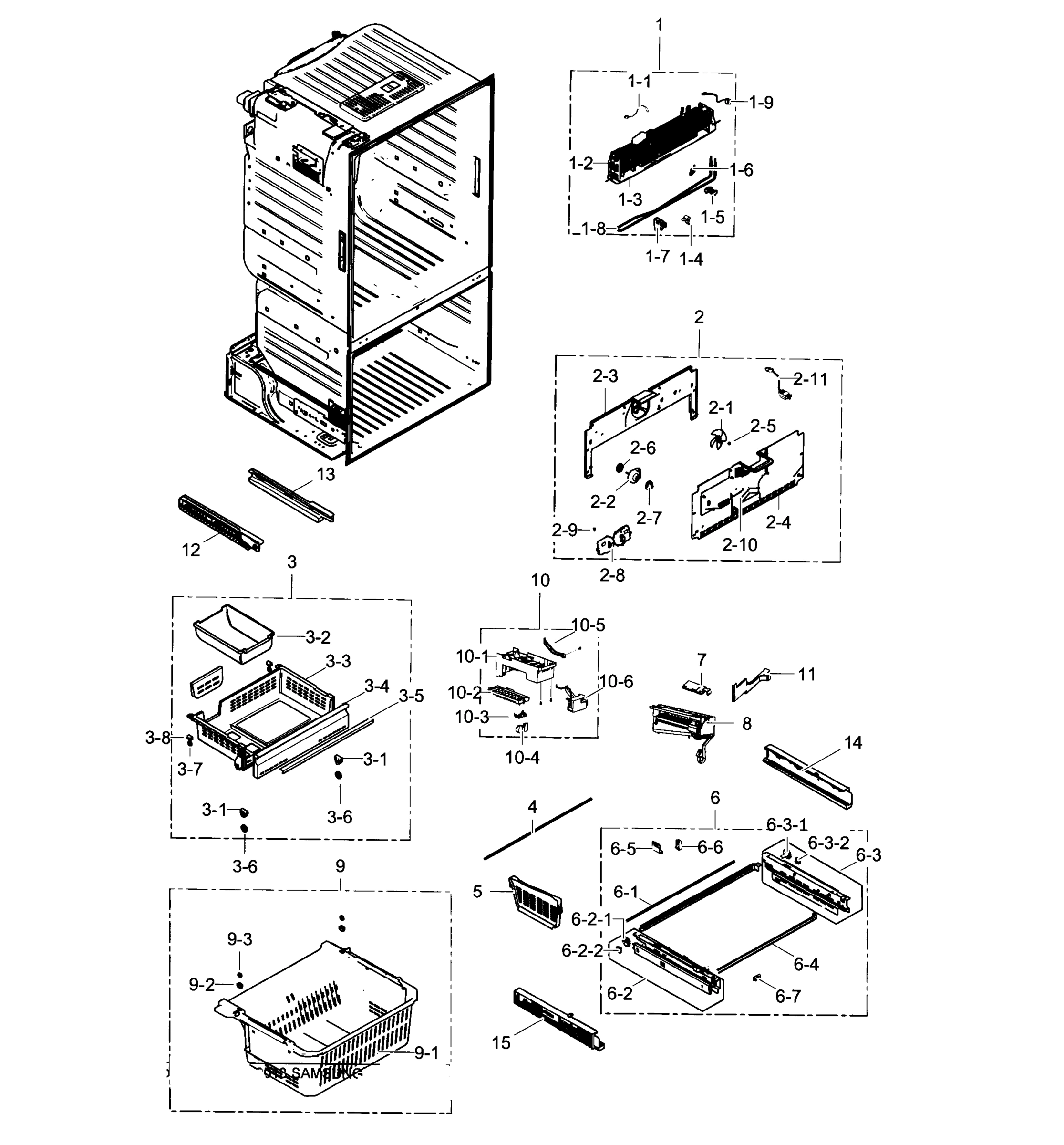

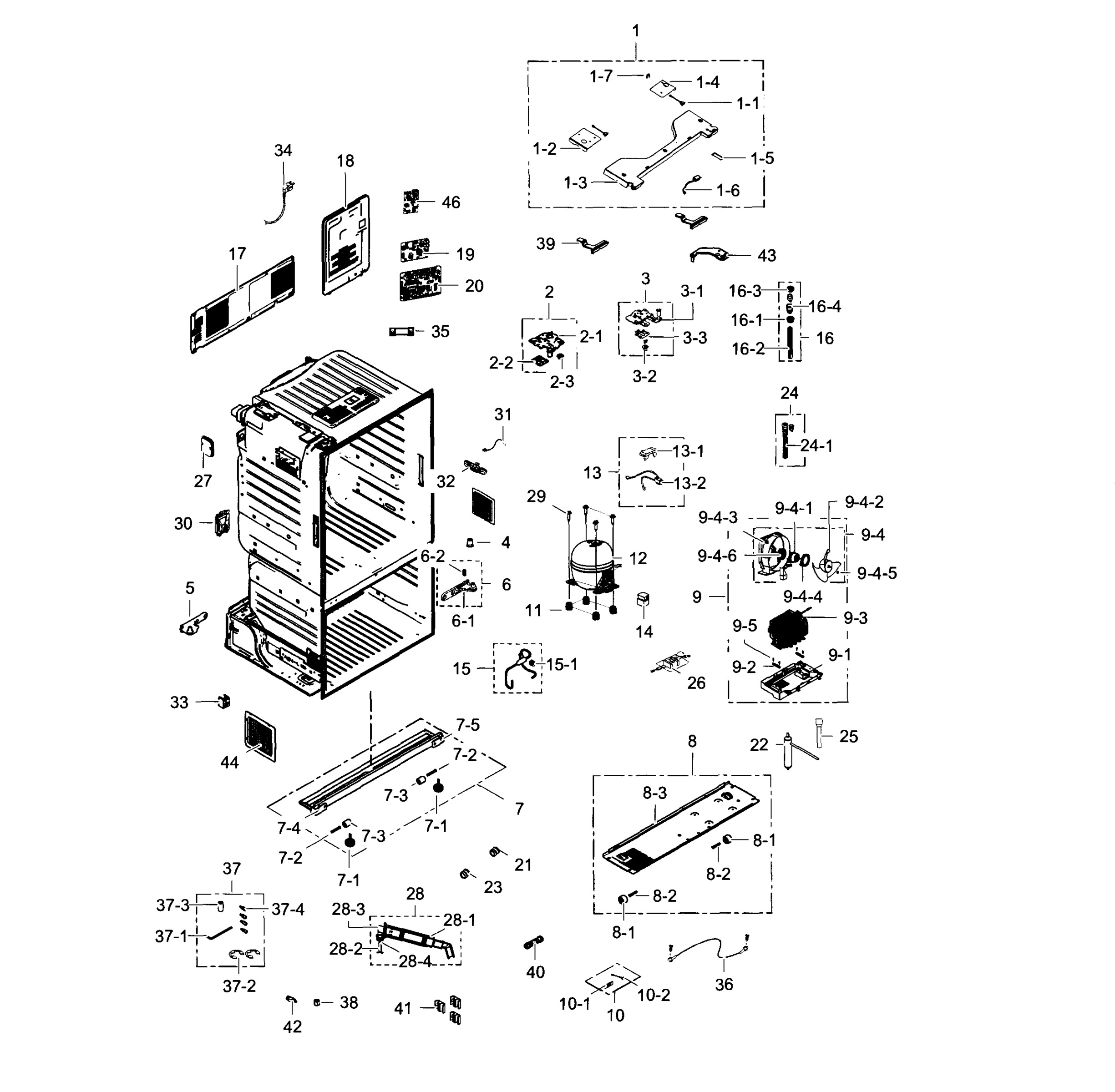

1

DA97-14978A Samsung Assembly Refrigerator Top Backorder SMG DA97-14978A $194.47

1-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $31.86

1-1

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $3.24

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $18.89

1-2

DA61-09950A Samsung Refrigerator Middle Door Backorder SMG DA61-09950A $2.59

1-3

DA61-02383E Samsung Refrigerator Door Closing Backorder SMG DA61-02383E $6.05

1-3

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $9.18

1-4

DA61-04335A Samsung Refrigerator Handle Sprin Backorder SMG DA61-04335A $1.50

1-4

DA97-14992A Samsung Refrigerator Auto Close A Backorder SMG DA97-14992A $31.86

DA61-05845A Samsung Refrigerator Heater Fixer Backorder SMG DA61-05845A $9.72

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.79

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.69

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $31.34

1-6

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $10.26

1-6

DA61-08234A Samsung Refrigerator Slider Assem Backorder SMG DA61-08234A $4.87

1-7

DA41-00676G Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00676G $54.38

1-7

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.16

1-8

DA47-00318A Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318A $140.07

1-8

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $11.34

1-8

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.69

1-9

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $39.63

1-10

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $30.78

1-13

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $73.53

1-51

DA66-00440A Samsung Refrigerator Auto Close R In Stock SMG DA66-00440A $1.69

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $35.56

2

DA97-12522J Samsung Refrigerator Freezer Door Backorder SMG DA97-12522J $184.08

2

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $77.03

2

DA97-12690A Samsung Refrigerator Evaporator C Backorder SMG DA97-12690A $249.61

2

DA97-13015E Samsung Refrigerator Door Gasket In Stock SMG DA97-13015E $138.52

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $64.66

2-1

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $142.77

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl In Stock SMG DA66-00950A $5.93

2-6

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.87

2-7

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $4.33

3

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $7.55

3

DA97-12638A Samsung Refrigerator Upper Tray A Backorder SMG DA97-12638A $202.80

3

DA97-14976A Samsung Refrigerator Upper Right Backorder SMG DA97-14976A $70.66

3

DA97-15014A Samsung Refrigerator Door Handle Backorder SMG DA97-15014A $287.89

3

Refrigerator door handle SMG DA97-12715C Contact Us For Availability

3-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $9.72

3-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $11.88

3-2

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $74.51

3-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $29.15

3-2

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $5.41

3-4

DA67-02788A Samsung Refrigerator Handle Suppo Backorder SMG DA67-02788A $14.04

3-6

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.93

3-8

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.69

3-11

DA62-02429G Samsung Refrigerator Water Line P Backorder SMG DA62-02429G $8.10

4

DA61-08294A Samsung Refrigerator Front Hanger Backorder SMG DA61-08294A $100.06

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $6.05

4

DA91-04198A Samsung Refrigerator Door Foam As Backorder SMG DA91-04198A $434.75

4

DA97-13829C Samsung Refrigerator Ice Route Gu In Stock SMG DA97-13829C $164.88

4-1

DA31-00079D Samsung Refrigerator Geared Dispe In Stock SMG DA31-00079D $104.59

4-1

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $30.23

4-2

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $6.05

4-3

DA61-09951A Samsung Refrigerator Low Door Sto Backorder SMG DA61-09951A $109.80

4-4

DA63-07545B Samsung Refrigerator Middle Hinge Backorder SMG DA63-07545B $3.24

4-5

DA73-00211A Samsung Refrigerator Hose Rubber Backorder SMG DA73-00211A $1.69

4-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $53.52

5

DA61-11161A Samsung Refrigerator Door Handle In Stock SMG DA61-11161A $9.78

5

DA97-12624A Samsung Refrigerator French Door In Stock SMG DA97-12624A $168.84

5

DA97-13915D Samsung Refrigerator Door Gasket Backorder SMG DA97-13915D $117.64

5-4

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $5.93

5-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $11.82

5-11

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $5.41

5-12

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $5.41

5-13

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $8.10

6

DA97-12861B Samsung Refrigerator Low Hanger In Stock SMG DA97-12861B $265.45

6

DA97-14977A Samsung Refrigerator Right Hand M Backorder SMG DA97-14977A $188.89

6

DA97-14996A Samsung Refrigerator Lower Right Backorder SMG DA97-14996A $141.95

6-2

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.69

6-7

DA61-02738A Samsung Refrigerator Magnet-Assem Backorder SMG DA61-02738A $7.55

6-21

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

6-31

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

7

DA97-12682A Samsung Refrigerator Folding Shel Backorder SMG DA97-12682A $129.83

7

DA97-12712C Samsung Refrigerator Freezer Door In Stock SMG DA97-12712C $162.83

7-1

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $7.55

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $7.46

7-2

DA67-02787A Samsung Refrigerator Freezer Door In Stock SMG DA67-02787A $20.57

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $15.67

7-3

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $18.60

7-4

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $40.17

7-4

DA63-06389E Samsung Refrigerator Front Left C Backorder SMG DA63-06389E $4.33

7-5

DA63-06405D Samsung Refrigerator Front Right Backorder SMG DA63-06405D $4.33

8

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $66.65

8

DA97-15217D Samsung Refrigerator Ice Maker As In Stock SMG DA97-15217D $118.12

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $12.73

8-1

DA63-06945A Samsung Refrigerator Ice Chute Ca Backorder SMG DA63-06945A $75.36

8-2

DA66-00649A Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649A $3.97

8-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $12.96

9-1

DA63-06897A Samsung Refrigerator Drain Water Backorder SMG DA63-06897A $35.07

9-3

Refrigerator condenser coil SMG DA97-08464F Contact Us For Availability

9-4

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $11.88

9-5

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $47.08

9-41

Refrigerator condenser fan motor SMG DA31-00305C Contact Us For Availability

9-42

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $26.47

9-43

DA61-08427A Samsung Refrigerator Motor Circui Backorder SMG DA61-08427A $23.22

9-72

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $15.67

10

DA97-07603B Samsung Refrigerator Ice Maker In Stock SMG DA97-07603B $204.54

10

DA97-12688A Samsung Refrigerator Crisper Draw Backorder SMG DA97-12688A $250.98

10-1

DA61-05227A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-05227A $46.12

10-2

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $33.20

10-2

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $32.15

10-3

DA61-03166A Samsung Refrigerator Vegetable Co In Stock SMG DA61-03166A $1.69

10-3

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $5.93

10-4

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $39.51

10-4

DA66-00718A Samsung Refrigerator Humidity Lev Backorder SMG DA66-00718A $6.47

10-5

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $158.35

10-5

DA61-05435A Samsung Refrigerator Ice Maker Sh In Stock SMG DA61-05435A $9.31

10-6

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $215.89

11

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $14.58

11

DA97-11292B Samsung Refrigerator Vegetable Ra Backorder SMG DA97-11292B $41.32

12

DA61-07328A Samsung Refrigerator Freezer Rail Backorder SMG DA61-07328A $219.01

12

DA97-12687F Samsung Refrigerator Left Vegetab Backorder SMG DA97-12687F $176.61

12

MKV190CL2B/ASH Samsung Refrigerator Compresso In Stock SMG MKV190CL2B/ASH $358.01

13

DA61-07329A Samsung Refrigerator Right Hand U Backorder SMG DA61-07329A $231.73

13

DA97-10848N Samsung Refrigerator All Wire Com In Stock SMG DA97-10848N $64.60

13

DA97-12668A Samsung Refrigerator Filter Tank In Stock SMG DA97-12668A $310.26

13-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $40.19

13-1

DA97-08006G Samsung Refrigerator White Case F Backorder SMG DA97-08006G $112.66

13-2

DA39-00154M Samsung Refrigerator Compressor W Backorder SMG DA39-00154M $24.25

13-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $64.66

13-7

DA60-00258C Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258C $33.63

13-8

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $24.30

14

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $15.13

14

DA63-06953A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-06953A $45.65

14

DA97-12686F Samsung Refrigerator Right Vegeta Backorder SMG DA97-12686F $165.72

15

DA63-06952A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-06952A $45.65

15

DA97-08458G Samsung Refrigerator Pipe Connect Backorder SMG DA97-08458G $96.65

15

DA97-11291B Samsung Refrigerator Right Slide Backorder SMG DA97-11291B $51.82

16

DA97-12689A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-12689A $244.04

16-1

DA64-02235A Samsung Refrigerator Pantry Shelf Backorder SMG DA64-02235A $49.01

17

Refrigerator pantry shelf slide rail cover SMG DA97-12635A Contact Us For Availability

18

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $50.01

19

DA92-00483B Samsung Refrigerator Inverter PCB In Stock SMG DA92-00483B $268.68

19

DA97-12637A Samsung Refrigerator Pantry Slide Backorder SMG DA97-12637A $110.88

19-1

DA63-06910A Samsung Refrigerator Slide Pantry Backorder SMG DA63-06910A $47.57

19-2

DA63-06911A Samsung Refrigerator Pantry Slide Backorder SMG DA63-06911A $51.88

20

DA92-00648A Samsung Refrigerator Main Printed Backorder SMG DA92-00648A $349.69

20

DA97-06324C Samsung Refrigerator Motor Damper In Stock SMG DA97-06324C $127.14

20-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $183.59

20-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $35.34

21

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $7.01

21-1

DA61-06186B Samsung Refrigerator Drain Plate In Stock SMG DA61-06186B $51.41

21-2

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $6.47

21-3

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $35.27

21-5

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $111.97

21-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $10.26

21-7

DA61-03683A Samsung Refrigerator Sensor Fixer Backorder SMG DA61-03683A $1.69

21-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.69

22

DA97-12608A Samsung Refrigerator Evaporator C In Stock SMG DA97-12608A $196.79

22-2

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $19.45

23

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $289.90

23-1

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $216.29

23-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $88.43

23-3

DA96-00682D Samsung Refrigerator Auger Motor In Stock SMG DA96-00682D $104.21

23-6

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $114.88

24

DA82-01396A Samsung Refrigerator Ice Tray Mak Backorder SMG DA82-01396A $218.40

24

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $37.30

24-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $6.47

24-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $4.33

24-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $3.24

25

DA97-12634A Samsung Refrigerator Pantry Case Backorder SMG DA97-12634A $202.80

25-4

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $14.58

26

DA27-00022B Samsung Refrigerator Coil Filter In Stock SMG DA27-00022B $142.38

26

DA97-12654A Samsung Refrigerator Cap Angle As Backorder SMG DA97-12654A $2.59

27

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $26.25

28

DA97-00209Z Samsung Refrigerator Water Pipe F In Stock SMG DA97-00209Z $95.28

28-1

DA47-00192E Samsung Refrigerator Ice Maker Fi In Stock SMG DA47-00192E $63.62

28-3

DA73-00134D Samsung Refrigerator Water Pipe A Backorder SMG DA73-00134D $59.52

30

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $22.68

31

DA32-00029U Samsung Refrigerator Temperature In Stock SMG DA32-00029U $37.63

32

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $4.33

34

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $71.04

37-2

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $1.69

38

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $8.64

39

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

40

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $47.62

42

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $23.76

46

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $146.34

1310

DA97-11283E Samsung Refrigerator Water Tank A Backorder SMG DA97-11283E $120.50

2242

DA81-06013A Samsung Refrigerator Evaporator F In Stock SMG DA81-06013A $135.90

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.69

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.69

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.69

DA66-00437F Samsung Gear Shaft Refrigerator Backorder SMG DA66-00437F $65.08

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $16.21

DA97-12815B Samsung Refrigerator Evaporator F In Stock SMG DA97-12815B $131.82

DA97-13386A Samsung Refrigerator Roller Assem Backorder SMG DA97-13386A $13.11

DA97-14447A Samsung Refrigerator Roller Assem Backorder SMG DA97-14447A $20.52
