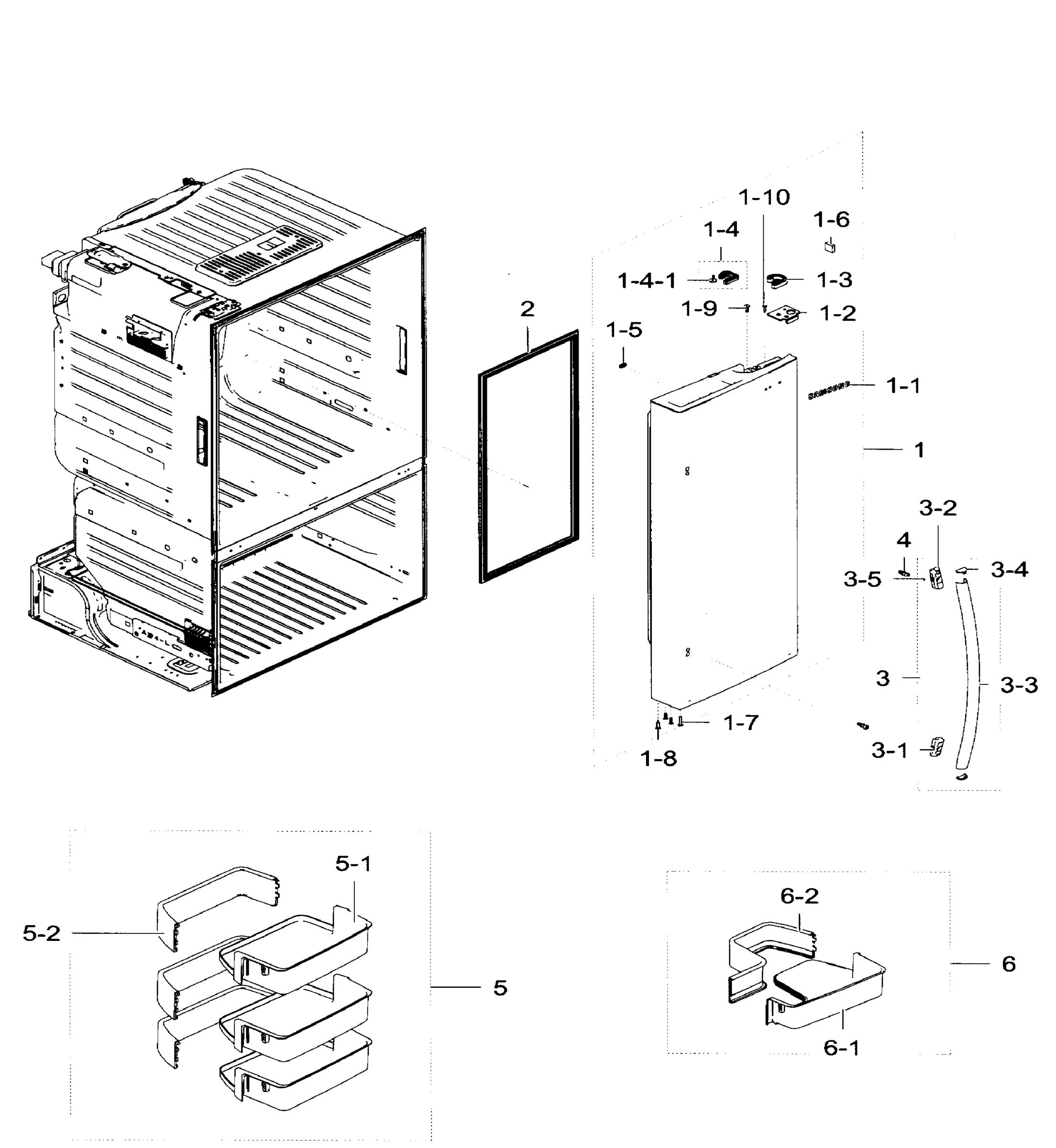

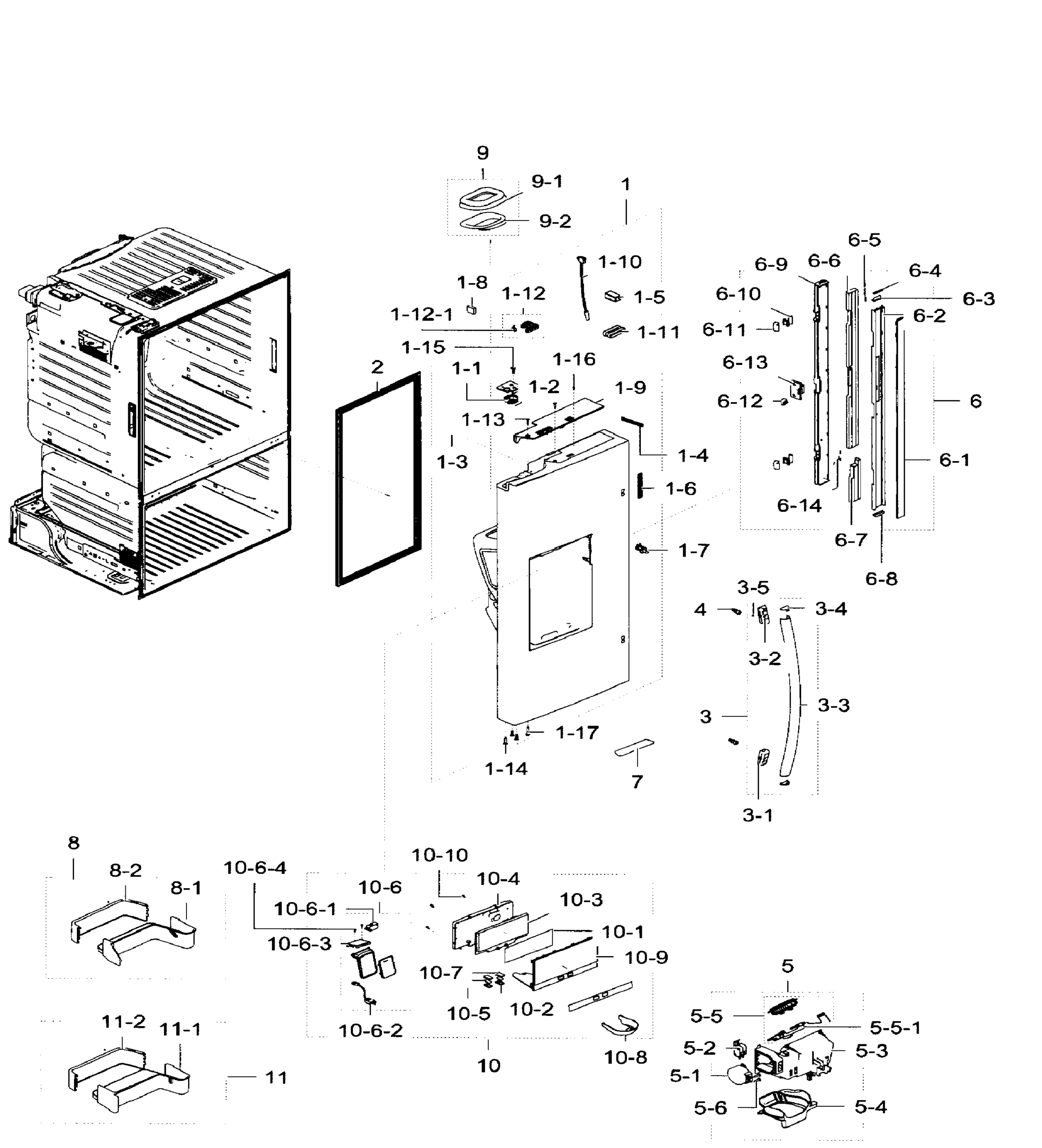

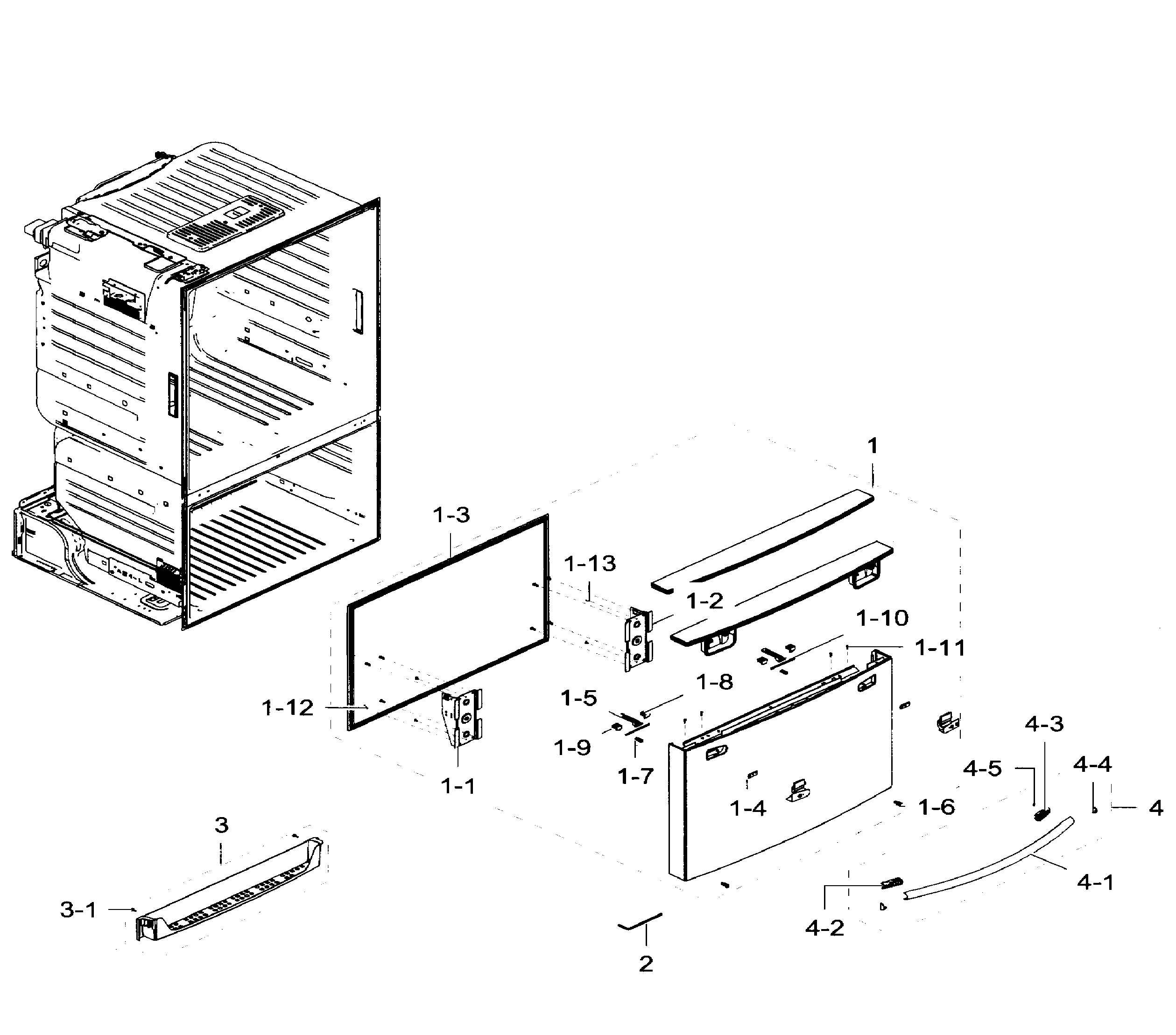

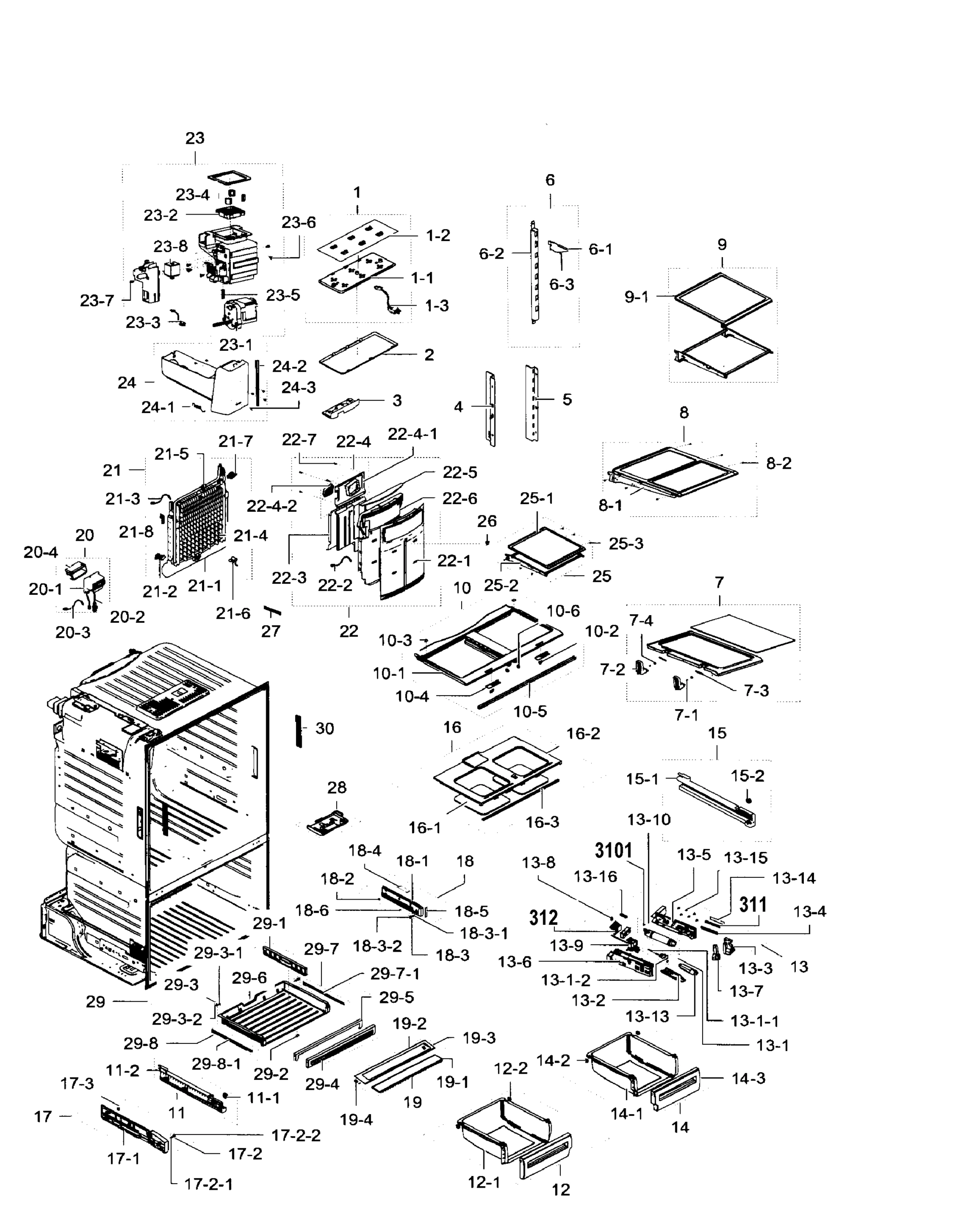

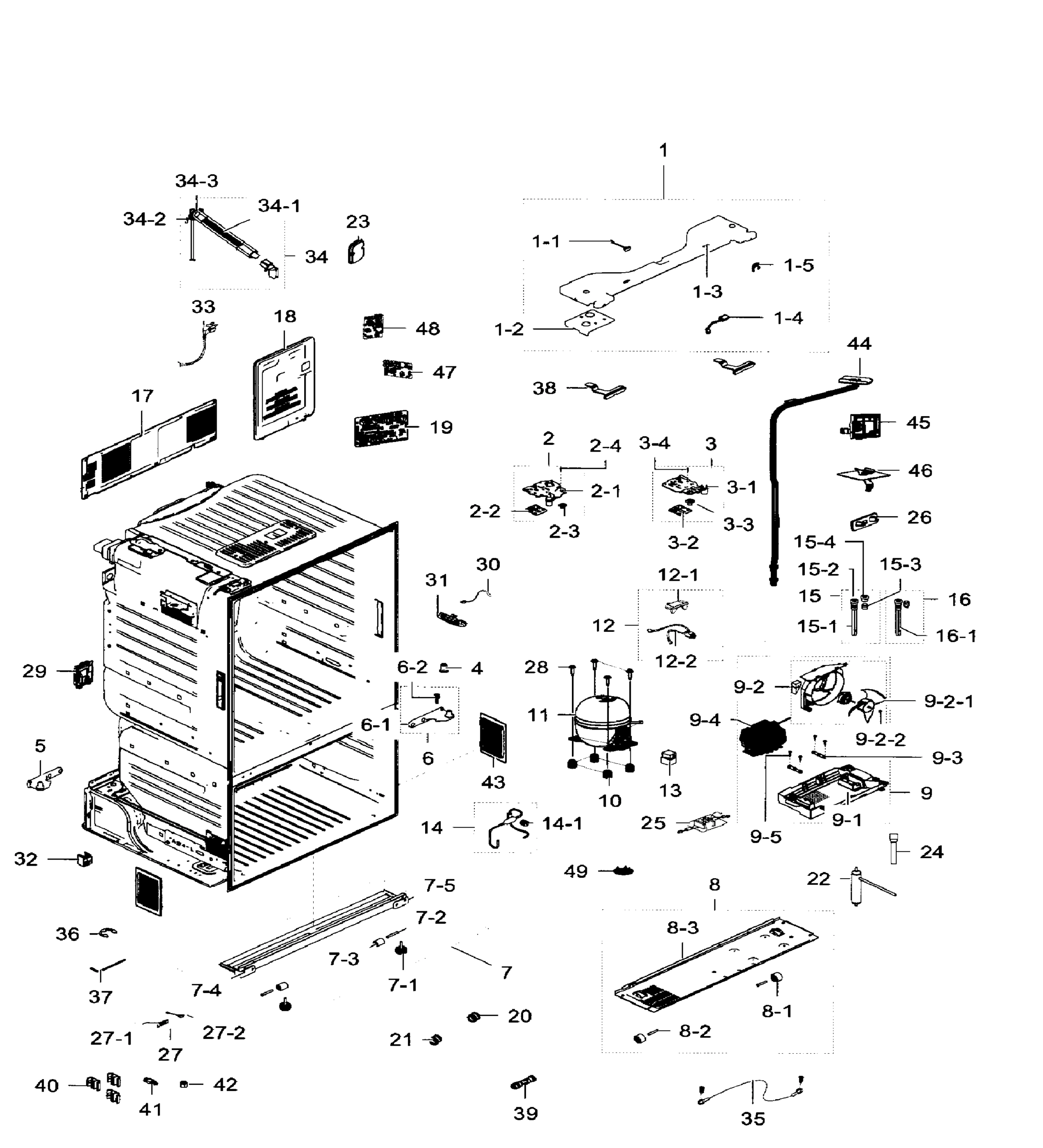

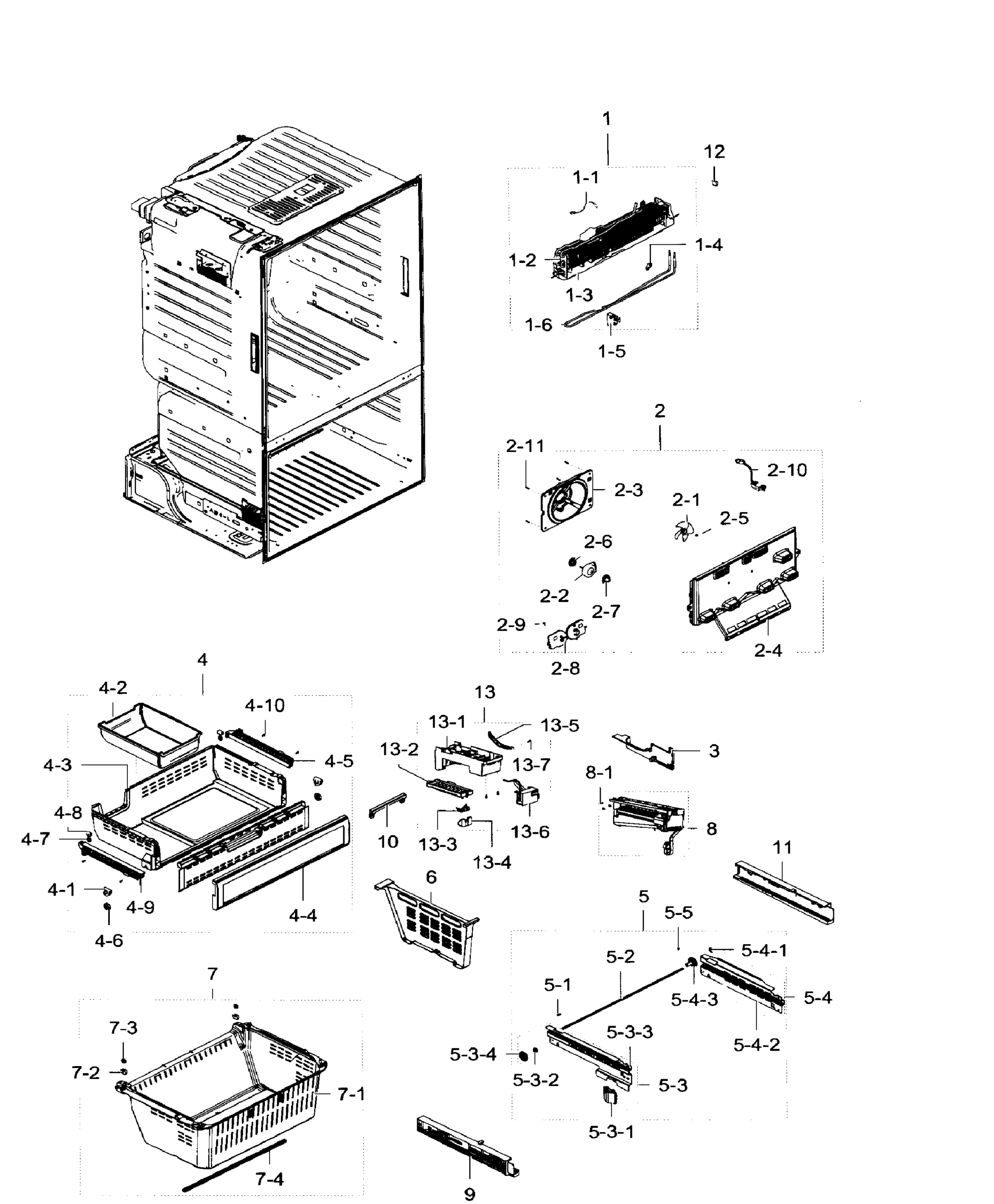

Model Samsung RF28HFEDTSR/AA-05 Refrigerator – Common Parts &amp; Diagrams

1

DA96-00632C Samsung Refrigerator Evaporator A Backorder SMG DA96-00632C $302.70

1

Refrigerator door assembly, right SMG DA91-04158A Contact Us For Availability

1-1

DA34-00043A Samsung Refrigerator Switch Reed- Backorder SMG DA34-00043A $29.35

1-1

DA61-03153B Samsung Refrigerator Front Hanger Backorder SMG DA61-03153B $92.17

1-1

DA64-04021C Samsung Refrigerator Mascot Assem Backorder SMG DA64-04021C $27.87

1-2

DA61-03155B Samsung Refrigerator Hanger Rail Backorder SMG DA61-03155B $102.60

1-2

DA61-08196A Samsung Refrigerator Door Stopper Backorder SMG DA61-08196A $32.31

1-2

DA61-08227A Samsung Refrigerator Hinge Cover Backorder SMG DA61-08227A $17.41

1-3

DA61-02383E Samsung Refrigerator Door Closing In Stock SMG DA61-02383E $5.97

1-3

DA64-04477B Samsung Refrigerator Table Top As Backorder SMG DA64-04477B $79.71

1-3

DA97-12522J Samsung Refrigerator Freezer Door Backorder SMG DA97-12522J $230.30

DA41-00676G Samsung Refrigerator LED Lamp PBA In Stock SMG DA41-00676G $50.08

DA61-06182A Samsung Refrigerator Freezer Sens Backorder SMG DA61-06182A $9.45

DA61-06658A Samsung Refrigerator Reinforcemen In Stock SMG DA61-06658A $3.48

DA96-00962A Samsung Refrigerator Reed Switch Backorder SMG DA96-00962A $18.92

DA97-12625A Samsung Refrigerator Auto Close L In Stock SMG DA97-12625A $19.90

1-5

DA61-03769A Samsung Refrigerator Door Magnet In Stock SMG DA61-03769A $2.49

1-5

DA61-05274A Samsung Refrigerator Door Switch Backorder SMG DA61-05274A $10.46

1-5

DA61-08234A Samsung Refrigerator Slider Assem Backorder SMG DA61-08234A $4.49

1-6

DA47-00318M Samsung Refrigerator Metal Sheath Backorder SMG DA47-00318M $144.67

1-6

DA63-05524A Samsung Refrigerator Door LED Cap Backorder SMG DA63-05524A $55.11

1-7

6001-001377 Samsung Refrigerator Machine Scre Backorder SMG 6001-001377 $1.18

1-7

DA34-00066C Samsung Refrigerator Door Interlo In Stock SMG DA34-00066C $20.92

1-7

DA61-04335A Samsung Refrigerator Handle Sprin Backorder SMG DA61-04335A $1.50

1-8

DA61-05899A Samsung Refrigerator Shaft Fixer In Stock SMG DA61-05899A $1.50

1-8

DA63-40294A Samsung Refrigerator Stopper Grom Backorder SMG DA63-40294A $1.18

1-9

DA61-05930A Samsung Refrigerator Fixer Shaft In Stock SMG DA61-05930A $2.00

1-10

DA32-00034B Samsung Refrigerator Humidity Sen Backorder SMG DA32-00034B $87.38

1-10

DA66-00579A Samsung Refrigerator Freezer Hand Backorder SMG DA66-00579A $8.56

1-11

DA63-04825A Samsung Refrigerator Grommet Chas Backorder SMG DA63-04825A $2.98

1-13

6002-000217 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000217 $1.18

1-13

6002-001122 Samsung Refrigerator Tapping Scre In Stock SMG 6002-001122 $1.18

2

DA63-07816A Samsung Refrigerator Lamp Cover O Backorder SMG DA63-07816A $32.74

2

DA97-05253W Samsung Refrigerator Door Gasket In Stock SMG DA97-05253W $280.00

2

DA97-08541A Samsung Refrigerator Evaporator C In Stock SMG DA97-08541A $368.90

2

DA97-12573A Samsung Refrigerator Upper Left H Backorder SMG DA97-12573A $73.44

2-1

DA61-08309A Samsung Refrigerator Door Hinge A Backorder SMG DA61-08309A $59.55

2-1

Refrigerator evaporator fan blade SMG DA31-00124A Contact Us For Availability

2-2

DA31-00146H Samsung Refrigerator Freezer Evap In Stock SMG DA31-00146H $144.67

2-3

DA66-00950A Samsung Refrigerator Left Auto Cl Backorder SMG DA66-00950A $5.48

2-6

DA63-01146A Samsung Refrigerator Rear Motor G Backorder SMG DA63-01146A $4.49

2-7

DA63-01808A Samsung Refrigerator Front Motor Backorder SMG DA63-01808A $3.97

2-10

DA96-00042D Samsung Refrigerator Motor Harnes Backorder SMG DA96-00042D $19.90

3

DA61-04285A Samsung Refrigerator French Guide Backorder SMG DA61-04285A $6.96

3

DA63-06894A Samsung Refrigerator Ice Maker Wi Backorder SMG DA63-06894A $13.44

3

DA97-12574A Samsung Refrigerator Upper Right Backorder SMG DA97-12574A $67.16

3

DA97-12963A Samsung Refrigerator Freezer Guar Backorder SMG DA97-12963A $79.71

3

Refrigerator door handle SMG DA97-12714C Contact Us For Availability

3

Refrigerator door handle SMG DA97-12715C Contact Us For Availability

3-1

DA61-08228A Samsung Refrigerator Handle Suppo Backorder SMG DA61-08228A $10.95

3-1

DA63-02750A Samsung Refrigerator Cover Slide Backorder SMG DA63-02750A $2.00

3-2

DA61-08246A Samsung Refrigerator Upper Handle Backorder SMG DA61-08246A $26.86

3-3

DA66-00951A Samsung Refrigerator Auto Close D Backorder SMG DA66-00951A $4.98

3-4

DA67-02788A Samsung Refrigerator Handle Suppo Backorder SMG DA67-02788A $12.93

4

DA61-03734A Samsung Refrigerator Door Handle In Stock SMG DA61-03734A $3.41

4

DA63-06410A Samsung Refrigerator Door Hinge B In Stock SMG DA63-06410A $2.00

4

DA97-12712C Samsung Refrigerator Freezer Door Backorder SMG DA97-12712C $164.87

4-1

DA61-04154A Samsung Refrigerator Upper Freeze Backorder SMG DA61-04154A $8.95

4-2

DA61-05300A Samsung Refrigerator Ice Cube Cas Backorder SMG DA61-05300A $68.62

4-2

DA61-08229A Samsung Refrigerator Freezer Hand In Stock SMG DA61-08229A $11.44

4-3

DA61-08247A Samsung Refrigerator Freezer Door In Stock SMG DA61-08247A $28.36

4-4

DA67-02787A Samsung Refrigerator Freezer Door In Stock SMG DA67-02787A $11.94

4-5

Refrigerator door handle set screw SMG 6009-001526 No Longer Available

4-6

DA66-00554A Samsung Refrigerator Upper Freeze Backorder SMG DA66-00554A $5.48

4-8

DA71-20277A Samsung Refrigerator Fixer-Roller Backorder SMG DA71-20277A $1.50

4-9

DA61-05186A Samsung Refrigerator Upper Tray G Backorder SMG DA61-05186A $17.91

5

DA97-13805B Samsung Refrigerator Bin Assembly Backorder SMG DA97-13805B $164.05

5

DA97-13829C Samsung Refrigerator Ice Route Gu In Stock SMG DA97-13829C $166.99

5

DA97-14383A Samsung Refrigerator Lower Hanger Backorder SMG DA97-14383A $331.35

5-1

DA31-00079D Samsung Refrigerator Geared Dispe Backorder SMG DA31-00079D $96.33

5-2

DA66-00437B Samsung Refrigerator Gear Shaft Backorder SMG DA66-00437B $35.84

5-3

DA97-13661C Samsung Refrigerator Left Rail As In Stock SMG DA97-13661C $190.13

5-4

DA97-13662A Samsung Refrigerator Lower Slide Backorder SMG DA97-13662A $169.06

5-5

DA97-05368A Samsung Refrigerator Ice Route Co Backorder SMG DA97-05368A $49.30

5-31

DA34-00047B Samsung Refrigerator Pressure Coo Backorder SMG DA34-00047B $4.28

5-34

Refrigerator freezer drawer gear SMG DA66-00751A Contact Us For Availability

5-43

Refrigerator gear rail SMG DA66-00750A Contact Us For Availability

5-44

DA67-02795C Samsung Refrigerator Shaft Hole C Backorder SMG DA67-02795C $1.18

5-51

DA63-04647A Samsung Refrigerator Ice Route Co Backorder SMG DA63-04647A $18.92

6

DA97-12612A Samsung Refrigerator Mid Right Hi Backorder SMG DA97-12612A $91.46

6

DA97-12624A Samsung Refrigerator French Door In Stock SMG DA97-12624A $164.81

6

DA97-13804B Samsung Refrigerator Assembly Gua Backorder SMG DA97-13804B $101.45

6-2

6011-001442 Samsung Refrigerator Socket Bolt Backorder SMG 6011-001442 $1.50

6-4

DA63-06959A Samsung Refrigerator Upper French Backorder SMG DA63-06959A $5.48

6-10

DA61-08305A Samsung Refrigerator French Door In Stock SMG DA61-08305A $5.97

6-11

DA67-01650A Samsung Refrigerator French End C Backorder SMG DA67-01650A $4.98

6-12

DA67-01701A Samsung Refrigerator Cap Case Fre Backorder SMG DA67-01701A $4.98

6-13

DA63-03454B Samsung Refrigerator Center Hinge Backorder SMG DA63-03454B $7.47

7

DA63-07931D Samsung Refrigerator Dispenser Tr Backorder SMG DA63-07931D $72.33

7

DA97-06276E Samsung Refrigerator Drawer Tray Backorder SMG DA97-06276E $163.28

7

DA97-14318A Samsung Refrigerator Shelf Assemb Backorder SMG DA97-14318A $173.90

7-1

DA61-00805F Samsung Refrigerator Black Front Backorder SMG DA61-00805F $6.96

7-2

DA61-01920A Samsung Refrigerator Front Caster In Stock SMG DA61-01920A $3.97

7-3

DA61-04702A Samsung Refrigerator Front Caster In Stock SMG DA61-04702A $8.46

7-4

DA63-06389E Samsung Refrigerator Front Left C Backorder SMG DA63-06389E $3.97

7-5

DA63-06405D Samsung Refrigerator Front Right Backorder SMG DA63-06405D $3.97

8

DA97-15217D Samsung Refrigerator Ice Maker As Backorder SMG DA97-15217D $129.25

8-1

DA61-04703A Samsung Refrigerator Rear Caster In Stock SMG DA61-04703A $6.96

8-2

DA66-00649B Samsung Refrigerator Caster Shaft In Stock SMG DA66-00649B $5.48

9

DA63-03414A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03414A $41.15

9

DA97-10634B Samsung Refrigerator Shelf Slide Backorder SMG DA97-10634B $141.68

9

DA97-12594A Samsung Refrigerator Ice Chute Ca In Stock SMG DA97-12594A $62.70

9-1

DA63-06897A Samsung Refrigerator Drain Water Backorder SMG DA63-06897A $32.31

9-1

DA63-06945A Samsung Refrigerator Ice Chute Ca In Stock SMG DA63-06945A $69.40

9-2

DA67-03312A Samsung Refrigerator Ice Cap Chut Backorder SMG DA67-03312A $11.94

9-2

DA97-15765A Samsung Refrigerator Motor Circui Backorder SMG DA97-15765A $126.24

9-4

Refrigerator condenser coil SMG DA97-08464F Contact Us For Availability

9-21

DA31-00320A Samsung Refrigerator Fan Blade As Backorder SMG DA31-00320A $24.37

10

Samsung refrigerator crisper drawer cover ass SMG DA97-08511B No Longer Available

10

DA97-13809G Samsung Refrigerator Dispenser Co In Stock SMG DA97-13809G $364.10

10-3

DA61-03166A Samsung Refrigerator Vegetable Co Backorder SMG DA61-03166A $1.18

10-3

DA92-00597A Samsung Refrigerator LED Display Backorder SMG DA92-00597A $294.29

10-4

DA63-06377A Samsung Refrigerator Rear PCB Cov Backorder SMG DA63-06377A $10.95

10-5

DA41-00217A Samsung Refrigerator Printed Circ In Stock SMG DA41-00217A $43.36

10-5

DA61-04292A Samsung Refrigerator Vegetable Re Backorder SMG DA61-04292A $155.83

10-6

DA97-14447B Samsung Refrigerator Latour Rolle Backorder SMG DA97-14447B $18.40

10-6

Refrigerator dispenser lever SMG DA97-12628H Contact Us For Availability

10-9

DA97-13808F Samsung Refrigerator Dispenser Co Backorder SMG DA97-13808F $173.31

11

DA63-03415A Samsung Refrigerator Low Rail Cov Backorder SMG DA63-03415A $51.32

11

DA97-14302A Samsung Refrigerator Guard Assemb Backorder SMG DA97-14302A $100.51

11

MKV190CL2B/ASH Samsung Refrigerator Compresso Backorder SMG MKV190CL2B/ASH $508.92

12

DA72-60040W Samsung Refrigerator Seal-Cutt Ru Backorder SMG DA72-60040W $1.50

12

DA97-08438D Samsung Refrigerator Vegetable Cr Backorder SMG DA97-08438D $196.41

12

DA97-10848N Samsung Refrigerator All Wire Com Backorder SMG DA97-10848N $64.60

12-1

DA34-00004D Samsung Refrigerator Compressor O In Stock SMG DA34-00004D $28.32

12-2

DA39-00154M Samsung Refrigerator Compressor W Backorder SMG DA39-00154M $23.95

13

DA63-01866A Samsung Refrigerator Compressor O Backorder SMG DA63-01866A $13.94

13

DA97-07603B Samsung Refrigerator Ice Maker Backorder SMG DA97-07603B $206.82

13-1

DA61-05227A Samsung Refrigerator Ice Maker Su Backorder SMG DA61-05227A $42.49

13-1

DA97-08006D Samsung Refrigerator White Case F Backorder SMG DA97-08006D $117.72

13-2

DA63-02284B Samsung Refrigerator Ice Cube Tra In Stock SMG DA63-02284B $33.25

13-3

DA63-02183A Samsung Refrigerator Sensor Cover In Stock SMG DA63-02183A $2.49

13-3

DA63-05406B Samsung Refrigerator Cover Filter Backorder SMG DA63-05406B $20.40

13-4

DA41-00519S Samsung Refrigerator LED Lamp PCB Backorder SMG DA41-00519S $59.55

13-4

DA61-01800A Samsung Refrigerator Ice Maker Fi In Stock SMG DA61-01800A $33.18

13-5

DA61-05435A Samsung Refrigerator Ice Maker Sh In Stock SMG DA61-05435A $5.97

13-6

DA59-00294B Samsung Refrigerator Ice Maker As In Stock SMG DA59-00294B $218.29

13-6

DA61-07497A Samsung Refrigerator Case Filter Backorder SMG DA61-07497A $39.83

13-7

DA67-02505B Samsung Refrigerator Tank Filter Backorder SMG DA67-02505B $9.45

13-8

DA62-03103A Samsung Refrigerator Gray Tube Fi Backorder SMG DA62-03103A $22.40

14

DA97-08437D Samsung Refrigerator Vegetable Dr Backorder SMG DA97-08437D $144.67

14

DA97-08458G Samsung Refrigerator Pipe Connect Backorder SMG DA97-08458G $89.02

15

DA97-11291A Samsung Refrigerator Right Vegeta In Stock SMG DA97-11291A $39.83

16

DA97-04049E Samsung Refrigerator Drain Cap As In Stock SMG DA97-04049E $28.76

16

DA97-08417A Samsung Refrigerator Pantry Shelf Backorder SMG DA97-08417A $230.30

16-1

DA62-01266E Samsung Refrigerator PVC Tube Backorder SMG DA62-01266E $3.97

16-1

DA64-02235A Samsung Refrigerator Pantry Shelf In Stock SMG DA64-02235A $45.14

16-2

DA67-02519A Samsung Refrigerator Pantry Shelf Backorder SMG DA67-02519A $141.00

17

DA97-11541A Samsung Refrigerator Pantry Rail Backorder SMG DA97-11541A $54.43

18

DA97-08442A Samsung Refrigerator Printed Circ Backorder SMG DA97-08442A $50.01

18

DA97-11542D Samsung Refrigerator Right Pantry Backorder SMG DA97-11542D $120.41

18-1

DA63-06520A Samsung Refrigerator Right Pantry Backorder SMG DA63-06520A $70.50

19

DA92-00593A Samsung Refrigerator Main Printed Backorder SMG DA92-00593A $94.00

19

Refrigerator drawer cover SMG DA97-06327A Contact Us For Availability

20

DA60-00280A Samsung Refrigerator Fitting-Lokr Backorder SMG DA60-00280A $6.46

20

DA97-06324C Samsung Refrigerator Motor Damper Backorder SMG DA97-06324C $128.90

20-2

DA31-00071G Samsung Refrigerator DC Motor Dam Backorder SMG DA31-00071G $185.67

20-3

DA32-00006R Samsung Refrigerator Defrost Sens In Stock SMG DA32-00006R $23.38

21-1

DA61-06186B Samsung Refrigerator Drain Plate Backorder SMG DA61-06186B $47.35

21-2

DA61-05835B Samsung Refrigerator Heater Fixer Backorder SMG DA61-05835B $5.97

21-3

DA32-10104N Samsung Refrigerator Temperature In Stock SMG DA32-10104N $24.89

21-5

DA47-00244U Samsung Refrigerator Defrost Heat In Stock SMG DA47-00244U $113.58

21-6

DA61-03644A Samsung Refrigerator Defrost Evap Backorder SMG DA61-03644A $9.45

21-7

DA61-03683A Samsung Refrigerator Sensor Fixer In Stock SMG DA61-03683A $1.50

21-8

DA61-05160A Samsung Refrigerator Fuse Holder In Stock SMG DA61-05160A $1.27

22

DA97-12608A Samsung Refrigerator Evaporator C Backorder SMG DA97-12608A $199.12

22-2

DA32-00011C Samsung Refrigerator Temperature In Stock SMG DA32-00011C $12.81

22-4

DA97-12815B Samsung Refrigerator Evaporator F In Stock SMG DA97-12815B $133.64

23

DA97-12540G Samsung Refrigerator Ice Maker Au In Stock SMG DA97-12540G $292.62

23-1

DA31-00105M Samsung Refrigerator Geared Auger Backorder SMG DA31-00105M $217.14

23-2

DA31-00070E Samsung Refrigerator DC Motor Box In Stock SMG DA31-00070E $89.72

23-3

DA96-00682D Samsung Refrigerator Auger Motor Backorder SMG DA96-00682D $105.70

23-8

DA74-40151G Samsung Refrigerator Ice Dispense Backorder SMG DA74-40151G $116.54

24

DA97-14474C Samsung Refrigerator Ice Bucket T In Stock SMG DA97-14474C $194.75

24-1

DA61-20124D Samsung Refrigerator Dispenser Sp Backorder SMG DA61-20124D $5.97

24-2

DA63-07185A Samsung Refrigerator Ice Bucket T Backorder SMG DA63-07185A $2.98

25

DA27-00022B Samsung Refrigerator Coil Filter In Stock SMG DA27-00022B $142.97

25-1

DA67-02014B Samsung Refrigerator Insert Fix S Backorder SMG DA67-02014B $89.37

26

DA97-12654A Samsung Refrigerator Cap Angle As Backorder SMG DA97-12654A $2.56

27

DA41-00519Q Samsung Refrigerator LED Lamp PBA Backorder SMG DA41-00519Q $25.87

27-2

DA34-00043J Samsung Refrigerator Door Reed Sw In Stock SMG DA34-00043J $23.38

28

DA97-14471A Samsung Refrigerator Case Lock As Backorder SMG DA97-14471A $50.88

29

DA97-08413B Samsung Refrigerator Assembly Cov Backorder SMG DA97-08413B $20.89

29-1

DA61-04290A Samsung Refrigerator Pantry Guide Backorder SMG DA61-04290A $125.73

29-3

DA97-05931A Samsung Refrigerator Freezer Shel Backorder SMG DA97-05931A $13.44

29-4

DA63-04275B Samsung Refrigerator Pantry Front Backorder SMG DA63-04275B $56.40

29-5

DA63-04276B Samsung Refrigerator Pantry Trim Backorder SMG DA63-04276B $40.28

29-7

DA97-11539A Samsung Refrigerator Right Pantry Backorder SMG DA97-11539A $54.43

29-8

DA97-11538A Samsung Refrigerator Left Pantry Backorder SMG DA97-11538A $66.81

30

DA32-00033C Samsung Refrigerator Temperature In Stock SMG DA32-00033C $22.89

31

DA63-05470B Samsung Refrigerator Sensor Cover Backorder SMG DA63-05470B $3.97

33

3903-001003 Samsung Refrigerator CBF Power Co In Stock SMG 3903-001003 $67.45

34

DA97-00209Z Samsung Refrigerator Water Pipe F Backorder SMG DA97-00209Z $96.68

34-1

DA47-00192E Samsung Refrigerator Ice Maker Fi In Stock SMG DA47-00192E $63.62

34-3

DA73-00134D Samsung Refrigerator Water Pipe A Backorder SMG DA73-00134D $54.83

36

DA60-00143B Samsung Refrigerator Housing Reta In Stock SMG DA60-00143B $1.18

38

DA61-04932A Samsung Refrigerator Door Hinge F Backorder SMG DA61-04932A $8.46

39

DA62-03914A Samsung Refrigerator Water Tube F In Stock SMG DA62-03914A $41.15

41

DA62-00305A Samsung Refrigerator PU Valve Fit In Stock SMG DA62-00305A $21.90

42

DA74-00070B Samsung Refrigerator Fitting Nut Backorder SMG DA74-00070B $7.97

47

DA92-00483B Samsung Refrigerator Inverter PCB In Stock SMG DA92-00483B $271.03

48

DA92-00486A Samsung Refrigerator Module Assem In Stock SMG DA92-00486A $148.29

1061

DA34-00011B Samsung Refrigerator Micro Switch Backorder SMG DA34-00011B $14.43

1062

DA96-00106G Samsung Refrigerator Dispenser Wi Backorder SMG DA96-00106G $50.45

1121

DA66-00440A Samsung Refrigerator Auto Close R Backorder SMG DA66-00440A $1.50

1311

DA62-02429G Samsung Refrigerator Water Line P Backorder SMG DA62-02429G $7.47

1316

DA60-00258C Samsung Refrigerator Tube Fitting Backorder SMG DA60-00258C $30.97

2242

DA31-00287A Samsung Refrigerator Box Fan BLDC Backorder SMG DA31-00287A $137.17

6002-000630 Samsung Refrigerator Tapping Scre Backorder SMG 6002-000630 $1.18

DA61-03154A Samsung Refrigerator Gear Fixer Backorder SMG DA61-03154A $1.50

DA61-04522A Samsung Refrigerator Clip Lock Fi Backorder SMG DA61-04522A $1.18

DA63-50192A Samsung Refrigerator Upper Hinge Backorder SMG DA63-50192A $1.50

DA97-05932A Samsung Refrigerator Roller Assem Backorder SMG DA97-05932A $14.92

DA97-14447A Samsung Refrigerator Roller Assem Backorder SMG DA97-14447A $18.92
