Model Huebsch ZG2109*-3013 Dryer – Common Parts & Diagrams

Service Door and Meter Case (Drawing 1 of 4)

Service Door and Meter Case (Drawing 2 of 4)

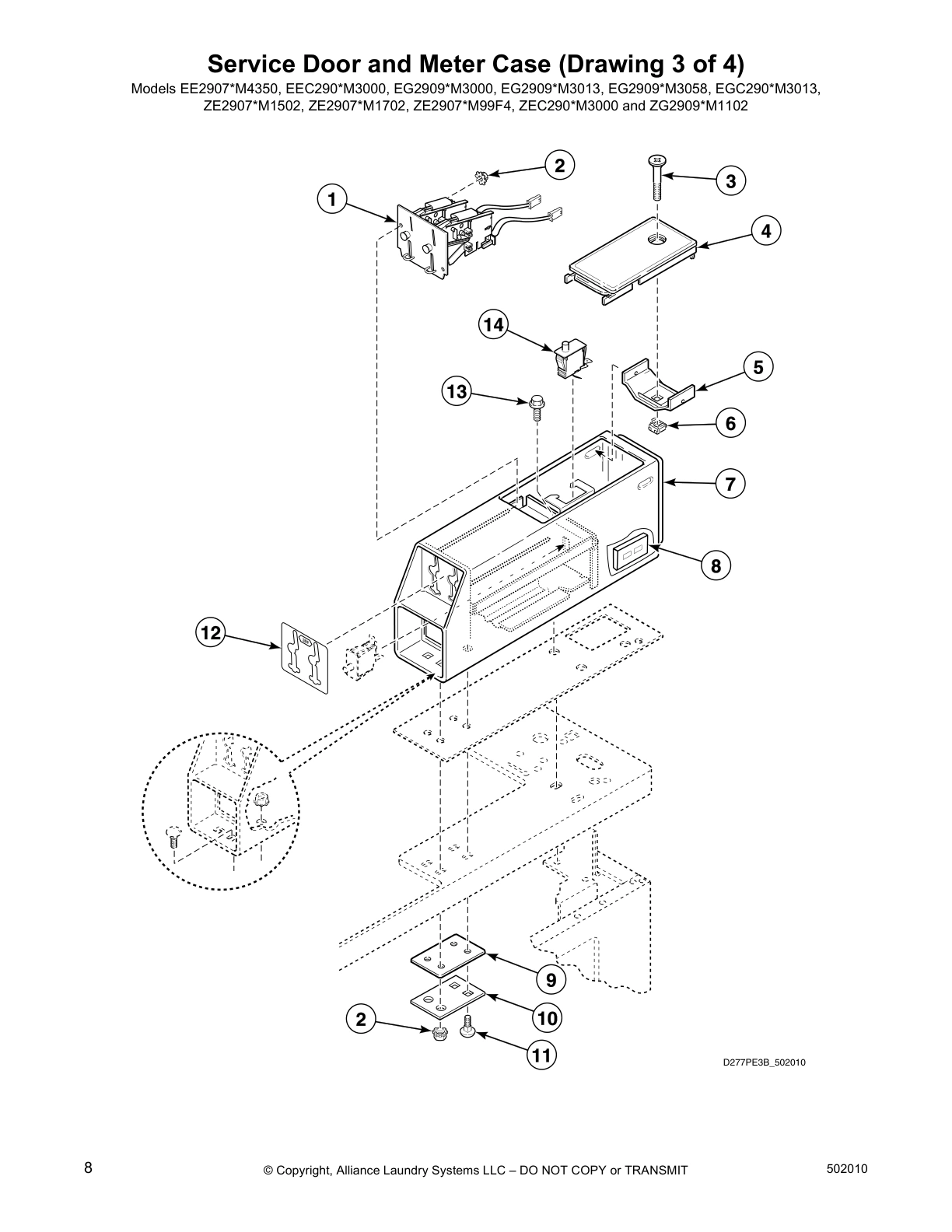

Service Door and Meter Case (Drawing 3 of 4)

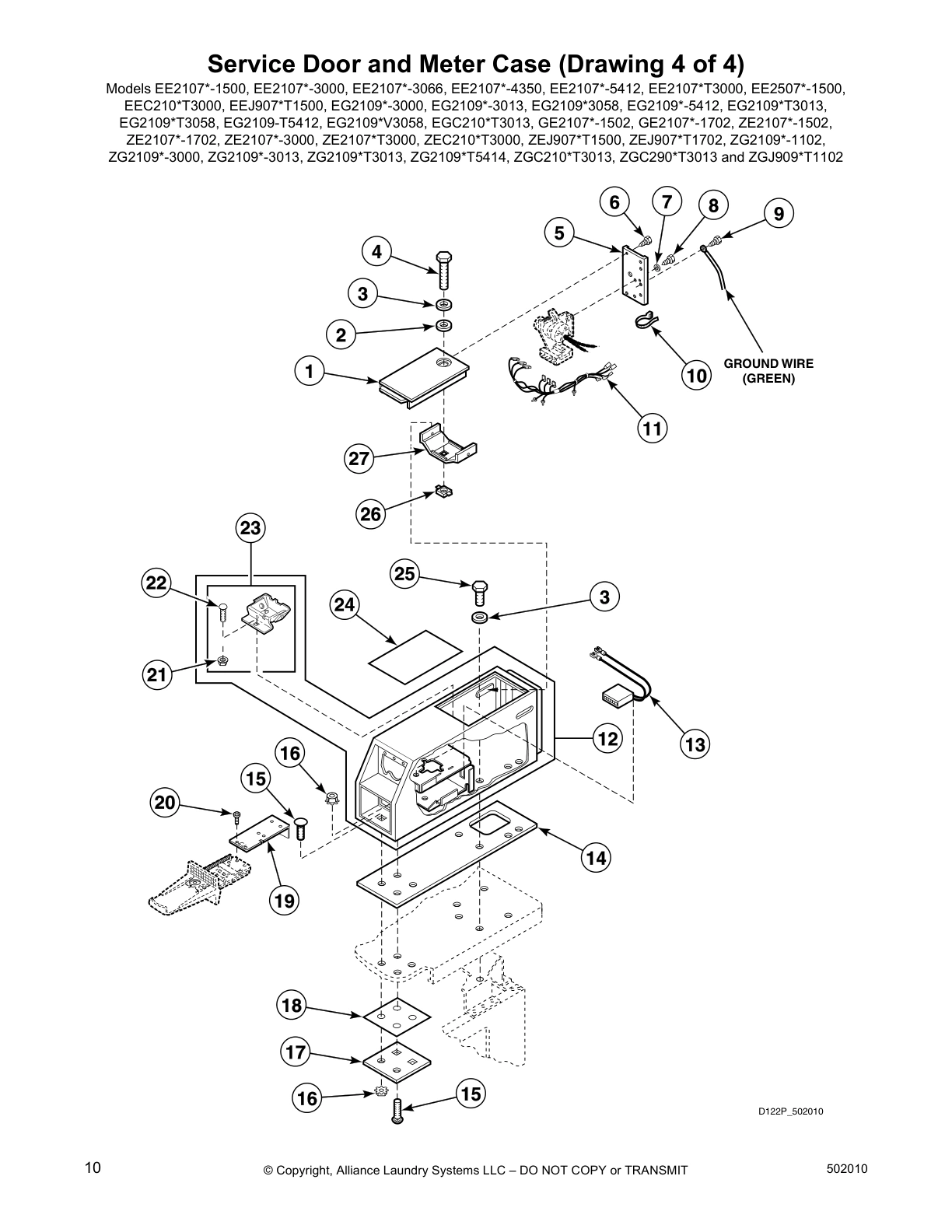

Service Door and Meter Case (Drawing 4 of 4)

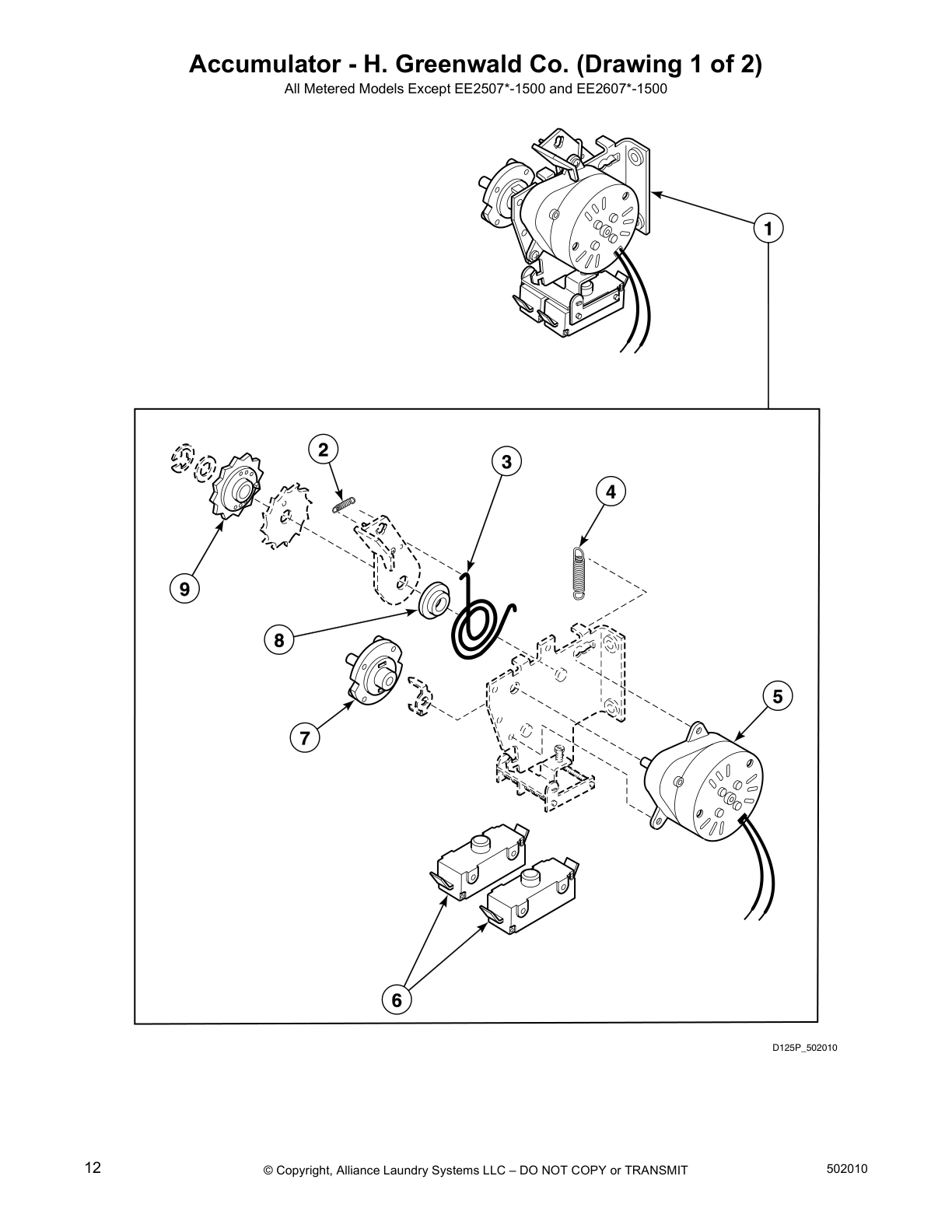

Accumulator - H. Greenwald Co. (Drawing 1 of 2)

Accumulator - H. Greenwald Co. (Drawing 2 of 2)

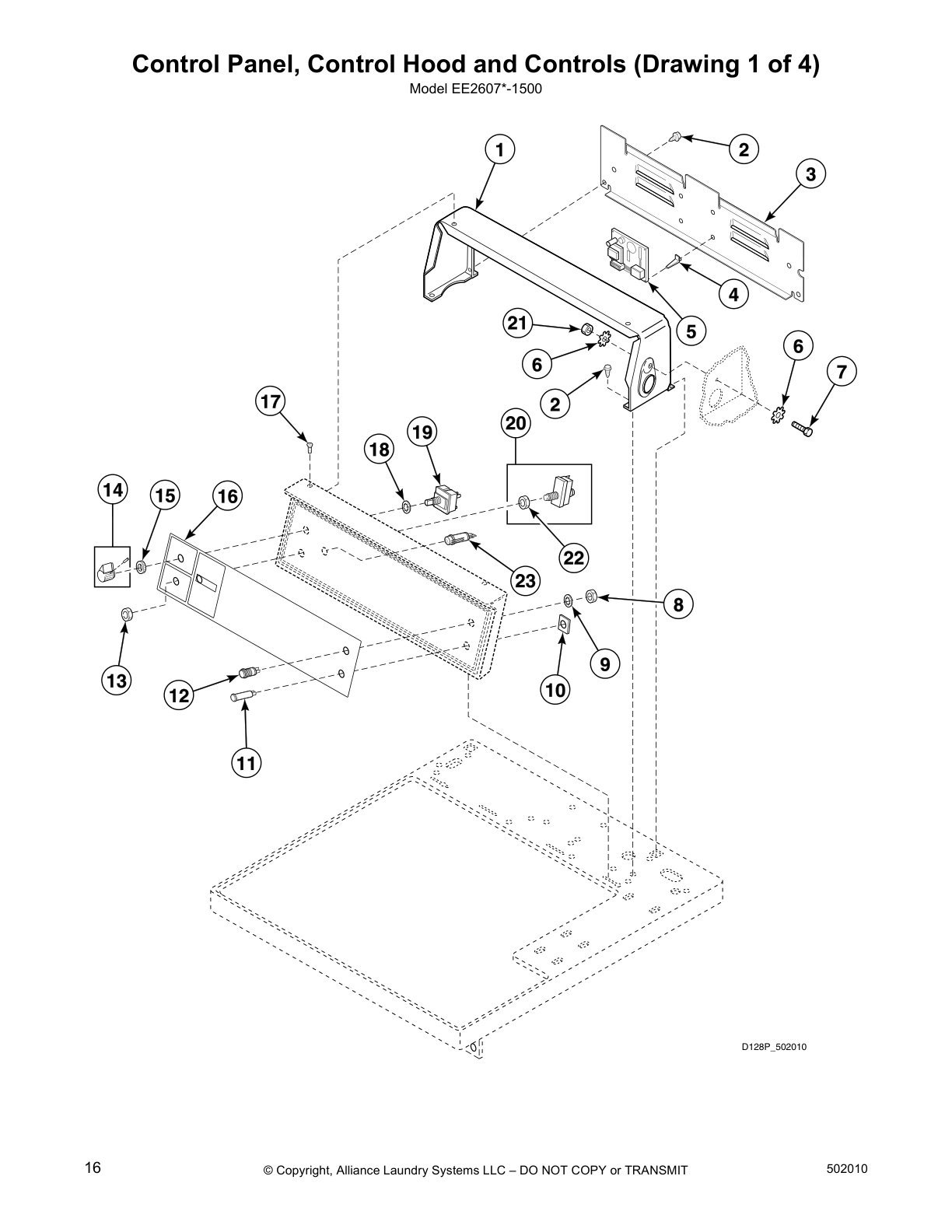

Control Panel, Control Hood and Controls (Drawing 1 of 4)

Control Panel, Control Hood and Controls (Drawing 2 of 4)

Control Panel, Control Hood and Controls (Drawing 3 of 4)

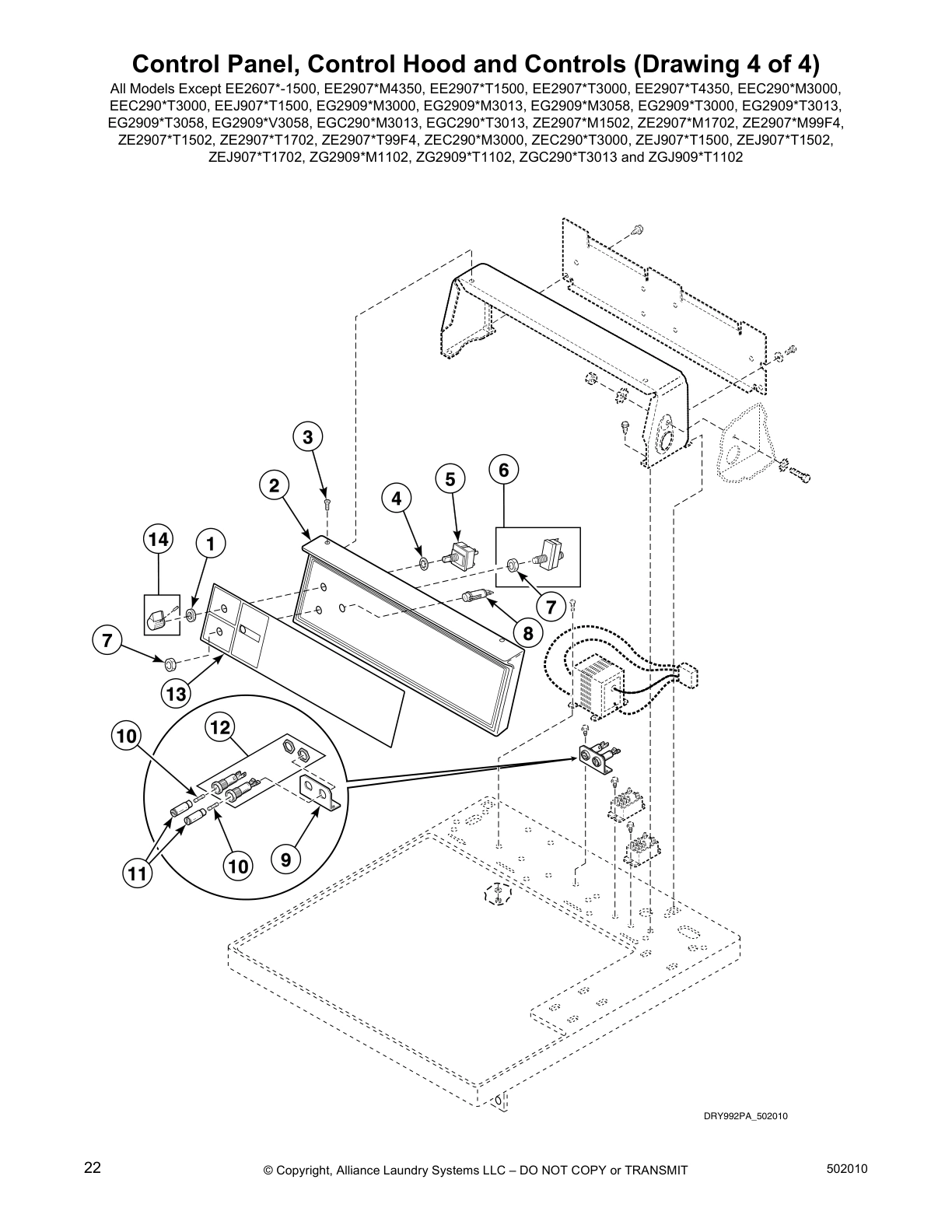

Control Panel, Control Hood and Controls (Drawing 4 of 4)

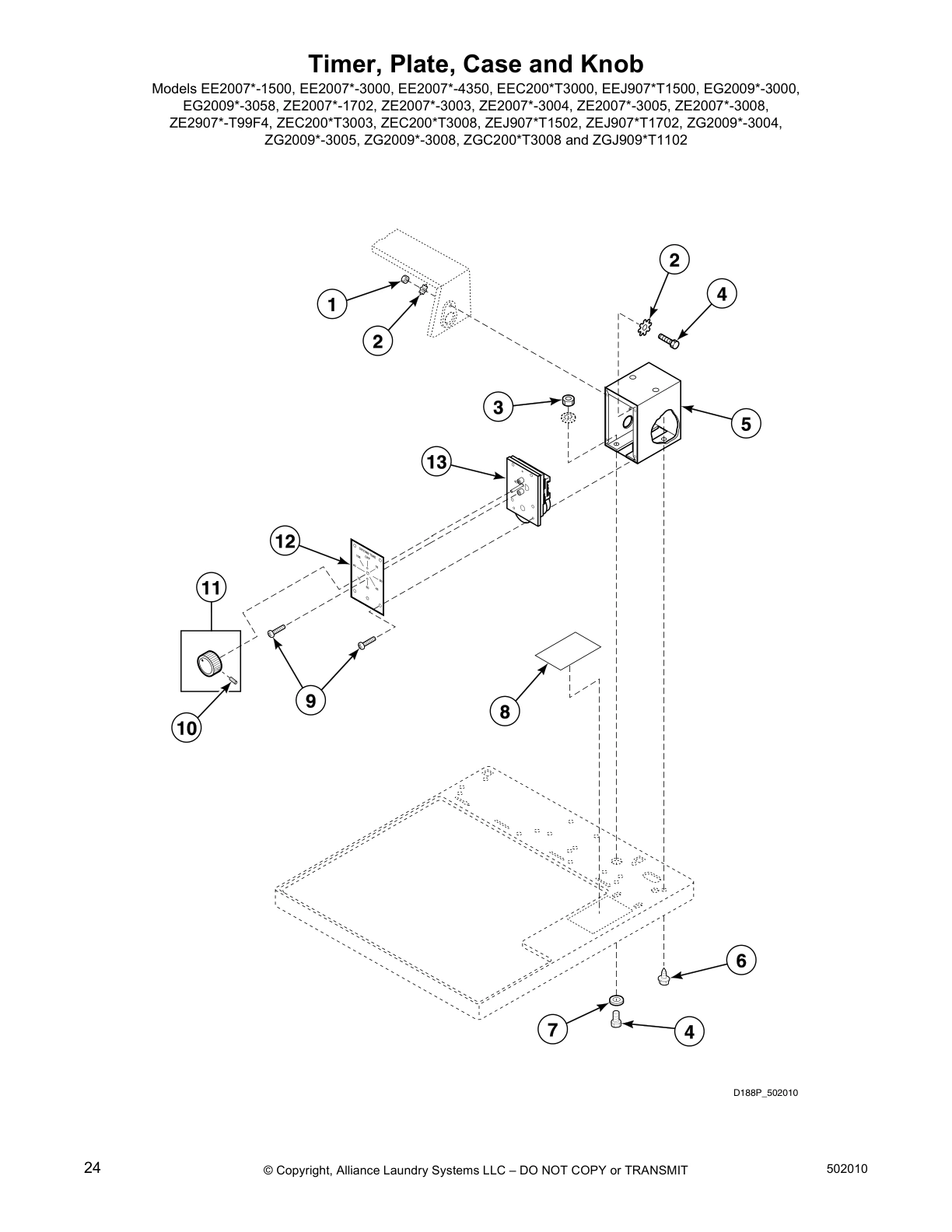

Timer, Plate, Case and Knob

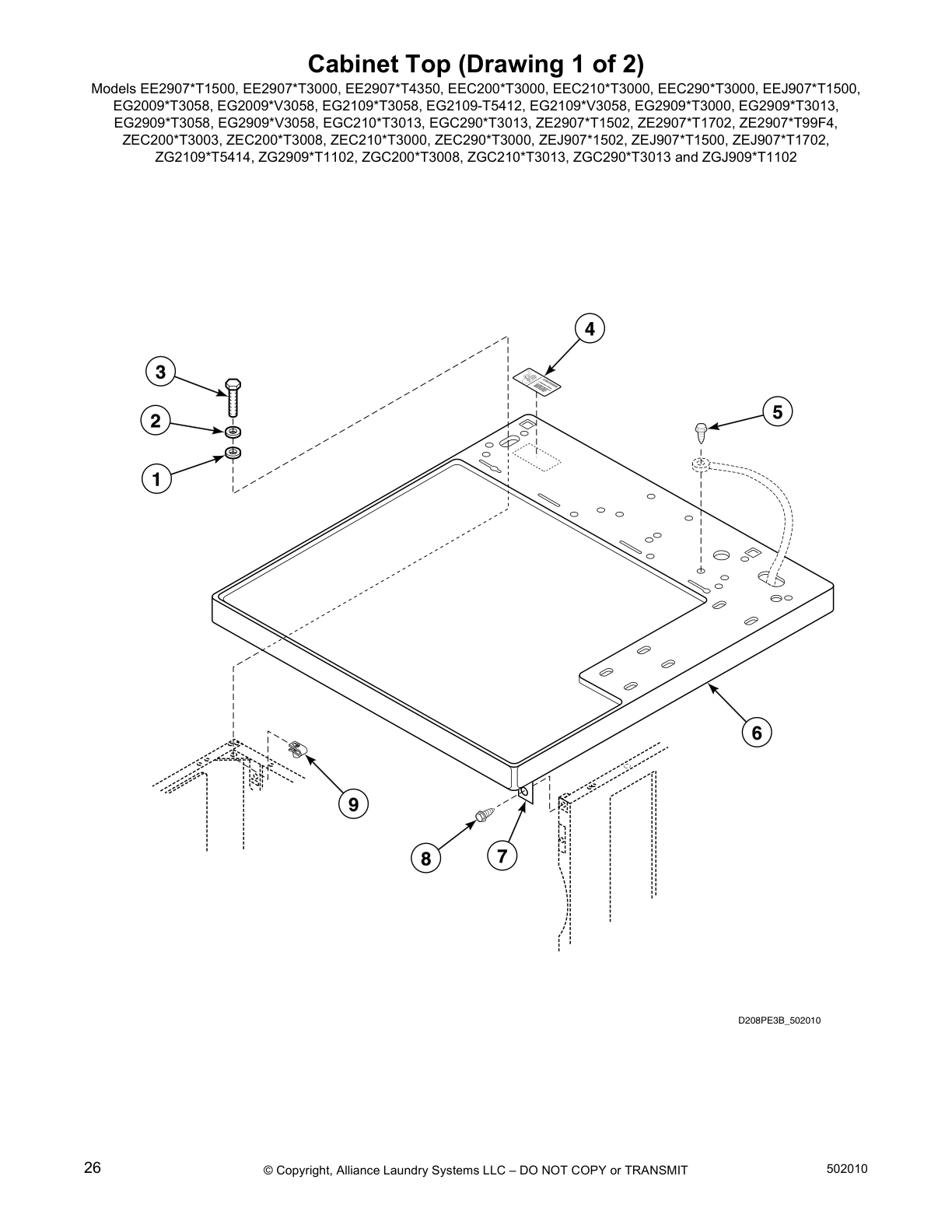

Cabinet Top (Drawing 1 of 2)

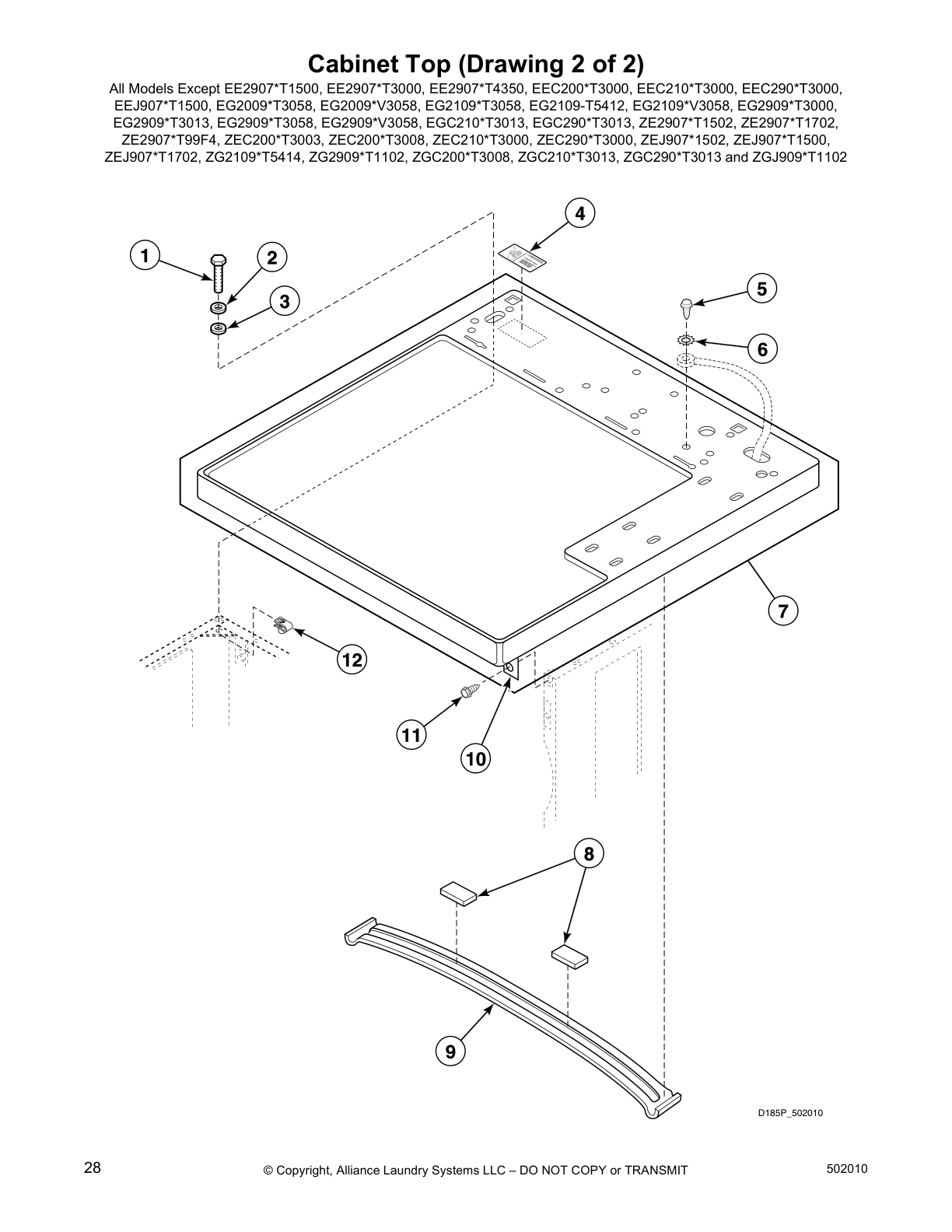

Cabinet Top (Drawing 2 of 2)

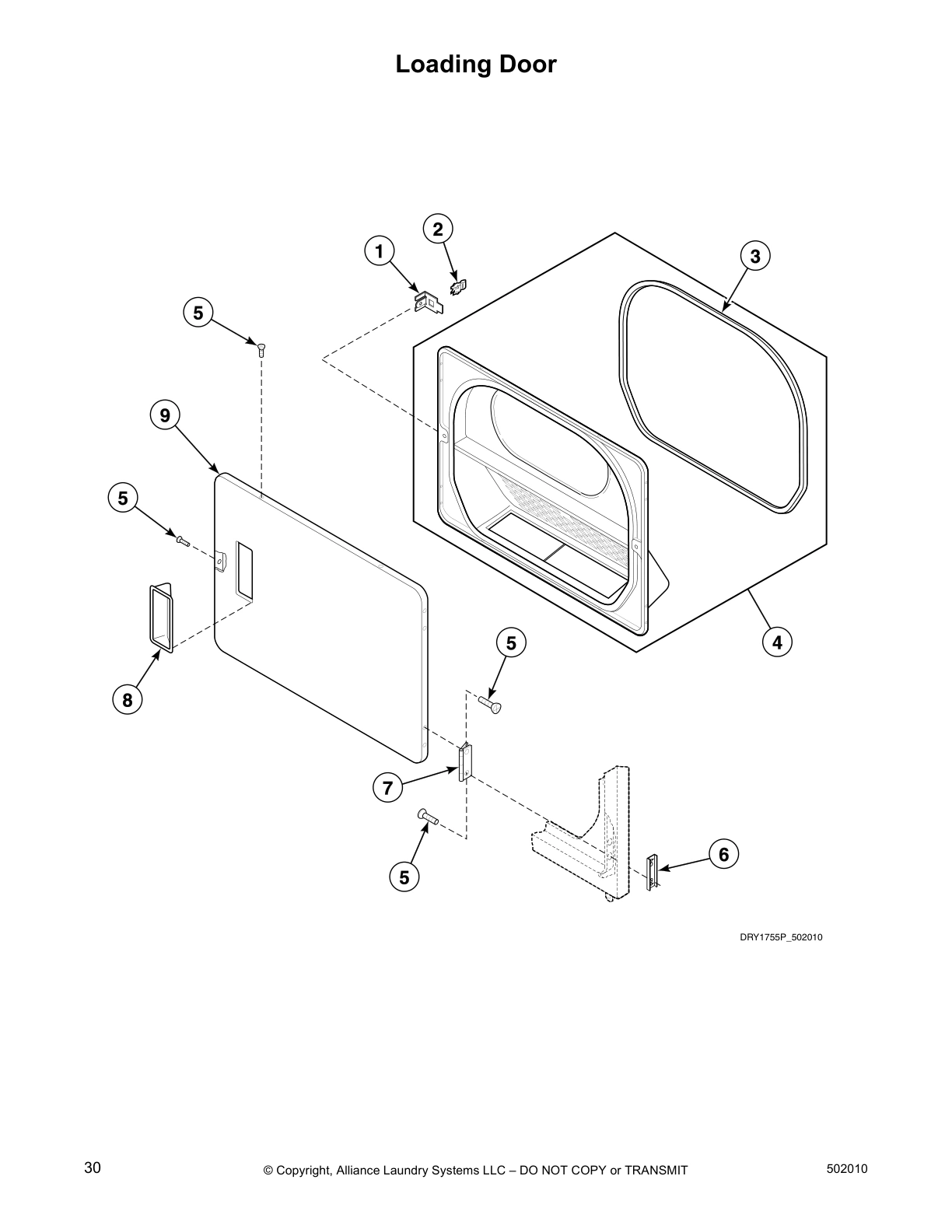

Loading Door

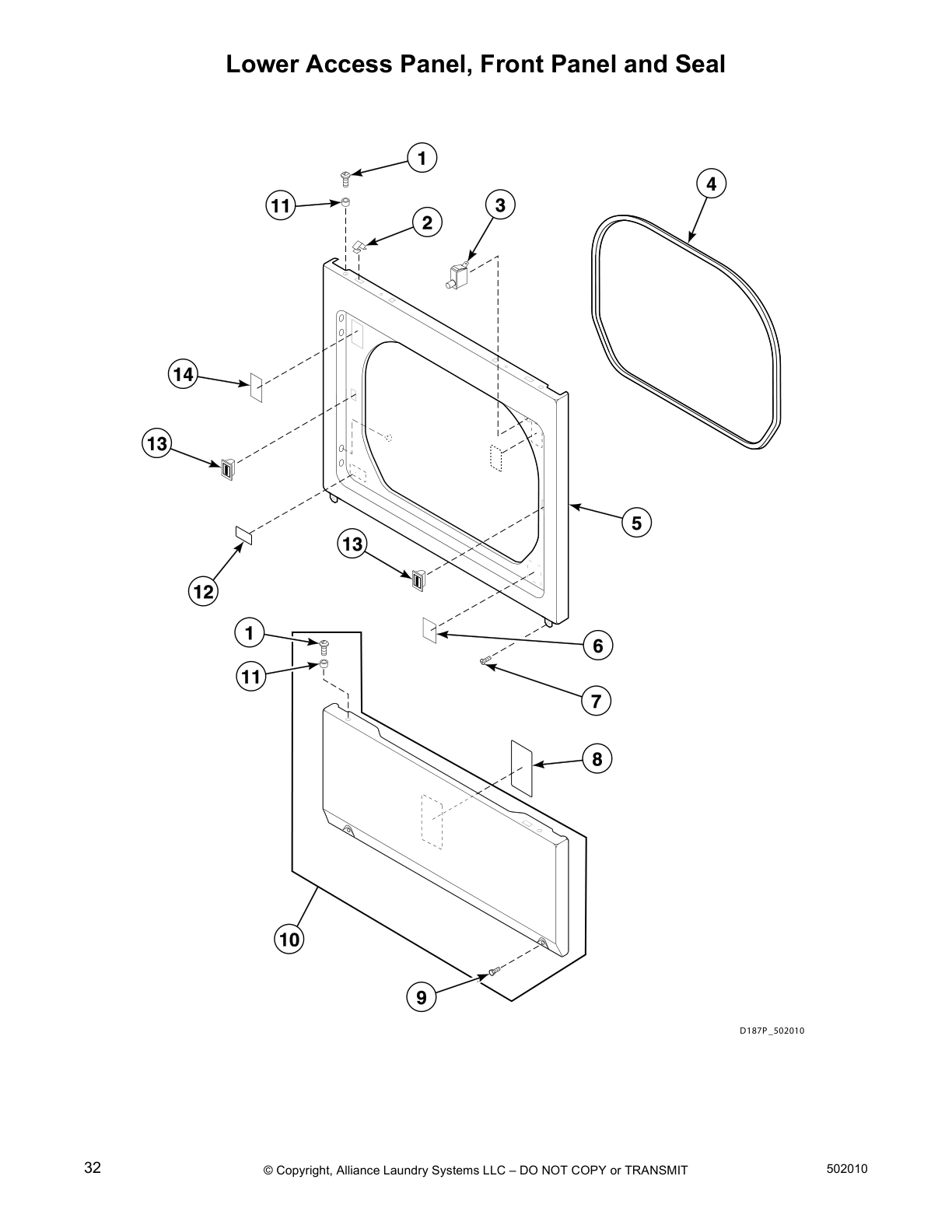

Lower Access Panel, Front Panel and Seal

Front Bulkhead, Air Duct, Felt Seal and Cylinder

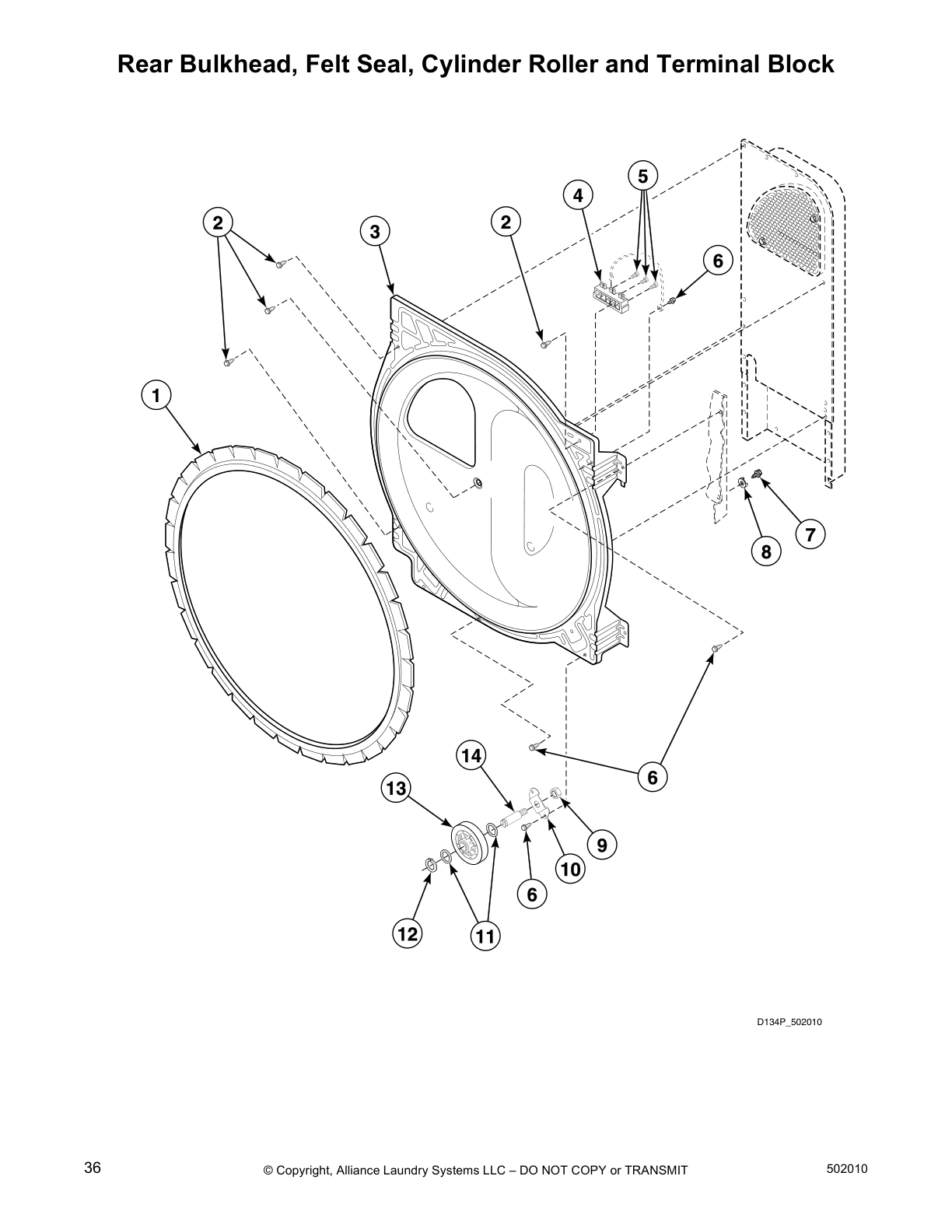

Rear Bulkhead, Felt Seal, Cylinder Roller and Terminal Block

Heater Box - Electric Models

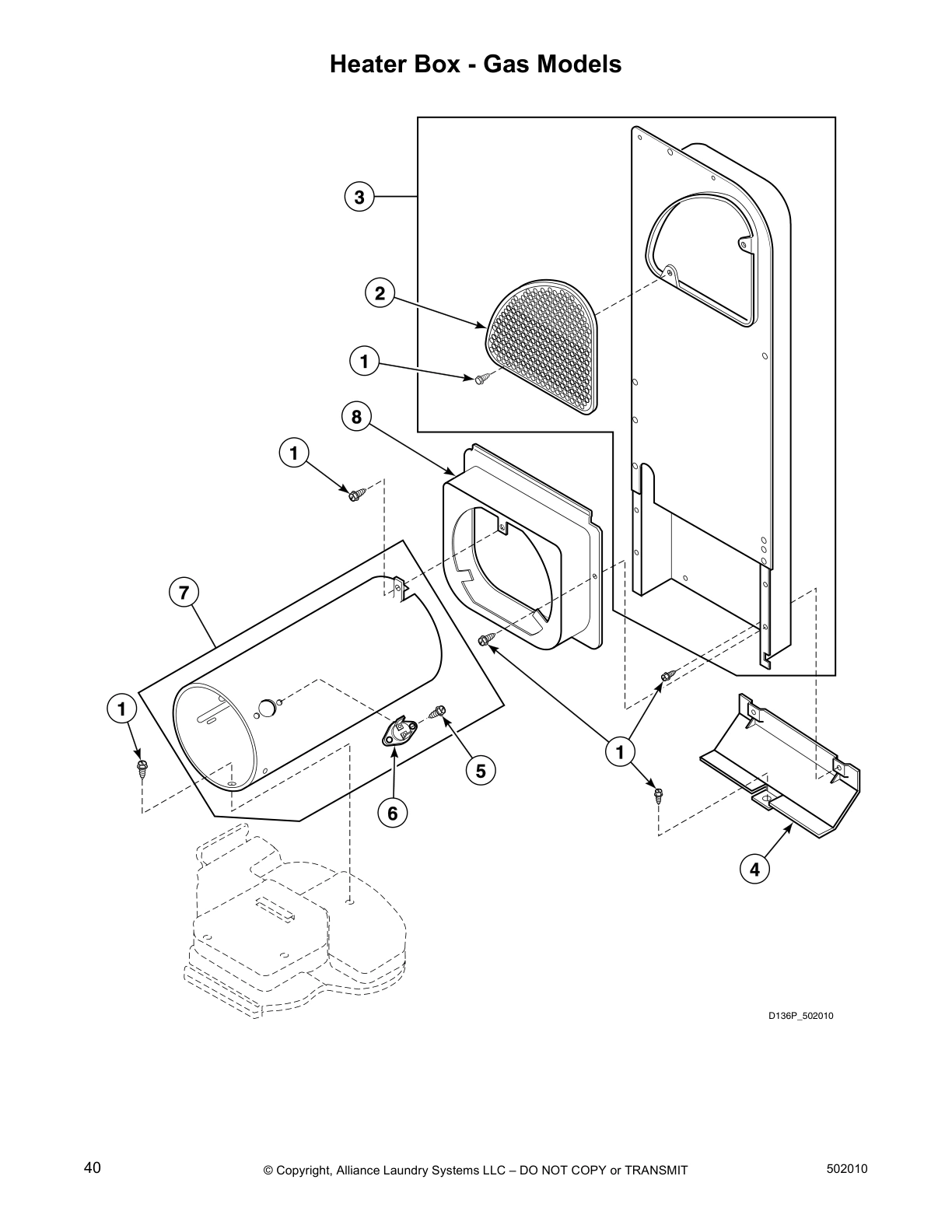

Heater Box - Gas Models

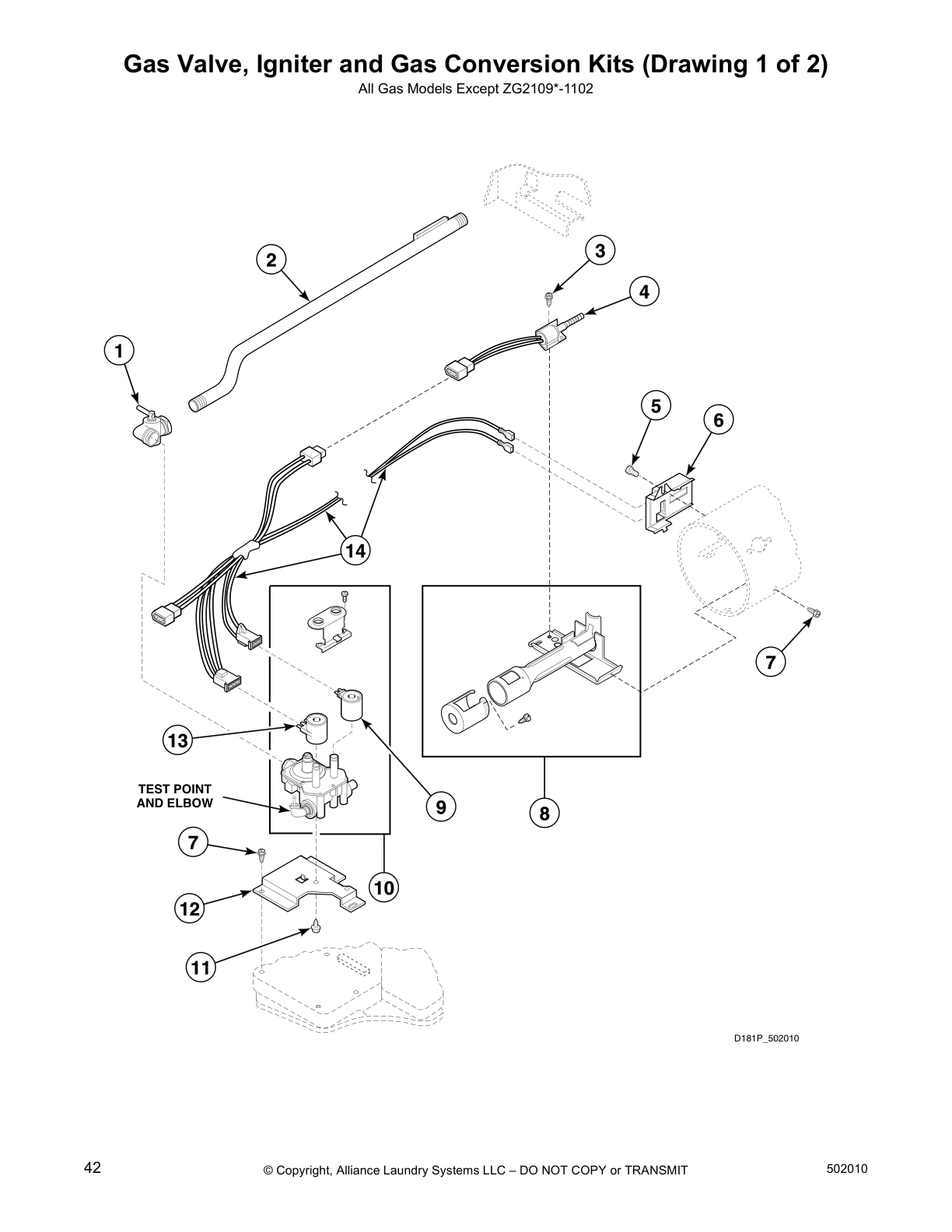

Gas Valve, Igniter and Gas Conversion Kits (Drawing 1 of 2)

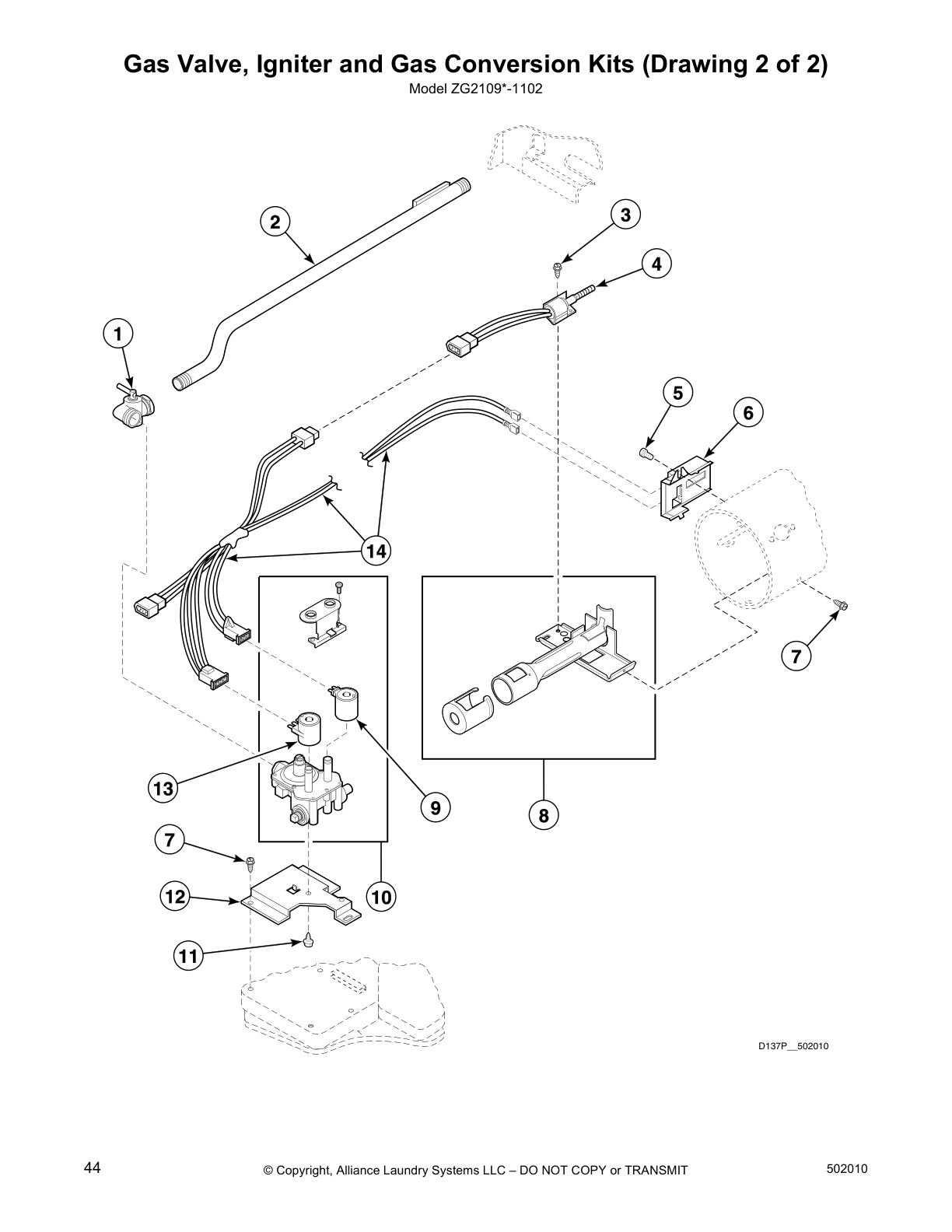

Gas Valve, Igniter and Gas Conversion Kits (Drawing 2 of 2)

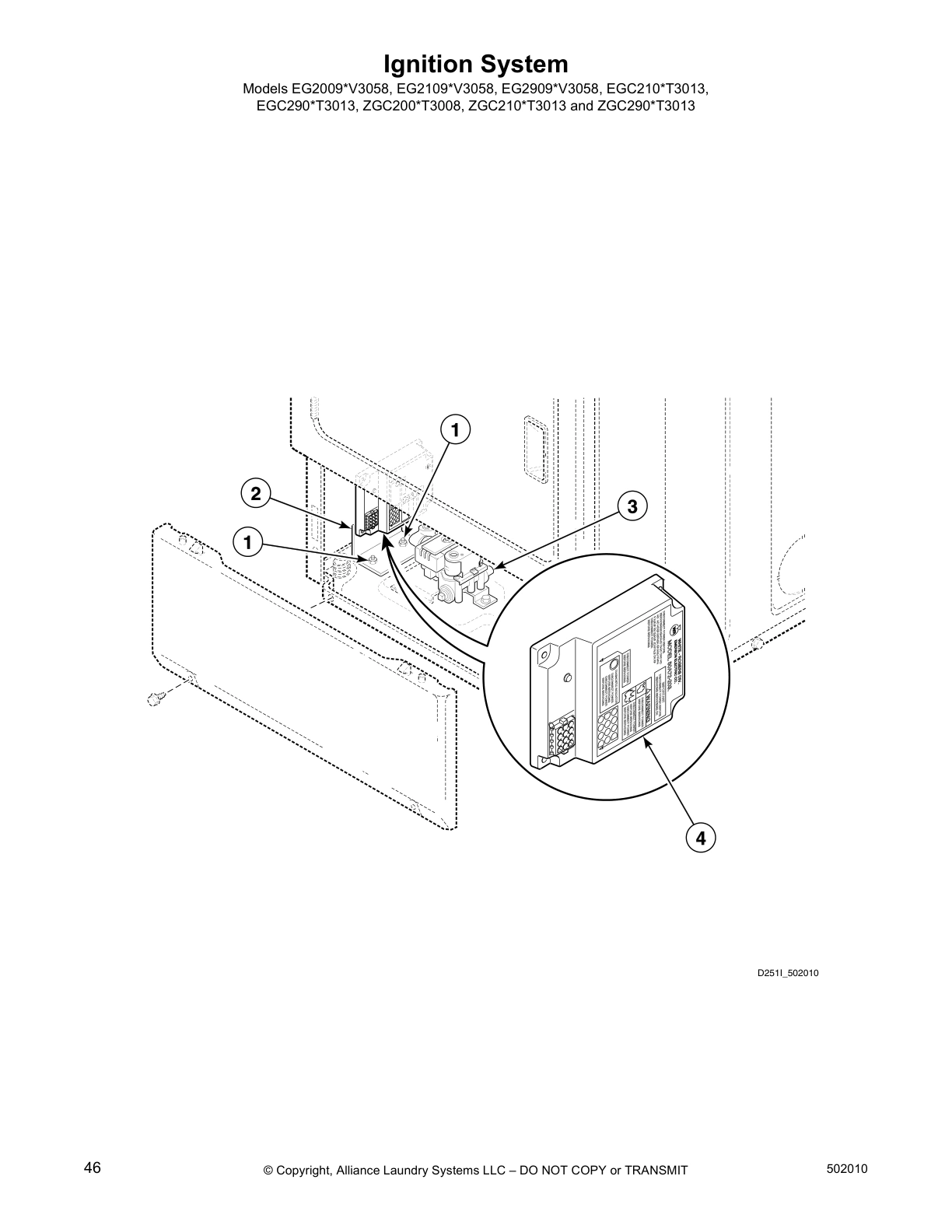

Ignition System

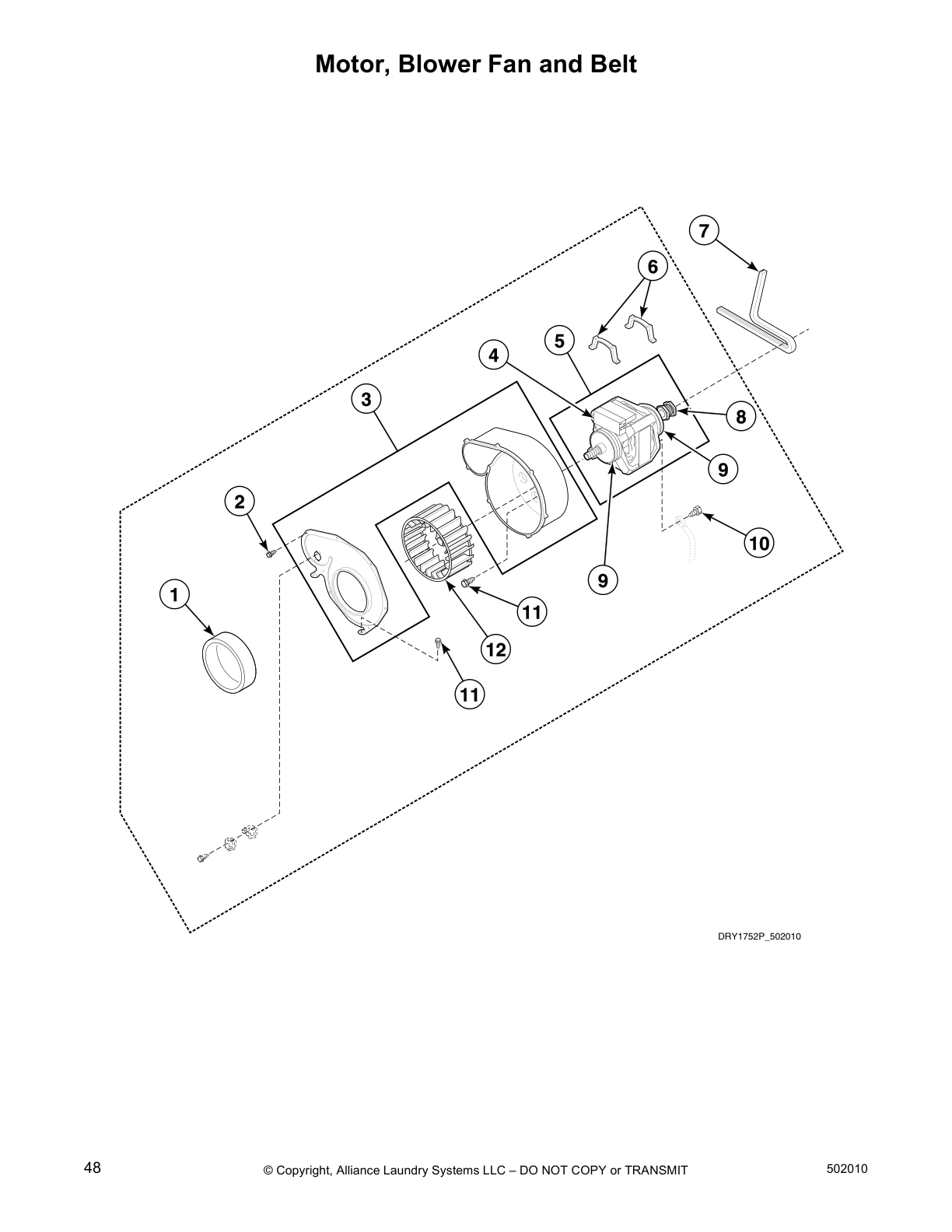

Motor, Blower Fan and Belt

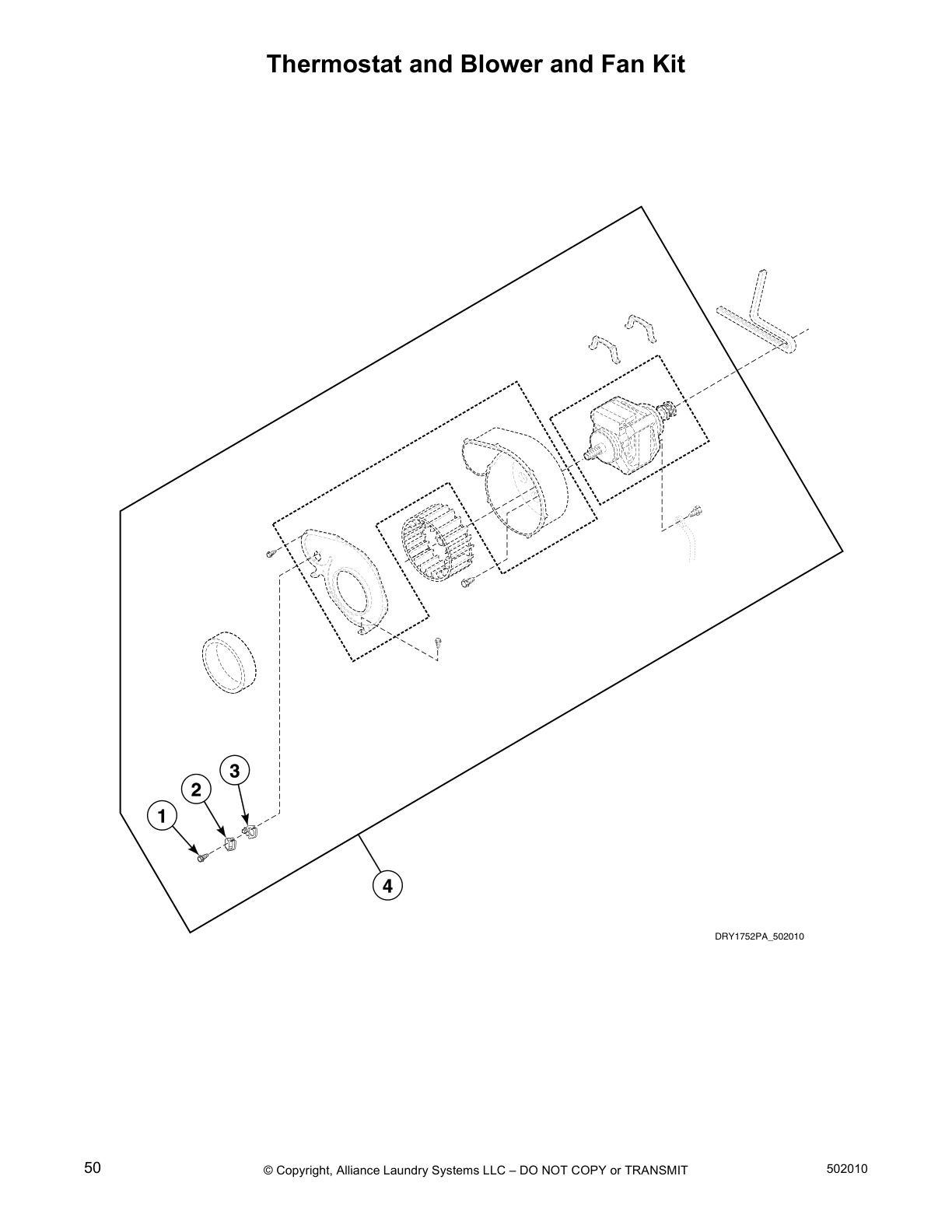

Thermostat and Blower and Fan Kit

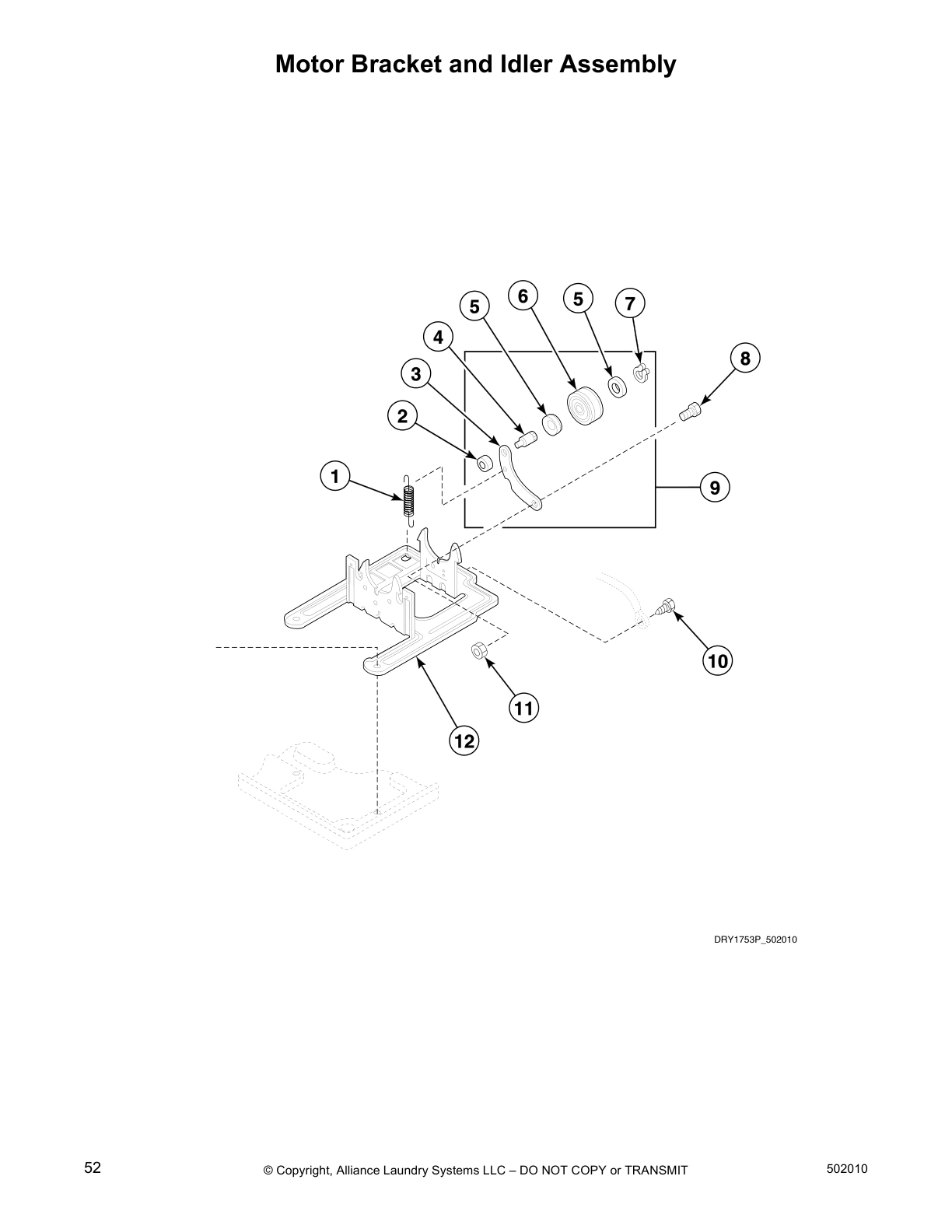

Motor Bracket and Idler Assembly

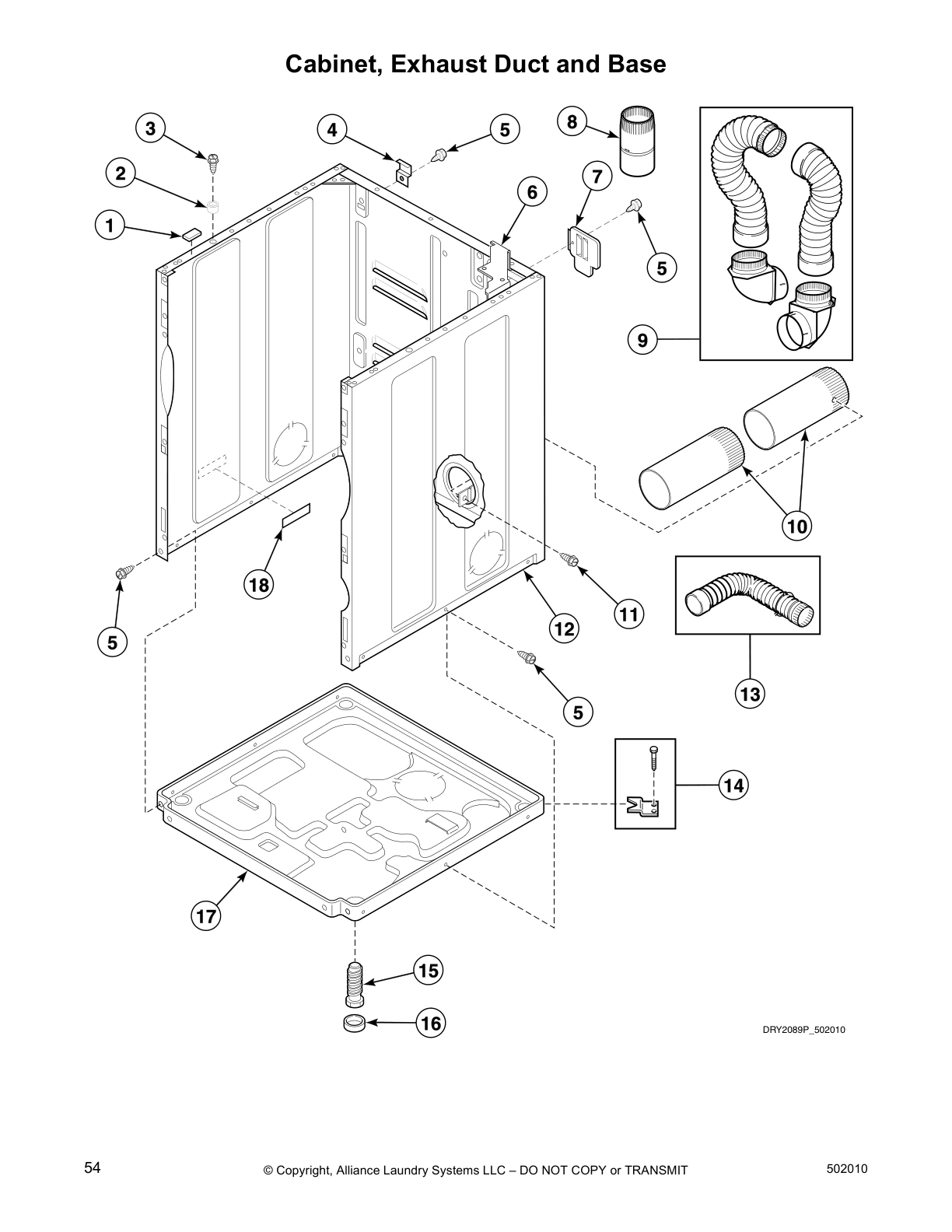

Cabinet, Exhaust Duct and Base

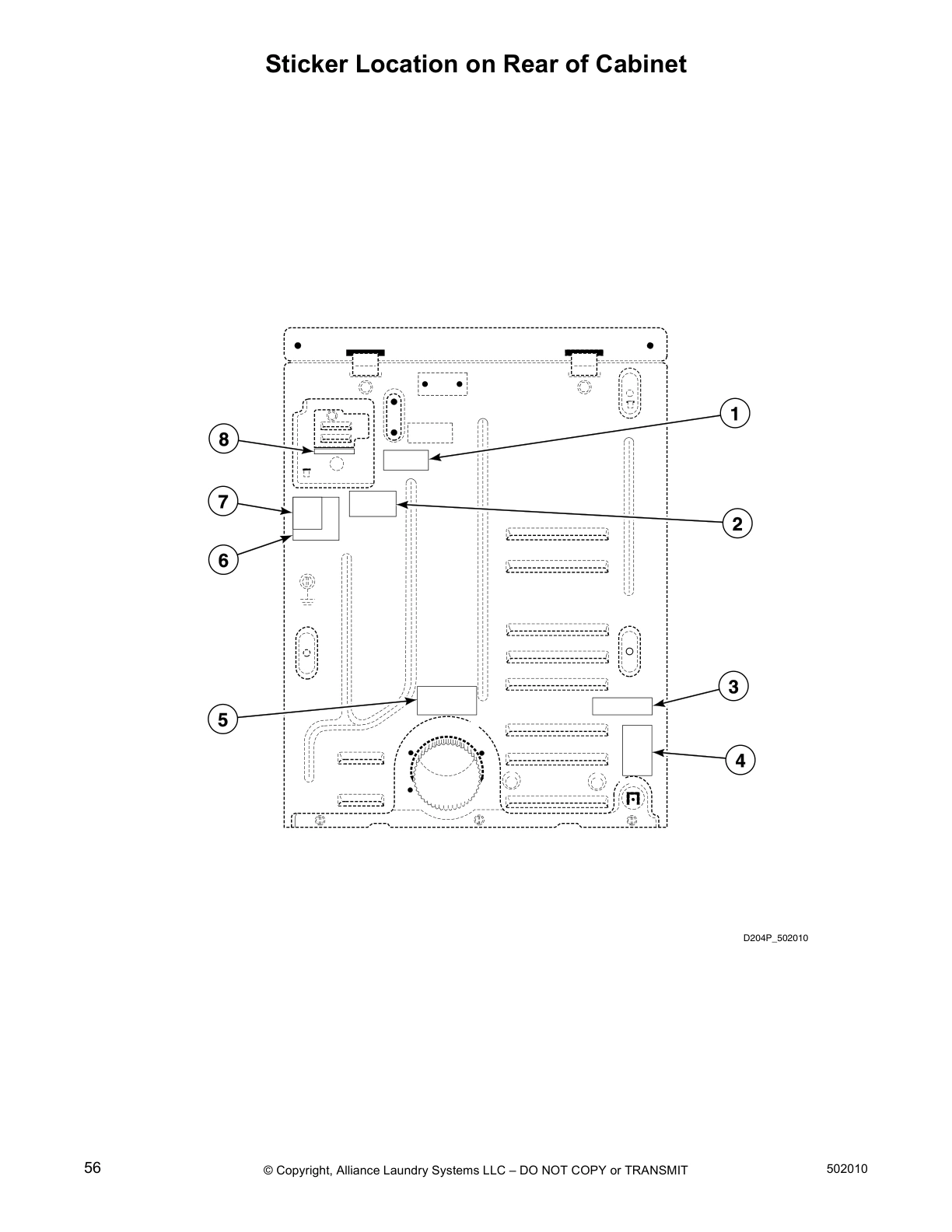

Sticker Location on Rear of Cabinet

Terminals (Drawing 1 of 2)

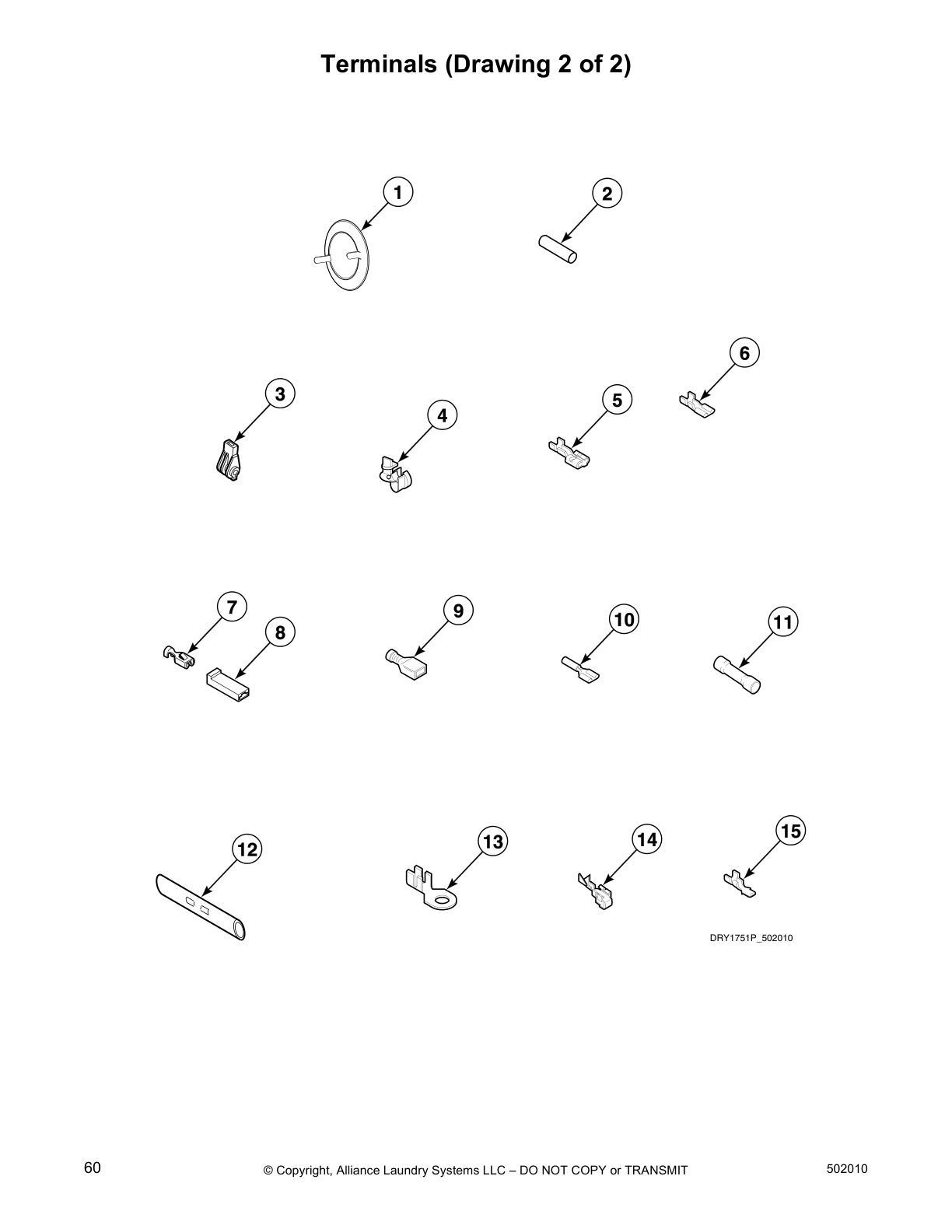

Terminals (Drawing 2 of 2)

Motor Disconnect Block, Terminals and Terminal Extractor Tool

Common parts from model Huebsch ZG2109*-3013 Dryer

00115 Speed Queen Terminal Spade, 1/4" Female Backorder SPQ 00115 $0.71

View on Model

21091 Speed Queen Connector Backorder SPQ 21091 $5.23

View on Model

56128 Speed Queen Bumper Pad Backorder SPQ 56128 $5.23

View on Model

D500313 Speed Queen Blower Housing Seal In Stock SPQ D500313 $20.38

View on Model

D510127 Speed Queen Washer Dryer Door Strike In Stock SPQ D510127 $2.52

View on Model

D510185 Speed Queen Idler Spring In Stock SPQ D510185 $2.31

View on Model

Strain Relief Adapter SPQ 502496 Contact Us For Availability

View on Model

Female Terminal SPQ 00256 Contact Us For Availability

View on Model

00139 Speed Queen Male Terminal Tab 1/4 Backorder SPQ 00139 $0.71

View on Model

28835 Speed Queen Washer Clip In Stock SPQ 28835 $5.23

View on Model

D501285 Speed Queen Screw Tap 12-16x.562 Slhx Backorder SPQ D501285 $2.08

View on Model

D510181 Speed Queen Dryer Metal Door Strike In Stock SPQ D510181 $3.32

View on Model

D510207P Speed Queen Dryer Drum Felt Seal In Stock SPQ D510207P $37.97

View on Model

Terminal Extractor Tool SPQ 00255 Contact Us For Availability

View on Model

39733 Speed Queen Screw TAP 10BX5/8 #8PN HD In Stock SPQ 39733 $5.45

View on Model

D500820 Speed Queen Washer Dryer Perforated O In Stock SPQ D500820 $24.68

View on Model

D504034 Speed Queen Wire Clip - 0.69 Diameter Backorder SPQ D504034 $5.23

View on Model

D510102W Speed Queen White Cylinder Baffle In Stock SPQ D510102W $9.96

View on Model

D510204 Speed Queen Lead-In Pipe Assembly Backorder SPQ D510204 $90.59

View on Model

D511082P Speed Queen Rear Bulkhead Assembly w In Stock SPQ D511082P $138.81

View on Model

Shaft SPQ 510133 Contact Us For Availability

View on Model

Insulator SPQ 503670 Contact Us For Availability

View on Model

10 Position Housing SPQ 00188 Contact Us For Availability

View on Model

00360 Speed Queen 1/4" Female Insulated Termi Backorder SPQ 00360 $1.03

View on Model

283P4 Speed Queen Terminal Extractor Tool Backorder SPQ 283P4 $65.34

View on Model

D500034 Speed Queen Front Panel Seal Backorder SPQ D500034 $48.41

View on Model

D510136 Speed Queen Top Hinge Backorder SPQ D510136 $5.23

View on Model

D510190P Speed Queen Dryer Terminal Block Ass In Stock SPQ D510190P $6.62

View on Model

D510705P Speed Queen Heater Duct Assembly Backorder SPQ D510705P $74.17

View on Model

Gas Clearance Label SPQ 511004 Contact Us For Availability

View on Model

00117 Speed Queen Female Pin Terminal Backorder SPQ 00117 $5.35

View on Model

51782 Speed Queen Hex Head Screw 6B-20X.31 Backorder SPQ 51782 $2.02

View on Model

61199 Speed Queen Mach-HXWAHD 10-32 ST Screw Backorder SPQ 61199 $5.54

View on Model

61512 Speed Queen Fabric Selector Switch In Stock SPQ 61512 $30.29

View on Model

62588 Speed Queen Tapping Screw 10BT-12 X 1 Backorder SPQ 62588 $5.23

View on Model

D510184P Speed Queen Dryer Igniter and Bracke In Stock SPQ D510184P $53.74

View on Model

D512017P Speed Queen 115V 60Hz Motor Timer Backorder SPQ D512017P $97.07

View on Model

D512973 Speed Queen Washer Dryer Push Button In Stock SPQ D512973 $13.59

View on Model

Cylinder Belt SPQ 505869P Contact Us For Availability

View on Model

Spade Terminal SPQ 70210 Contact Us For Availability

View on Model

00223 Speed Queen Terminal Backorder SPQ 00223 $5.35

View on Model

489P3 Speed Queen High Limit Thermostat In Stock SPQ 489P3 $34.71

View on Model

D510142P Speed Queen Dryer Idler Pulley Wheel In Stock SPQ D510142P $12.48

View on Model

SPQ 23039 SPQ 23039 Contact Us For Availability

View on Model

00121 Speed Queen Spade Terminal 1/4" Female Backorder SPQ 00121 $5.35

View on Model

D510189 Speed Queen Felt Pad In Stock SPQ D510189 $5.65

View on Model

D510213 Speed Queen Sensor In Stock SPQ D510213 $60.26

View on Model

D510903 Speed Queen Access Cover Plate - 3 Lo In Stock SPQ D510903 $4.16

View on Model

D511255P Speed Queen Dryer Rubber Face Cylind In Stock SPQ D511255P $26.73

View on Model

SPQ 23040 SPQ 23040 Contact Us For Availability

View on Model

00116 Speed Queen 11 Oz Lubricant LPS In Stock SPQ 00116 $5.35

View on Model

53241 Speed Queen Timing Cam - 4 Pin - 45 Min In Stock SPQ 53241 $46.87

View on Model

D500824 Speed Queen Screw Backorder SPQ D500824 $5.23

View on Model

D510101 Speed Queen Heat Duct Shroud Backorder SPQ D510101 $26.05

View on Model

Insulated Female Terminal SPQ 00245 Contact Us For Availability

View on Model

204616 Speed Queen Metercase Bracket and Nut In Stock SPQ 204616 $5.23

View on Model

56156 Speed Queen Serrated Nut 3/8-16 In Stock SPQ 56156 $5.45

View on Model

D500011 Speed Queen Dryer Motor Pulley In Stock SPQ D500011 $37.19

View on Model

D510145 Speed Queen Cylinder Glide Bracket In Stock SPQ D510145 $11.01

View on Model

D510149P Speed Queen Burner Assembly Packaged Backorder SPQ D510149P $41.84

View on Model

D516792 Speed Queen Dryer Idler Lever Pulley In Stock SPQ D516792 $31.62

View on Model

SPQ 56451 SPQ 56451 Contact Us For Availability

View on Model

SPQ 00156 SPQ 00156 Contact Us For Availability

View on Model

56448 Speed Queen 2-Circuit Plug Backorder SPQ 56448 $0.50

View on Model

60443P Speed Queen Valve Assembly COML 50HZ 2 Backorder SPQ 60443P $236.94

View on Model

D503661 Speed Queen Induction Hex Screw 10-16 Backorder SPQ D503661 $2.08

View on Model

D510100 Speed Queen Cylinder Roller Bracket In Stock SPQ D510100 $5.45

View on Model

D510146 Speed Queen Top Mount Bracket Backorder SPQ D510146 $5.23

View on Model

D516196 Speed Queen One-Piece Exhaust Duct Backorder SPQ D516196 $18.53

View on Model

00161 Speed Queen Grounding Blade Clip Backorder SPQ 00161 $1.74

View on Model

52549 Speed Queen Washer 3/4" Washer/Dryer In Stock SPQ 52549 $3.32

View on Model

55881 Speed Queen Tie Cable Backorder SPQ 55881 $1.89

View on Model

56079 Speed Queen Locator Panel In Stock SPQ 56079 $5.45

View on Model

D503688 Speed Queen Indicator Screw 10B-16 x In Stock SPQ D503688 $5.23

View on Model

00130 Speed Queen Knob Backorder SPQ 00130 $0.32

View on Model

23748 Speed Queen Washer Retaining Ring In Stock SPQ 23748 $5.45

View on Model

D510128 Speed Queen Gas Valve Mounting Bracke Backorder SPQ D510128 $4.78

View on Model

D510139P Speed Queen Blower Fan Assembly In Stock SPQ D510139P $52.20

View on Model

D510534P Speed Queen Replacement Harness Kit Backorder SPQ D510534P $43.78

View on Model

Motor Mount SPQ 510060 Contact Us For Availability

View on Model

Washer SPQ 62853 Contact Us For Availability

View on Model

Receptacle Housing SPQ 90789 Contact Us For Availability

View on Model

23951 Speed Queen Hex Keps Nut 10-24 STL In Stock SPQ 23951 $5.23

View on Model

528P3 Speed Queen Directional Exhaust Kit In Stock SPQ 528P3 $84.67

View on Model

D510177 Speed Queen Dryer Door Catch Assembly In Stock SPQ D510177 $9.60

View on Model

D510708P Speed Queen Cylinder Roller with Ins In Stock SPQ D510708P $17.07

View on Model

2 Circuit Receptacle SPQ 56265 Contact Us For Availability

View on Model

Ring Terminal SPQ 00111 Contact Us For Availability

View on Model

52947 Speed Queen Hex Nut 15/32-32 Backorder SPQ 52947 $1.70

View on Model

56266 Speed Queen Plug Backorder SPQ 56266 $1.00

View on Model

56461P Speed Queen Washer Dryer Idler/Rolley In Stock SPQ 56461P $12.48

View on Model

58804A Speed Queen Dryer Booster and Holding In Stock SPQ 58804A $26.46

View on Model

Lint Filter SPQ 502140P Contact Us For Availability

View on Model

Hold Down Kit SPQ 526P3 Contact Us For Availability

View on Model

Female Spade Terminal SPQ 00110 Contact Us For Availability

View on Model

00189 Speed Queen Spade Terminal Backorder SPQ 00189 $0.50

View on Model

39897 Speed Queen Switch Knob Backorder SPQ 39897 $9.10

View on Model

524P3W Speed Queen Metercase and Funnel Kit Backorder SPQ 524P3W $396.58

View on Model

D510135 Speed Queen Leveling Leg Backorder SPQ D510135 $6.35

View on Model

Male Tab Terminal SPQ 00114 Contact Us For Availability

View on Model

26354 Speed Queen Metercase Gasket Backorder SPQ 26354 $7.32

View on Model

58800 Speed Queen 3 Circuit Connector Backorder SPQ 58800 $1.18

View on Model

D501855 Speed Queen Rubber Foot In Stock SPQ D501855 $6.62

View on Model

24205 Speed Queen Knurled Nut 3/8-24 In Stock SPQ 24205 $5.23

View on Model

D514245 Speed Queen Dryer Base (No Knockouts) Backorder SPQ D514245 $76.27

View on Model

Female Piggyback Terminal SPQ 51291 Contact Us For Availability

View on Model

00361 Speed Queen Female Piggyback Terminal Backorder SPQ 00361 $0.50

View on Model

58799 Speed Queen 2 Circuit Connector Backorder SPQ 58799 $1.18

View on Model

Switch Assembly SPQ 91176 Contact Us For Availability

View on Model

00127 Speed Queen Terminal Pin 1/8 Male Backorder SPQ 00127 $0.32

View on Model

D501086 Speed Queen Screw Tap SLSERHXWAHD8B-1 Backorder SPQ D501086 $5.23

View on Model

55882 Speed Queen Switch Assembly In Stock SPQ 55882 $48.41

View on Model

52566 Speed Queen Hex Nut 1/4-20 Jam UNC ZNC In Stock SPQ 52566 $5.23

View on Model

SPQ 32464 SPQ 32464 Contact Us For Availability

View on Model

523P3 Speed Queen Coin Funnel Kit In Stock SPQ 523P3 $18.85

View on Model

33562 Speed Queen Screw Tap Socket Head 10B-1 Backorder SPQ 33562 $5.23

View on Model

SPQ 35798WP SPQ 35798WP Contact Us For Availability

View on Model

00165 Speed Queen 3/16" Female Insulated Term Backorder SPQ 00165 $0.71

View on Model

00359 Speed Queen Terminal Ultra POD .250 X Backorder SPQ 00359 $5.35

View on Model

27222 Speed Queen Nut Retainer Backorder SPQ 27222 $5.23

View on Model

27604P Speed Queen Anti-Seize Compound, 1 oz In Stock SPQ 27604P $7.86

View on Model

458P3 Speed Queen LP Conversion Kit In Stock SPQ 458P3 $41.02

View on Model

459P3 Speed Queen Natural Gas Conversion Kit Backorder SPQ 459P3 $38.75

View on Model

53240 Speed Queen Cam Timing 3 Pin 60 Minute In Stock SPQ 53240 $10.78

View on Model

53242 Speed Queen 6-Pin Timing Cam 30-Minute Backorder SPQ 53242 $5.75

View on Model

58804B Speed Queen Dryer Secondary Coil In Stock SPQ 58804B $20.72

View on Model

590P3 Speed Queen Motor Hub Ring Kit Backorder SPQ 590P3 $51.29

View on Model

D511637P Speed Queen Washer Dryer Adhesive Do In Stock SPQ D511637P $47.48

View on Model

SPQ 61401 SPQ 61401 Contact Us For Availability

View on Model

SPQ 553P3 SPQ 553P3 Contact Us For Availability

View on Model

SPQ 00124 SPQ 00124 Contact Us For Availability

View on Model

SPQ 00321 SPQ 00321 Contact Us For Availability

View on Model

SPQ 500338 SPQ 500338 Contact Us For Availability

View on Model

Model Huebsch ZG2109*-3013 Dryer – Common Parts & Diagrams

Common parts from model Huebsch ZG2109*-3013 Dryer

Search result for :
