Model Huebsch ZFN50FSP111CW01 Washer – Common Parts & Diagrams

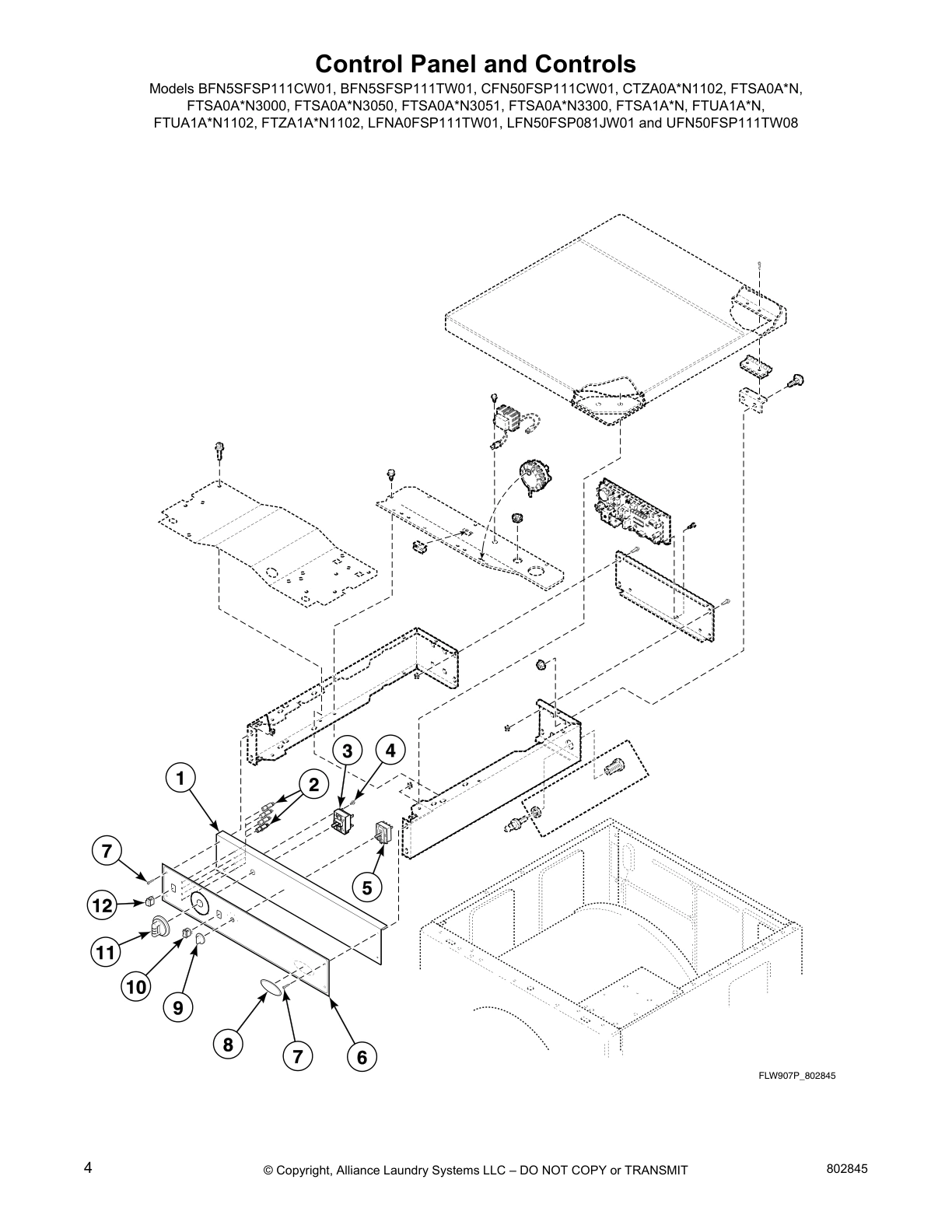

Control Panel and Controls

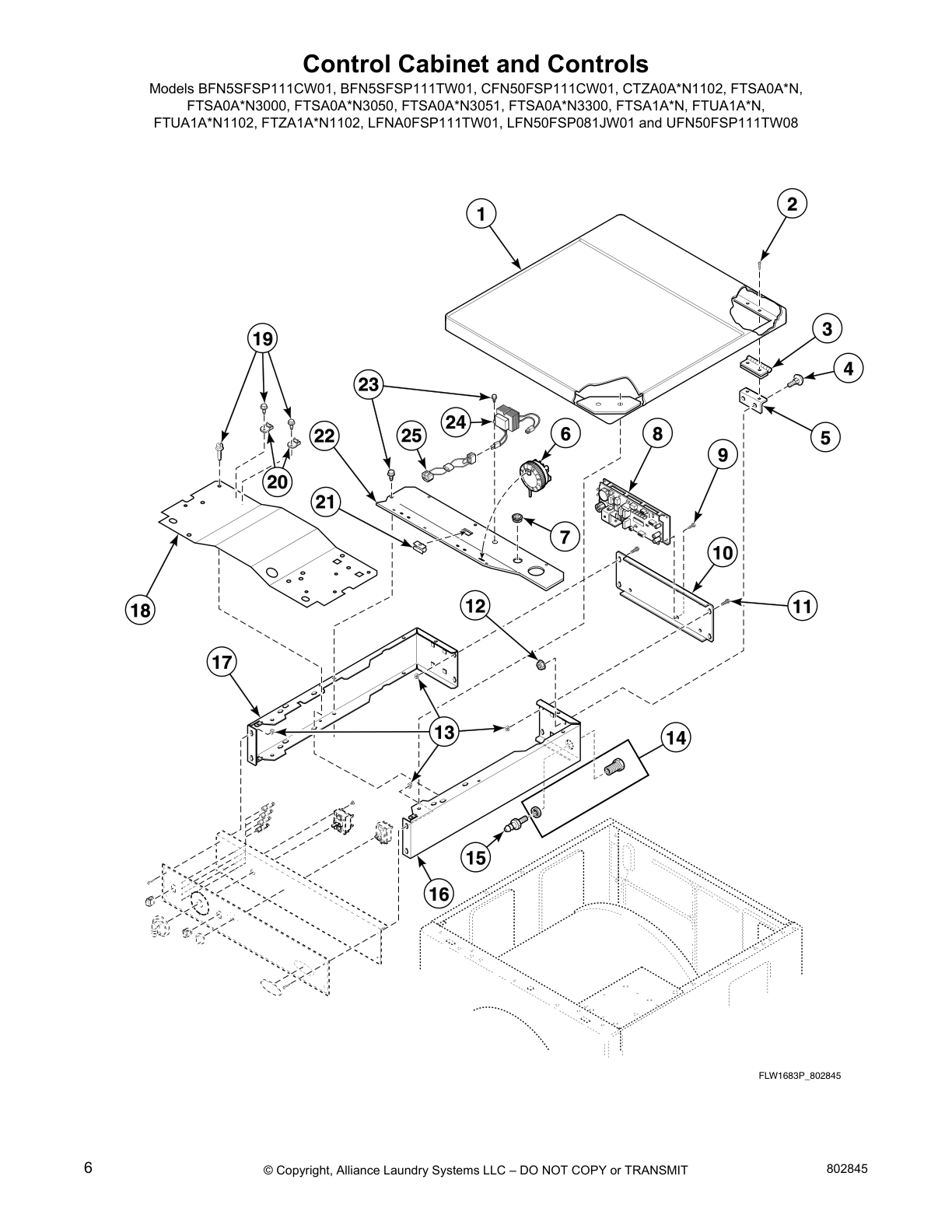

Control Cabinet and Controls

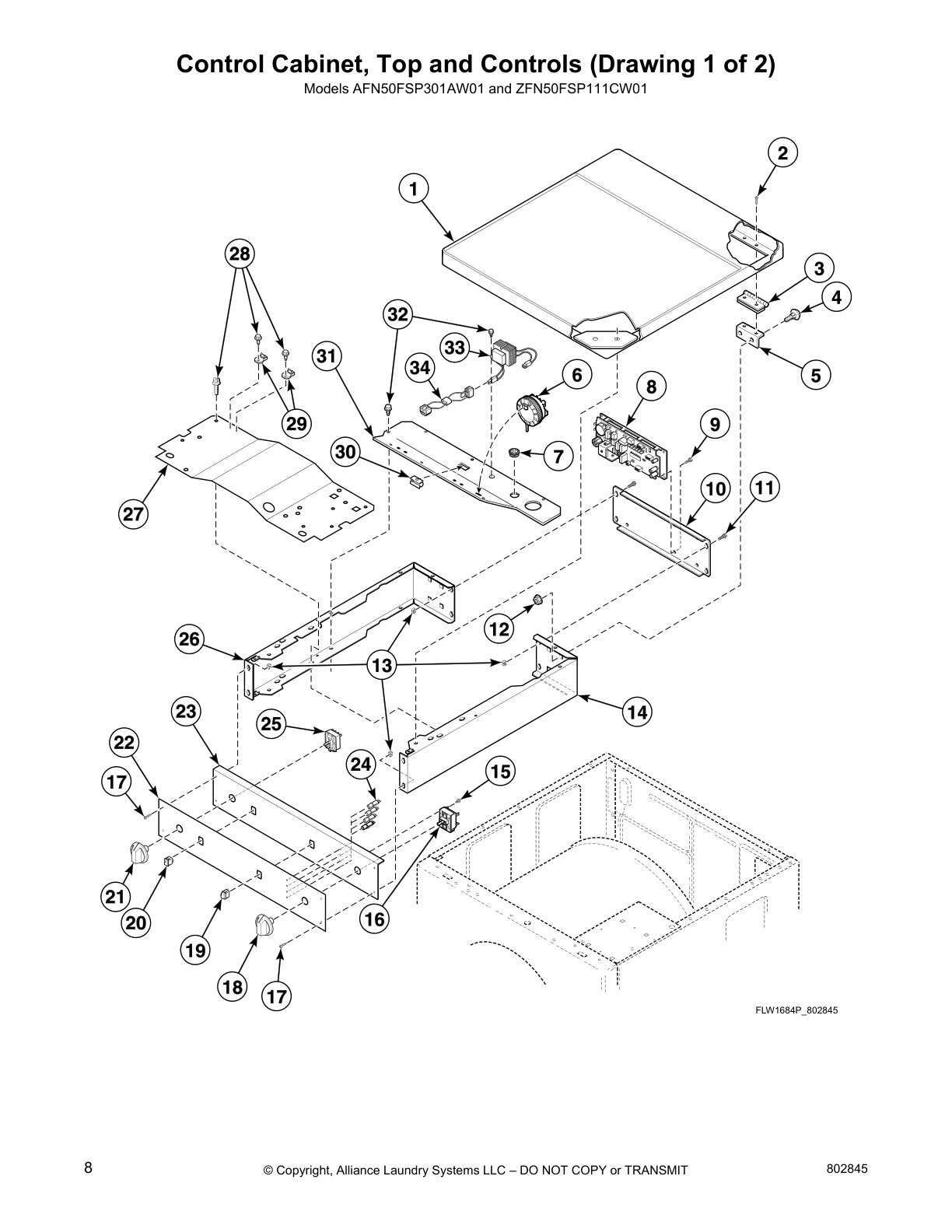

Control Cabinet, Top and Controls (Drawing 1 of 2)

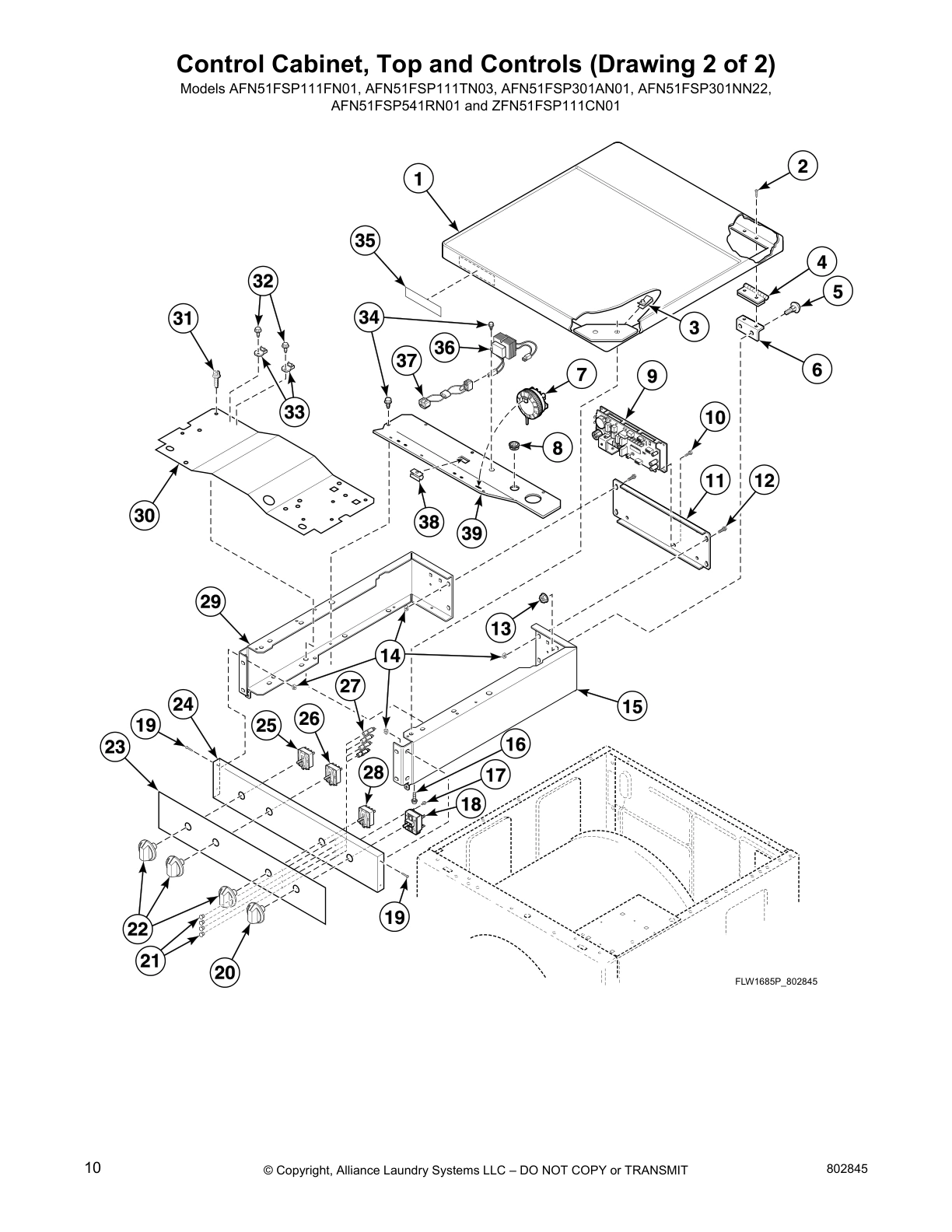

Control Cabinet, Top and Controls (Drawing 2 of 2)

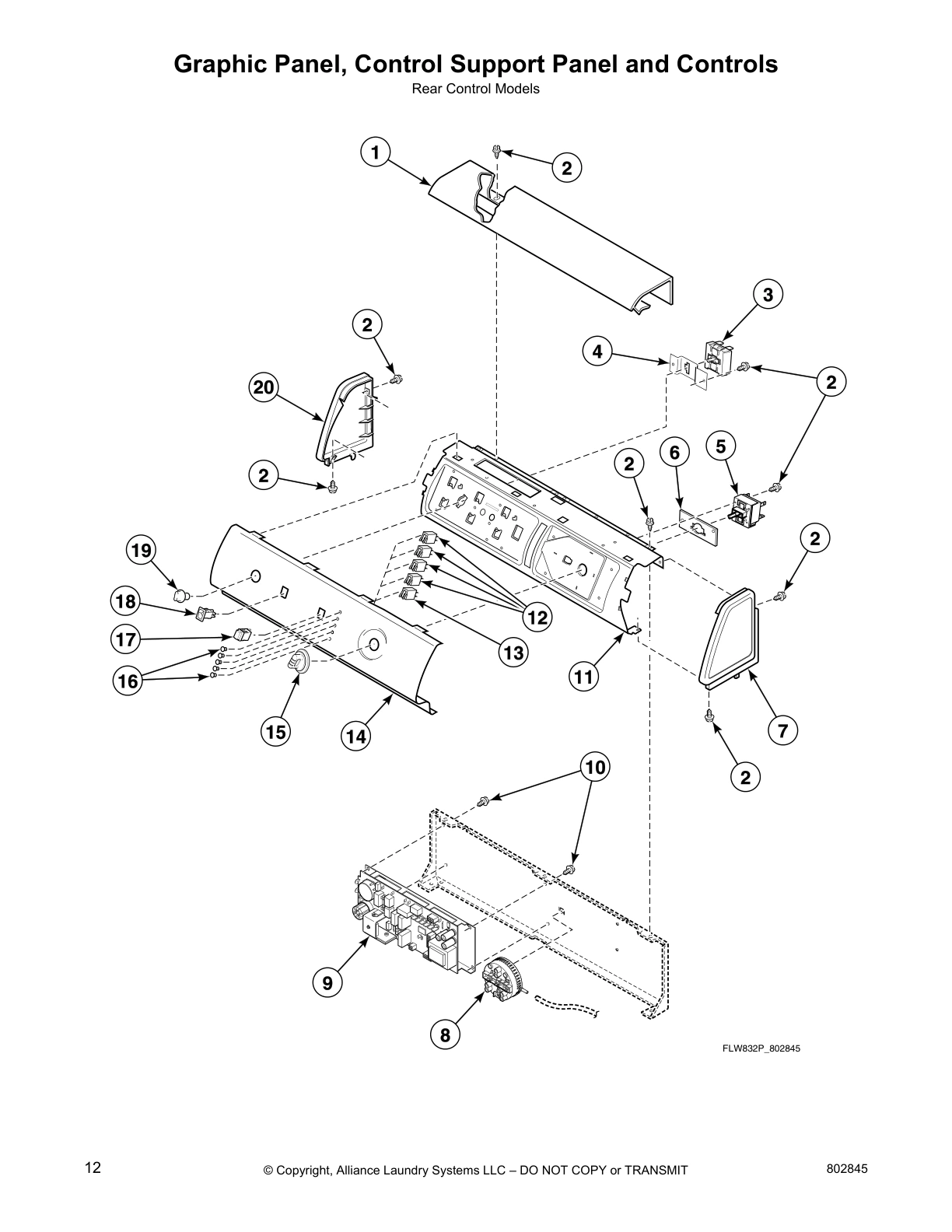

Graphic Panel, Control Support Panel and Controls

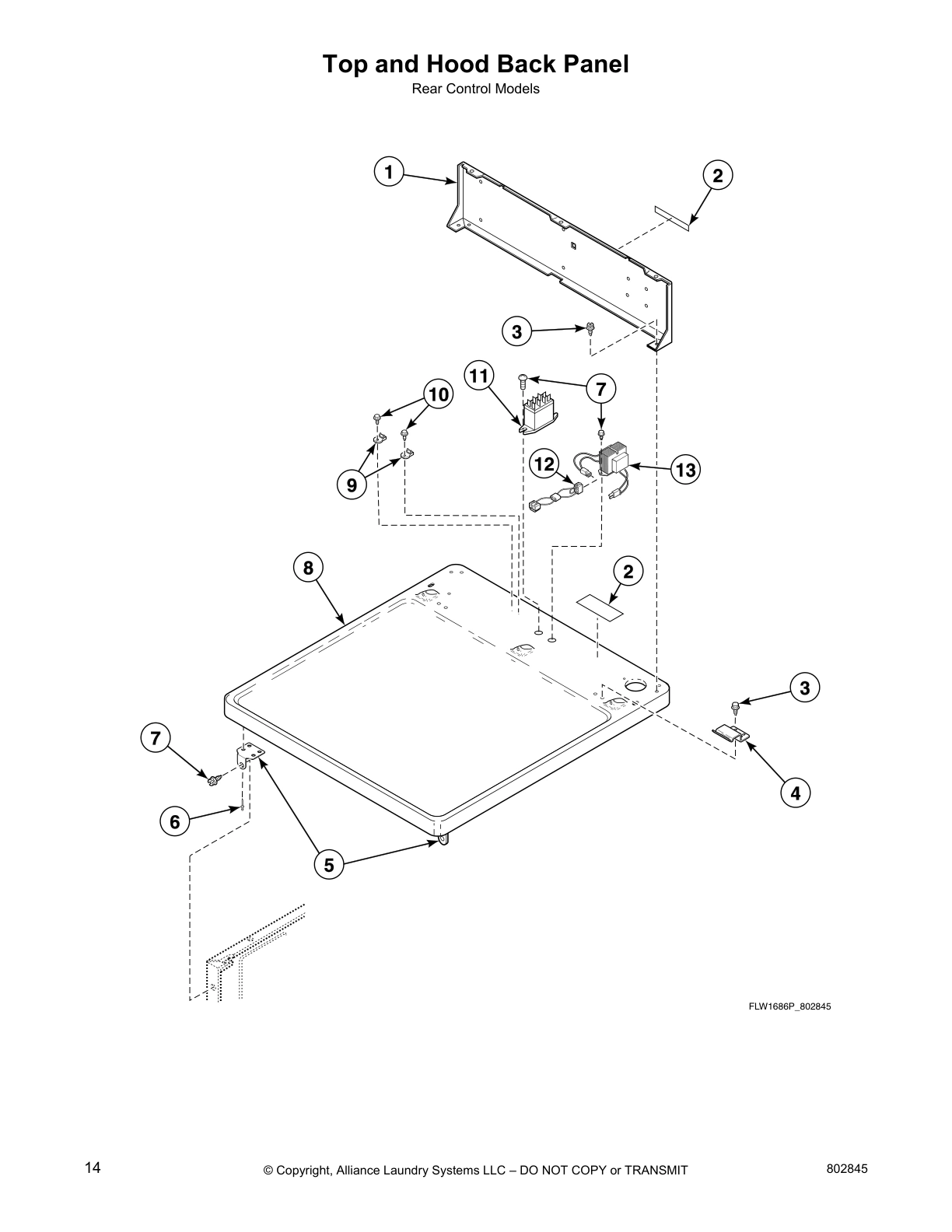

Top and Hood Back Panel

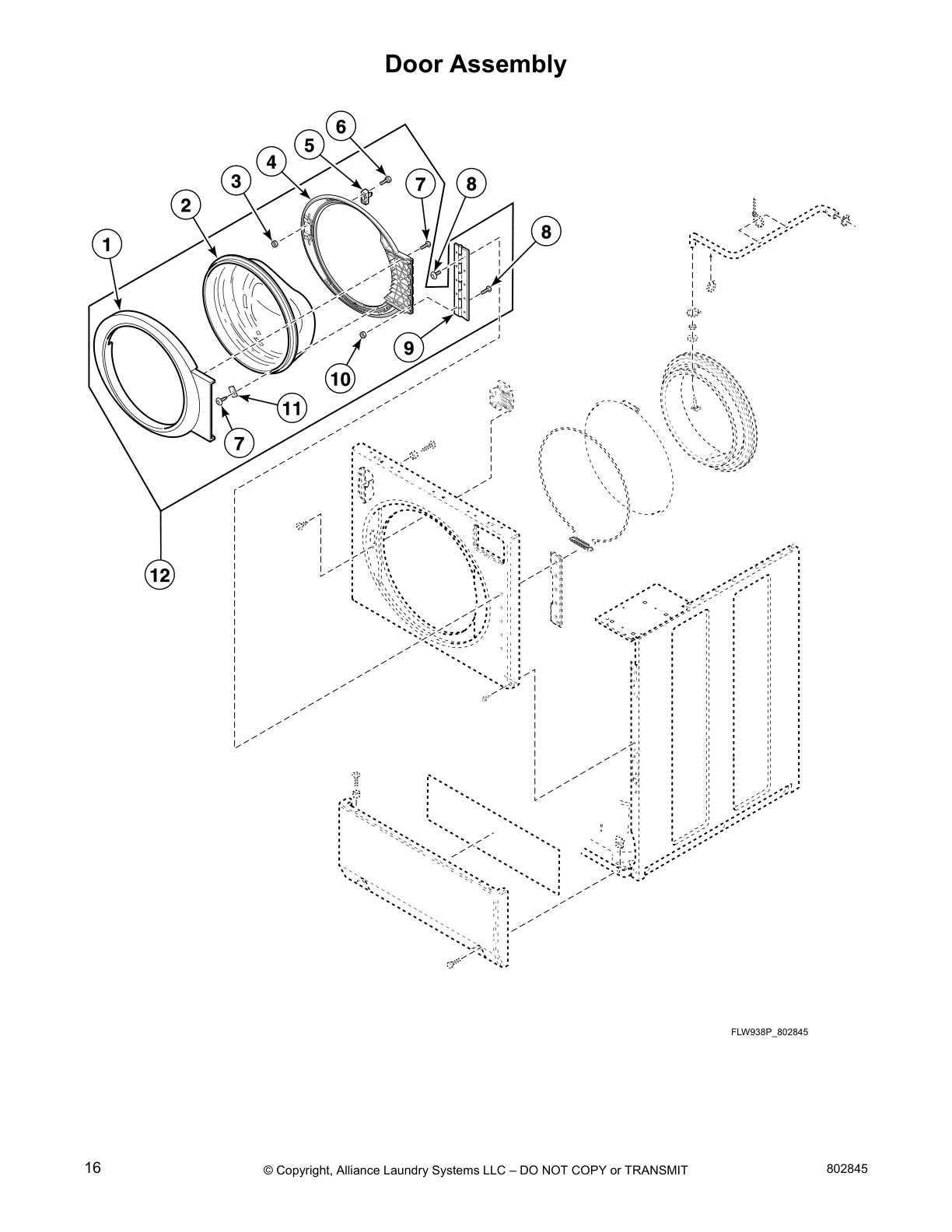

Door Assembly

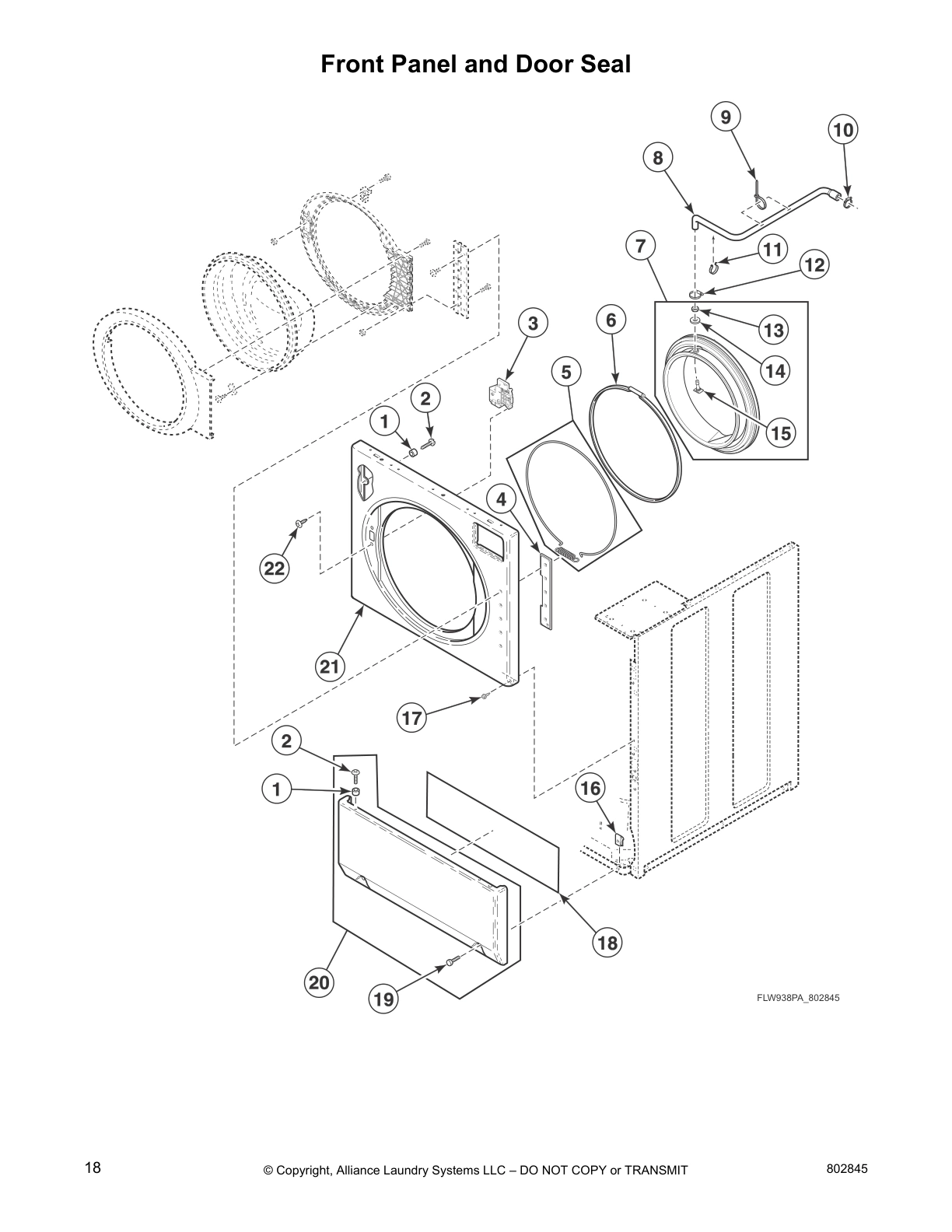

Front Panel and Door Seal

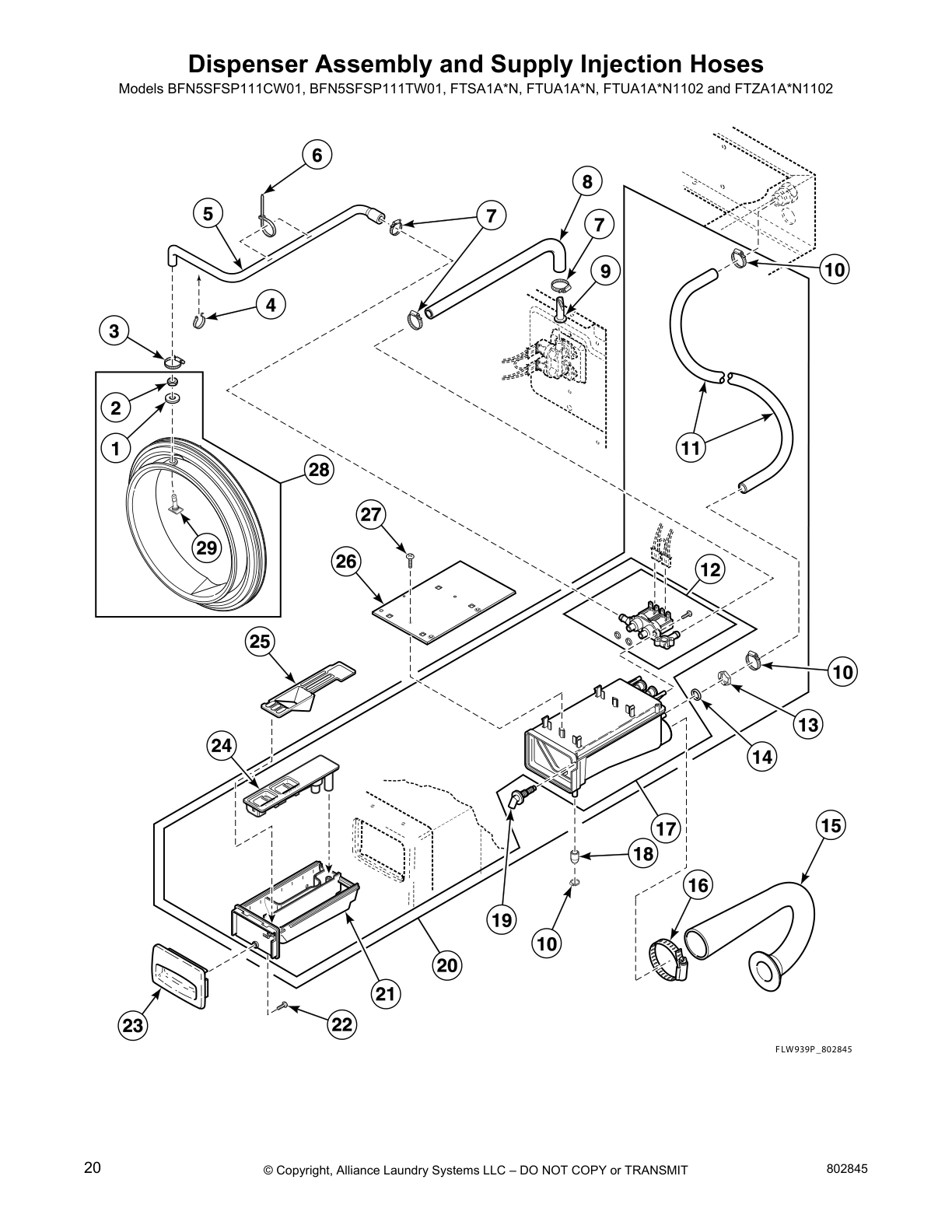

Dispenser Assembly and Supply Injection Hoses

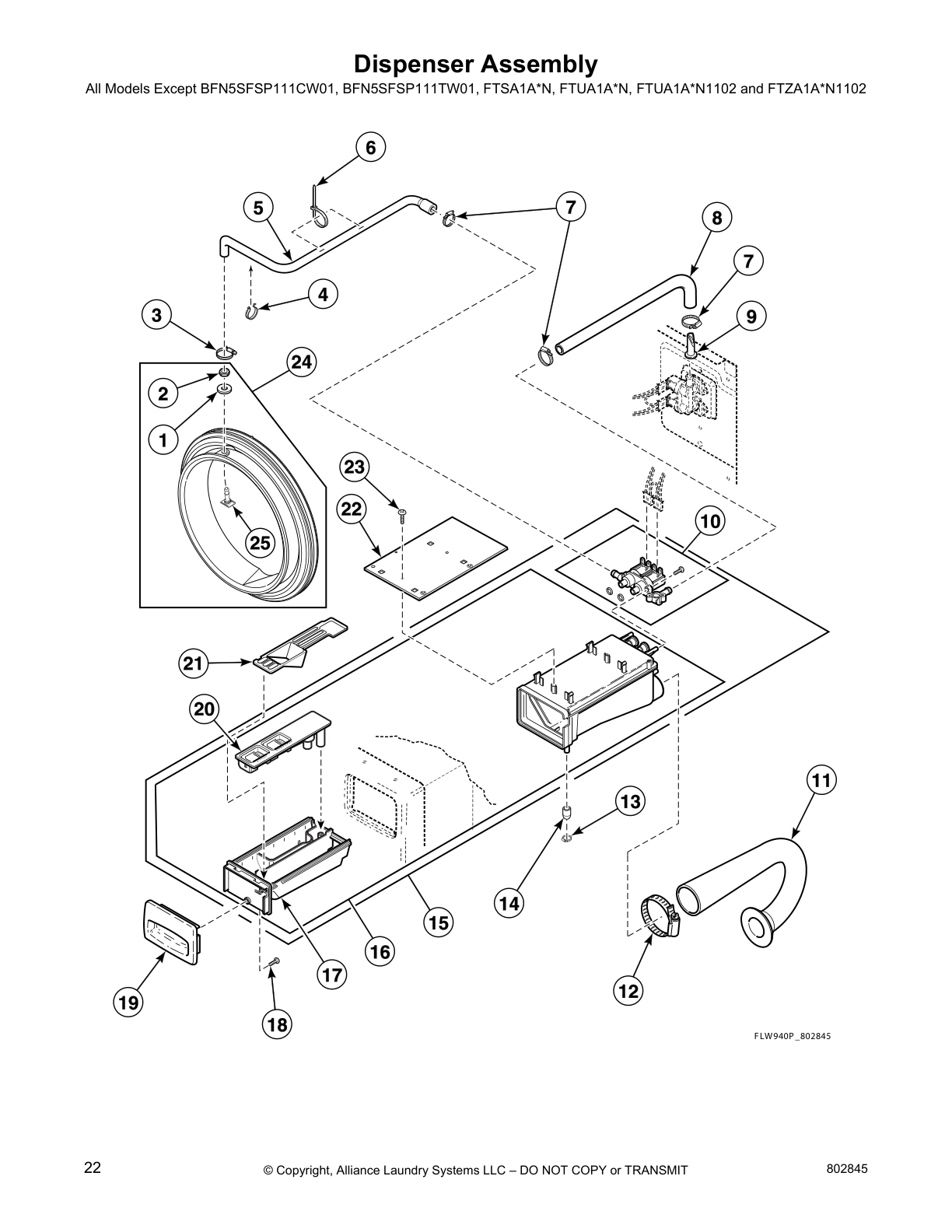

Dispenser Assembly

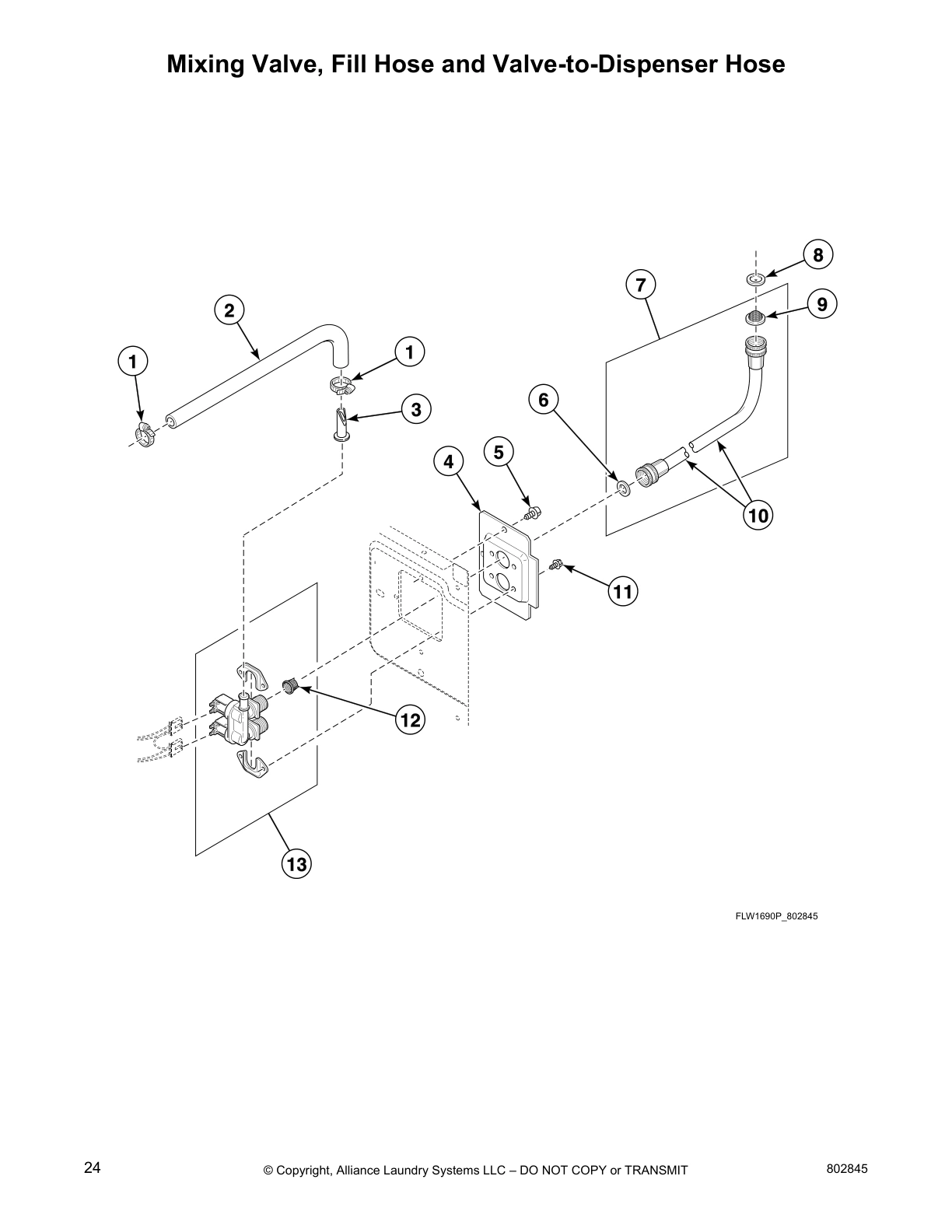

Mixing Valve, Fill Hose and Valve-to-Dispenser Hose

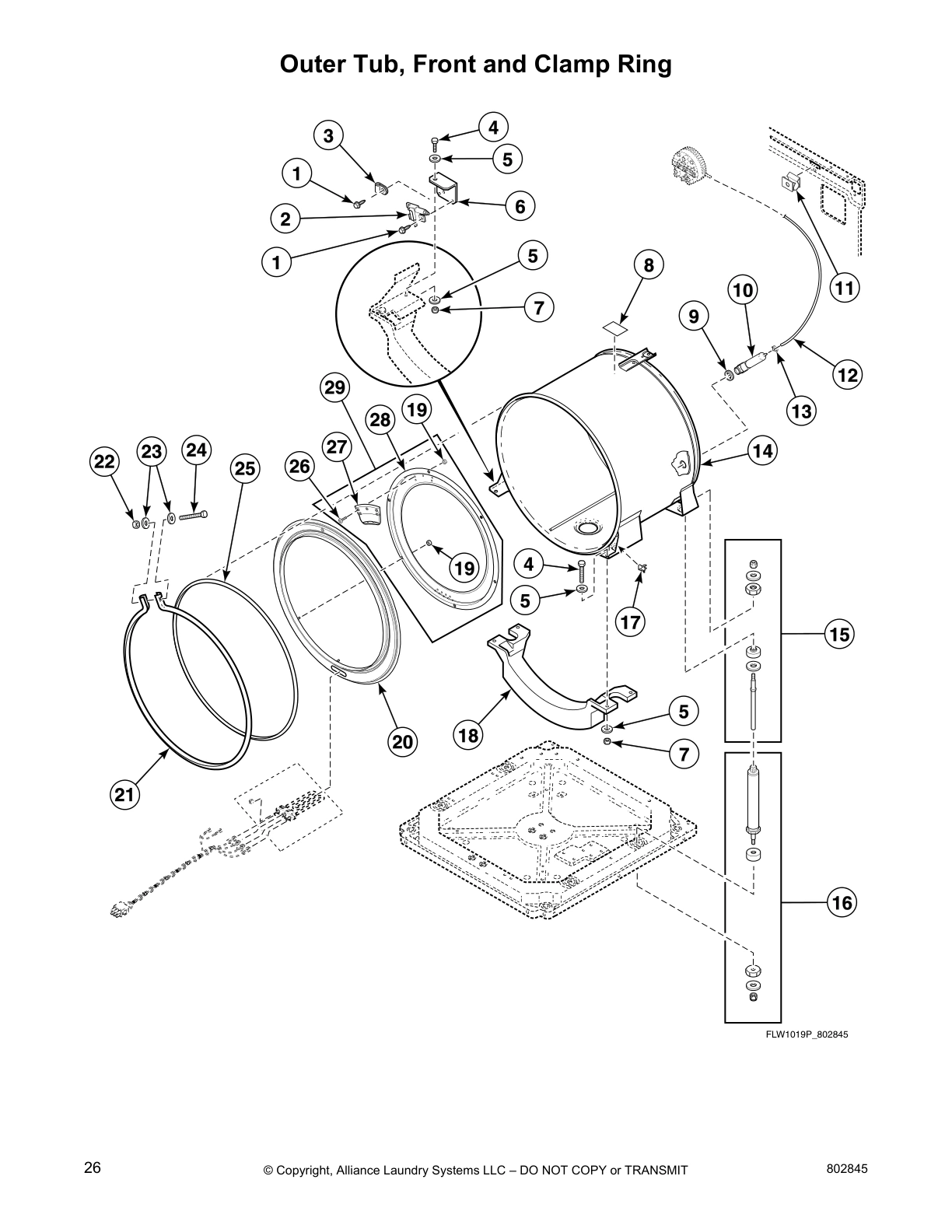

Outer Tub, Front and Clamp Ring

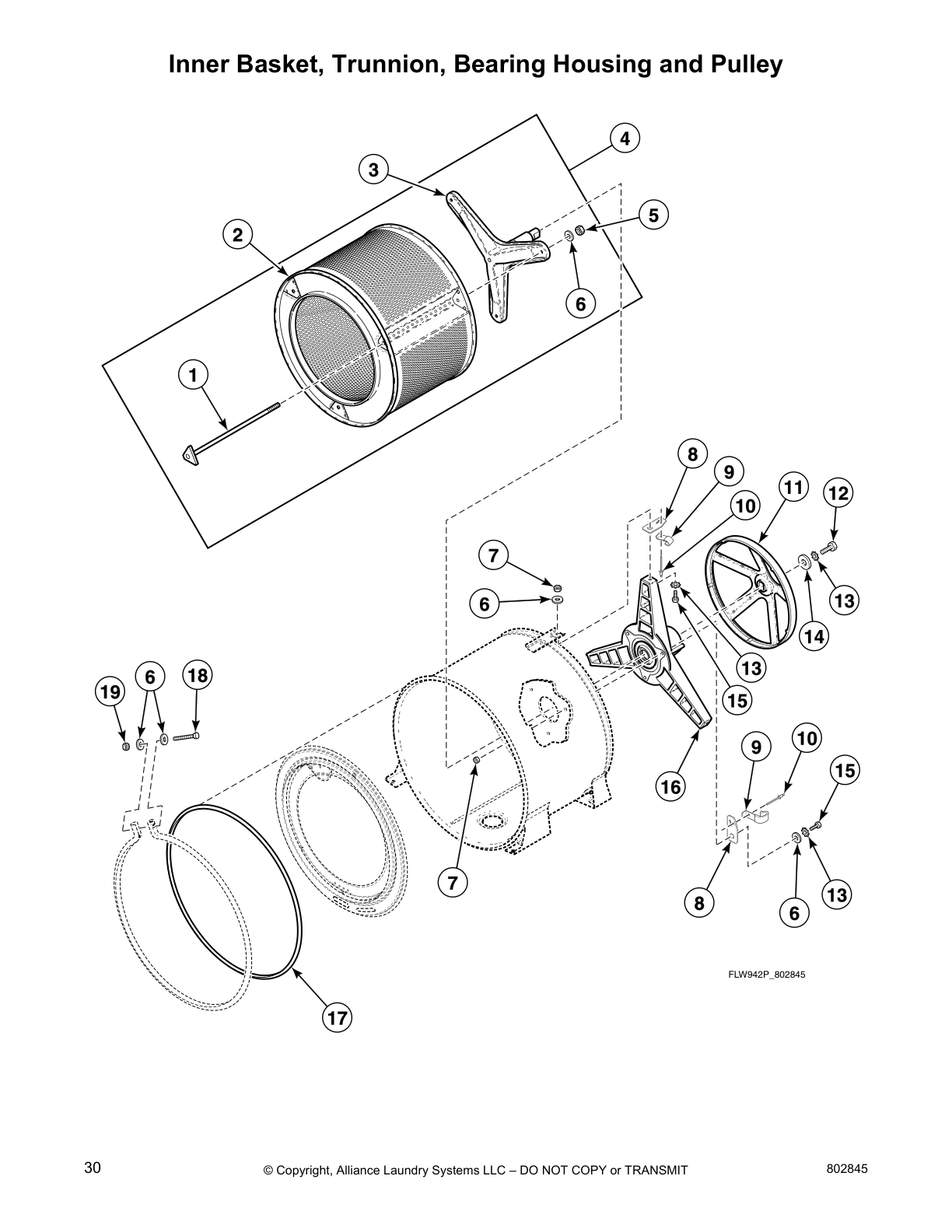

Inner Basket, Trunnion, Bearing Housing and Pulley

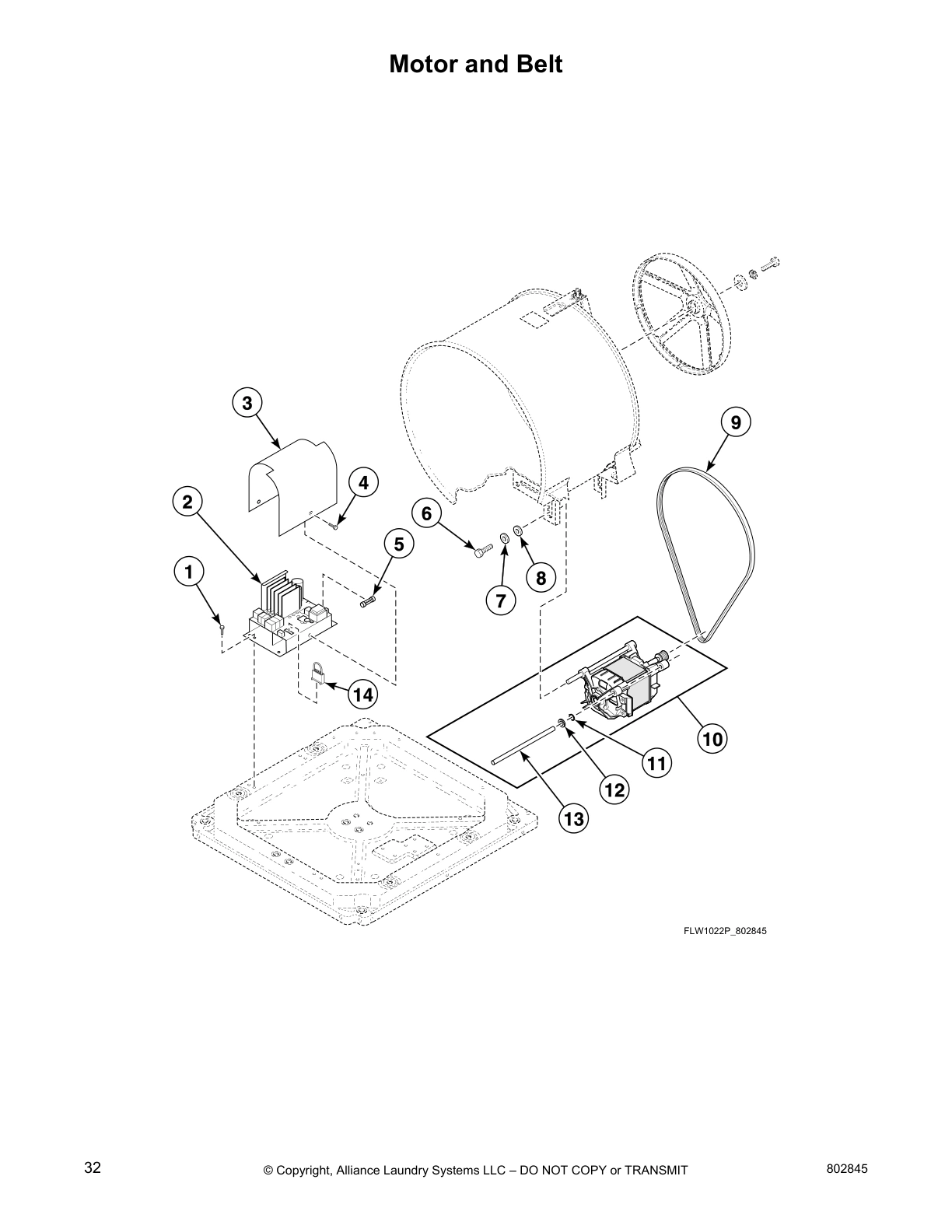

Motor and Belt

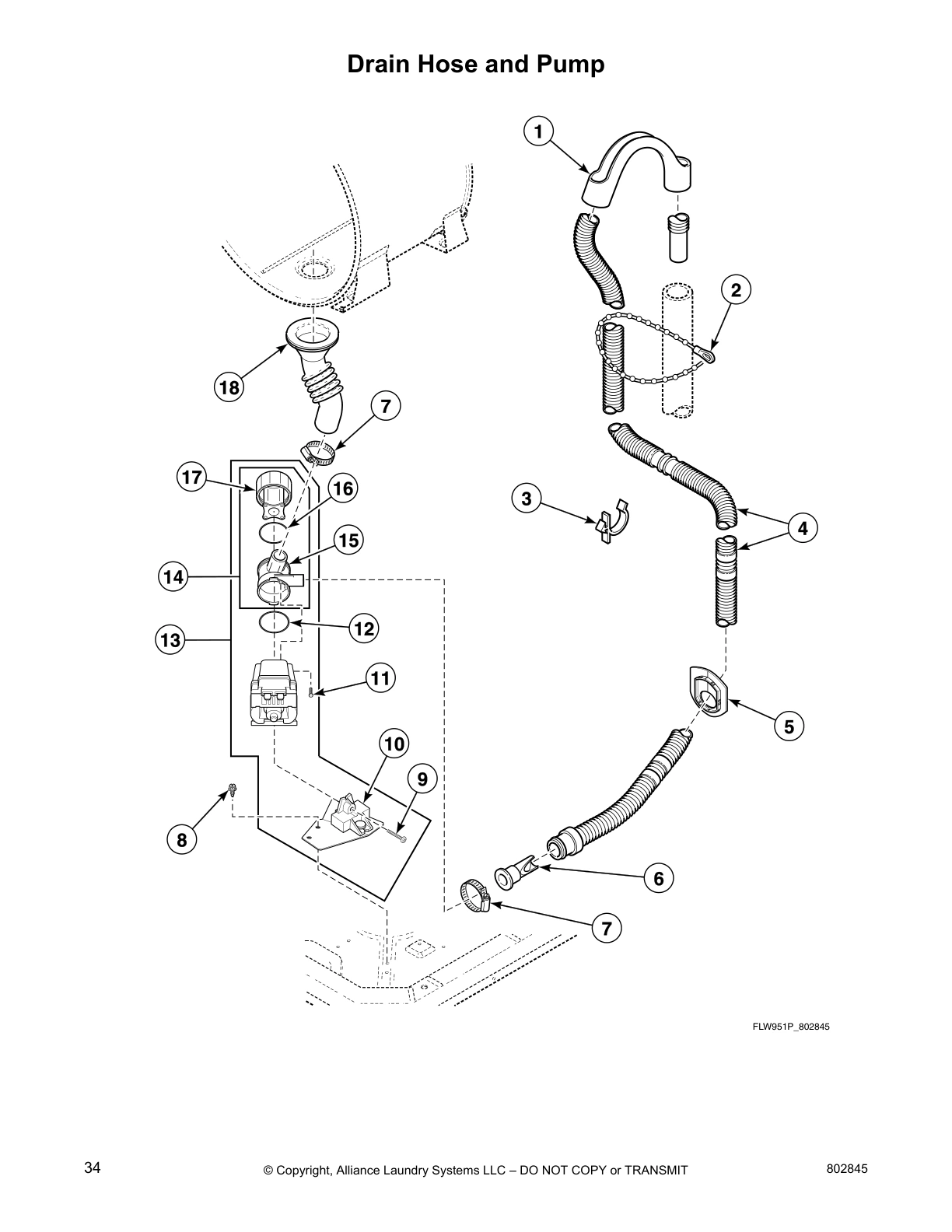

Drain Hose and Pump

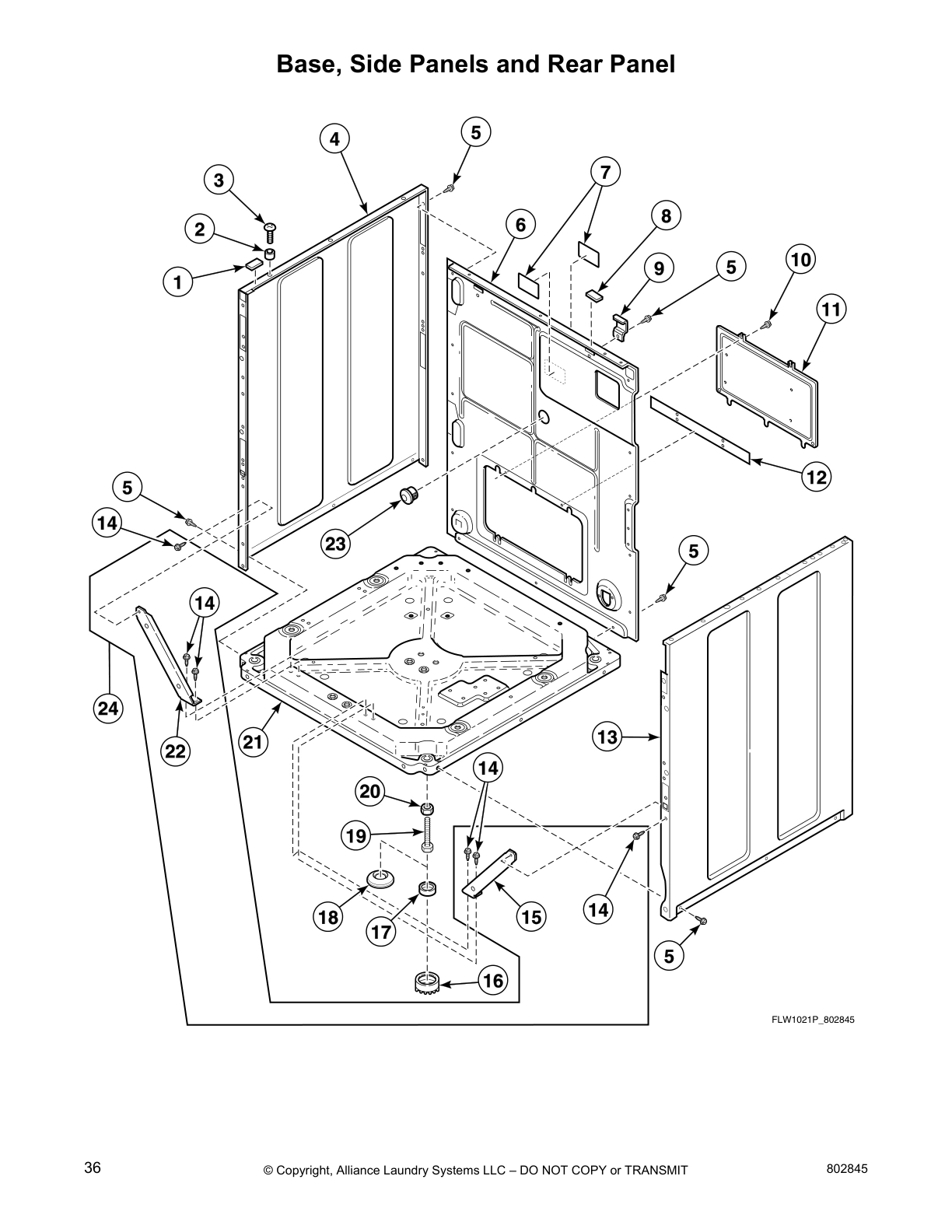

Base, Side Panels and Rear Panel

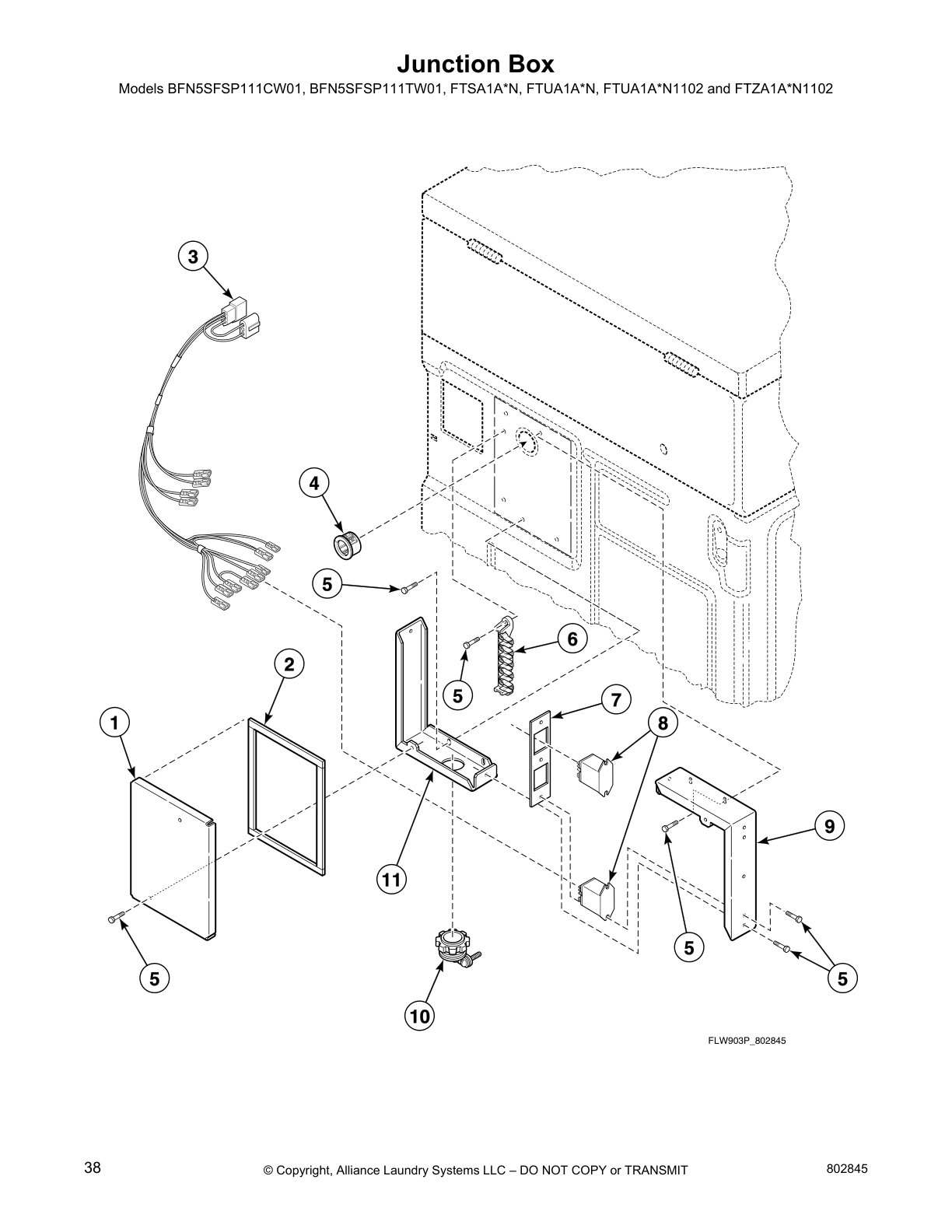

Junction Box

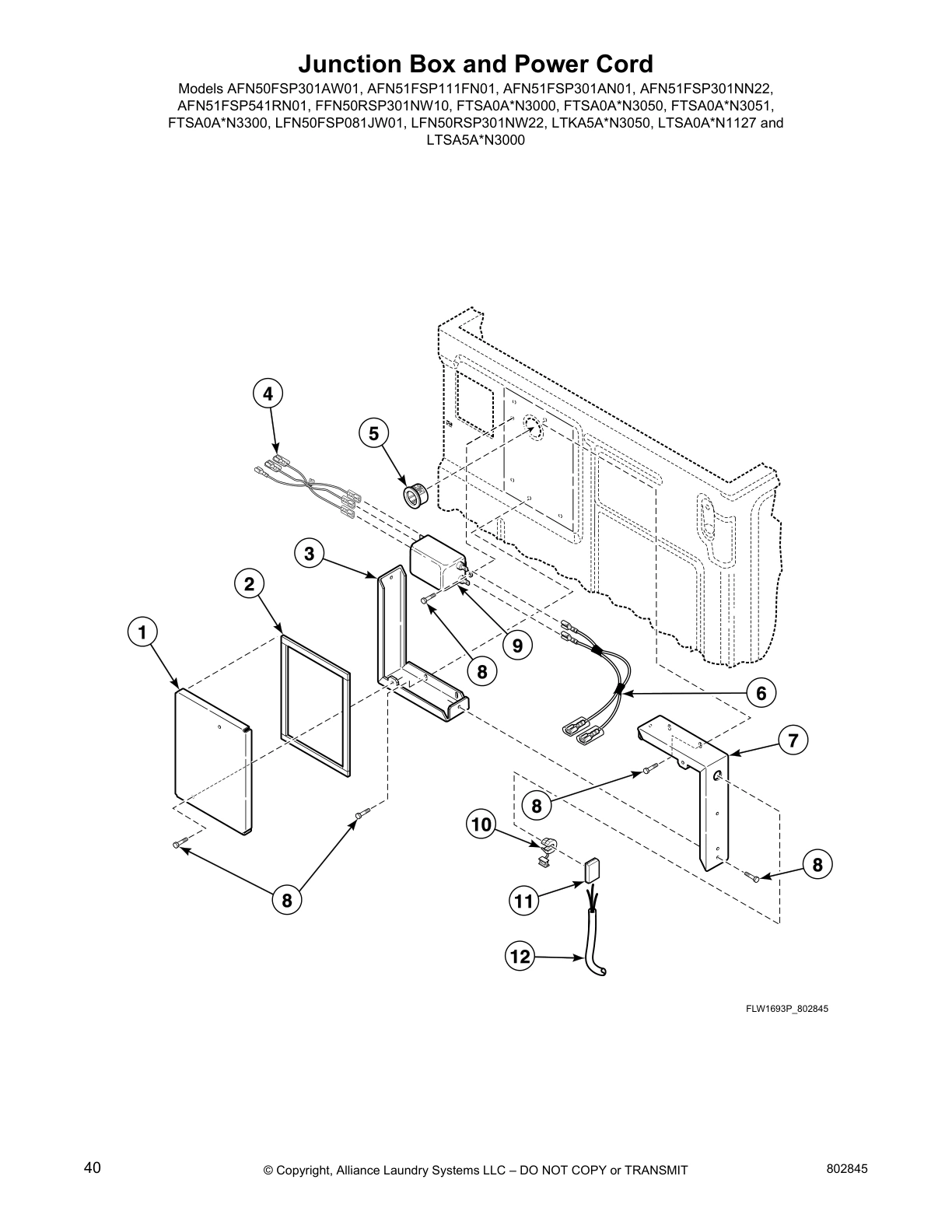

Junction Box and Power Cord

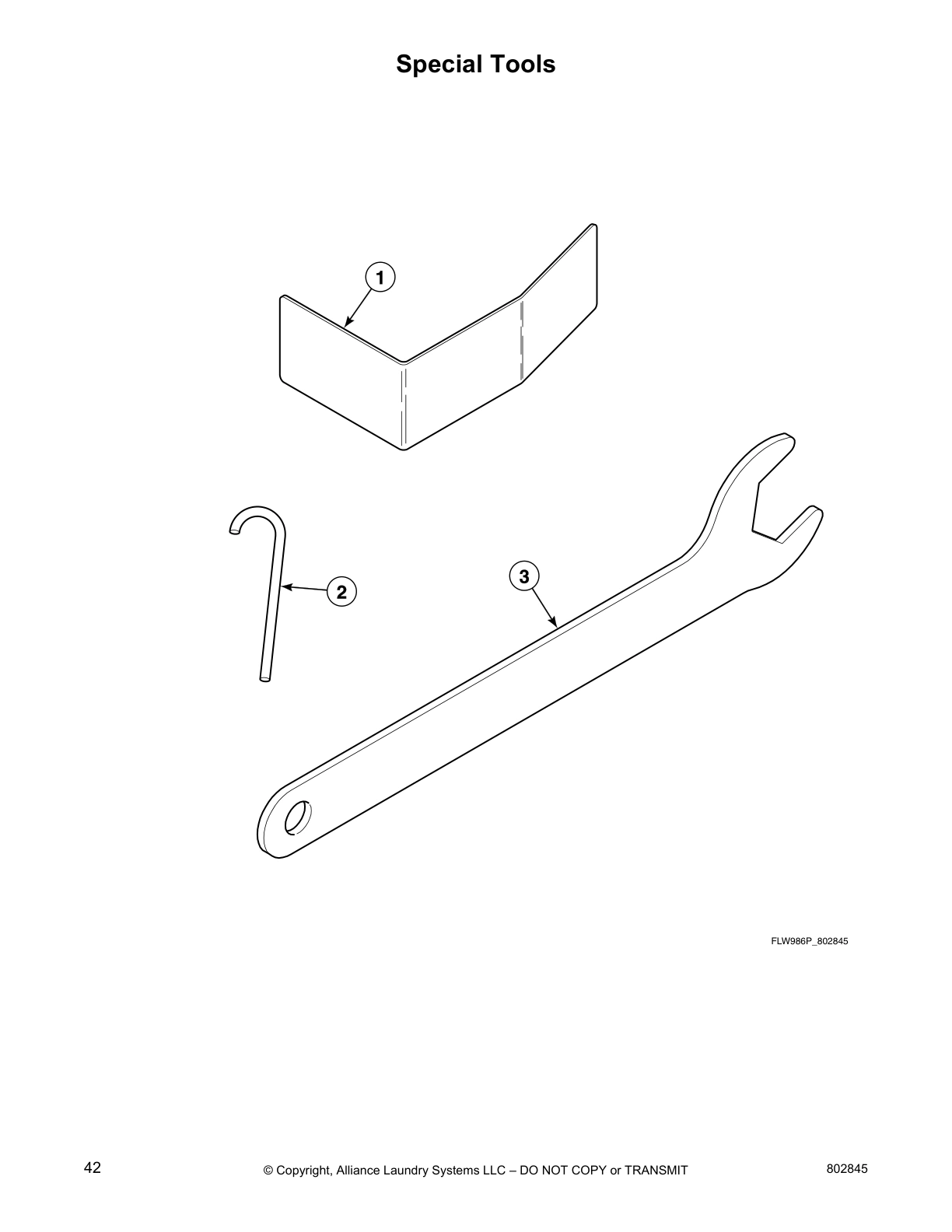

Special Tools

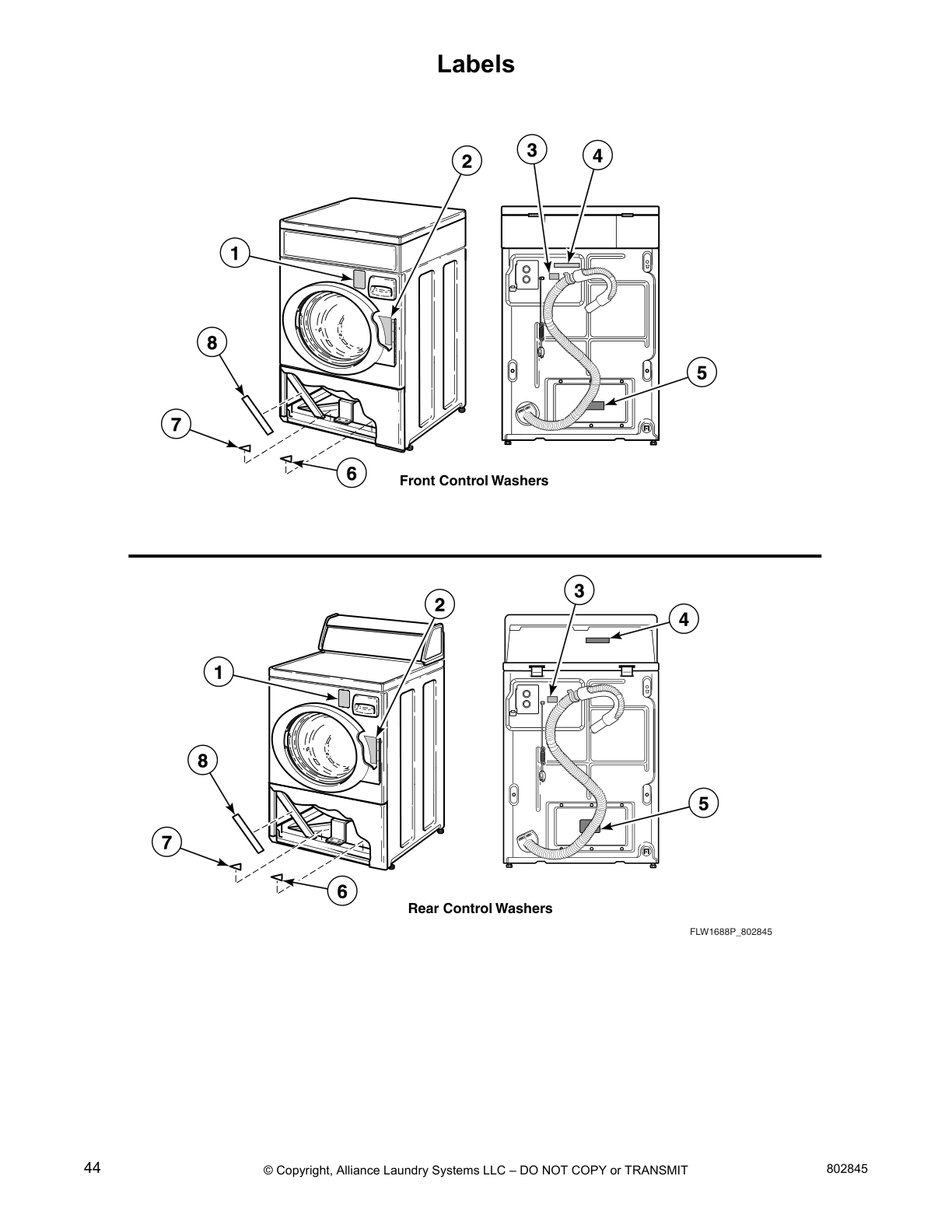

Labels

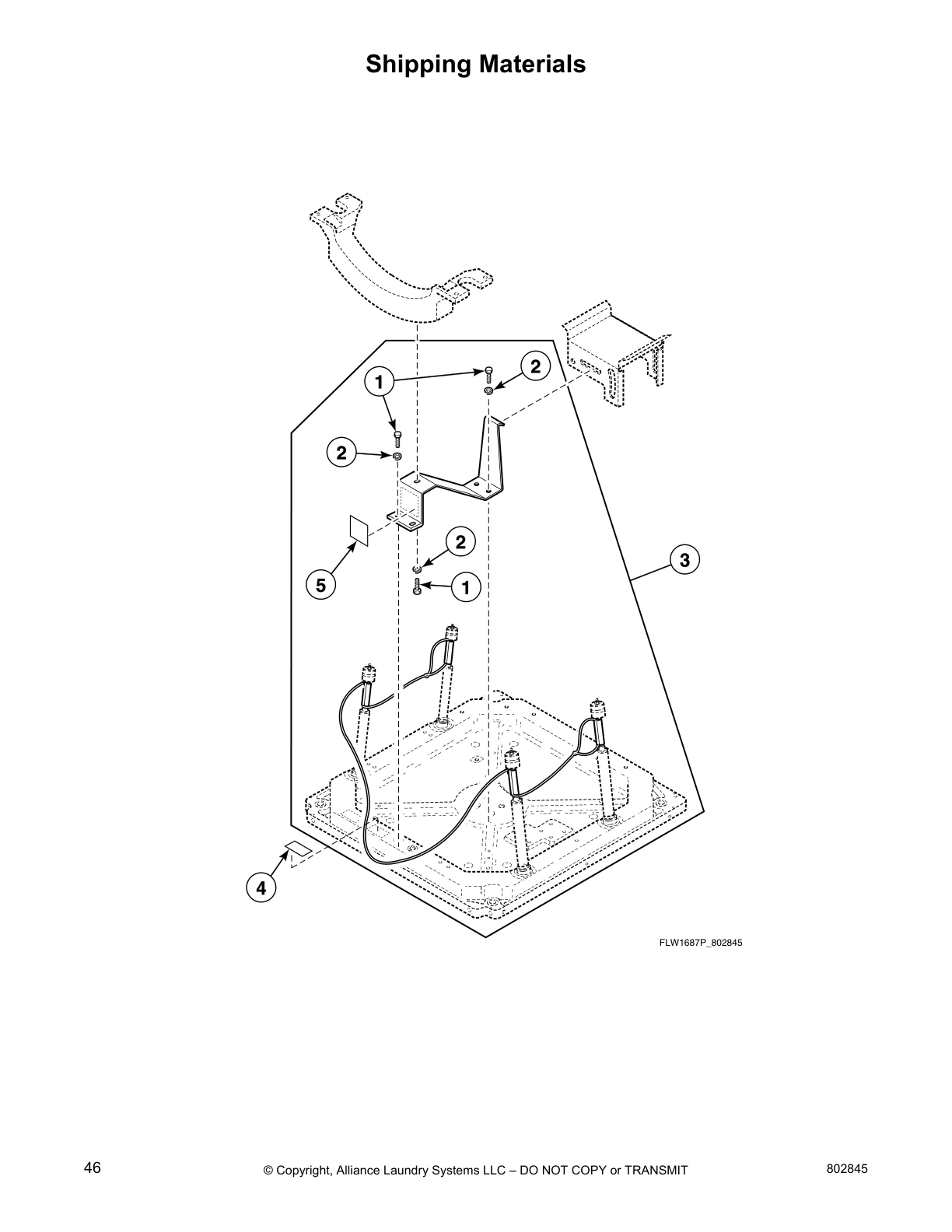

Shipping Materials

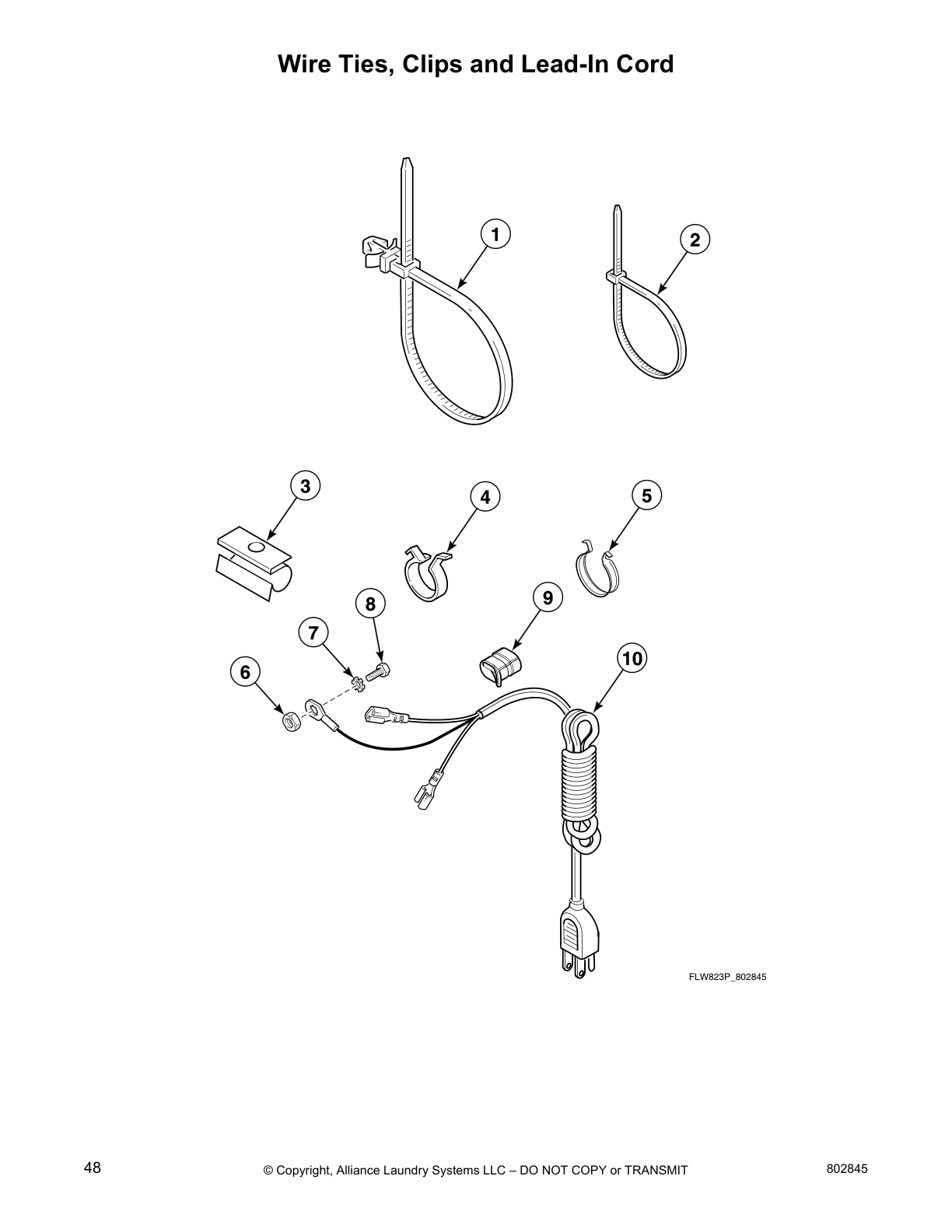

Wire Ties, Clips and Lead-In Cord

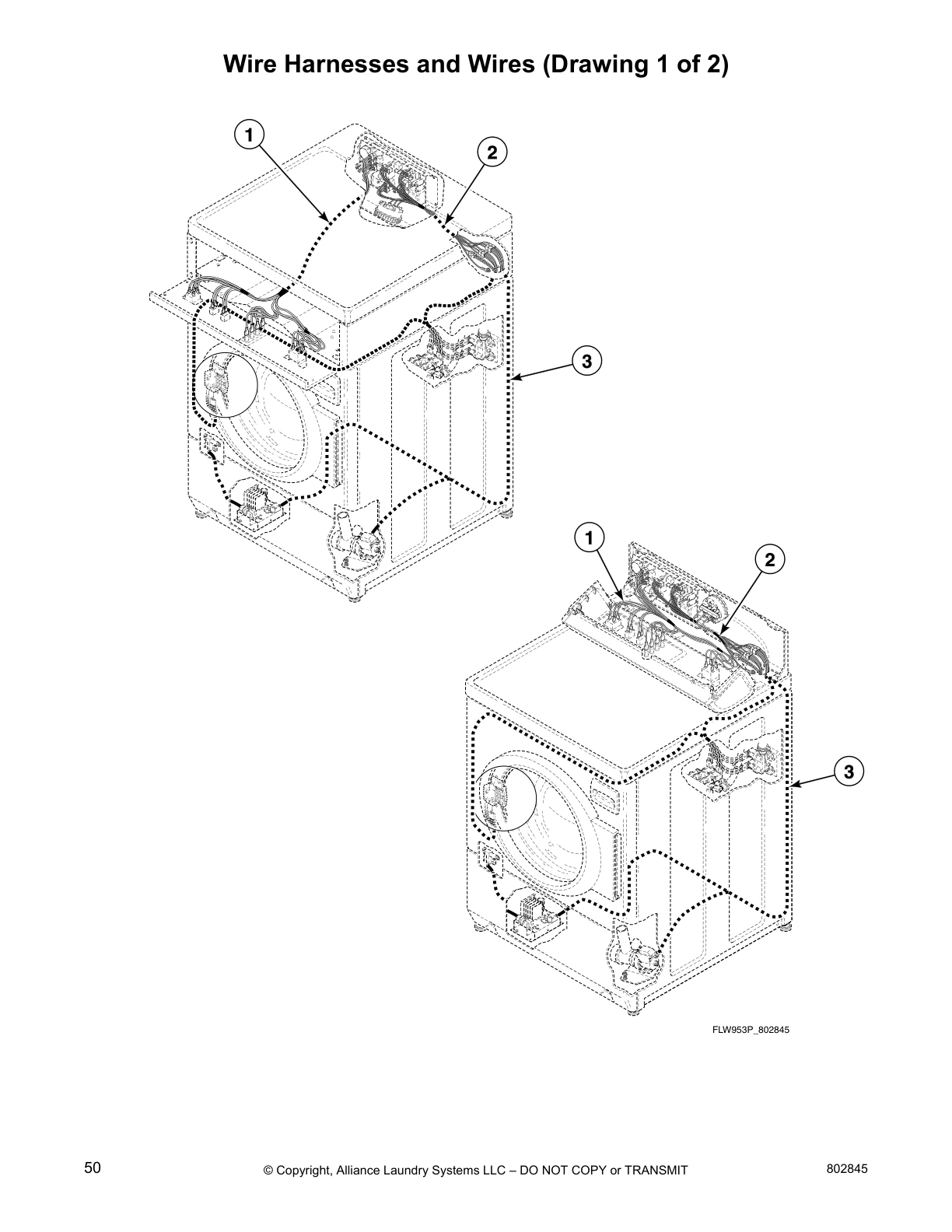

Wire Harnesses and Wires (Drawing 1 of 2)

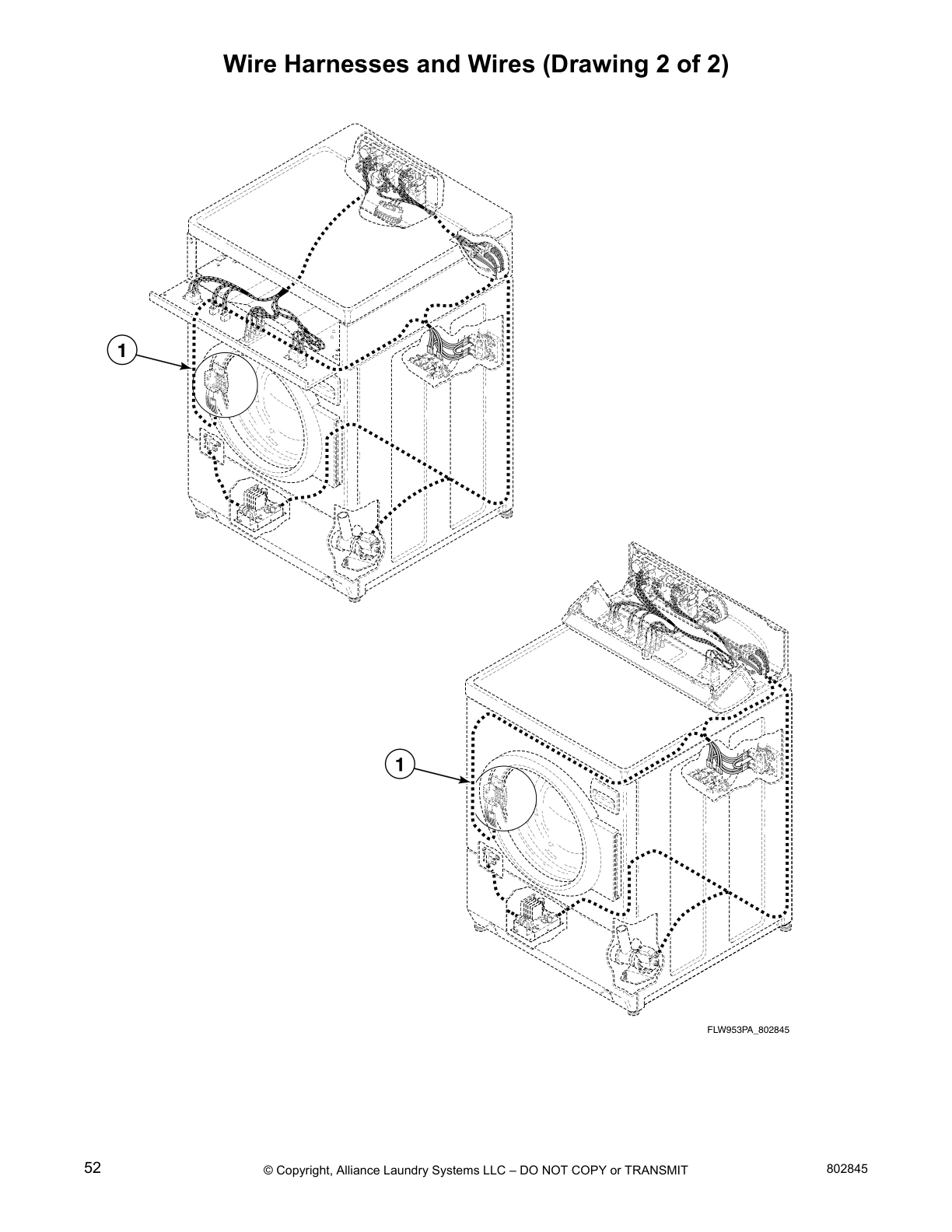

Wire Harnesses and Wires (Drawing 2 of 2)
Common parts from model Huebsch ZFN50FSP111CW01 Washer
3
Drain Kit SPQ 985P3 Contact Us For Availability
16
Screw SPQ 801476P Contact Us For Availability
× ![]()
