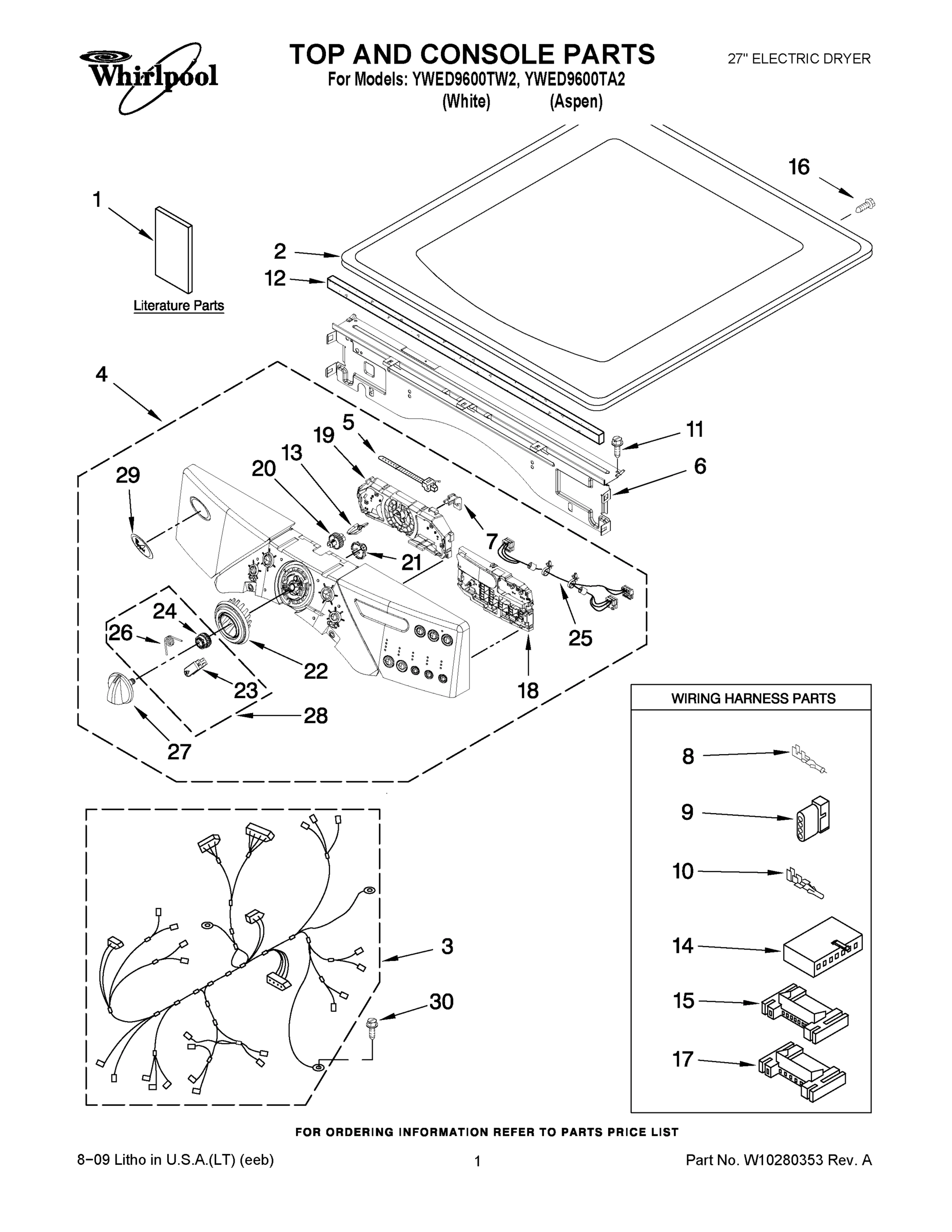

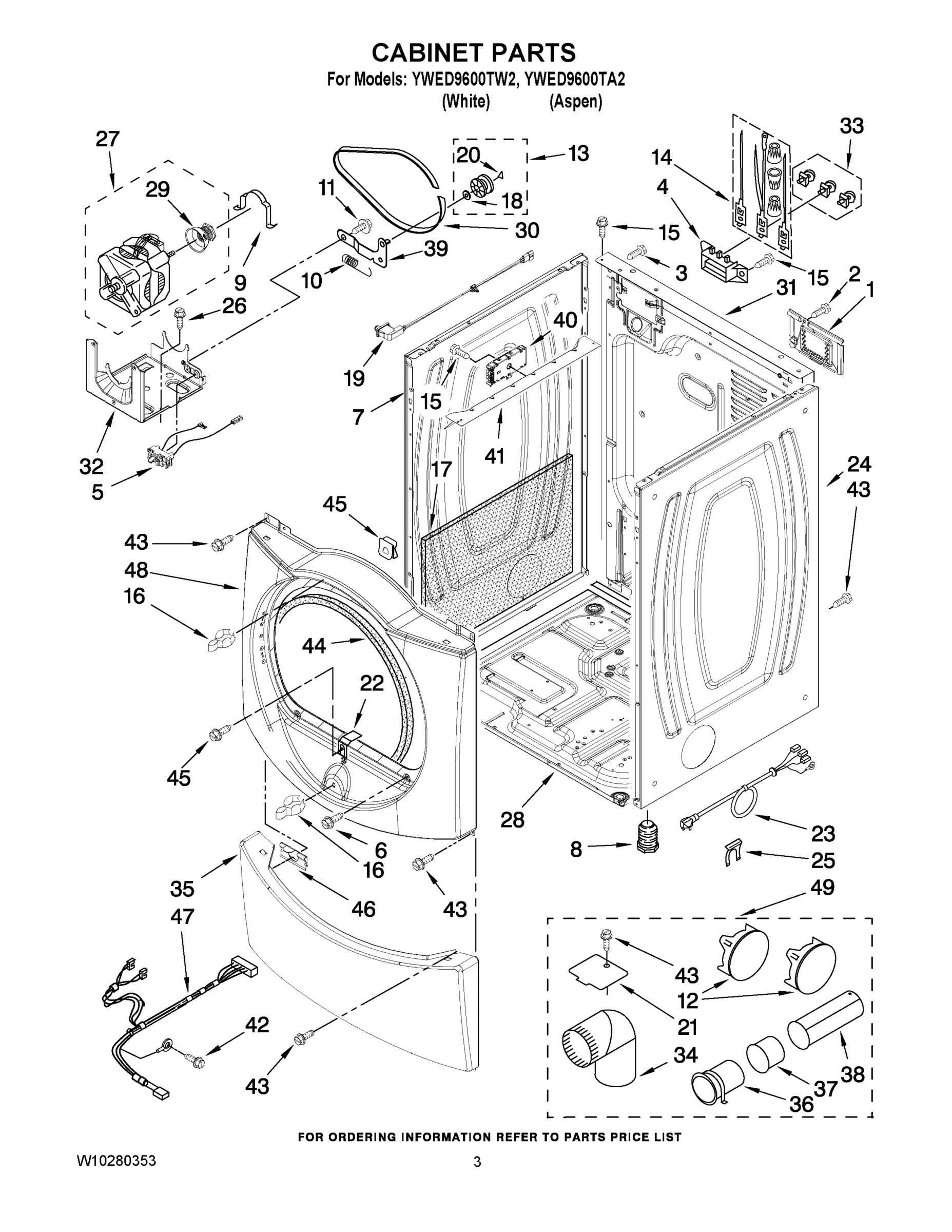

Model Whirlpool YWED9600TW2 27`` ELECTRIC DRYER – Common Parts & Diagrams

4
Screw, 8-18 x 5/8
Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability
View on Model
5
Cover-Hinge (R.H.)
Cover-Hinge (R.H.) WPL W10181197 Contact Us For Availability
View on Model

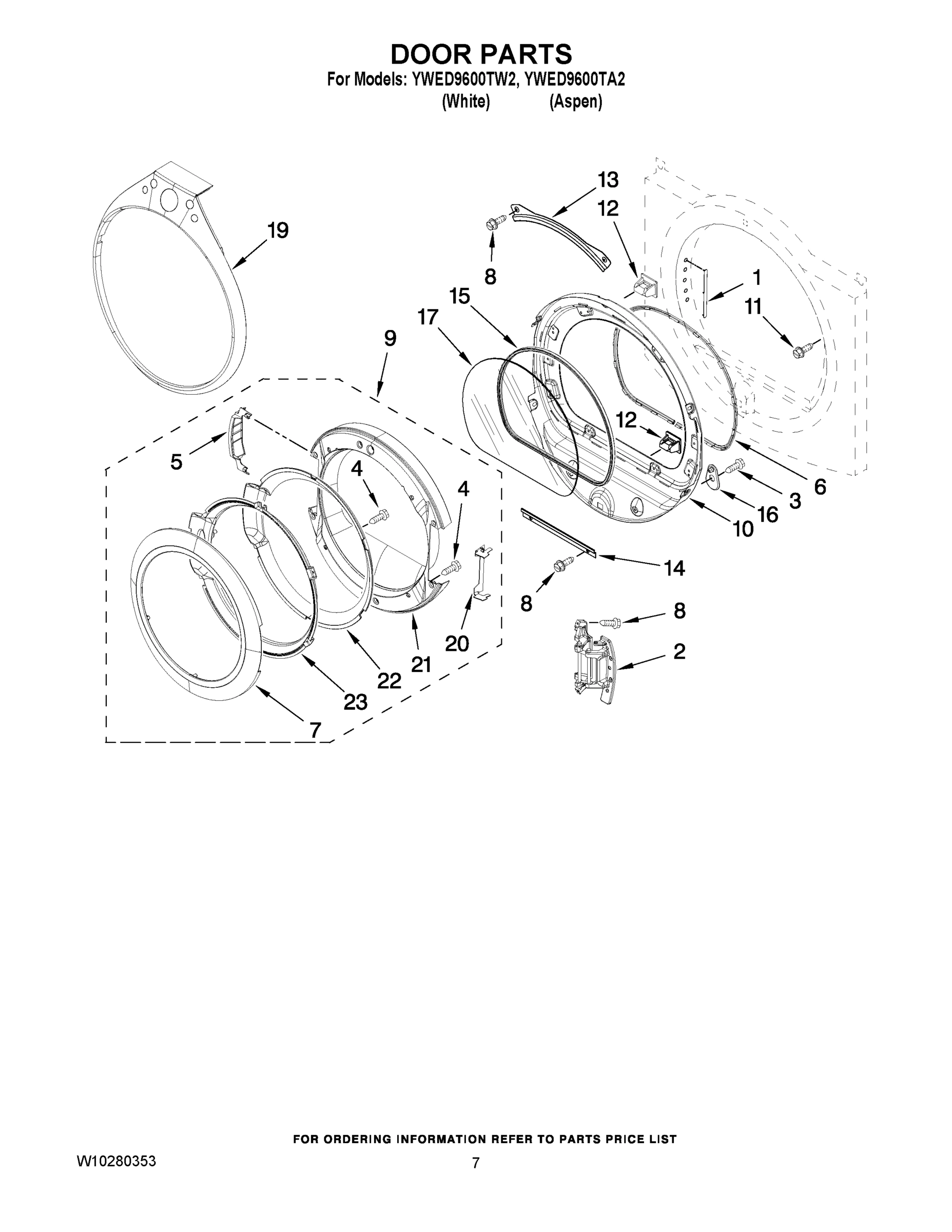

9
Door Assembly (Outer)
Door Assembly (Outer) WPL W10180115 Contact Us For Availability
View on Model
10
Door Assembly (Inner) (Includes Illus. 12)
Door Assembly (Inner) (Includes Illus. 12) WPL 8578229 Contact Us For Availability
View on Model
15
Gasket, Window
Gasket, Window WPL 8579662 Contact Us For Availability
View on Model
16
Screw-Plug
Screw-Plug WPL W10048910 Contact Us For Availability
View on Model
17

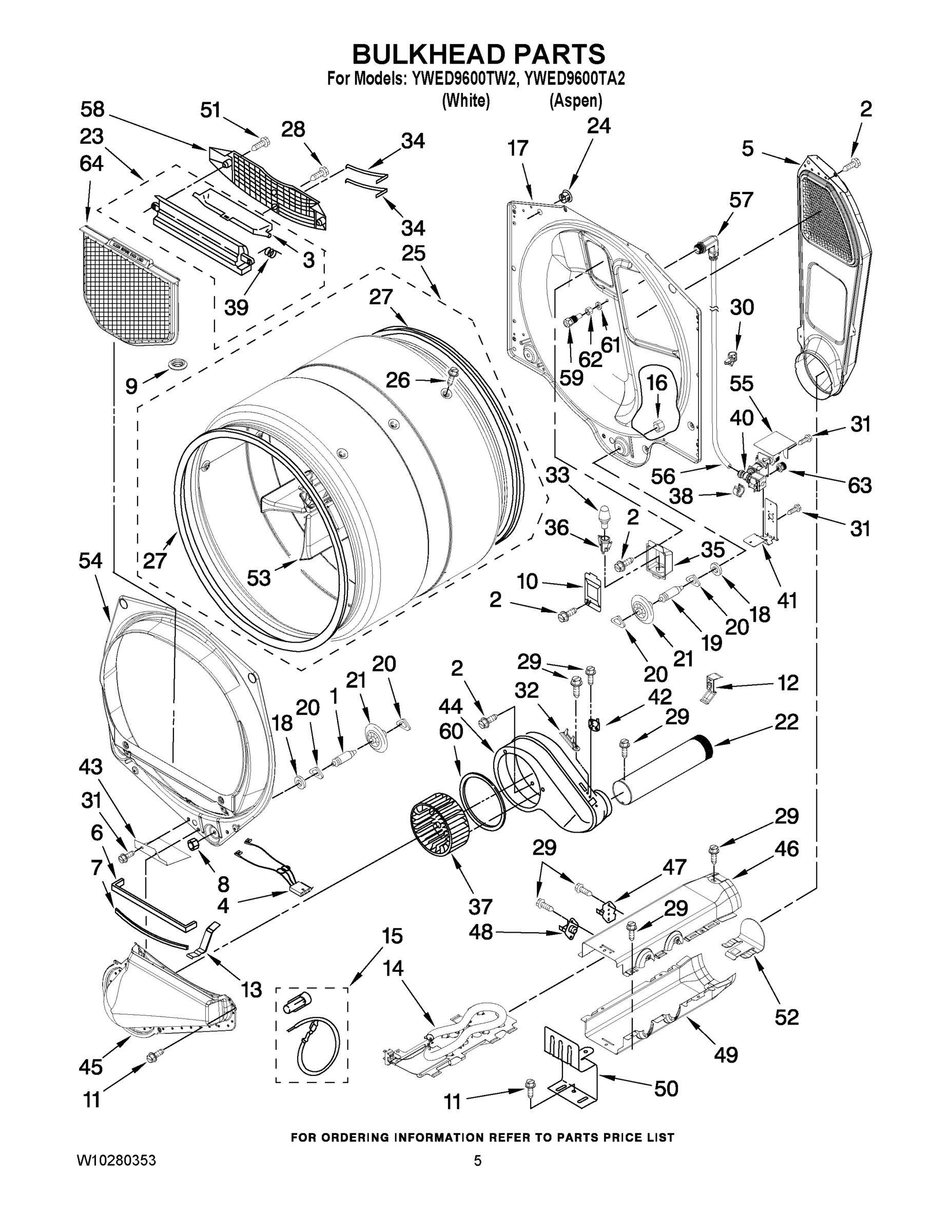

Bulkhead, Rear
Bulkhead, Rear WPL W10124071 Contact Us For Availability
View on Model
20
Door Shield
Door Shield WPL W10180120 Contact Us For Availability
View on Model
20
Encoder-Wheel
Encoder-Wheel WPL W10012430 Contact Us For Availability
View on Model
21
Door, Intermediate
Door, Intermediate WPL W10180118 Contact Us For Availability
View on Model
21
Retainer-Snap
Retainer-Snap WPL W10012440 Contact Us For Availability
View on Model
22
Ramp, Door
Ramp, Door WPL 8529053 Contact Us For Availability
View on Model
22
Knob, Light Ring (Includes: Illus. 21 )
Knob, Light Ring (Includes: Illus. 21 ) WPL W10012410 Contact Us For Availability
View on Model
23
Rast, Wheel Holder (Service Only With Illus.
Rast, Wheel Holder (Service Only With Illus. WPL W10012810 Contact Us For Availability
View on Model
24
Detent Wheel (Service Only With Illus. 28)
Detent Wheel (Service Only With Illus. 28) WPL W10012460 Contact Us For Availability
View on Model
26
Knob, Spring (2) (Service Only With Illus. 28
Knob, Spring (2) (Service Only With Illus. 28 WPL W10012820 Contact Us For Availability
View on Model
27
Knob, Control (Includes: Illus. 21) (Aspen)
Knob, Control (Includes: Illus. 21) (Aspen) WPL W10153663 Contact Us For Availability
View on Model
27
Knob, Control (Includes: Illus. 21) (White)
Knob, Control (Includes: Illus. 21) (White) WPL W10116702 Contact Us For Availability
View on Model
28
ENCODER, WHEEL KIT. (INCLUDES ITEM: 23, 24, &
ENCODER, WHEEL KIT. (INCLUDES ITEM: 23, 24, & WPL 280230 Contact Us For Availability
View on Model
29
Badge
Badge WPL W10117943 Contact Us For Availability
View on Model
40
CONTROL BOARD
CONTROL BOARD WPL W10174746 Contact Us For Availability
View on Model
40
Valve, Water Inlet (Includes Illus. 31,41,55
Valve, Water Inlet (Includes Illus. 31,41,55 WPL W10044596 Contact Us For Availability
View on Model
41
Bracket-Valve
Bracket-Valve WPL W10044597 Contact Us For Availability
View on Model
45
Clip-S Type
Clip-S Type WPL 62825 Contact Us For Availability
View on Model
49
HOUSING TAB, HEATER BOX
HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability
View on Model
53
WPL 697693
WPL 697693 WPL 697693 Contact Us For Availability
View on Model
54
WPL W10252304
WPL W10252304 WPL W10252304 Contact Us For Availability
View on Model
56
WPL W10044598
WPL W10044598 WPL W10044598 Contact Us For Availability
View on Model
57
WPL W10044606
WPL W10044606 WPL W10044606 Contact Us For Availability
View on Model
59
WPL W10044629
WPL W10044629 WPL W10044629 Contact Us For Availability
View on Model
NI
PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2oz.) (New Aspen)
PAINT, TOUCH-UP (1/2oz.) (New Aspen) WPL W10157756 Contact Us For Availability
View on Model
