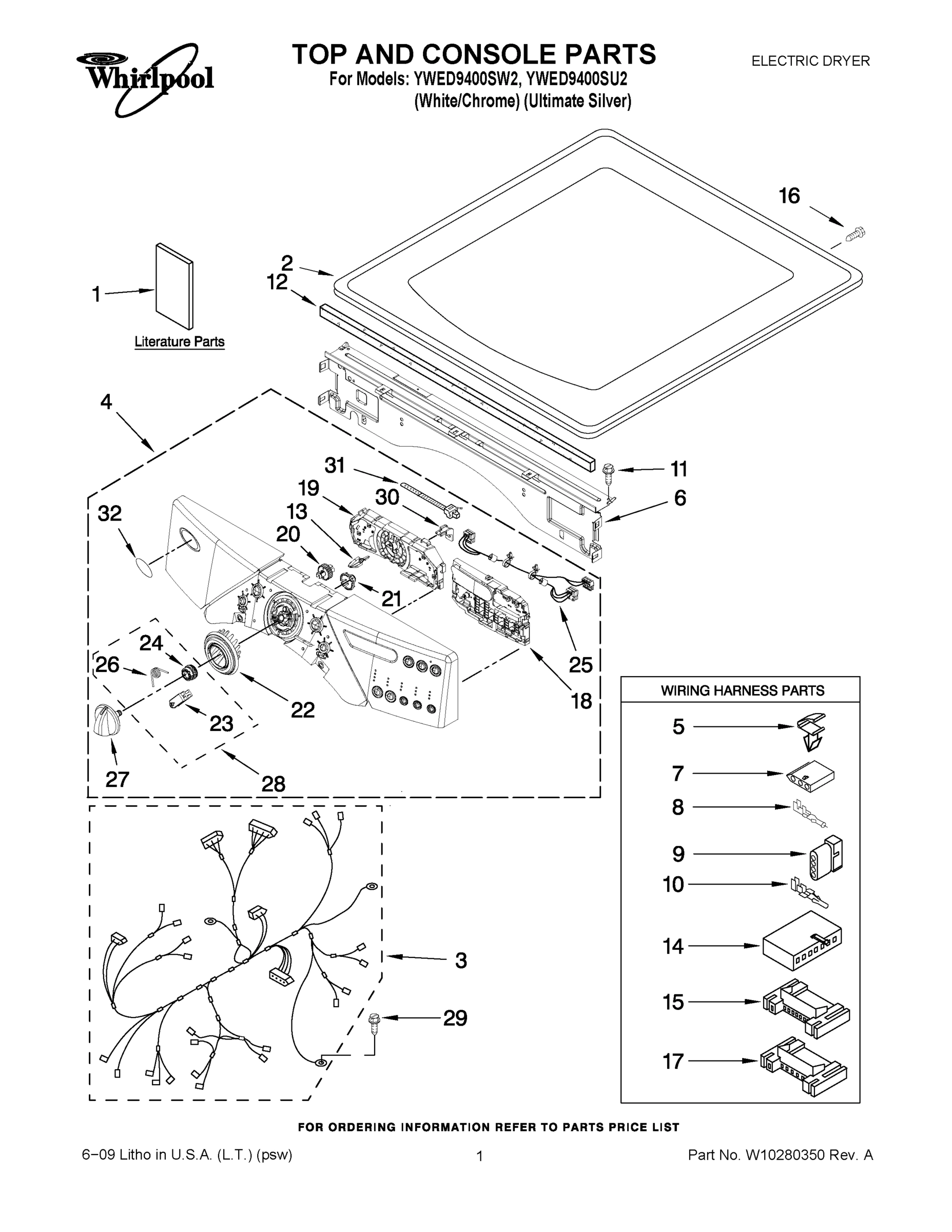

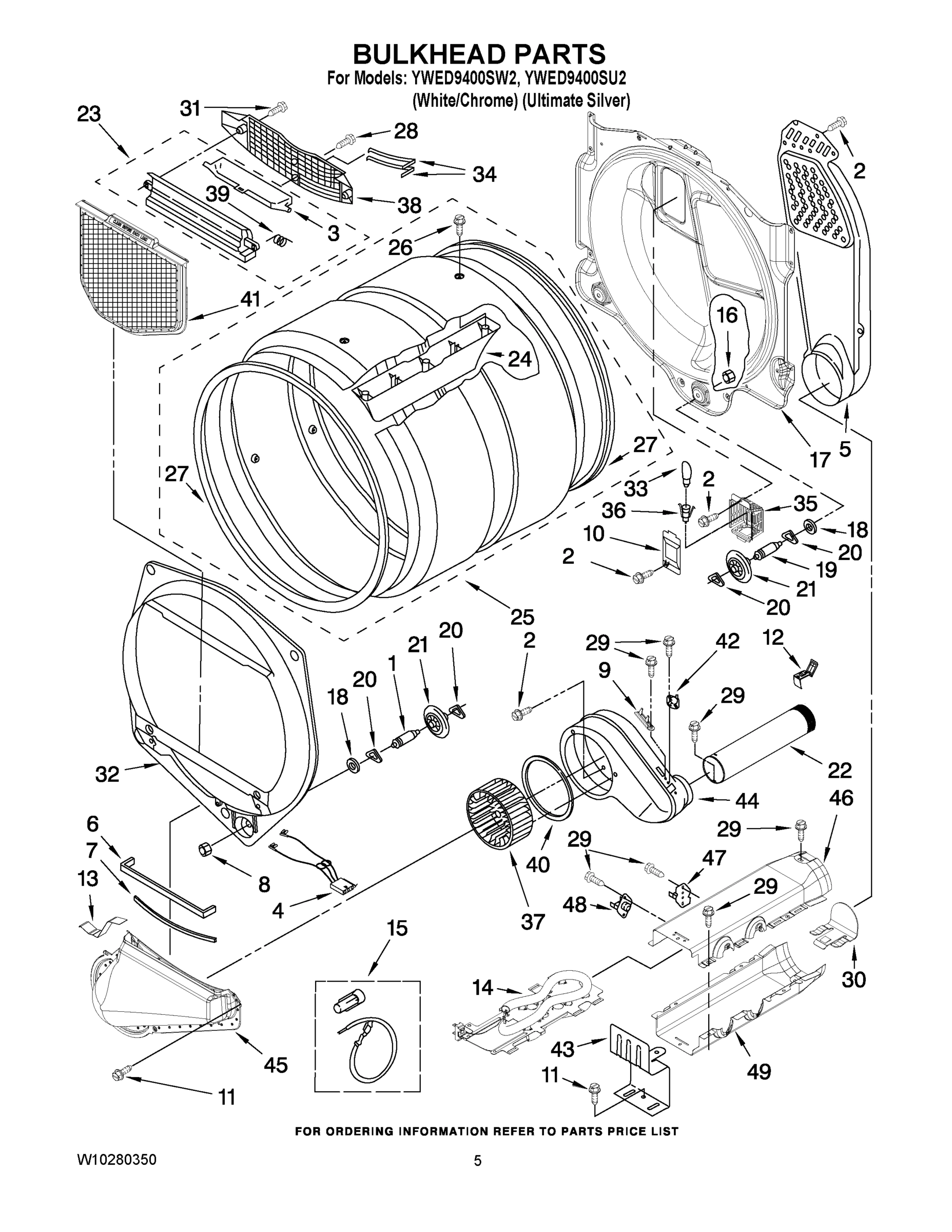

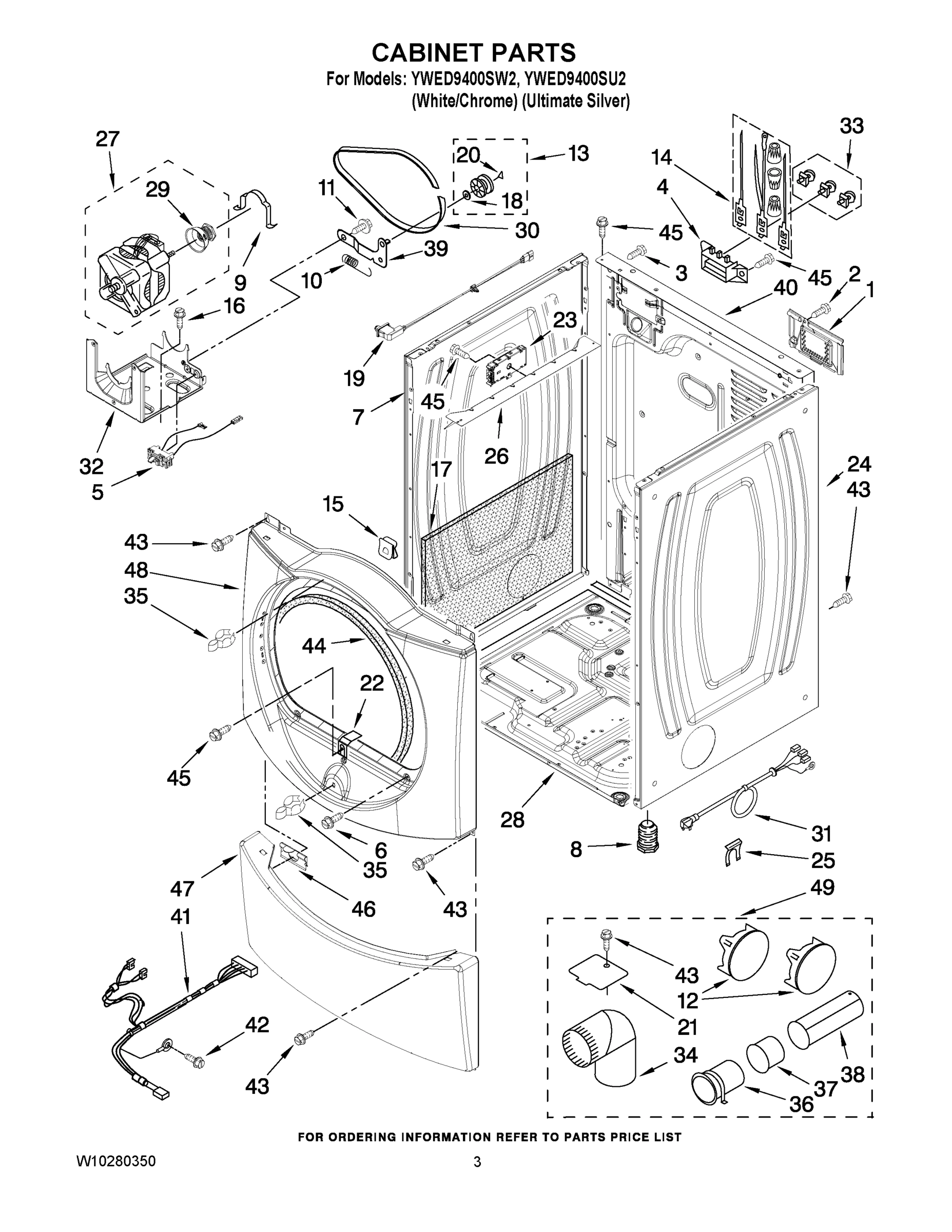

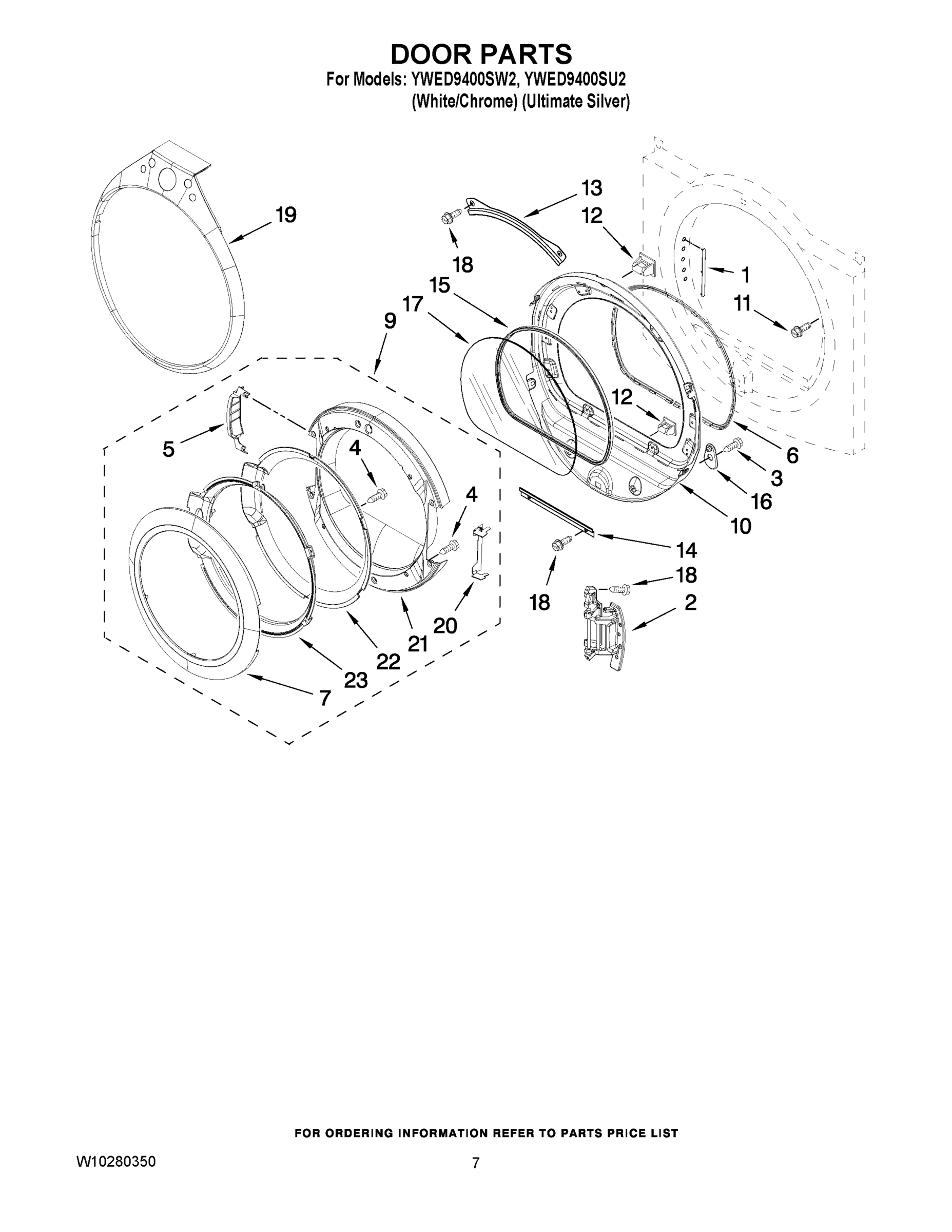

Model Whirlpool YWED9400SU2 ELECTRIC DRYER – Common Parts &amp; Diagrams

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $37.48

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

3

W11222846 Whirlpool Door Backorder WPL W11222846 $134.12

3

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $4.82

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $104.68

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

5

WP3387911 Whirlpool Air Duct In Stock WPL WP3387911 $213.56

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

5

Cover-Hinge (R.H.) WPL W10181197 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $73.46

7

353424 Whirlpool Connector Backorder WPL 353424 $14.02

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

WPW10080210 Whirlpool Nut In Stock WPL WPW10080210 $4.82

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

9

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $20.51

9

Door Assembly (Outer) WPL W10180115 Contact Us For Availability

10

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $16.79

10

DOOR ASSEMBLY (INNER) (INCLUDES ITEM 12.) WPL 8578229 Contact Us For Availability

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

11

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $4.67

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $45.77

13

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

14

279318 Whirlpool Terminal In Stock WPL 279318 $46.99

14

WP8544771 Whirlpool Dryer Heating Element In Stock WPL WP8544771 $109.88

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.99

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

Gasket, Window WPL 8579662 Contact Us For Availability

Clip-S Type WPL 62825 Contact Us For Availability

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $7.52

16

Screw-Plug WPL W10048910 Contact Us For Availability

17

W10123956 Whirlpool Sound Absorber Backorder WPL W10123956 $21.43

17

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $202.28

17

WPW10080170 Whirlpool Bulkhead Assembly Backorder WPL WPW10080170 $215.69

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $20.83

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $52.55

19

Tear-Drop Trim & Clip Assembly (White) WPL W10180492 Contact Us For Availability

19

Tear-Drop Trim & Clip Assembly (Silver) WPL W10180498 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

20

Door Shield WPL W10180120 Contact Us For Availability

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $19.51

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $97.26

22

Ramp, Door WPL 8529053 Contact Us For Availability

22

KNOB, LIGHT RING (INCLUDES: ITEM 21) WPL W10012410 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $53.71

23

BOARD, CONTROL WPL W10174745 Contact Us For Availability

24

Baffle, Drum WPL 697693 Contact Us For Availability

25

W10242906 Whirlpool Wire Harness Backorder WPL W10242906 $115.75

25

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $229.99

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $4.82

26

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $113.65

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $31.56

27

Knob, Control (Includes: Item. 21) (White) WPL W10116702 Contact Us For Availability

28

Encoder, Wheel Kit (Includes Items: 23, 24, & WPL 280230 Contact Us For Availability

29

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

30

8544776 Whirlpool Clip Assembly Backorder WPL 8544776 $12.01

31

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $48.99

32

BULKHEAD, FRONT WPL W10252304 Contact Us For Availability

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $18.53

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.60

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $14.48

36

W11222979 Whirlpool Socket In Stock WPL W11222979 $78.07

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

38

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

40

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

41

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $34.95

41

W10242904 Whirlpool Wire Harness Backorder WPL W10242904 $66.91

42

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $29.99

43

8066099 Whirlpool Bracket Backorder WPL 8066099 $14.67

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $41.99

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $124.99

46

WP8544769 Whirlpool Box Backorder WPL WP8544769 $110.78

47

279973 Whirlpool Dryer Thermal Cut-Off and Hi In Stock WPL 279973 $32.96

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $78.71

48

WPL W10180429 WPL W10180429 Contact Us For Availability

49

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $66.95

49

HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $17.60

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $24.88

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $48.67

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $27.54

PAINT, TOUCH-UP (1/2oz.) (Ultimate Silver) WPL 8212605 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
