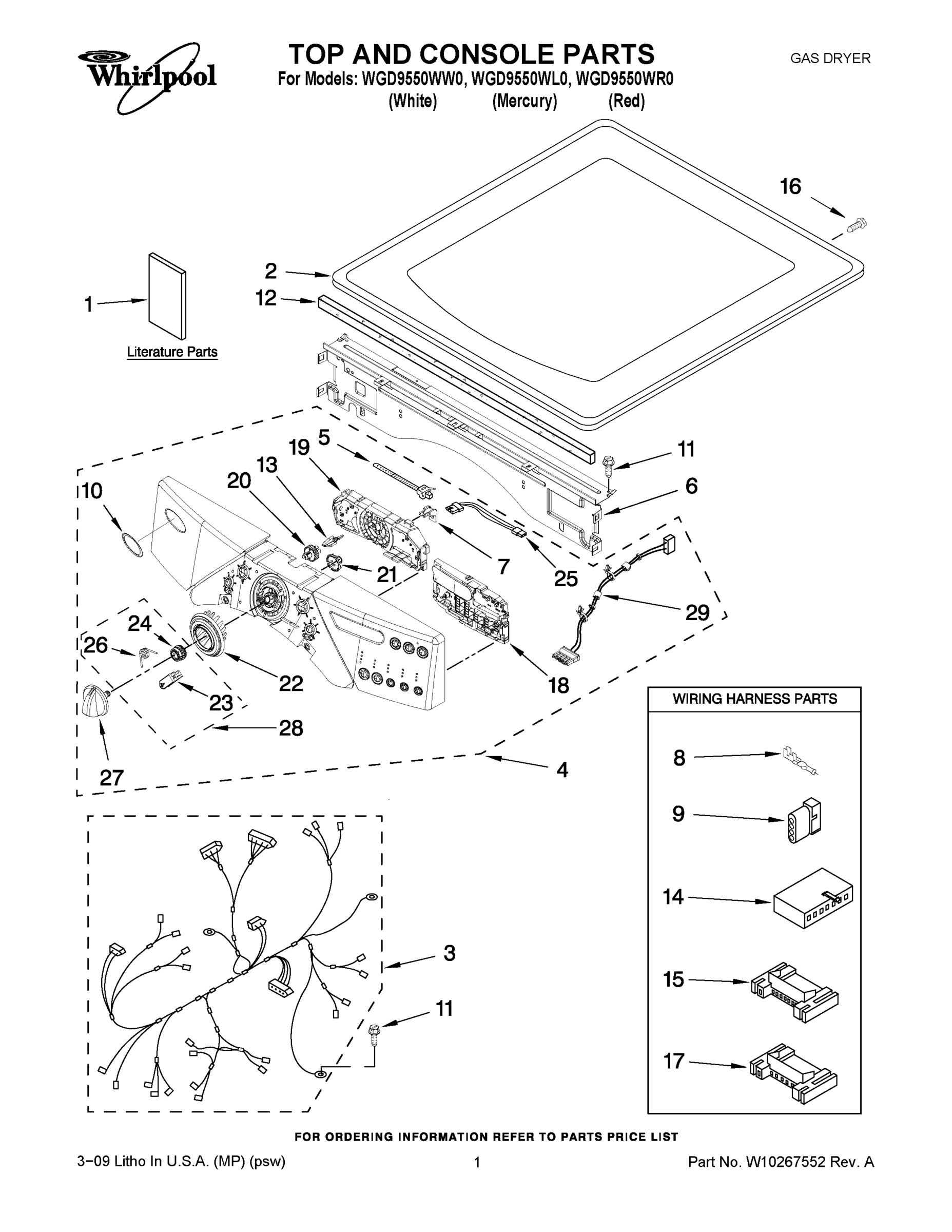

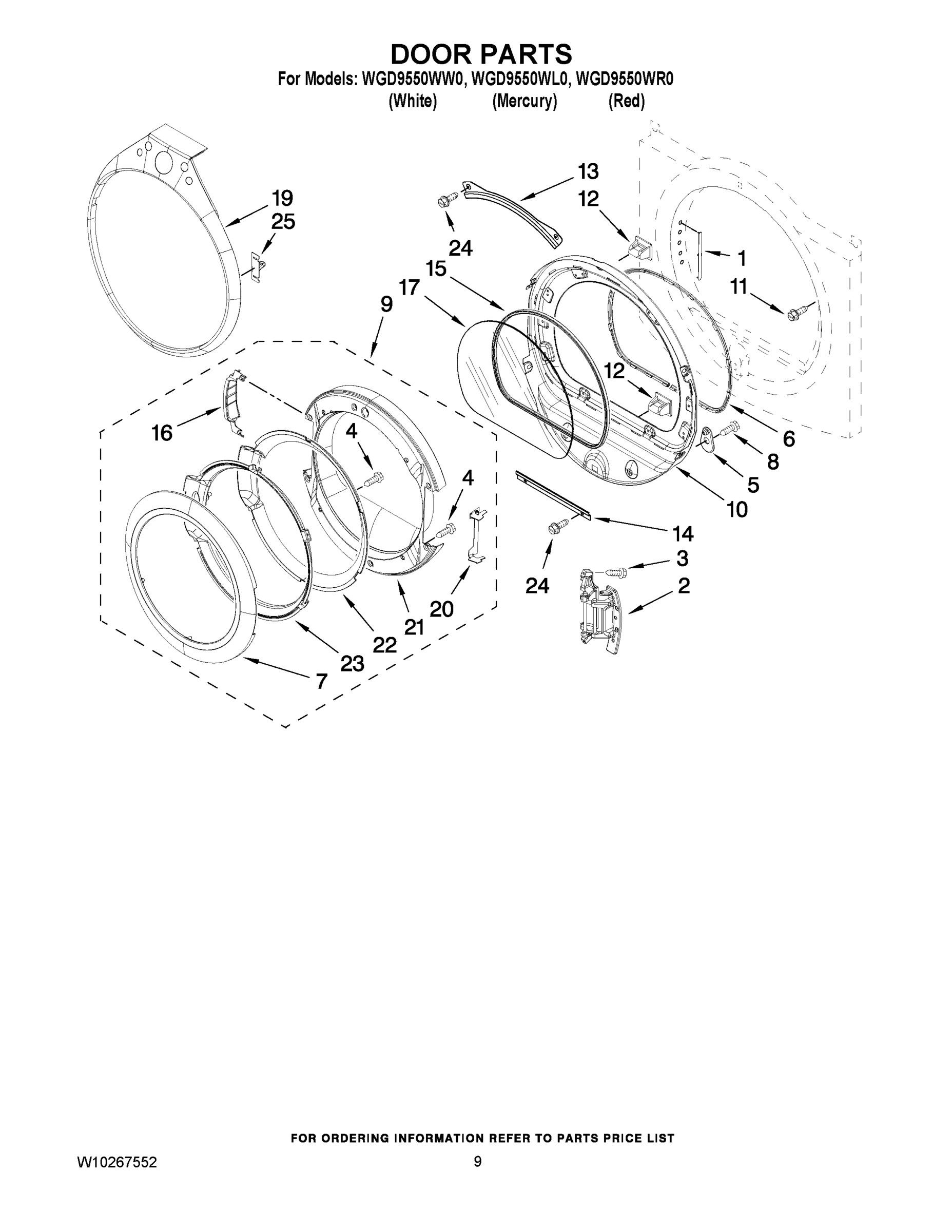

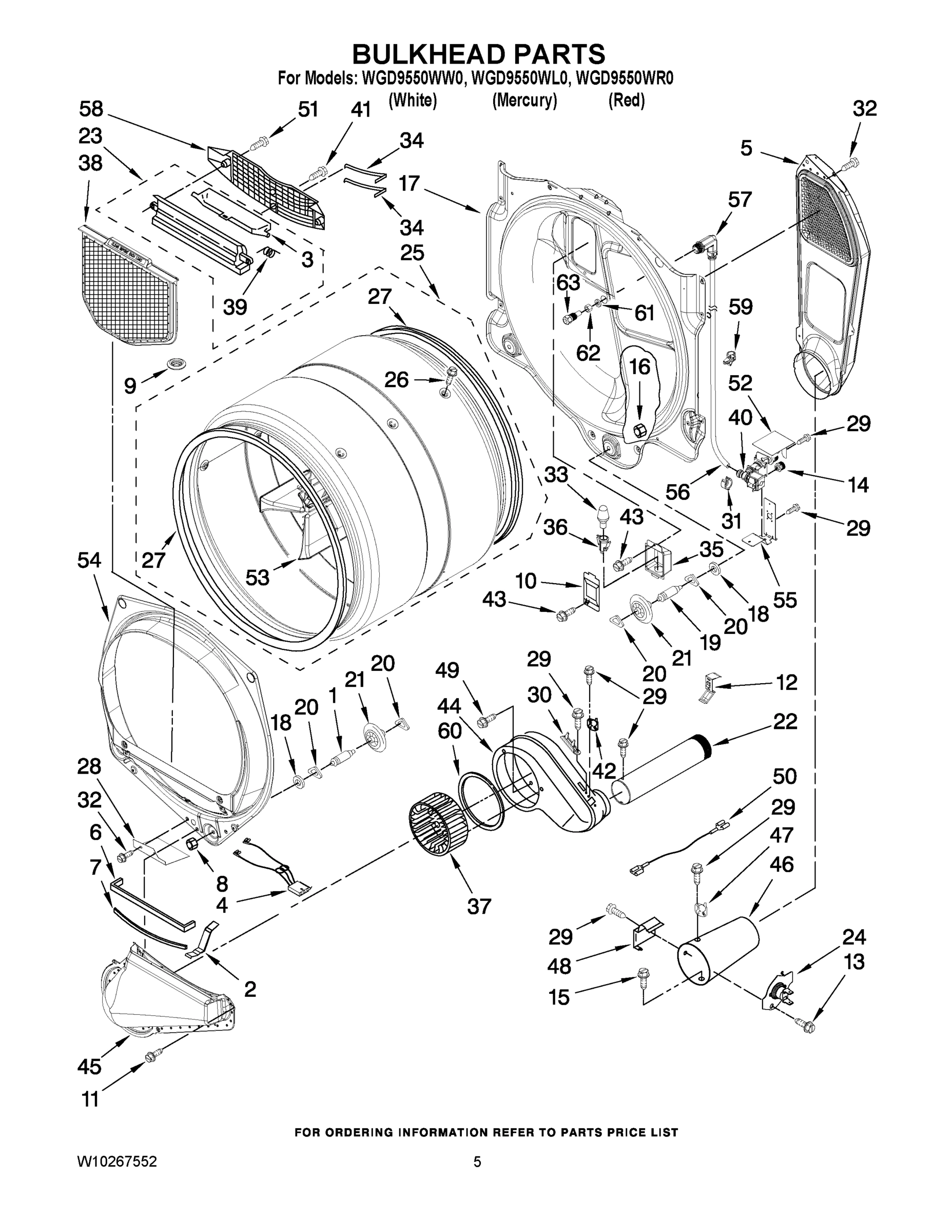

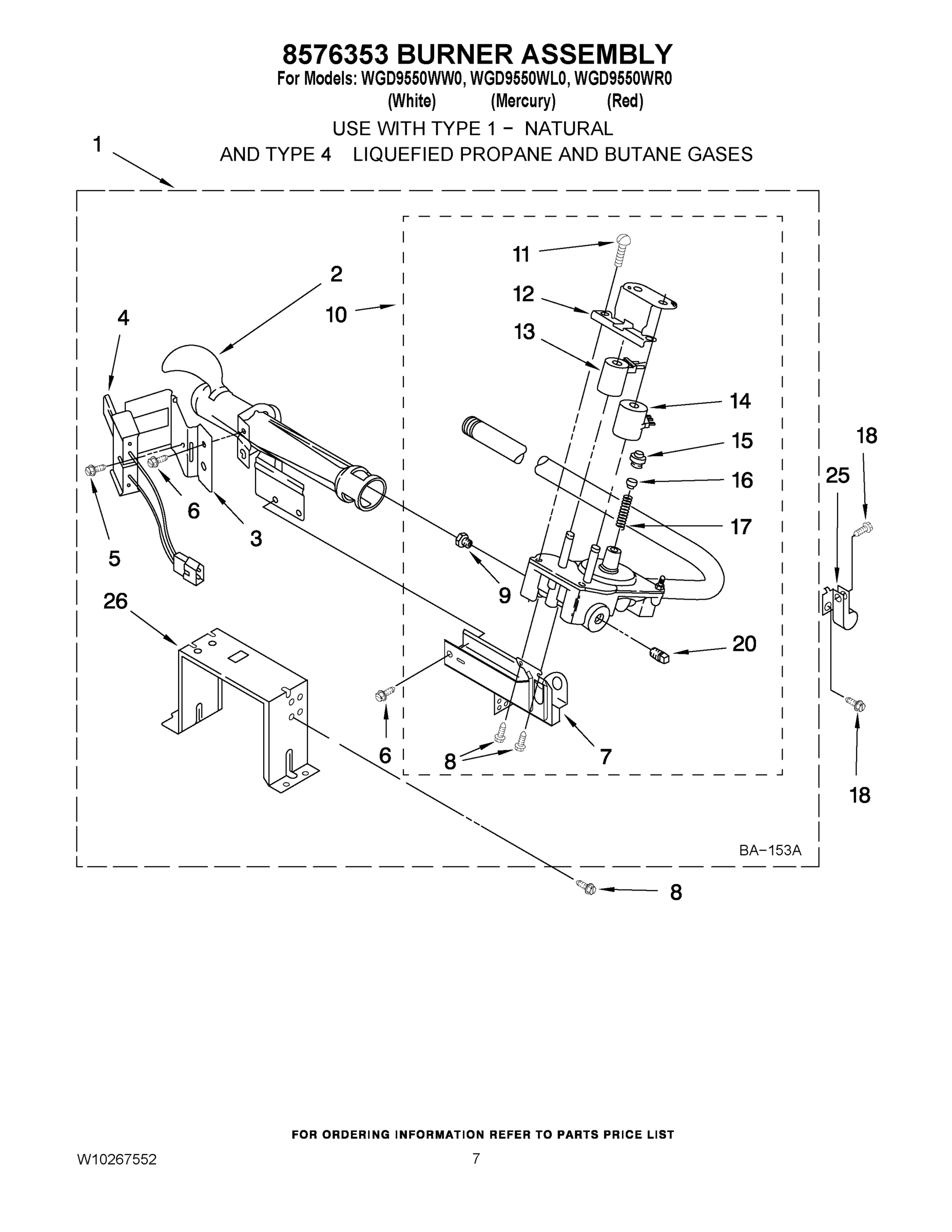

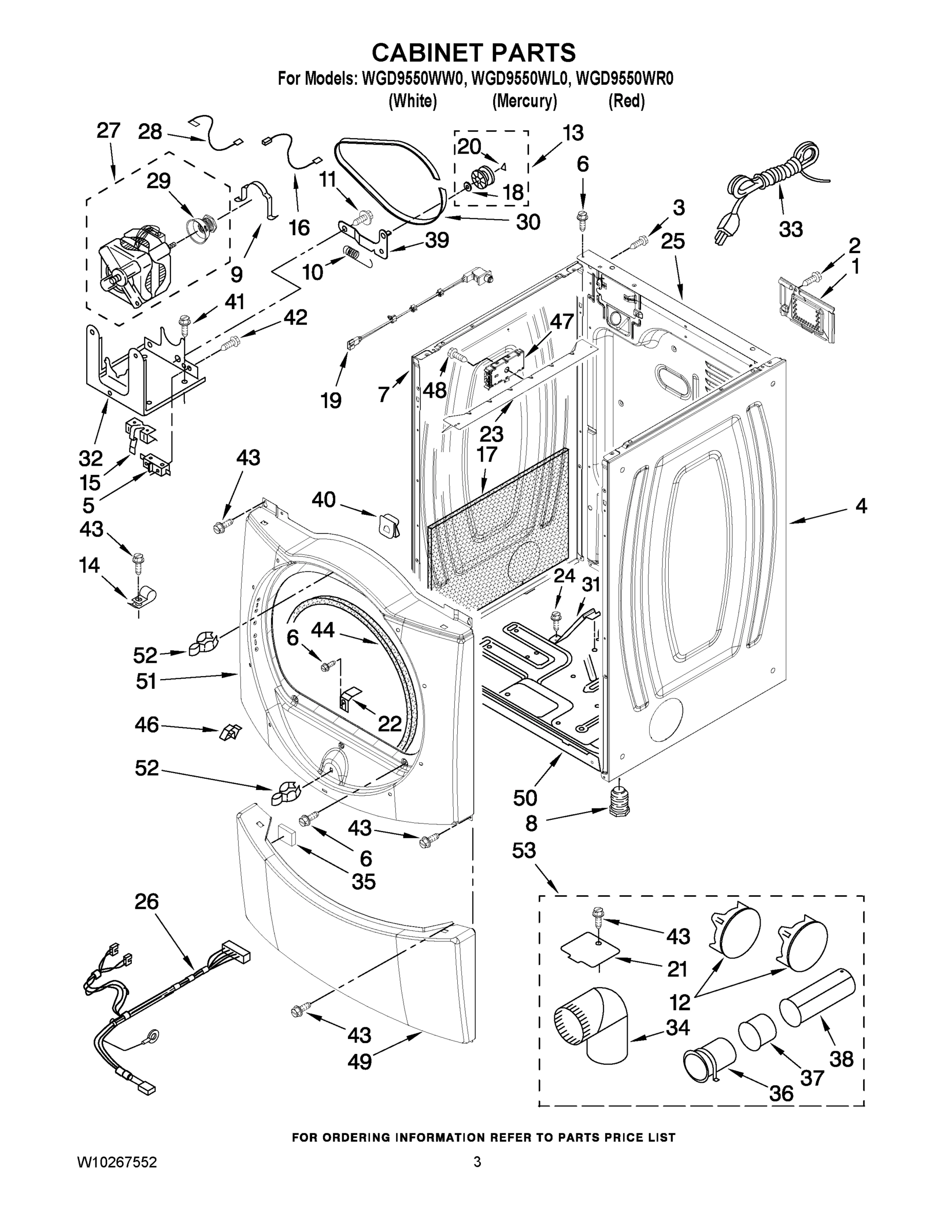

Model Whirlpool WGD9550WW0 GAS DRYER – Common Parts &amp; Diagrams

1

WPW10359271 Whirlpool Drum Roller Shaft In Stock WPL WPW10359271 $37.48

1

Sheet, Tip Steam Dry WPL W10139322 Contact Us For Availability

1

INSTALLATION INSTRUCTIONS WPL W10224610 Contact Us For Availability

1

USE & CARE GUIDE WPL W10244607 Contact Us For Availability

1

TECH SHEET WPL W10251194 Contact Us For Availability

2

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

2

Top (White) WPL 3980634 Contact Us For Availability

2

TOP (RED) WPL W10249738 Contact Us For Availability

2

TOP (MERCURY) WPL W10249739 Contact Us For Availability

3

W11222846 Whirlpool Door Backorder WPL W11222846 $134.12

3

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $4.82

3

Harness, Main WPL W10181775 Contact Us For Availability

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $104.68

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES ILLUS: 10,20,21,22,2 WPL W10246596 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES ILLUS: 10,20,21,22,2 WPL W10251598 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES ILLUS: 10,20,21,22,2 WPL W10251606 Contact Us For Availability

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $99.54

5

Screw-Plug WPL W10048910 Contact Us For Availability

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

WPW10139457 Whirlpool Door Seal In Stock WPL WPW10139457 $73.46

6

Bracket, Console (Includes No.12) WPL W10215656 Contact Us For Availability

7

W10112268 Whirlpool Clip Backorder WPL W10112268 $8.57

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

WPW10080210 Whirlpool Nut In Stock WPL WPW10080210 $4.82

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

W10665050 Whirlpool Plug Backorder WPL W10665050 $12.73

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $16.99

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $16.79

WPW10118347 Whirlpool Gas Valve In Stock WPL WPW10118347 $250.51

Door Assembly (Inner) (Includes Illus. 12) WPL 8578229 Contact Us For Availability

Badge WPL W10117943 Contact Us For Availability

11

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.89

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

12

W10112267 Whirlpool Seal Assembly Backorder WPL W10112267 $63.66

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $4.67

12

WPW10121316 Whirlpool Clamp In Stock WPL WPW10121316 $20.51

13

W10012480 Whirlpool WP Dryer Encoder Adapt Wh Backorder WPL W10012480 $10.69

13

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

14

3936150 Whirlpool Connector Backorder WPL 3936150 $59.13

14

W10859554 Whirlpool Coupler Backorder WPL W10859554 $54.45

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

WP694424 Whirlpool Limiter In Stock WPL WP694424 $17.77

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $20.67

Gasket, Window WPL 8579662 Contact Us For Availability

303776 Whirlpool Dishwasher Screw Backorder WPL 303776 $6.92

WP694423 Whirlpool Regulator Backorder WPL WP694423 $4.82

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $7.52

COVER HINGE (STATIONARY (RH)) WPL W10181197 Contact Us For Availability

2203186 Whirlpool Connector Backorder WPL 2203186 $8.09

WP694422 Whirlpool Spring Backorder WPL WP694422 $16.83

WP8566254 Whirlpool Window Assembly Backorder WPL WP8566254 $202.28

Bulkhead, Rear WPL W10133857 Contact Us For Availability

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $20.83

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

W10110658 Whirlpool Electronic Control Board Backorder WPL W10110658 $167.01

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $52.55

TEAR-DROP TRIM & CLIP ASSEMBLY (WHITE) WPL W10246600 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (RED) WPL W10249767 Contact Us For Availability

TEAR-DROP TRIM & CLIP ASSEMBLY (MERCURY) WPL W10249765 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

20

Door Shield WPL W10180120 Contact Us For Availability

20

Encoder-Wheel WPL W10012430 Contact Us For Availability

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $19.51

21

Door, Intermediate WPL W10180118 Contact Us For Availability

21

Retainer-Snap WPL W10012440 Contact Us For Availability

22

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $97.26

22

W10250089 Whirlpool Ring Backorder WPL W10250089 $8.39

22

Ramp, Door WPL 8529053 Contact Us For Availability

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $53.71

23

WP8563727 Whirlpool Bracket Backorder WPL WP8563727 $113.65

23

Rast, Wheel Assy. (Service Only With Item. 28 WPL W10012810 Contact Us For Availability

24

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

24

WP8573713 Whirlpool Thermal Fuse In Stock WPL WP8573713 $39.99

24

Detent Wheel (Service Only With Item. 28) WPL W10012460 Contact Us For Availability

3387561 Whirlpool Clamp Backorder WPL 3387561 $13.22

W10545924 Whirlpool Drum Assembly Backorder WPL W10545924 $229.99

WPW10129065 Whirlpool Clip Backorder WPL WPW10129065 $7.17

Harness, Communication WPL W10095960 Contact Us For Availability

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $4.82

26

Knob, Spring (Service Only With Item 28) WPL W10012820 Contact Us For Availability

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $31.56

27

W10190685 Whirlpool Knob Assembly In Stock WPL W10190685 $42.21

28

3398948 Whirlpool Wire Backorder WPL 3398948 $43.98

28

W11257251 Whirlpool Shield Backorder WPL W11257251 $45.22

29

Power Cable, User-Interface WPL W10111020 Contact Us For Availability

30

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

31

W10044599 Whirlpool Clip Backorder WPL W10044599 $9.35

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $87.42

32

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.60

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $14.48

36

W11700522 Whirlpool Socket Backorder WPL W11700522 $47.31

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

38

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $34.95

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

40

Clip-S Type WPL 62825 Contact Us For Availability

40

Valve, Water Inlet (Includes Items, 29,52,55 WPL W10044596 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $29.99

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $41.99

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $124.99

46

WP8573824 Whirlpool Funnel Backorder WPL WP8573824 $115.91

47

WP8573028 Whirlpool Thermostat Assembly In Stock WPL WP8573028 $65.50

47

BOARD, CONTROL WPL W10169969 Contact Us For Availability

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $37.50

49

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

50

JUMPER, TCO HI-LIMIT WPL 3401710 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $4.99

52

W10815373 Whirlpool Valve In Stock WPL W10815373 $132.65

53

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $66.95

53

Baffle, Drum WPL 697693 Contact Us For Availability

54

Bulkhead, Front (Inclu WPL 8519245 Contact Us For Availability

55

WPL W10044597 WPL W10044597 Contact Us For Availability

56

WPL W10044598 WPL W10044598 Contact Us For Availability

57

WPL W10179730 WPL W10179730 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

59

WP3391018 Whirlpool Wire Tie Backorder WPL WP3391018 $20.96

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

61

W10044579 Whirlpool Dryer Backorder WPL W10044579 $5.85

62

W10044628 Whirlpool Nut Backorder WPL W10044628 $63.40

63

WPL W10044629 WPL W10044629 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $16.99

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $30.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $18.58

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $48.67

W10218247 Whirlpool Touch-Up Backorder WPL W10218247 $16.79

WP76314 Whirlpool Fill Hose Backorder WPL WP76314 $25.46

PAINT, TOUCH-UP (1/2oz.) (Ultimate Silver) WPL 8212605 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Hose Inlet 1` Hose WPL W10044603 Contact Us For Availability
