Model Whirlpool WFE515S0ED1 RANGE/OVEN, ELECTRIC, FREESTANDING, 30 INCH – Common Parts &amp; Diagrams

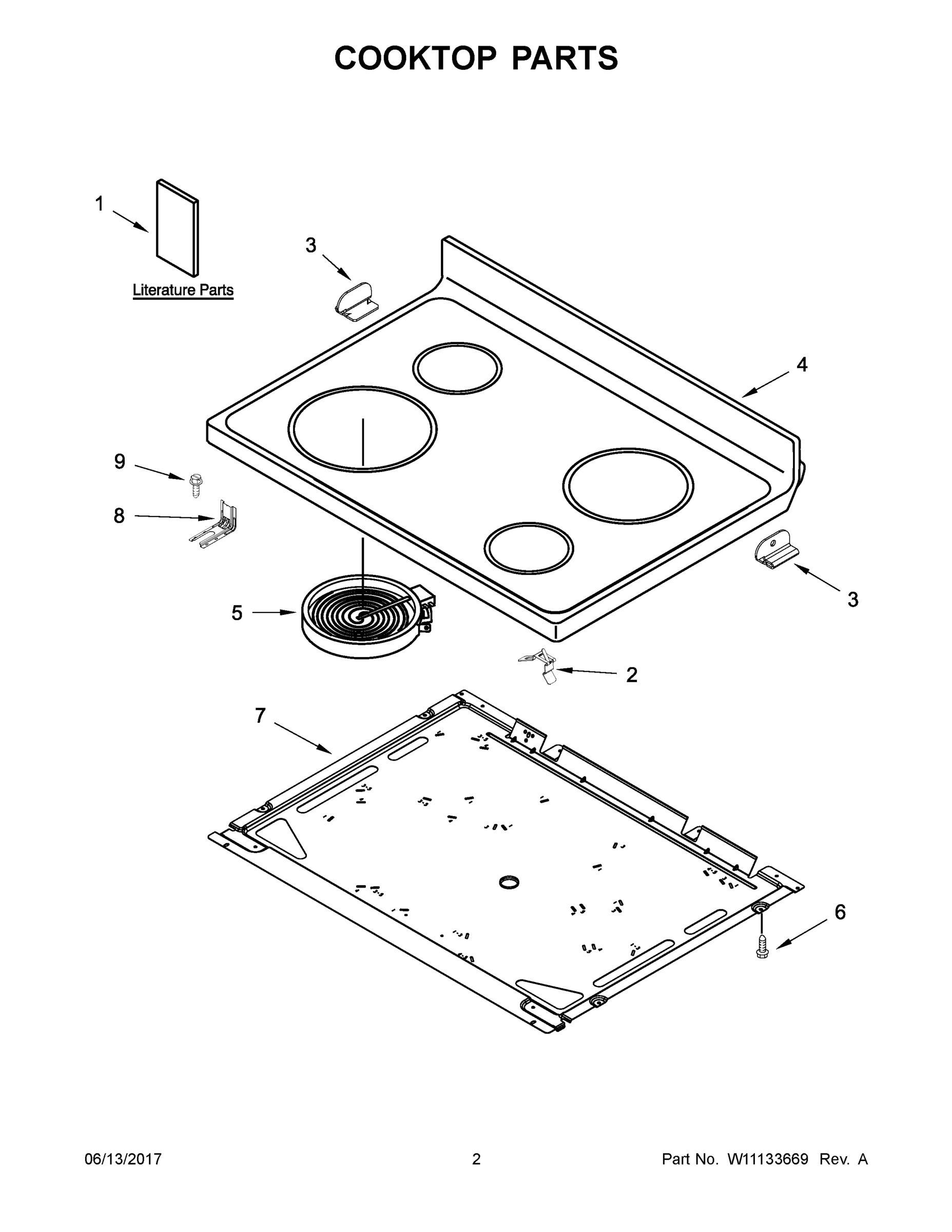

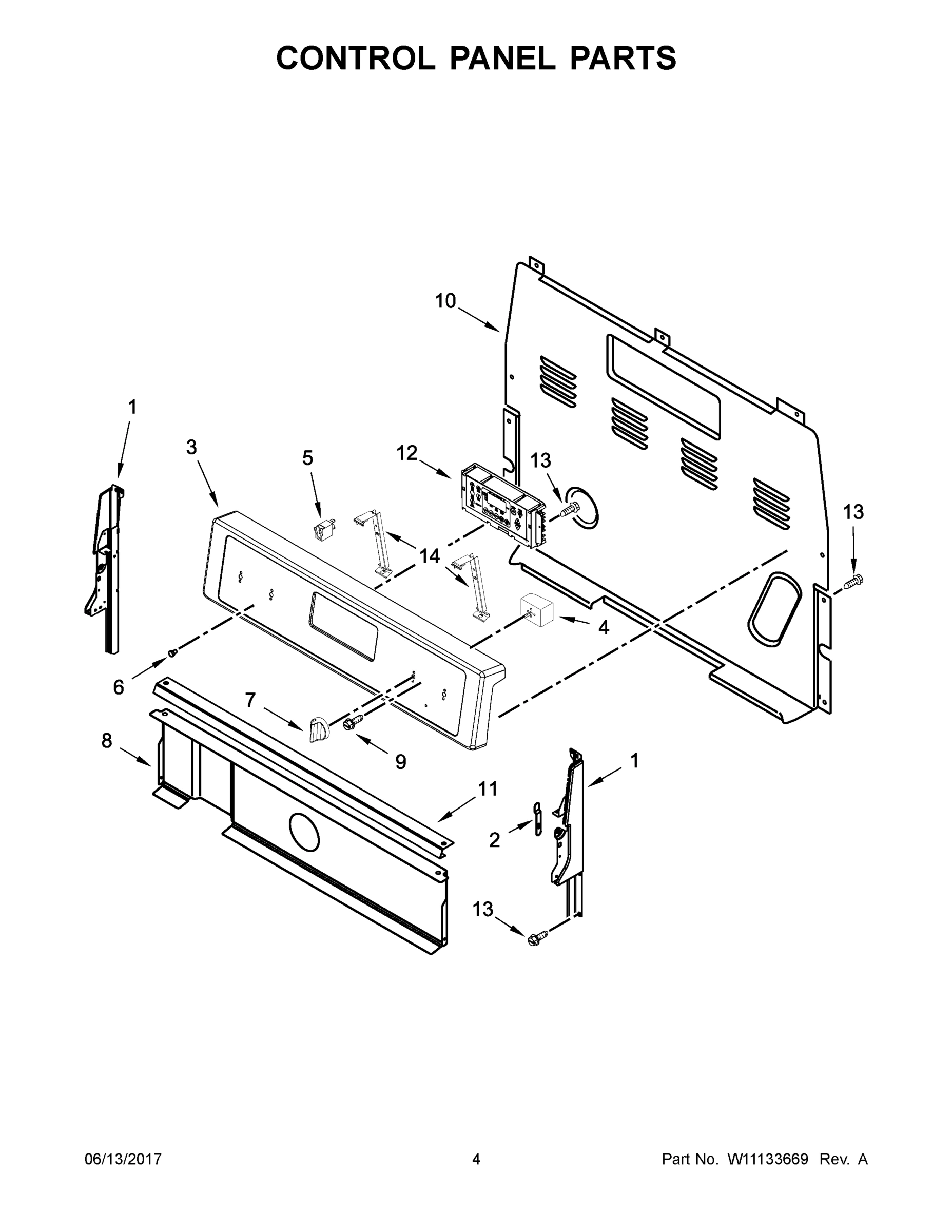

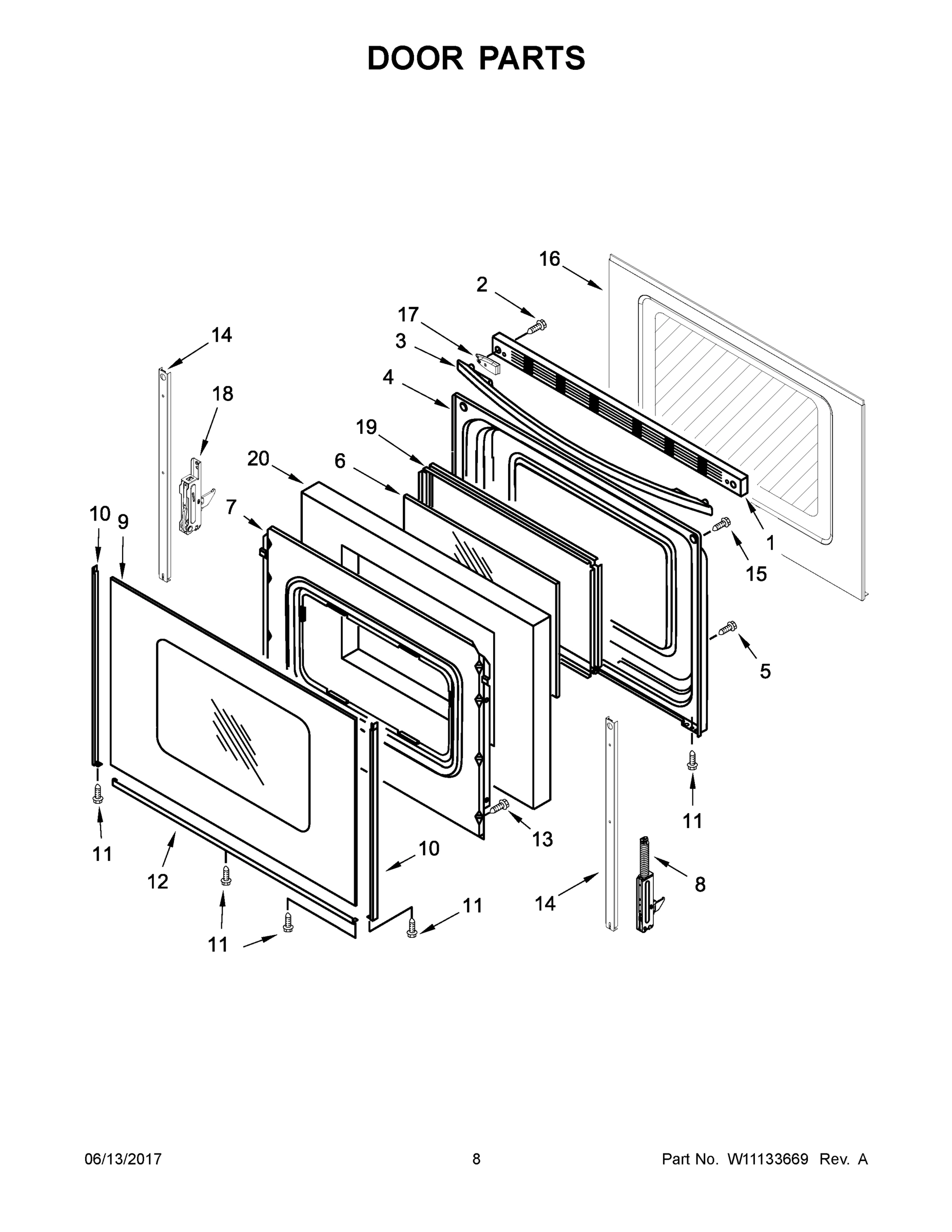

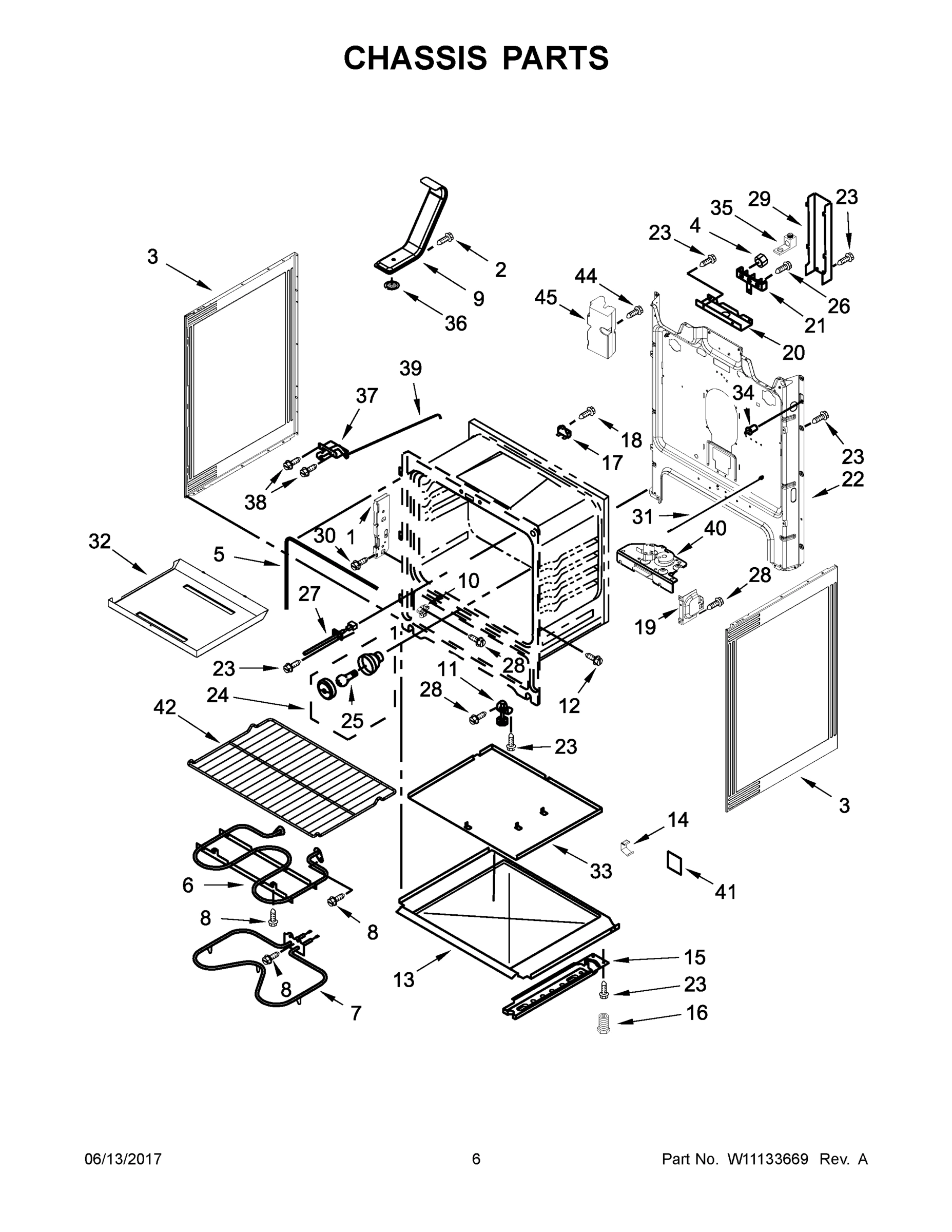

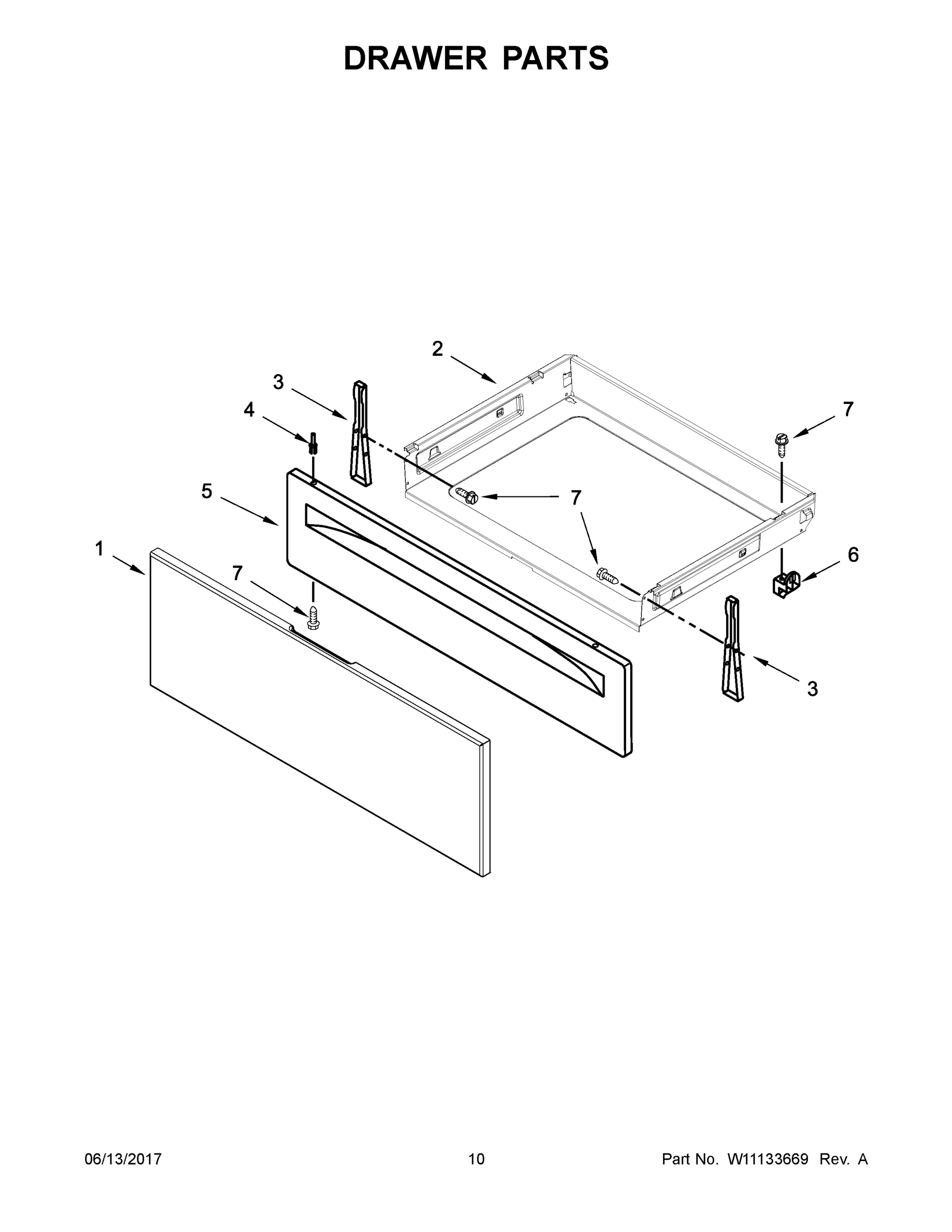

1

W10817433 Whirlpool Vent Trim In Stock WPL W10817433 $78.39

1

W11219365 Whirlpool Panel Endcap Backorder WPL W11219365 $17.55

1

WPW10330070 Whirlpool Drawer Panel In Stock WPL WPW10330070 $237.50

1A

W11219370 Whirlpool Endcap Panel Backorder WPL W11219370 $33.26

1A

WPW10310922 Whirlpool Air Grille In Stock WPL WPW10310922 $105.21

1B

W11219664 Whirlpool Endcap Panel In Stock WPL W11219664 $86.66

1B

WPW10310923 Whirlpool Vent Trim In Stock WPL WPW10310923 $93.51

1C

W11219665 Whirlpool Panel Endcap Backorder WPL W11219665 $18.90

2

3196200 Whirlpool Clip In Stock WPL 3196200 $7.87

2

WPW10225448 Whirlpool Spring Assembly In Stock WPL WPW10225448 $6.66

2

WPW10465148 Whirlpool Screw In Stock WPL WPW10465148 $3.87

3

W10300489 Whirlpool Door Handle Backorder WPL W10300489 $102.21

3

W10607641 Whirlpool Clip Backorder WPL W10607641 $15.10

3

W11231942 Whirlpool Control Panel Backorder WPL W11231942 $80.77

3

WPW10462912 Whirlpool Bracket Mounting In Stock WPL WPW10462912 $74.92

3

WPW10575396 Whirlpool Side Panel Backorder WPL WPW10575396 $91.89

W10300490 Whirlpool Door Handle In Stock WPL W10300490 $107.58

W10607642 Whirlpool Clip Backorder WPL W10607642 $15.10

W10838990 Whirlpool Mounting Bracket In Stock WPL W10838990 $38.20

W11231943 Whirlpool Control Panel Backorder WPL W11231943 $59.84

W11730303 Whirlpool Side Panel In Stock WPL W11730303 $63.44

3B

W10162246 Whirlpool Side Panel Backorder WPL W10162246 $128.78

3B

W10300491 Whirlpool Door Handle Backorder WPL W10300491 $149.48

3B

CONSOLE, ASSEMBLY (BISCUIT) WPL W10714875 Contact Us For Availability

3C

W11251222 Whirlpool Control Panel Backorder WPL W11251222 $187.20

3C

WPW10618239 Whirlpool Door Handle In Stock WPL WPW10618239 $116.07

4

WP3196814 Whirlpool Rivet Backorder WPL WP3196814 $6.90

4

WP3400968 Whirlpool Nut Backorder WPL WP3400968 $4.05

4

WP9761344 Whirlpool Door Liner In Stock WPL WP9761344 $167.74

4

WPW10434452 Whirlpool Burner Control Switch In Stock WPL WPW10434452 $71.89

4A

WP3196813 Whirlpool Rivet Backorder WPL WP3196813 $6.11

5

W11219377 Whirlpool Drawer Panel Backorder WPL W11219377 $86.58

5

W11542153 Whirlpool Door Gasket In Stock WPL W11542153 $26.44

5

WP8523265 Whirlpool Indicator Light In Stock WPL WP8523265 $37.15

5

WPW10031790 Whirlpool Screw In Stock WPL WPW10031790 $3.46

5A

W11171119 Whirlpool Radiant Surface Element In Stock WPL W11171119 $127.16

5A

W11230488 Whirlpool Drawer Panel Backorder WPL W11230488 $86.58

5C

W11230479 Whirlpool Drawer Panel Backorder WPL W11230479 $86.58

6

W10856603 Whirlpool Broil Element In Stock WPL W10856603 $132.15

6

WP3196068 Whirlpool Light Lens In Stock WPL WP3196068 $3.66

7

W10853029 Whirlpool Knob Backorder WPL W10853029 $17.96

7

W11728329 Whirlpool Pan In Stock WPL W11728329 $118.65

7

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $3.22

7

WP9755770 Whirlpool Bake Element In Stock WPL WP9755770 $75.47

7A

W10836470 Whirlpool Knob Assembly In Stock WPL W10836470 $19.24

7B

W10676215 Whirlpool Knob Backorder WPL W10676215 $67.46

8

W10134247 Whirlpool Heat Shield Backorder WPL W10134247 $163.30

8

W11447673 Whirlpool Range Tip Anchor In Stock WPL W11447673 $14.68

8

WP3196174 Whirlpool Screw Backorder WPL WP3196174 $3.22

8

WPW10299224 Whirlpool Range Door Hinge Assemb In Stock WPL WPW10299224 $42.64

9

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $3.46

9

WPW10409945 Whirlpool Glass Door In Stock WPL WPW10409945 $139.11

9A

WPW10409946 Whirlpool Door Glass In Stock WPL WPW10409946 $127.91

9B

WPW10409947 Whirlpool Glass Door Backorder WPL WPW10409947 $138.84

10

WP8272473 Whirlpool Rear Cover Backorder WPL WP8272473 $124.01

10

WP8523172 Whirlpool Left Door Trim In Stock WPL WP8523172 $46.41

10A

WP8523166 Whirlpool Door Trim In Stock WPL WP8523166 $46.53

10D

WP8523173 Whirlpool Door Trim Backorder WPL WP8523173 $40.32

10E

WP8523167 Whirlpool Door Trim Assembly Backorder WPL WP8523167 $42.71

11

W10525121 Whirlpool Control Bracket Backorder WPL W10525121 $40.71

11

WPW10341186 Whirlpool Refrigerator Front Leve In Stock WPL WPW10341186 $14.87

12

WP8523175 Whirlpool Door Trim Assembly In Stock WPL WP8523175 $56.92

12

WPW10067840 Whirlpool Screw In Stock WPL WPW10067840 $2.79

12A

WP8523177 Whirlpool Door Trim Assembly In Stock WPL WP8523177 $54.18

12B

WP8523178 Whirlpool Door Trim Backorder WPL WP8523178 $63.59

12C

TRIM, LOWER (UNIVERSAL SILVER) WPL W10067550 Contact Us For Availability

14

W10137382 Whirlpool Clip Backorder WPL W10137382 $28.90

14

W11230932 Whirlpool Bracket Mounting Backorder WPL W11230932 $63.81

14

W11502236 Whirlpool Door Trim Backorder WPL W11502236 $12.79

15

WPW10200660 Whirlpool Range Oven Door Handle In Stock WPL WPW10200660 $2.85

16

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.53

16

WPW10330077 Whirlpool Door Glass In Stock WPL WPW10330077 $237.89

16A

GLASS ASSEMBLY, OUTER DOOR (UNIVERSAL SILVER) WPL W10330079 Contact Us For Availability

17

WP3196548 Whirlpool Thermal Fuse In Stock WPL WP3196548 $19.83

17

WPW10410341 Whirlpool Spacer In Stock WPL WPW10410341 $31.13

18

3196172 Whirlpool Oven Screw Backorder WPL 3196172 $14.93

18

WPW10299227 Whirlpool Range Door Hinge In Stock WPL WPW10299227 $31.76

19

W10404688 Whirlpool Bracket Support Backorder WPL W10404688 $8.42

19

WPW10316950 Whirlpool Window Frame Backorder WPL WPW10316950 $34.75

20

W11728255 Whirlpool Service Bracket Backorder WPL W11728255 $47.89

20

WPW10278991 Whirlpool Insulation Backorder WPL WPW10278991 $52.60

21

WPW10245259 Whirlpool Terminal Block In Stock WPL WPW10245259 $16.47

24

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $50.63

26

WP3400016 Whirlpool Screw Assembly Backorder WPL WP3400016 $3.22

27

WPW10181986 Whirlpool Oven Sensor In Stock WPL WPW10181986 $70.34

29

WPW10326122 Whirlpool Black Cover Backorder WPL WPW10326122 $56.52

31

9757239 Whirlpool Oven Door Rod Backorder WPL 9757239 $38.11

33

W10134125 Whirlpool Retainer Clip Backorder WPL W10134125 $62.91

35

WPW10281322 Whirlpool Connector In Stock WPL WPW10281322 $5.62

37

WP9761013 Whirlpool Door Latch Backorder WPL WP9761013 $105.71

38

W11169708 Whirlpool Screw Backorder WPL W11169708 $14.93

39

ROD, LATCH WPL W10078380 Contact Us For Availability

40

WPW10107820 Whirlpool Door Latch In Stock WPL WPW10107820 $138.23

42

W11520287 Whirlpool Rack Assembly In Stock WPL W11520287 $38.49

285006 Whirlpool Spray In Stock WPL 285006 $31.20

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.72

4396096RB Whirlpool Griddle Backorder WPL 4396096RB $174.80

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $23.64

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $24.57

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.79

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $146.78

W10123240 Whirlpool Broil Pan and Roasting Ra Backorder WPL W10123240 $65.00

W10326347 Whirlpool Insulation Backorder WPL W10326347 $112.33

W10465644 Whirlpool Wire Harness Backorder WPL W10465644 $11.38

W11134601 Whirlpool Wire Harness Backorder WPL W11134601 $81.35

W11134602 Whirlpool Wire Harness Backorder WPL W11134602 $117.99

W11172524 Whirlpool Wire Harness Backorder WPL W11172524 $172.88

W11219898 Whirlpool Wire Harness Backorder WPL W11219898 $172.88

W11684918 Whirlpool Insulation Backorder WPL W11684918 $20.39

WA906B Whirlpool Cooktop Glass Scraper Backorder WPL WA906B $4.58

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $34.75

ACCESSORY PARTS, KIT, COOKTOP CARE WPL 31605 Contact Us For Availability

ACCESSORY PARTS, CLEANER, STAINLESS STEEL WPL W10355016 Contact Us For Availability

ACCESSORY PARTS, PROTECTANT, COOKTOP WPL 31463A Contact Us For Availability

ACCESSORY PARTS, CLEANER, KITCHEN & APPLIANCE WPL W10355010 Contact Us For Availability

ACCESSORY PARTS, CLEANER, GRATE & DRIP PAN WPL 31617A Contact Us For Availability

ACCESSORY PARTS, CLEANER, GRANITE WPL W10275756 Contact Us For Availability

ACCESSORY PARTS, ALUMINUM FOIL WPL 241430 Contact Us For Availability
