Model Whirlpool WED9500TC2 ELECTRIC DRYER – Common Parts & Diagrams

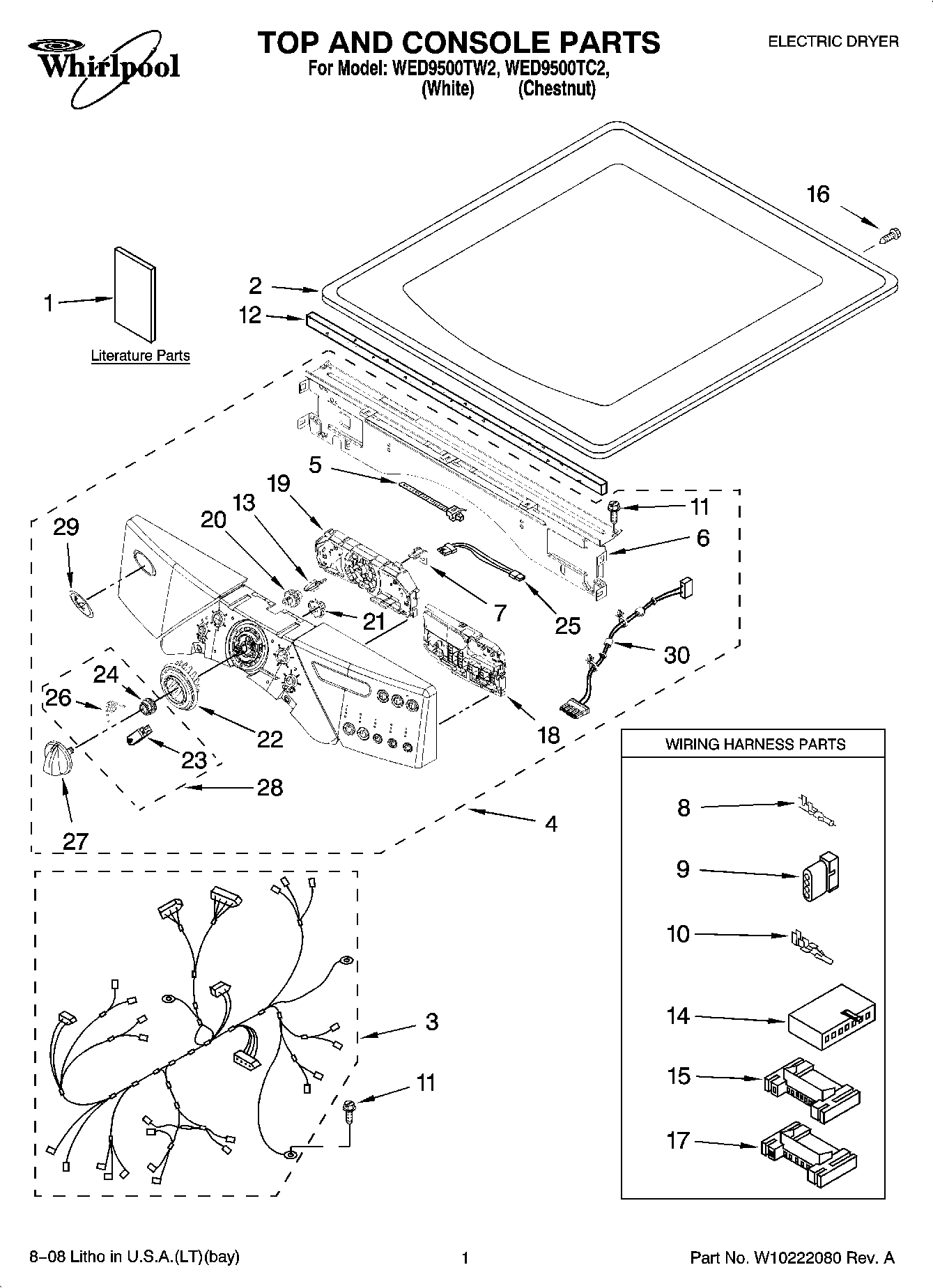

01 - TOP AND CONSOLE PARTS

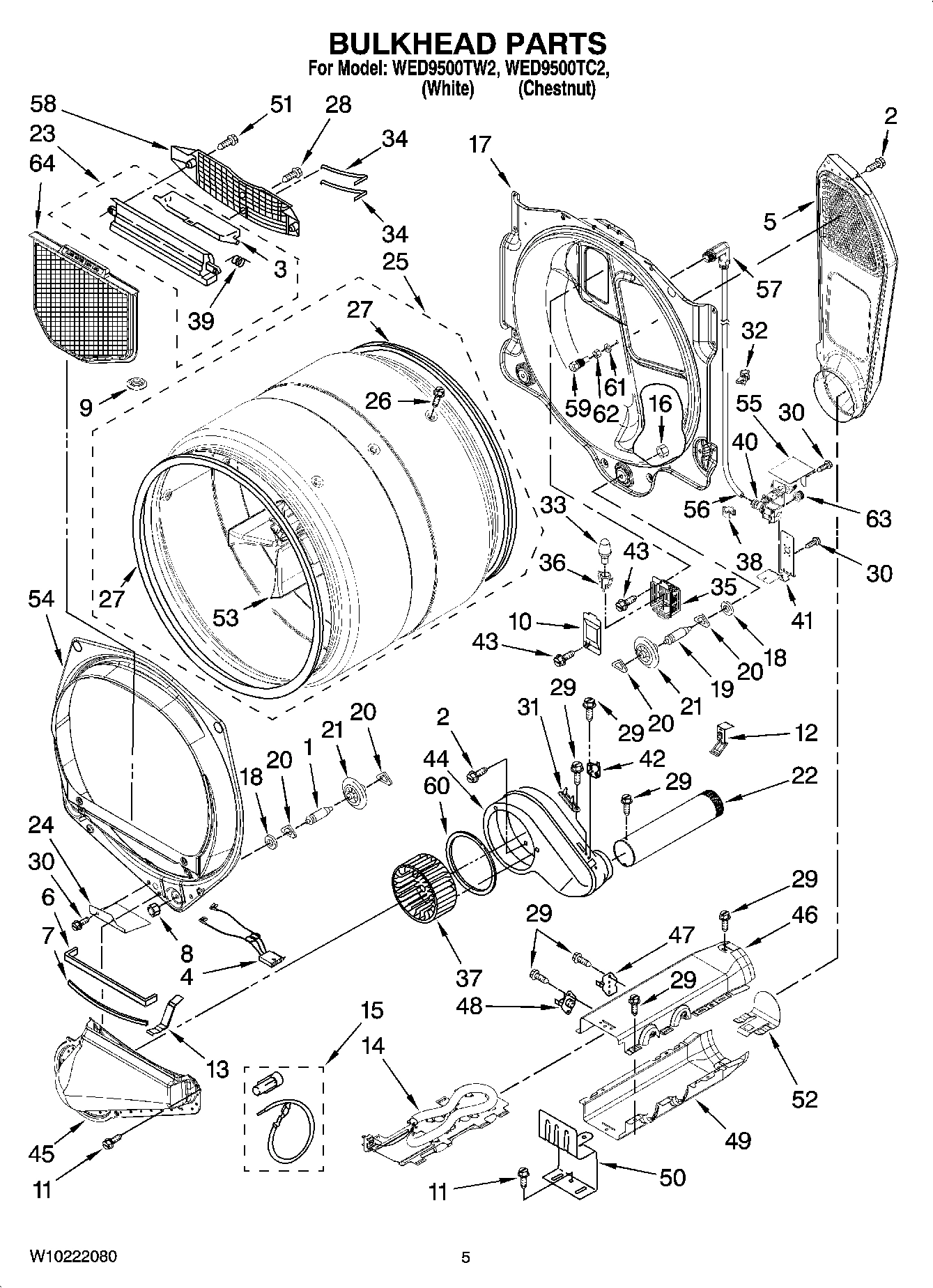

03 - BULKHEAD PARTS

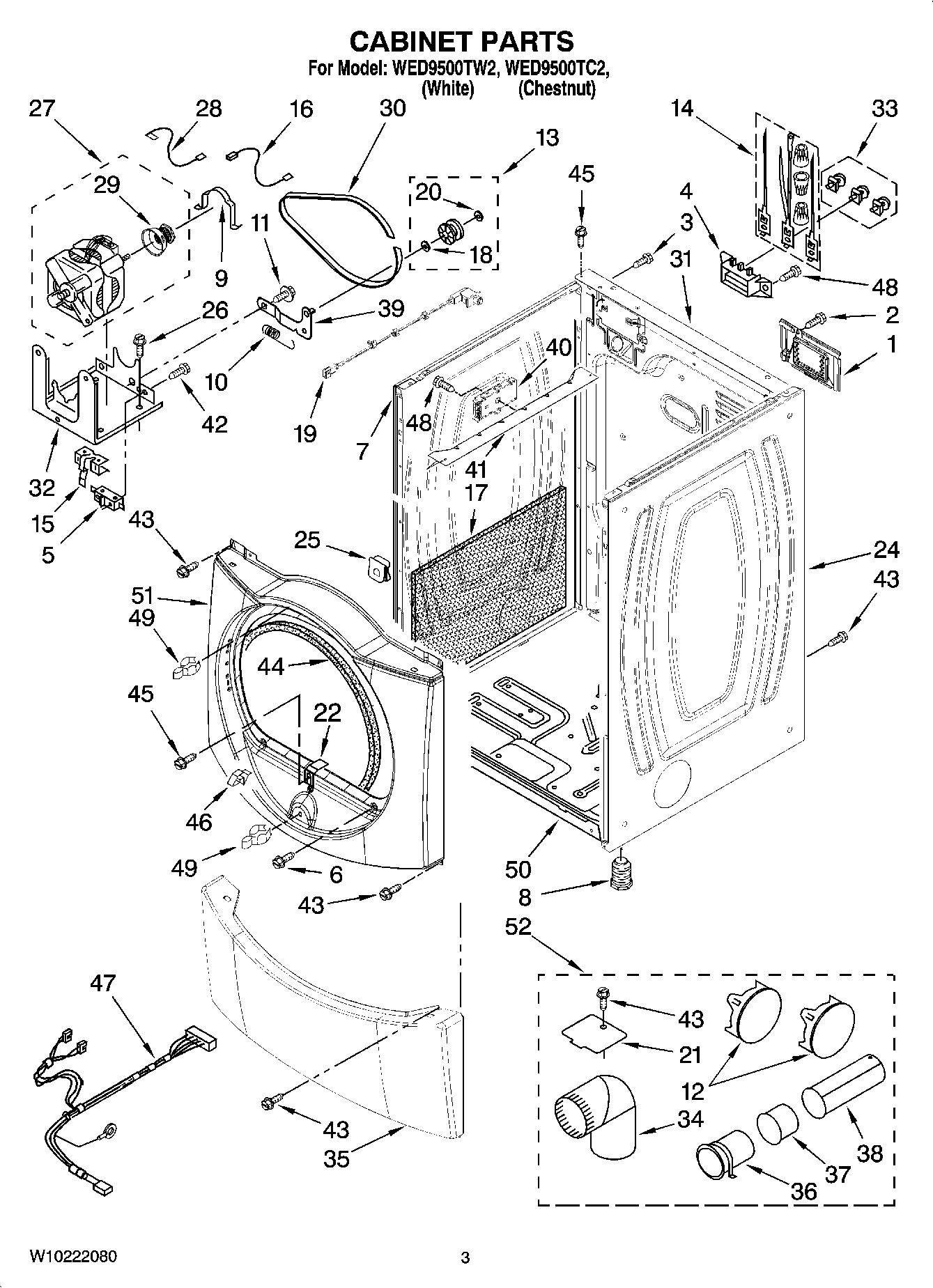

02 - CABINET PARTS

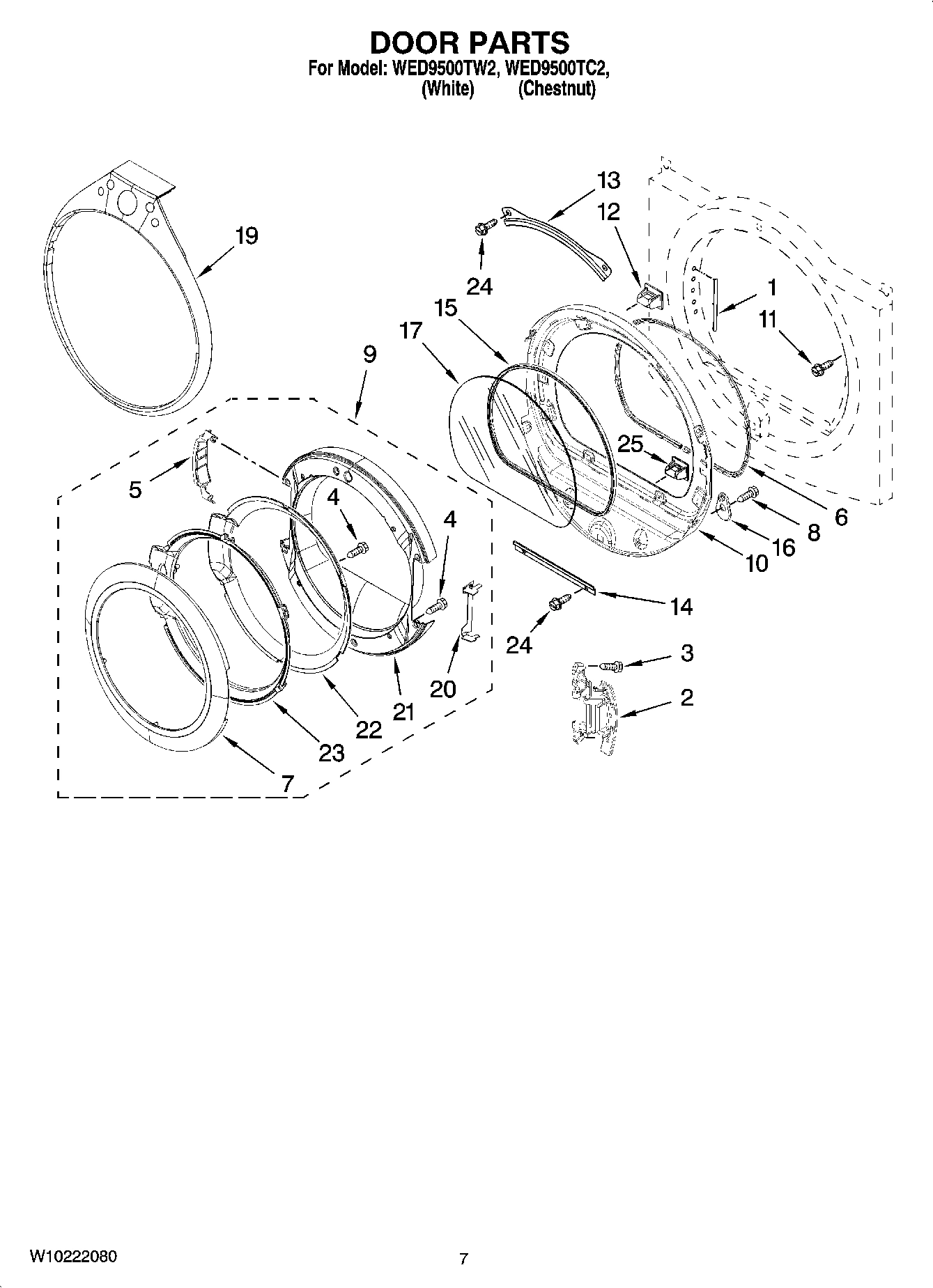

04 - DOOR PARTS, OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool WED9500TC2 ELECTRIC DRYER
PAINT, TOUCH-UP (1/2oz.) (Ultimate Silver) WPL 8212605 Contact Us For Availability
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
WPL W10044603 WPL W10044603 Contact Us For Availability
Kit, Hold Down WPL 8529894 Contact Us For Availability
ACCESSORY WPL ARI164802A Contact Us For Availability
WPL ARI164803A WPL ARI164803A Contact Us For Availability
WPL W10162090 WPL W10162090 Contact Us For Availability
4
Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability
4
Panel, Console (Includes Items: 20,21,22,27,2 WPL W10206053 Contact Us For Availability
5
Cover-Hinge (R.H.) WPL W10181197 Contact Us For Availability
5
(Following Parts Not Included) WPL ARI164801A Contact Us For Availability
5
Cover-Hinge (L.H.) WPL W10180119 Contact Us For Availability
7
Handle, Ring Door (Silver) WPL 8579502 Contact Us For Availability
7
Handle, Ring Door (Gold) WPL 8579503 Contact Us For Availability
9
Door Assembly (Outer) (Silver) WPL W10180115 Contact Us For Availability
9
Door Assembly (Outer) (Gold) WPL W10180116 Contact Us For Availability
10
Door Assembly (Inner) (Includes Items. 12 & 2 WPL 8578229 Contact Us For Availability
15
Gasket, Window WPL 8579662 Contact Us For Availability
16
Screw-Plug WPL W10048910 Contact Us For Availability
17
Bulkhead, Rear WPL W10133857 Contact Us For Availability
18
User Interface (Right) WPL W10206049 Contact Us For Availability
19
Tear-Drop Trim & Clip Assembly (Chestnut) WPL W10209900 Contact Us For Availability
19
Tear-Drop Trim & Clip Assembly (White) WPL W10209905 Contact Us For Availability
20
Door Shield WPL W10180120 Contact Us For Availability
21
Door, Intermediate WPL W10180118 Contact Us For Availability
21
Retainer-Snap WPL W10012440 Contact Us For Availability
22
Ramp, Door WPL 8529053 Contact Us For Availability
22
Knob, Light Ring (Includes: Illus. 21 ) WPL W10012410 Contact Us For Availability
22
Door Mask WPL W10180117 Contact Us For Availability
23
Door Screen WPL 8578155 Contact Us For Availability
25
Harness, Communication WPL W10095960 Contact Us For Availability
25
Clip-S Type WPL 62825 Contact Us For Availability
27
Knob, Control (Includes: Illus. 21) (White) WPL W10116702 Contact Us For Availability
28
Encoder, Wheel Kit (Includes Items: 23, 24, & WPL 280230 Contact Us For Availability
30
Power Cable, User-Interface WPL W10111020 Contact Us For Availability
31
Panel, Rear WPL W10181460 Contact Us For Availability
35
Toe, Panel (White) WPL W10116271 Contact Us For Availability
35
Toe Panel (Chestnut) WPL W10140573 Contact Us For Availability
40
Control Board WPL W10182365 Contact Us For Availability
47
WPL W10181463 WPL W10181463 Contact Us For Availability
49
HOUSING TAB, HEATER BOX WPL 8544770 Contact Us For Availability
50
WPL 8519207 WPL 8519207 Contact Us For Availability
51
WPL W10180423 WPL W10180423 Contact Us For Availability
51
WPL W10180433 WPL W10180433 Contact Us For Availability
59
WPL W10044629 WPL W10044629 Contact Us For Availability
× ![]()
