Model Whirlpool WED9250WL0 27`` ELECTRIC DRYER – Common Parts &amp; Diagrams

1

TECH SHEET WPL W10238791 Contact Us For Availability

1

GUIDE, QUICK START WPL W10240579 Contact Us For Availability

1

USE & CARE GUIDE WPL W10240872 Contact Us For Availability

2

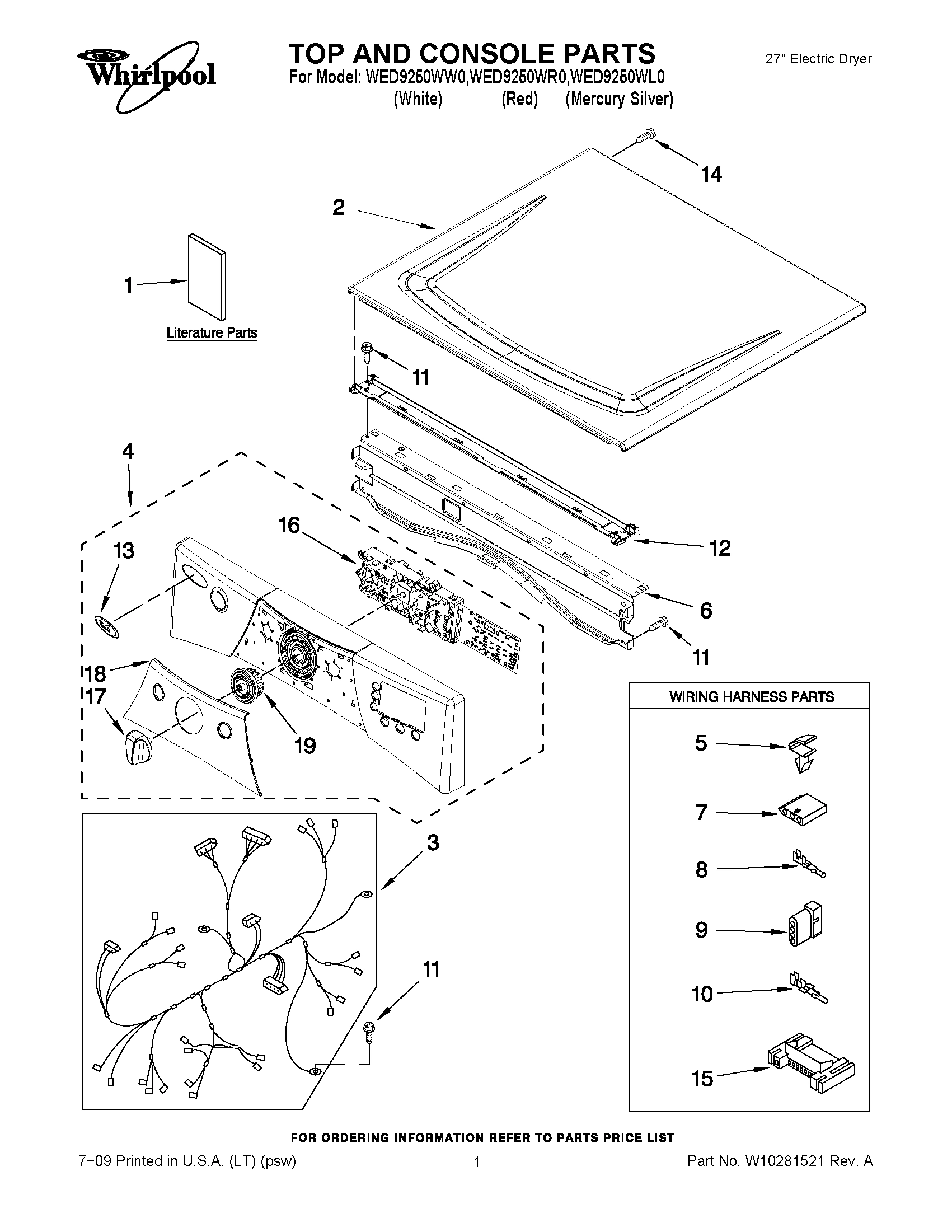

WPW10336080 Whirlpool Top Assembly Backorder WPL WPW10336080 $195.81

2

WPW10336091 Whirlpool Top Backorder WPL WPW10336091 $196.32

2

TOP (RED) WPL W10251212 Contact Us For Availability

3

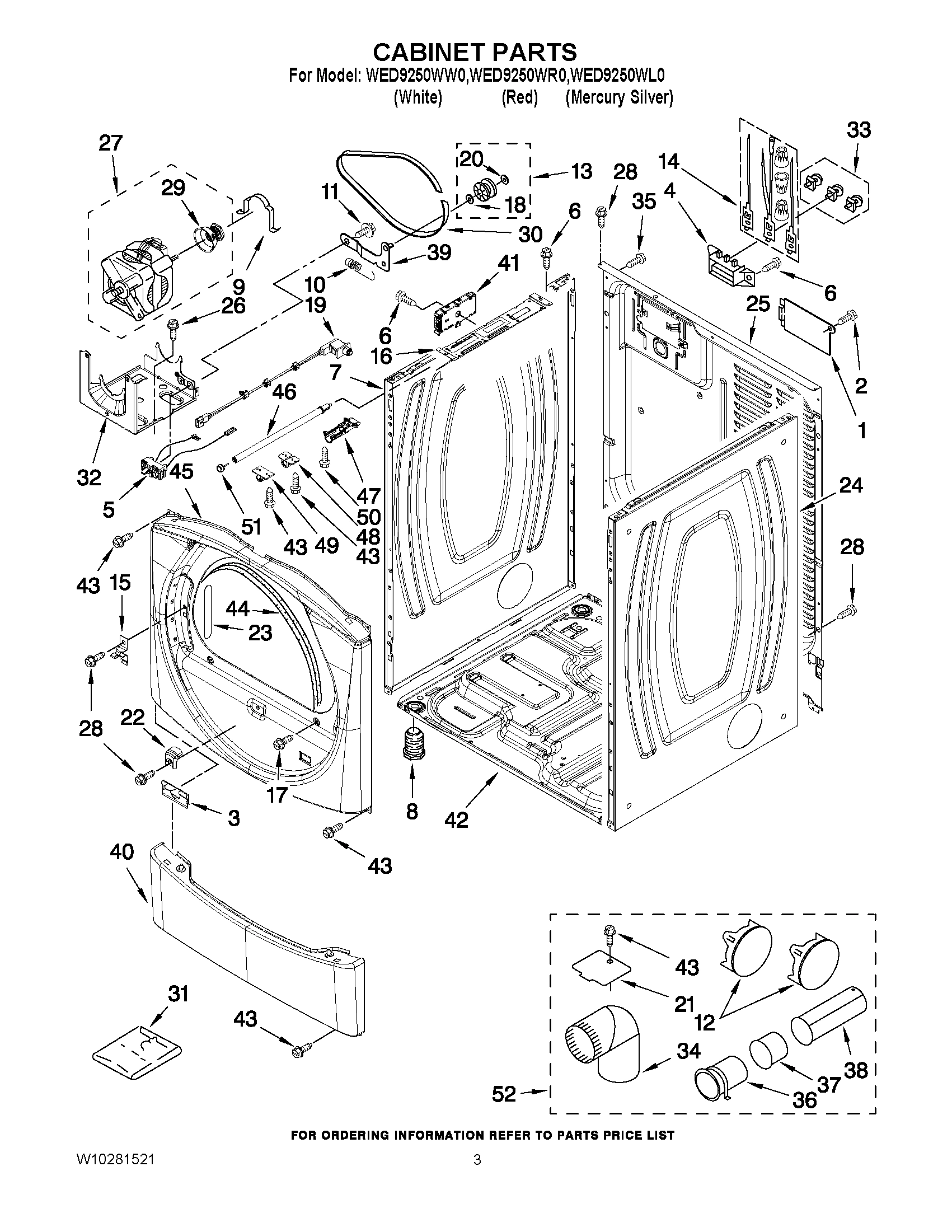

W11222846 Whirlpool Door Backorder WPL W11222846 $134.12

3

HARNESS, MAIN WPL W10251442 Contact Us For Availability

4

8066099 Whirlpool Bracket Backorder WPL 8066099 $14.67

4

PANEL, CONSOLE (INCLUDES, ITEM. 13) (WHITE) WPL W10215749 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES, ITEM. 13) (RED) WPL W10247248 Contact Us For Availability

4

PANEL, CONSOLE (INCLUDES, ITEM. 13) (MERCURY) WPL W10251188 Contact Us For Availability

5

WP3387911 Whirlpool Air Duct In Stock WPL WP3387911 $213.56

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $4.82

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.98

6

WP8565237 Whirlpool Bracket Assembly In Stock WPL WP8565237 $120.31

6

DOOR TRIM OUTER RING (WHITE) WPL W10215757 Contact Us For Availability

7

353424 Whirlpool Connector Backorder WPL 353424 $14.02

7

WPW10163915 Whirlpool Door Seal In Stock WPL WPW10163915 $82.12

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $4.82

8

WPW10080210 Whirlpool Nut In Stock WPL WPW10080210 $4.82

8

WPW10159996 Whirlpool Screw In Stock WPL WPW10159996 $4.82

9

3936144 Whirlpool Connector Backorder WPL 3936144 $14.02

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $8.99

9

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.99

10

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $16.79

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $4.99

11

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.91

11

WP693995 Whirlpool Screw In Stock WPL WP693995 $7.99

12

W11684573 Whirlpool Clip Assembly Backorder WPL W11684573 $4.67

12

WPW10266747 Whirlpool Channel Backorder WPL WPW10266747 $46.39

12

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $45.77

13

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.91

13

BADGE ASSEMBLY WPL W10117943 Contact Us For Availability

14

279318 Whirlpool Terminal In Stock WPL 279318 $46.99

14

WP3387747 Whirlpool Dryer Heating Element In Stock WPL WP3387747 $95.99

14

Screw, 2-28 x 1/2 WPL 3400238 Contact Us For Availability

279457 Whirlpool Dryer Heating Element Wide S In Stock WPL 279457 $4.99

3395683 Whirlpool Connector Backorder WPL 3395683 $37.04

W11706993 Whirlpool Seal Backorder WPL W11706993 $16.14

WP8565122 Whirlpool Strike Assembly Backorder WPL WP8565122 $4.82

16

WPW10080190 Whirlpool Nut In Stock WPL WPW10080190 $7.52

16

ASSEMBLY, USER INTERFACE WPL W10247235 Contact Us For Availability

WP8534022 Whirlpool Screw Backorder WPL WP8534022 $4.82

WPW10080170 Whirlpool Bulkhead Assembly Backorder WPL WPW10080170 $215.69

WPW10215781 Whirlpool Knob Backorder WPL WPW10215781 $40.22

WPW10247262 Whirlpool Knob Backorder WPL WPW10247262 $38.35

8519356 Whirlpool Retainer Backorder WPL 8519356 $7.98

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $20.83

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $4.99

COVER, CENTER (WHITE) WPL W10215770 Contact Us For Availability

COVER, CENTER (MERCURY) WPL W10247243 Contact Us For Availability

COVER, CENTER (RED) WPL W10247250 Contact Us For Availability

W10237301 Whirlpool Ring Backorder WPL W10237301 $66.01

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $52.55

DOOR ASSEMBLY OUTER (WHITE) WPL W10215756 Contact Us For Availability

DOOR ASSEMBLY OUTER (MERCURY) WPL W10215830 Contact Us For Availability

DOOR ASSEMBLY OUTER (RED) WPL W10215831 Contact Us For Availability

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.98

20

TRIM-DOOR INNER RING (NOT SERVICEABLE SEPARAT WPL NP Contact Us For Availability

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $19.51

21

DOOR INTERMEDIATE ROTATIONAL WPL W10215762 Contact Us For Availability

22

WP8563728 Whirlpool Exhaust Pipe Backorder WPL WP8563728 $92.73

23

W10085210 Whirlpool Label Backorder WPL W10085210 $55.57

23

W11219327 Whirlpool Grille Outlet In Stock WPL W11219327 $54.82

24

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $16.99

25

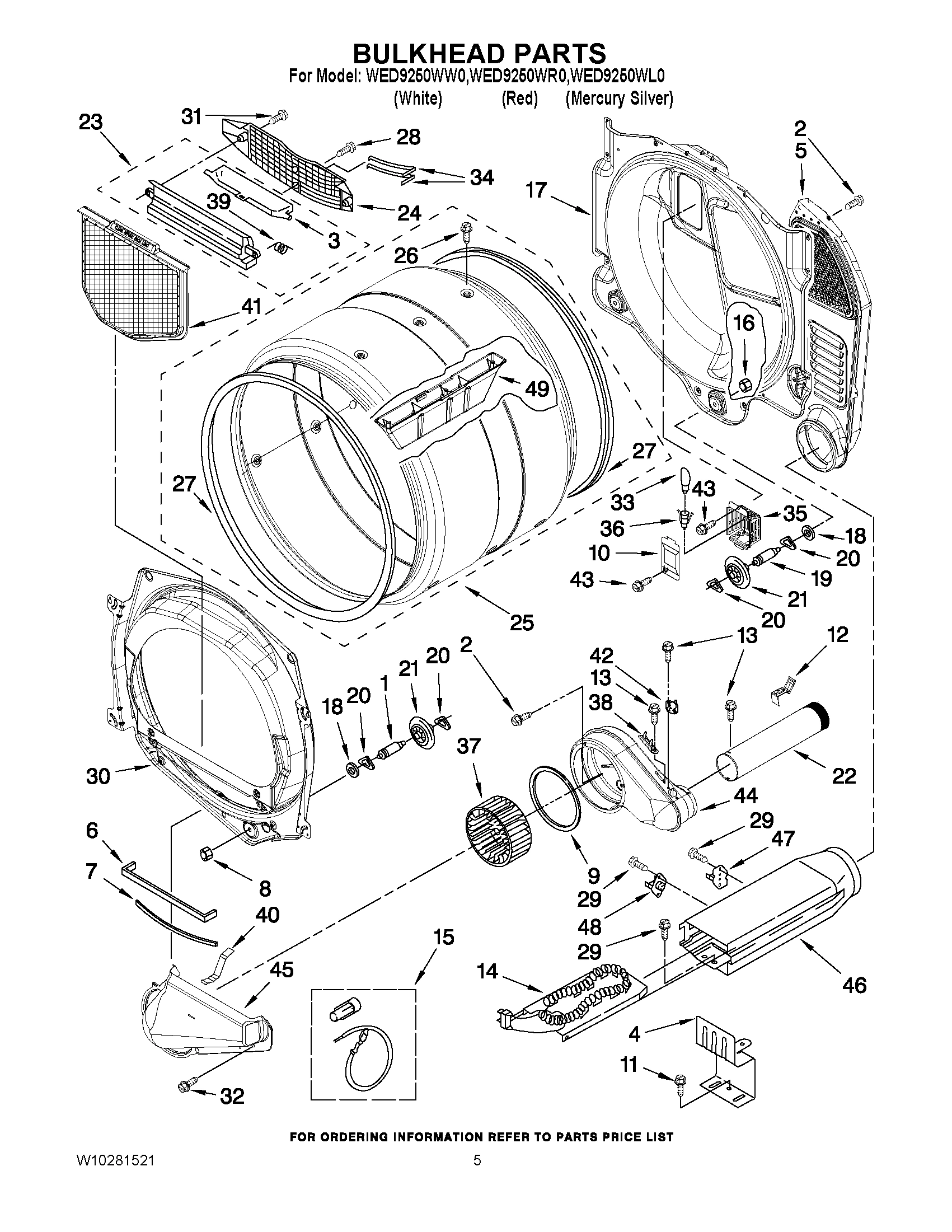

W10865330 Whirlpool Drum In Stock WPL W10865330 $194.93

26

W10853898 Whirlpool Screw Backorder WPL W10853898 $4.82

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $31.56

30

8565061 Whirlpool Bulkhead Assembly Backorder WPL 8565061 $151.06

31

8572546 Whirlpool Washer Duet Sport Epic Stac In Stock WPL 8572546 $39.99

31

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.91

32

W11481730 Whirlpool Bracket In Stock WPL W11481730 $48.99

32

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $4.99

33

279393 Whirlpool Terminal Block Screw and Nut In Stock WPL 279393 $18.53

33

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $9.99

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.60

35

8578825 Whirlpool Bracket Backorder WPL 8578825 $14.48

36

W11222979 Whirlpool Socket In Stock WPL W11222979 $78.07

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $36.97

38

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.99

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $53.11

40

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $4.82

41

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $34.95

41

CONTROL BOARD WPL W10235613 Contact Us For Availability

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $29.99

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $41.99

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $11.68

45

WPW10128606 Whirlpool Lint Duct Backorder WPL WPW10128606 $124.99

46

W10802681 Whirlpool Box Assembly In Stock WPL W10802681 $85.99

47

279973 Whirlpool Dryer Thermal Cut-Off and Hi In Stock WPL 279973 $32.96

48

WP3391914 Whirlpool Thermostat In Stock WPL WP3391914 $78.71

49

W10852390 Whirlpool Drum Baffle In Stock WPL W10852390 $90.25

DC4-30-4 USD Products Dryer Cord, 4' 4 Wire, In Stock USD DC4-30-4 $17.60

DC4-30-6 USD Products Dryer 6' 4-Wire Cord 30 In Stock USD DC4-30-6 $24.88

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350938 Whirlpool Spray Gun Backorder WPL 350938 $49.86

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $52.99

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.99

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

PT220L Whirlpool Dryer Power Cord In Stock WPL PT220L $27.54

W10268217 Whirlpool Touch Up Backorder WPL W10268217 $10.38

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $11.79

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

PAINT, TOUCH-UP (1/2OZ. MAGNA RED) WPL W10218245 Contact Us For Availability

Hold Down Kit WPL 8529894 Contact Us For Availability
