Model Whirlpool RGX4625EW1 – Common Parts & Diagrams
04 - BULKHEAD

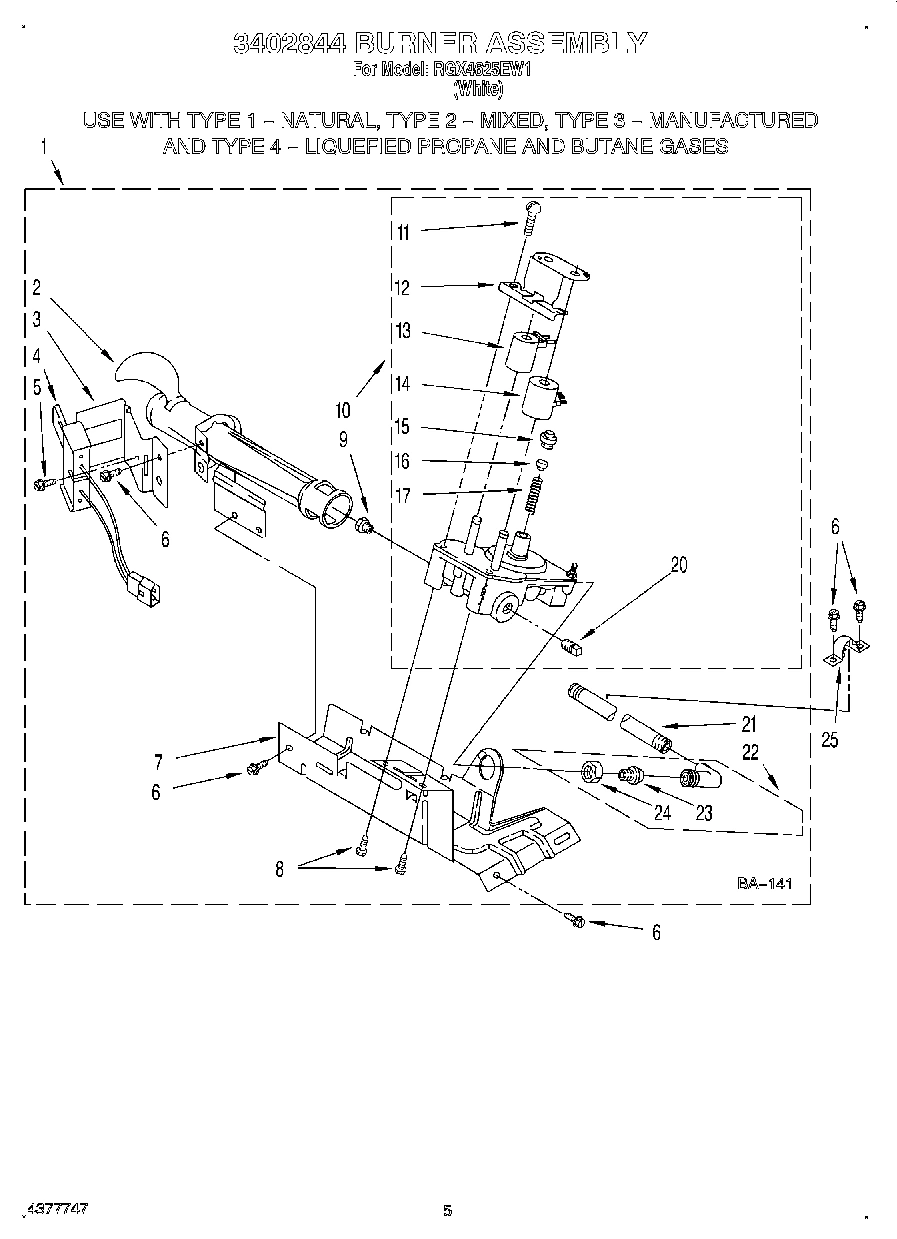

03 - 3402844 BURNER ASSEMBLY

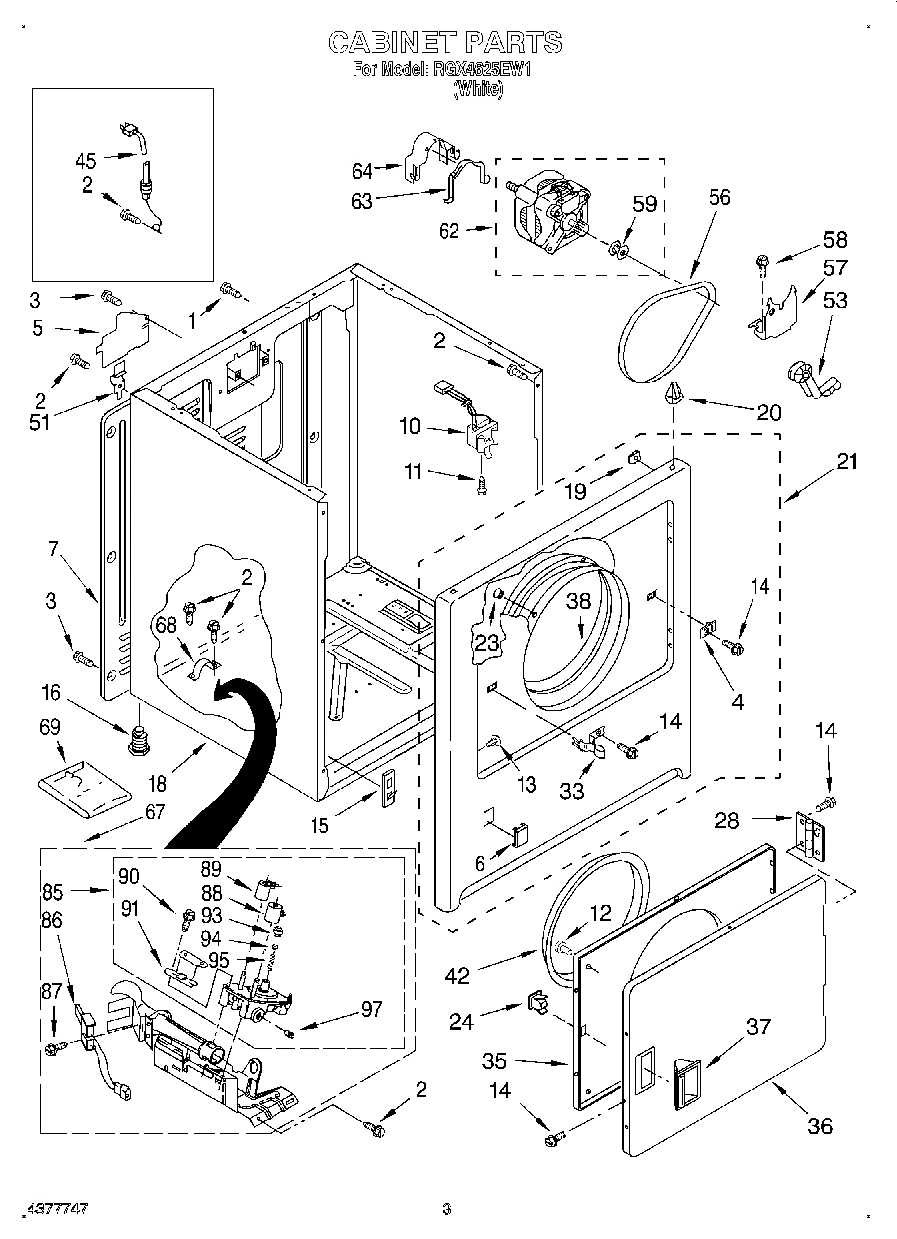

02 - CABINET

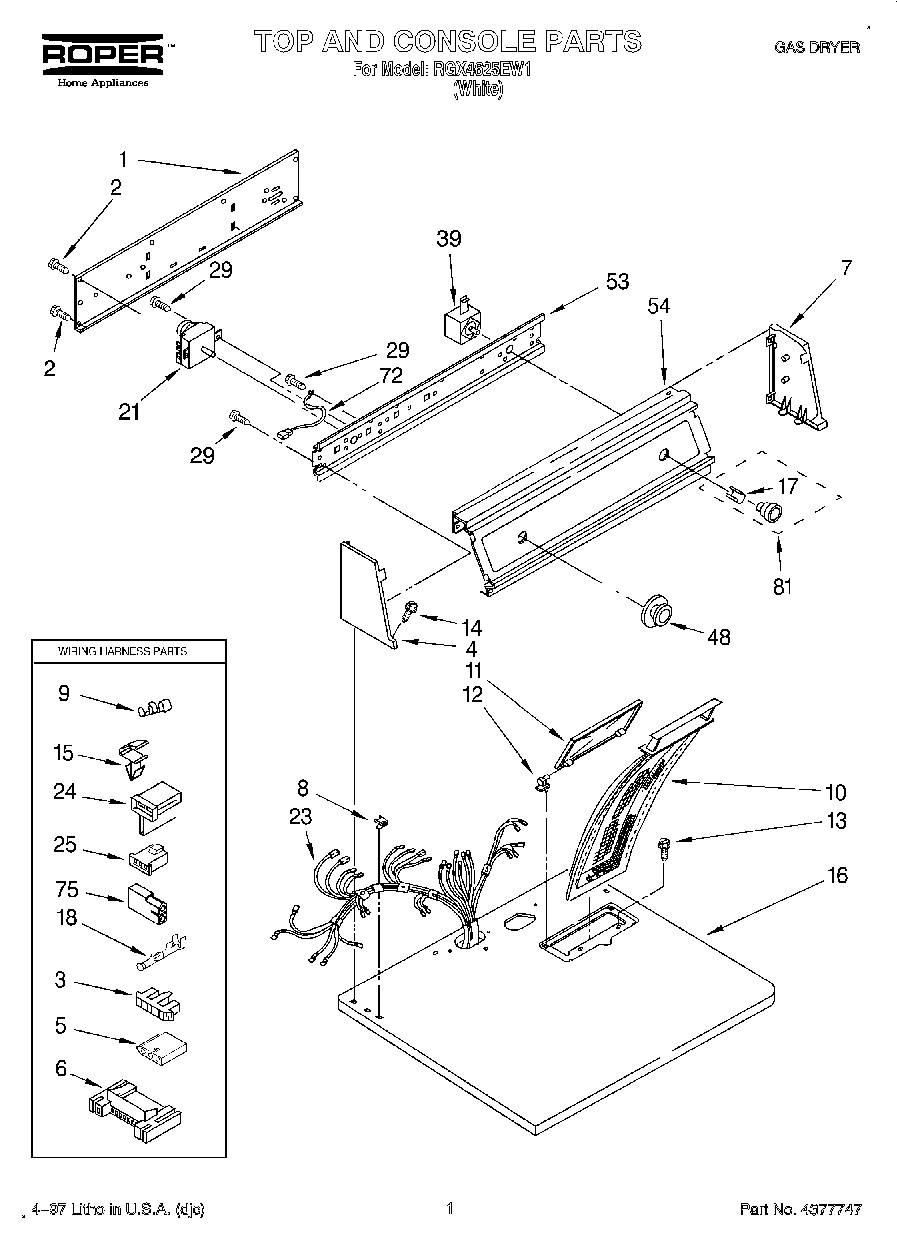

01 - TOP AND CONSOLE, LIT/OPTIONAL
Common parts from model Whirlpool RGX4625EW1
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
Almond (Uncut) WPL 978883 Contact Us For Availability
Label, Warning WPL LIT3397286 Contact Us For Availability
Instructions, Installation WPL LIT3405338 Contact Us For Availability
Instructions, Door Reversing WPL LIT3405722 Contact Us For Availability
Guide, Use & Care WPL LIT3406075 Contact Us For Availability
Label, Wiring Diagram WPL LIT3406688 Contact Us For Availability
1
Panel, Rear Console WPL 3397545 Contact Us For Availability
3
Connector, Timer WPL 3397269 Contact Us For Availability
4
Cap, End (L.H.) WPL 3358013 Contact Us For Availability
5
Connector (Door Switch) WPL 353425 Contact Us For Availability
6
Plug, Front Panel (White) WPL 3394975 Contact Us For Availability
7
Cap, End (R.H.) WPL 3357995 Contact Us For Availability
10
SCREEN WPL 339392 Contact Us For Availability
11
Cover, Lint Screen (White) WPL 688150 Contact Us For Availability
16
Top (White) WPL 3396022 Contact Us For Availability
23
Harness, Wiring WPL 3406603 Contact Us For Availability
24
Nut, Compression WPL 233076 Contact Us For Availability
27
Seal, Blower Shaft WPL 3394196 Contact Us For Availability
35
Door, Rear WPL 3403371 Contact Us For Availability
48
Timer Knob & Dial WPL 3405966 Contact Us For Availability
53
Bracket, Control WPL 3396293 Contact Us For Availability
54
Panel, Control WPL 3405691 Contact Us For Availability
67
Burner Assembly, 60 Hz. (Refer To Burner Asse WPL 3402844 Contact Us For Availability
72
Wire, Ground WPL 690853 Contact Us For Availability
75
Receptacle, 2 Way WPL 717252 Contact Us For Availability
× ![]()
