Model Whirlpool RF3620XVN2 – Common Parts & Diagrams

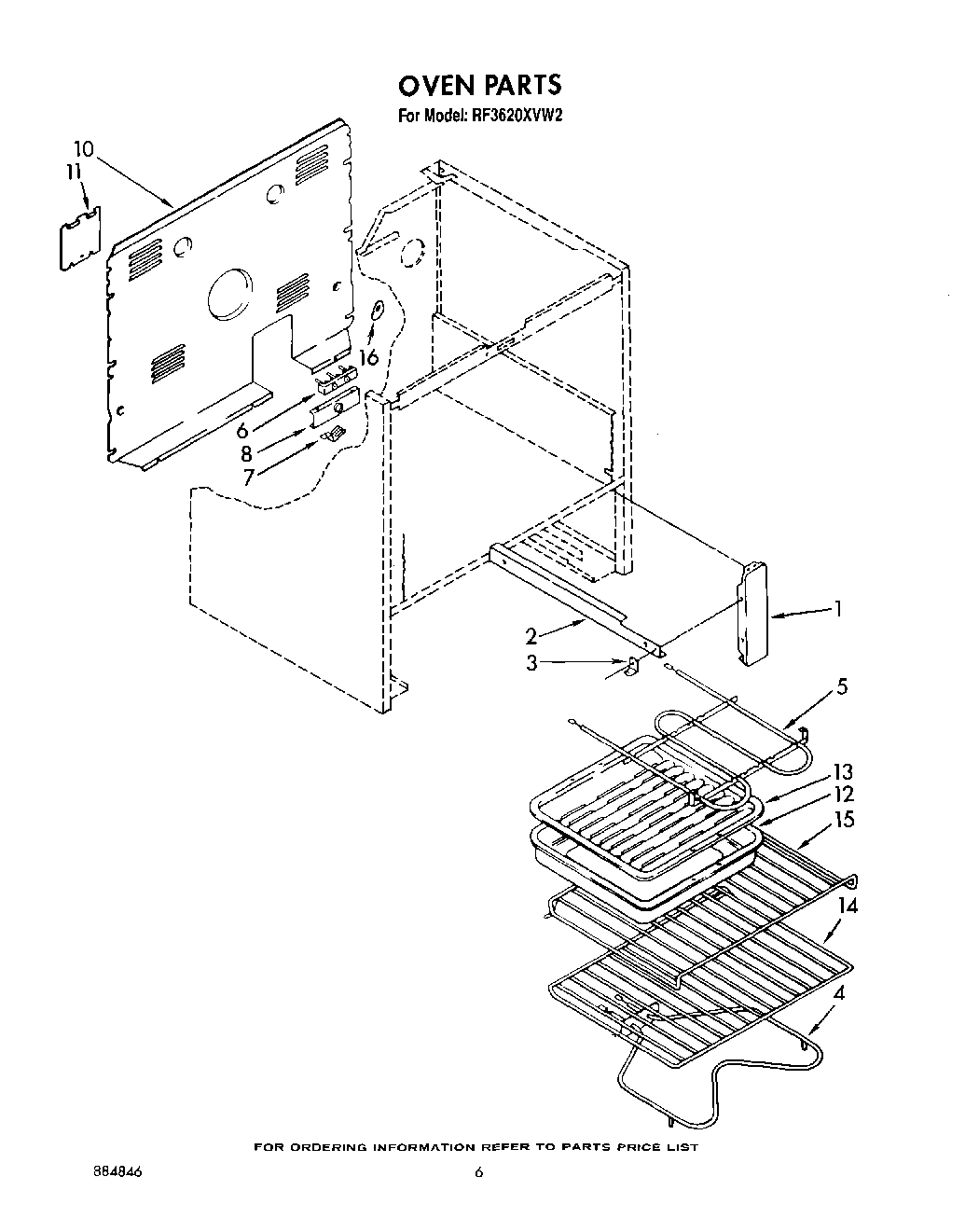

05 - OVEN, OPTIONAL

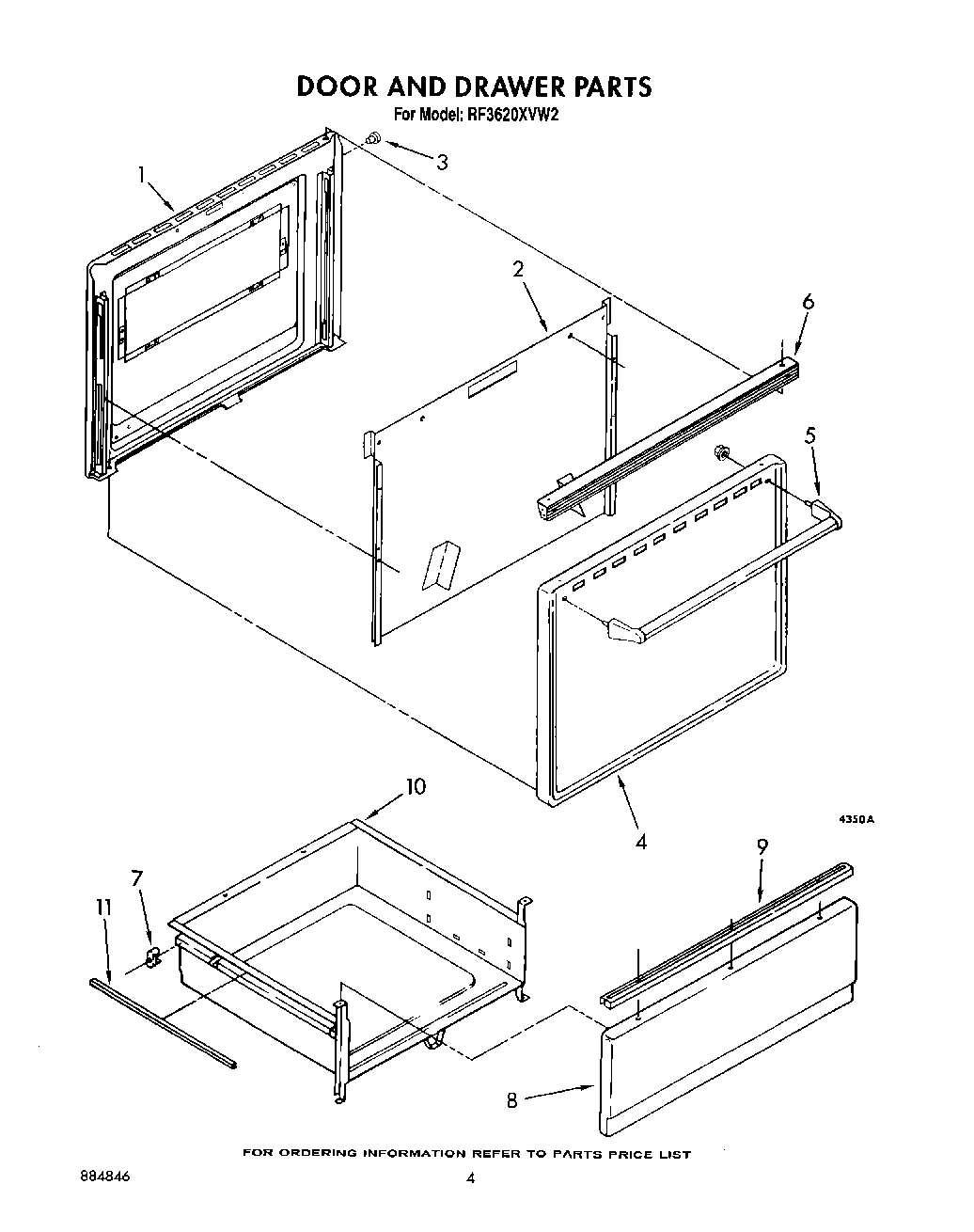

04 - DOOR AND DRAWER, LIT/OPTIONAL

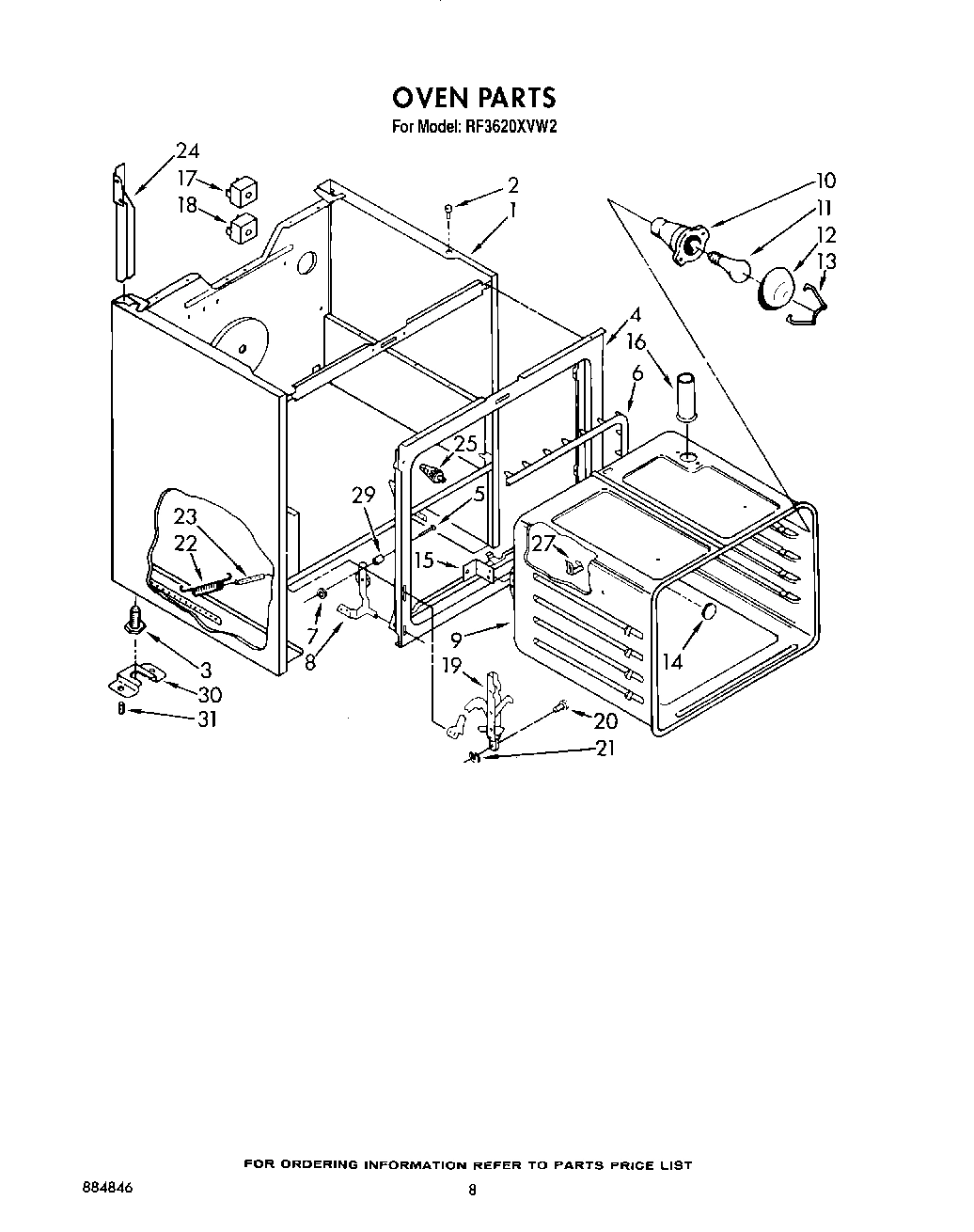

06 - OVEN (CONTINUED)

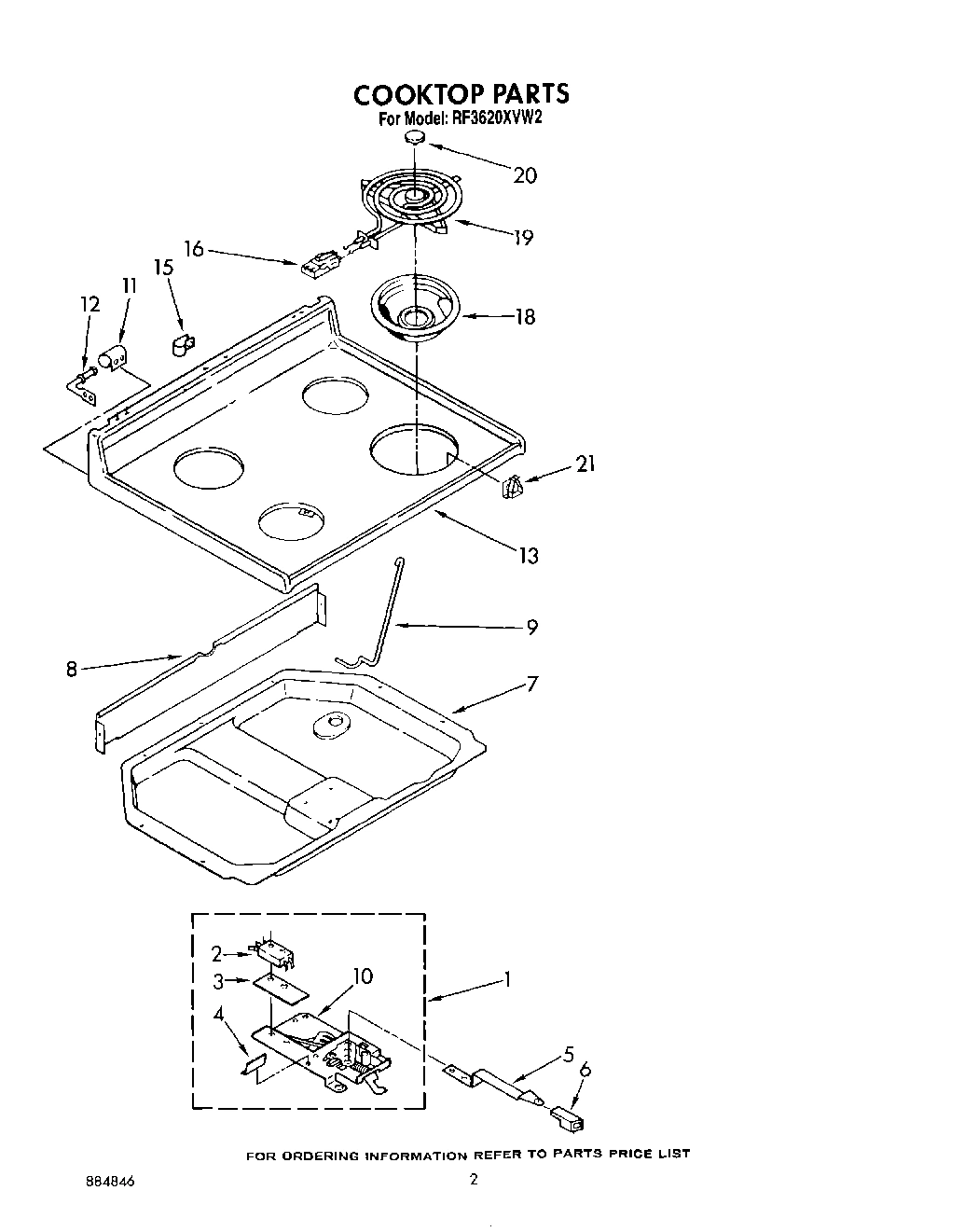

02 - COOKTOP

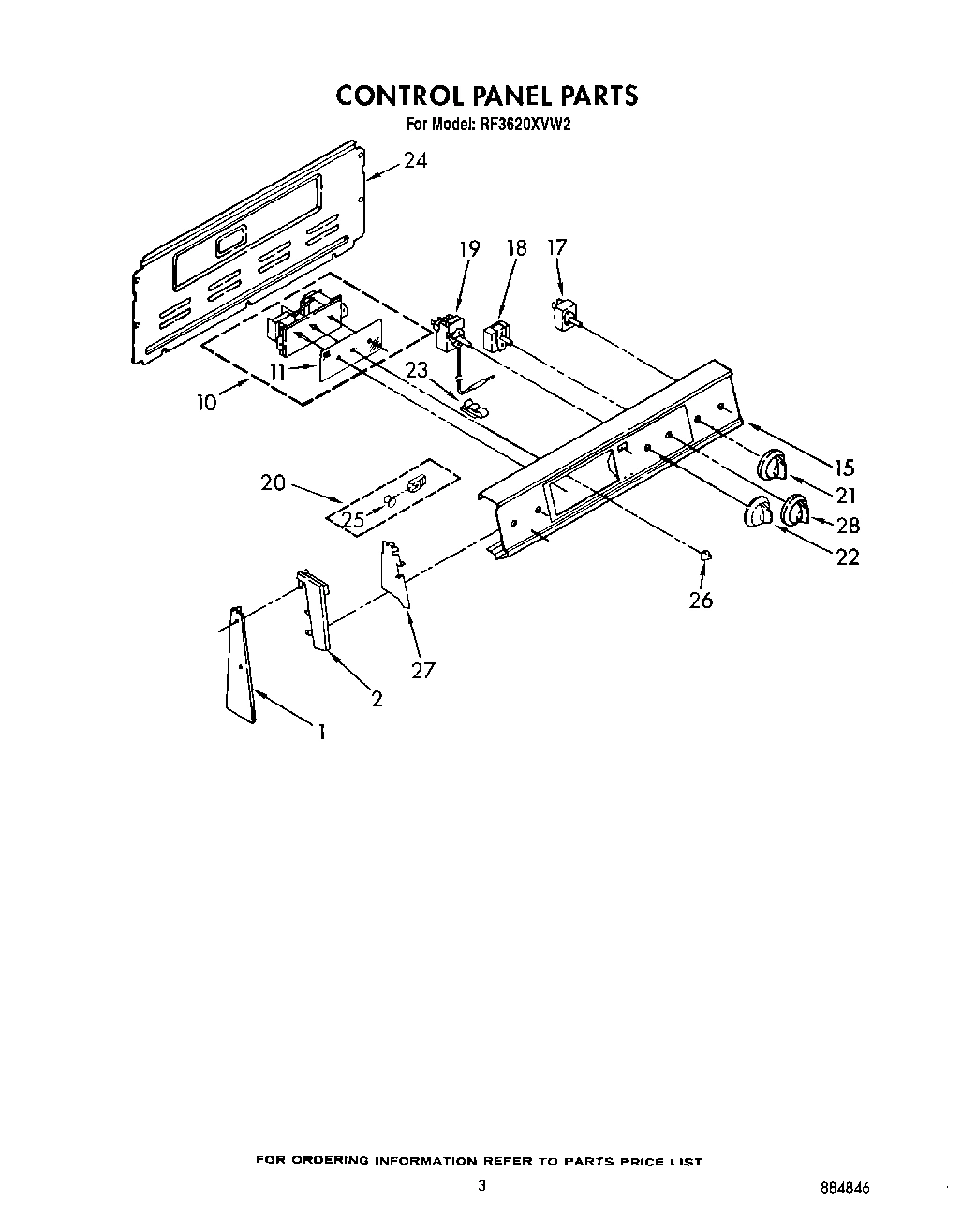

03 - CONTROL PANEL

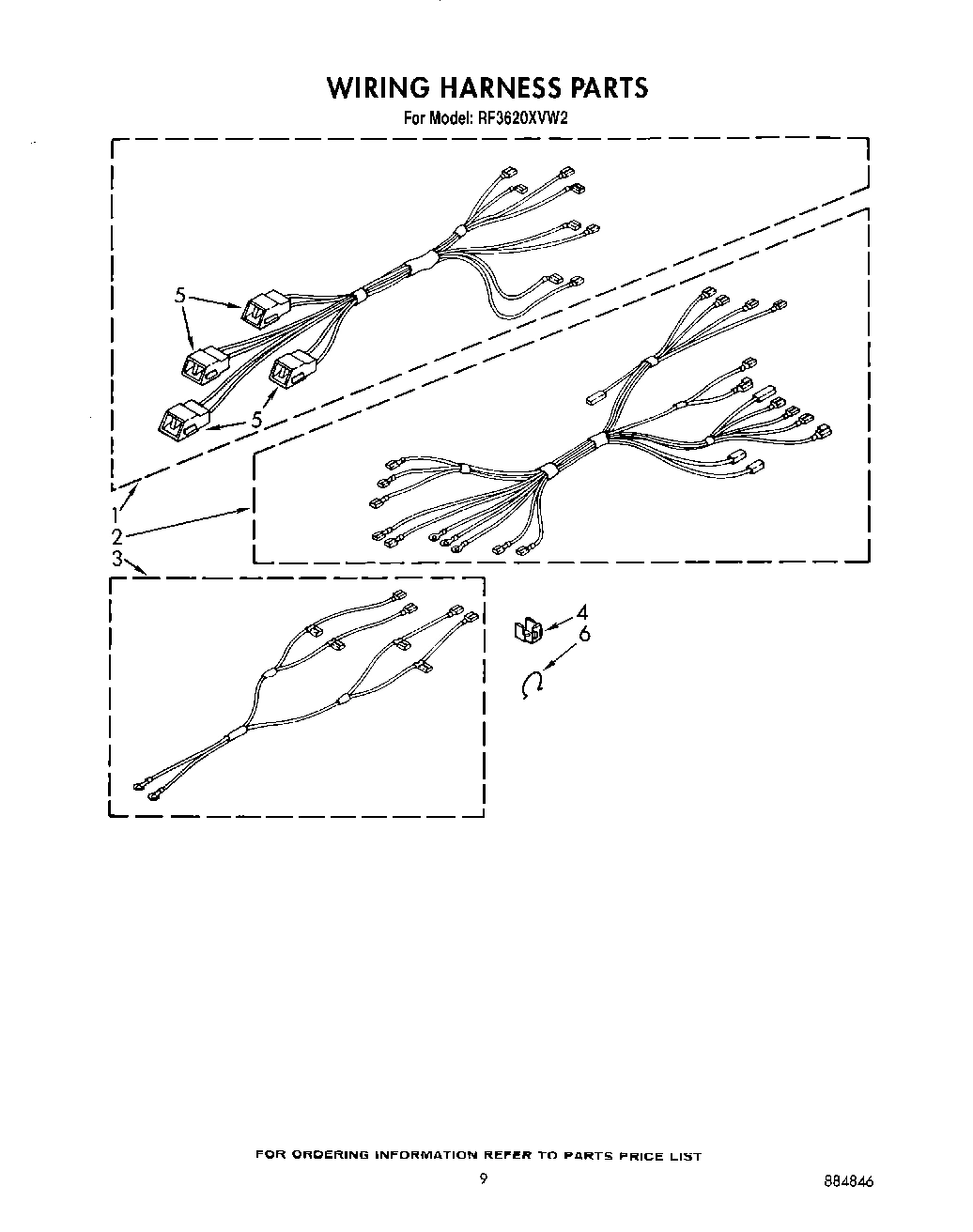

07 - WIRING HARNESS
Common parts from model Whirlpool RF3620XVN2
Installation Instructions WPL LIT3148614 Contact Us For Availability
Wiring Diagram WPL LIT3148766 Contact Us For Availability
Book, Cooking WPL LIT3149507 Contact Us For Availability
Guide, Use & Care WPL LIT3149915 Contact Us For Availability
List, Parts WPL LIT884846 Contact Us For Availability
1
Liner, Door WPL 3172219 Contact Us For Availability
1
Main Chassis (White) WPL 330086 Contact Us For Availability
1
Main Chassis (Almond) WPL 330090 Contact Us For Availability
1
Latch & Switch Assembly WPL 3171148 Contact Us For Availability
1
End Trim L.H. WPL 313190 Contact Us For Availability
1
End Trim R.H. WPL 313191 Contact Us For Availability
1
Harness, Wire (Suface Units) WPL 3149881 Contact Us For Availability
2
Screw (4) WPL 3148443 Contact Us For Availability
2
Retainer, Insulation WPL 3148160 Contact Us For Availability
2
Safety Switch WPL 308185 Contact Us For Availability
2
Screw (2) WPL 98106 Contact Us For Availability
2
Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability
2
End Cap R.H. WPL 313230 Contact Us For Availability
2
End Cap L.H. WPL 313231 Contact Us For Availability
2
Harness, Wire (Oven) WPL 3148778 Contact Us For Availability
3
Bumper, Door (4) WPL 3148182 Contact Us For Availability
3
Insulator, Switch WPL 309245 Contact Us For Availability
3
Harness, Wire (Supply) WPL 313147 Contact Us For Availability
3
Harness, Wire (Oven Light) WPL 313154 Contact Us For Availability
3
Harness, Wire (Lock Switch) WPL 3148699 Contact Us For Availability
3
Harness, Wire (Latch & Switch) WPL 3171162 Contact Us For Availability
4
Panel, Door (White) WPL 3148206 Contact Us For Availability
4
Panel, Door (Almond) WPL 3148210 Contact Us For Availability
4
Frame, Front WPL 3172194 Contact Us For Availability
4
Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability
4
Shield, Latch Terminal WPL 313035 Contact Us For Availability
4
Adapter, Terminal WPL 3147832 Contact Us For Availability
5
Handle, Door WPL 311563 Contact Us For Availability
5
Pin, Hinge WPL 307985 Contact Us For Availability
5
Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability
5
Handle, Latch WPL 3147065 Contact Us For Availability
6
Knob, Latch WPL 3148684 Contact Us For Availability
6
Pushnut (2) WPL 3148181 Contact Us For Availability
6
Frame, Door Top WPL 3148188 Contact Us For Availability
6
Seal, Door WPL 3148284 Contact Us For Availability
7
Glide, Rear (2) WPL 307980 Contact Us For Availability
7
Pushnut WPL 308306 Contact Us For Availability
7
Box, Burner WPL 3150186 Contact Us For Availability
8
Panel Drawer (White) WPL 307935 Contact Us For Availability
8
Panel, Drawer (Almond) WPL 307939 Contact Us For Availability
8
Hinge (R.H.) WPL 327890 Contact Us For Availability
8
Hinge (L.H.) WPL 327891 Contact Us For Availability
8
Shield, Wiring WPL 307973 Contact Us For Availability
9
Handle, Drawer WPL 313337 Contact Us For Availability
9
Screw (3) WPL 311056 Contact Us For Availability
9
Oven (30`` Pyro) WPL 3172456 Contact Us For Availability
9
Rod, Cooktop WPL 3148659 Contact Us For Availability
10
Drawer, Utility WPL 327887 Contact Us For Availability
10
(Alt.) WPL 307856 Contact Us For Availability
10
Screw, 10-12 x 7/8 (2) WPL 308043 Contact Us For Availability
10
(Alt.) WPL 310208 Contact Us For Availability
10
Socket, Lamp WPL 660556 Contact Us For Availability
10
Timer, Auto WPL 3149834 Contact Us For Availability
11
Protector, Drawer (2) WPL 309329 Contact Us For Availability
11
Bracket (2) WPL 307965 Contact Us For Availability
11
Glass, Timer WPL 313513 Contact Us For Availability
12
Cover, Light WPL 308039 Contact Us For Availability
12
Pin, Cooktop (2) WPL 307966 Contact Us For Availability
13
Retainer, Light WPL 308038 Contact Us For Availability
13
Cooktop (White) WPL 3170989 Contact Us For Availability
13
Cooktop (Almond) WPL 3170990 Contact Us For Availability
14
Plug Button WPL 257314 Contact Us For Availability
15
Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability
15
Screw 8-18 x 5/8 (4) WPL 312604 Contact Us For Availability
15
Panel, Control WPL 3148835 Contact Us For Availability
16
FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability
16
WPL 799344 WPL 799344 Contact Us For Availability
16
Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability
16
Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability
16
Wire, Yellow 14 Ga. 200~c WPL 242832 Contact Us For Availability
16
Rotisserie Kit (RCK 81) WPL 242985 Contact Us For Availability
16
WPL 261582 WPL 261582 Contact Us For Availability
16
WPL 261886 WPL 261886 Contact Us For Availability
16
WPL 261887 WPL 261887 Contact Us For Availability
16
WPL 261888 WPL 261888 Contact Us For Availability
16
WPL 261889 WPL 261889 Contact Us For Availability
16
WPL 261890 WPL 261890 Contact Us For Availability
16
WPL 261891 WPL 261891 Contact Us For Availability
16
WPL 285365 WPL 285365 Contact Us For Availability
16
WPL 285366 WPL 285366 Contact Us For Availability
16
WPL 285367 WPL 285367 Contact Us For Availability
16
WPL 285368 WPL 285368 Contact Us For Availability
16
Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability
16
WPL 310433 WPL 310433 Contact Us For Availability
16
WPL 311982 WPL 311982 Contact Us For Availability
16
WPL 72108 WPL 72108 Contact Us For Availability
16
WPL 72112 WPL 72112 Contact Us For Availability
16
WPL 799832 WPL 799832 Contact Us For Availability
16
WPL 978883 WPL 978883 Contact Us For Availability
16
Vent, Oven WPL 307961 Contact Us For Availability
17
Switch, Broil WPL 314209 Contact Us For Availability
18
Switch, Bake WPL 314210 Contact Us For Availability
18
Switch, Selector (5 Position) WPL 312288 Contact Us For Availability
19
Thermostat, Oven Pyro WPL 3148933 Contact Us For Availability
19
Channel, Arm (2) WPL 329710 Contact Us For Availability
20
Light, Indicator (Oven On) WPL 314031 Contact Us For Availability
20
Light, Indicator (Surface Unit (2) (Includes WPL 313102 Contact Us For Availability
20
Medallion (4) WPL 309195 Contact Us For Availability
20
Light, Indicator (Locked) WPL 3148719 Contact Us For Availability
21
Ring, Retainer (2) WPL 307594 Contact Us For Availability
21
Nut (4) WPL 814102 Contact Us For Availability
22
Spring, Oven Door (2) WPL 308127 Contact Us For Availability
22
Knob, Control (Thermostat) WPL 3149988 Contact Us For Availability
23
Tube Clip WPL 313570 Contact Us For Availability
24
Support, L.H. Channel WPL 313196 Contact Us For Availability
24
Support, R.H. Channel WPL 313197 Contact Us For Availability
24
Rear Cover Control Panel WPL 313195 Contact Us For Availability
25
Switch, Door WPL 310345 Contact Us For Availability
25
Lens, Amber (5) WPL 313101 Contact Us For Availability
26
Spring, Knob WPL 313311 Contact Us For Availability
27
Shield, Glass (2) WPL 313608 Contact Us For Availability
28
Knob, Control WPL 3149986 Contact Us For Availability
29
Snubber, Door (2) WPL 309111 Contact Us For Availability
30
screw (2) WPL 3148604 Contact Us For Availability
31
Anchor, Plastic WPL 3148605 Contact Us For Availability
× ![]()
