Model Whirlpool RF3600XXN1 – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $14.99

350956 Whirlpool Spray Assembly In Stock WPL 350956 $29.99

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $27.29

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.99

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $15.74

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $15.99

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $15.74

WP72107 Whirlpool Touchup In Stock WPL WP72107 $14.61

WPW10208653 Whirlpool Insulation Backorder WPL WPW10208653 $56.69

FOIL, ALUMINUM OVEN (18`` X 25 ) WPL 241430 Contact Us For Availability

WPL 799344 WPL 799344 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL ARI122627A WPL ARI122627A Contact Us For Availability

WPL LIT3147395 WPL LIT3147395 Contact Us For Availability

WPL LIT3150293 WPL LIT3150293 Contact Us For Availability

WPL LIT3150657 WPL LIT3150657 Contact Us For Availability

WPL LIT884954 WPL LIT884954 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Latch & Switch Assembly WPL 3171153 Contact Us For Availability

1

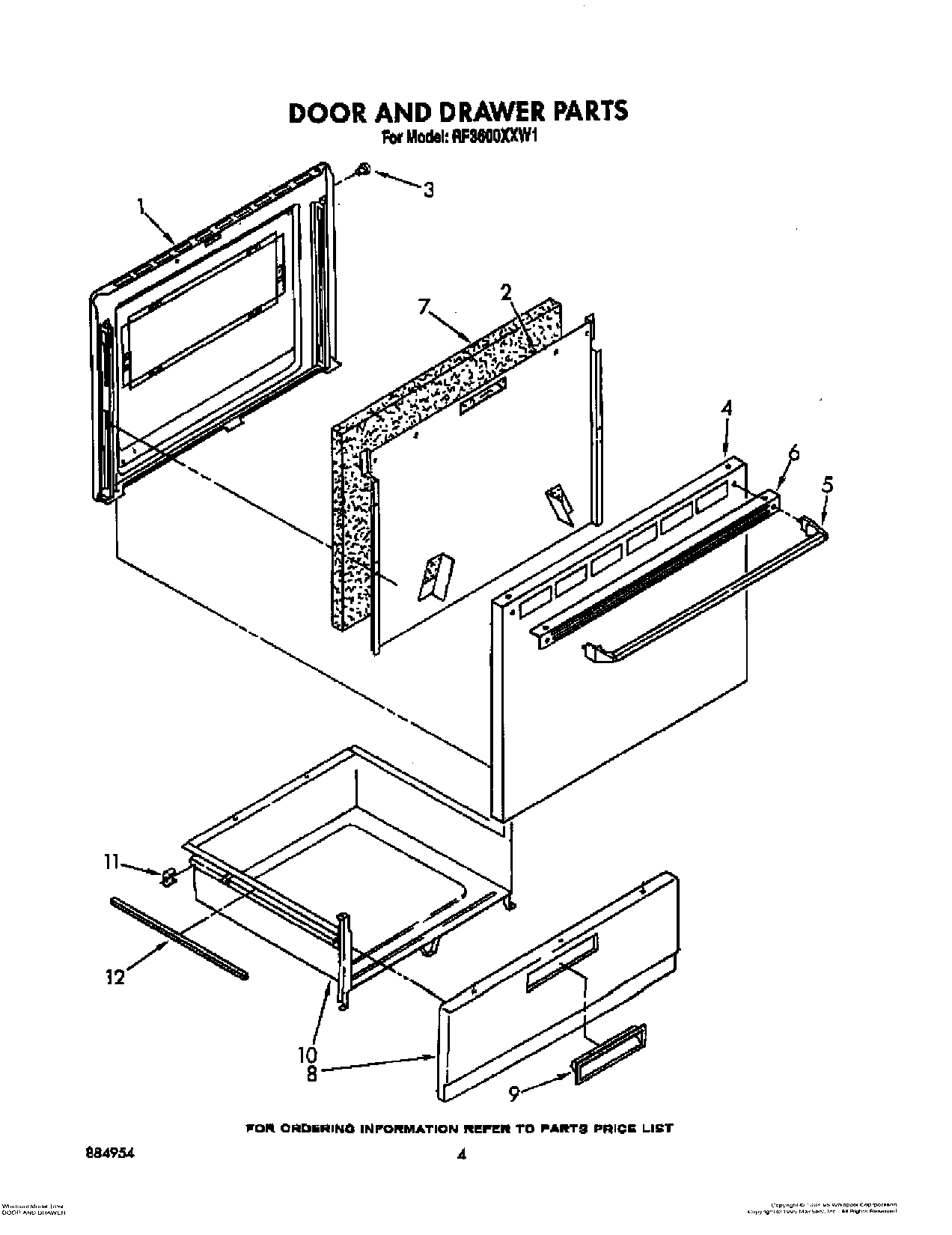

Liner, Door WPL 3172219 Contact Us For Availability

1

End Trim L.H. WPL 313190 Contact Us For Availability

1

End Trim R.H. WPL 313191 Contact Us For Availability

1

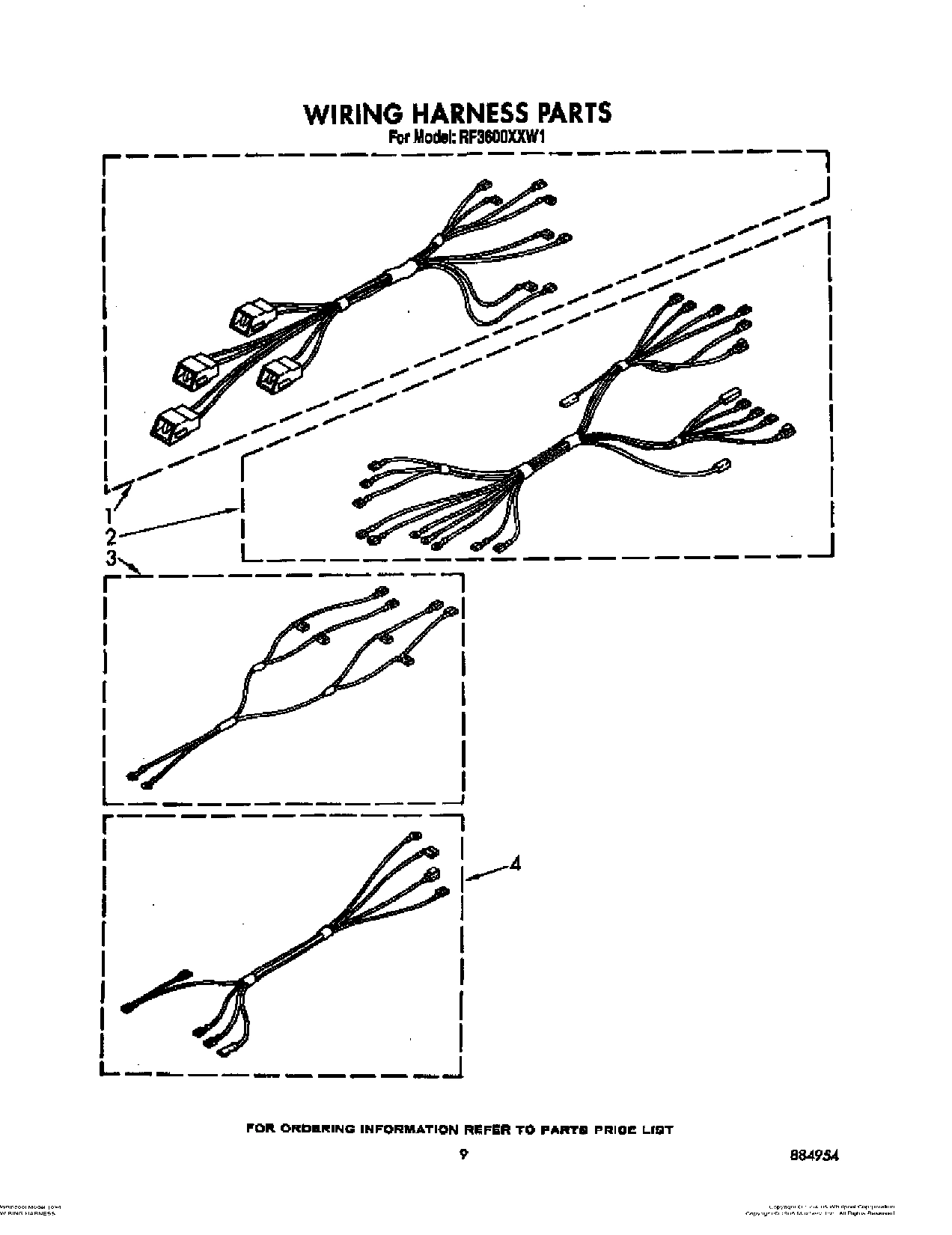

Harness, Wire (Surface unit) WPL 3149881 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $66.43

2

Rail, RH (Includes No.3) WPL 3149255 Contact Us For Availability

2

Rail, LH (Includes No.3) WPL 3149256 Contact Us For Availability

2

Safety Switch WPL 308185 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

2

Screw (4) WPL 3148443 Contact Us For Availability

2

Retainer, Insulation WPL 3148160 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 3181677 Contact Us For Availability

2

End Cap L.H. WPL 3181678 Contact Us For Availability

2

Harness, Wire (Oven) WPL 3150658 Contact Us For Availability

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $4.98

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

3

Insulator, Switch WPL 309245 Contact Us For Availability

3

Bumper, Door (4) WPL 3148182 Contact Us For Availability

3

Harness, Wire (Supply) WPL 313147 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $26.99

4

Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability

4

Shield, Latch Terminal WPL 313035 Contact Us For Availability

4

Panel, Door (White) WPL 3148206 Contact Us For Availability

4

Panel, Door (Almond) WPL 3148210 Contact Us For Availability

4

Harness, Wire (Lock Switch) WPL 313550 Contact Us For Availability

4

Screw (2) WPL 311056 Contact Us For Availability

4

Screw (1) WPL 3150537 Contact Us For Availability

4

Frame, Front WPL 3172194 Contact Us For Availability

5

WP308499 Whirlpool Nut Backorder WPL WP308499 $4.82

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $110.99

5

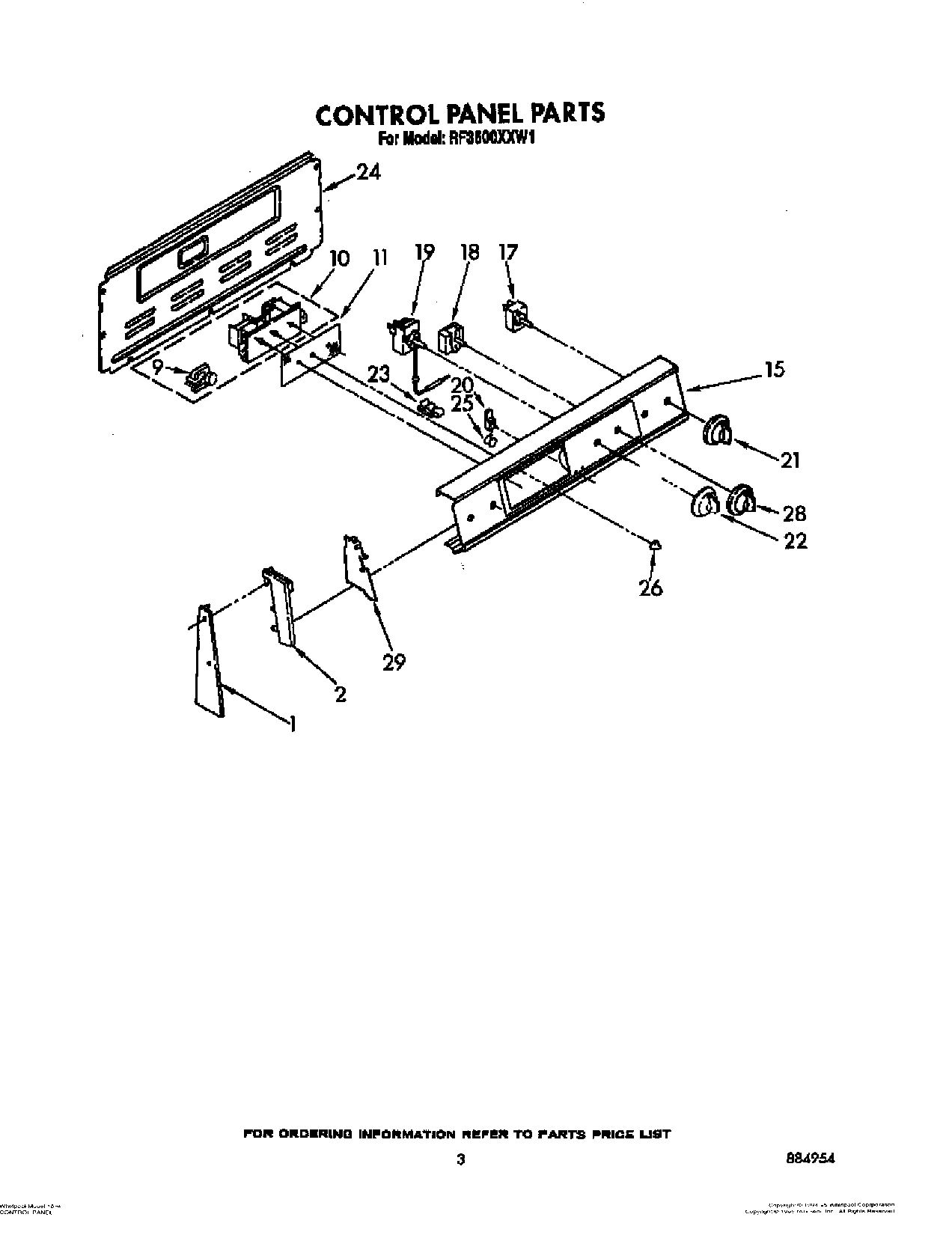

Door Handle WPL 311563 Contact Us For Availability

5

Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability

5

Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability

5

Handle, Latch WPL 3169081 Contact Us For Availability

5

Fastener (2) WPL 3148181 Contact Us For Availability

5

Pin, Hinge WPL 307985 Contact Us For Availability

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $4.82

6

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $4.70

6

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $14.85

6

Knob, Latch WPL 3148684 Contact Us For Availability

6

Screw (2) WPL 3149333 Contact Us For Availability

6

Screw, 10-16 x 1 (2) WPL 98884 Contact Us For Availability

6

Top, Door WPL 3148188 Contact Us For Availability

6

Seal, Door WPL 3148284 Contact Us For Availability

7

WP3390631 Whirlpool Screw In Stock WPL WP3390631 $4.99

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Box, Burner WPL 3150186 Contact Us For Availability

7

Insulation WPL 3147951 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

8

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $6.83

8

Bracket, Service WPL 3150190 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Front Drawer Panel (White) WPL 3150676 Contact Us For Availability

8

Front Drawer Panel (Almond) WPL 3150677 Contact Us For Availability

8

Hinge (R.H.) WPL 327890 Contact Us For Availability

8

Hinge (L.H.) WPL 327891 Contact Us For Availability

9

340184 Whirlpool Screw Backorder WPL 340184 $8.89

9

Block, Balance WPL 312804 Contact Us For Availability

9

Rod, Cooktop WPL 3148659 Contact Us For Availability

9

Handle, Snap-In (White) WPL 3150612 Contact Us For Availability

9

Handle, Snap-In (Almond) WPL 3150613 Contact Us For Availability

9

Motor, Timer WPL 313512 Contact Us For Availability

9

Oven (30`` Pyro) WPL 3172458 Contact Us For Availability

10

Cover, Rear WPL 3148975 Contact Us For Availability

10

Drawer, Utility WPL 327887 Contact Us For Availability

10

Timer, Clock WPL 3150538 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

Bracket (2) WPL 307965 Contact Us For Availability

Glide, Rear (2) WPL 307980 Contact Us For Availability

Glass, Timer WPL 308441 Contact Us For Availability

12

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

12

Side Protector (2) WPL 309329 Contact Us For Availability

13

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $44.99

13

Cooktop (White) WPL 3170989 Contact Us For Availability

13

Cooktop (Almond) WPL 3170990 Contact Us For Availability

14

Rack, Oven (Straight) WPL 308173 Contact Us For Availability

14

Button, Plug WPL 308535 Contact Us For Availability

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $7.20

Control Panel (White) WPL 3150456 Contact Us For Availability

Control Panel (Almond) WPL 3150457 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $4.82

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Plate, Cover (2) WPL 311982 Contact Us For Availability

Vent, Oven WPL 307961 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $12.46

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $23.74

WP3148953 Whirlpool Range Infinite Switch In Stock WPL WP3148953 $56.64

WP3149404 Whirlpool Range Surface Element Swi In Stock WPL WP3149404 $59.99

Insulation, Wrapper WPL 3169093 Contact Us For Availability

Insulation, Oven BAck WPL 3169094 Contact Us For Availability

Switch, Broil WPL 314209 Contact Us For Availability

WPW10196405 Whirlpool 8" Chrome Drip Bowl In Stock WPL WPW10196405 $3.99

WPW10196406 Whirlpool 6" Chrome Drip Bowl In Stock WPL WPW10196406 $4.99

Switch, Selector (5 Position) WPL 3148419 Contact Us For Availability

screw WPL 314215 Contact Us For Availability

Switch, Bake WPL 314210 Contact Us For Availability

WP313808 Whirlpool Screw Backorder WPL WP313808 $4.82

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $45.62

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $54.56

Thermostat, Oven WPL 3148933 Contact Us For Availability

Channel, Arm (2) WPL 329710 Contact Us For Availability

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $7.82

Indicator Light (Oven On) WPL 314031 Contact Us For Availability

Medallion (4) WPL 309195 Contact Us For Availability

Indicator Light (Surface Unit On (Includes Il WPL 3150647 Contact Us For Availability

814103 Whirlpool Clip In Stock WPL 814103 $5.96

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $15.56

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $4.82

Nut (4) WPL 814102 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

Spring, Oven Door (2) WPL 308127 Contact Us For Availability

22

Knob, Thermostat WPL 3149988 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $7.91

23

Tube Clip WPL 313570 Contact Us For Availability

WP681414 Whirlpool Screw In Stock WPL WP681414 $3.91

Rear Cover Control Panel WPL 313195 Contact Us For Availability

Support, L.H. Channel WPL 313196 Contact Us For Availability

Support, R.H. Channel WPL 313197 Contact Us For Availability

25

Lens, Amber (2) WPL 313101 Contact Us For Availability

26

WP3169181 Whirlpool Knob Backorder WPL WP3169181 $11.84

26

Spring, Knob WPL 313311 Contact Us For Availability

27

98005642 Whirlpool Clip Backorder WPL 98005642 $56.92

28

Knob, Selector WPL 3149986 Contact Us For Availability

28

Snubber, Door (2) WPL 309111 Contact Us For Availability

29

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $6.51

29

Shield (2) WPL 313608 Contact Us For Availability
